- High-concerned chemical: None
- RAID Supported: No
- Processor compatibility: AMD Others
- Usage Scenario: Enthusiast & Overclocking,Audio & Video,Office
- Back I/O Ports: 1x RJ45
- Support USB Type: USB 2.0,USB 3.0
- Onboard LAN: 1x RJ45
- Audio Channels: 5.1
- Supports M.2 SSD: 2280
- Number of M.2: 1
- Storage Interface Type: SATA
- Number of PCI: 2
- Number of PCIe x 1: 1
- Number of PCIe x 8: 0
- Number of PCIe x 16: 1
- PCI - E standards: PCI-E 3.0
- Number Of Memory Slots: 2
- Support Memory Type: DDR4
- Quality Certification: ce
- Memory channel: Double
- Package: Yes
- Maximum Ram Capacity: 64 GB
- Chipset Manufacturer: AMD
- Battery Included: No
- With CPU: No
- Chipset: AMD B450
- Application: Desktop
- Socket Type: AM4
- Brand Name: ZSUS
- Special Features: None
- Origin: Mainland China

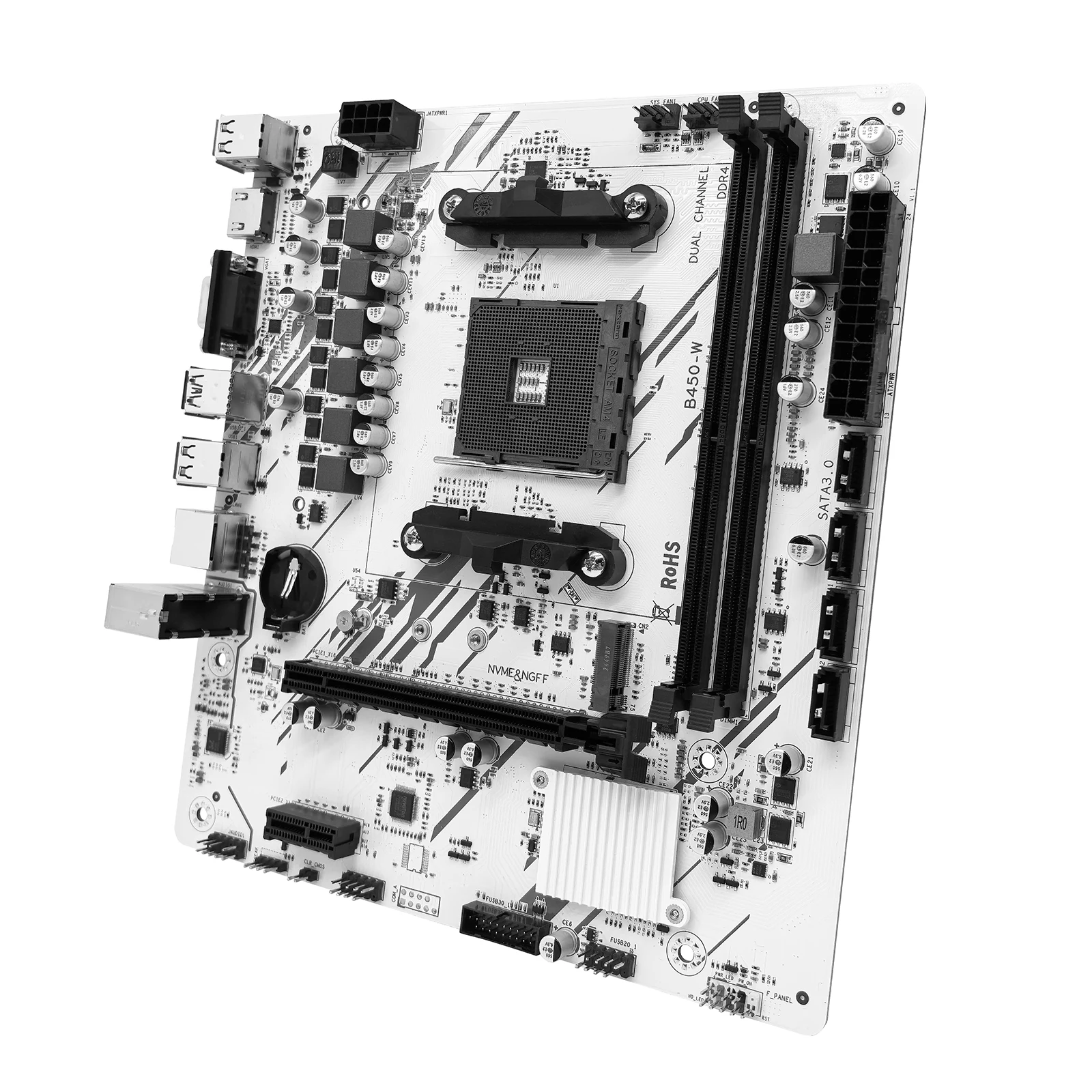

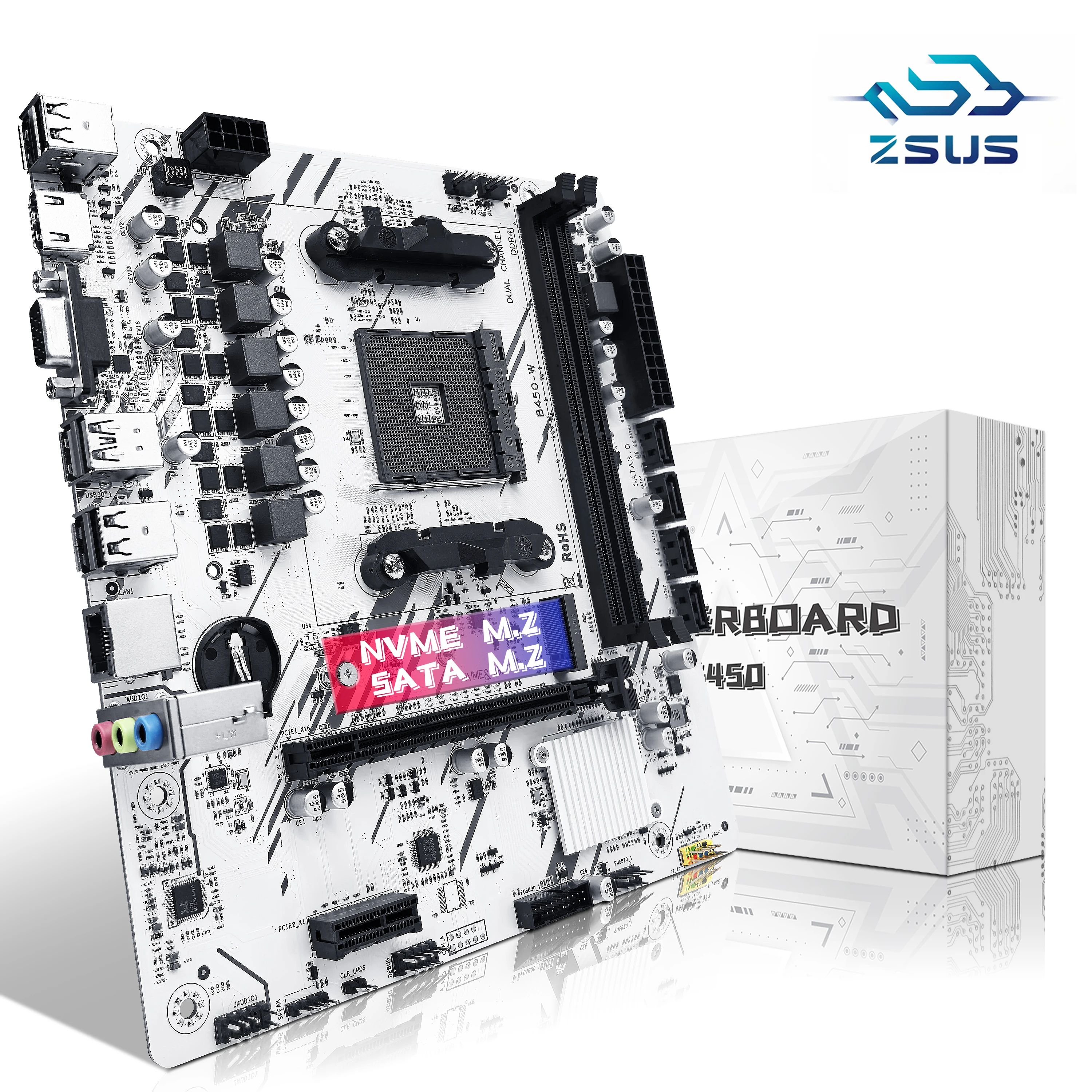

Motherboard information:
>>Brand: ZSUS.
>>Motherboard model: B450-W
>>Processor: Supports AMD AM4-pin series processors (supports Ryzen 1-5 generations).
>> Chipset: B450 chipset.
>>Memory
Technology: Dual Channel DDR4. Support 2133/2666/3000/3200/3600MHz.
Maximum capacity 64GB (32G x 2).
Memory slot: 2*288 PIN DDR4.
Supported memory types: Only DDR4 desktop memory is supported.
(Note: Please use Samsung, Kingston, Sandee, Micron, Hynix and other international brands. Other brands may not be compatible.)
Package contains:
#Main products: ZSUS B450 motherboard*1 piece;

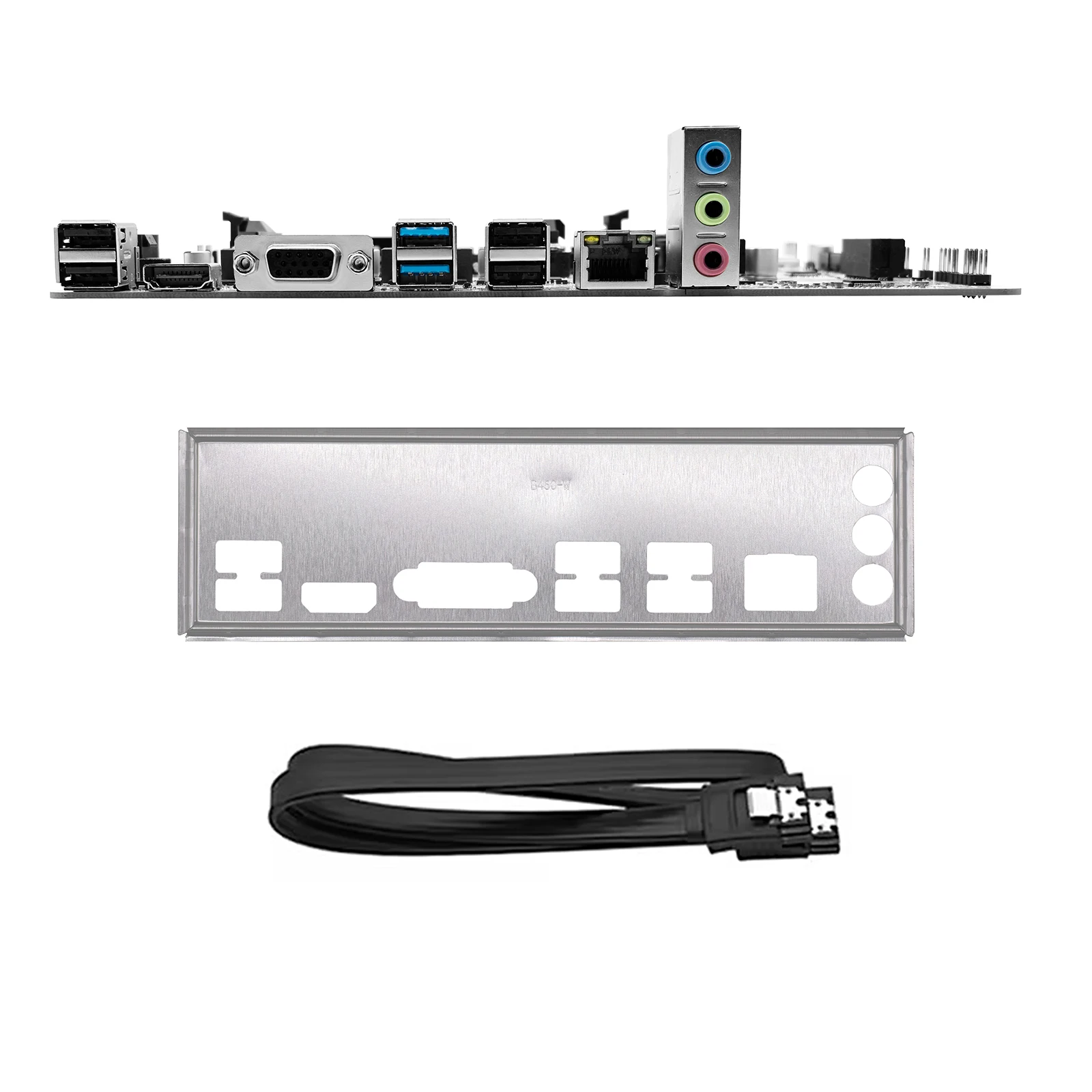

##Bonus accessories: I/O shield, SATA cable.
### They are all packaged after manual testing before sending. If there are any gifts missing, please understand!
Rear I/O
Display interface: supports VGA & HDMI display.
USB interface: 2 USB 2.0; 2 USB3.0.
Ethernet: Gigabit network adapter port.
Audio: 1 (mic in, line out, line in).
>> Internal connector
SATA interface: 4 (SATA3.0).
M.2: 1 (NVME/SATA automatic recognition switching).
PCIe: 1 X16 3.0 PCIe and 1 X1 PCIe.
>> Dimensions
Size: 220mm*200mm.
Motherboard weight (including packaging): about 0.8 kg.
