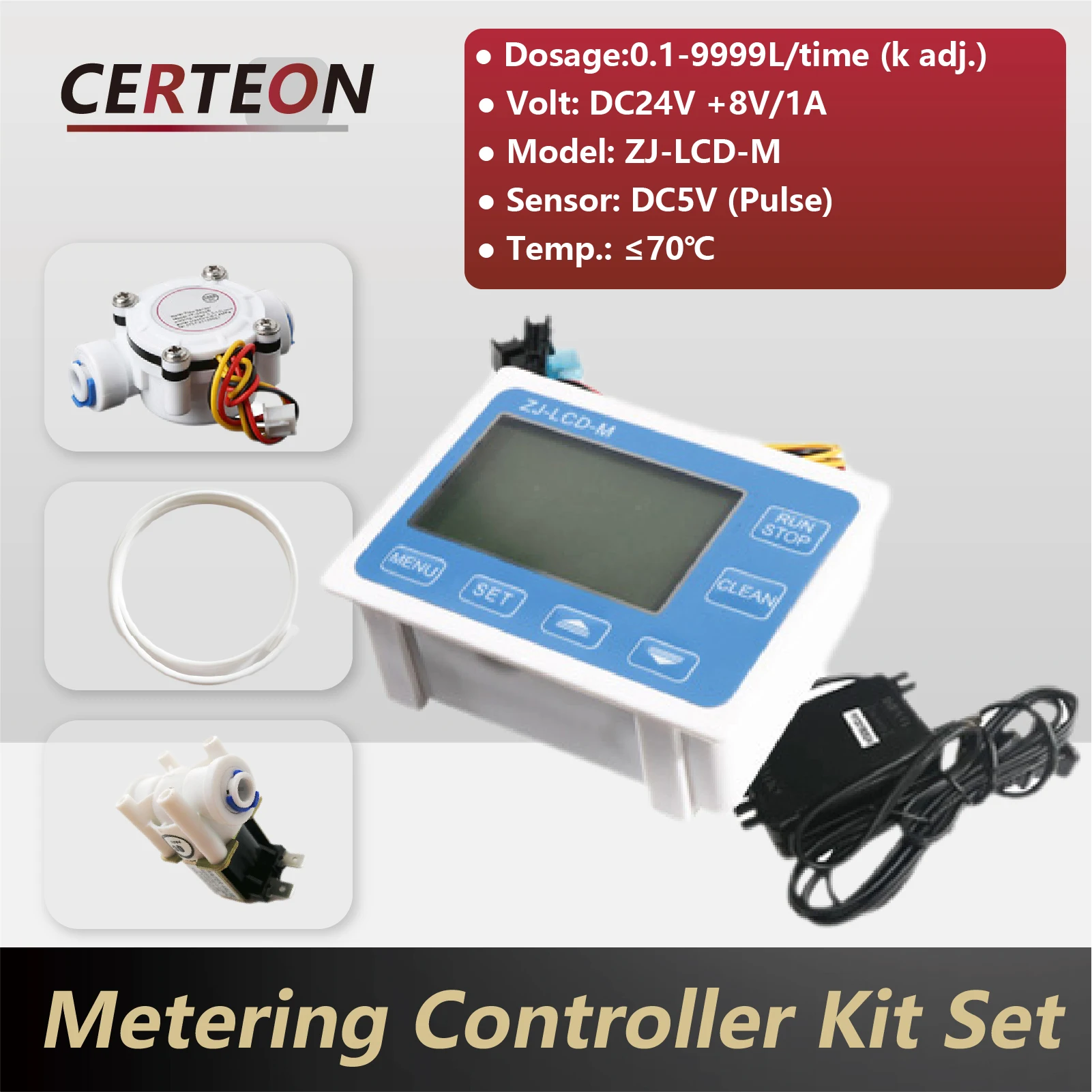

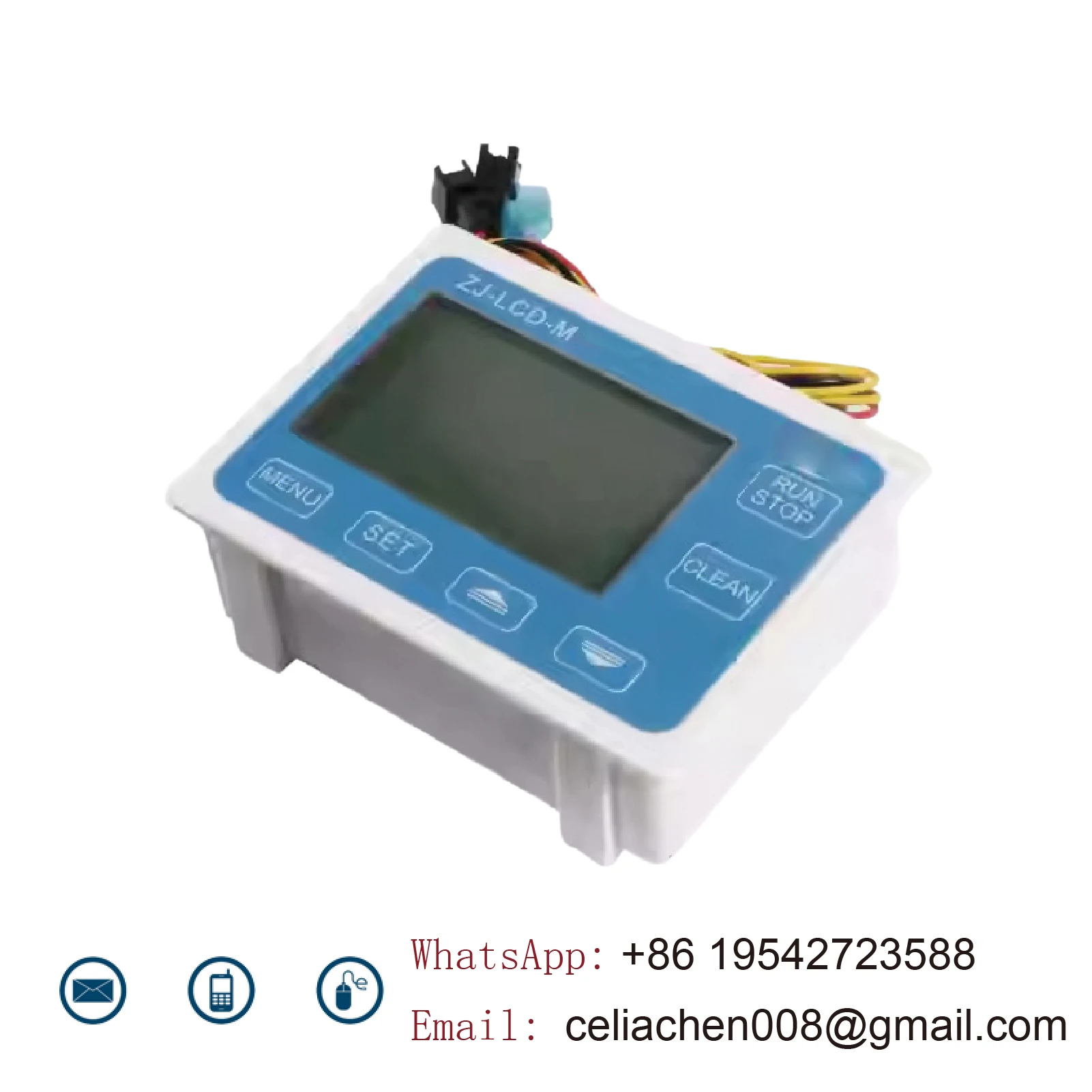

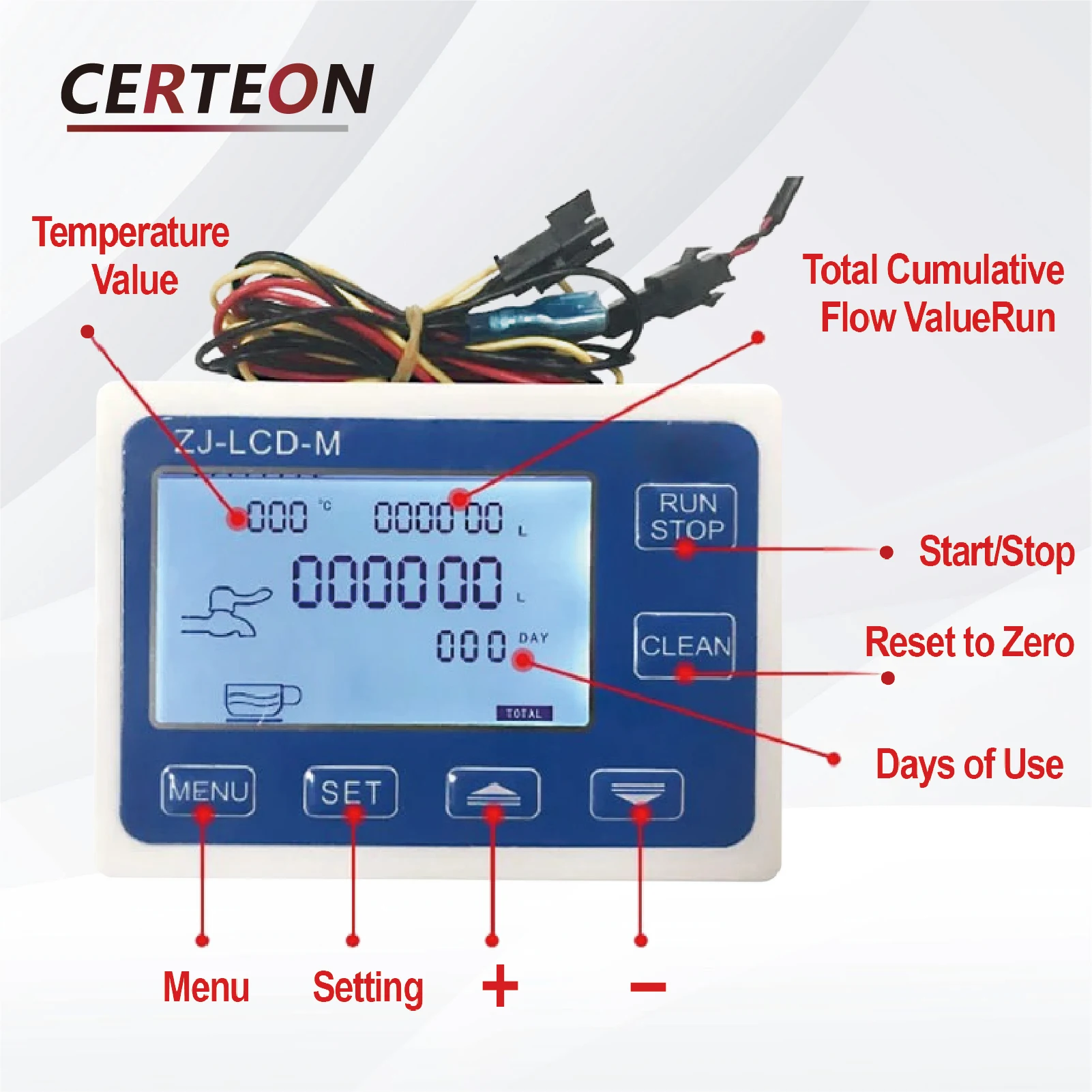

ZJ-LCD-M Digital Flow Meter Filling Controller LCD Display G1/4 G1/2 G1 Thread Dosing Machine for Industrial Liquid

1.NOTE

Water Pressure Required:System works only with water pressure between 0.5–8 kg/cm² (7–114 psi). It will not functionin zero-pressure environments.

Flow Meter Compatibility: Please confirm the pipe diameter before purchase. Different diameters require different K-factor settings on the controller for accurate measurement.

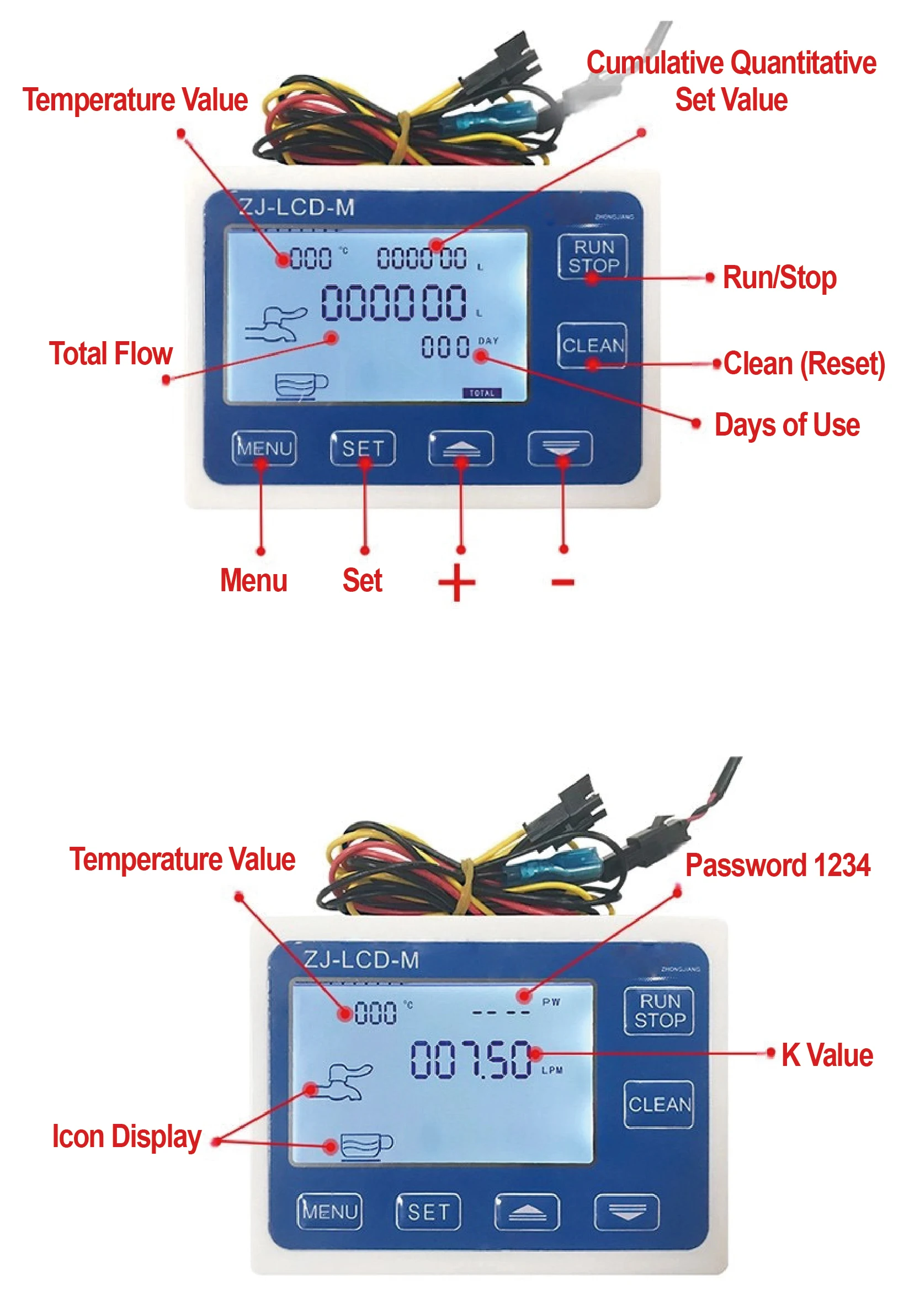

Calibration: K-factor is user-adjustable. You can fine-tune it to improve flow accuracy.

Default Language: The screen displays in English only.

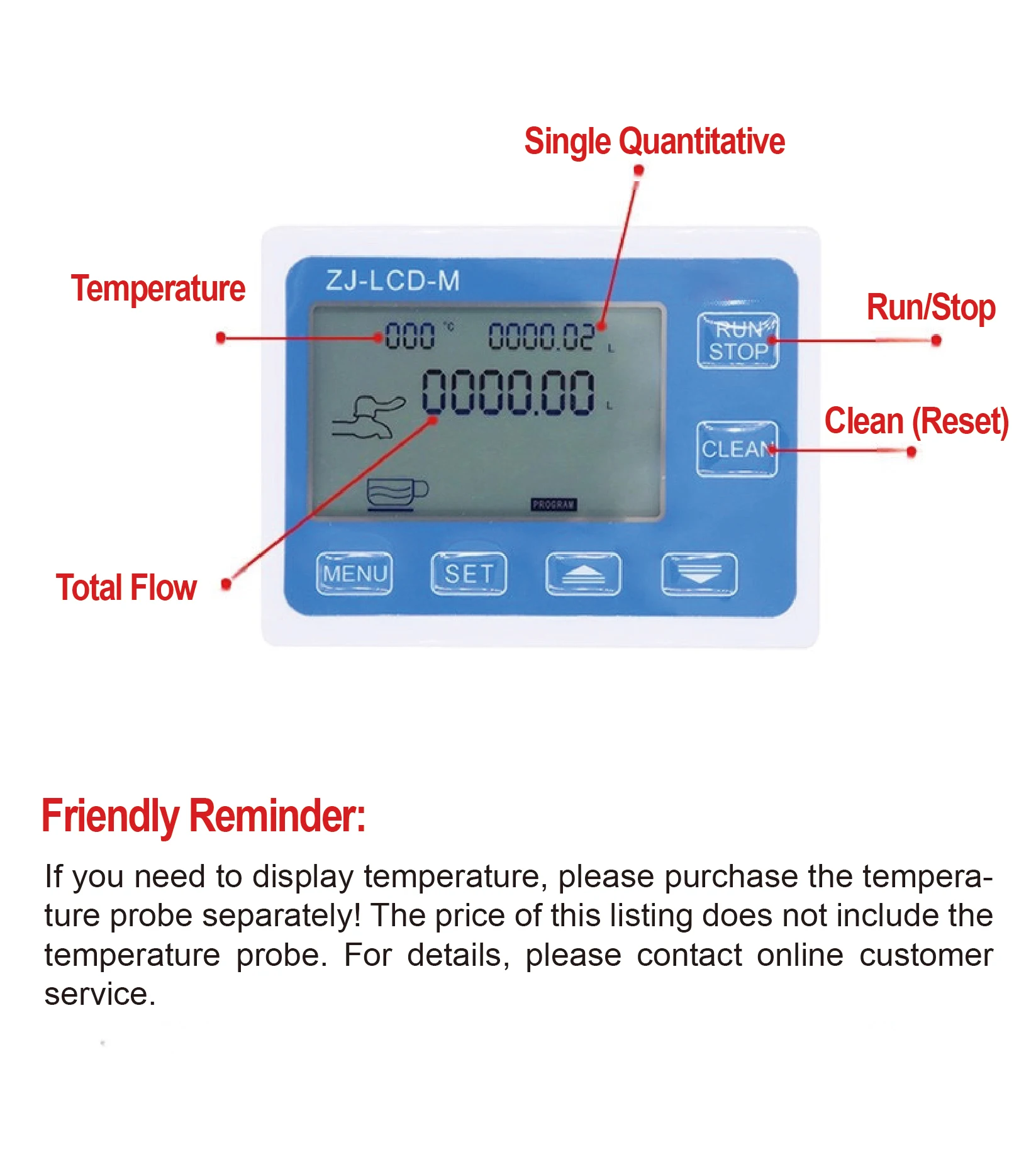

Temperature Display: If you need temperature readings, a temperature probe must be purchased separately.

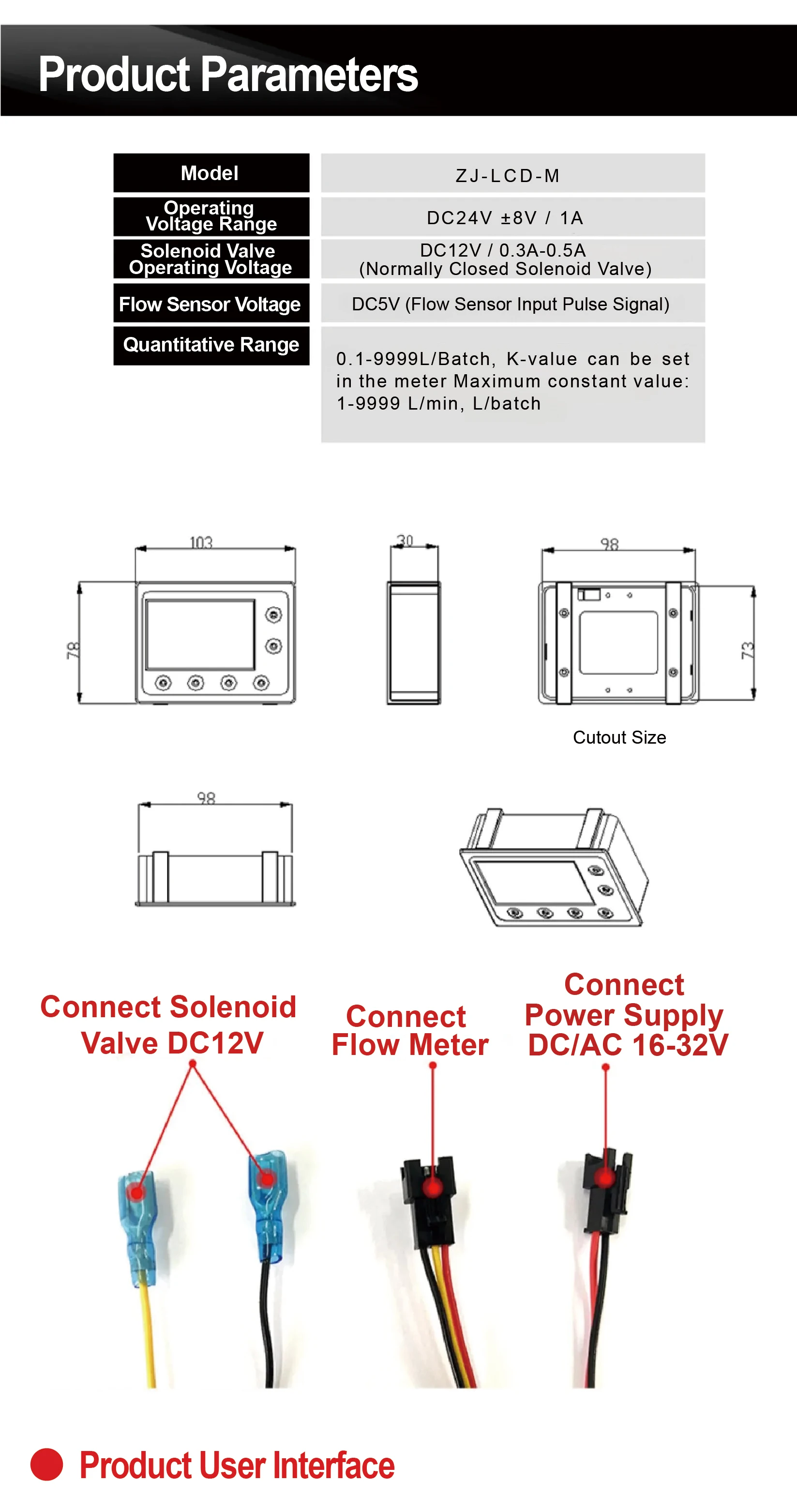

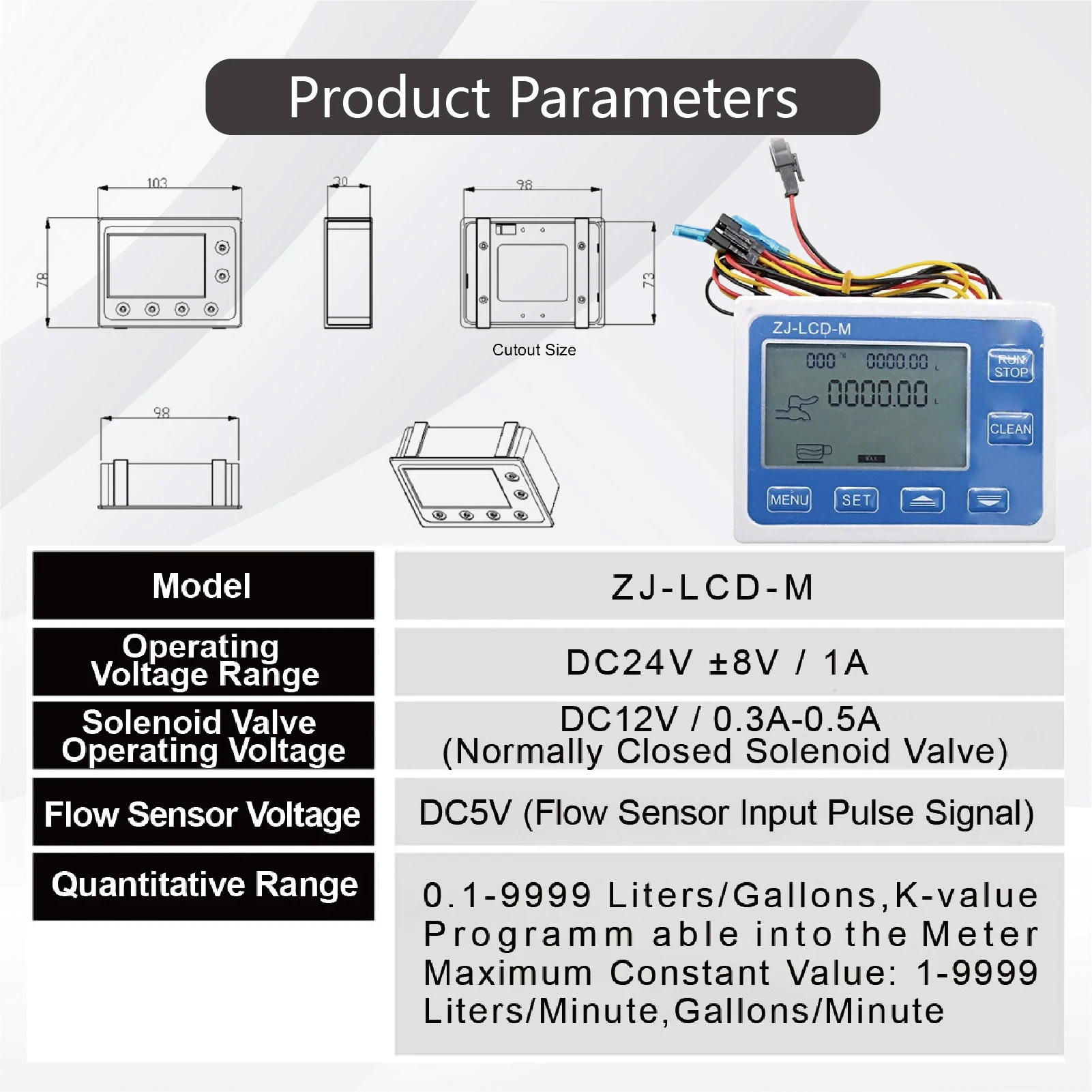

2.Parameters

3.Features

High-Precision Metering
Custom K-values ensure accurate flow measurement for various sensor types.

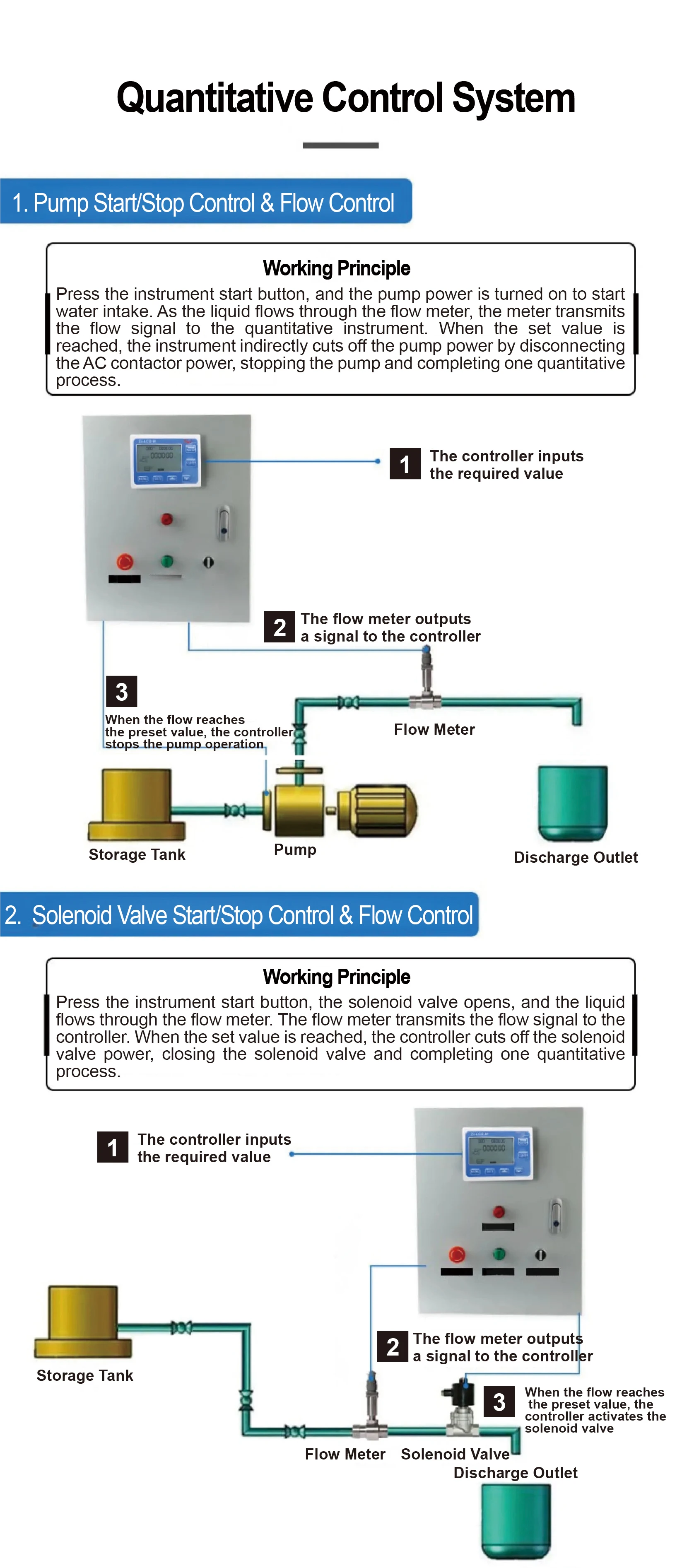

Multi-Mode Control

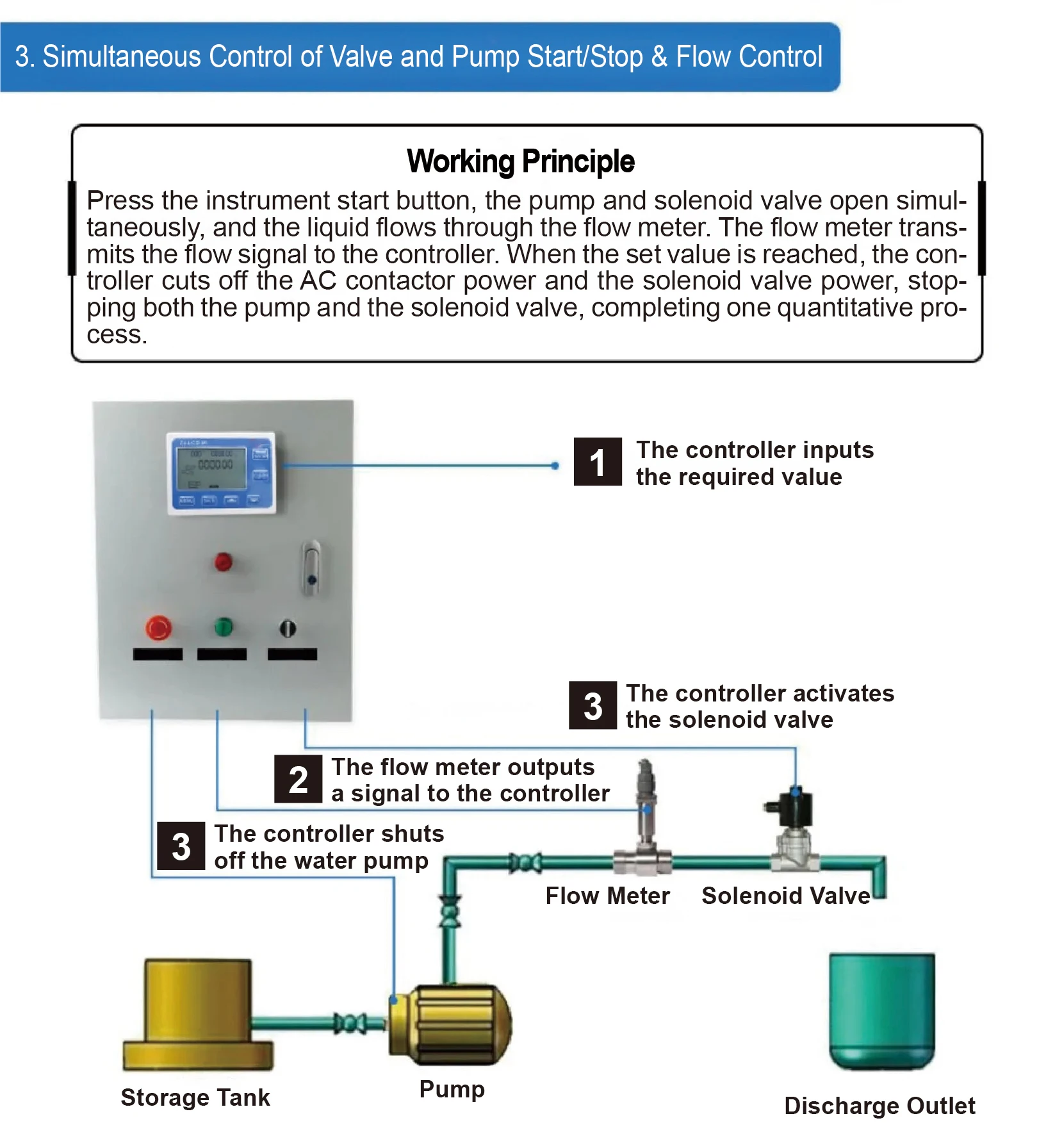

Supports control of pump only, valve only, or both simultaneously.

Broad Sensor Compatibility

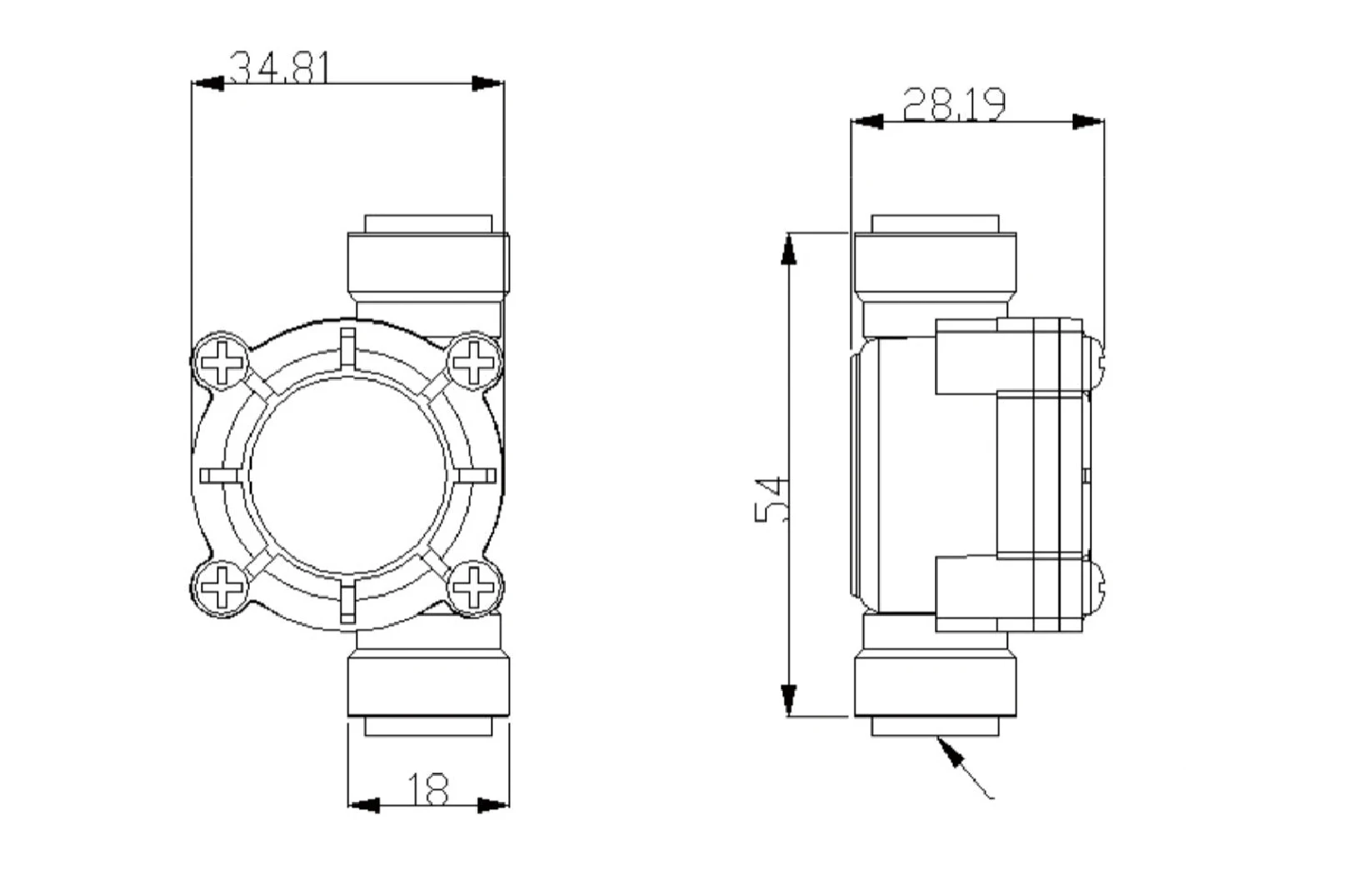

Supports different flow sensors with various pipe sizes and signal characteristics.

Optional Temperature Display
Temperature function requires an external probe (sold separately).

Wide Voltage Range

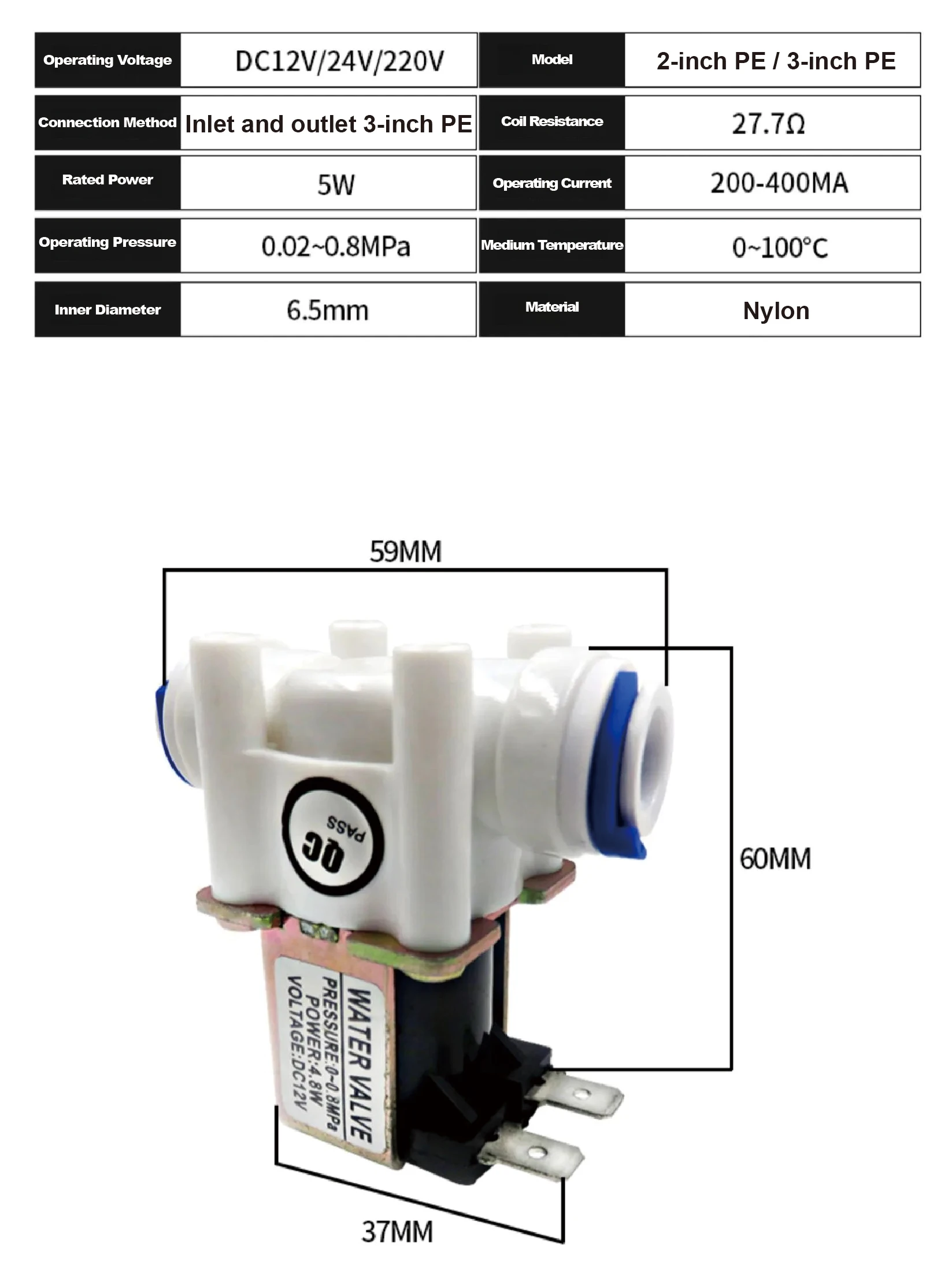

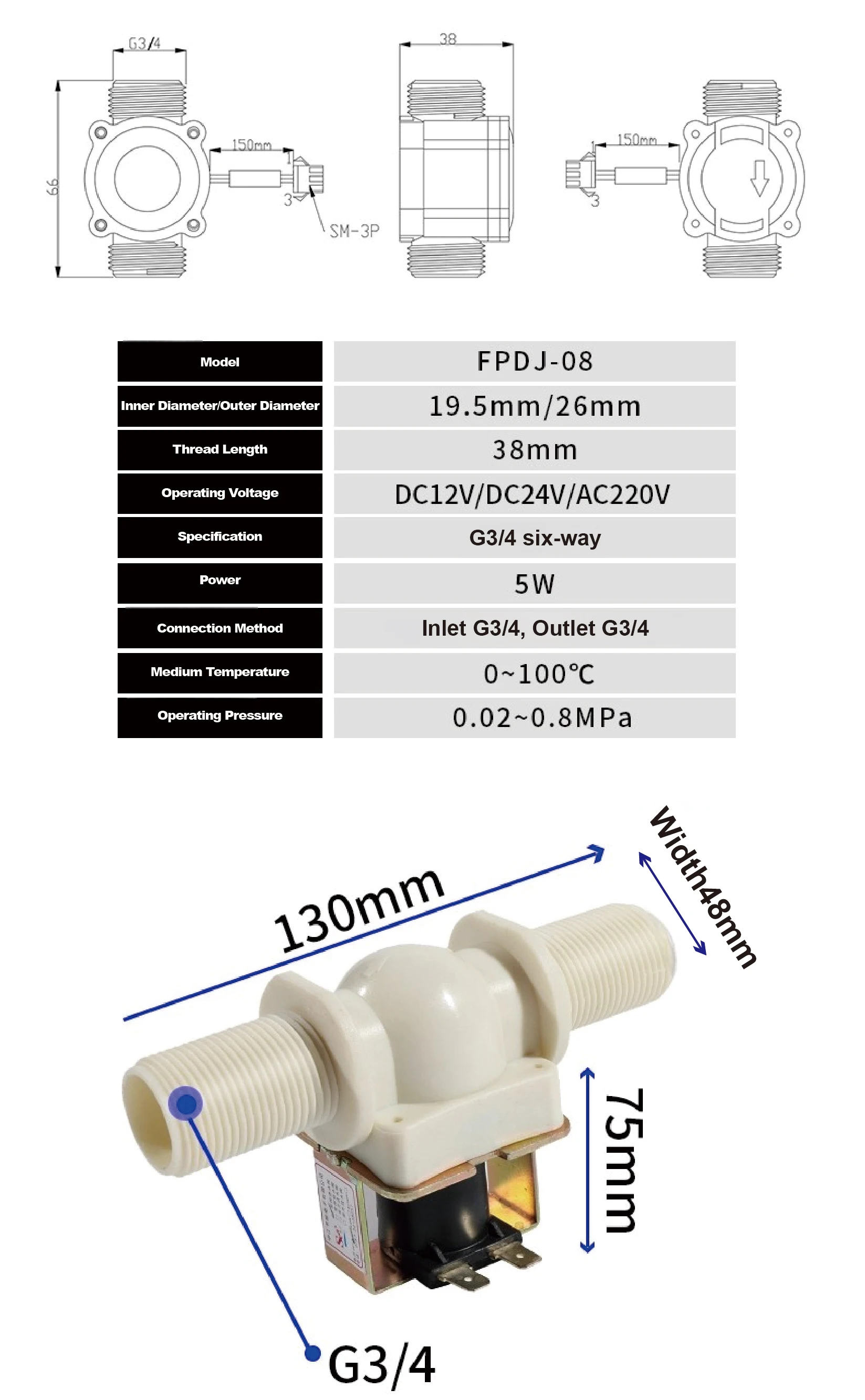

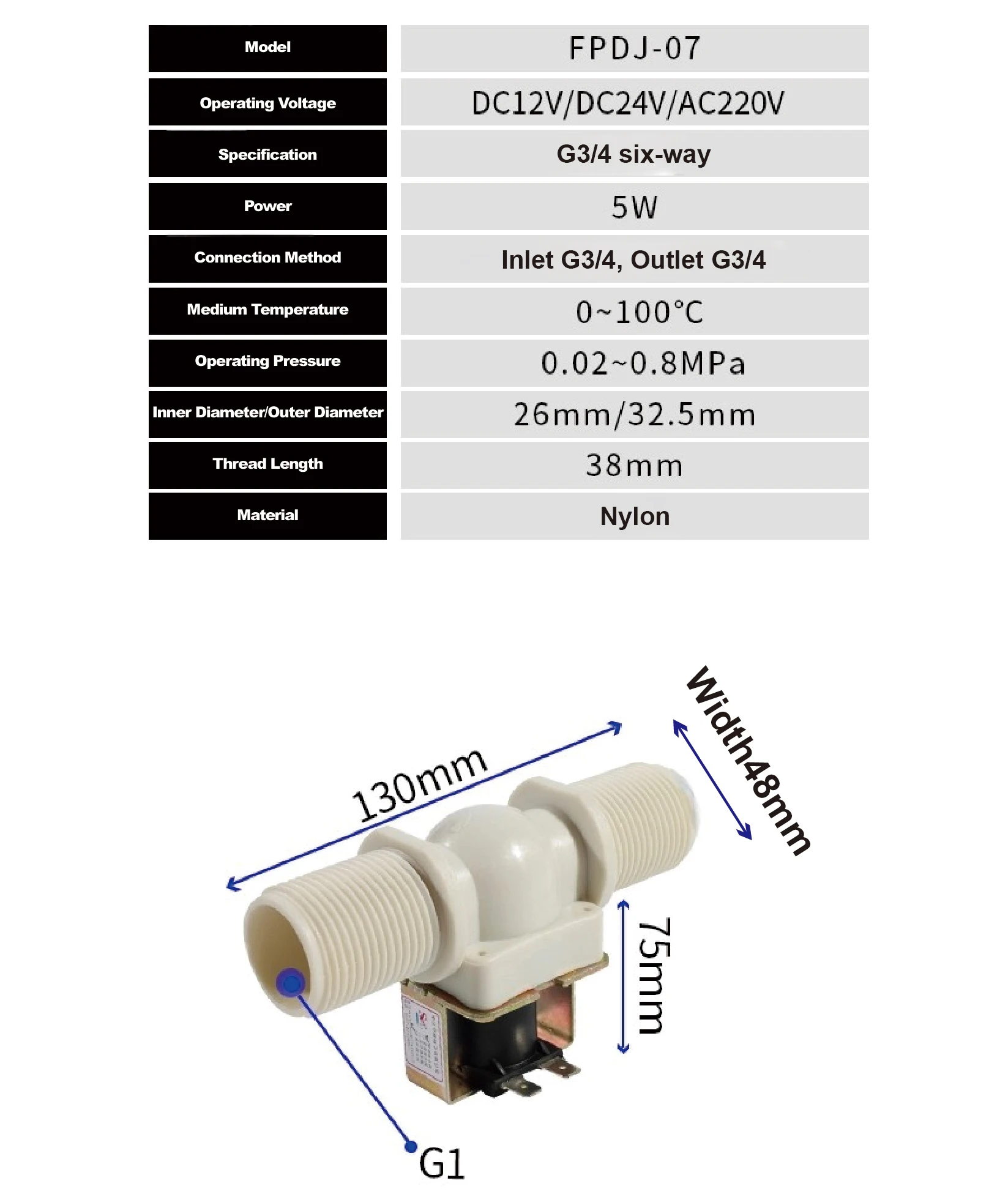

Flow sensors and valves support 3.5–24V DC or AC 220V input.

4.Applications

Industrial dosing and batching systems

Agricultural irrigation automation

Water treatment systems

Laboratory fluid control setups

Beverage and chemical production lines

5.FAQs

Q1: Can I use this system without water pressure?
A1: No. A minimum pressure of 0.5 bar is required for proper flow measurement and valve operation.

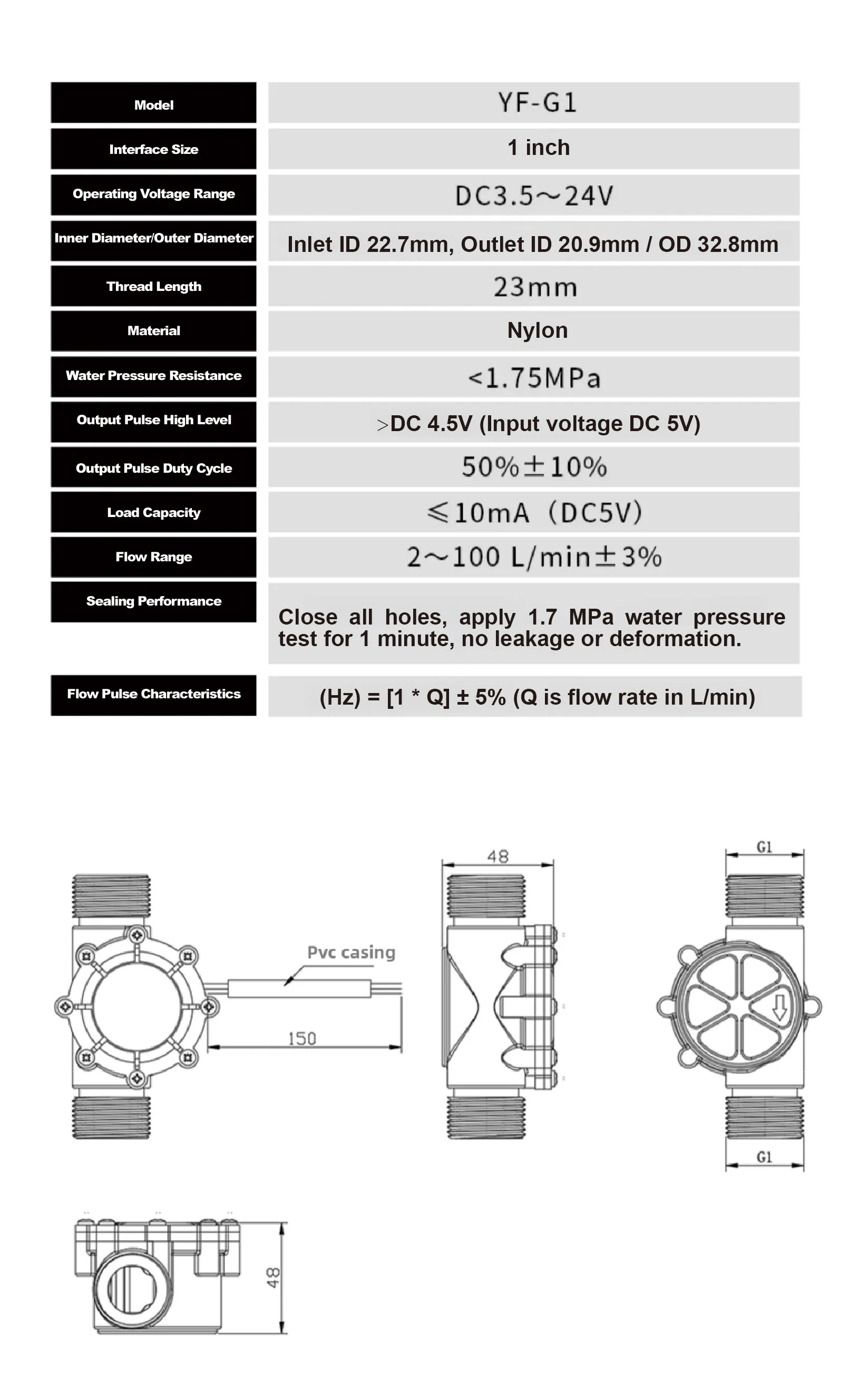

Q2: How do I determine the K-value for my flow sensor?

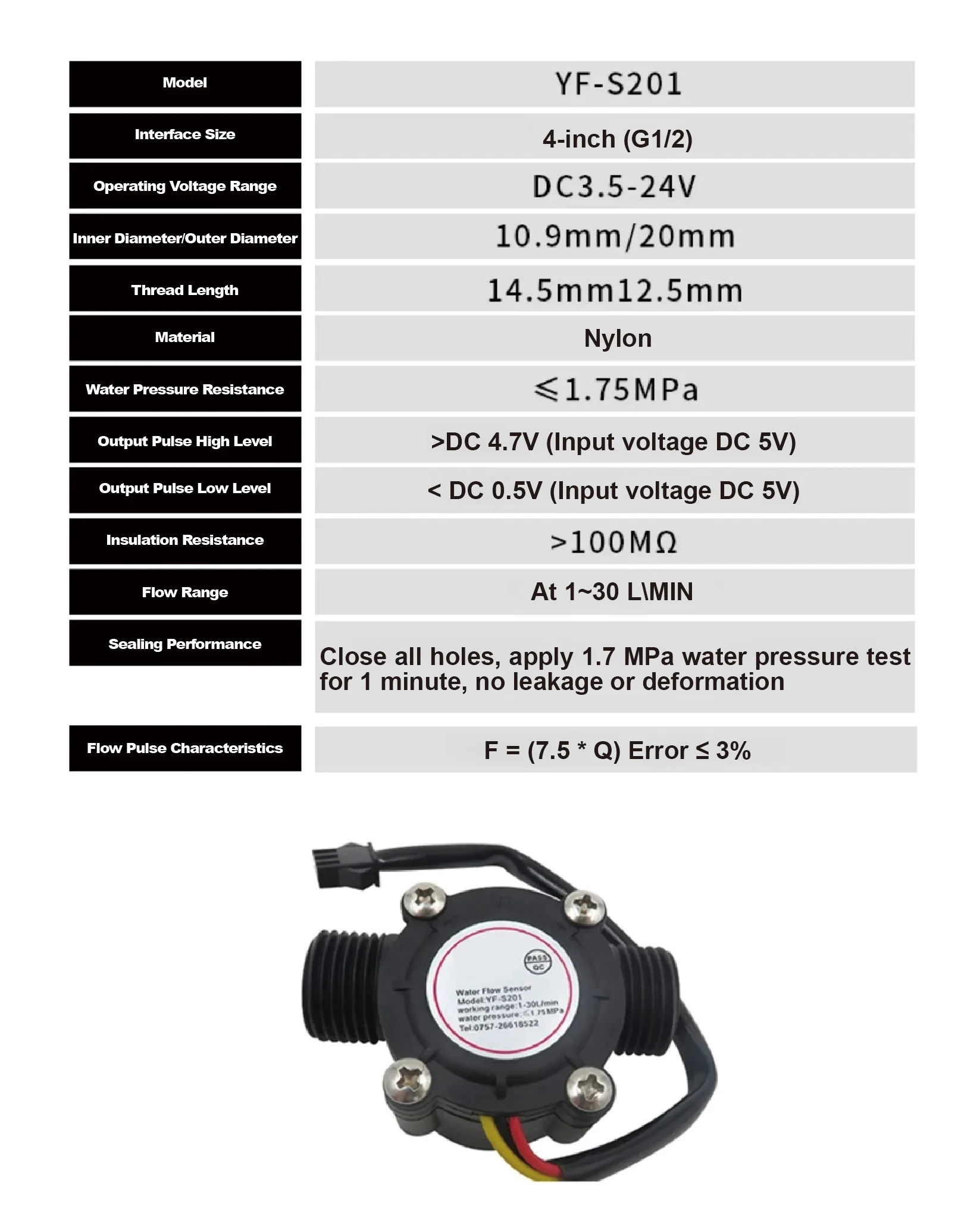

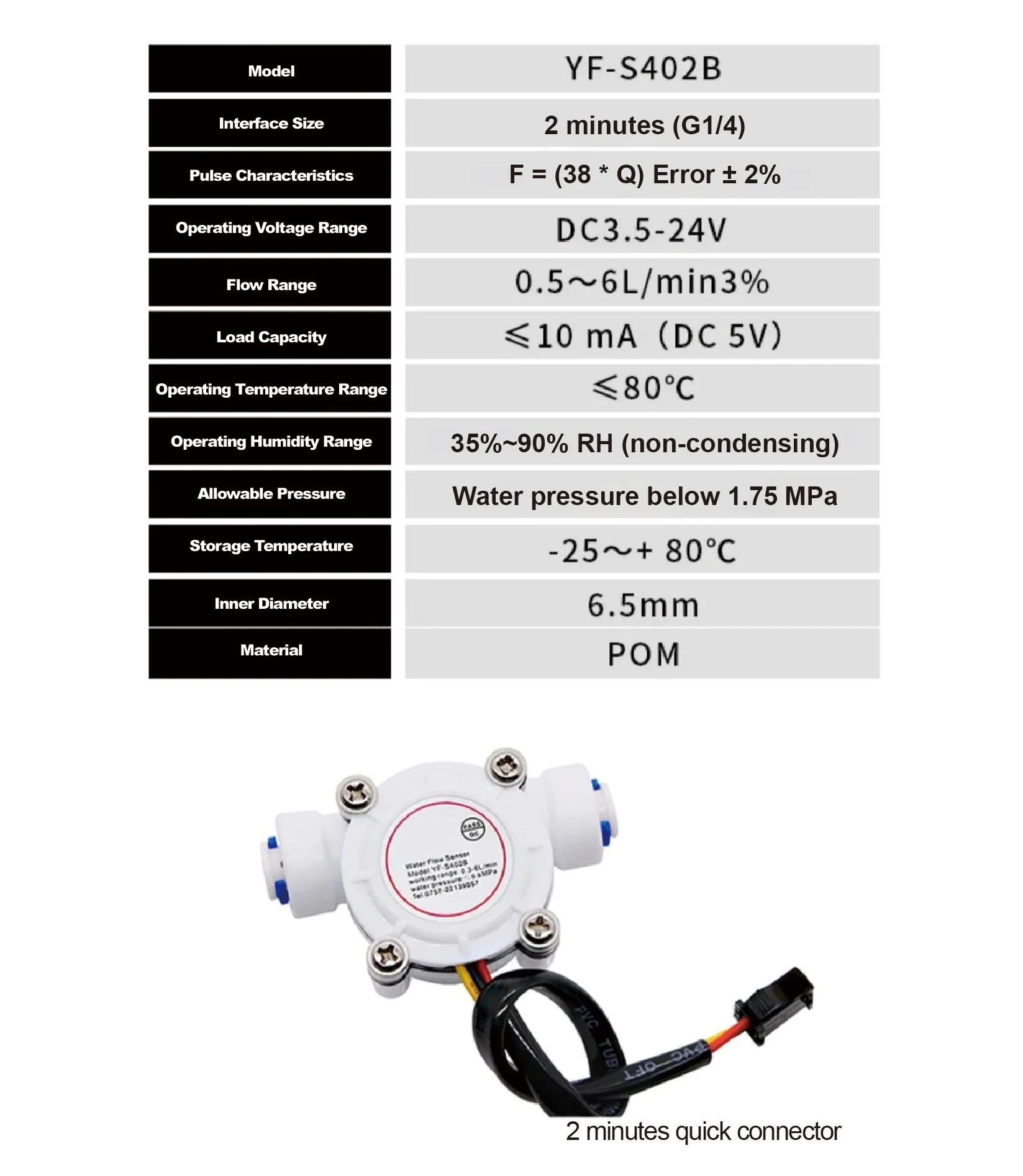

A2: Refer to the sensor’s pulse frequency formula (e.g., F = 7.5 × Q), and set K accordingly in the controller.

Q3: Can I measure temperature as well?
A3: Yes, but a separate temperature probe is required (not included by default).
