- High-concerned chemical: None
- Is Electric: No Battery
- Quantity: 1 pcs
- Is it battery/power supply: N
- Is it charger/adapter: N
- Is Batteries Included: No
- Size: 405mmx20mmx40mm
- Model Number: DS3235MG
- For Vehicle Type: Cars
- Four-wheel Drive Attributes: Assemblage
- Remote Control Peripherals/Devices: Servos
- Upgrade Parts/Accessories: Gear
- RC Parts & Accs: Servos
- Material: Metal
- Brand Name: Yipinservo
- Origin: Mainland China
- Recommend Age: 14+y
- Use: Vehicles & Remote Control Toys
- Quantity: 1 pcs
- Model Number: DS3235MG
- For Vehicle Type: Cars
- Fourwheel Drive Attributes: Assembly
- Remote Control PeripheralsDevices: Servos
- Upgrade PartsAccessories: Gear
- RC Parts Accs: Servos
- Material: Metal
- Brand Name: GXservo
- Origin: Mainland China
- Use: Vehicles Remote Control Toys

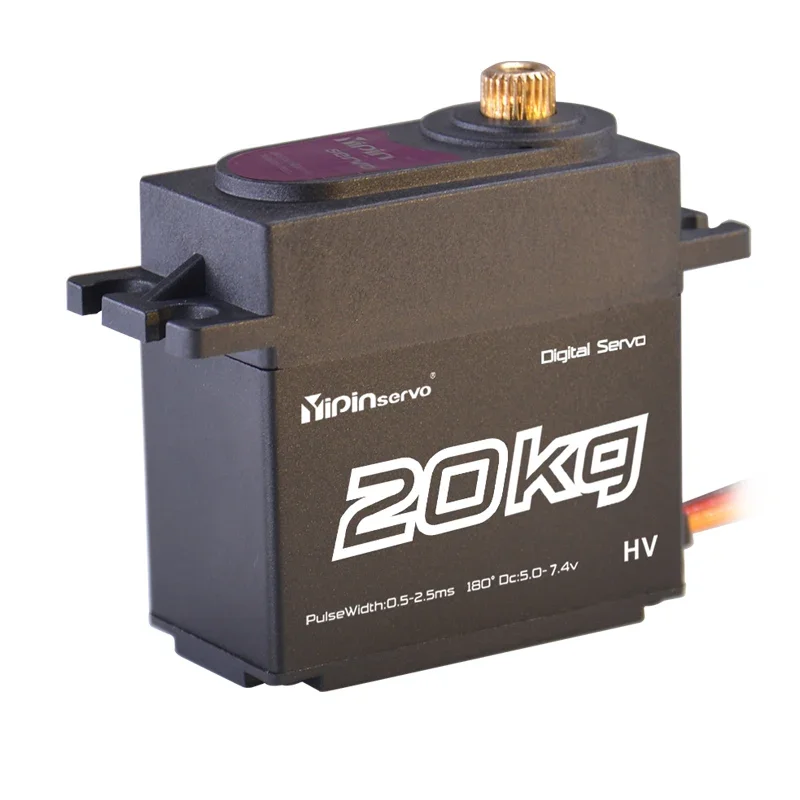

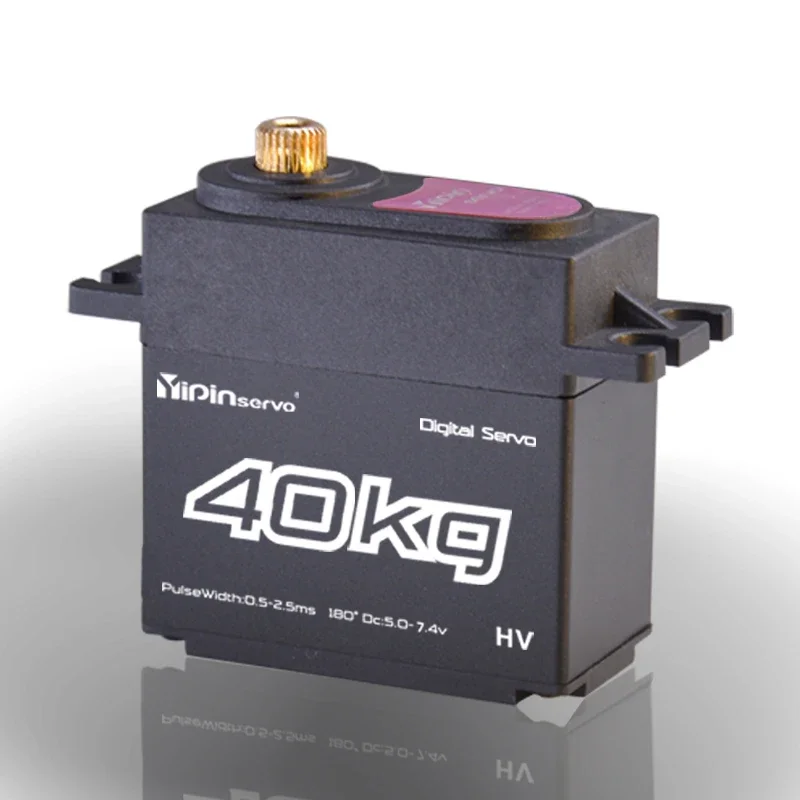

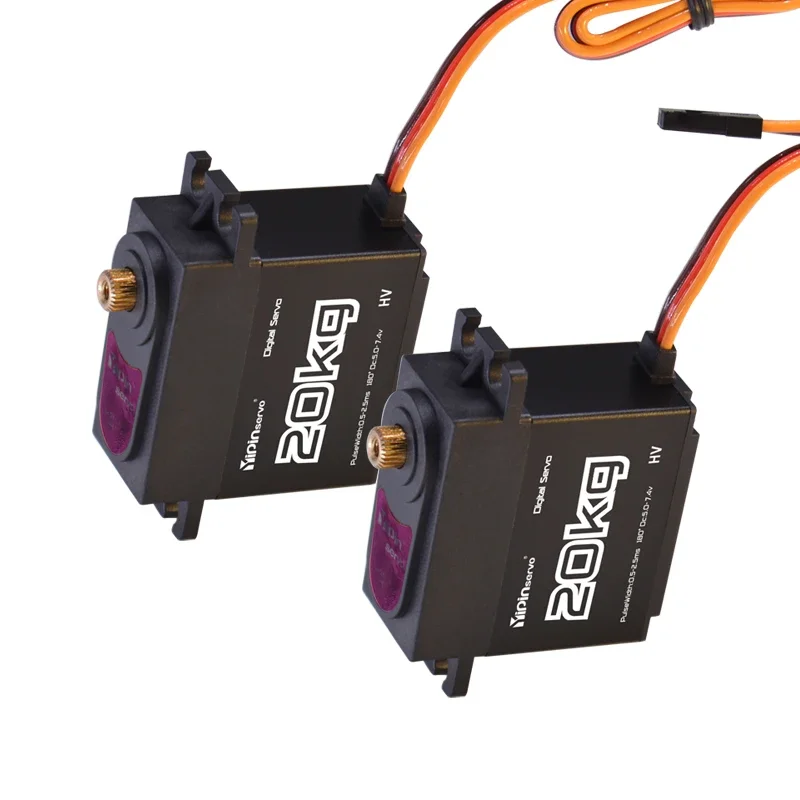

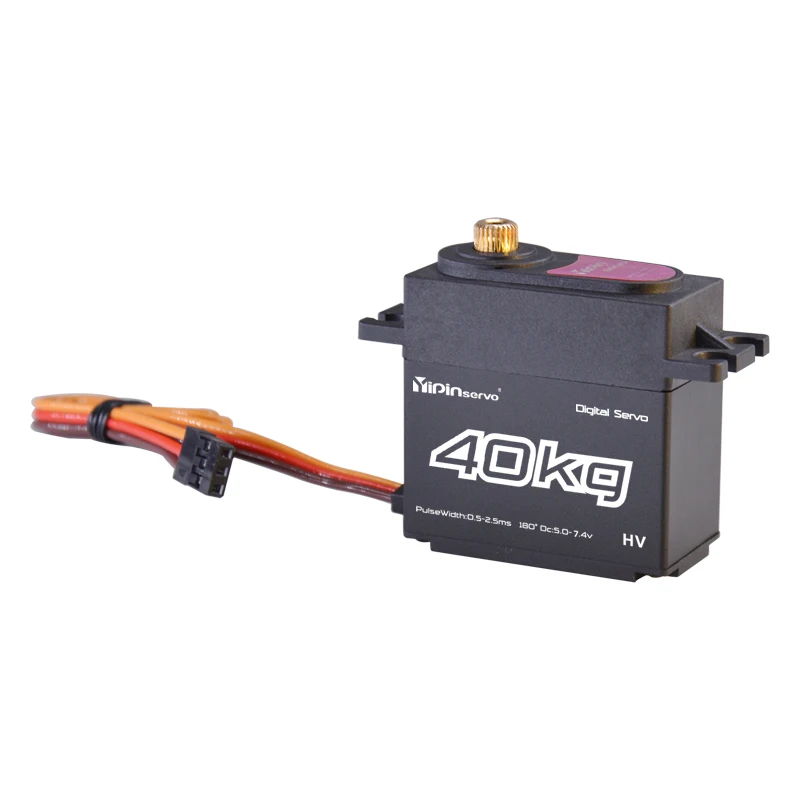

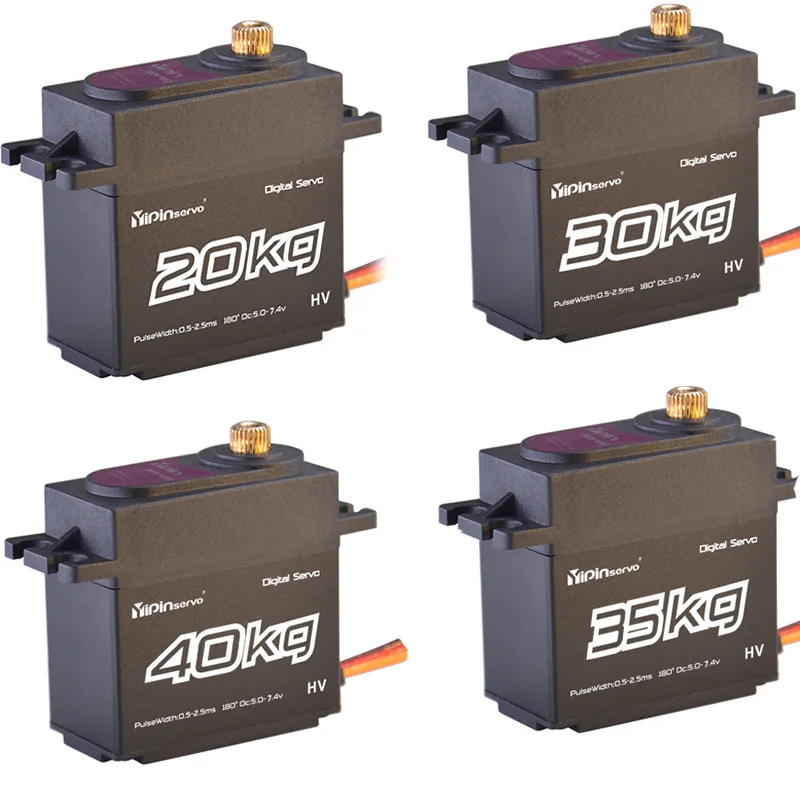

- Torque: 20kg 30kg 35kg 40kg
- with arm: 25t arm
- gear: metal
- Case: plastic
- shell: metal
- strength: Servo manufacturer
- customize angle: leave message contact
- programmable: support
- feature 1: vehicle cars servo motors gear
- feature 2: low PROFILE
The angle can be adjusted, the factory default is 180 degrees, if you need a specific angle, you can contact customer service to set the initial angle
- High-precision metal gears with hard anodizing
- CNC aluminum middle Shell,
Control system :PWM control

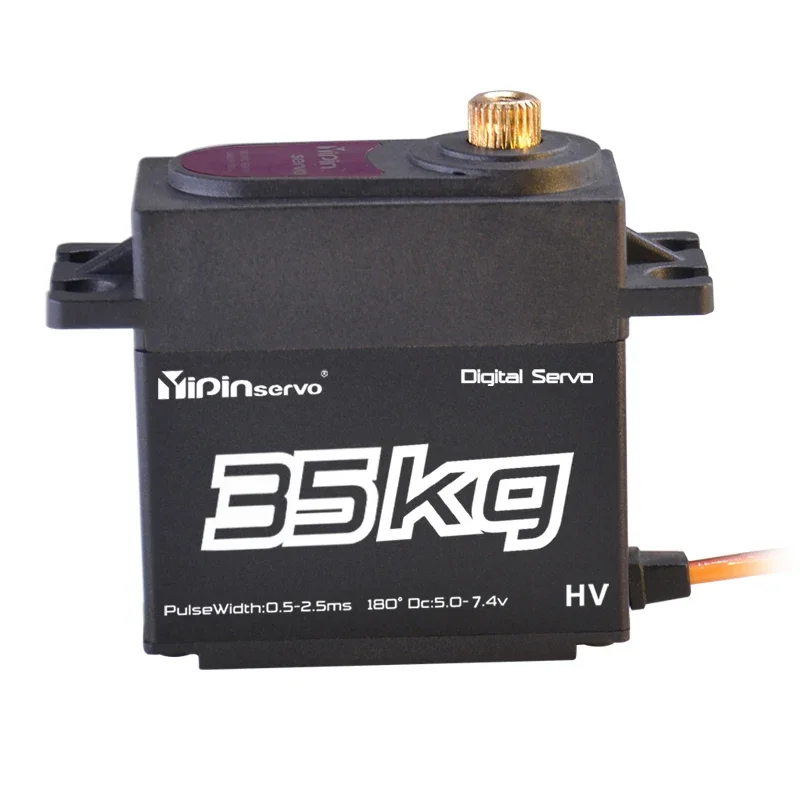

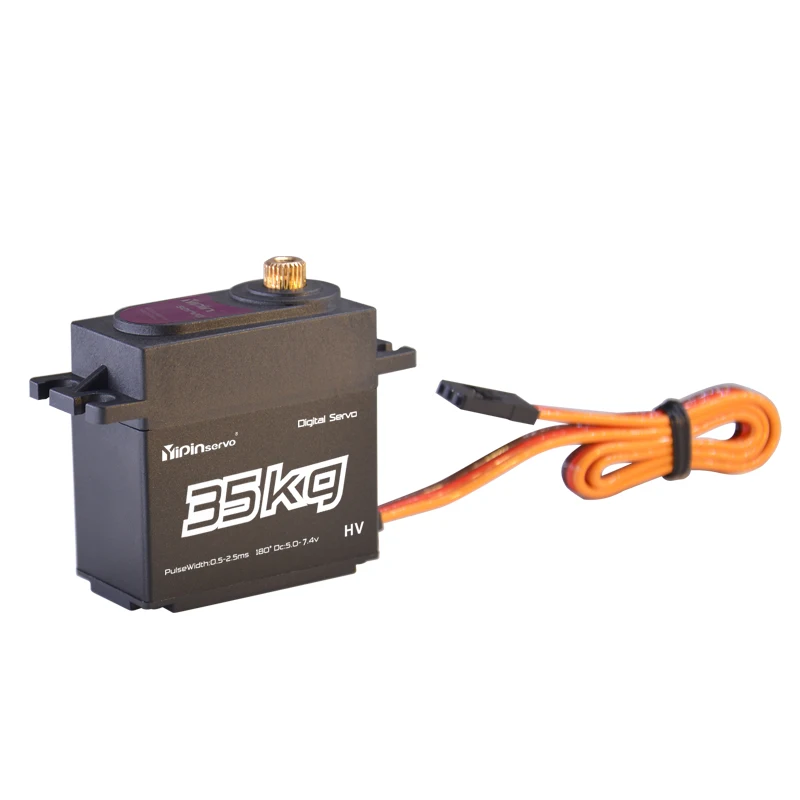

Model: YP3235MG
Working voltage:4.8V ~ 7.4V
Working temperature: -20C°~ 60C°
Torque :6V /35kg.cm
7.4V /38kg.cm
Idle speed :6V/0.2sec / 60 deg
7.4V/0.19sec / 60 digs
Steering angle: 180 / 270 degree
Dead band :3usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Motor type:Core motor
Signal booster type:Digital

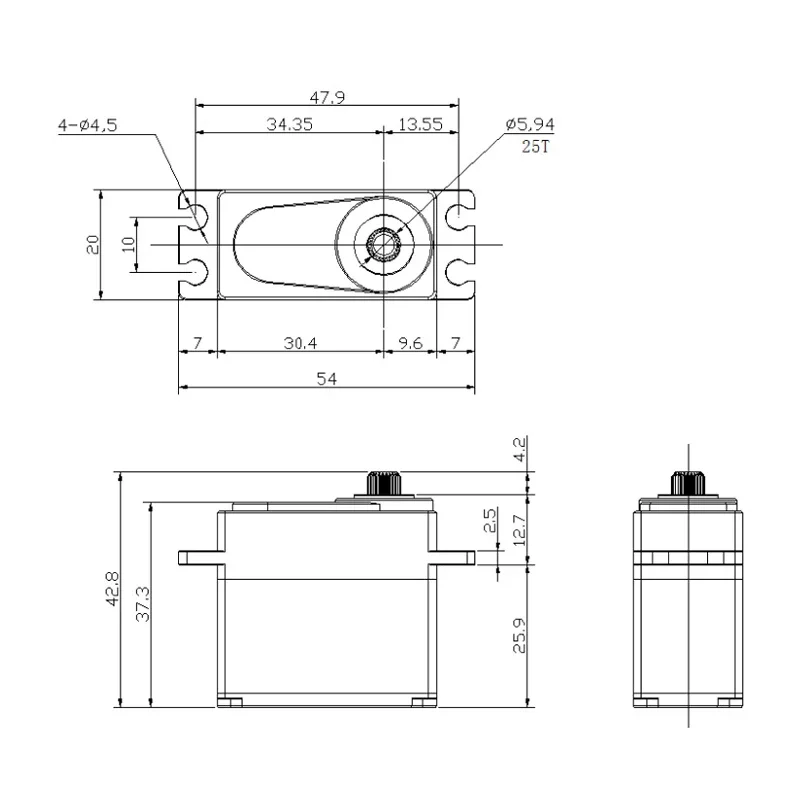

Size:40*20.2*40.5mm
Weight : 58g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:300mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter

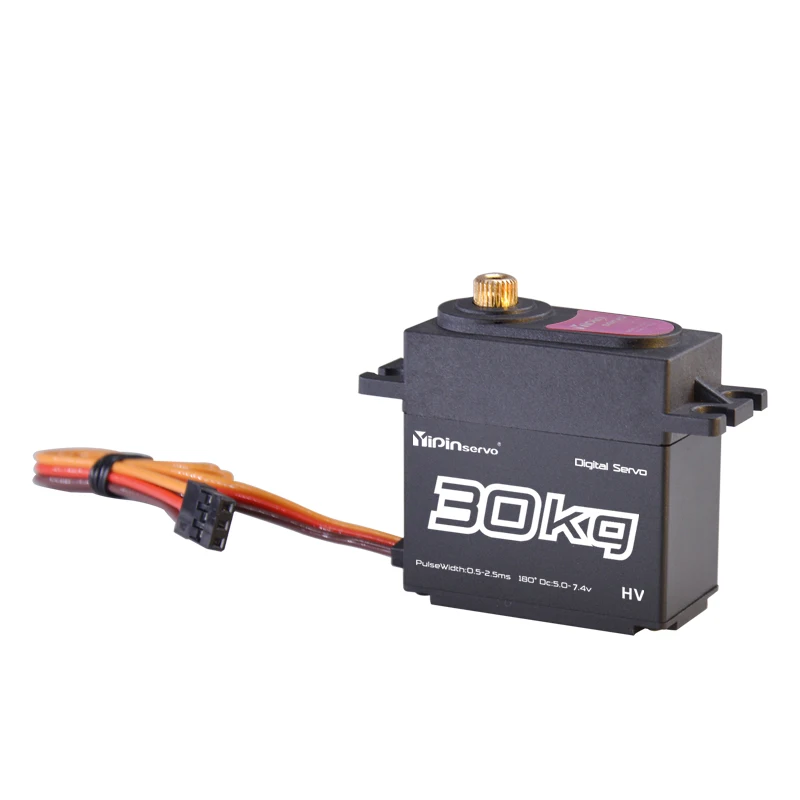

Model: YP3230MG
Torque : 6V /30kg.cm
7.4V /33kg.cm
Idle speed : 6V/0.18sec / 60 deg
7.4V/0.14sec / 60 digs
Steering angle: 180 / 270 degree
Dead band : 3usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Motor type:Core motor
Signal booster type:Digital
Size: 40*20.2*40.5mm
Weight : 58g (without accessories)
Ball Bearing: 2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:300mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter
Model: YP3220MG
Torque : 6V /30kg.cm
7.4V /33kg.cm
Idle speed : 6V/0.16sec / 60 deg
7.4V/0.14sec / 60 digs
Steering angle: 180 / 270 degree
Dead band : 3usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Motor type:Core motor
Signal booster type:Digital
Size: 40*20.2*40.5mm
Weight : 58g (without accessories)
Ball Bearing: 2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:300mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter
