- High-concerned chemical: None
- Certification: CE
- Origin: Mainland China
- Type: Vertical
- Condition: New
- Brand Name: Argedo
- Model Number: W104MA
- CNC or Not: Normal

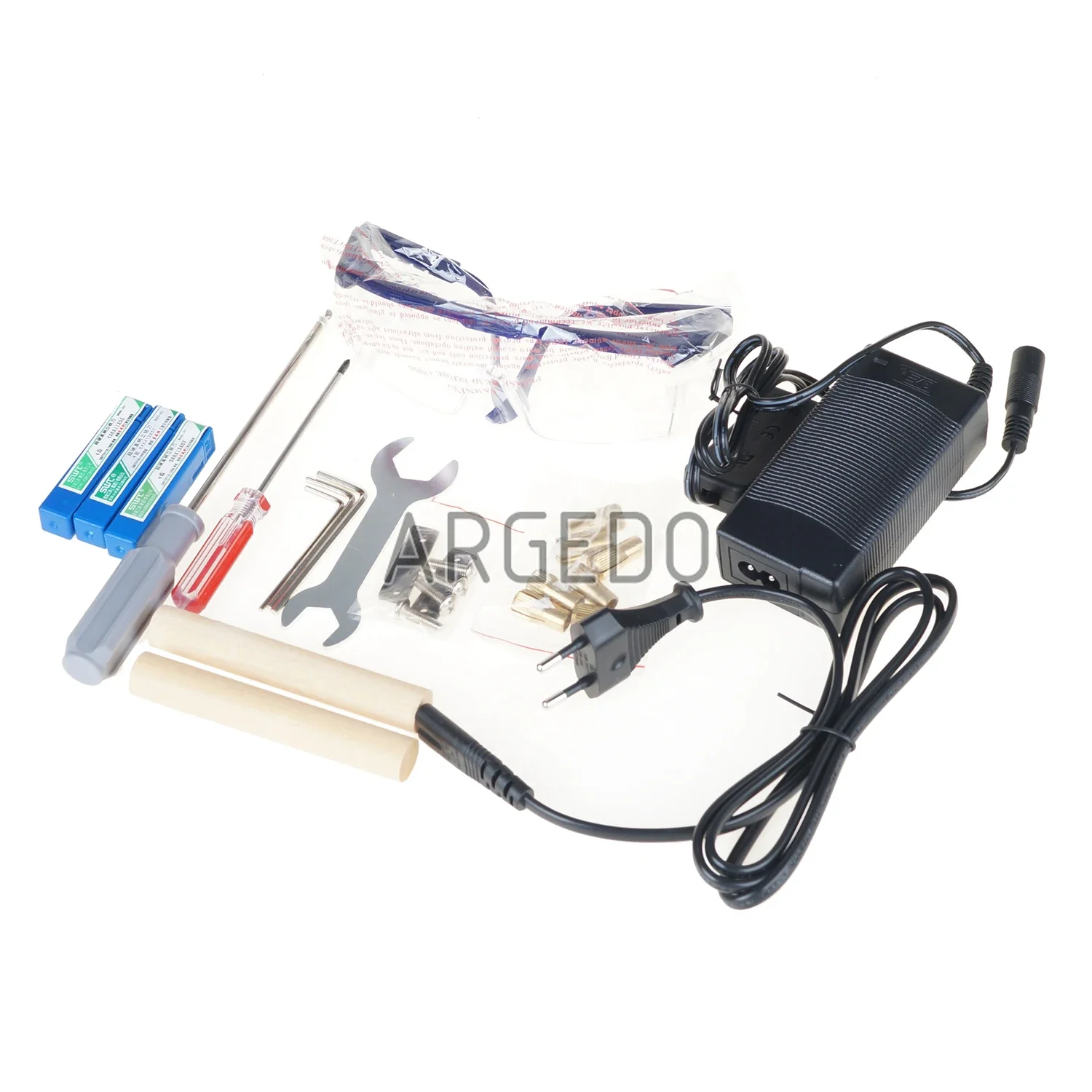

Package included:

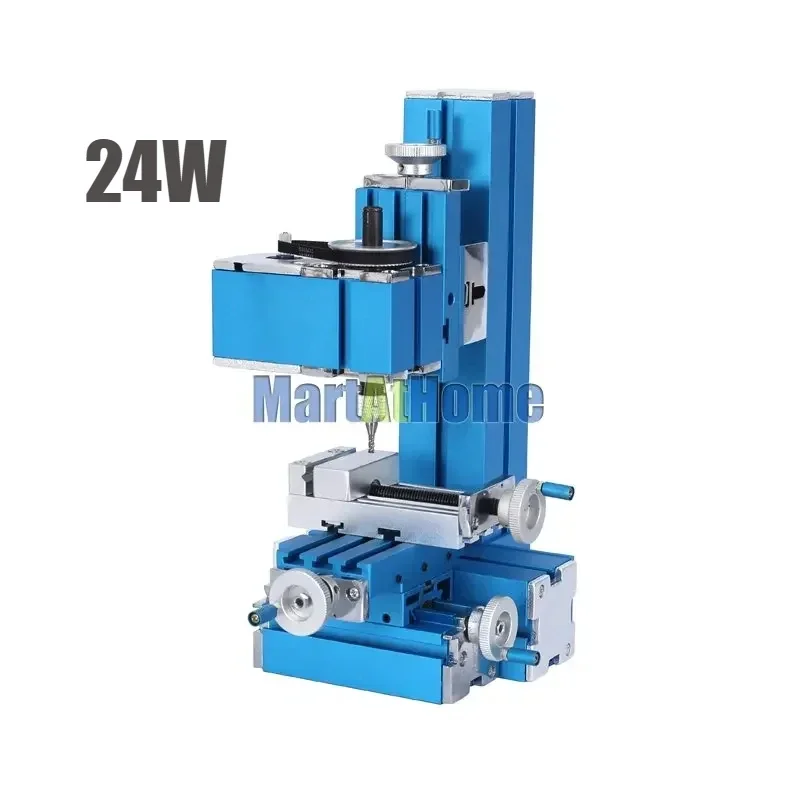

1 x 24W Mini Metal Milling Machine
1 x Goggles
1 x Apron
1 x tool kit
Features:
The milling machine uses a safe power supply to work, the body has no plastic parts, and the stability and durability of the equipment are greatly improved. It can bore holes for processing materials, mill three-dimensional shapes such as grooves, grooves, steps, etc., and has the function of plane engraving.
Technical parameter:
Certificate: CE, UL, GS (transformer)
Motor speed: 20000r/min
Spindle speed: 3000r/min±15%
Voltage/Power: 100V-240V, 24W (36W, 60W optional)
Large slider stroke: 45mm
Small slider stroke: 35mm
Chuck specifications: ф1, ф2, ф2.5, ф3, ф3.5, ф4, ф5, ф6
Handle scale: 0.1mm/div
Vise clamping size: 60mm*60mm
Packing size: 230mm*200mm*315mm
Processing materials: wood, soft metals (gold, silver, aluminum, copper), plexiglass, plastic, etc.
Application:
campus maker, labor technology, metalworking and woodworking, high school general technology, comprehensive practice and other internal and external institutional courses and personal DIY.
1 x 24W Mini Metal Milling Machine
1 x Goggles
1 x Apron
1 x tool kit
Features:
The milling machine uses a safe power supply to work, the body has no plastic parts, and the stability and durability of the equipment are greatly improved. It can bore holes for processing materials, mill three-dimensional shapes such as grooves, grooves, steps, etc., and has the function of plane engraving.
Technical parameter:
Certificate: CE, UL, GS (transformer)
Motor speed: 20000r/min
Spindle speed: 3000r/min±15%
Voltage/Power: 100V-240V, 24W (36W, 60W optional)
Large slider stroke: 45mm
Small slider stroke: 35mm
Chuck specifications: ф1, ф2, ф2.5, ф3, ф3.5, ф4, ф5, ф6
Handle scale: 0.1mm/div
Vise clamping size: 60mm*60mm
Packing size: 230mm*200mm*315mm
Processing materials: wood, soft metals (gold, silver, aluminum, copper), plexiglass, plastic, etc.
Application:
campus maker, labor technology, metalworking and woodworking, high school general technology, comprehensive practice and other internal and external institutional courses and personal DIY.
