- Battery Included: No
- High-concerned chemical: None
- Model Number: XC709D
- Brand Name: XCMCU
- Certification: None
- Origin: Mainland China

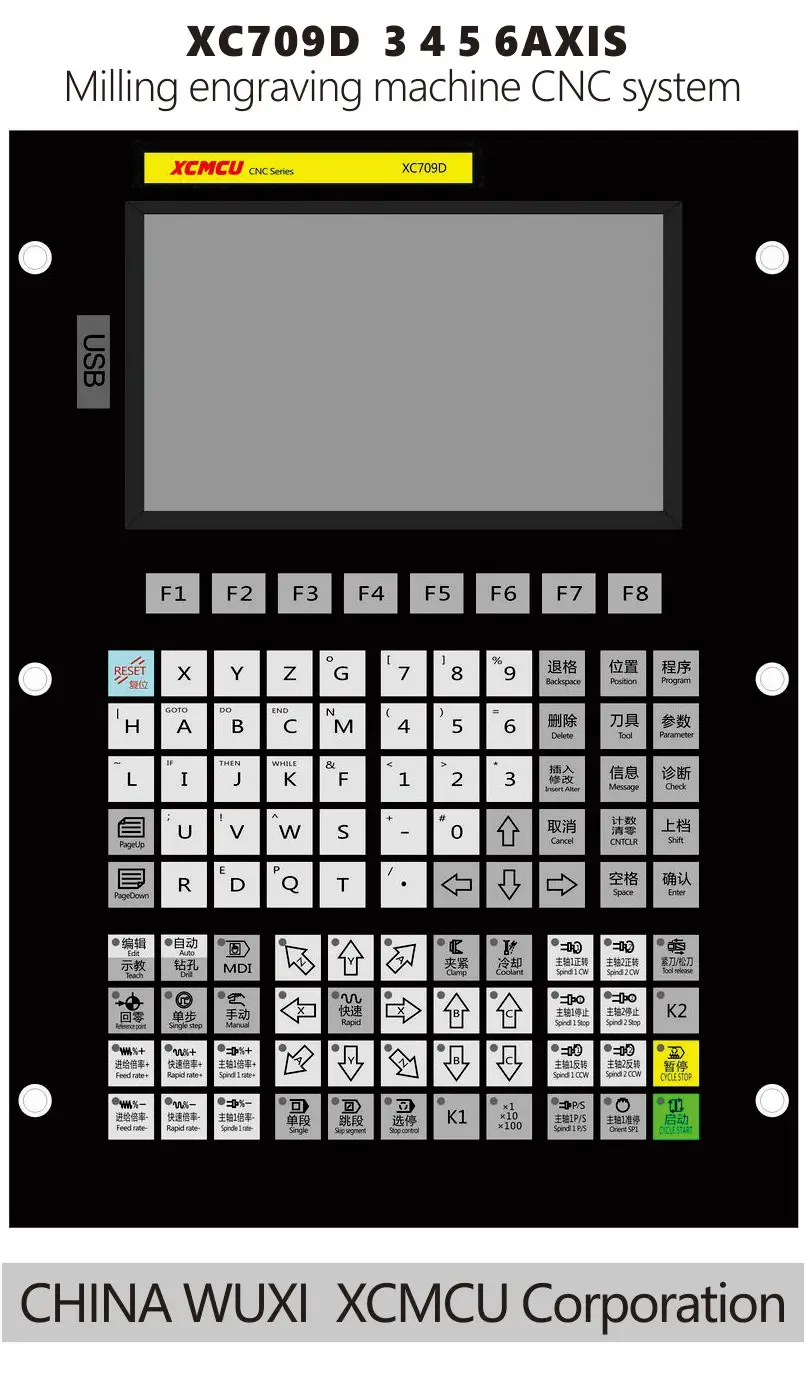

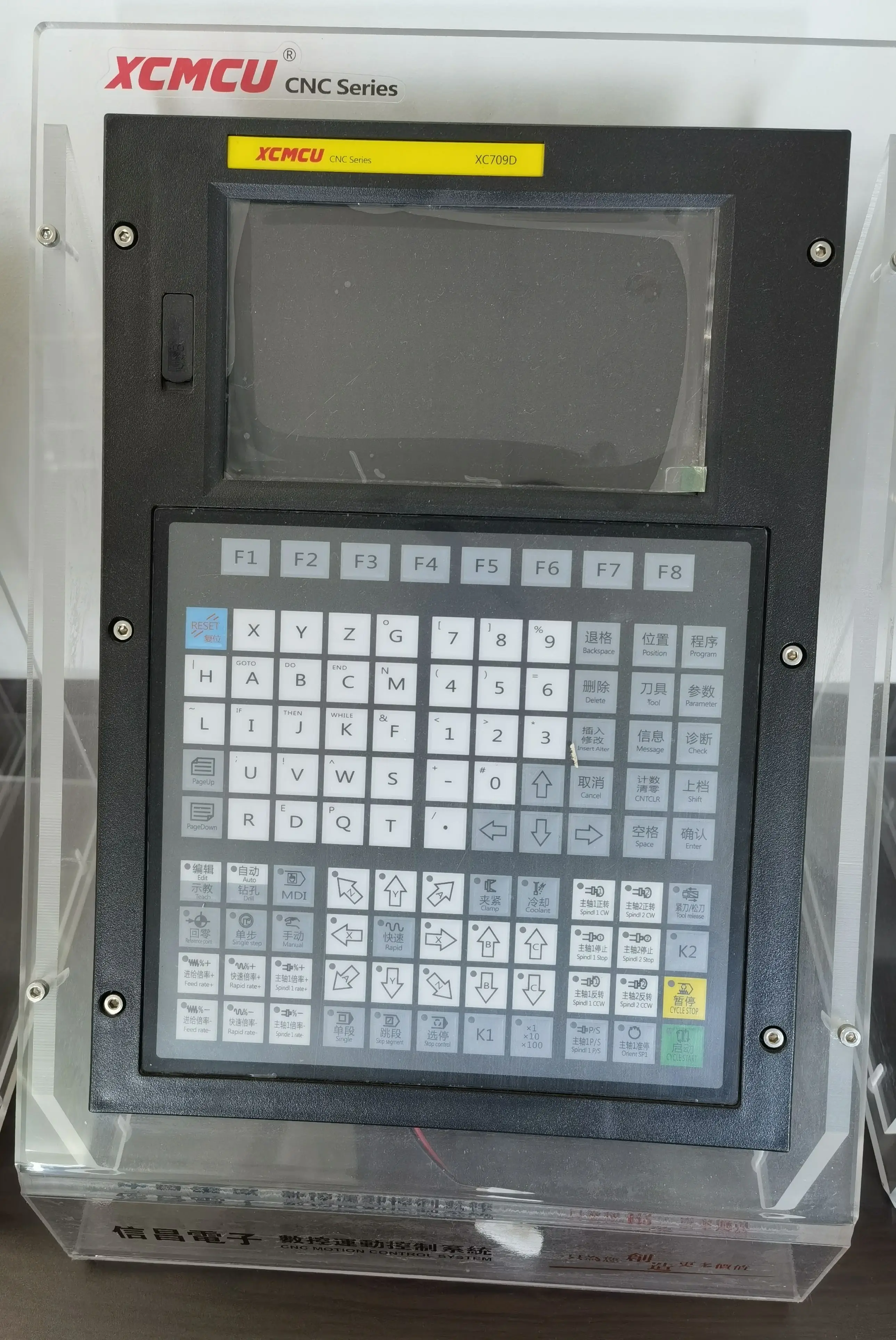

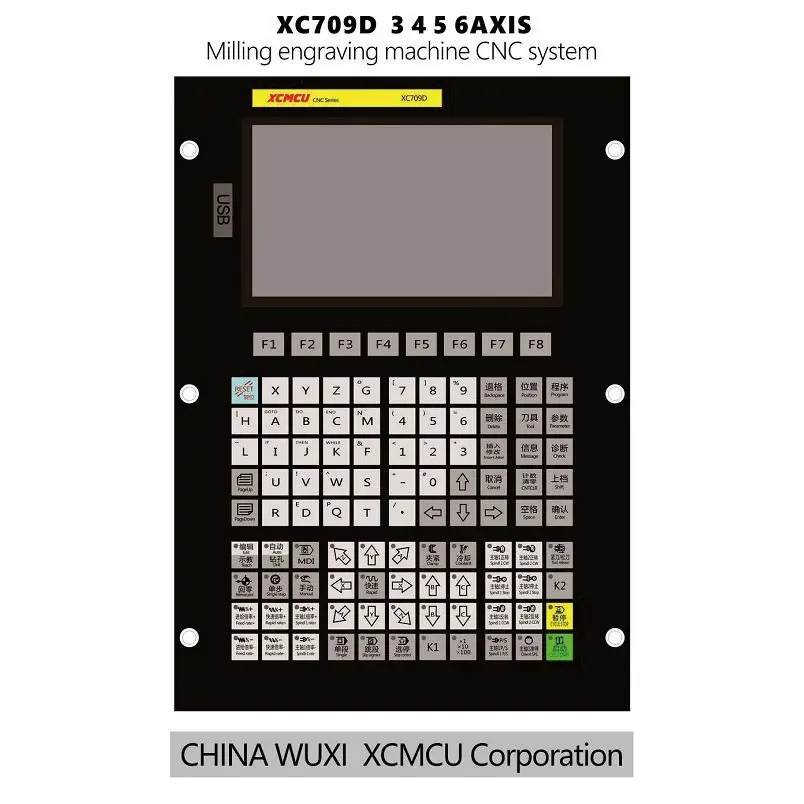

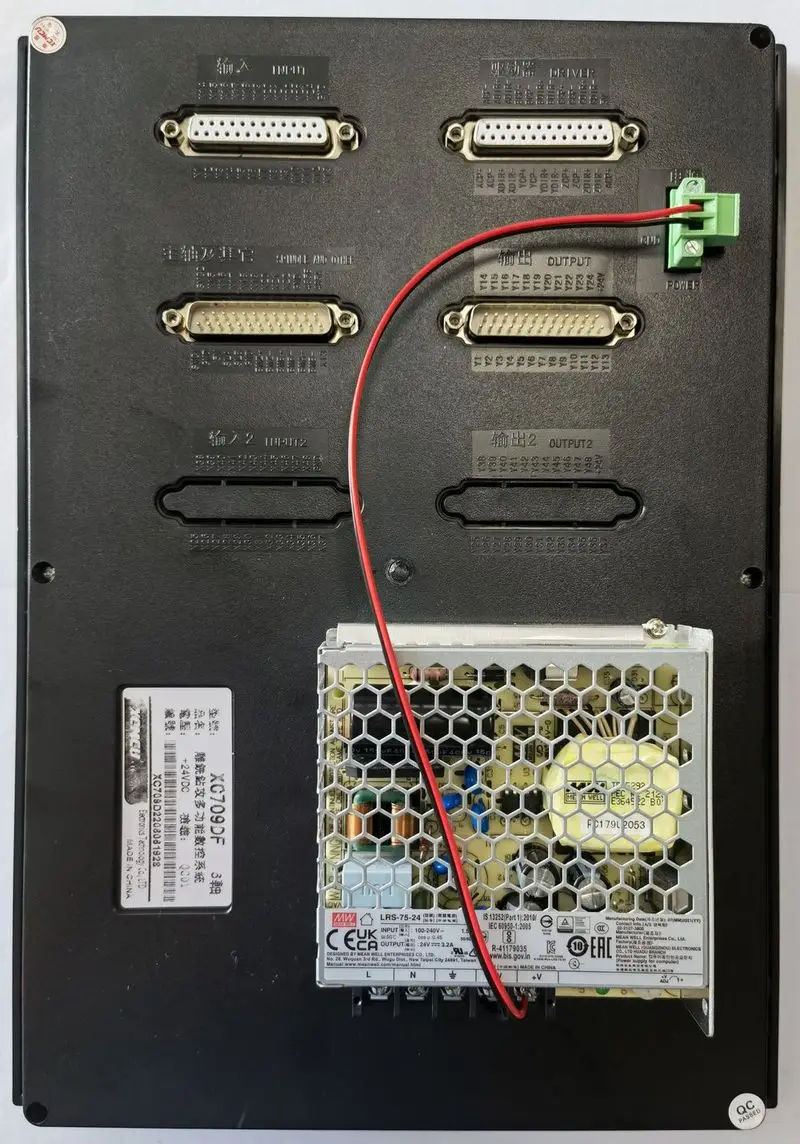

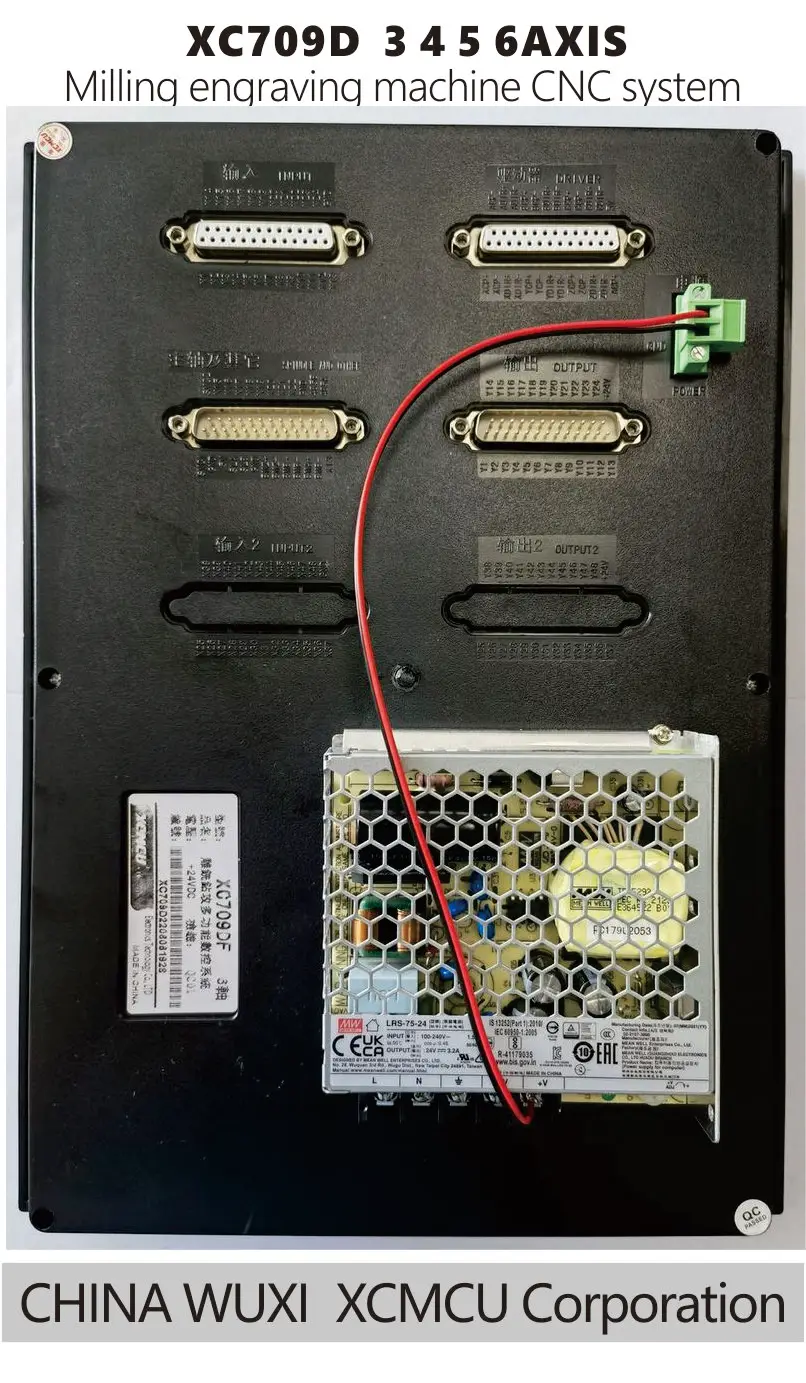

XC709D, XC809D engraving, milling, drilling
and tapping multi-functional CNC system is a new generation of CNC system
developed by our company.Support carving, milling, drilling, tapping
processing.It uses 32-bit high-performance microprocessor, real-time multi task
control technology and hardware interpolation technology, full linkage,
high-speed small line look ahead algorithm.The interpolation accuracy is
0.001mm and the maximum speed is 30 m / min.It is the best choice for engraving
machine, small machining center, CNC milling machine and CNC drilling machine.
The
software and hardware characteristics of XC709D and XC809D CNC system are as
follows
Based
on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy, maximum
speed of 30 m / min, support direction + pulse and orthogonal pulse.

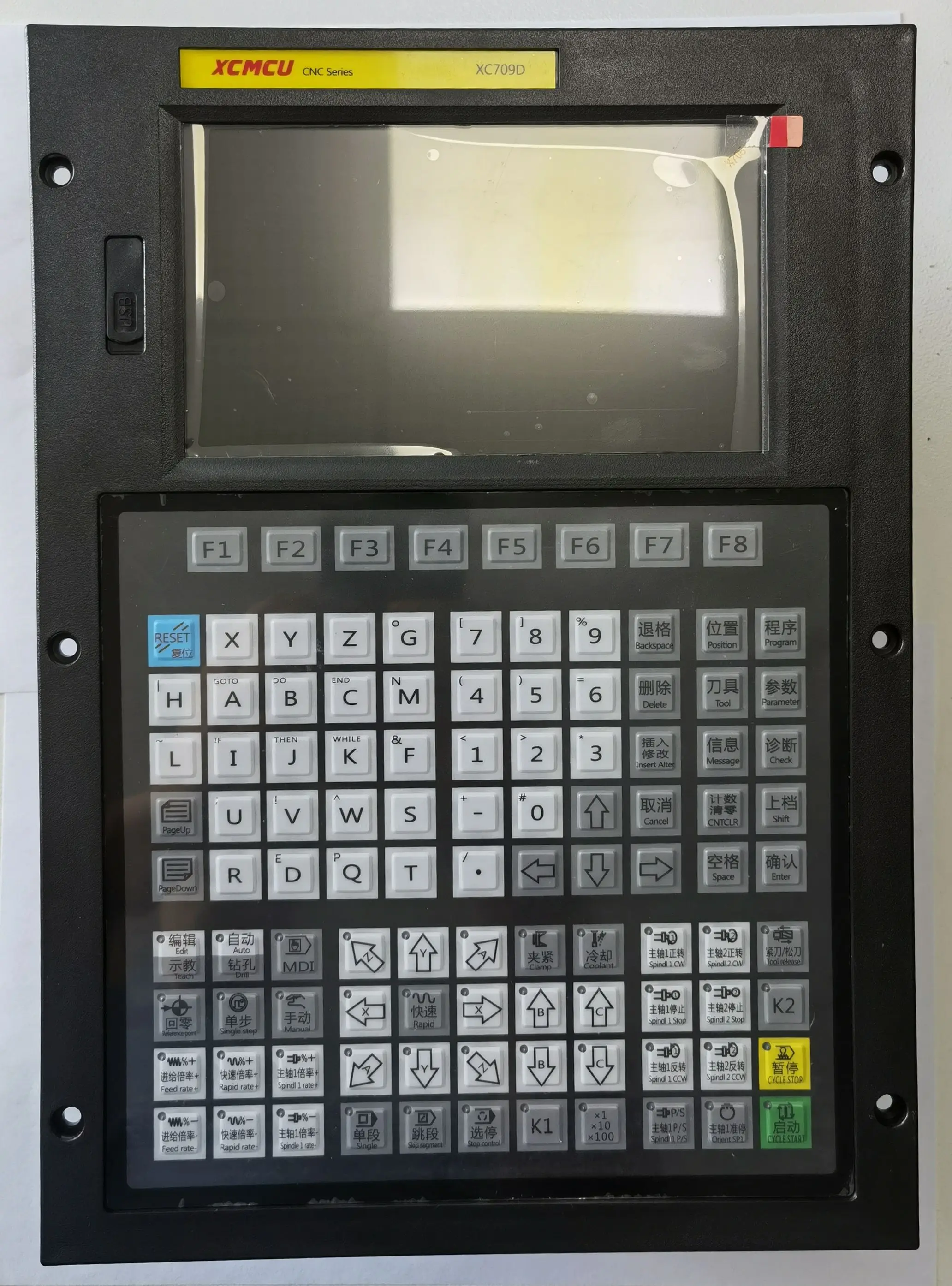

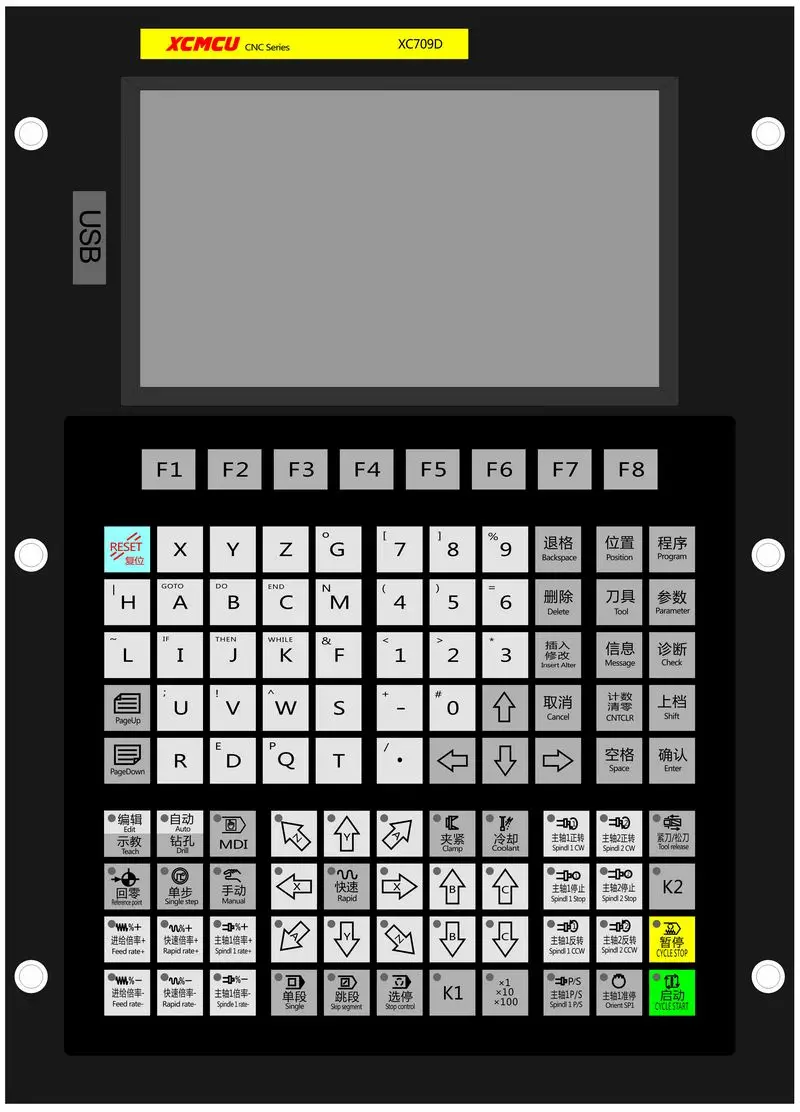

It adopts 7-inch color wide screen LCD
with resolution of 800×480, windows interface style.Equipped with 8 soft
function keys, easy to operate and learn.Provide parameter classification,
alarm log, system diagnosis and other rich display interface to facilitate debugging
and maintenance.
It is
compatible with FANUC system instruction.
There
are 40 kinds of G commands, supporting drilling cycle and tapping cycle.
Full
screen editing of part program, built-in 512M mass program space, can store n
part programs.
With
USB interface, it supports file reading and writing and data backup of U disk.
Input
24 (expandable to 96) points, output 24 (expandable to 96) points (customized),
flexible and convenient.
The
Chinese and English operation interface, complete help information, more
convenient operation.
The
system adopts acceleration and deceleration control before interpolation.
It
supports long tool compensation and radius compensation.
It
supports the trial processing of handwheel, which is convenient for program
debugging.
It
supports multi-level operation authority, facilitates equipment management, and
has time limited system locking function.
It
supports self programming tool library, and can flexibly use a variety of tool
libraries.
basic function | |
Number of control axes | Axis 3 ~ 6 (x, y, Z, a, B, c) |
Number of linkage axes | Full linkage |
Tool magazine | Code library, need to edit |
principal axis | There are 2 analog spindles, of which |
Spindle monitoring | yes |
Minimum instruction unit | 0.001 mm |
Maximum instruction value | ±99999999×Minimum |
Rapid feed rate | 30000 mm / min |
Rapid feed rate | F0, 25%, 50%, 75%,100% |
Pulse mode | 1: Direction + pulse 2: quadrature pulse |
Maximum frequency | 100kHz, 200kHz, 500KHz can be set.(500KHz |
Rate feed rate | 0～150% |
Electronic gear ratio | 1～65535: 1～65535 |
Automatic acceleration and deceleration | yes |
Forward looking algorithm for high speed | yes |
Trial machining of handwheel | yes |
location | G00 (linear interpolation positioning) |
interpolation | Linear (G01), arc (G02 / G03 / G12), |
Return to reference point | Automatic return to reference point (G28) |
LCD | 7-inch TFT LCD with resolution of |
MDI software key | 8 |
Single step feed | x1，x10，x100 |
communication interface | U disk interface |
External handwheel interface | yes |
I / O interface | 24 / 24 (expandable to 96 / 96) |
Pause (SEC) | yes |
Quasi stop state | yes |
Accurate stop | yes |
Memory trip check | yes |
MDI operation | Yes, it supports multi segment operation |
reset | yes |
Trip switch | yes |
Single section operation | yes |
Program protection switch | yes |
Self diagnosis function | yes |
Emergency stop | yes |
Power Supply | Single phase AC220 V + 10% - 15%, 50 Hz ± |
Coordinate system | Machine coordinate system (g53), |
Automatic coordinate system setting | yes |
Decimal point input | yes |
Auxiliary function | |
Auxiliary function | M2 digit, M code user-defined, manual / |
Spindle function | |
Spindle function | Double spindle |
Digital spindle | Spindle 1 supports, occupies a digital |
tapping | support |
Spindle analog output | Yes, double spindle |
Tool function | |
Tool function | It supports automatic tool change, tool |
Tool compensation memory | -9999.999 ~ 9999.999, 99 |
Tool compensation | Knife length compensation and radius |
Edit operation | |
Editing function | Parameters, diagnosis bit input, program |
storage capacity | 512M |
Number of stored programs | 500 |
Display of program name | Chinese, English, numbers, combinations |
Program line lookup | yes |
Optional program skip | yes |
Program switch | yes |
display | |
display | Chinese, English |
Display of processing time and number of | yes |
Spindle speed, M / s command | yes |
XC709D host size (mm) | |
Overall dimensions (height×wide×Thick) | 328×236×80 |
Opening size (height×Wide) | 305×207 |
XC809D host size (mm) | |
Overall dimensions (height×wide×Thick) | 390×253×80 |
Opening size (height×Wide) | 370×228 |
