X /Y /Zaxis Screw Copper Sleeve Nut /bronze Nut 32*5/35*5mm Left/Right-hand Rotation Thread CNC Milling Machine for Bridgeport

Special copper nuts for milling machine screws. How to distinguish X-axis and Y-axis copper nuts:

X-axis/lateral - left and right (filament rod): The middle spiral direction is forward rotation

Y axis/longitudinal - front and rear (short screw): The middle spiral direction is reversed

The rules are as follows:

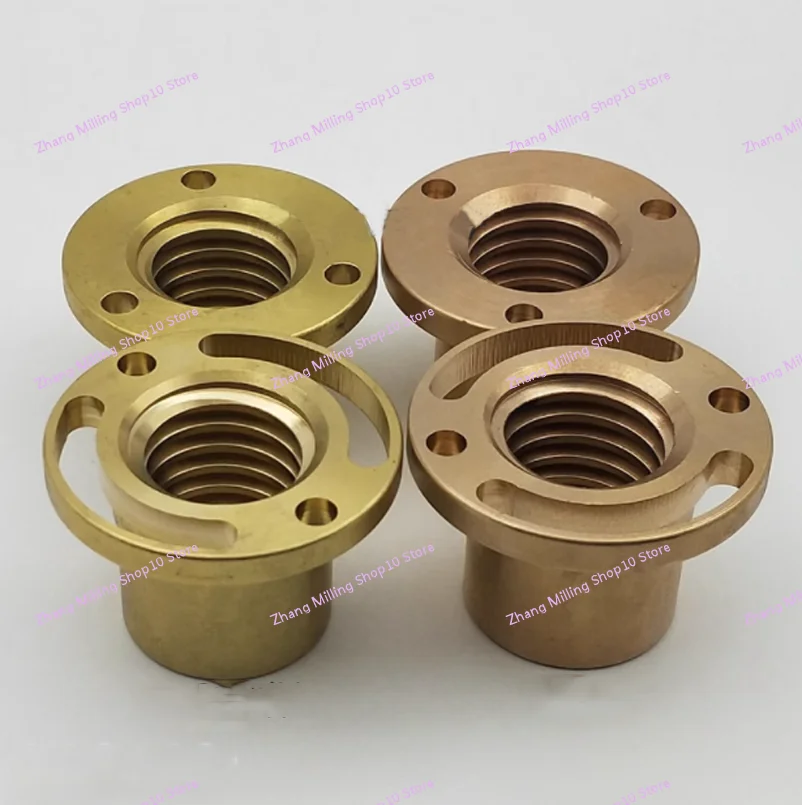

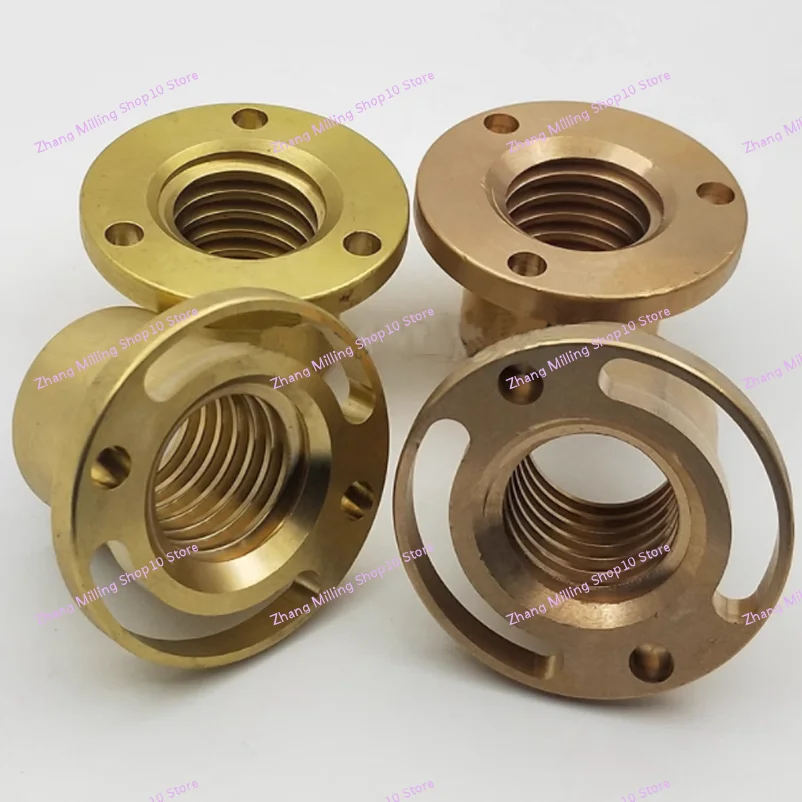

The outer diameters of the X-axis and Y-axis copper nuts are 39MM and 63MM. The X-axis has positive teeth and the Y-axis has reverse teeth.

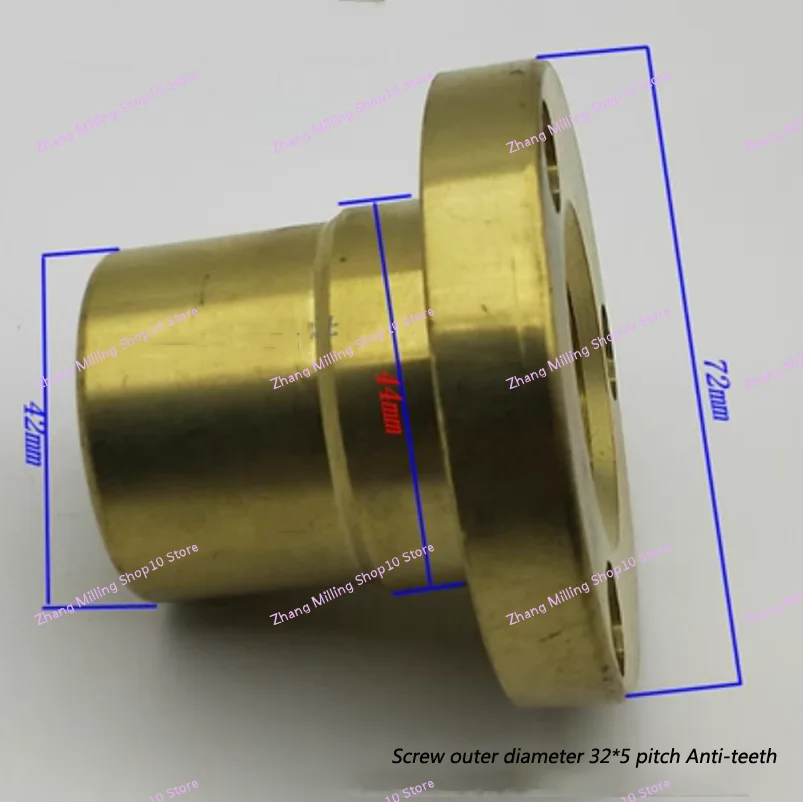

Z-axis copper nut, total width 54MM, outer diameters: 46MM, 48MM, 73MM, tooth direction: left tooth (reverse tooth).

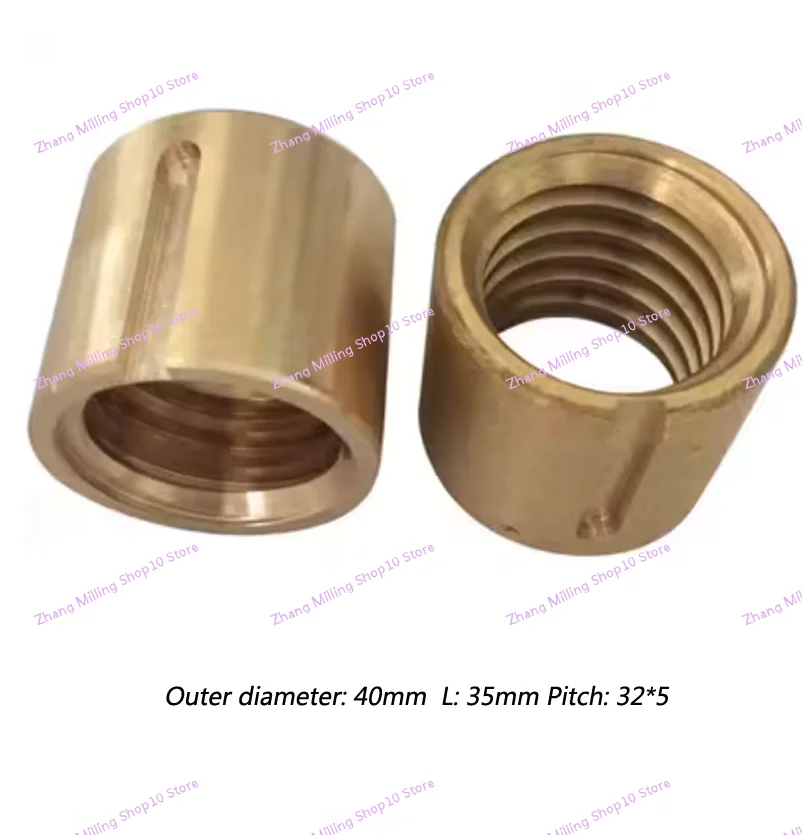

The outer diameter of the X-axis and Y-axis straight nut is 40MM and the total width is 35MM. The X-axis has positive thread and the Y-axis has reverse thread.
