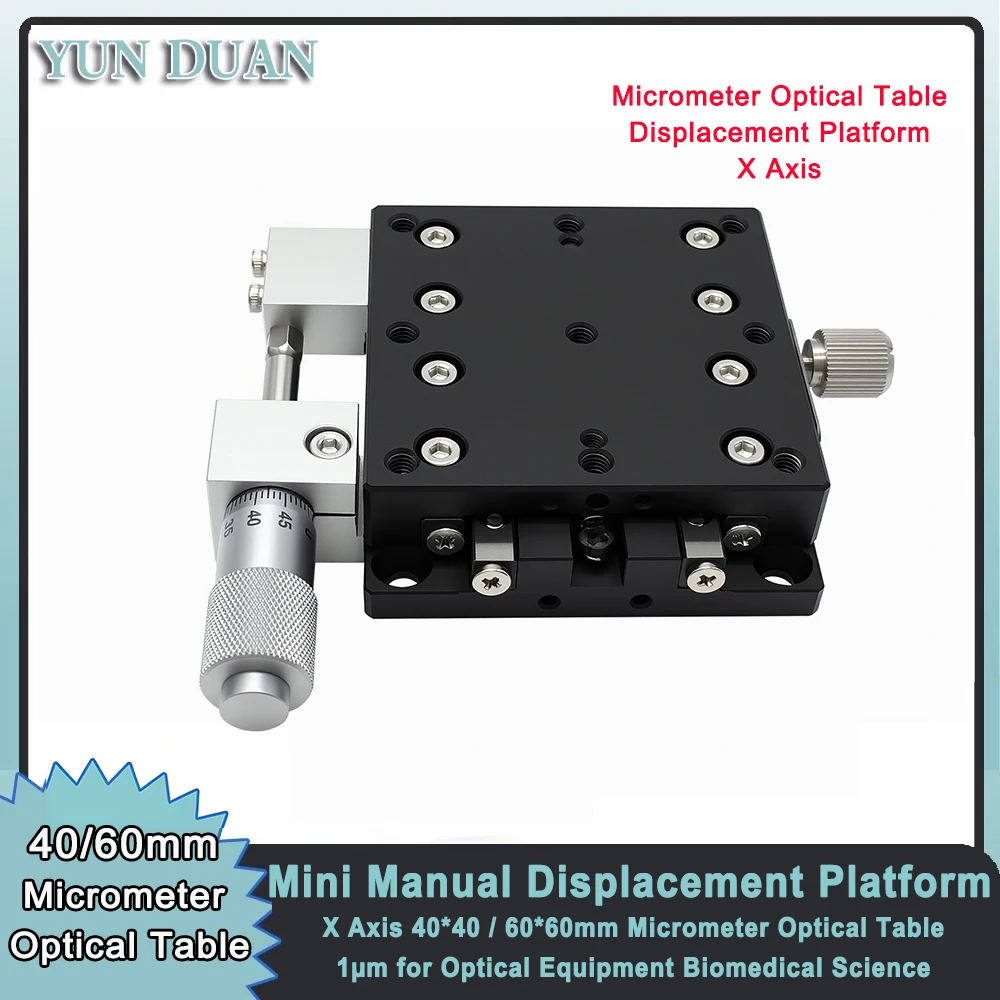

X Axis 40/60mm Mini Manual Optical Displacement Platform Micrometer Linear Guides High Precision Adjustable Sliding Stage LGX40

REF: 1005010264818123

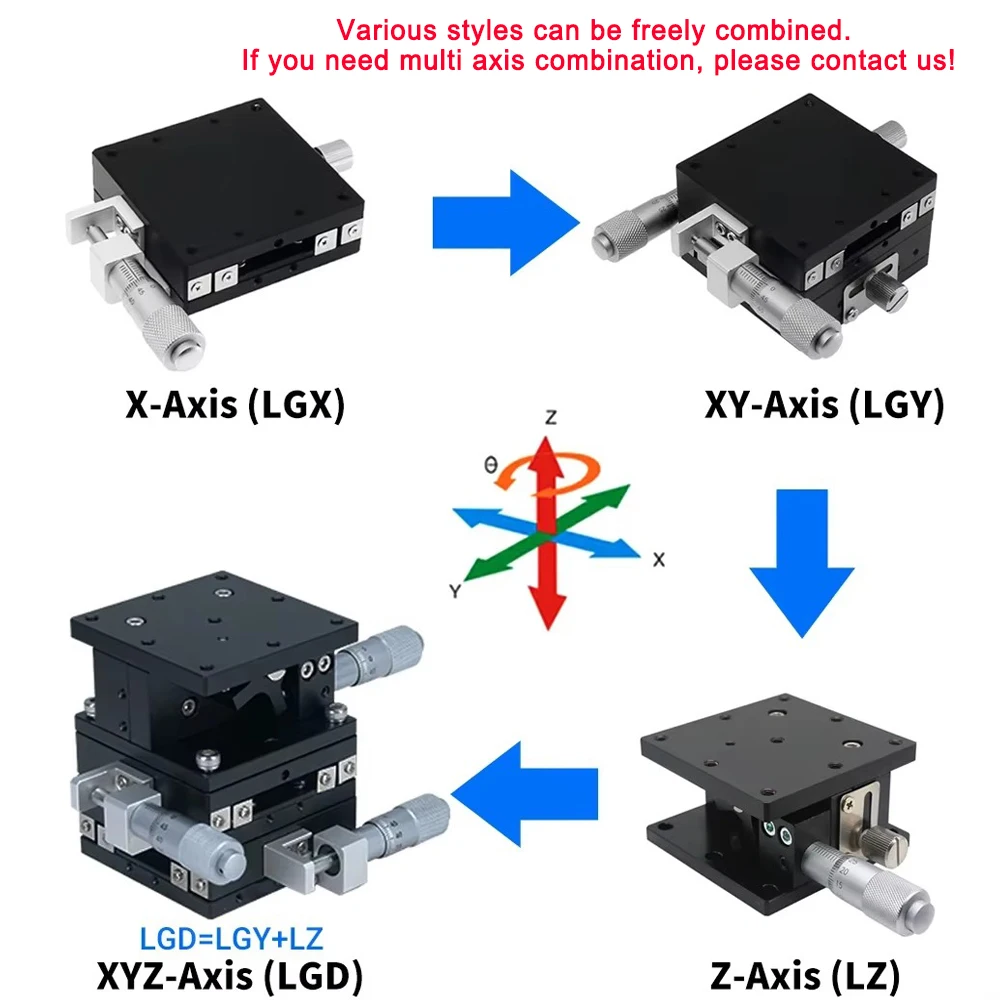

For more different types and combinations, please click on the image below to place an order！

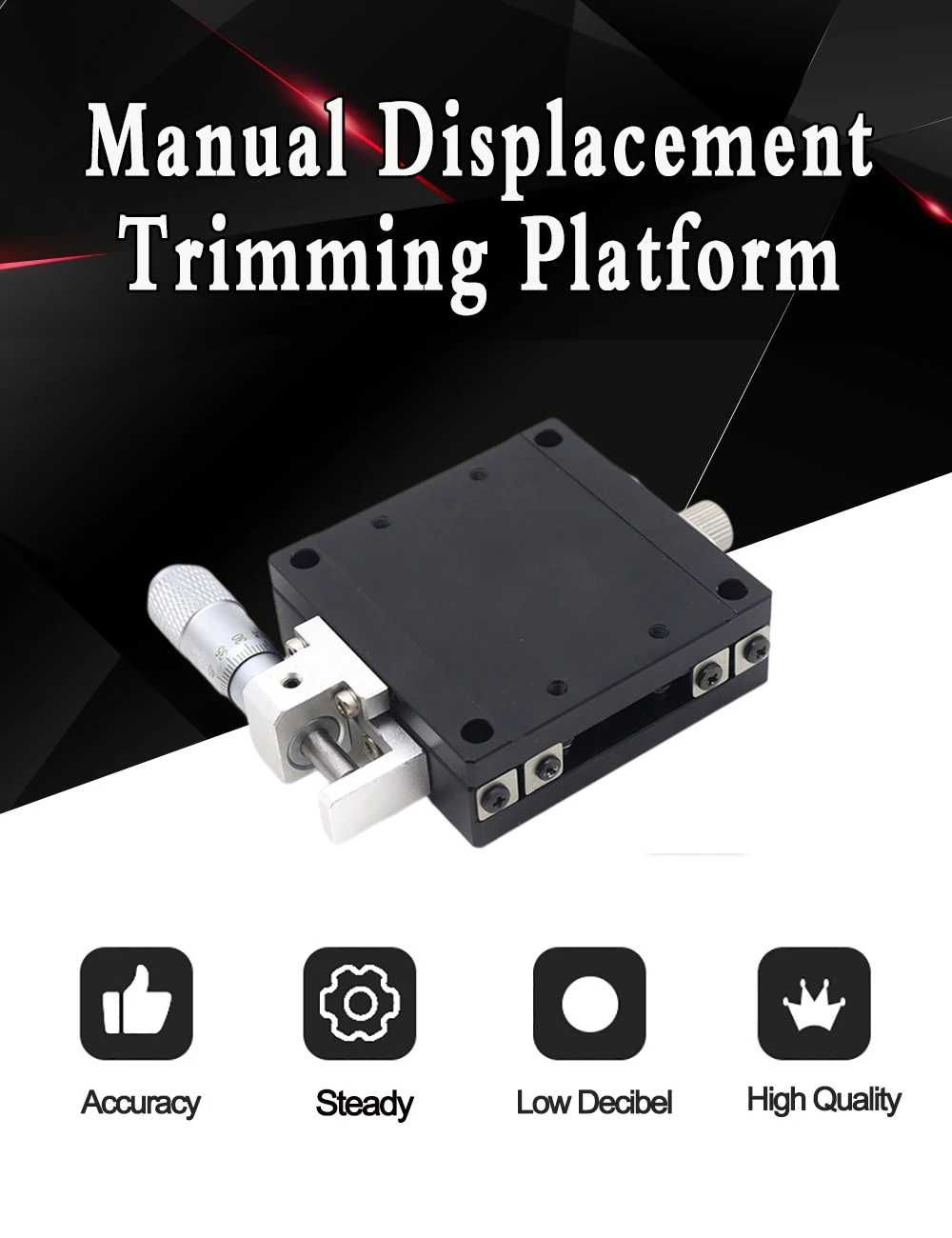

1 * Manual Sliding Table

X-axis slide table

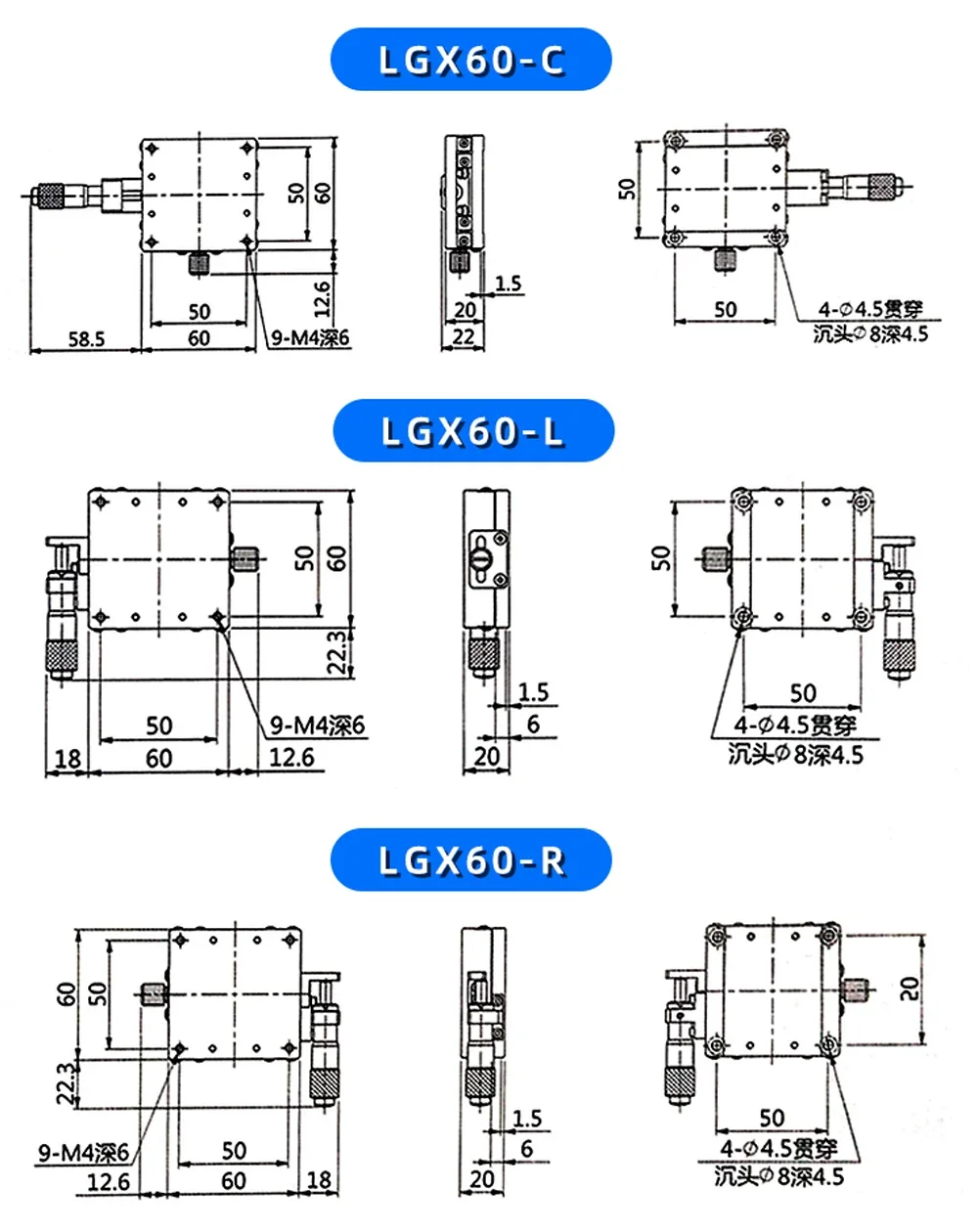

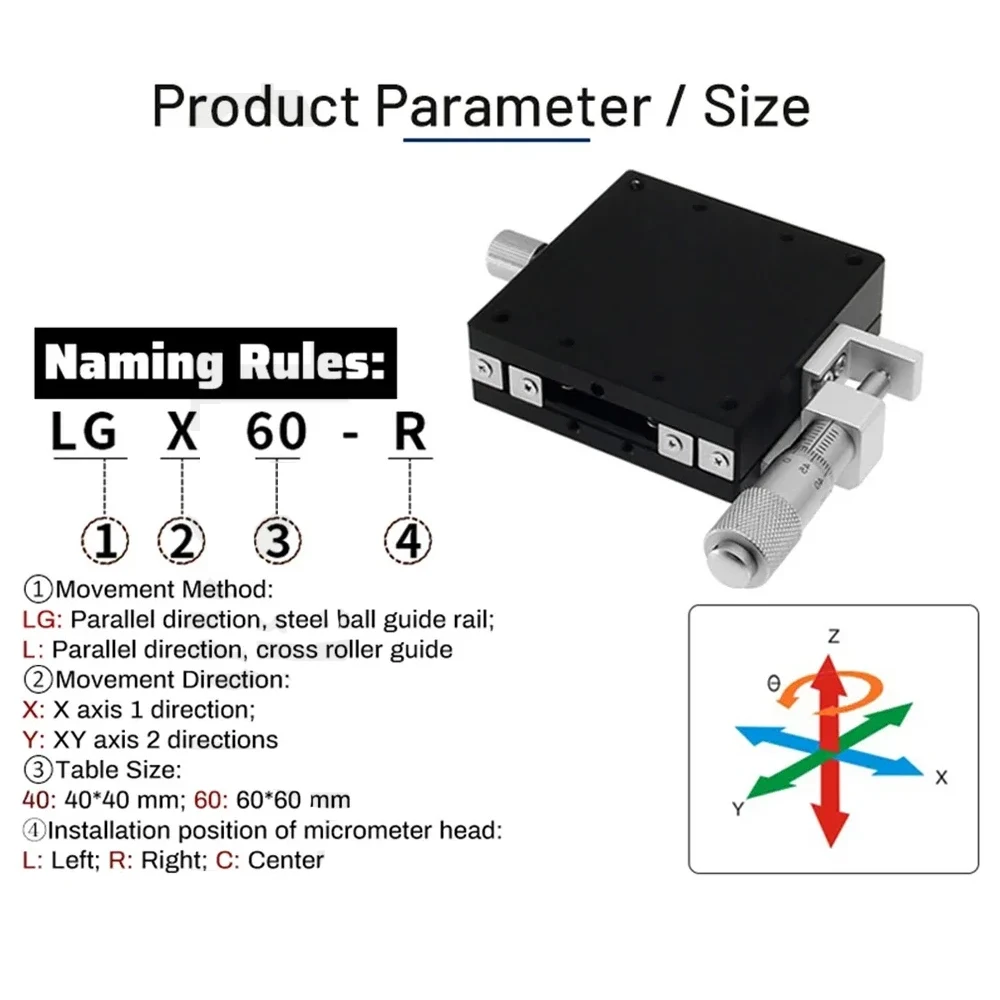

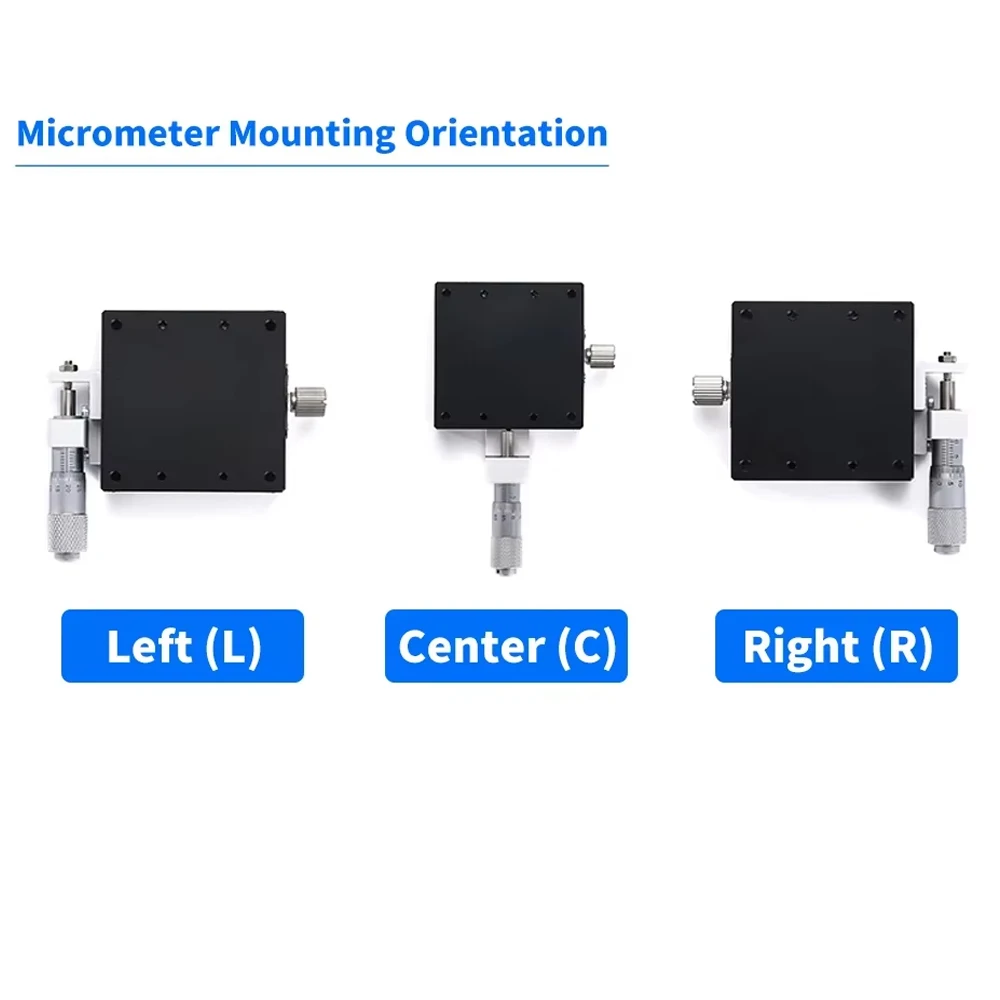

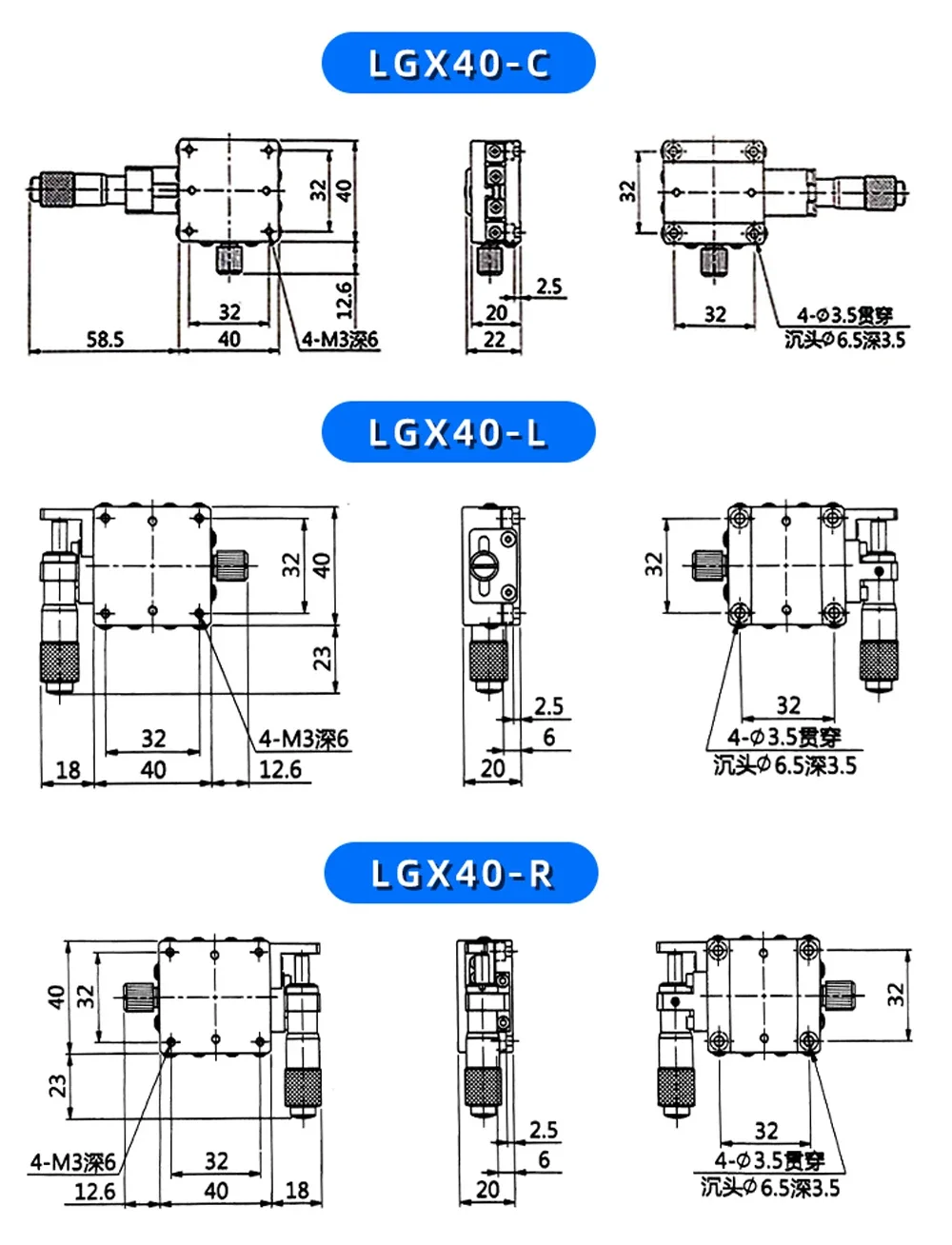

Model	LGX40-C	LGX40-L	LGX40-R	LGX60-C	LGX60-L	LGX60-R
Moving Direction	X Axis One Direction
Table Size	40mm x 40mm			60mm x 60mm
Table Thickness	20mm

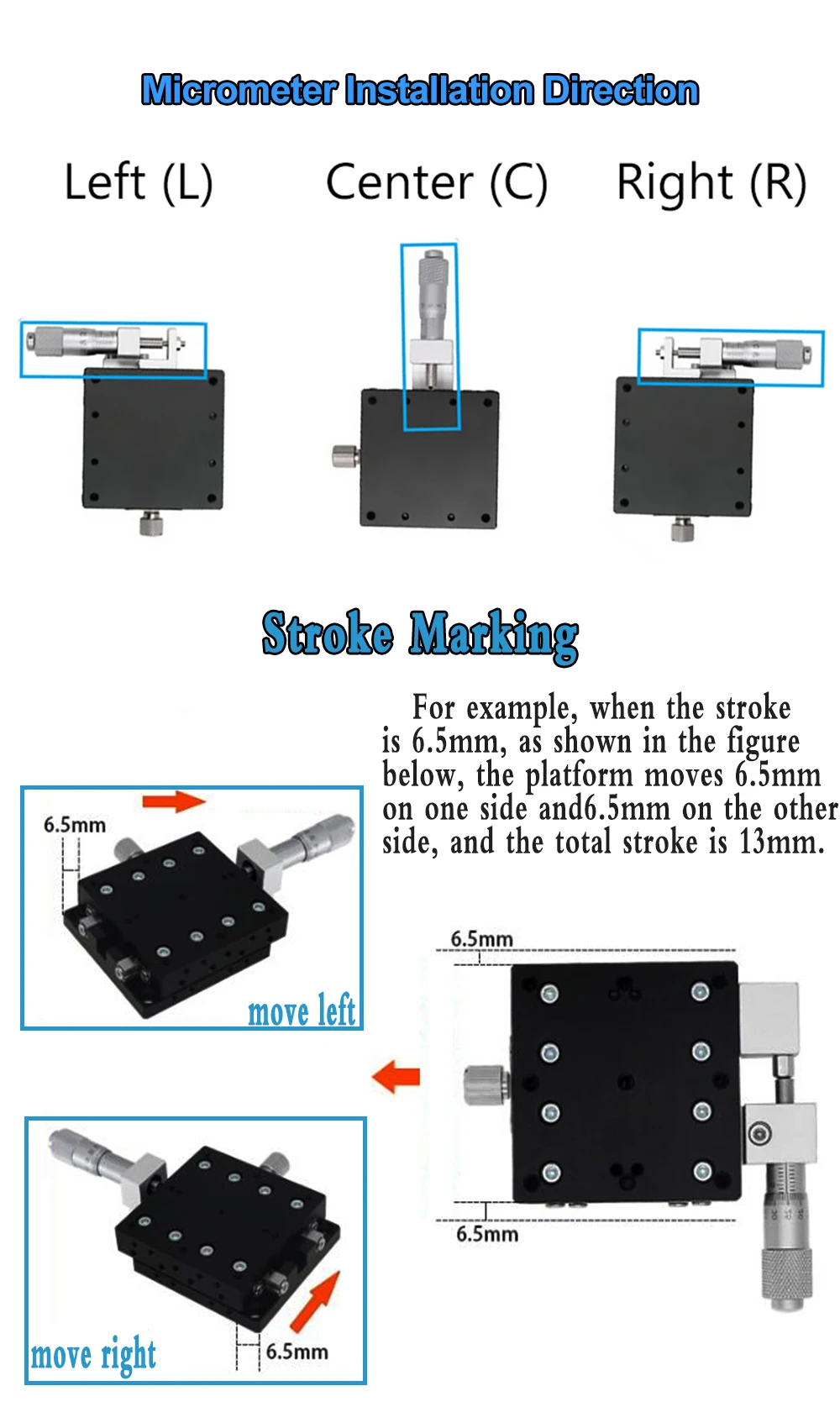

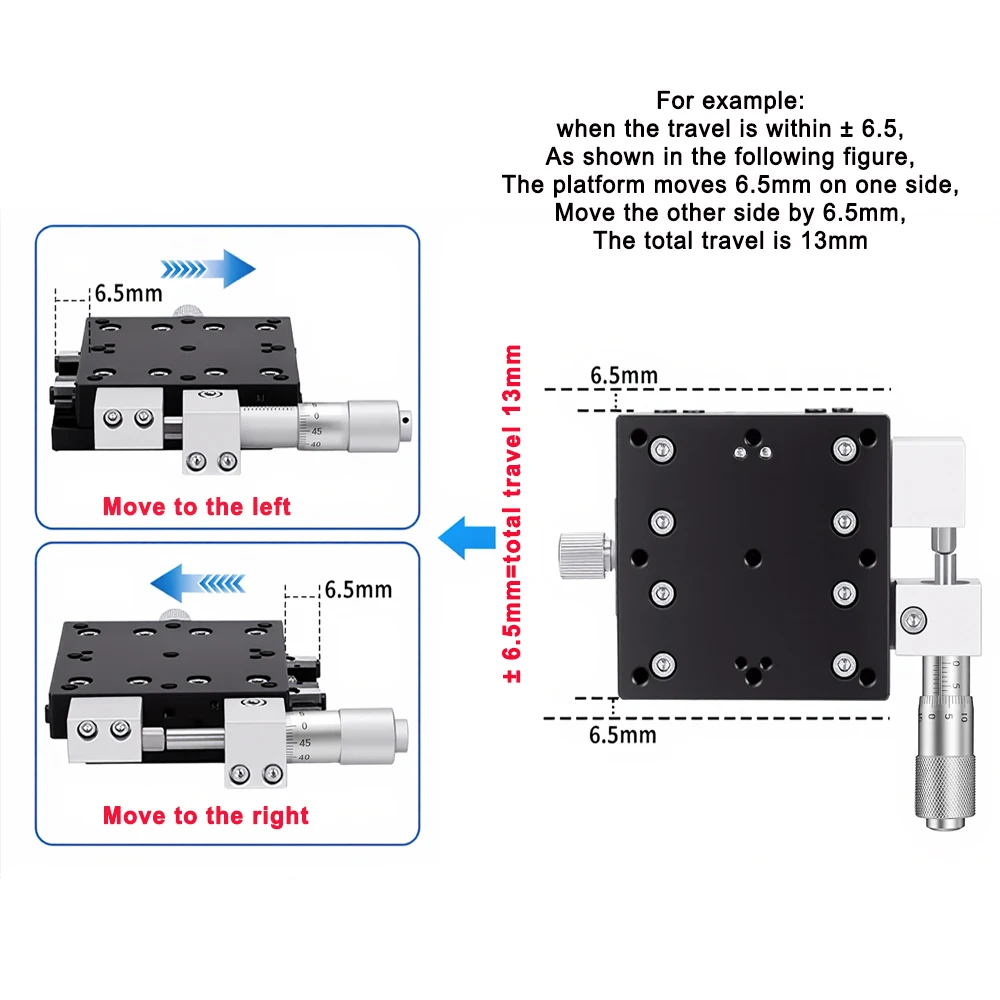

Stroke	±6.5mm, Total 13mm
Load	19.6N (2kgf)			39.2N (4kgf)
Minimum Scale	0.01mm
Parallelism of Movement	≤0.02mm/6mm			≤0.02mm/13mm
Parallelism	0.03mm
Weight	0.13kg			0.21kg
