- High-concerned chemical: None

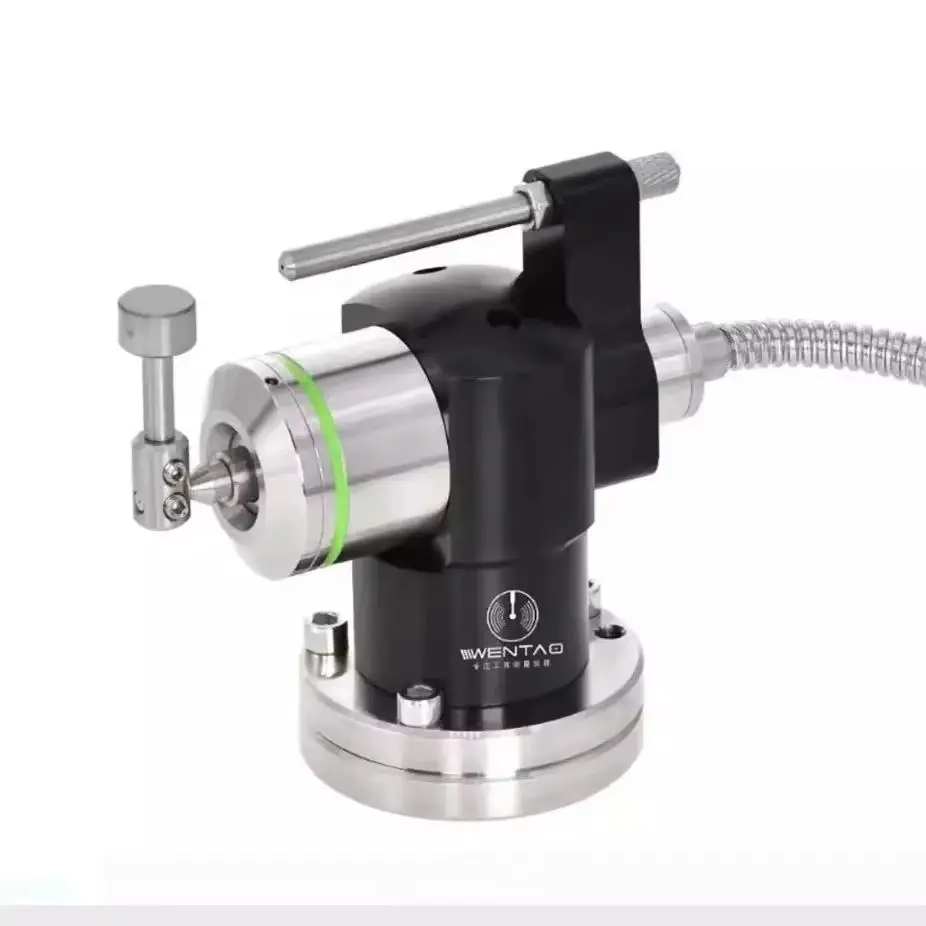

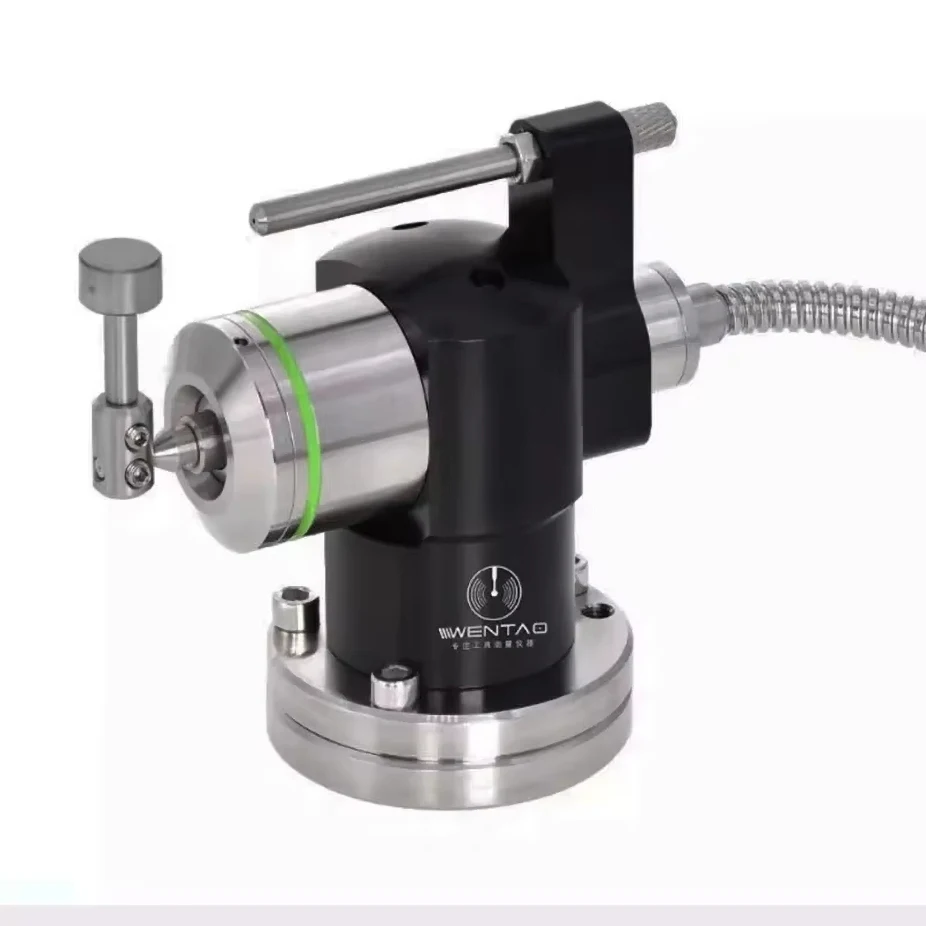

- Model Number: Five-way tool setting instrument
- Origin: Mainland China
Main applications
Applied to CNC machining centers, drilling centers, and other CNC machines for measuring tool span and detecting tool damage
Trigger lifespan: 10 million times
Operation mode: automatic
Recommended measuring needle: graphic measuring needle 12.7

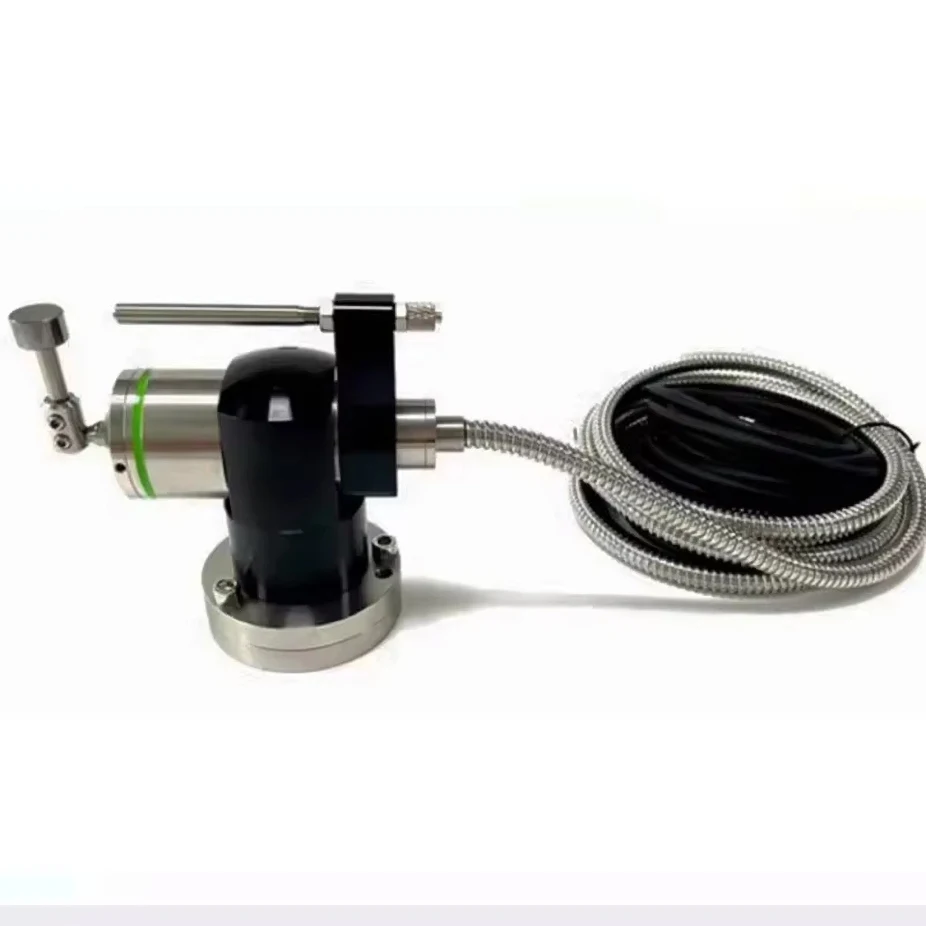

Cable length: 5 meters, 4-core cable
Contact triggering direction: ± X, ± Y, Z
Contact material: superhard alloy
Protection level: IP67
Installation accessories: equipped with bracket base and air blowing device
Precision of tool setting instrument: Unidirectional precision of tool setting instrument is 0.001mm
