- Application: Marine Boat
- High-concerned chemical: None
- Bundle: Bundle 1
- Battery Number: 1
- Size: Prismatic
- Replacement Battery: No
- Set Type: Charger Sets
- Type: LiFePO4
- Nominal Capacity: 24v200Ah
- Model Number: 24V200Ah
- Brand Name: DIXSG
- Origin: Mainland China
- Certification: CE
- Size: depend on capacity
- Charging method: CC/CV
- Battery Management System: Battery Management System
- BMS functions: over-current, over-discharge, over-charge, short-circuit,
- Cycle Life: 6000 times
- Battery type: lifepo4 rechargeable battery pack
- Charger: with charger
- BMS function: adverse-polarity connection, balancing functions

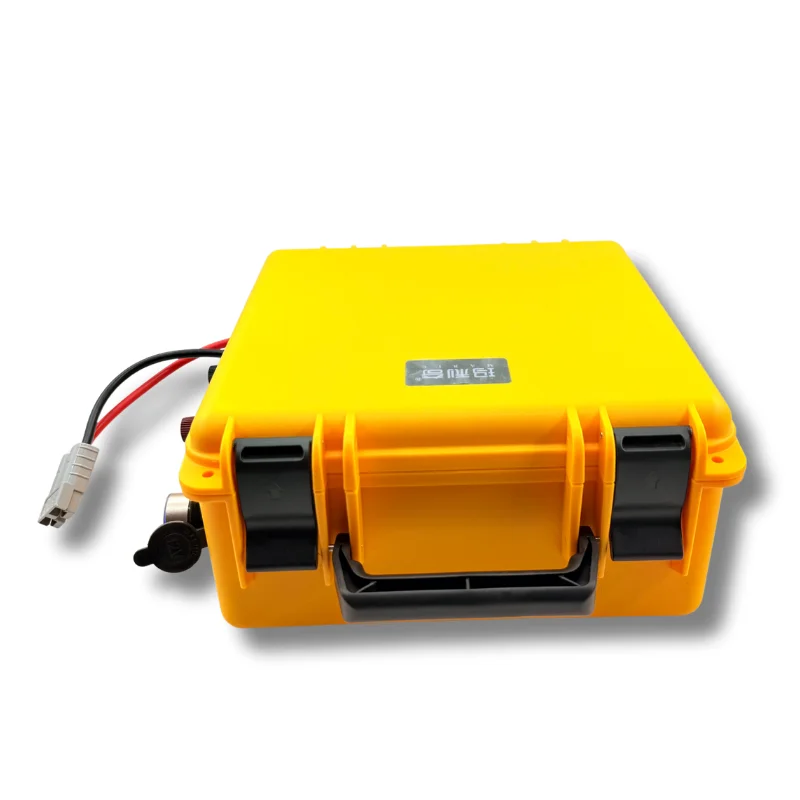

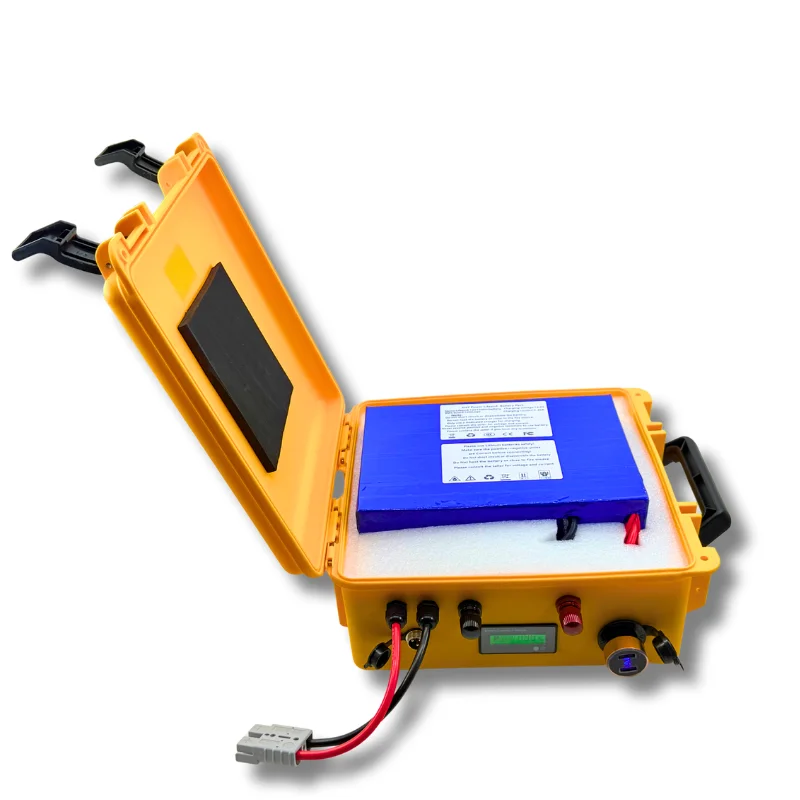

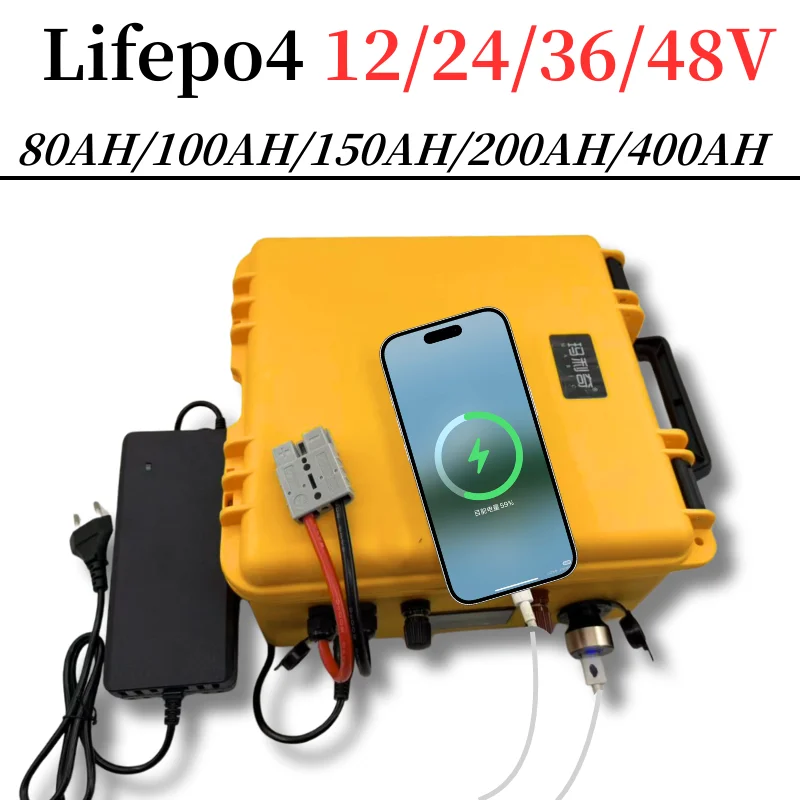

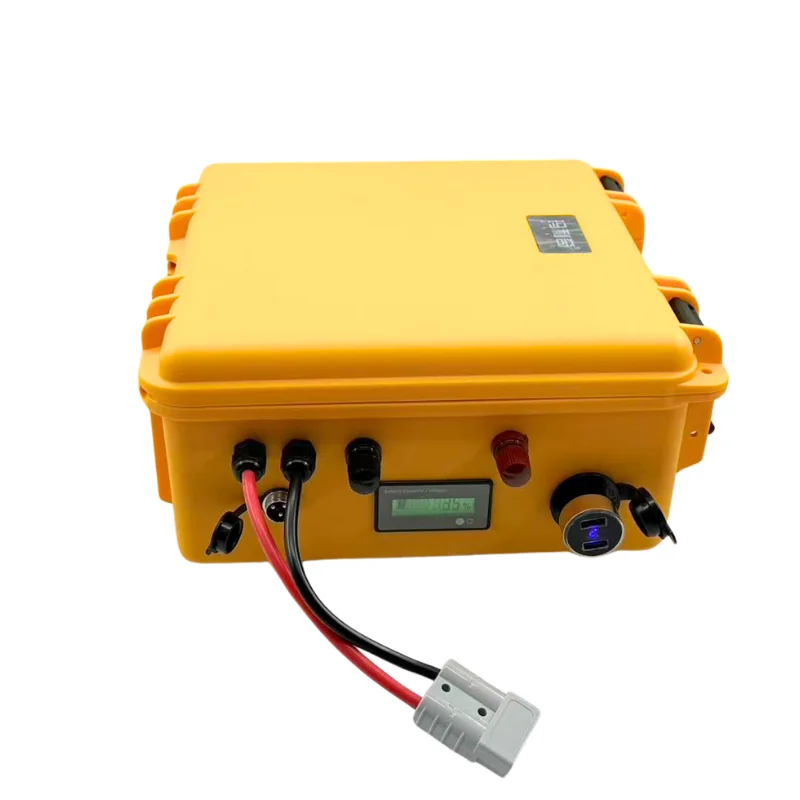

Waterproof 12V 24V 36V 48V 80Ah 100Ah
150Ah 200Ah 400Ah Lifepo4 battery BMS
inside for trolling motor boat RV +Charger
12V Battery Specification:
Battery Type: Rechargeable Lifepo4
Nominal Voltage:12.8V
Nominal Capacity: 200Ah /400Ah
Charging method: CC/CV
Charging Voltage:14.6v
Charging Current: Stad 20A,Max 100A
Discharge cut-off voltage : about 10V
Continuous Discharging Current: 100A about 1000W (can be customized)
Life Cycles: >6,000 cycles at 0.2C DOD 80% capacity
Terminal Type: M8 screw
Warranty: 12months
Working temperature:
Charge Temperature: 0~45°C
Discharge Temperature: -20~65°C
Retention of charge (store in one month) : ≥95
Dimension & Weight:
200Ah- 175*415*340mm about 17kg
400Ah-473*348*173mm about 27kg
Packing List:

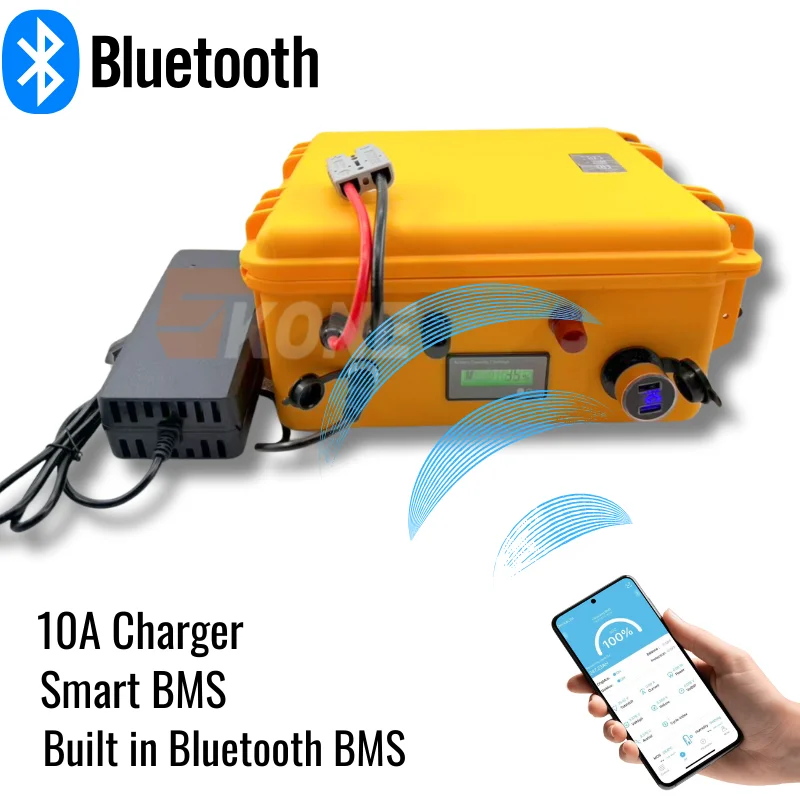

1) 1pcs 12V Lifepo4 battery with 100A bluetooth BMS inside.
2) 1pcs 14.6V 20A Charger with EU/US/UK plug.
24V Battery Specification:
Battery Type: Rechargeable Lifepo4
Nominal Voltage:24V
Nominal Capacity: 150Ah /200Ah
Charging method: CC/CV
Charging Voltage:29.2V
Charging Current: Stad 20A ,Max 80A
Discharge cut-off voltage : about 20V
Continuous Discharging Current: 100A about 2000W (can be customized)
Life Cycles: >6,000 cycles at 0.2C DOD 80% capacity
Terminal Type: M8 screw
Warranty: 12months
Working temperature:
Charge Temperature: 0~45°C
Discharge Temperature: -20~65°C
Retention of charge (store in one month) : ≥95
Dimension & Weight:
150Ah- 473*348*173mm about 20kg
200Ah-473*348*173mm about 27kg
Packing List:
1) 1pcs 24V Lifepo4 battery with 100A bluetooth BMS inside.
2) 1pcs 29.2V 20A Charger with EU/US/UK plug.
36V Battery Specification:
Battery Type: Rechargeable Lifepo4
Nominal Voltage: 36V
Nominal Capacity: 100Ah /120Ah
Charging method: CC/CV
Charging Voltage: 43.8V
Charging Current: Stad 10A, Max 50A
Discharge cut-off voltage : about 30V
Continuous Discharging Current: 100A about 3000W (can be customized)
Life Cycles: >6,000 cycles at 0.2C DOD 80% capacity
Terminal Type: M8 screw
Warranty: 12months
Working temperature:
Charge Temperature: 0~45°C
Discharge Temperature: -20~65°C
Retention of charge (store in one month) : ≥95
Dimension & Weight:
100Ah-460*380*180mm about 22kg
120Ah-120Ah :460*380*180mm about 25kg
Packing list:
1) 1pcs 36V Lifepo4 Battery pack with 100A bluetooth BMS inside .
2) 1pcs 43.8V 10A Charger with EU/US/UK plug.
48V Battery Specification:
Battery Type: Rechargeable Lifepo4
Nominal Voltage: 48V
Nominal Capacity: 80Ah /100Ah
Charging method: CC/CV
Charging Voltage: 58.4V
Charging Current: Stad 10A, Max 50A
Discharge cut-off voltage : about 40V
Continuous Discharging Current: 100A about 4000W (can be customized)
Life Cycles: >6,000 cycles at 0.2C DOD 80% capacity
Terminal Type: M8 screw
Warranty: 12months
Working temperature:
Charge Temperature: 0~45°C
Discharge Temperature: -20~65°C
Retention of charge (store in one month) : ≥95
Dimension & Weight:
80Ah- 460*380*180mm about 18kg
100Ah-460*380*180mm about 29kg
Packing list:
1) 1pcs 48V Lifepo4 Battery pack with 100A bluetooth BMS inside
2) 1pcs 58.4V 10A Charger with EU/US/UK plug.
