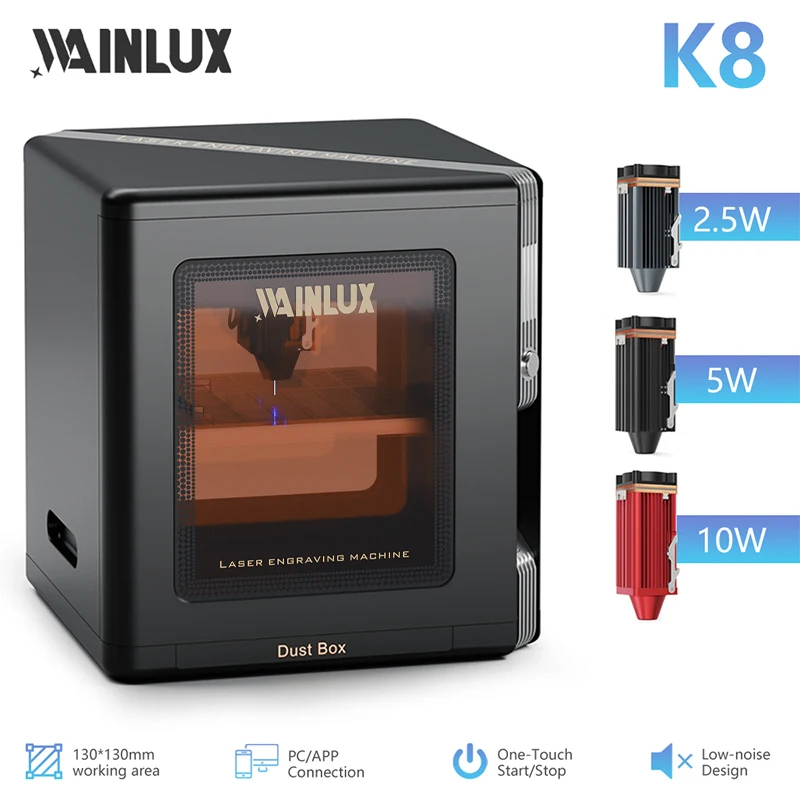

WAINLUX K8 Mini Blue Laser Engraving Machine

Wainlux K8 is an efficient and fast laser engraver and cutter that brings your ideas to life. With its versatility and ease of use, this is the perfect tool for those looking to take their projects to the next level.

Feature

Security

• FDA certified laser level CLASS 1, fully enclosed structure, the machine does not emit laser when the door is opened to prevent laser leakage.

• The front and rear doors are equipped with anti-laser see-through windows, with a blue light filtering rate of 99.7%, and internal engraving visual design.

• Hall induction door safety protection design, the machine will not work when the door is opened, suitable for different groups (elderly and children, specially designed for professionals and non-professionals, science and education).

• Internal parts are made of fireproof engineering plastics.

High Technology

• Bring a 2mp high -definition camera to see the sculpture progress in real time on the app. You can edit and operate the carving location on the app.

• High-speed (15000mm/min) and high-precision (0.01mm) engraving is achieved through high-power compressed light laser, alloy profile structure guide rail, and high-precision stepper motor.

• Can be connected to a specially equipped high-efficiency smoke, dust and odor purifier.

• Technological reminder indicator light design. When the door is opened, the white indicator light flashes slowly, the blue light is always on when working, and the white light is always on when in standby.

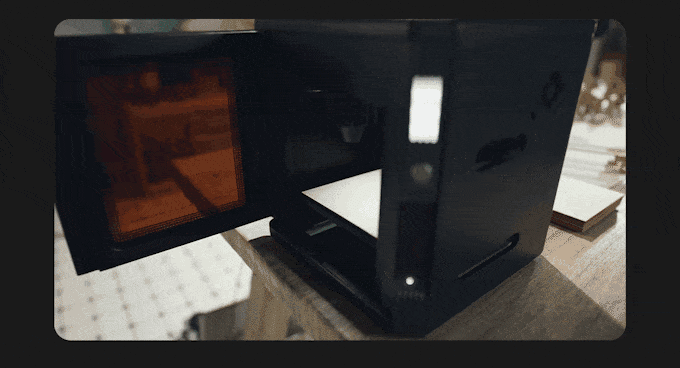

• Magnetic door.

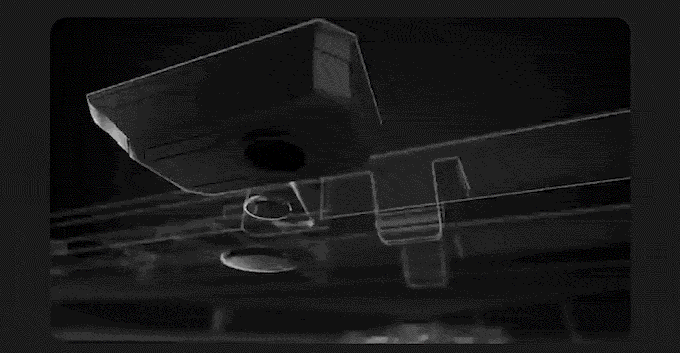

• The laser lens has a wind-collecting structure and dust-proof design, and an interchangeable lens design.

• The retractable fixed focus needle makes focusing fast, accurate and convenient.

• Using the most advanced laser compression technology, the engraving accuracy reaches 0.01mm, and the spot is smaller (less than 0.08mm).

Smart And Intuitive

Inner HD Smart Camera To Realize Smooth Operation On App Even More Easiler For Batch Production!

Intelligent Design In Preview & Focus

Simply Adjust The Height Of The Laser Head By Using The Adjustment Knob, K8 Makes The Engraviing Set-up More Efficient. Additionally, The One-click Preview Function Enable To Preview A Frame Of The Design At Exactly The Position Where You Are To Engrave.

High speed dual galvanometer with beam compression technology

Humanized design

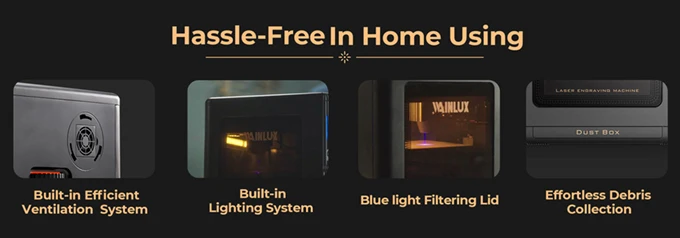

• The machine comes with a detachable cleaning structure exhaust fan, and can also be connected to an external purifier.

• There is lighting inside. Convenient to see the real-time engraving inside.

• One-click start and stop, support offline engraving.

• The power cord and computer cable run through the lower left rear end of the machine, which is neat and does not occupy any space.

• With slag collecting tray function for easy cleaning.

• With positioning strip for easy positioning.

• 2.5W, 5W, and 10W lasers are optional, making it easy for users to change lasers.

• Closed design, low noise.

• Buckle hand design makes it easy to move.

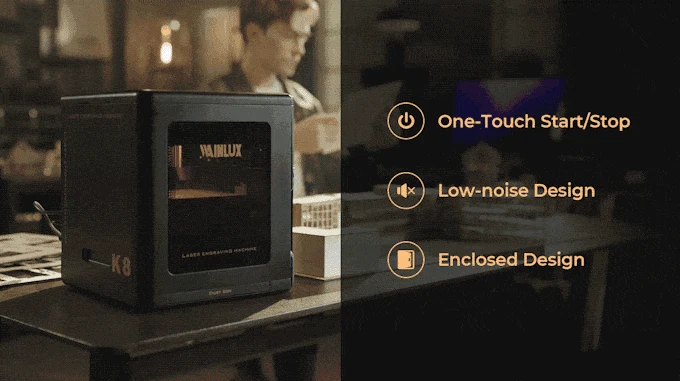

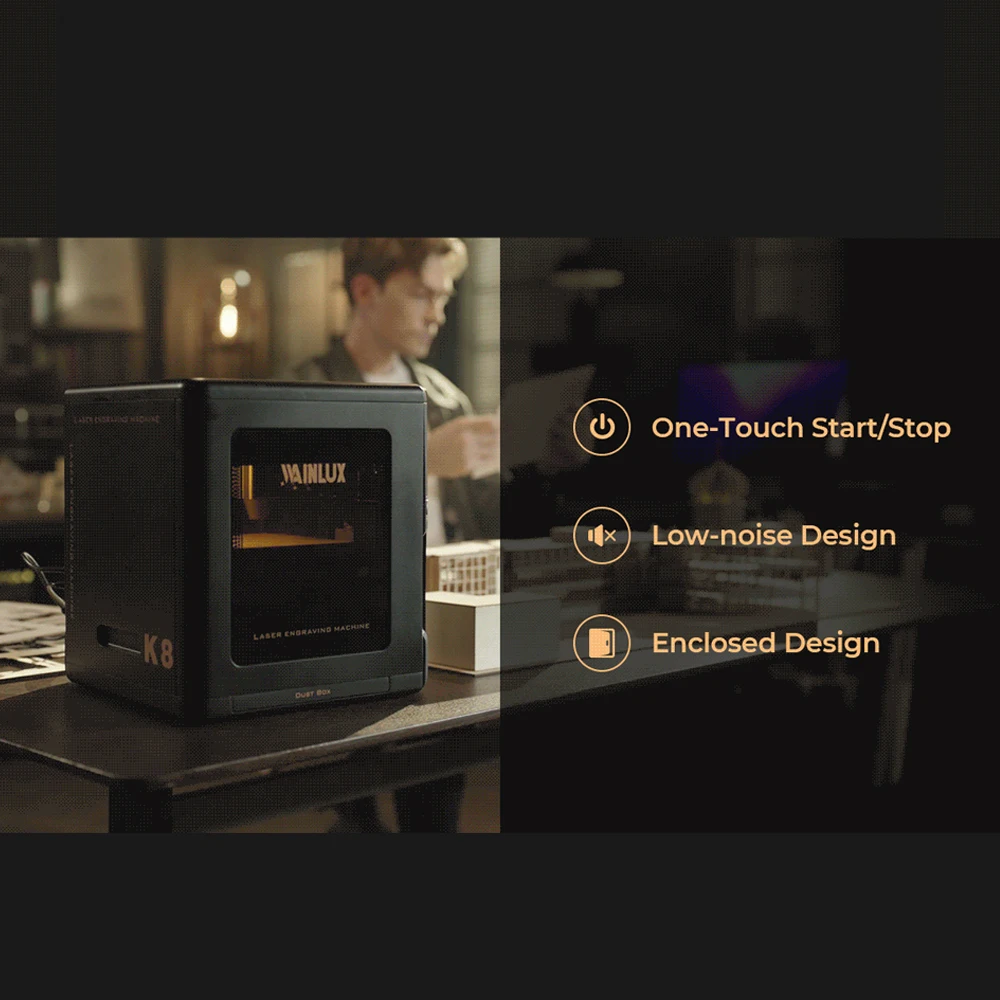

Safe & Secure In Engraving

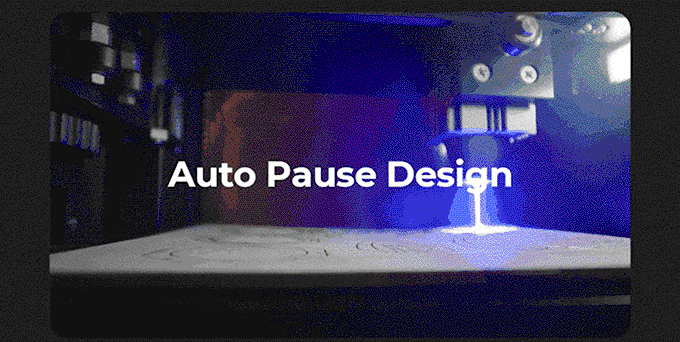

Preventing Accidental Touch Or Door Opening to Protect Yout Safety. The K8 Boasts a Low-noise Design And One-Touch Start/stop System, Ensuring You Can Monitor The Engraving Progress In a Safe And Immersive Environment

Compact, Powerful and Precise

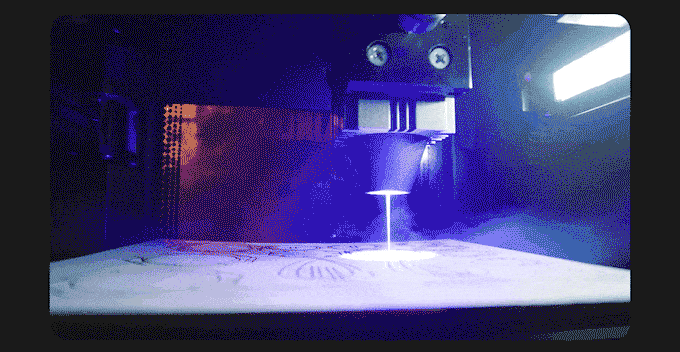

With its 10W Laser Power, It can effortlessly engrave on various materials like stainless steel, paper, wood, leather, acrylic, and more. Experience the satisfaction of Intricate and detailed engravings with the Wainlux K8.

Unleash Your Creativity With Laser Cutting

The 10W blue laser gives Wainlus K8 enough power to directly cut materials after engraving. K8 is designed to offer versatility and efficiency in your laser engraving and cutting projects.

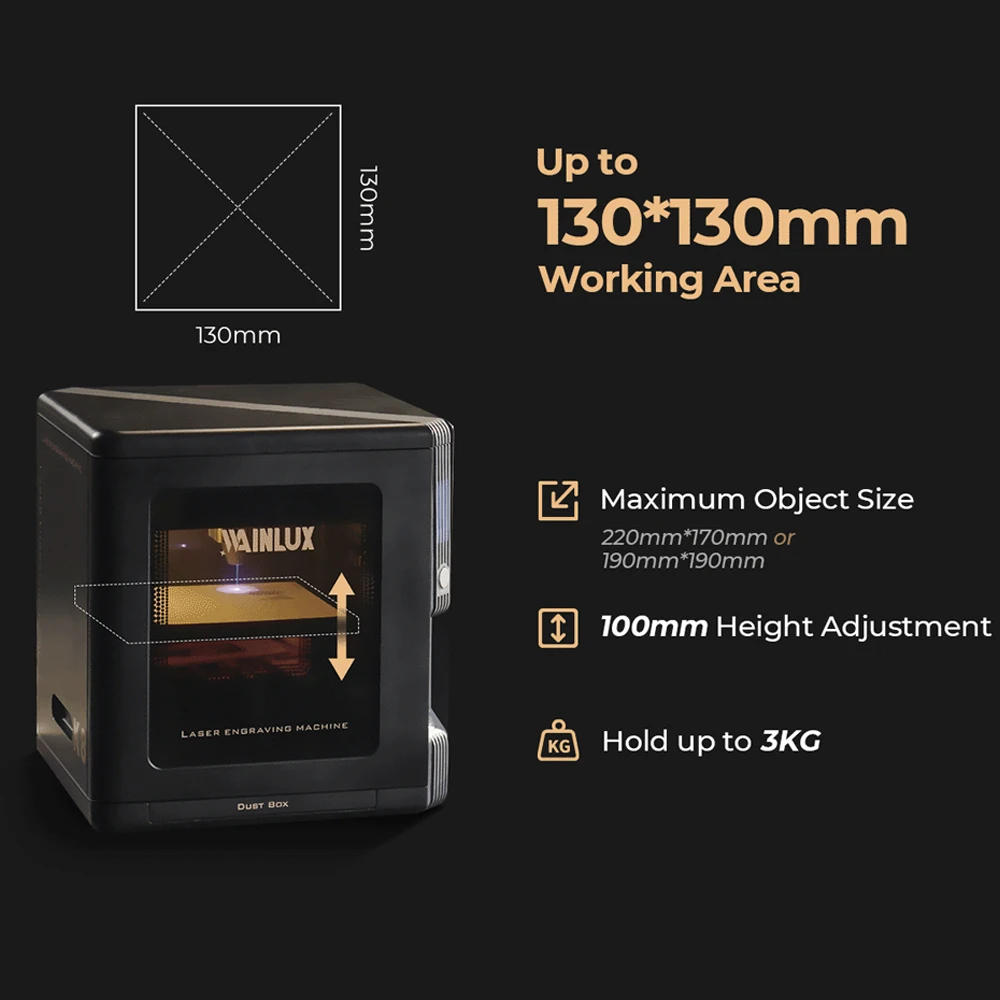

Large working Area 130*130mm

Maximum Object Size：220mm*170mm or 190mm*190mm

100mm Height Adjustment

Hold Up To 3KG

0.01mm Ultra-fine Precision

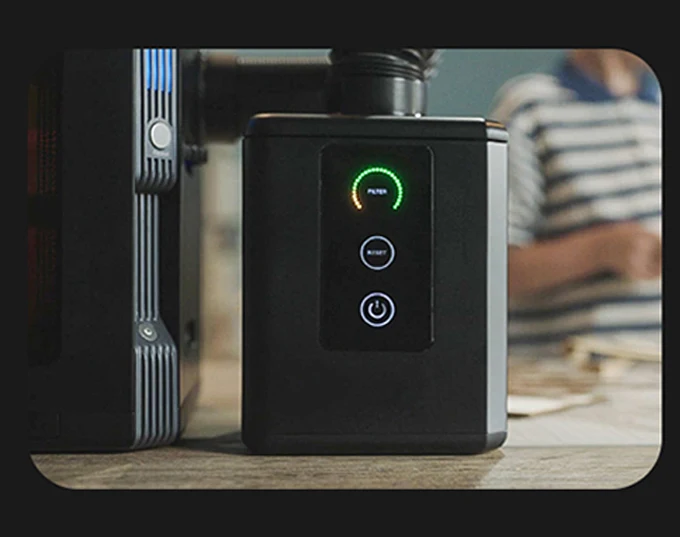

External Air Purifier & Rotaring Engraving

The nanometer-level filter and activated carbon filter work together to effectively remove smoke, dust, and odors. You'll also find a user-friendly visual screen interface for easy operation.

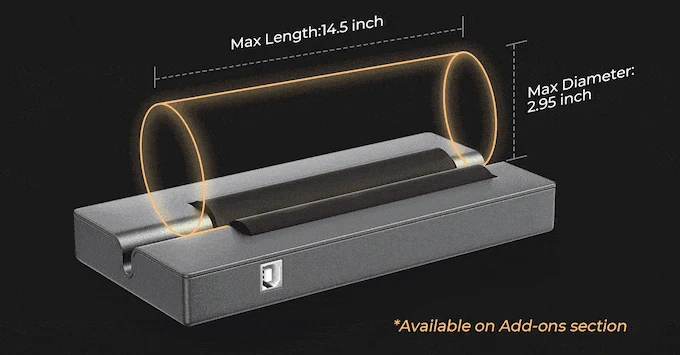

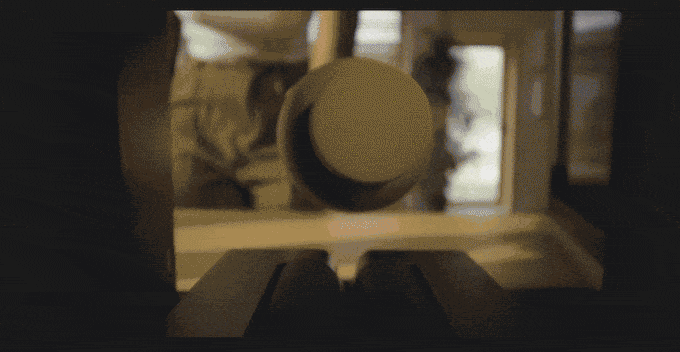

Featuring 360° rotating engraving and the ability to accommodate objects with a maximum diameter of 2.95 inches and a maximum length of 14.5 inches, the K8 makes cylindrical engraving tasks effortless.

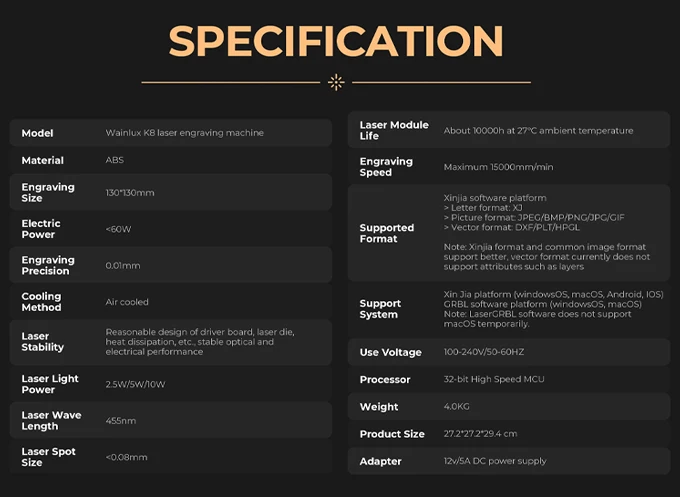

Specification

Model: Wainlux K8 laser engraving machine

Material: ABS

Engraving Size: 130*130mm

Electric Power: <60W

Engraving Precision: 0.01mm

Cooling Method: Air cooled

Laser Stability: Reasonable design of driver board, laser die, heat dissipation, etc., stable optical and electrical performance

Laser Light Power: 2.5W/5W/10W

Laser Wave Length: 455mm

Laser Spot Size: <0.08mm

Laser Module: About 10000h at 27°C ambient temperature

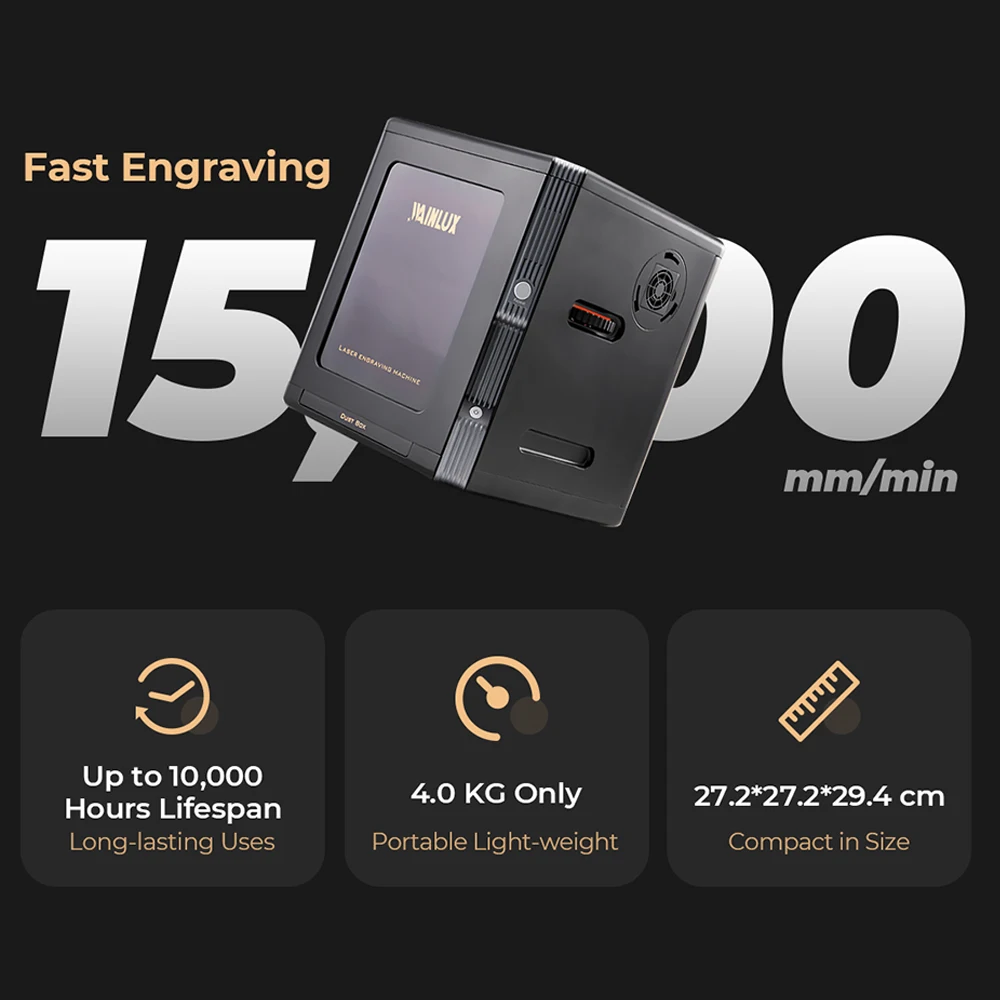

Engraving Speed: maximum 15000mm/min

Supported Format: Xinjia software platform

-Letter format: XJ

-Picture format: JPEG/BMP/PNG/JPC/GIF

-Vector format: DXF/PLT/HPGL

Note: Xinjia format and common image format support better, vector format currently does not support attributes such as layers.

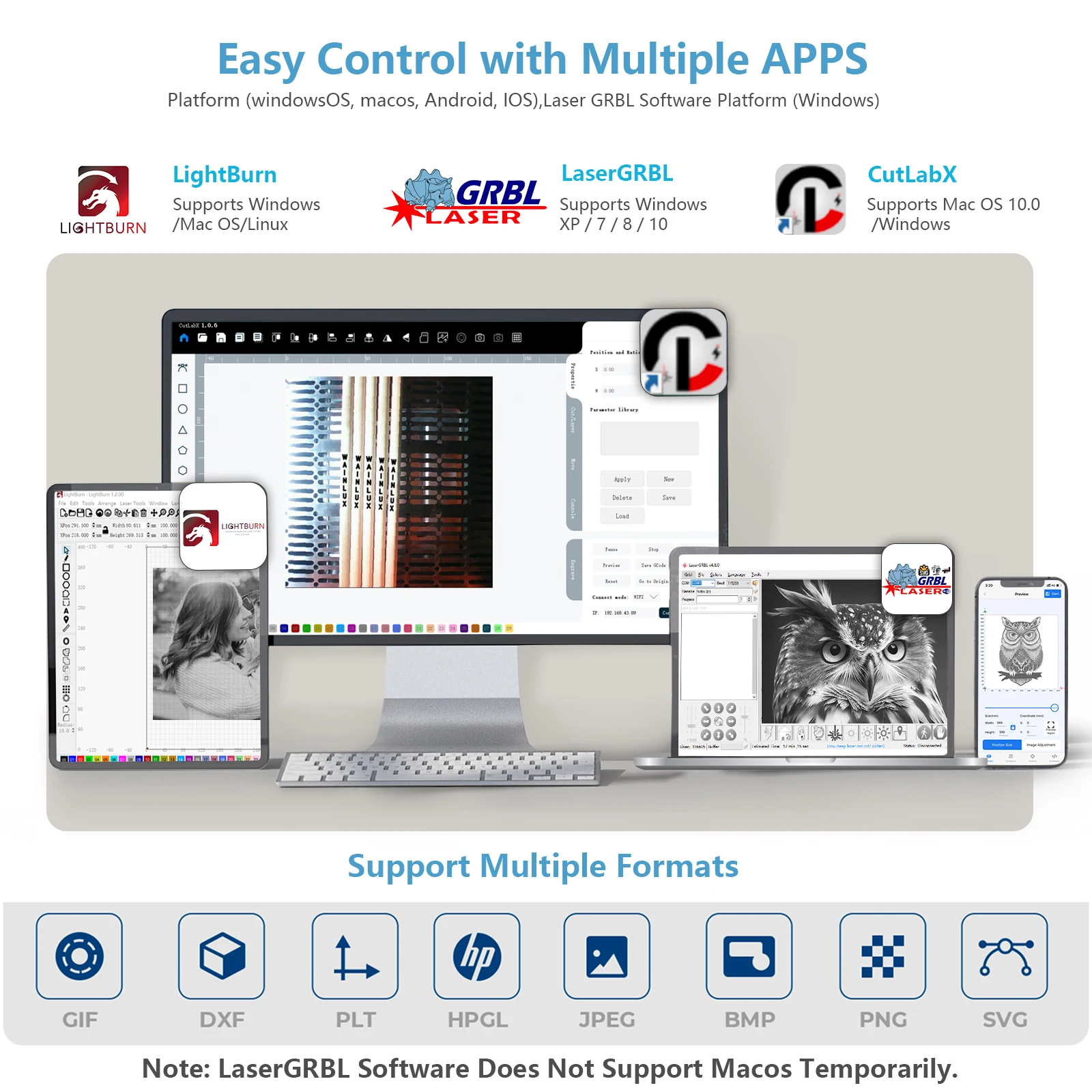

Support System: Xinjia platform (windowsOS, macOS, Android, IOS) / GRBL software platform (windowsOS, macOS)

Note: LaserGRBL software does not support macOS temporarily.

Use Voltage: 100-240V/50-60HZ

Processor: 32-bit High Speed MCU

Weight: 4.0KG

Product Size: 27.2*27.2*29.4 cm

Adapter: 12v/5A DC power supply

Multipurpose

• 10W can cut 8mm plywood and 10mm pine board; 5W can cut 3-5mm plywood and 5-7mm pine board; 2.5W can cut 1-2mm plywood and 3mm pine board.

• Can engrave most non-transparent materials such as paper, wood chips, plastic, leather, cloth, cardboard, leather, stone, ceramics, stainless steel, coated metal, etc.

• Can be connected to a rotating axis to engrave a cylinder with a maximum diameter of 75mm.

• Manually adjust the height of the stage, the adjustable height is 100mm, and can carve objects of different thicknesses. Manual adjustment reflects the sense of participation (the load of the stage can reach 3Kg).

• Long life, stability

• Long-life compressed light laser, laser life reaches 10000H.

• Alloy profile guide rail structure, high-precision stepper motor.

• Continuous engraving for a long time.

Explore More Inspiration

With K8 FREE laser engraving software and well compatibility with Lightburn. No matter you are a newbie or a experienced engraving master, Wainlux K8 can help you to explore your inspiration to reality.
