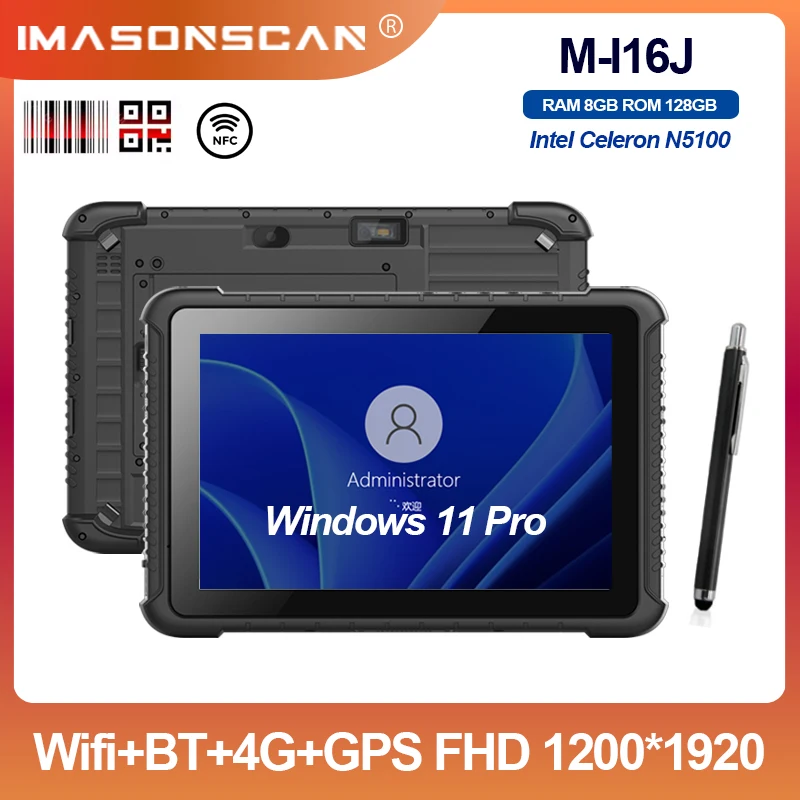

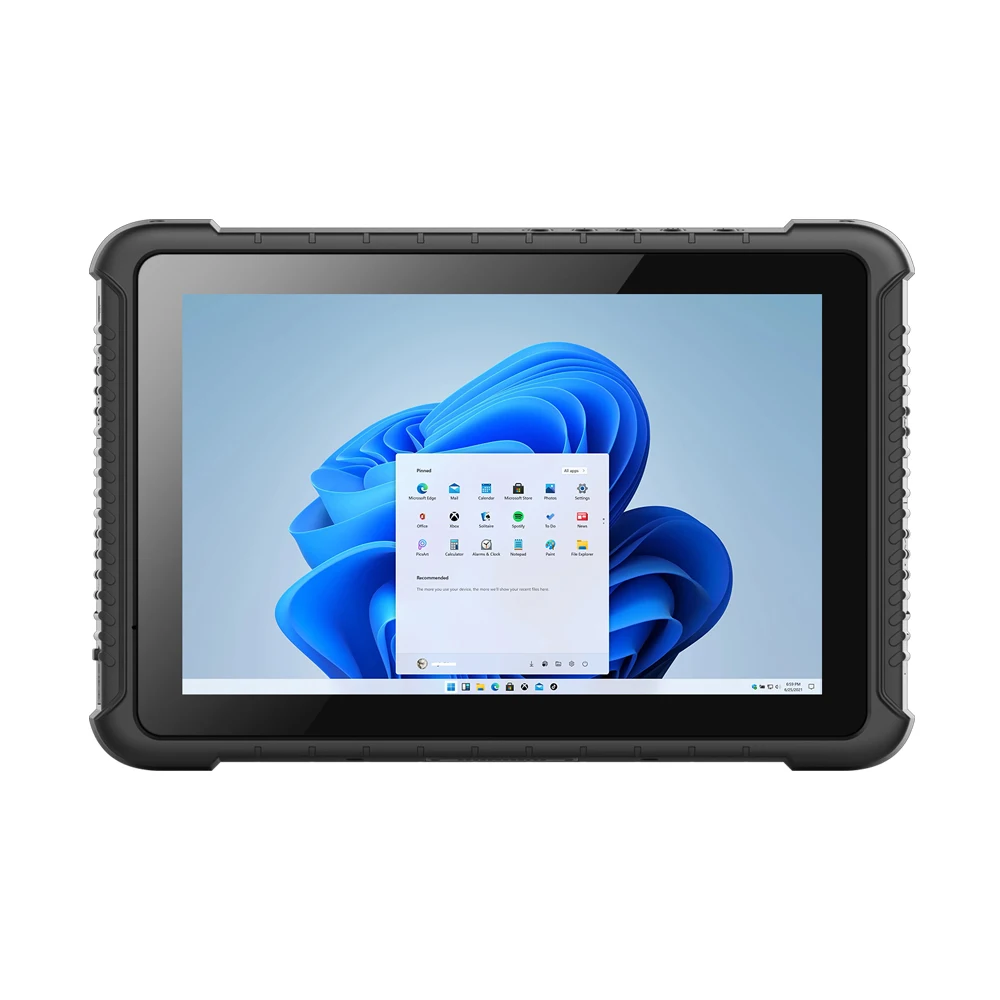

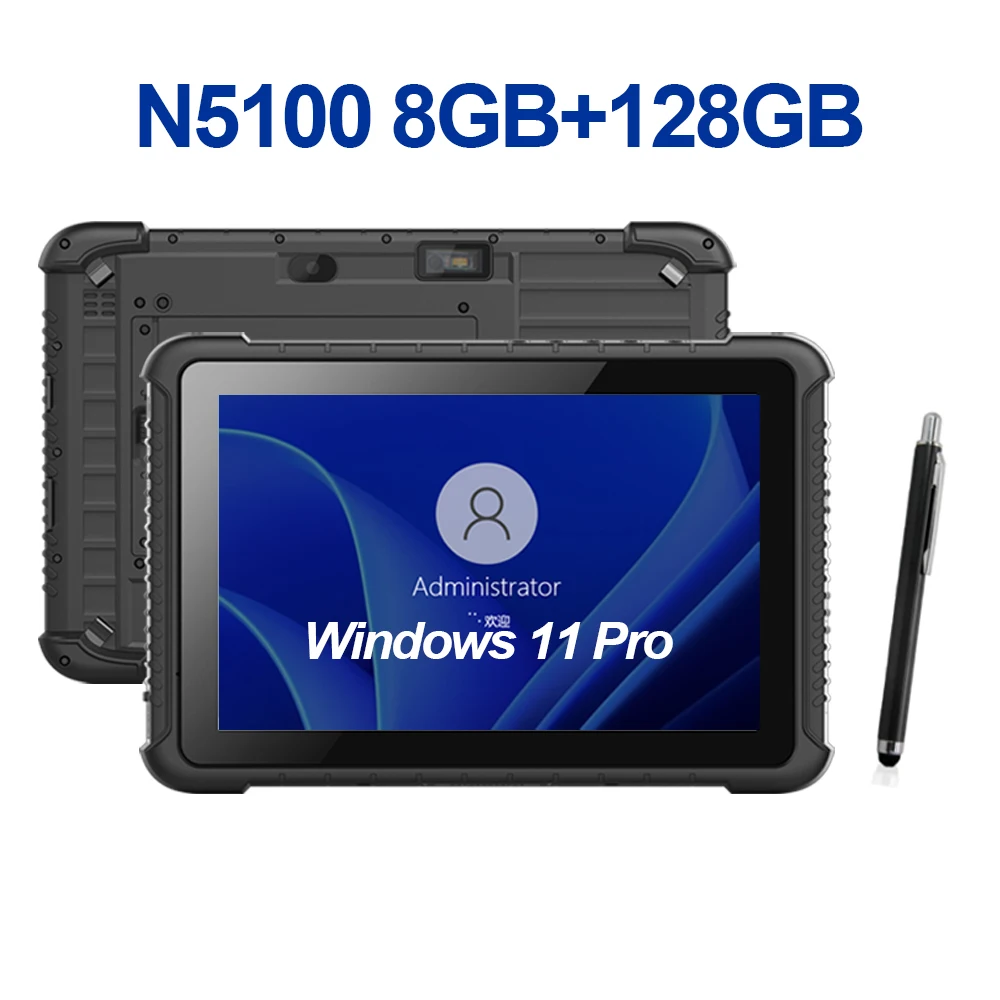

Vehicle Mount Rugged Windows Tablet Panal PC 10.1 Inch N5100 8GB+128GB 1920*1200 Industrial Windows11 Computer M-I16J

Vehicle Mount Rugged Windows Tablet Panal PC 10.1 Inch N5100 8GB+128GB 1920*1200 Industrial Windows11 Computer M-I16J

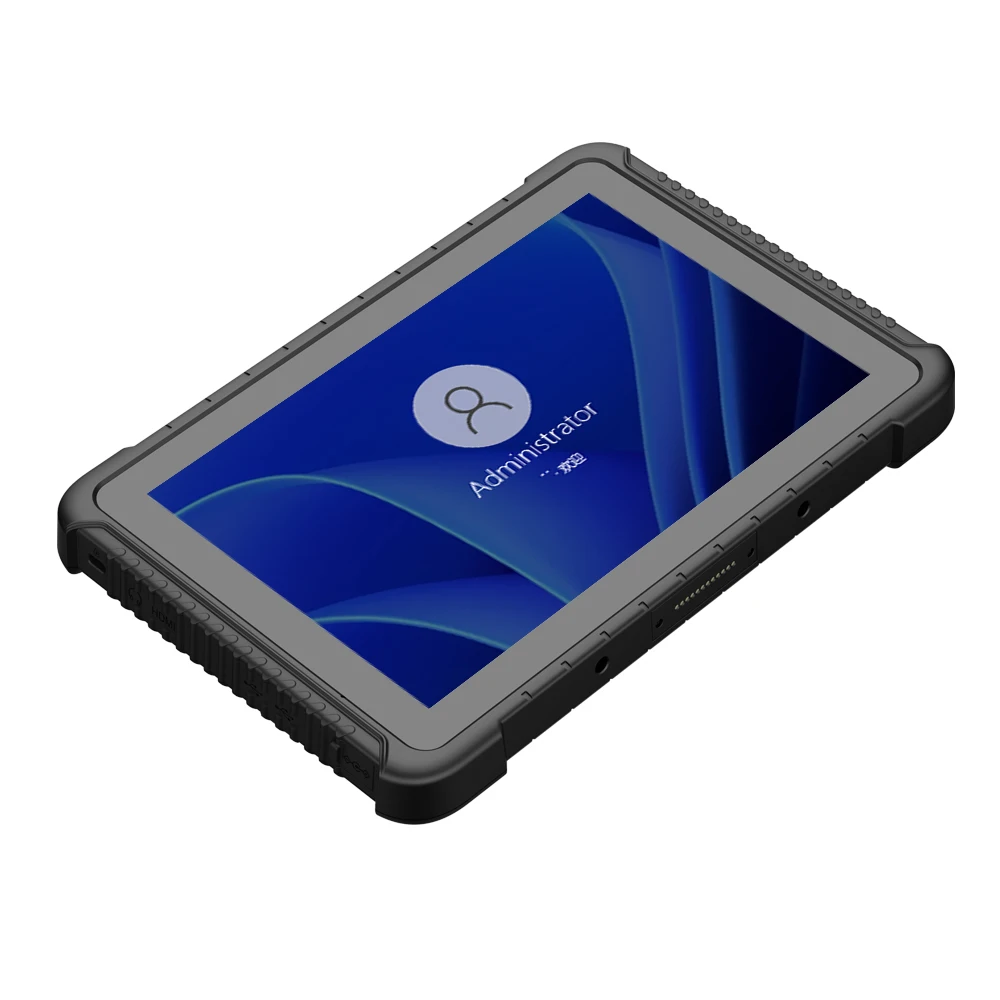

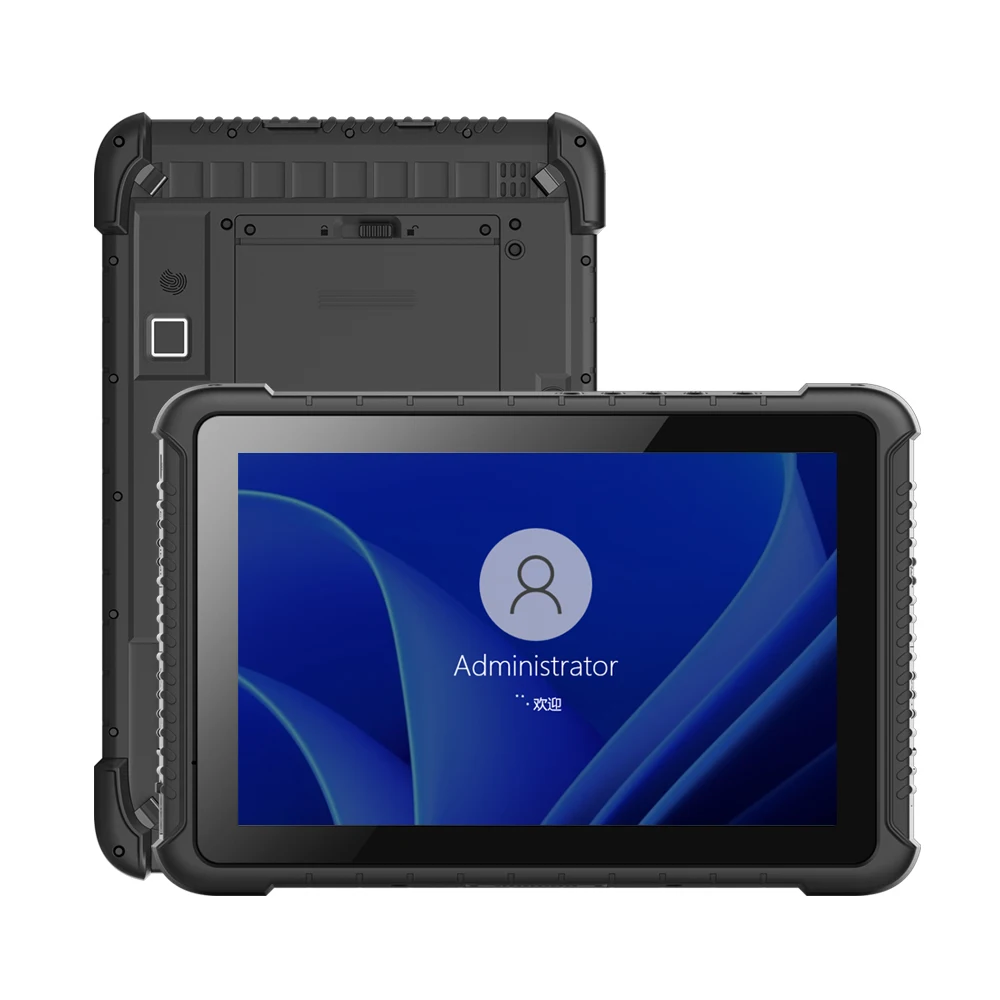

Features of 10.1'' Industrial Rugged Tablet PC Windows M-I16J

• Support for Windows 11 system

• Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

• 5000mAh/7.6V big battery,  pluggable battery, 6-8 hours of machine endurance

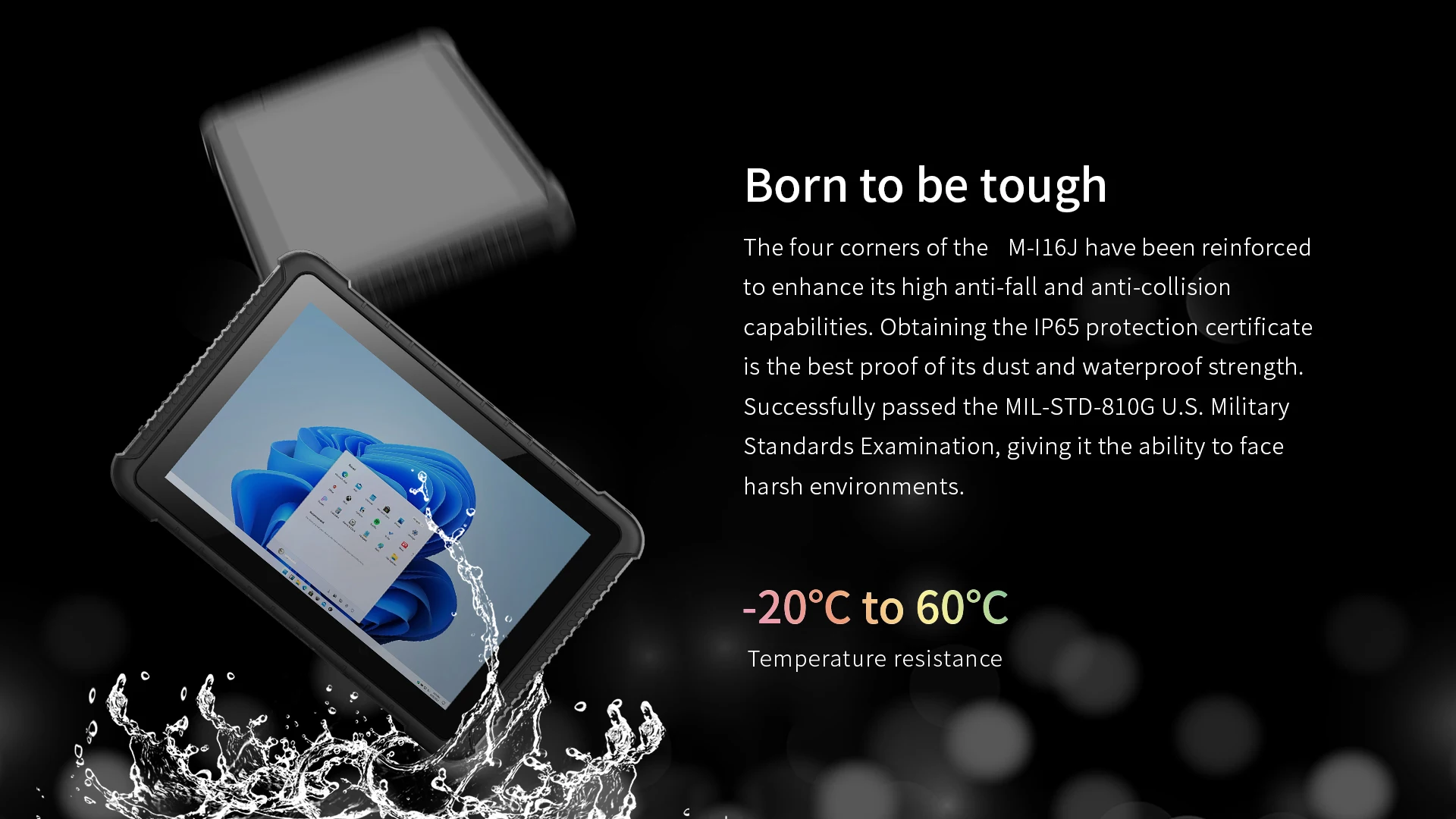

• IP65 high protection level, in accordance with MIL-STD-810G

• Support GPS, more accurate positioning

• Support 8 million pixel autofocus camera, easy to collect images and video information

• (Optional)Support 1D/2D, ID card and other functional modules for free selection

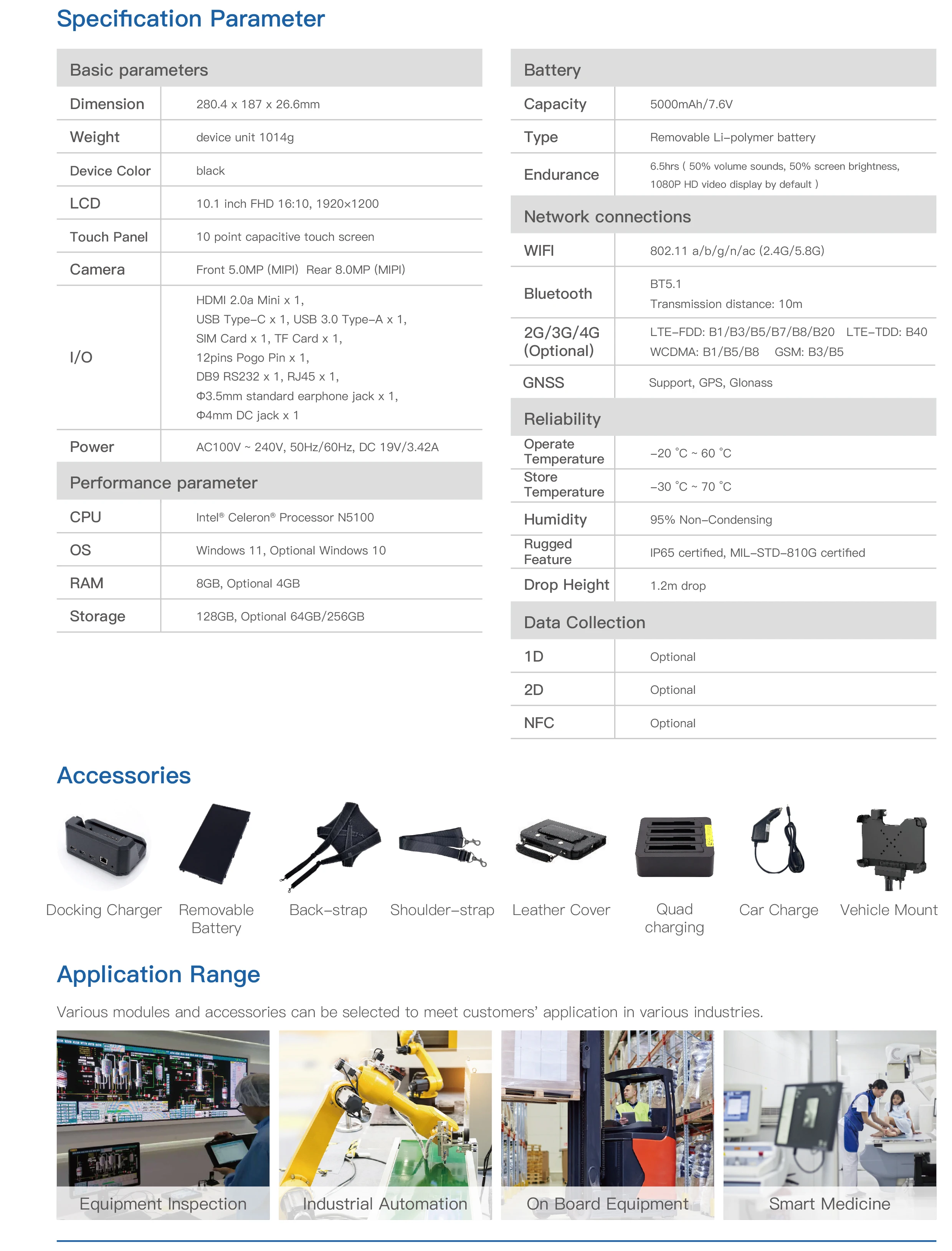

Basic Features:

• CPU Intel® Celeron® Processor N5100

• Windows 11, Optional Windows 10

• Storage:RAM 8GB ROM 128GB

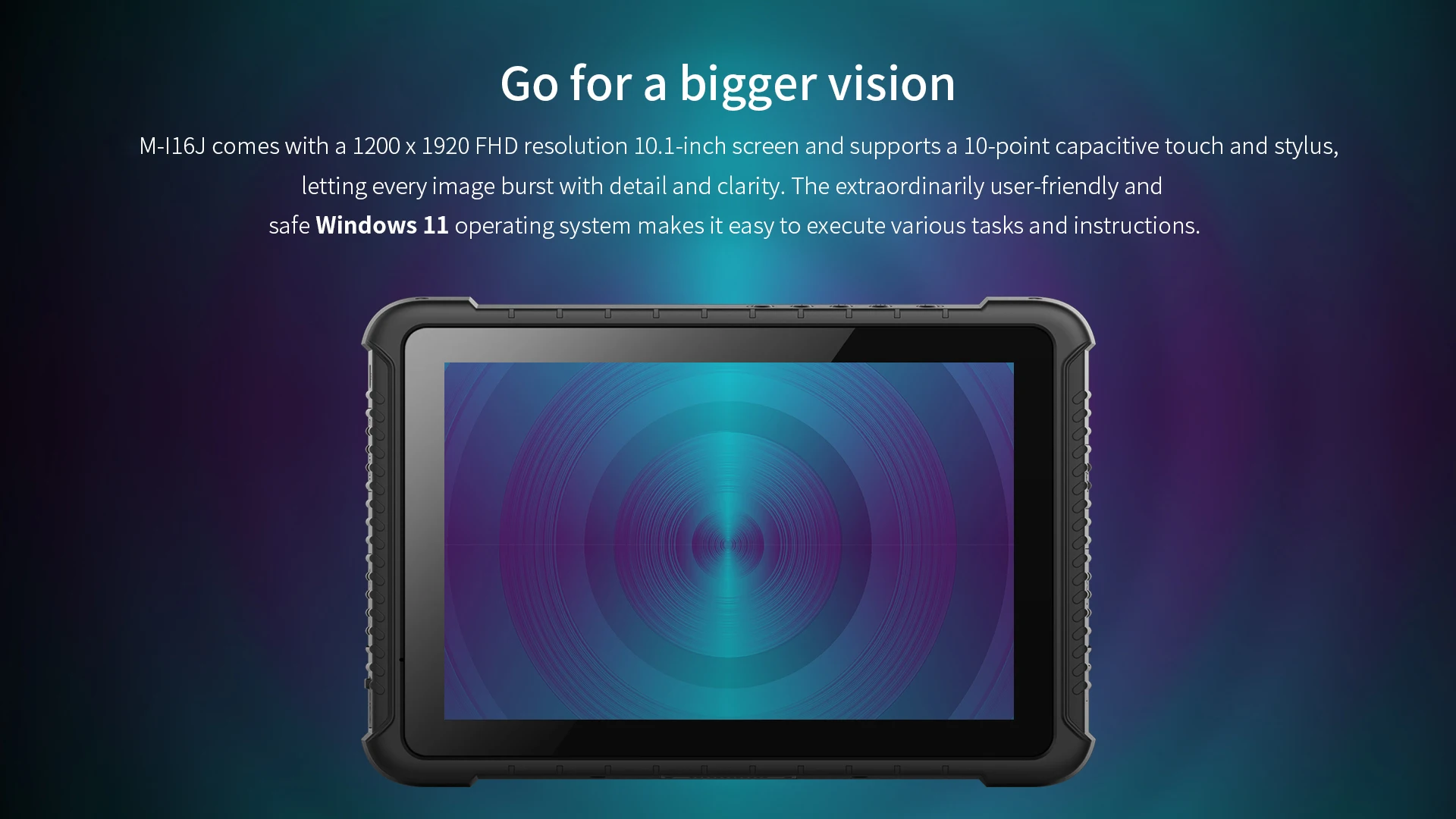

• 10.1 inch FHD 16:10, 1920×1200

• Support 2G/3G/4G/WIFI/Bluetooth/GPS

• Camera Front 5.0MP (MIPI) Rear 8.0MP (MIPI)

• IP65 certified, MIL-STD-810H certified

• 5000mAh/7.6V Removable Li-polymer battery

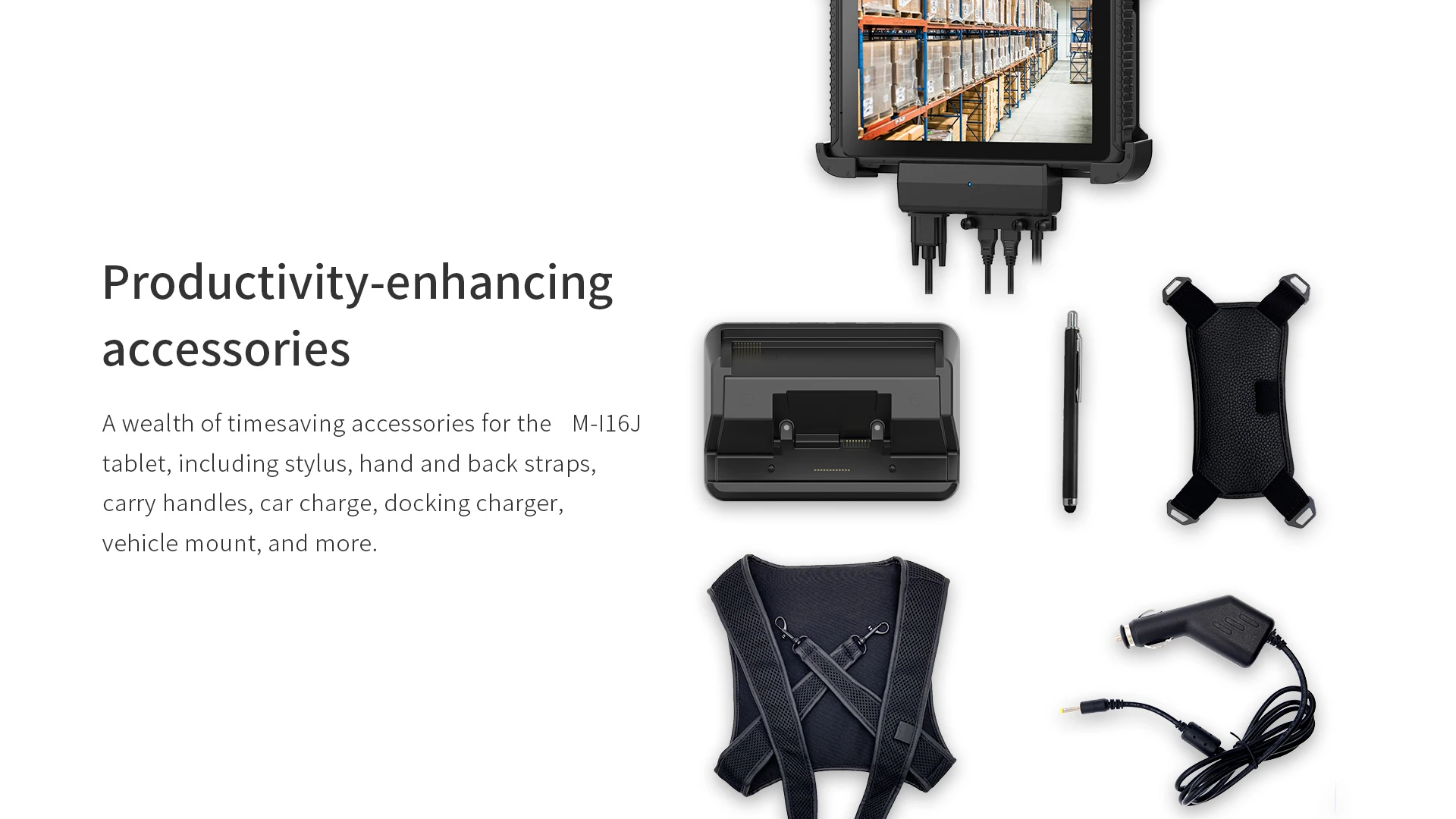

Optional Function:

• 1D/2D Barcode Scanner

• Charge Cradle

• Vehicle Mount

There are two options for choose:

1. Basic 4G GPS

2. Basic 4G GPS +Charge Cradle

3. Basic 4G GPS +1D/2D Barcode Scanner

4. Basic 4G GPS 1D/2D Barcode Scanner+Charge Cradle

5. Basic 4G GPS+Vehicle Mount


If you need more accessories,please contact our seller:tina@msench.com  WhatsApp/Mobile:+8613076981898

Empowering Data Collection with Precision and Efficiency

As mentioned earlier, the M-I16J features customizable data collection modules. We have successfully selected one-dimensional/two-dimensional code modules, NFC modules, and fingerprint modules suitable for the M-I16J from multiple module manufacturers. Comprehensive design and adaptation have been carried out from structure to hardware to software.

However, different customers have varied module requirements and standards, and compatibility issues arise from different system platforms. Therefore, based on our in-depth understanding of industry trends and customer needs, the data collection modules integrated into the M-I16J can accommodate a variety of common data collection requirements. This integration reduces industry-specific barriers and enhances the versatility of applications. By empowering data collection with greater precision and efficiency, the M-I16J facilitates broader applications across diverse scenarios.

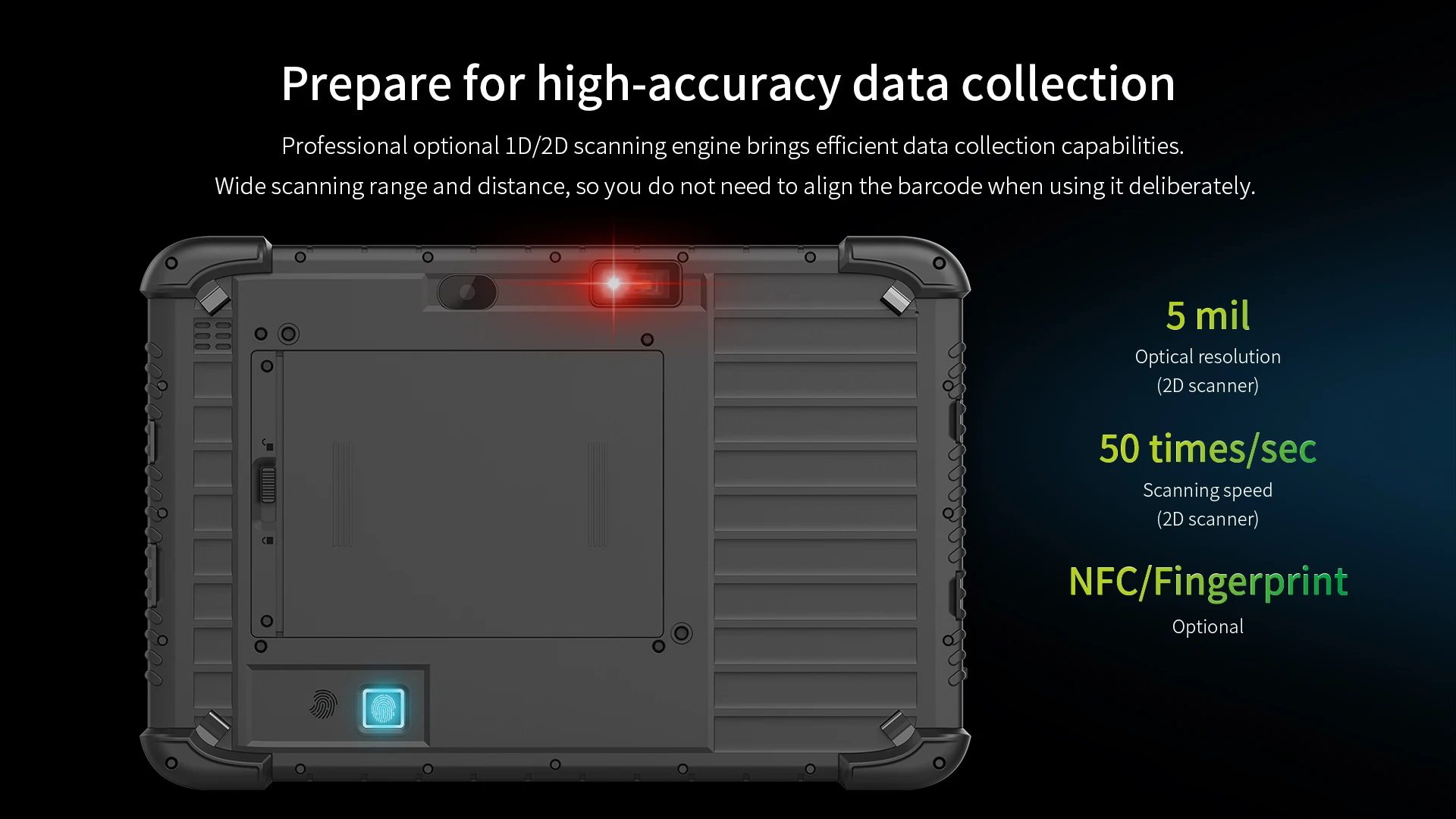

The M-I16J is equipped with the MOTO SE655E 100R and Honeywell N3680 modules for one-dimensional (1D) and two-dimensional (2D) code scanning, respectively. These modules offer fast scanning speeds (50 scans per second), high accuracy (5 mil), and long scanning distances (actual range depends on code type and accuracy). They can read common 1D codes such as UPC-A, EAN, Code39, Code128, as well as 2D codes like PDF417, Data Matrix, and QR Code. Moreover, they can read low-contrast barcodes, poorly printed barcodes, and screen barcodes with low clarity.

For NFC functionality, the M-I16J utilizes the NXP300 module operating at a frequency of 13.56MHz. It supports various protocols including ISO/IEC 14443A/14443B/15693/18092 and mifare, with a reading distance of up to 4cm.

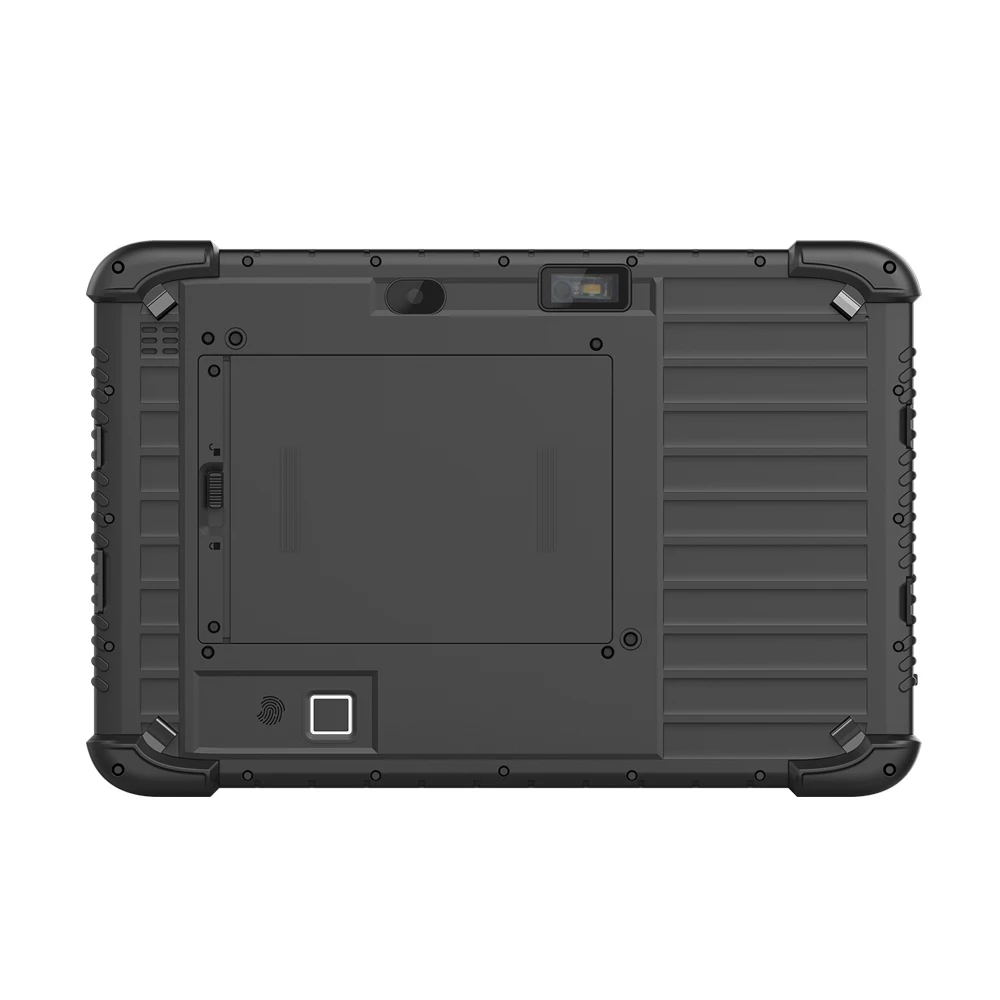

The fingerprint module employed in the M-I16J is the FPC1020, an integrated capacitive chip module for fingerprint collection and processing. It enables fingerprint image capture, processing, feature extraction, and comparison/matching of feature values, with a response time of less than 1 second.

More Models For Your Choice

Although the data collection performance of the M-I16J is impressive, its assessment is subject to objective factors such as the environment, barcode quality, as well as subjective factors related to user experience. Therefore, there are no explicit standards or specifications for performance evaluation since it directly affects practical production operations and user satisfaction.

During the project integration phase with the M-I16J, prototype testing is indispensable. If the data collection accuracy, speed, or code compatibility of the M-I16J fail to meet customer requirements in real-world applications, we have alternative models and a variety of data collection modules from other manufacturers for you to choose from.

All in all, the M-I16J is a Industrial Tablet PC featuring a classic design and powered by the Intel N5100 chipset. It stands out as a best-selling model from MSENCH. Our intention has always been to closely cater to user needs. Therefore, whether it's data collection, computing power, durability, or stability, the M-I16J is the top choice across numerous industries!
