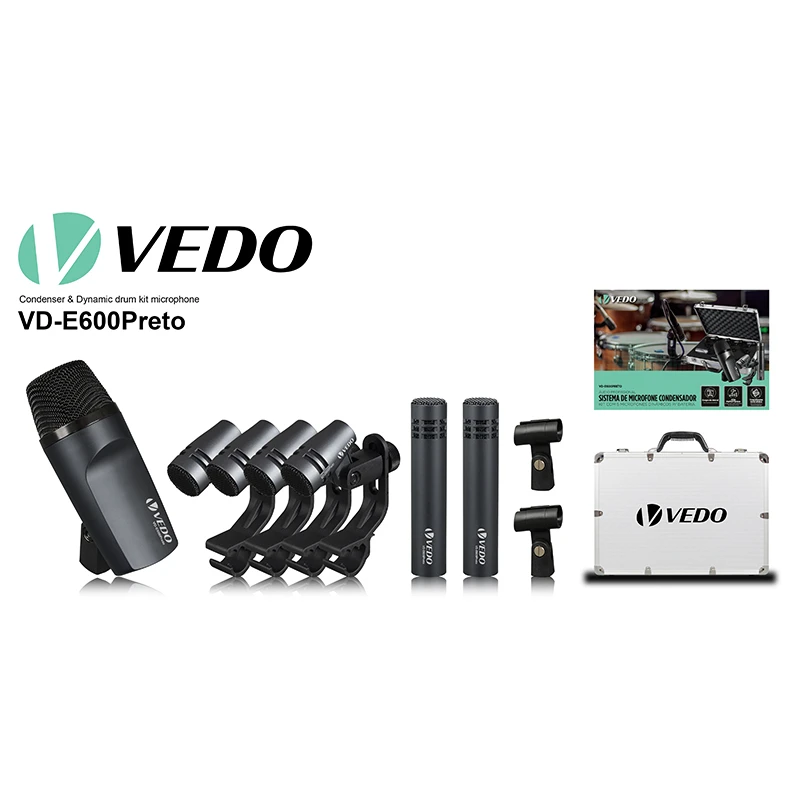

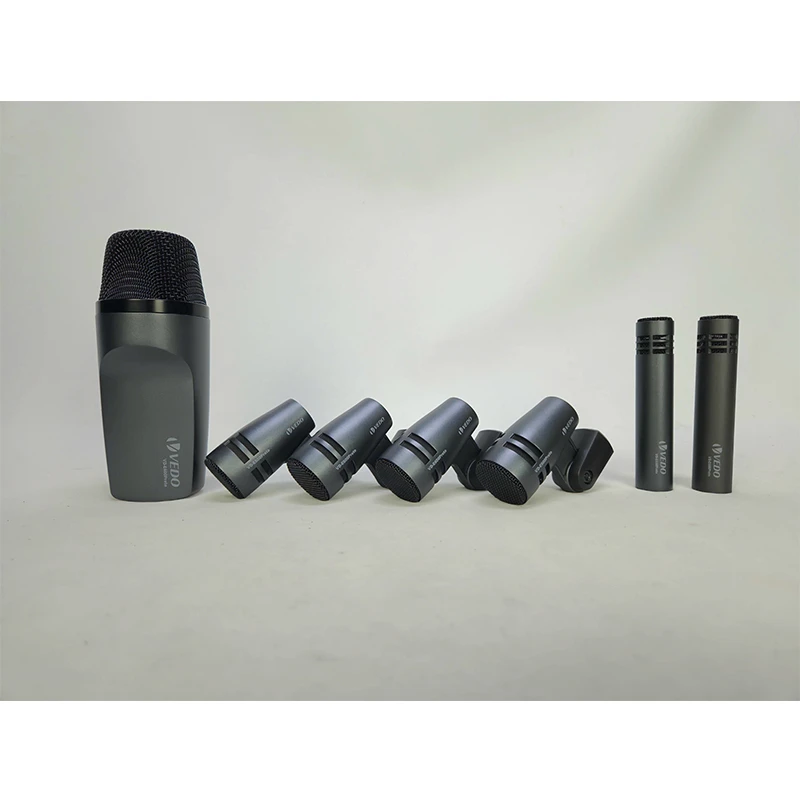

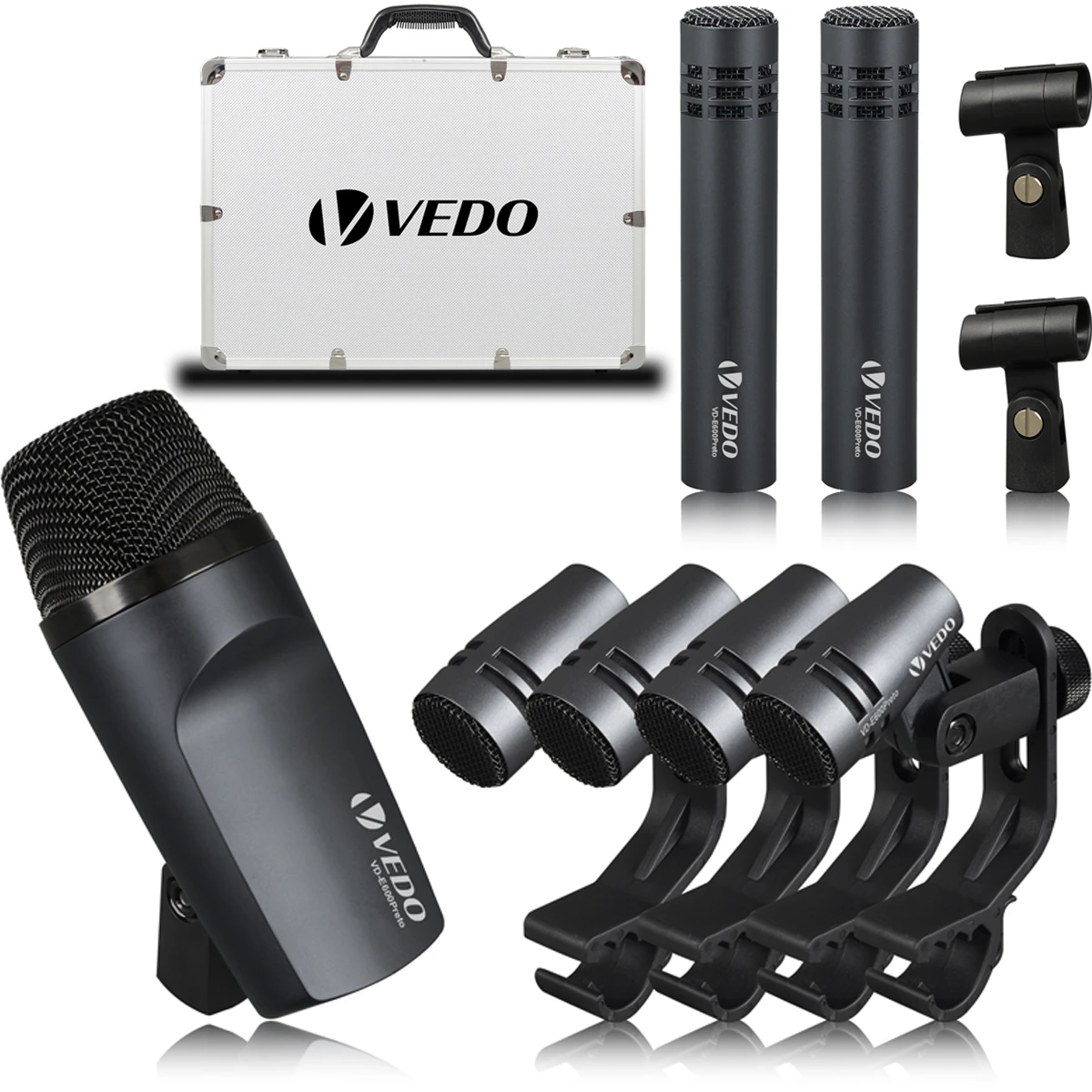

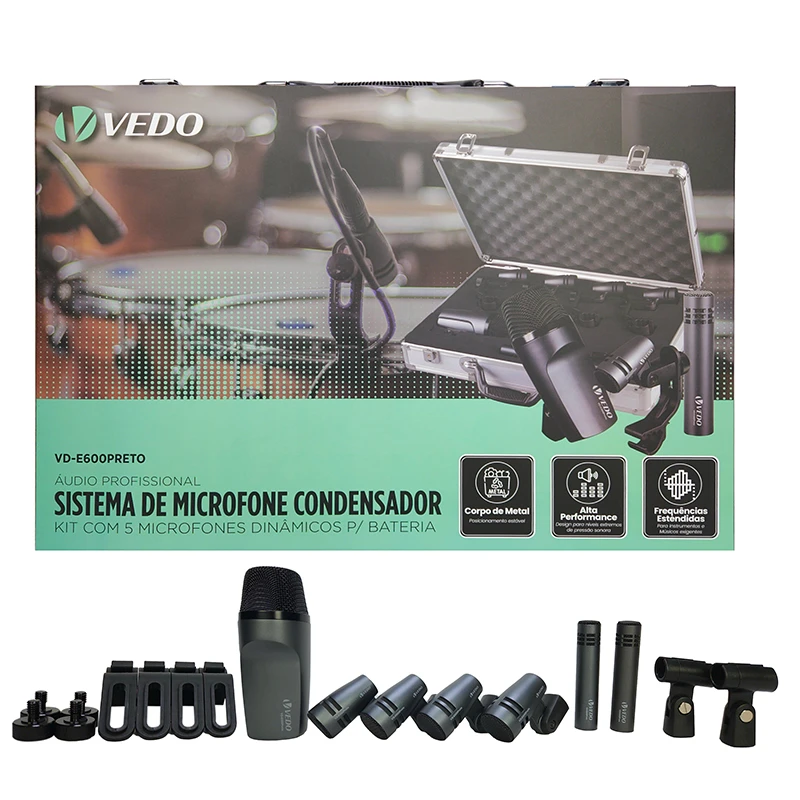

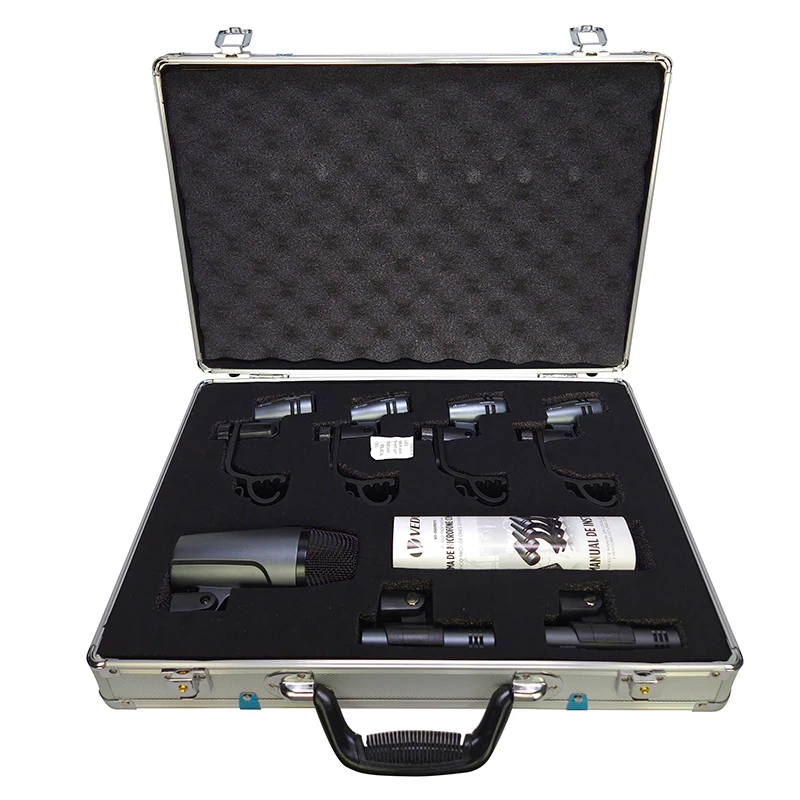

VD-E600Preto 7-Piece Wired Dynamic Drum Microphone (Whole Metal)- Kick Bass, Tom/Snare & Cymbals Mic Set – Use

Technical parameters of drum microphone:

Frequency response: 20 - 16000 Hz

Sensitivity in free field, no load: 0,25 mV/Pa; (50 Hz) 0,9 mV/Pa

Connector: XLR-3 pin

Nominal impedance: 350 Ω

Transducer principle (microphone): Dynamic

Polar pattern: Cardioid

Minimum terminal impedance: 1000 Ω

Technical Specifications

Transducer type: Condenser (back electret)

Operating principle: Pressure gradient

Polar pattern: Cardioid

Frequency response:

Close miking: 20 - 20,000 Hz

Distant miking (measured at 1 m): 35 - 20,000 Hz

Open circuit voltage: 5 mV/Pa (-46 dBV) ±2.5 dB

Nominal impedance: 200 Ω

Load impedance: ≥ 1 kΩ

Max. SPL

At 24 V and 48 V phantom power: 140 dB

S/N ratio: 59 dB

Equivalent SPL: 35 dB

Power supply: Phantom power (recommended: 48 V)

Power consumption: 4.7 mA

Connection: XLR, 3-pin

Technical parameters of cymbal microphone:

Connector: XLR-3

Frequency response: 40 - 20000 Hz

Maximum sound pressure level: 139 dB/SPL

Energy conversion principle: pre polarized condenser microphone

Polar pattern: super cordoid

Sensitivity in free field, no load: 3 mV/Pa=- 50dB (0 dB=1 V/Pa)

Nominal impedance: 50 Ω

Minimum terminal impedance: 1000 Ω

Phantom power supply: 12 – 52 V/3 mA

Equivalent noise level: 24 dB (A)

Equivalent noise level weighted according to CCIR standard: 35 dB
