A: (5 axis numerical control)
Easy operating because:
- It can work with 3 axis / 4 axis / 5 axis, just as you like !
- Independent high-speed micro computer intelligent controller.

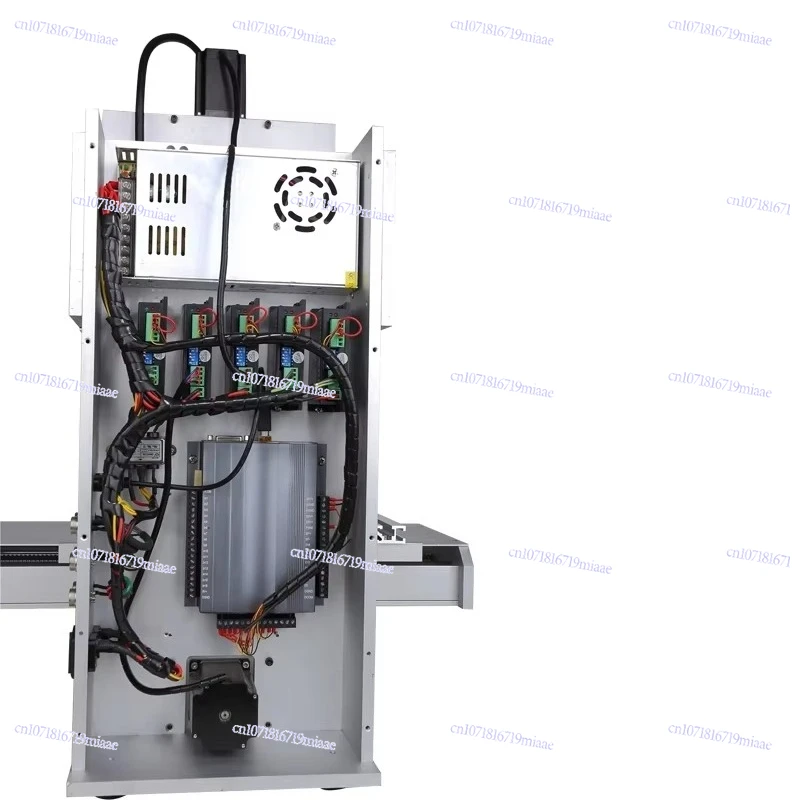

- Independent drivers for each axis.
- Mach 3 software USB connection
- Upgraded with more stable structure than old type

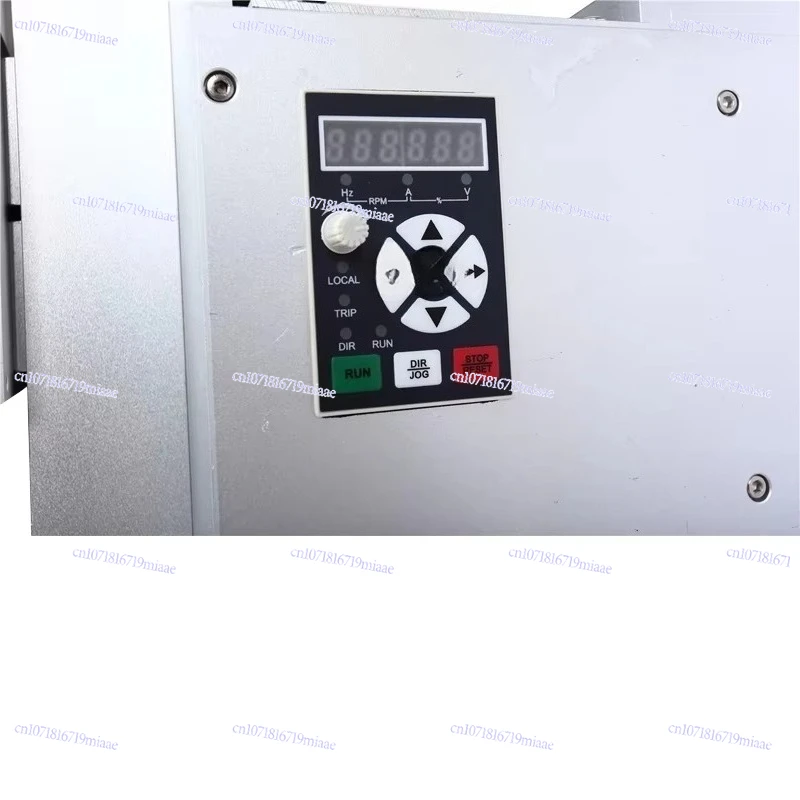

- Built in frequencey converter and without controller box.
Higher precision because:
- Cross slippery platform design rather than gantry design.
- Aluminum base sheet is heavy which can make sure less vibration when work.
- With auto-checking function.
- 1500/2200w water-cooled spindle.
- Ball screw
- Stainless Steel sink for bits cooling
You can buy this machine from us without any worry because:
- CE approved.
- Video support.
- English manual available.
- Mach 3 software send with the machine as a CD.
- Can engrave material which hardness below 45.
- From reliable & trustable profesional China CNC Router manufacturer
Specifications
| Voltage |
220V/110V |
|
Dimension(L*W*H) |
970*810*790mm |
|
Effective Stroke |
583x420x(145)mm |
|
Repeat positioning accuracy |
0.05mm |
|
Processing speed |
0-4000mm/minute |
|
Table maximum load |
15kg |
|
Material |
Stainless steel tailgate |
|
Output Current: |
Drive 4.5A (peak 5A) |
|

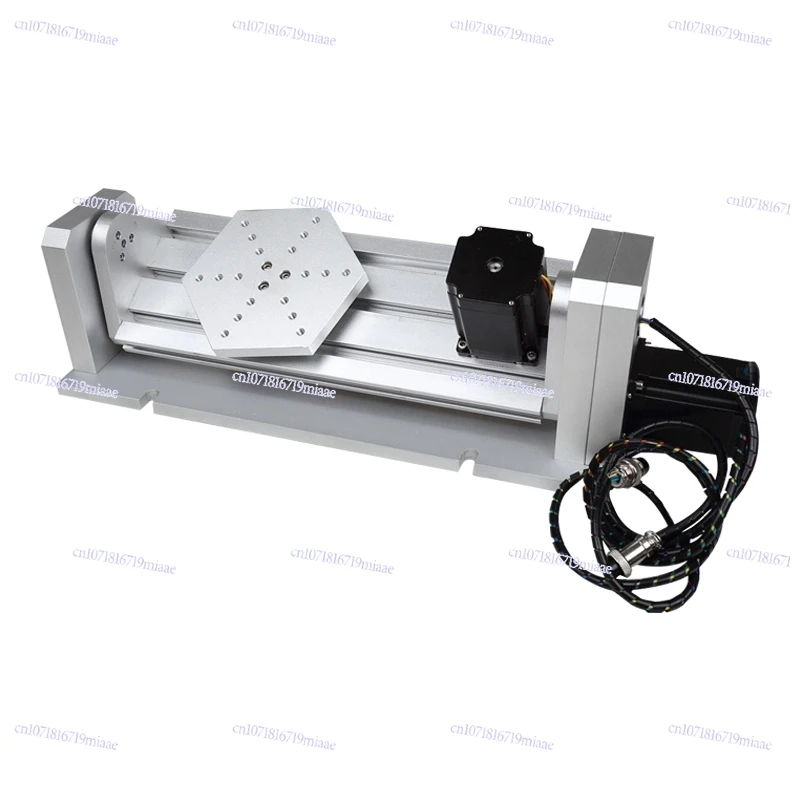

A-axis B-axis rotation speed
|
0-180rpm/min |
| Net Weight | 120kg |
| Outside Package | 116*99*58cm |
This Low cost available cheap cnc milling machine 5 axis 6040 Can be widely used as below:
