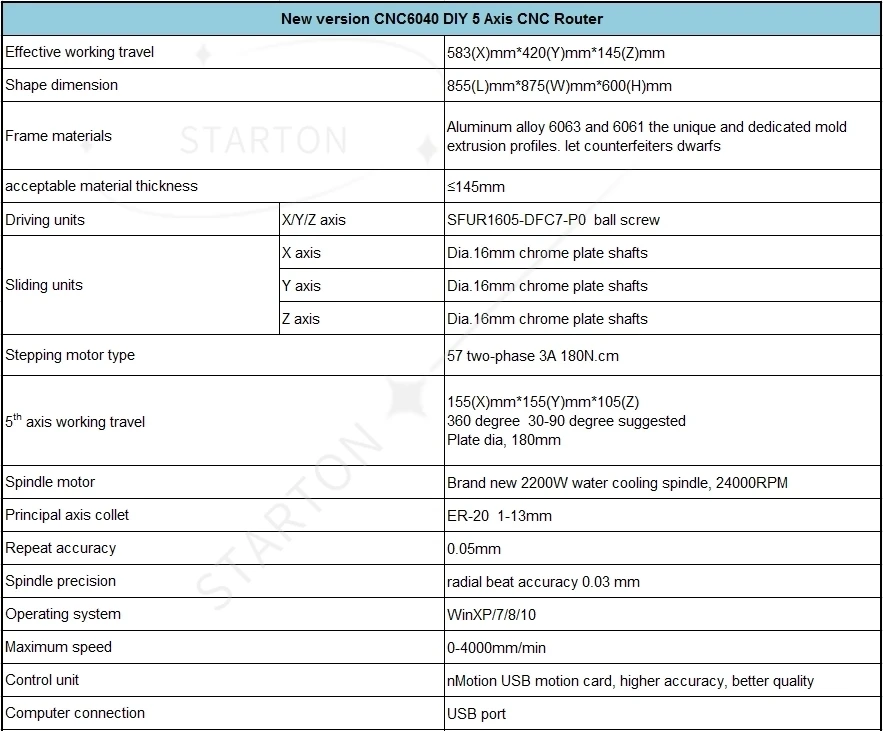

Effective working travel |
583(X)mm*420(Y)mm145(Z)mm |
|
|

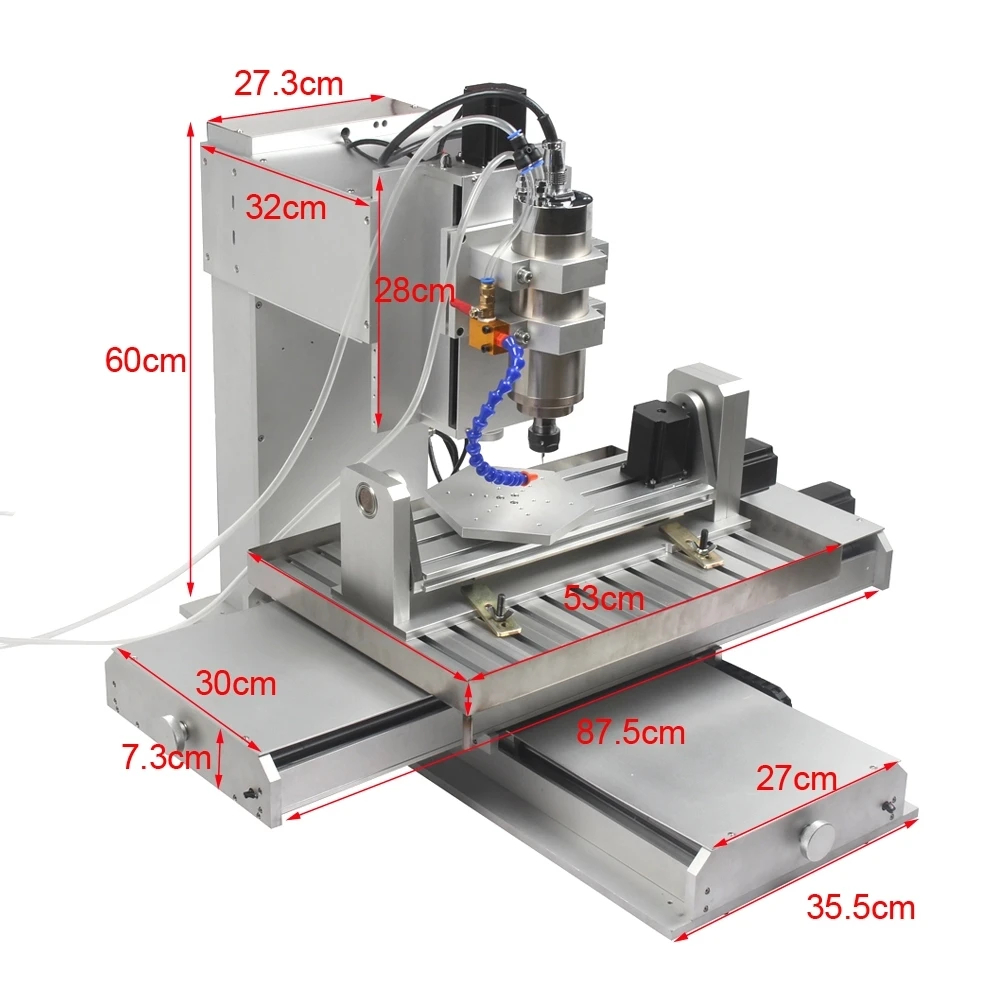

Shape dimension |
855(L)mm*875(W)mm*600(H)mm |
|
|
Frame materials |
Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles.let counterfeiters dwarfs |
|
|
acceptable material thickness |
≤145mm |
|
|
Driving units |
X/Y//Z axis |
SFUR1605-DFC7-P0 ball screw |
|
Sliding units |
X axis |
Dia. 16mm chrome plate shafts |
|
Y axis |
Dia. 16mm chrome plate shafts |
|
|
Y axis |
Dia. 16mm chrome plate shafts |
|
|
Stepping motor type |
57 two-phase 3A 180N.cm |
|
|

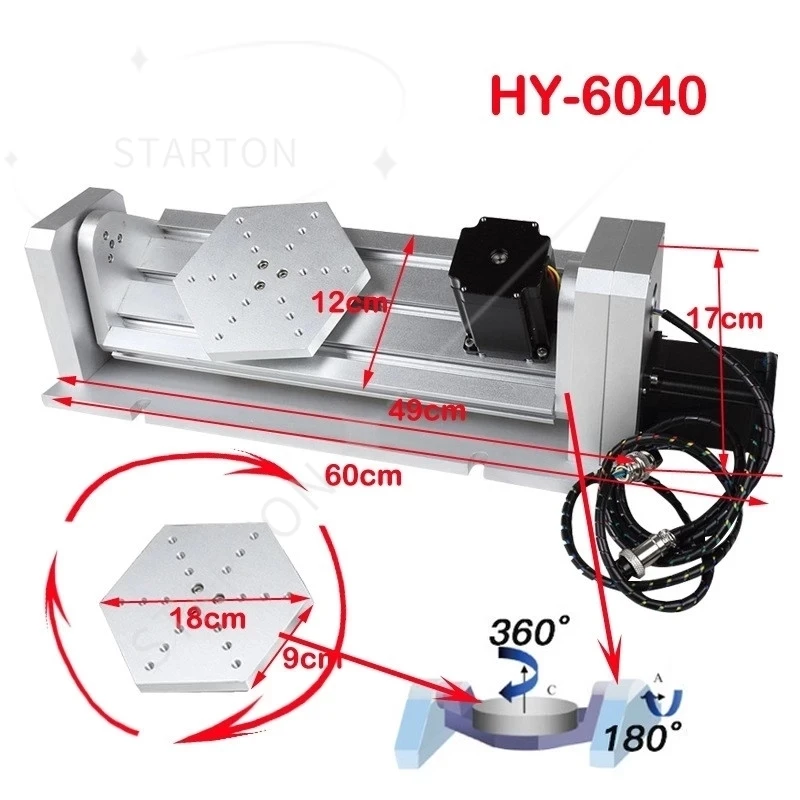

5th axis working travel |
155m*155mm*105(Z) |
|
|
Spindle motor |
Brand new 2200W water cooling spindle, 24000RPM |
|
|
Principal axis collet |
ER-20 1-13mm |
|
|
Repeat accuracy |
|
0.05mm |
|
Spindle precision |
|
radial beat accuracy 0.03 mm |
|
Operating system |
|
Winxp/7/8/10 |
|
Maximum speed |
|
0-4000mm/min |
|
Control unit |
|
nMotion USB motion card, higher accuracy, better quality |
|

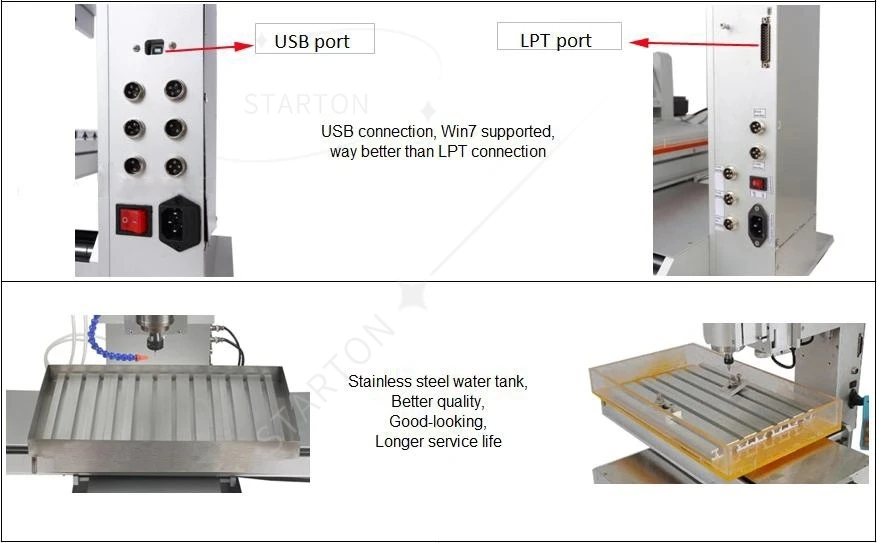

Computer connection |
|
USB port |

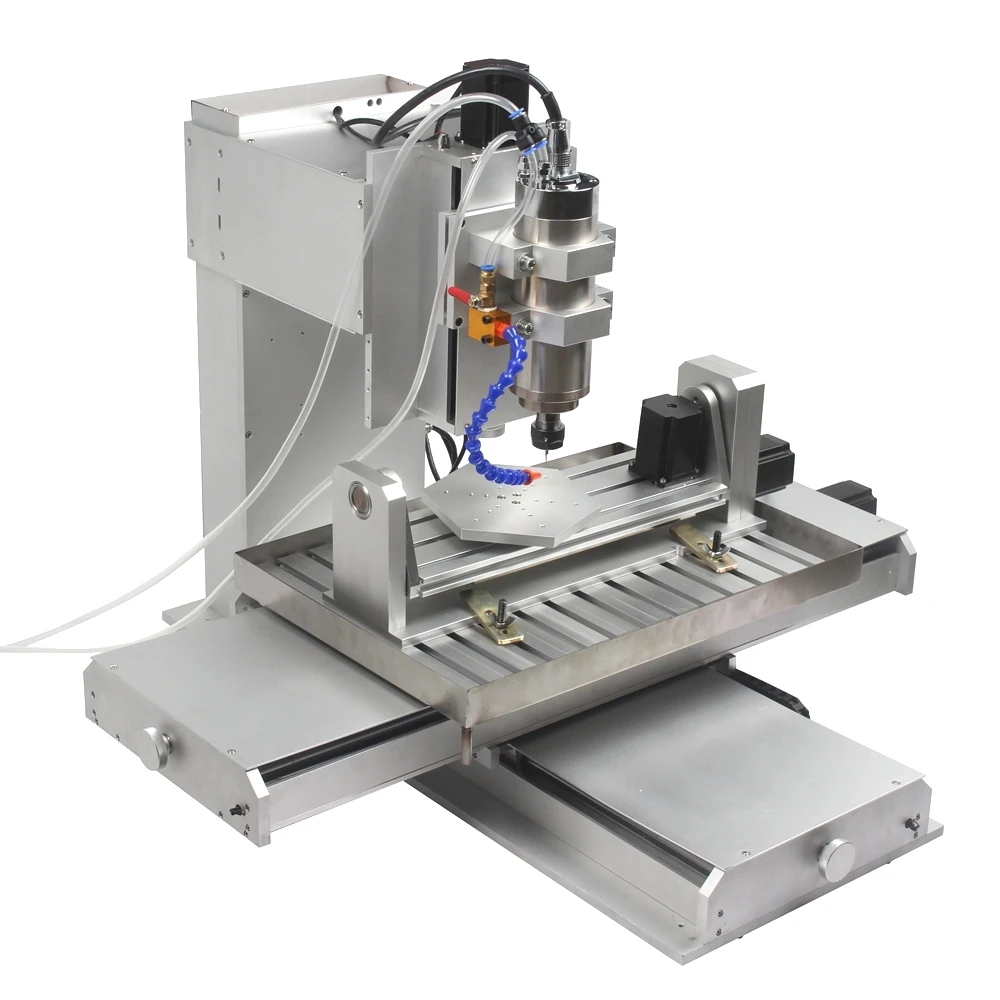

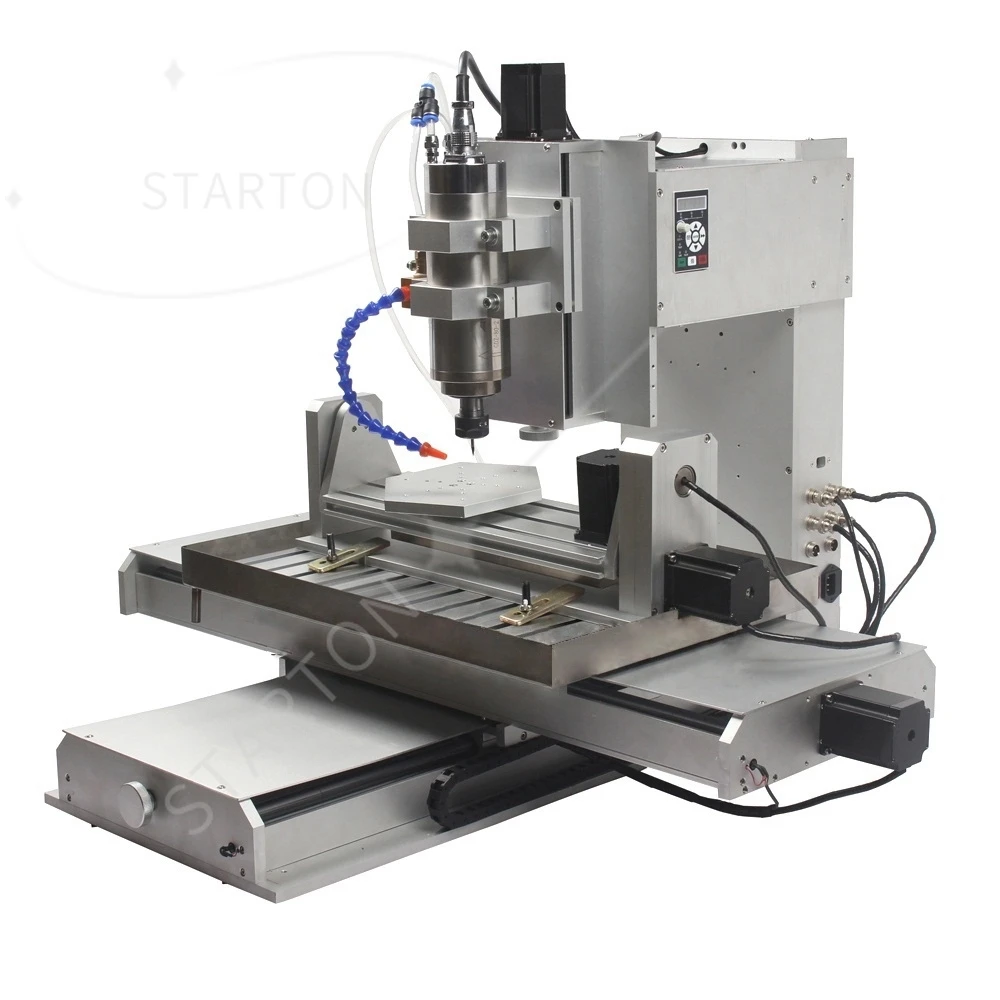

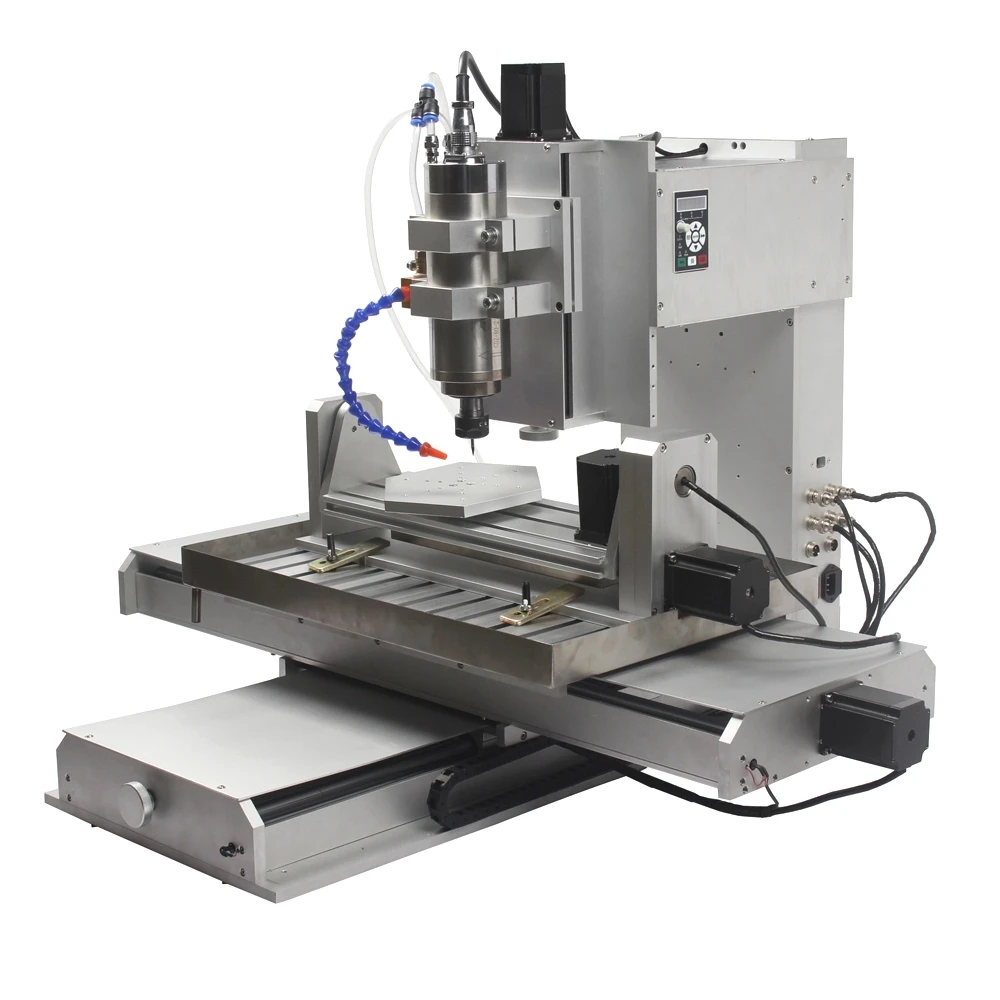

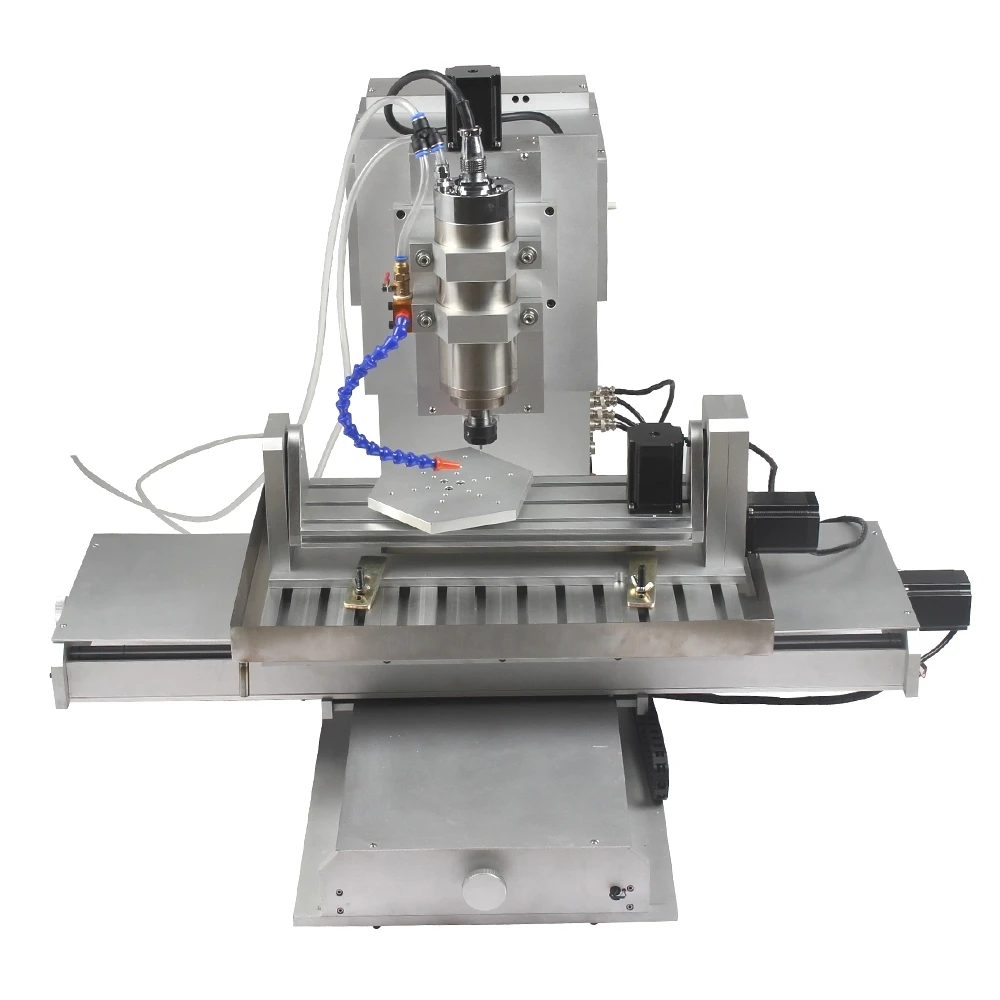

Detailed Image
