- Hign-concerned Chemical: None
- Origin: Mainland China
- range of spindle speed(r.p.m): 0 - 24000 rpm
- positioning accuracy (mm): 0.03 mm
- number of axes: 3
- No. of Spindles: Single Phase
- Working Table Size(mm): 583(X)mm*420(Y)mm145(Z)mm
- machine type: CNC Router
- travel (x axis)(mm): 583 mm
- travel (y axis)(mm): 420 mm
- repeatability (x/y/z) (mm): 0.05 mm
- Spindle Motor Power (kw): 2.2
- cnc or not: CNC
- place of origin: Guangdong, China
- brand name: Fundar
- voltage: 220V/110V
- dimension(l*w*h): 110*90*56CM
- weight (kg): 120
- control system brand: Mach3
- warranty: 12 Months
- key selling points: Competitive Price
- machinery test report: Not Available
- video outgoing-inspection: Not Available
- Working area: 583(X)mm*420(Y)mm145(Z)mm
- Spindle: Watar Cooling Spindle
- Type of screw: Ball screw
- Spindle Collet type: ER-20 1-7mm
- Condition: New

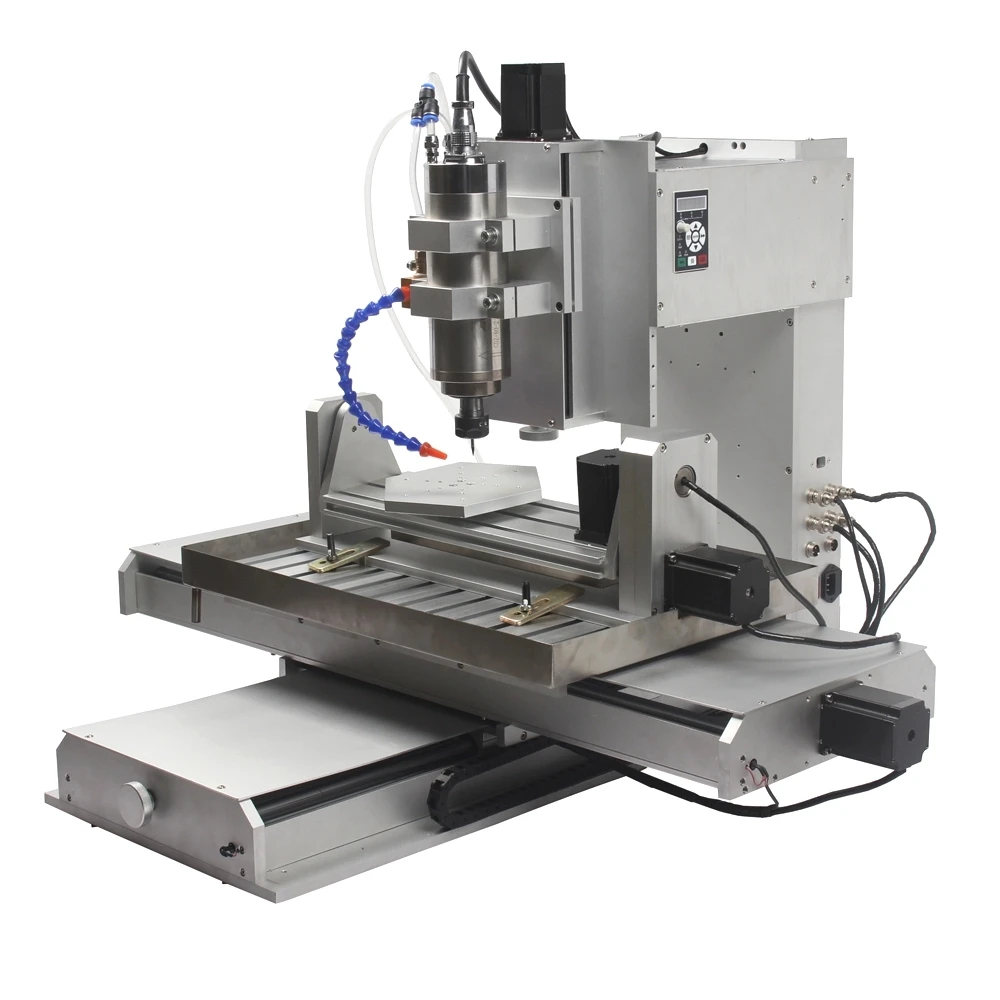

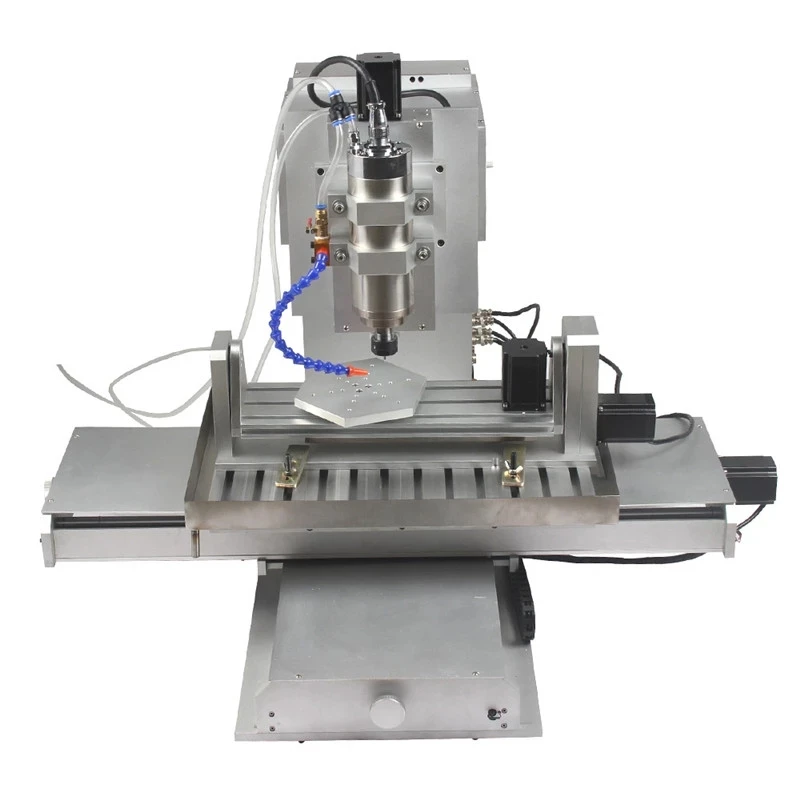

USB Connection Latest mini CNC 5 axis HY- 6040 Engraving router for sale
Product Description
Brief introduction
A. What area it can used for?
CNC 6040 5 axis 2.2KW router mini CNC milling machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.
B. What materials it can used for?
It can work for Wood, acrylic,plastic,PCB ,PVC,Aluminum, Copper, Acetate Sheet, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home,Ideal for milling, engraving, drilling & cutting.

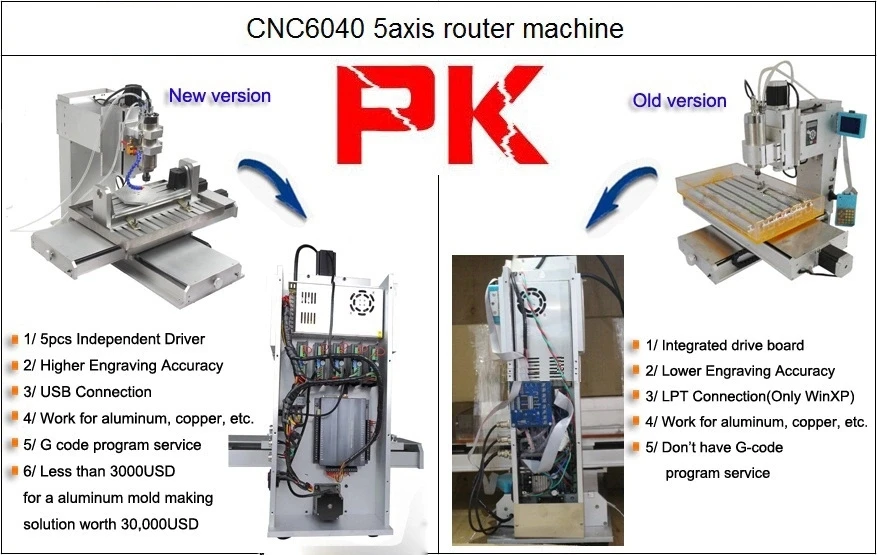

Features of Our CNC 6040 5 Axis:
- USB cable for MACH3,supports Windows 7/8.
- Built in frequencey converter and without controller box.
- Integrated high-speed micro computer intelligent control chip.
- 2200w water-cooled spindle.
- Cross slippery platform design rather than gantry design.
- Aluminum base sheet is heavy which can make sure no vibration when work.
Other features:

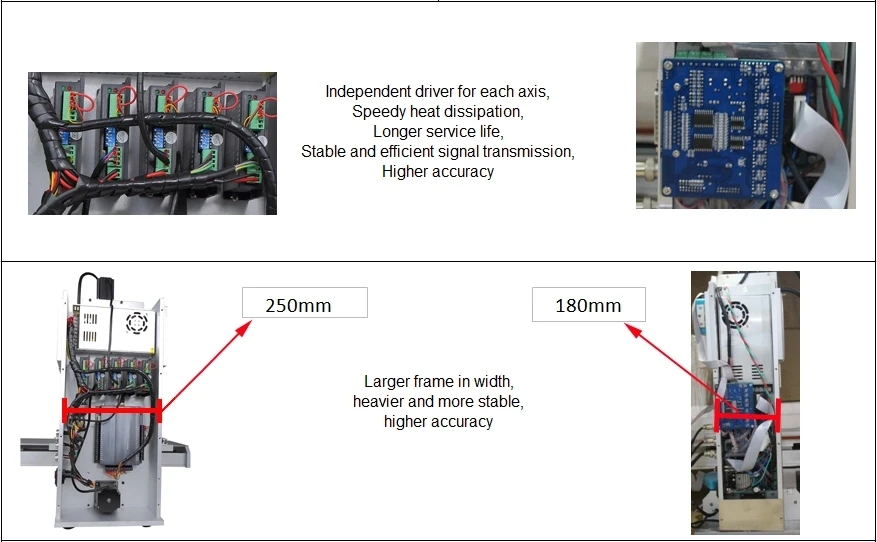

1. Independent power supply for mainboard, prolong using life.
2. With strong aluminum alloy frame materials.
3. Cover plates reducing pollution for the screws and shafts.
4. steady and strong support structure Spindle motor knob.
5. Independent power supply for mainboard, prolong using life.
Customers need to prepare G codes,then lead it to the MACH3 and start to run the machine.

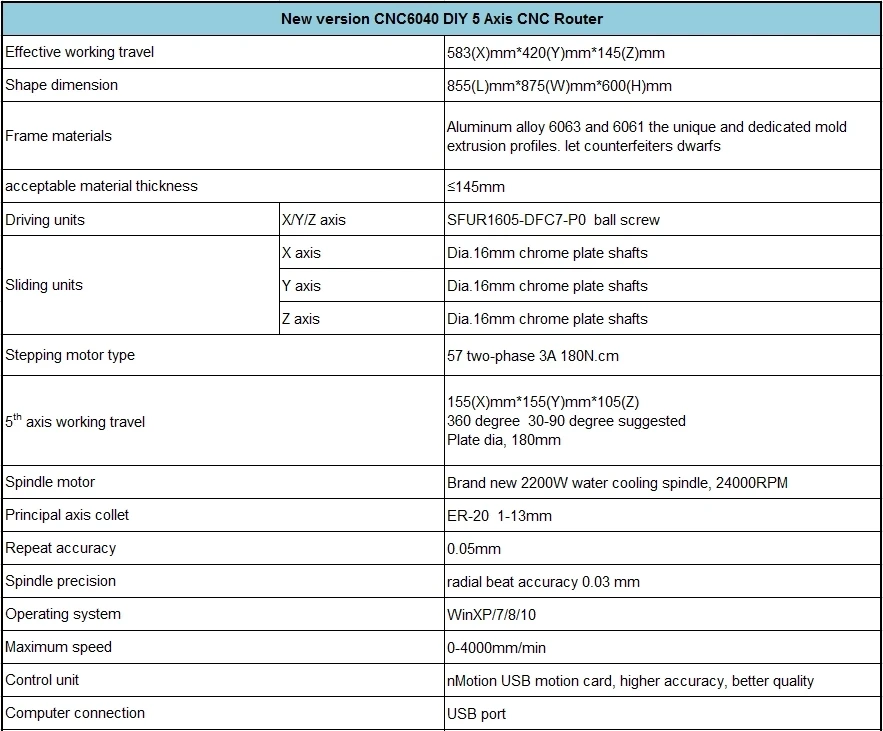

Specifications
| Effective working travel |
583(X)mm*420(Y)mm145(Z)mm |
|

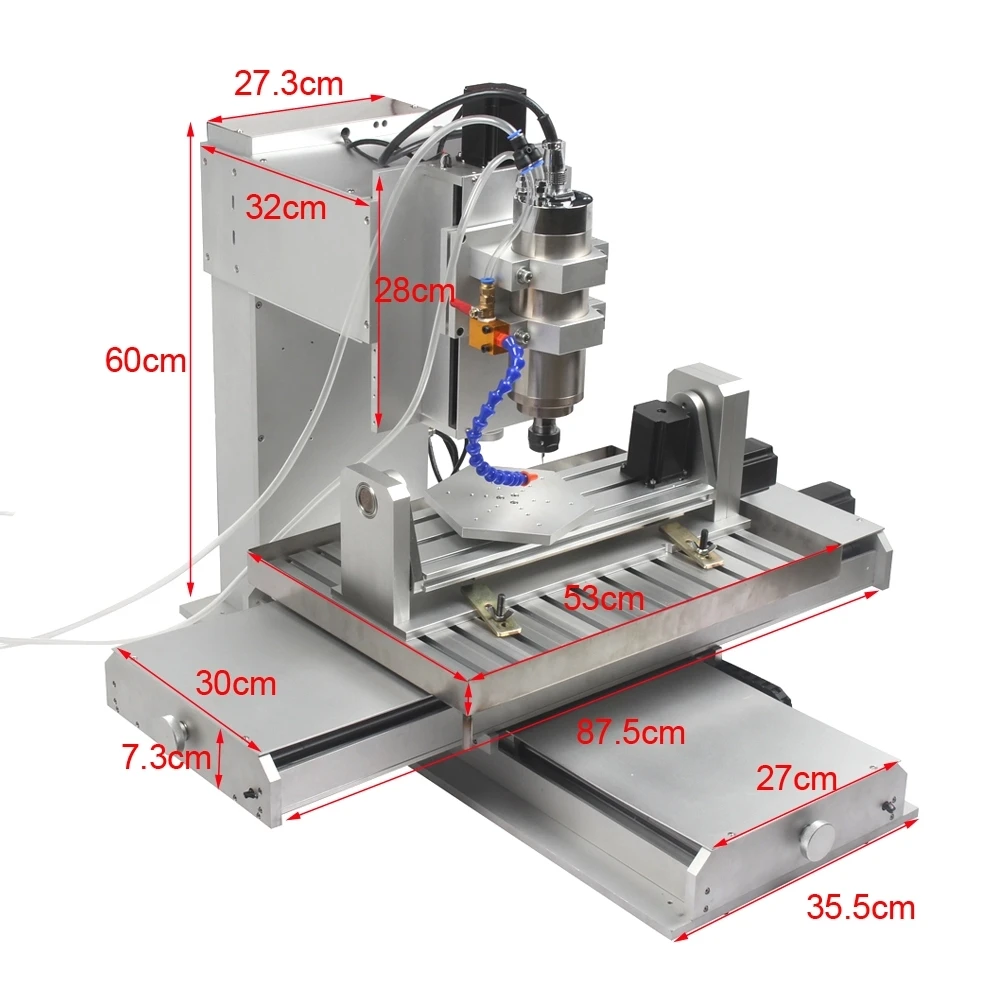

| Shape dimension |
855(L)mm*875(W)mm*600(H)mm |
|
| Frame materials |
Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles.let counterfeiters dwarfs |
|
| acceptable material thickness |
≤145mm |
|
| Driving units |
X/Y//Z axis |
SFUR1605-DFC7-P0 ball screw |
| Sliding units |
X axis |
Dia. 16mm chrome plate shafts |
| Y axis |
Dia. 16mm chrome plate shafts |
|
| Y axis |
Dia. 16mm chrome plate shafts |
|
| Stepping motor type |
57 two-phase 3A 180N.cm |
|

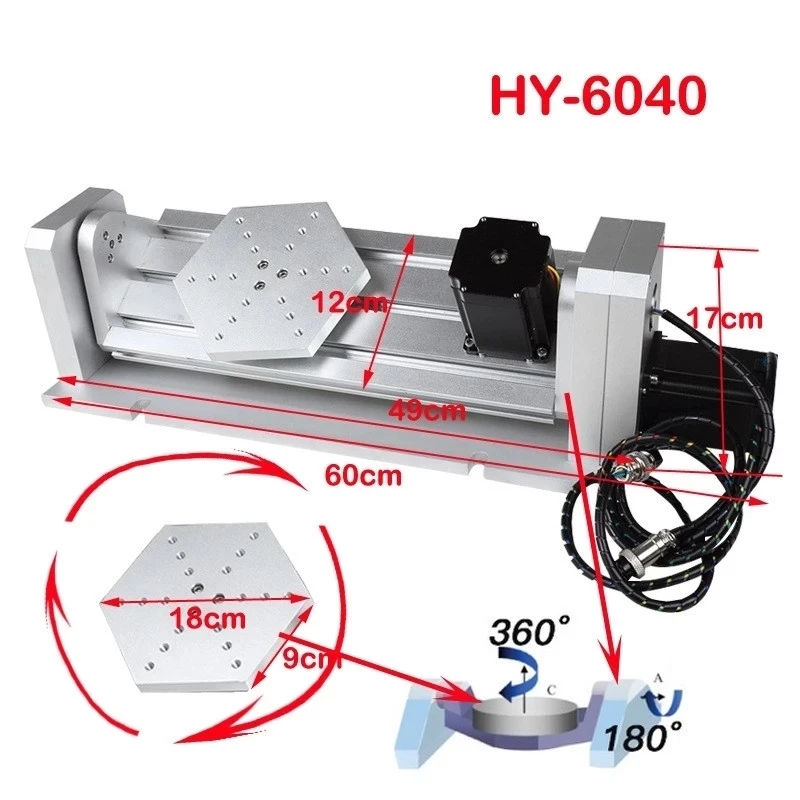

| 5th axis working travel |
155m*155mm*105(Z) |
|
| Spindle motor |
Brand new 2200W water cooling spindle, 24000RPM |
|
| Principal axis collet |
ER-20 1-13mm |
|
| Repeat accuracy |
|
0.05mm |
| Spindle precision |
|
radial beat accuracy 0.03 mm |
| Operating system |
|
Winxp/7/8/10 |
| Maximum speed |
|
0-4000mm/min |
| Control unit |
|
nMotion USB motion card, higher accuracy, better quality |

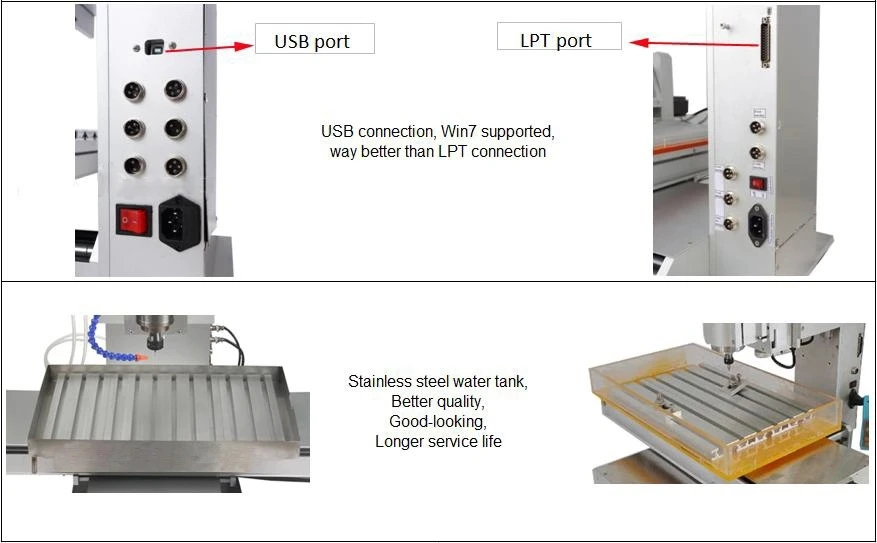

| Computer connection |
|
USB port |
Detailed Image
