- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Origin: Mainland China
- Certification: CE
- Table Travel (X) (mm): 800
- Number of Axes: 3
- Machining Capacity: Heavy Duty
- Table Travel (Y) (mm): 400
- Table Travel (Z) (mm): 400
- Spindle Taper: NT40
- Range of Spindle Speed(r.p.m): 66 - 4540 r.p.m
- Condition: New
- Place of Origin: China
- Brand Name: mainlandcnc
- Model Number: 5HW
- Table Travel (mm): 800X400X400
- Type: VERTICAL
- Spindle Motor Power(kW): 3.75
- Voltage: CUSTOMIZED
- Dimension(L*W*H): 1550X1550X2200
- Weight (KG): 1700
- Warranty: 3 years
- Key Selling Points: Competitive Price
- Applicable Industries: Manufacturing Plant
- Showroom Location: Viet Nam
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1.5 years
- Core Components: Gearbox

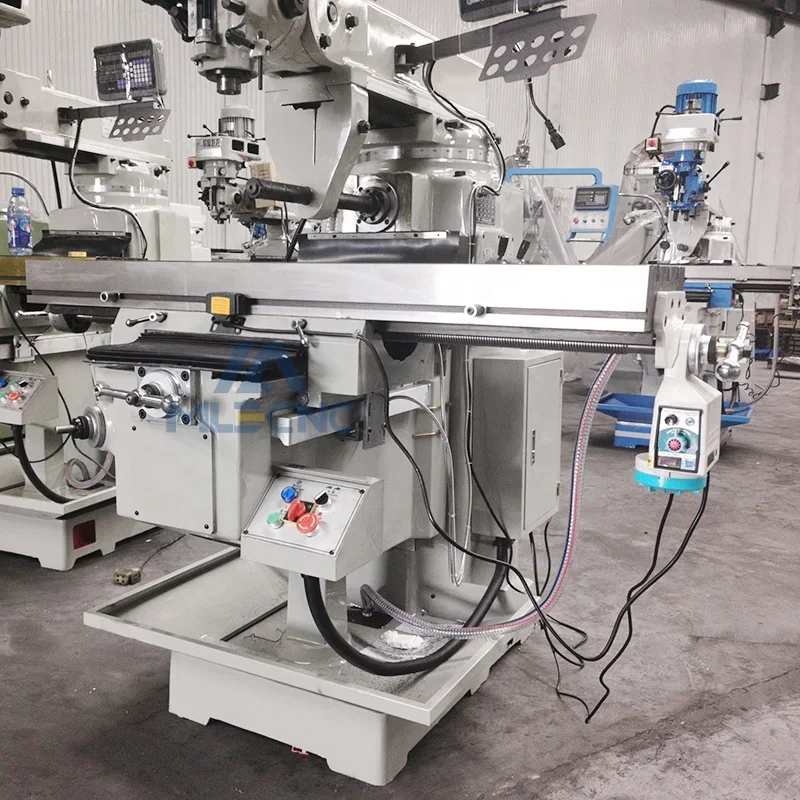

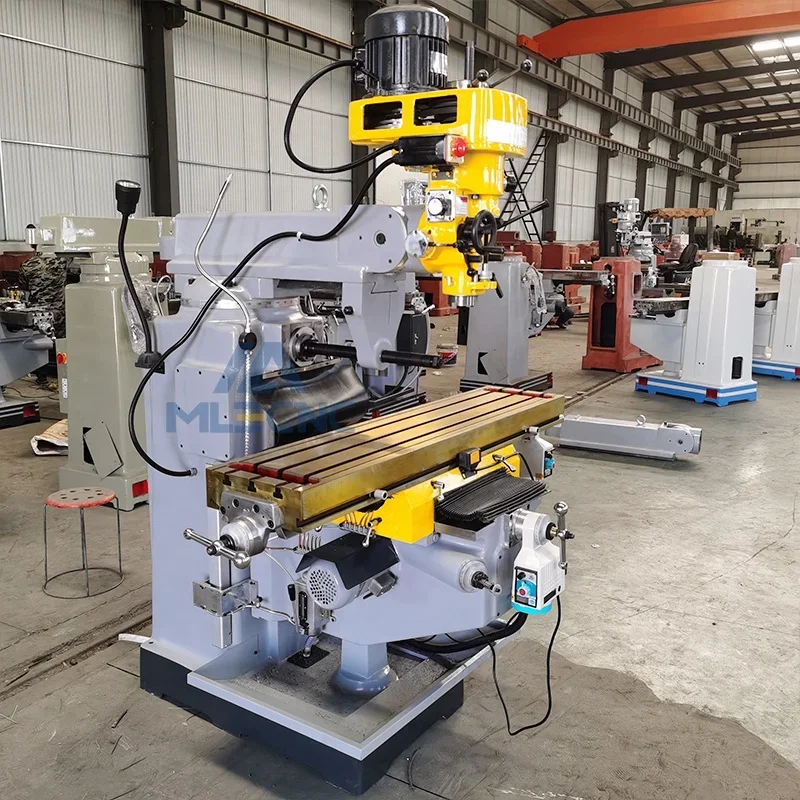

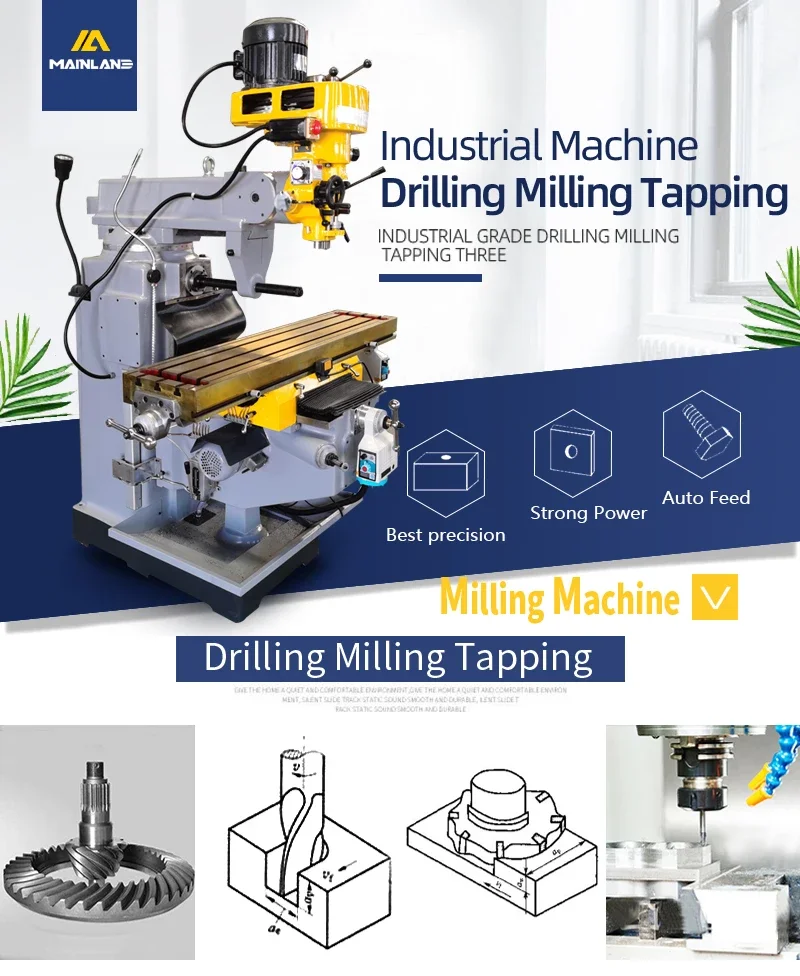

- NAME: TURRET MILLING MACHINE
- MODEL: 5HW
My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! And welcome to add my WHATSAPP (+8618175124931) This product does not include free shipping. Please check the shipping cost with the customer service staff when purchasing. Thank you. My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! And welcome to add my WHATSAPP (+8618175124931) This product does not include free shipping. Please check the shipping cost with the customer service staff when purchasing. Thank you.

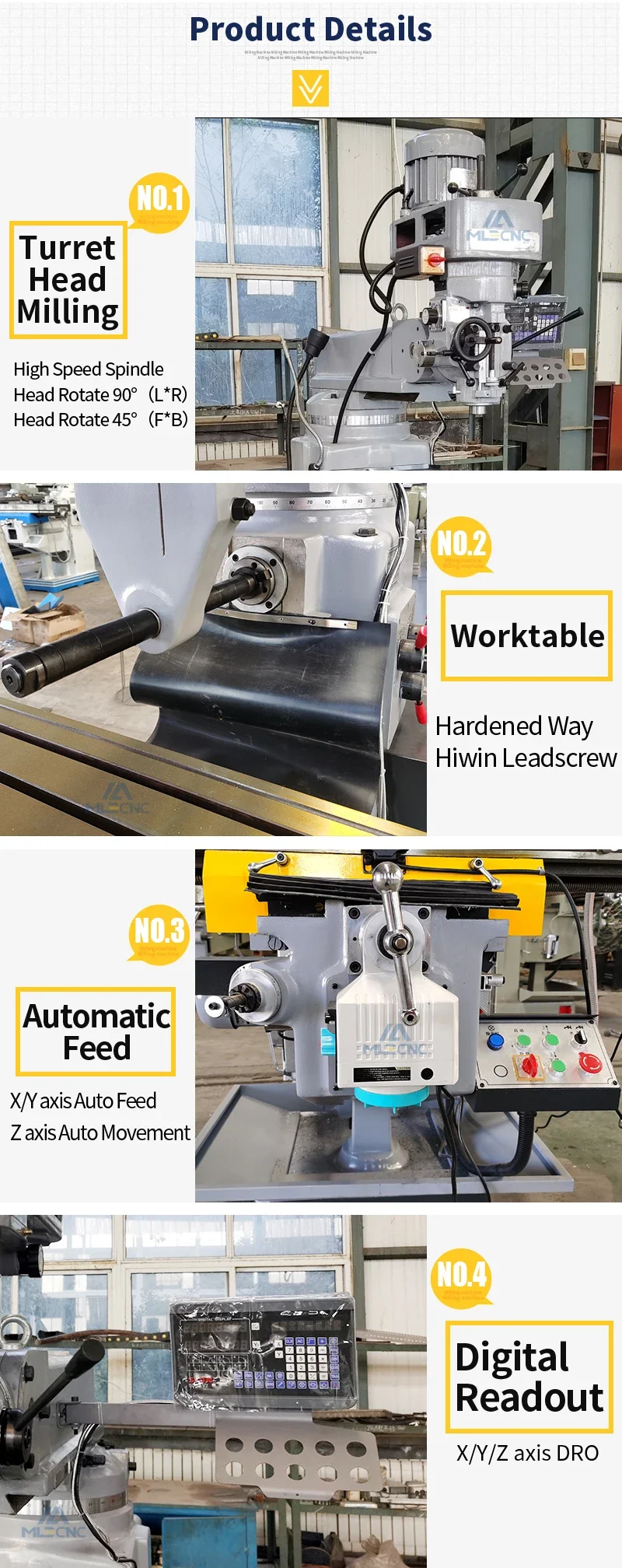

Main Feature：

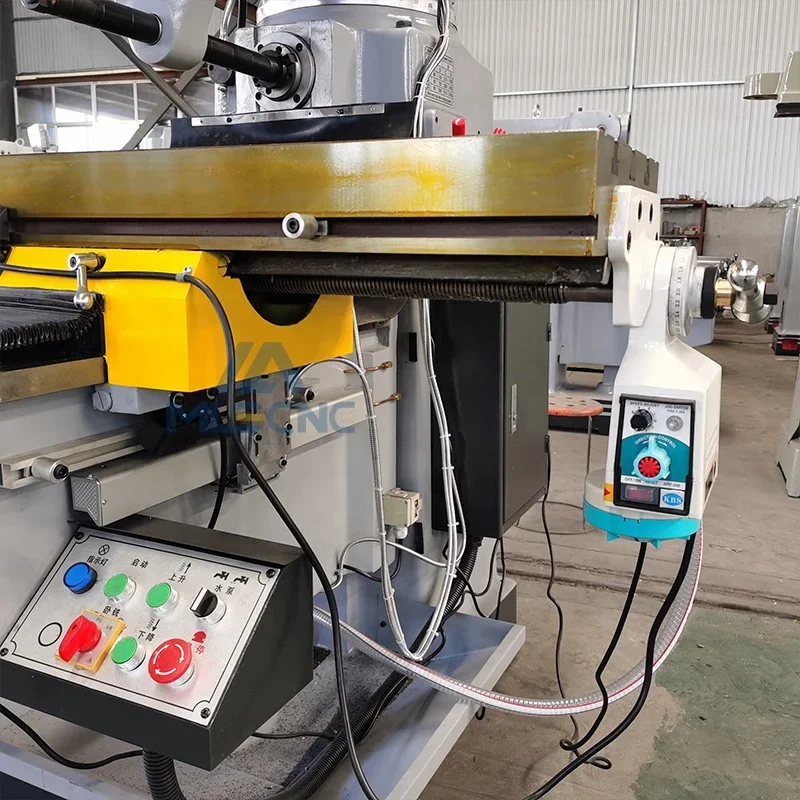

* Table automatic feed on X,Y,Z direction by gear driven.
* High speed millling head made in Taiwan

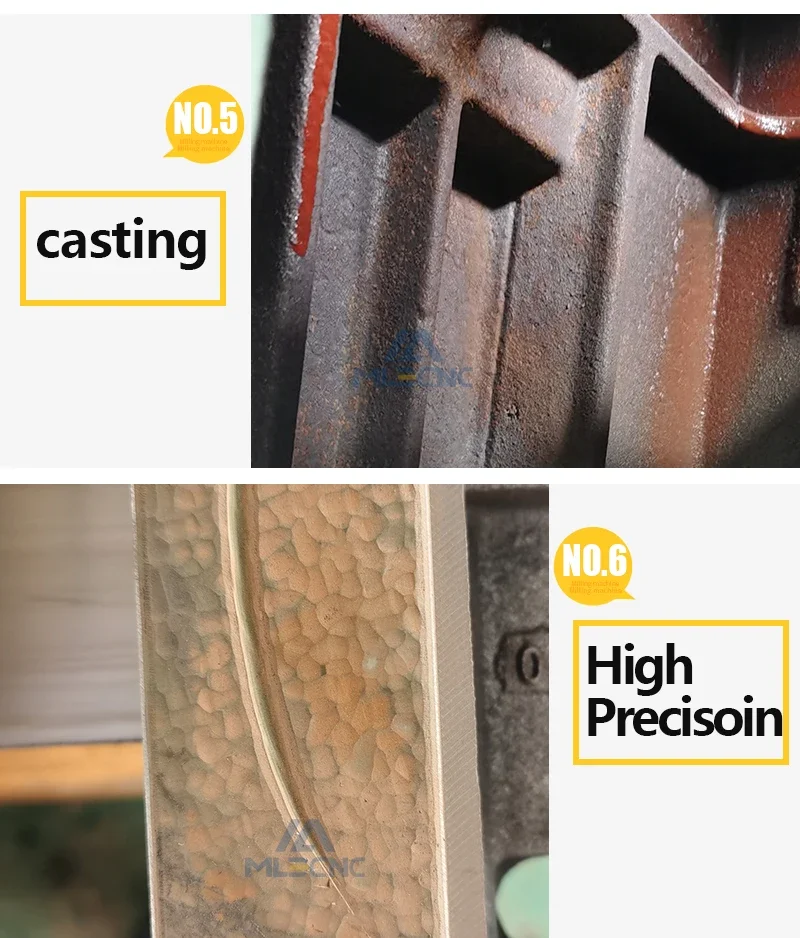

* Hardened and ground guideways.
* guideways by high frequency quenching.
* Easy control
* High speed millling head made in Taiwan
* Hardened and ground guideways.
* guideways by high frequency quenching.
* Easy control
|
Specifications
|
Units
|
5HW
|
|
Table size
|
mm
|
1370x305(12”x54”)
|
|
Table travel
|
mm
|
810/ 400 /400
|
|
T slot(number-width-pitch)
|
mm
|
3-16-65
|
|
Spindle taper
|
standard:R8
optional:ISO40 |
|
|
Spindle speed range
|
rpm
|
standard:16 steps,50HZ:65-4500 ,60HZ:80-5440，Optional:variable 65-4000
|
|
Spindle travel
|
mm
|
127
|
|
Spindle feed range
|
mm
|
0.045,0.086,0.142
(3 steps) |
|
Distance between spindle nose and table surface
|
mm
|
10-450
|
|
Main motor power
|
kw
|
2.2
|
|
Head rotation (left - right )
|
°
|
±90°
|
|
Head rotation (front - rear)
|
°
|
±45°
|
|
Weight
|
kg
|
1600
|
|
Overall dimension
|
mm
|
1550x1650x2250
|
Standard Accessories
Plastic splashing guard
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Milling Chuck
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Milling Chuck
Optional Accessories
Power feed
3-axis Digital Reading
Machine Vise
Clamp Kits
Variable milling head
Air drawbar
Dividing Head
Rotary Table
3-axis Digital Reading
Machine Vise
Clamp Kits
Variable milling head
Air drawbar
Dividing Head
Rotary Table
