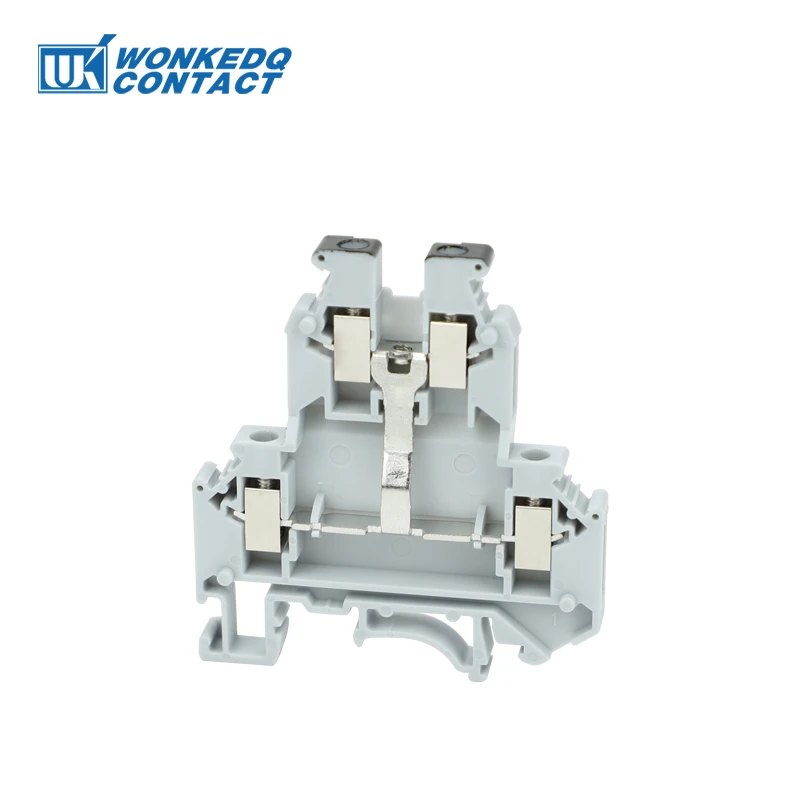

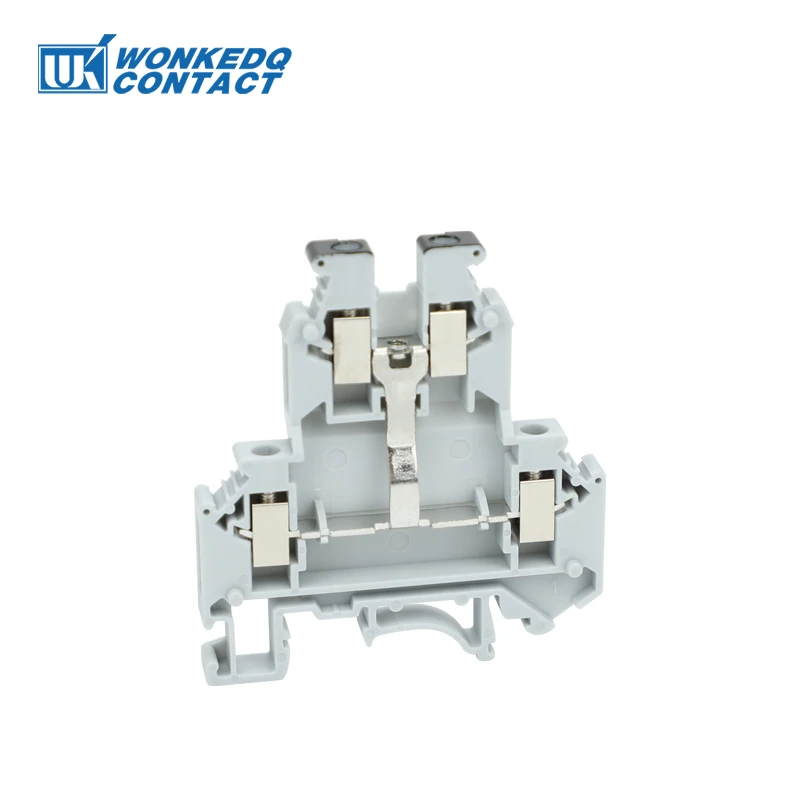

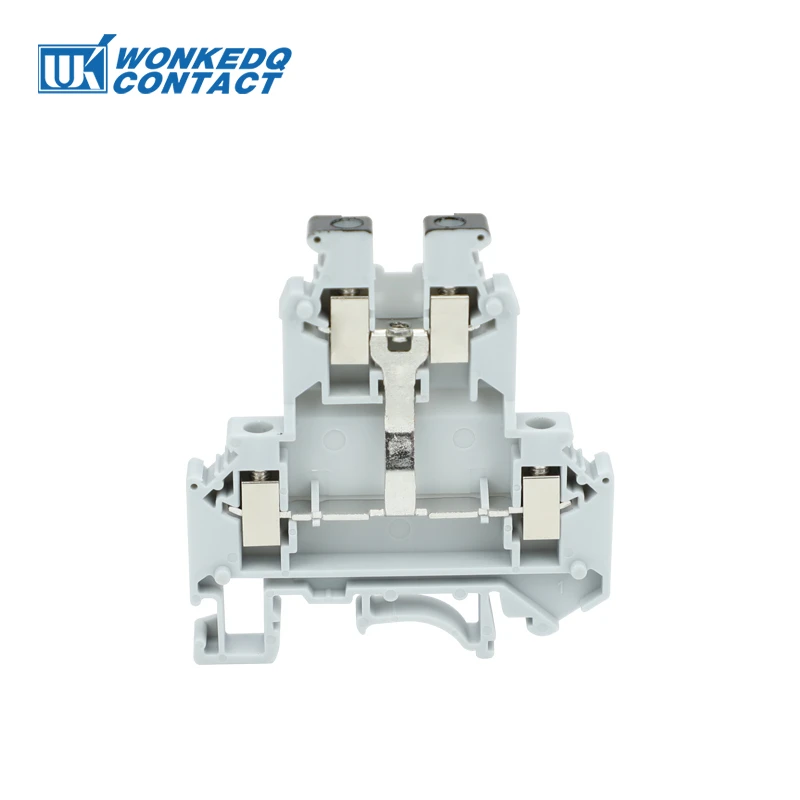

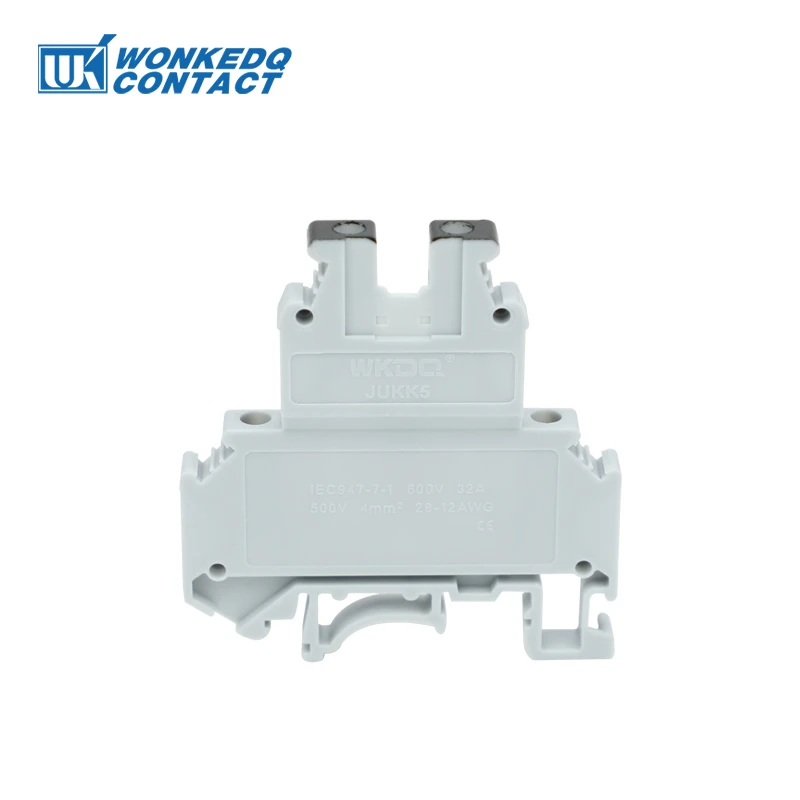

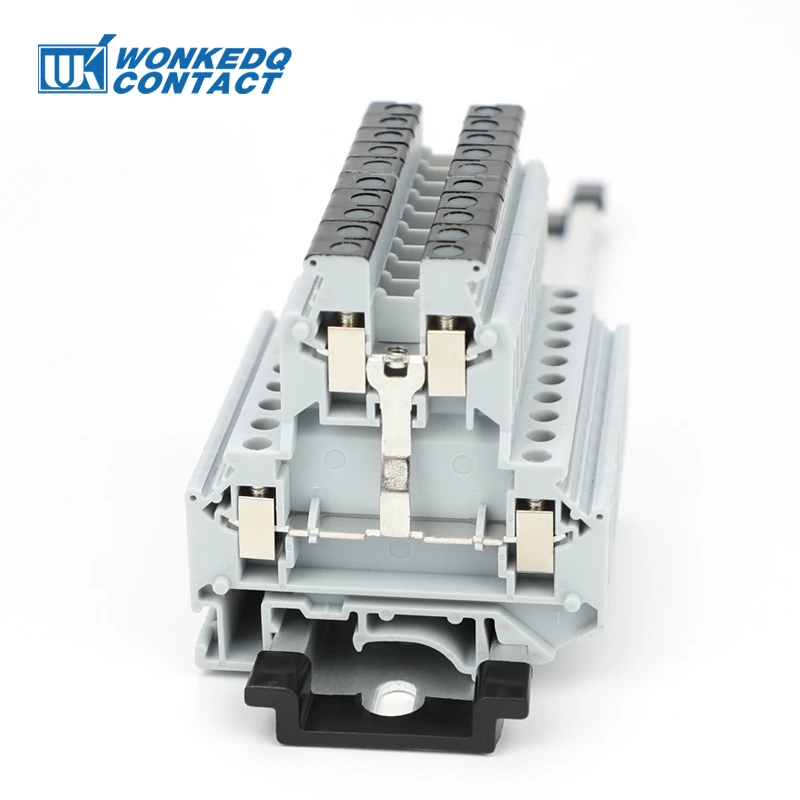

Name: UKK 5-PV 2 Levels Equipotential Bonder 4-Connductor 4mm UK Screw Wire Electrical Connector DIN Rail Terminal Block UKK5-PV
SKU: 1005004154656295
Availability: InStock

UKK 5-PV 2 Levels Equipotential Bonder 4-Connductor 4mm UK Screw Wire Electrical Connector DIN Rail Terminal Block UKK5-PV

REF: 1005004154656295

DESCRIPTION

ACCESSORIES ( Click the pictures to the links)


END COVER D-UKK 3/5	FIXED BRIDGE FBI 10-6	INSERTION BRIDGE EB 10-6	MARKER STRIP ZB 6

MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	END STOP E-UK

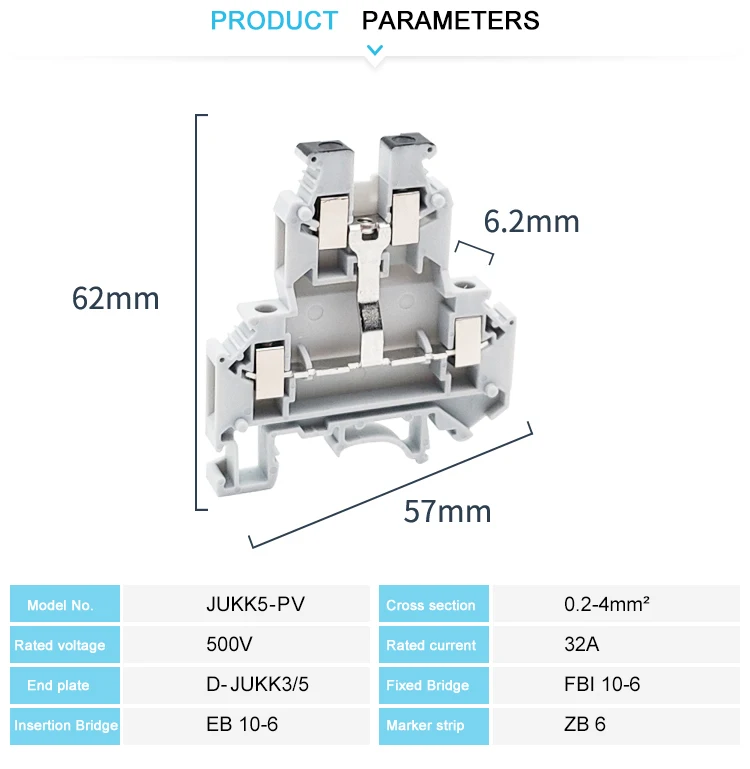

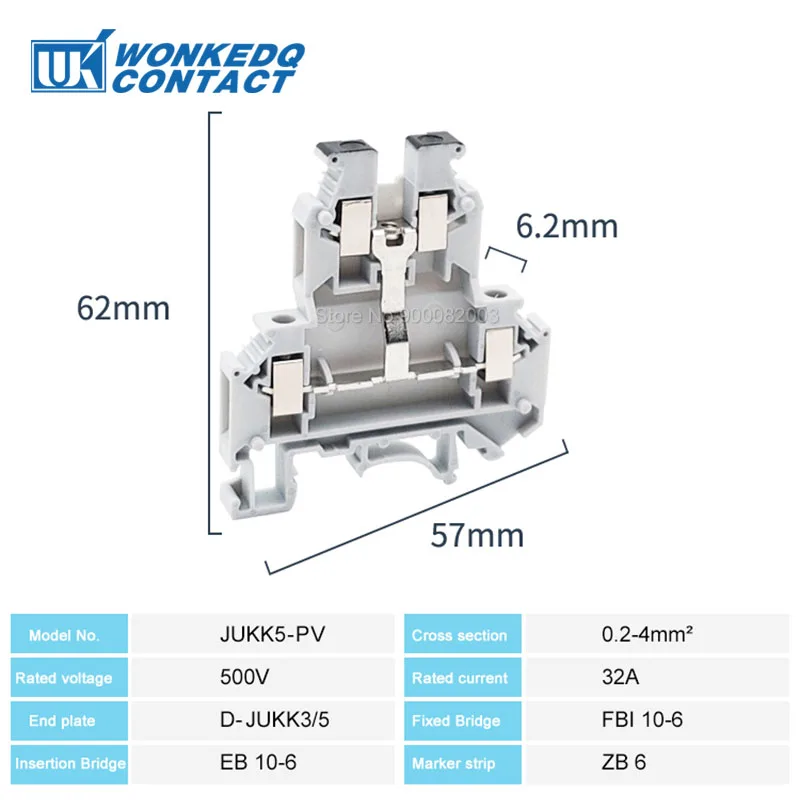

Technical Parameters

Type No.	Details	Accessories
UKK 5-PV	500V/32A 0.2-4mm²/0.2-4mm² L57/H62/W6.2 mm	End cover: D-UKK 3/5
		Fixed bridge: FBI 10-6
		Insertion bridge: EB 10-6
		Marker strip: ZB 6

Model Number	UKK 5-PV, Multi Levels Terminal Blocks
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	57/62/6.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	500V/32A
Cross section, solid/soft Cable	0.2-4mm²/0.2-4mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Certification	CE/RoHS/CQC/ISO 9001
