Twotrees TTS-10 TTS-55 gravador a laser 15w/40w/80w máquina de corte de gravação a laser para madeira plástico aço inoxidável

Name: Twotrees TTS-10 TTS-55 gravador a laser 15w/40w/80w máquina de corte de gravação a laser para madeira plástico aço inoxidável
SKU: 1005005606304485
Availability: InStock

Price range: R$ 396,33 through R$ 817,26

cor

Envio de

Plugue

Limpar

REF: 1005005606304485 Categorias: Impressoras 3D e kits, Máquinas e Equipamentos

Descrição
Avaliações (0)

Químico Hign-em causa: Nenhum
Área Da gravura: 300x300mm
Potência do laser: 5,5W
Certificado: EMC,CE
Dispositivo smart: YES
Origem: CN (Origem)
Certificado: ce
Nome da marca: singasong
Número do modelo: TTS
: TTSpro
for1: Laser Engraving Machine
for2: Laser Engraver
for3: Laser Print Matrix
for4: Laser Cutting Machine
for5: 40W Laser
1:: laser cutting machine
2:: LASER
3:: laser cutting machine 40w
4:: 40w laser engraving machine
5:: Cnc engraving machine
6:: woodworking cutting printer
7:: LASER ENGRAV MACHIN
8:: Laser Marking Machine
9:: CNC LASER ENGRAV
10:: 40w laser engraving printer
11:: 40w laser
12:: LASER ENGRAV
13:: engraving printer
14:: cutting printer
15:: laser engraving machine printer
16:: laser engraving printer
17:: laser marking printer
18:: leather laser marking printer
19:: leather laser printer
20:: machine cut laser
21:: laser cutting machine for metal
22:: metal laser engraving machine
23:: metal leather laser marking printer
24:: metal leather laser printer
25:: metal leather printer

TTS-10 10W Laser Cutting Test Video

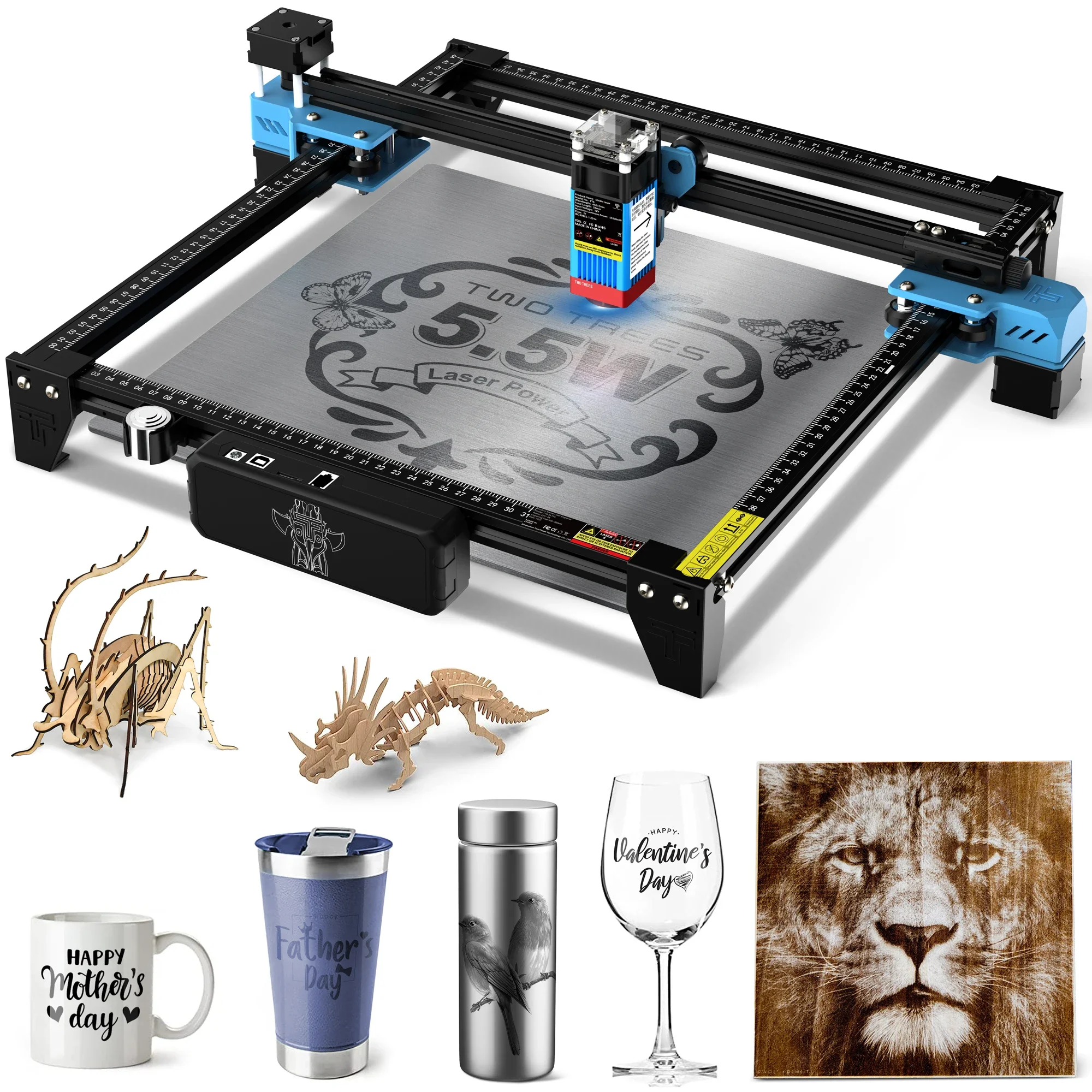

At the bottom, there is a display of the user's excellent sculpture works

When engraving stainless steel, try to avoid engraving metal types with highly reflective surfaces. It is recommended to engrave anodized stainless steel.

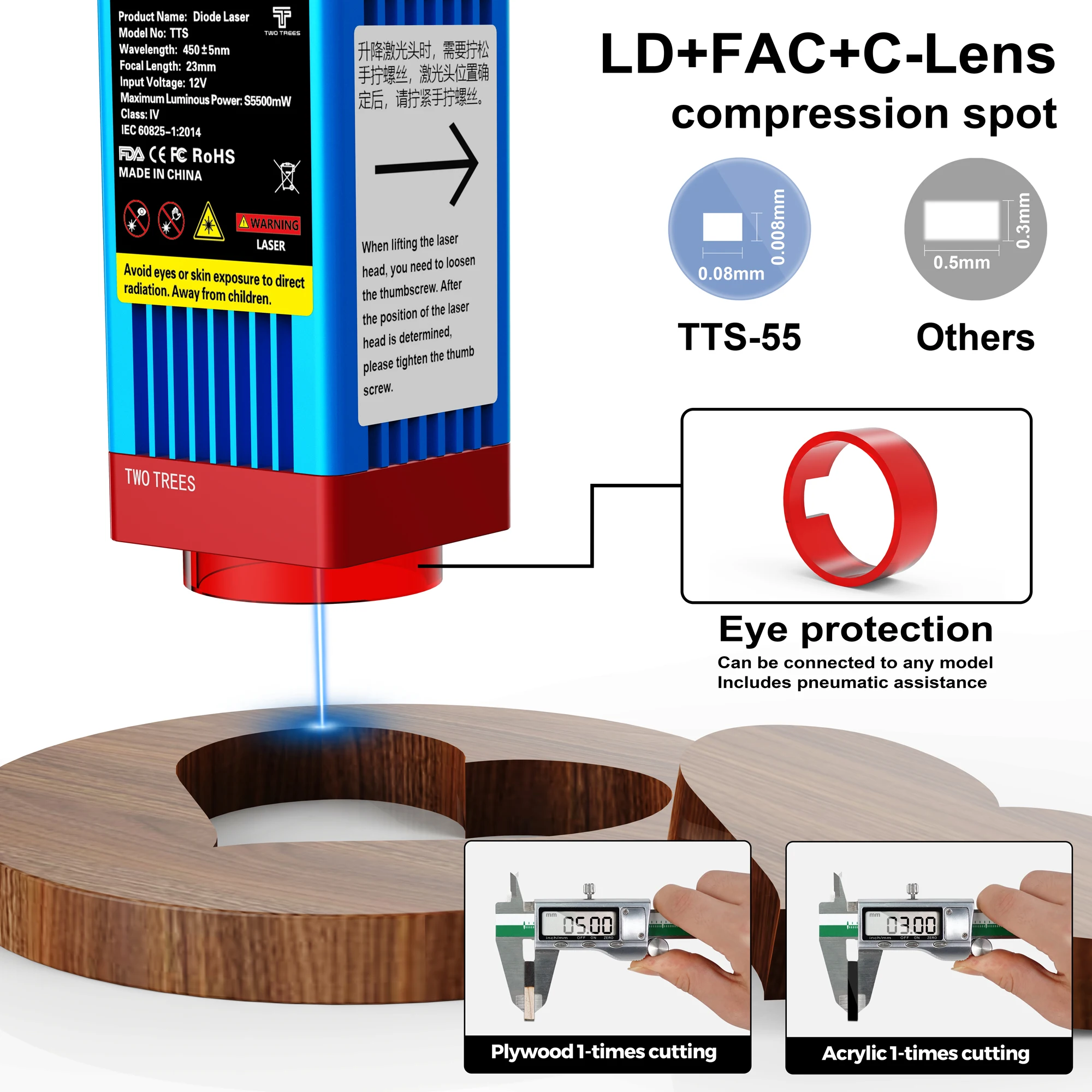

Latest Laser Beam Shaping Technology: TTS-55 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.

Fast focus design: Combines a fixed focus lens and a knob to adjust the height. You just need to turn the knob to focus. Equipped with a fixed focus column, which makes it very easy to use.

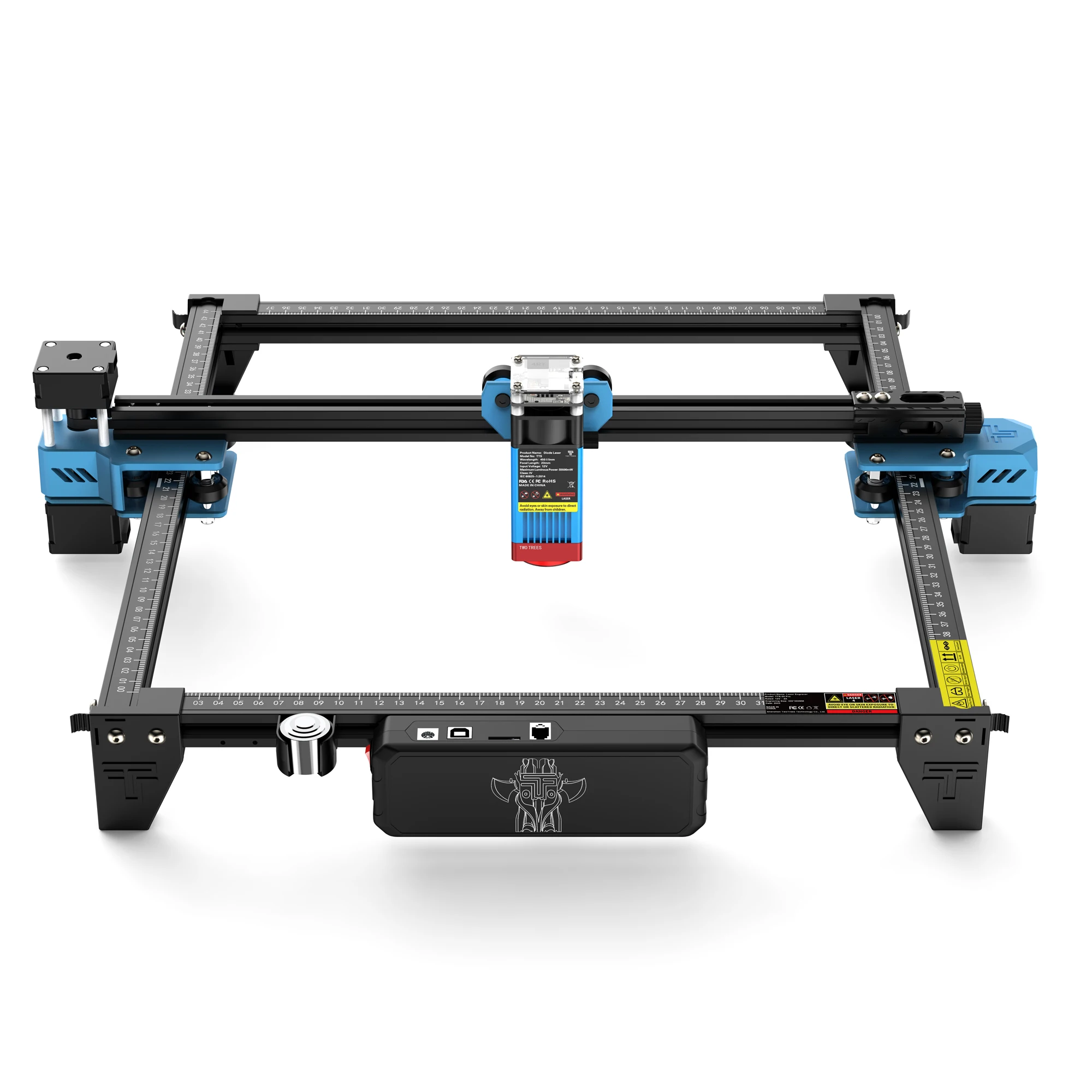

Easy assembly structure: aluminum profile structure design, double Y-axis motors make the machine work more stably and improve the engraving accuracy. 60% pre-assembled, assembly can be completed in 30 minutes.

Square measuring ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.

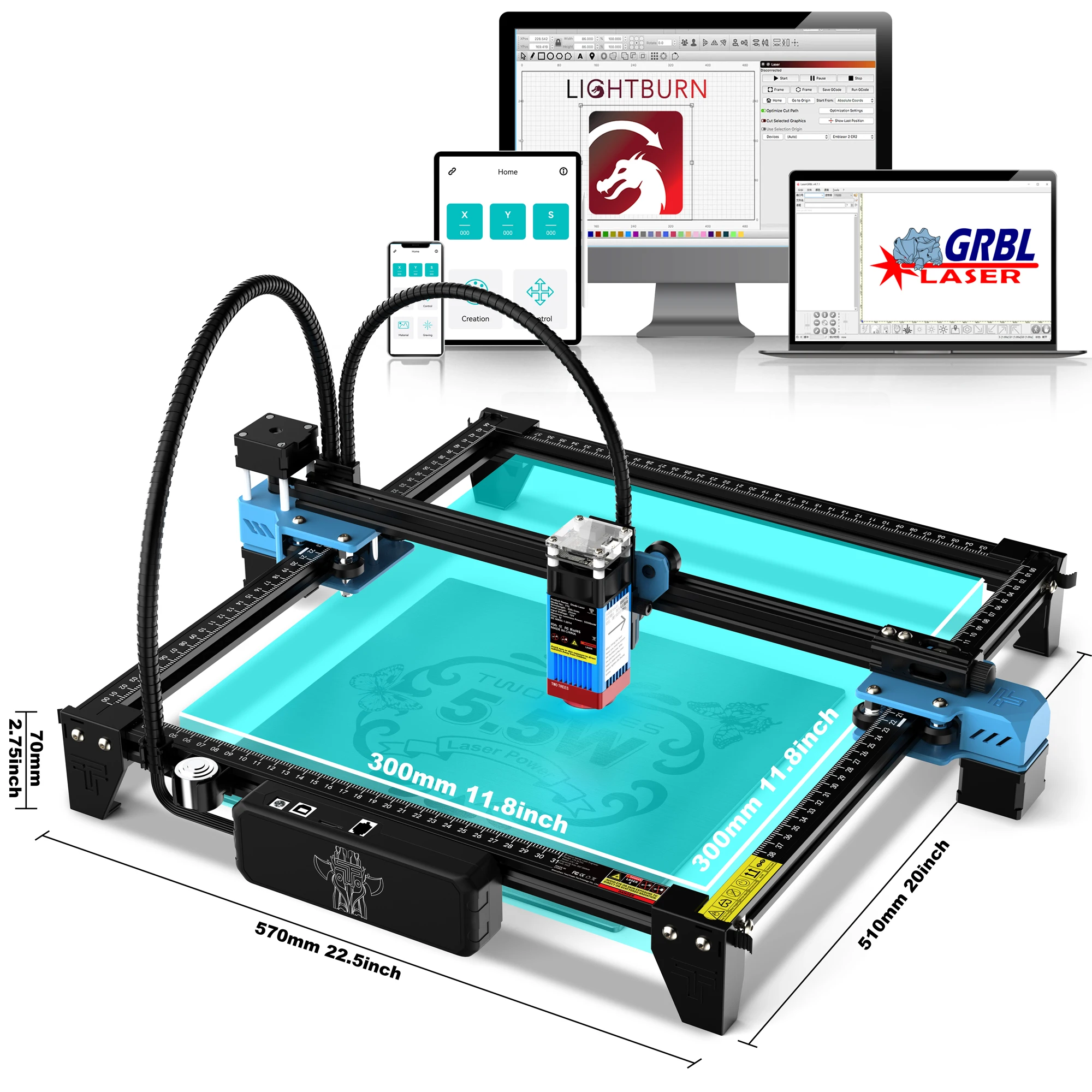

Wide Compatibility:Support mobile APP control, wifi connection, USB connection, offline USE，The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.

Safe Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. The motherboard has a separate control switch.

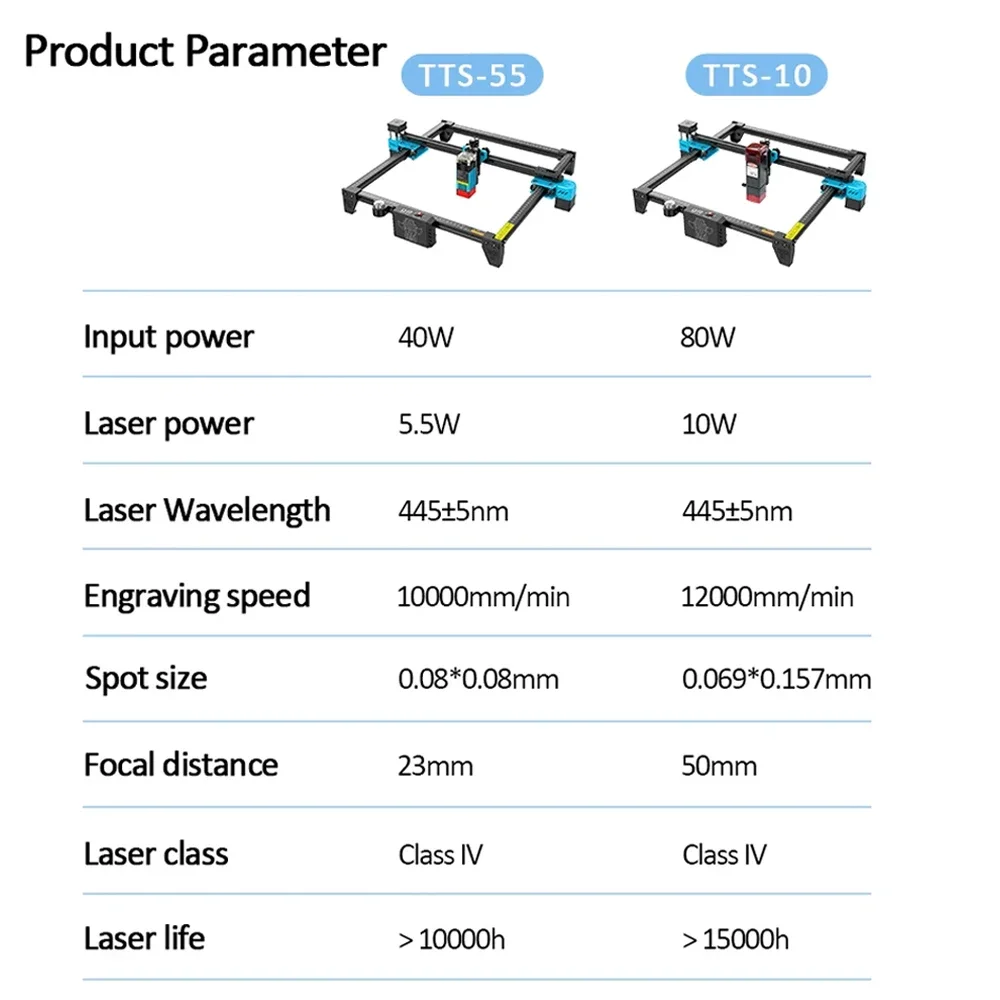

Machine parameters:

Model: TTS-55 pro / TTS-10 pro

Machine Weight: 3kg

Engraving Range: 300 * 300mm

Laser Wavelength: 445 ± 5nm

Engraving Accuracy: 0.1mm

Engraving Speed: 10000mm / min

Software Support System: MAC, Windows

Machine Material: Aluminum Profile + Plastic Parts

Power Supply: 12V 4A DC

Control Board: LTS esp32 Motherboard (32bit)

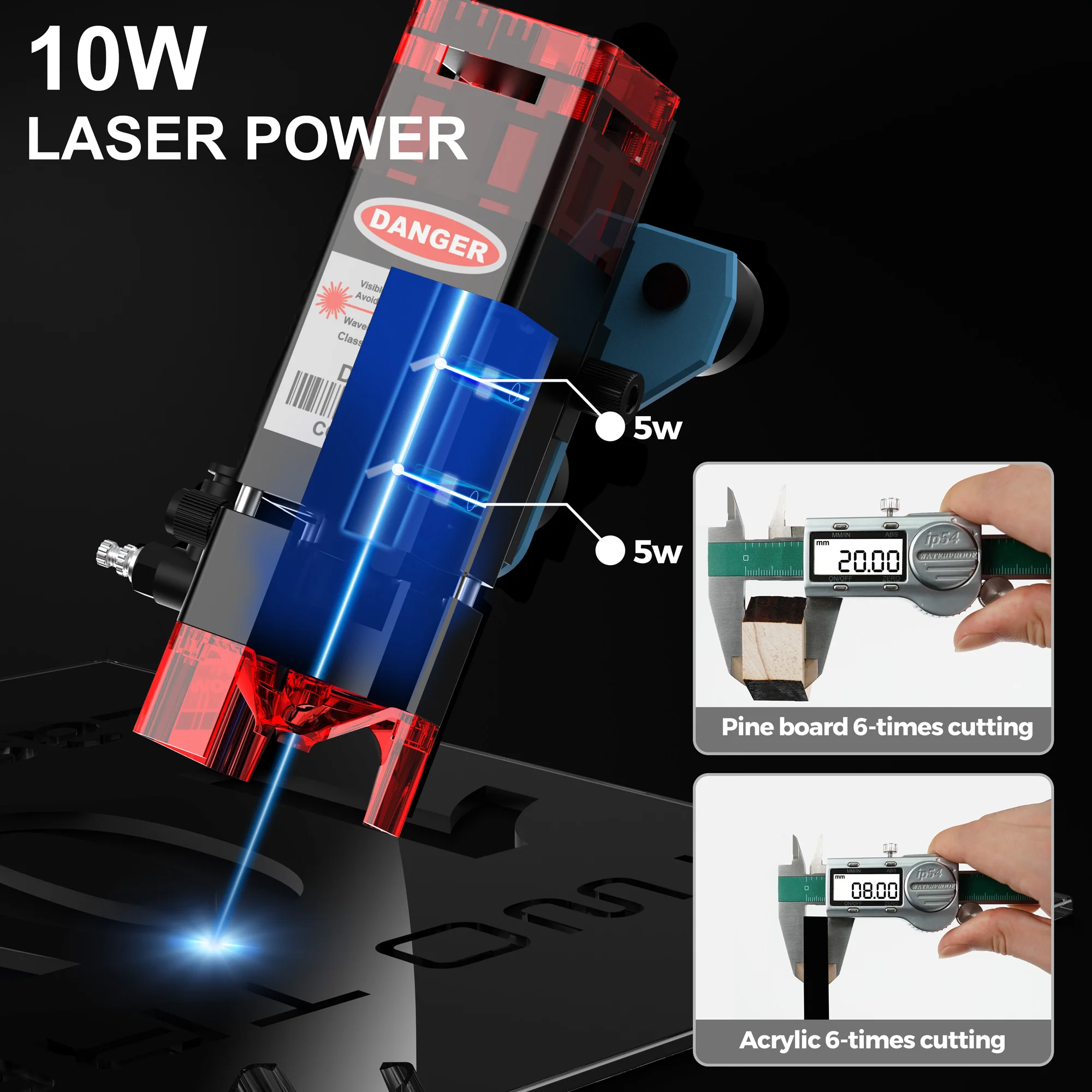

Laser Power: 5.5w/10w (optional)

Output Power: 40w/80w (optional)

Software Identification File Format: NC, BMP, JPG, PNG, Gcode, Etc

Supporting software: Lasergrbl (Windows system), Lightburn (General)

Power type: European standard / American Standard (Optional)

Languages Supported By The Software: Chinese, English, Italian, French and German

Working Environment: Temperature 5-40 ℃, Humidity 20-60%

Engraving Mode: USB Online, TF Card (Application Program, Web Page Control)

Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc

(It is not recommended to engrave smooth and mirror stainless steel directly. They can be engraved after anodizing or frosting.)

Engraving Mode: Graphic Engraving, File Engraving, Scanning Engraving, Contour Engraving And Pixel Engraving
