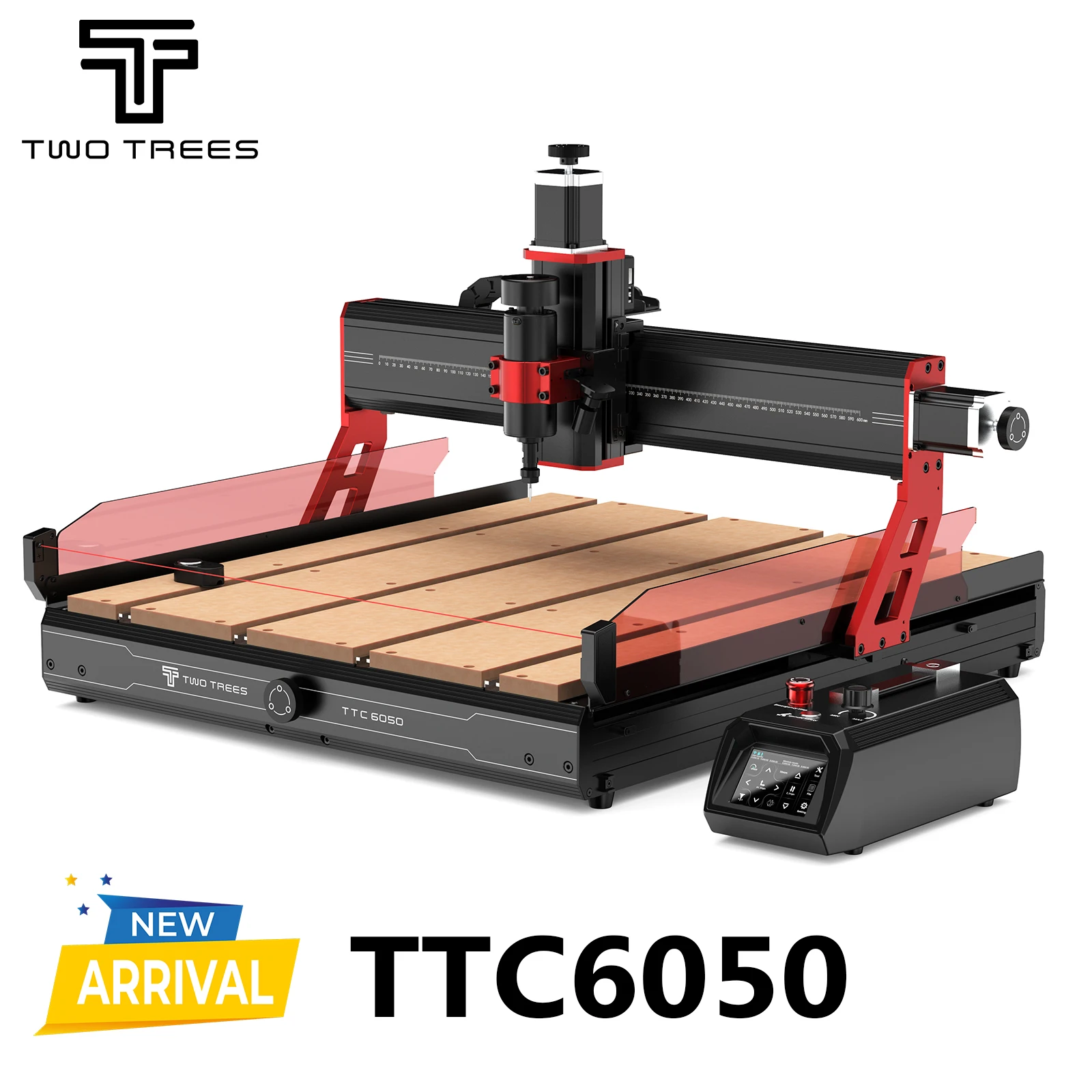

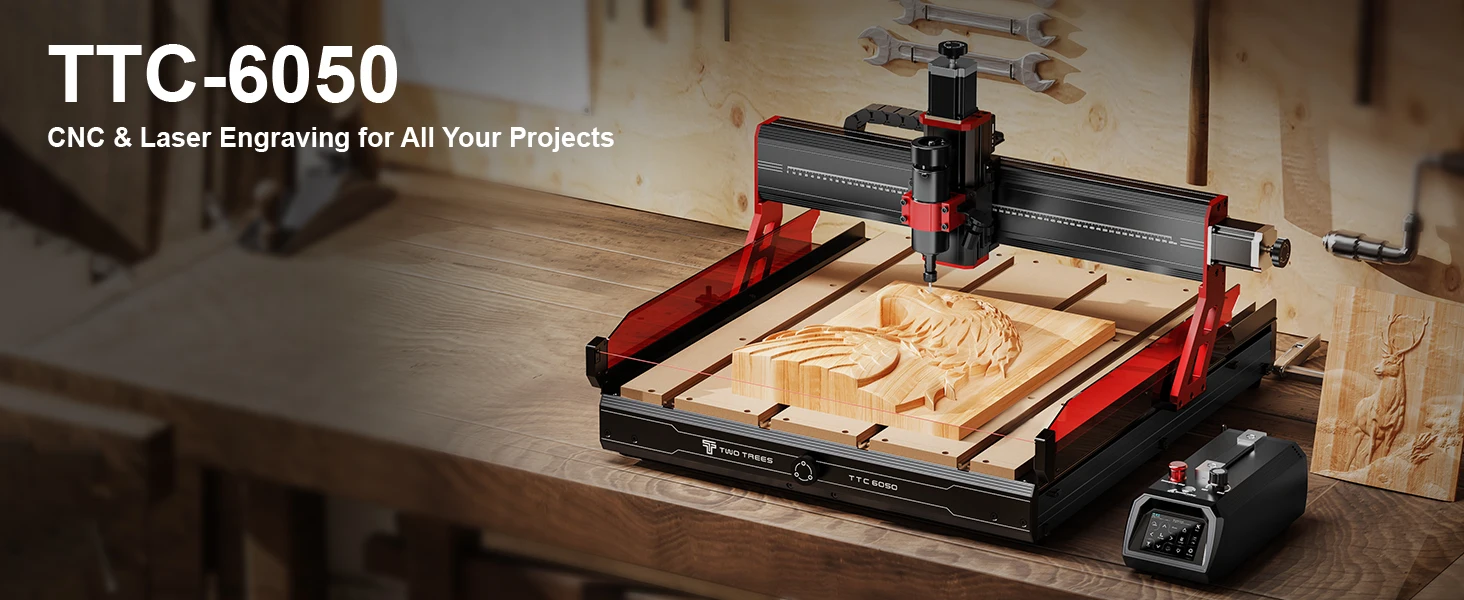

Twotrees TTC6050 CNC Router Infrared Sensor 500W Spindle Ball Screw For Laser Engraving Milling Cutter Wood Metal Acrylic PCB

Twotrees TTC6050 CNC Router Infrared Sensor 500W Spindle Ball Screw For Laser Engraving Milling Cutter Wood Metal Acrylic PCB

TTC6050 CNC Router – Features

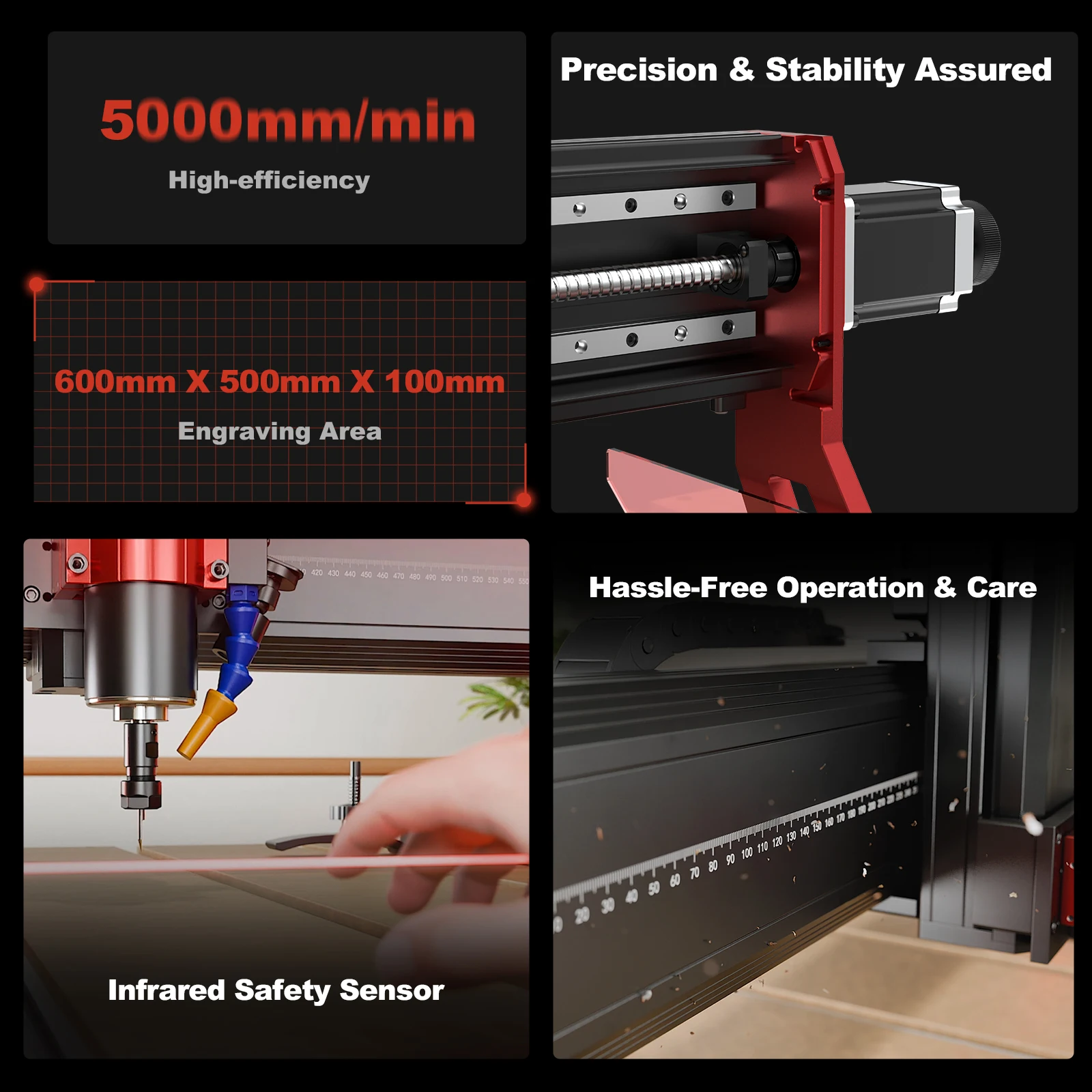

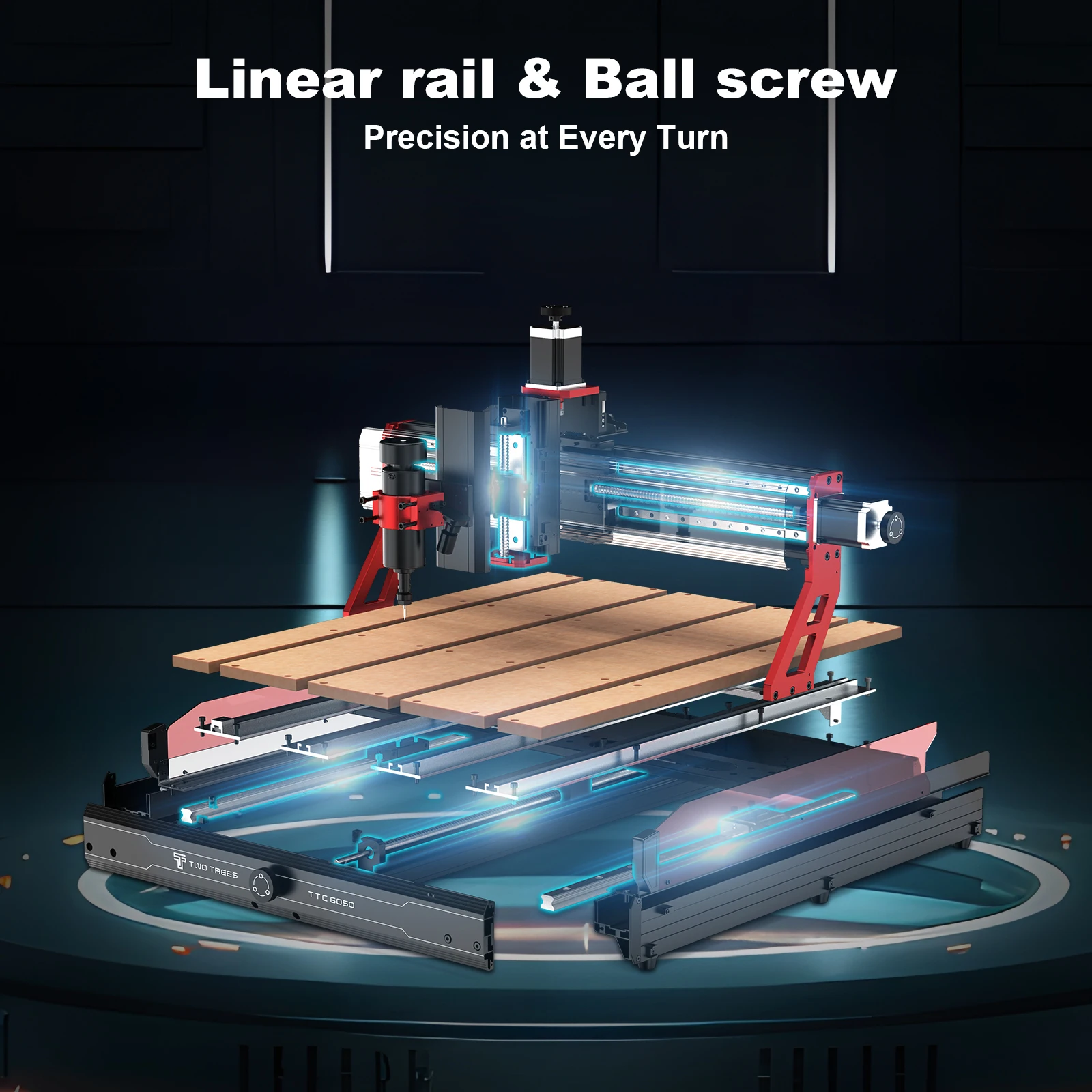

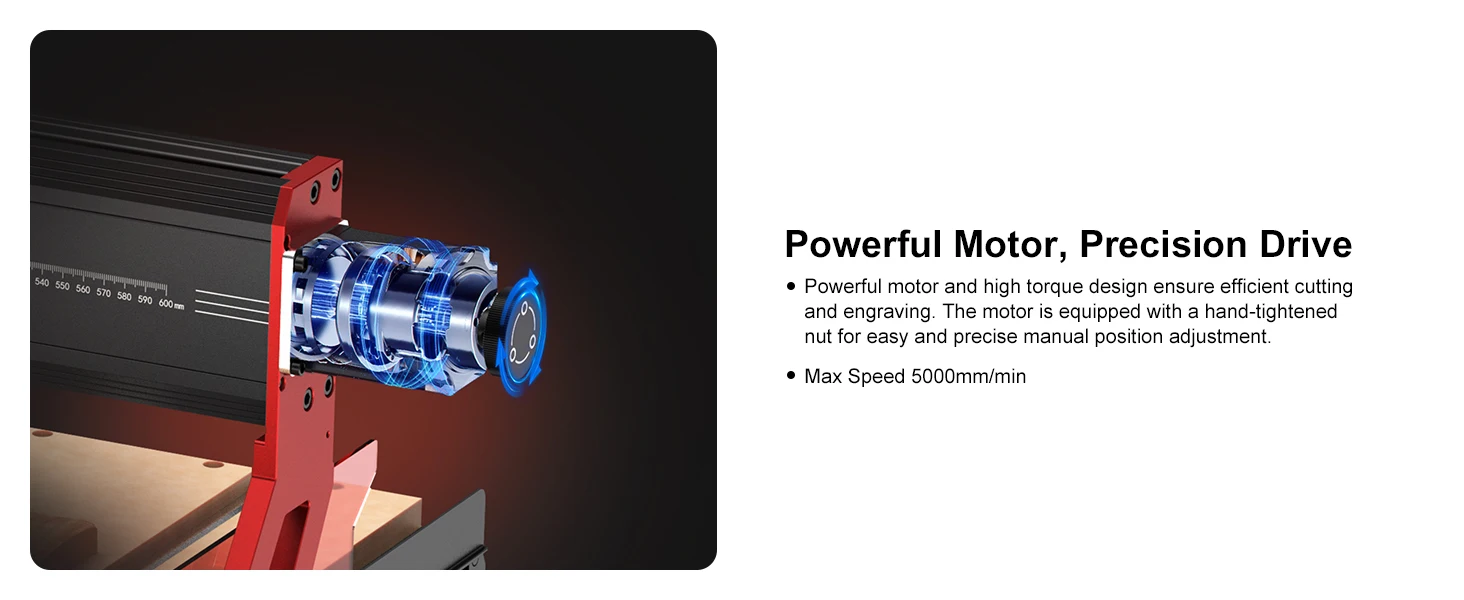

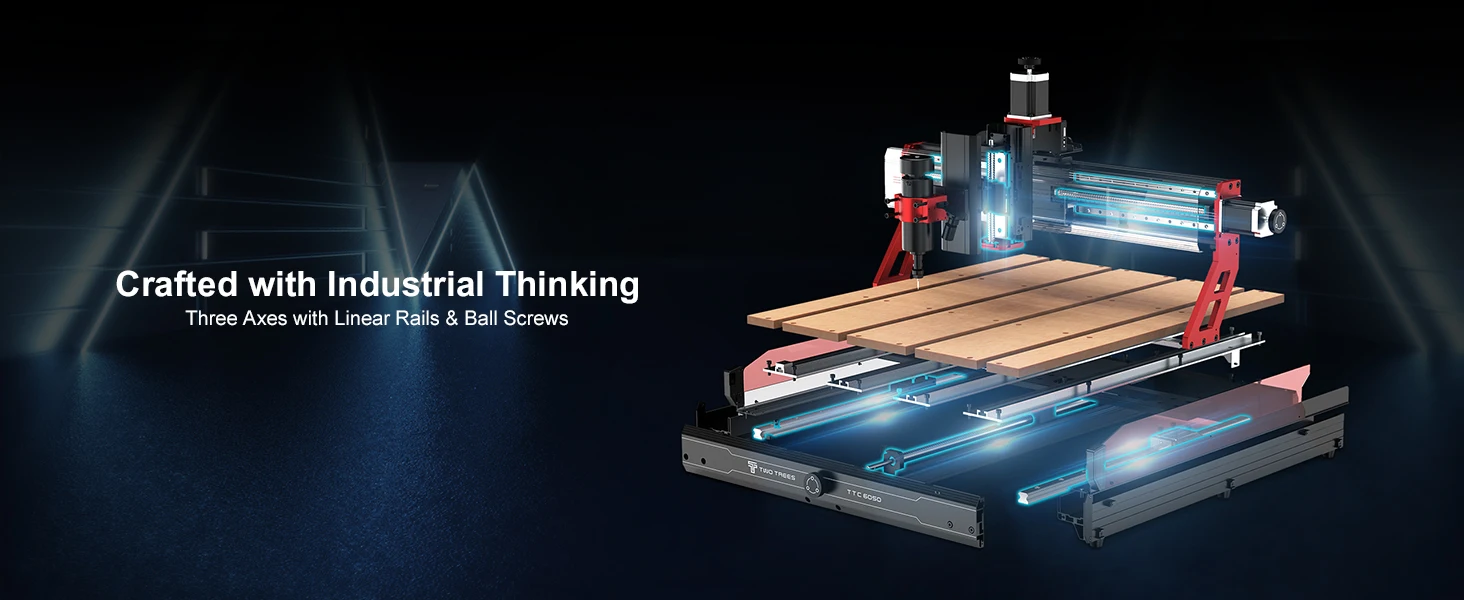

• Precision Motion: XYZ axis adopts linear rails + ball screw, ensuring high accuracy during movement and engraving.

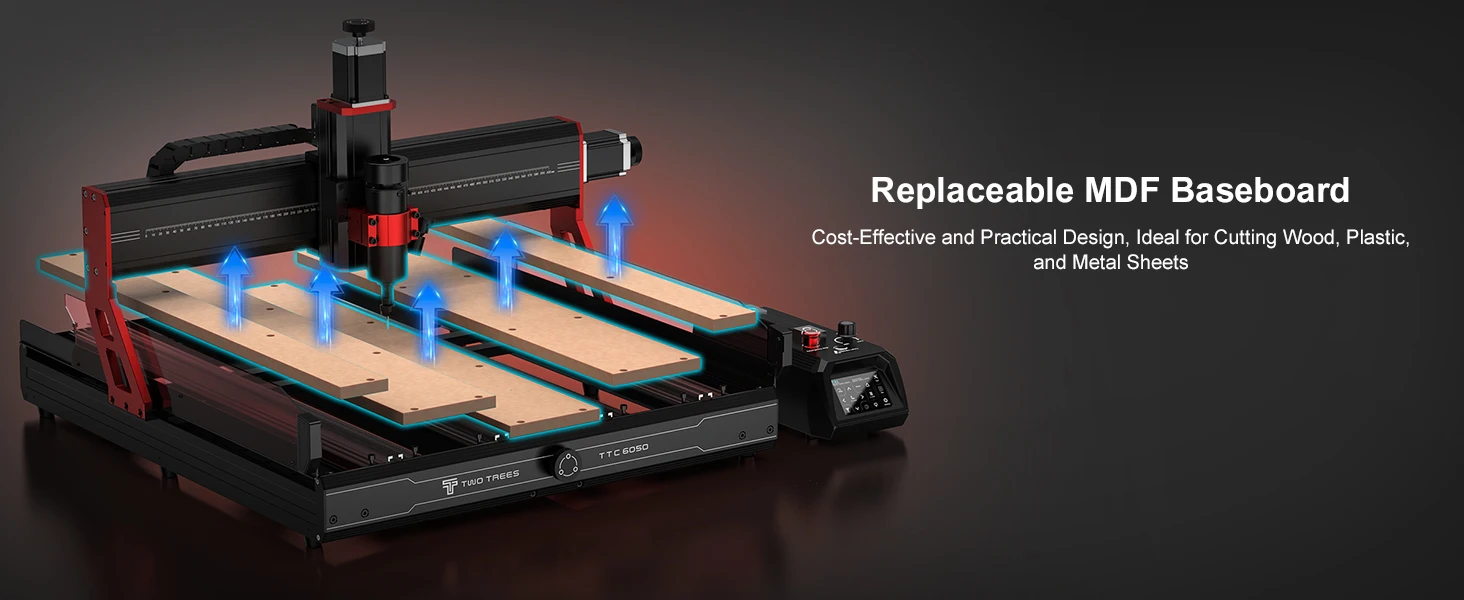

• Durable Work Platform: Equipped with aluminum T-slot base + MDF spoilboards, compatible with various clamps and easy to maintain or replace.

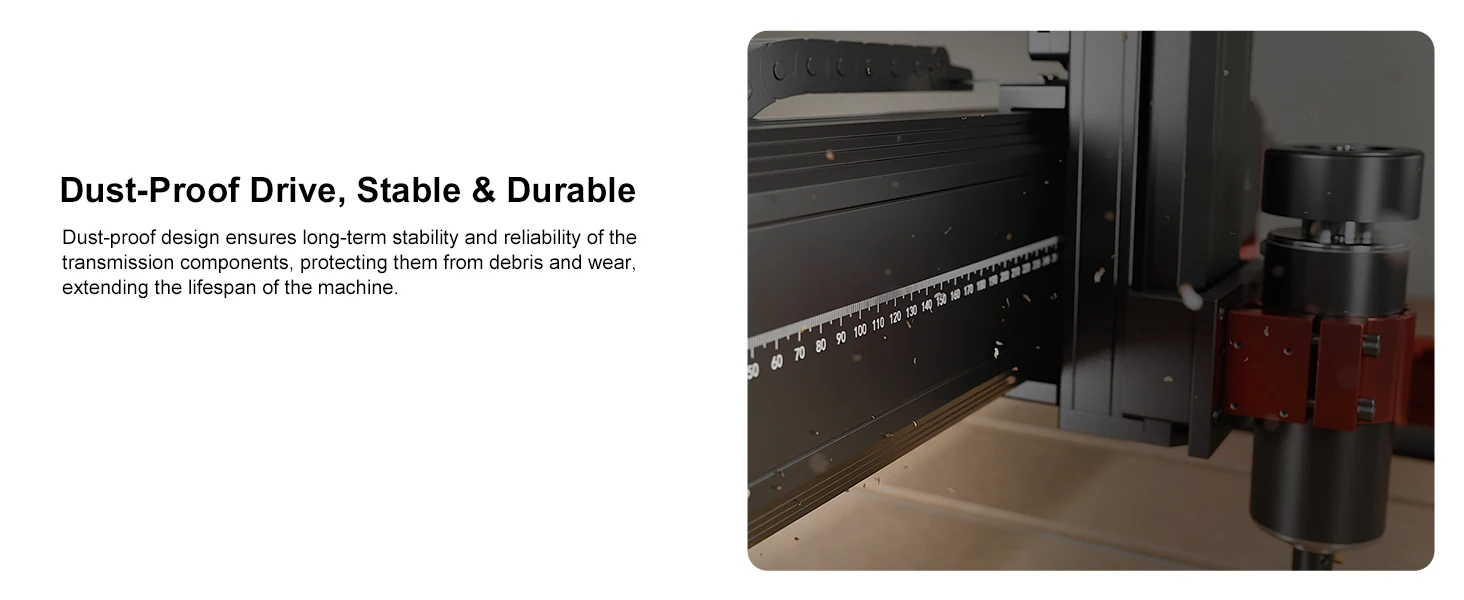

• Sealed Drive Design: Fully enclosed X/Y/Z drive system protects against dust and chips, extending machine lifespan.

• Rigid Structure: Reinforced with 110×42mm X-axis, 68×61mm Y-axis, and 80×38mm Z-axis profiles for extra stability and durability.

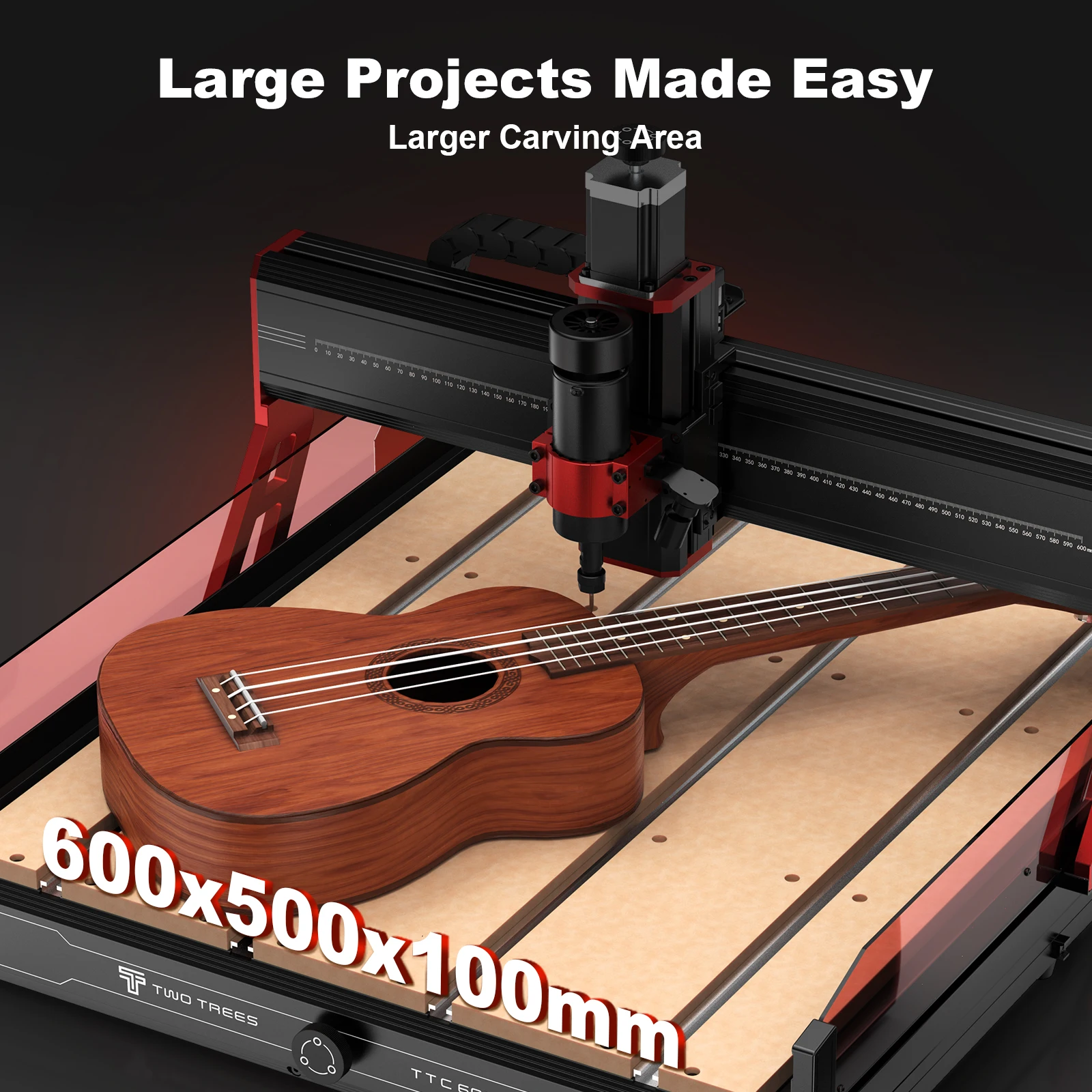

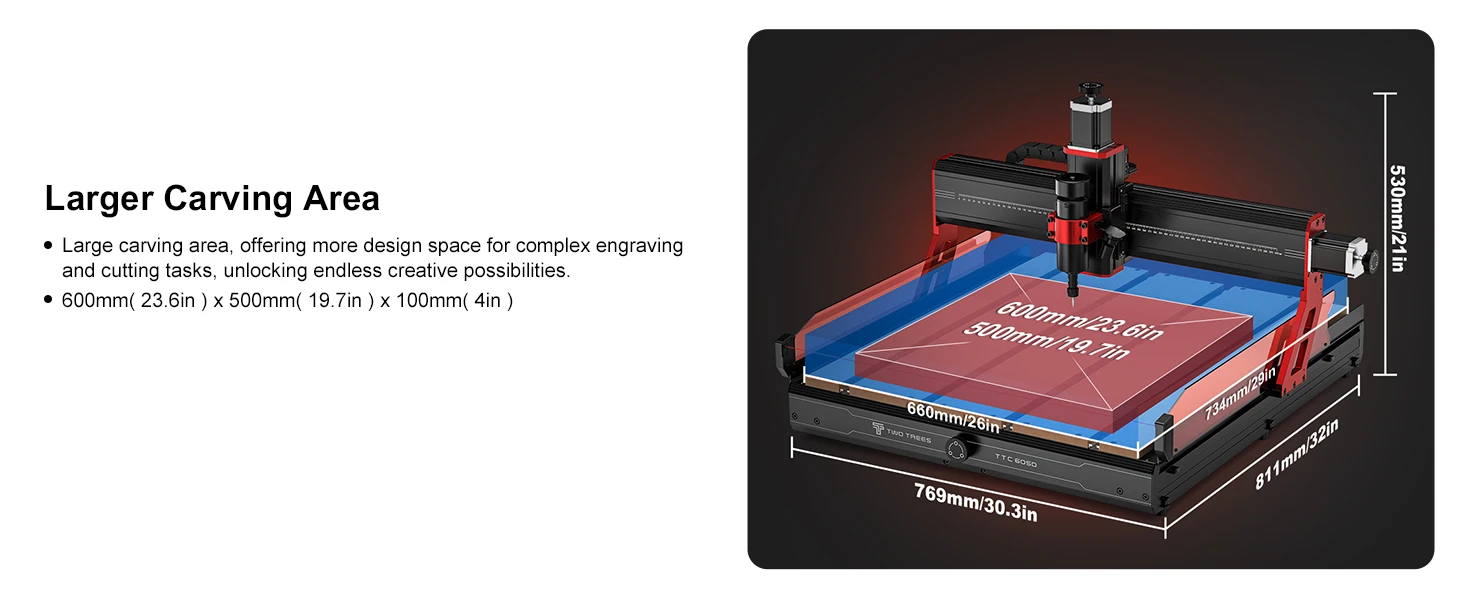

• Large Working Area: Offers a 600×500×100mm workspace—ideal for daily woodworking and DIY projects.

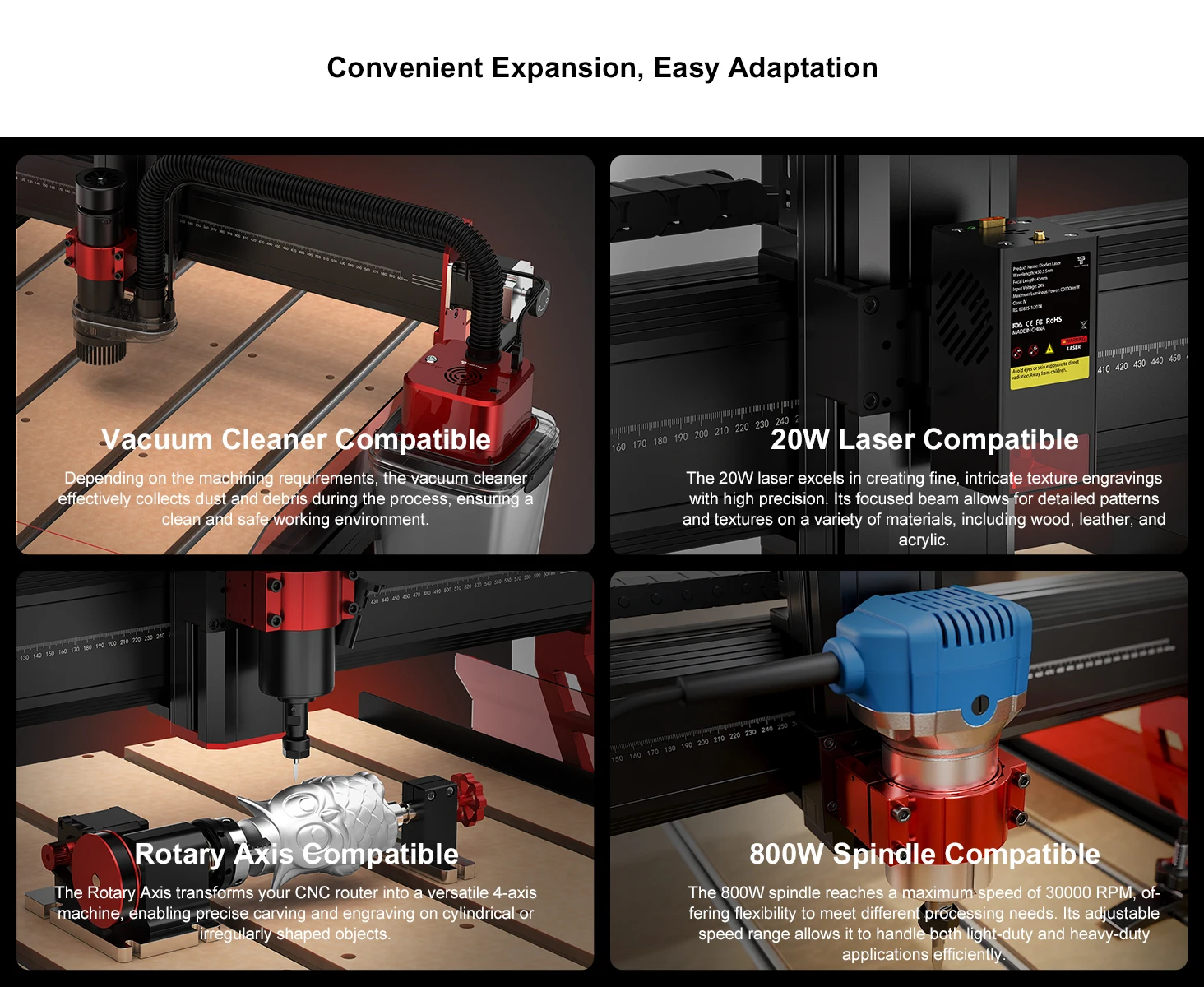

• Expandable Tool System: Comes with 500W spindle, supports upgrade to Two Trees TC20 laser module, compatible with 65/69mm spindle mounts.

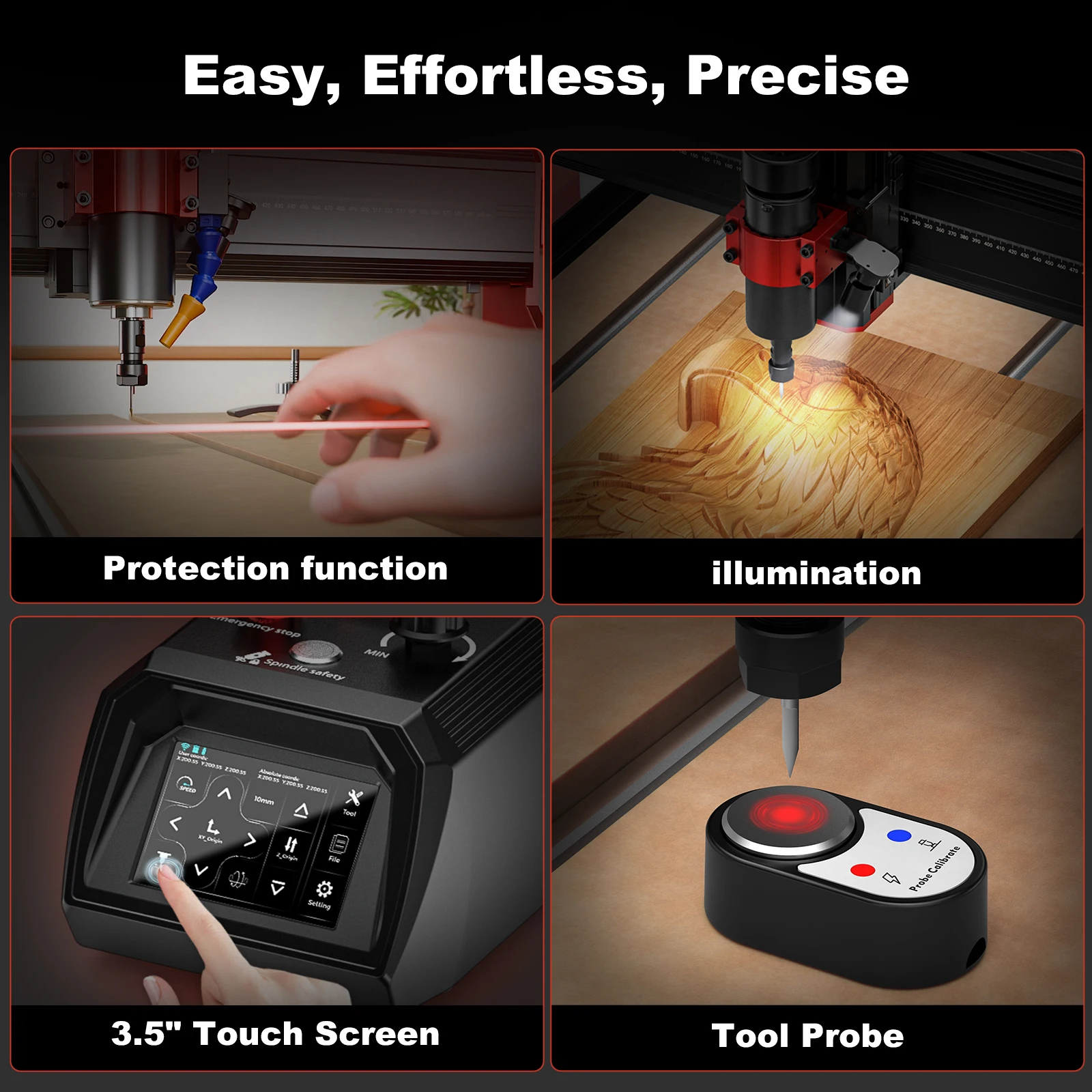

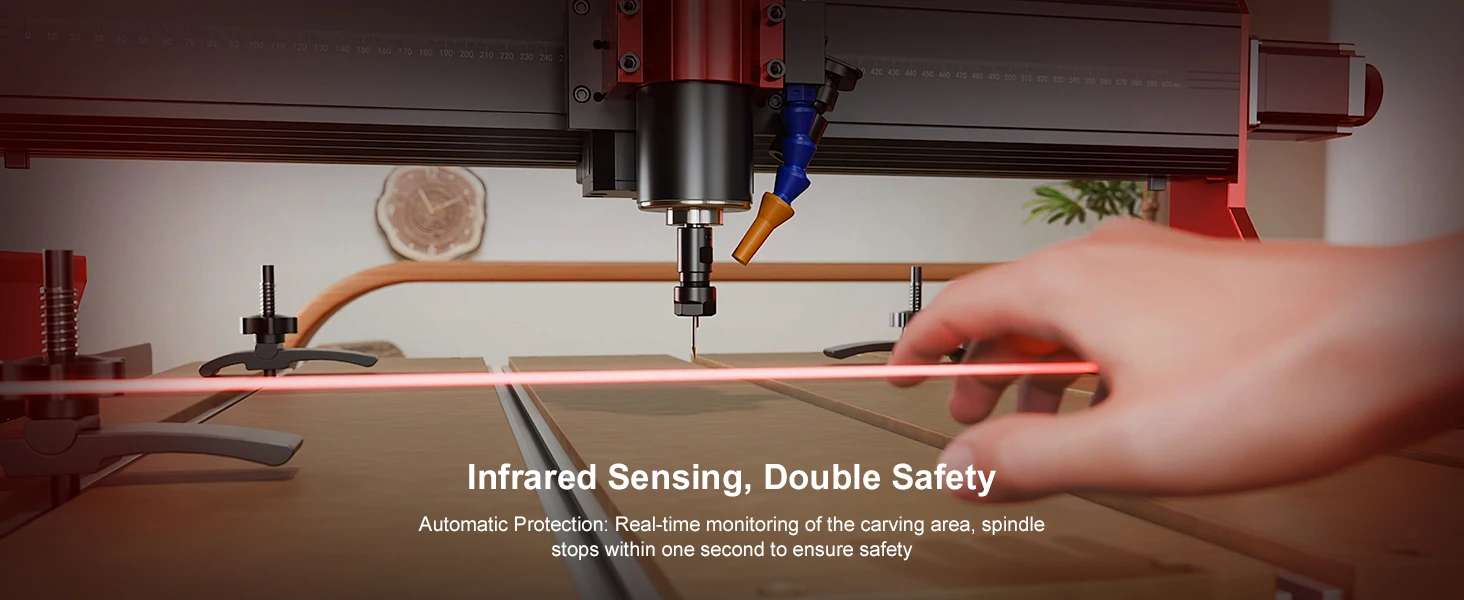

• Safety Features: Infrared beam sensor auto-stops machine when interrupted; spindle can be cut off instantly via control box for safe tool changes.

Technical specifications

• Device Size: 811 × 769 × 530 mm (excl Control Box)

• Net Weight: 35.9 kg

• Working Area: 600 × 500 × 100 mm （23.6in × 19.6in × 3.9in）

• Material: Aluminium

• Supported Tool Diameters: 0.5–7 mm (ER11 clip)

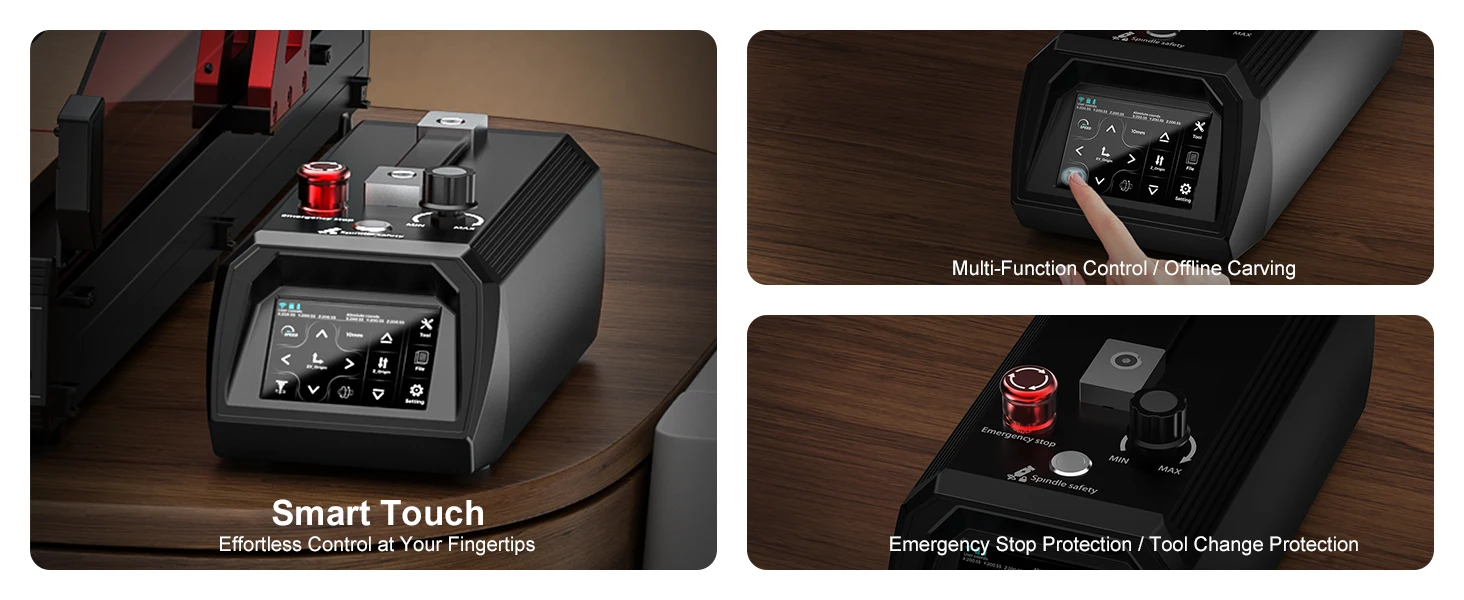

• Device Display: 3.5-inch IPS resistive color screen, touch (480 × 320 pixel resolution)

• Max Milling Speed: 5000 mm/min

• Maximum Acceleration: 500 mm/s²

• Spindle Motor: 500W Spindle Motor

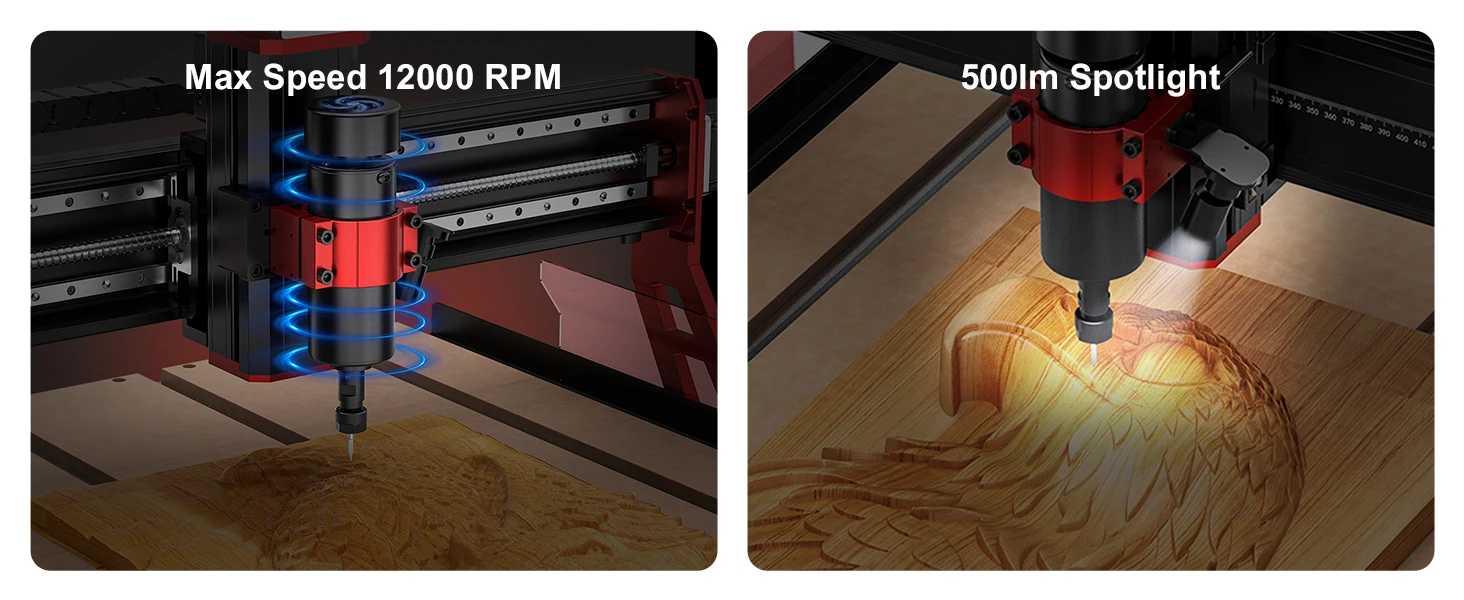

• Main Shaft Speed: 12000 rpm

• Compatible Software: Artcam, Fusion360, EASEL, Carveco Maker

• Firmware: GRBL is open source and supports both CNC and laser (no firmware required)

• Operating System: Windows, MacOS, Linux

• Voltage: 24V

• Performance: 110W Total | 15W In Standby Mode

• Carving Layer Height:

  • Non-metal: 0.1mm–20mm

  • Metal: 0.1mm–0.2mm

• Compatible Engraving Materials:
  Plywood / MDF / Solid wood / Acrylic / Carbon fiber / Aluminum / Copper / Stainless steel
