- Suprimentos para bricolagem: elétrico
- Origem: CN (Origem)
- Showroom Location: None
- Condition: New
- Place of Origin: Shandong, China
- Brand Name: JNDO
- Usage: Mining Hoist
- Power Source: Pneumatic
- Sling Type: Chain
- Lift Speed: 5m/min
- Warranty: 1 Year, 1 year
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Marketing Type: updated version
- Warranty of core components: 1 Year
- Core Components: Other
- Weight (KG): 30 kg
- Load capacity: 1ton
- Lifting height: 0-20m
- Max lifting speed: 5m/min
- Max decline speed: 8m/min
- Air pressure: 0.4-0.6MPa
- Maximal air consumption: 1.2m3/min
- Weight: 30kg
- Packing: wooden case
- Certificate: CE
My friend, welcome to our store. If you have any questions, please contact us,WhatsApp:+86 15116232605,Email:2787233561@qq.com
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{font-size:16px}#detail_decorate_root .magic-6{width:750px}#detail_decorate_root .magic-7{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:-16px;margin-left:-2px;width:391px;height:391px}#detail_decorate_root .magic-9{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-10{margin-top:-14px;margin-left:-8px;width:410px;height:410px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:455.1948051948052px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:455.1948051948052px}#detail_decorate_root .magic-13{width:750px;border-collapse:collapse}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:261px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:216px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{text-align:center}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:208px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;width:444px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{display:none}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:209px;box-sizing:content-box}#detail_decorate_root .magic-21{overflow:hidden;width:373px;height:248.66666666666669px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:373px;height:248.66666666666669px}#detail_decorate_root .magic-23{overflow:hidden;width:373px;height:248px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-24{font-size:24px}#detail_decorate_root .magic-25{overflow:hidden;width:373px;height:497.3333333333333px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:373px;height:497.3333333333333px}#detail_decorate_root .magic-27{overflow:hidden;width:373px;height:497px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-28{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-29{margin-bottom:0}#detail_decorate_root .magic-30{position:relative;width:100%}
Product Description
With 0.4-0.6 Mpa ordinary compressed air as the power source, it is small in size and light in weight. (1/3-1/8 of the same tonnage electric hoist). Explosion-proof, acid and alkali steam resistant, high dust resistant, adjustable speed, high-efficiency pneumatic lifting equipment.
Widely used in pharmaceutical manufacturing, chemical fiber, mechanical repair, marine drilling and other fields



Specification
|
Load capacity
|
1ton double chain
|
1ton single chain
|
|
|
Lifting height
|
0-20m
|
|
|
|
Max lifting speed
|
5m/min
|
5m/min
|
|
|
Weight
|
24kgs
|
30kgs
|
|
Packing & Delivery


Wooden case packing

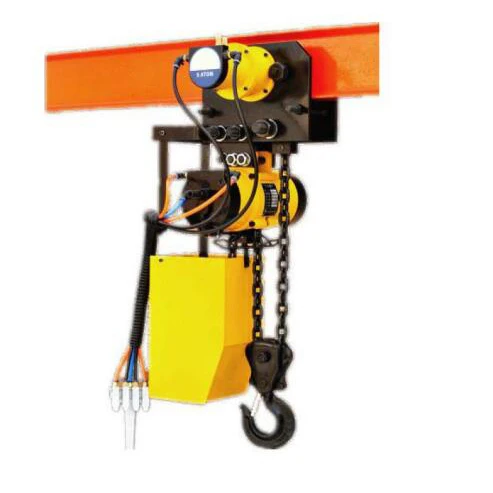

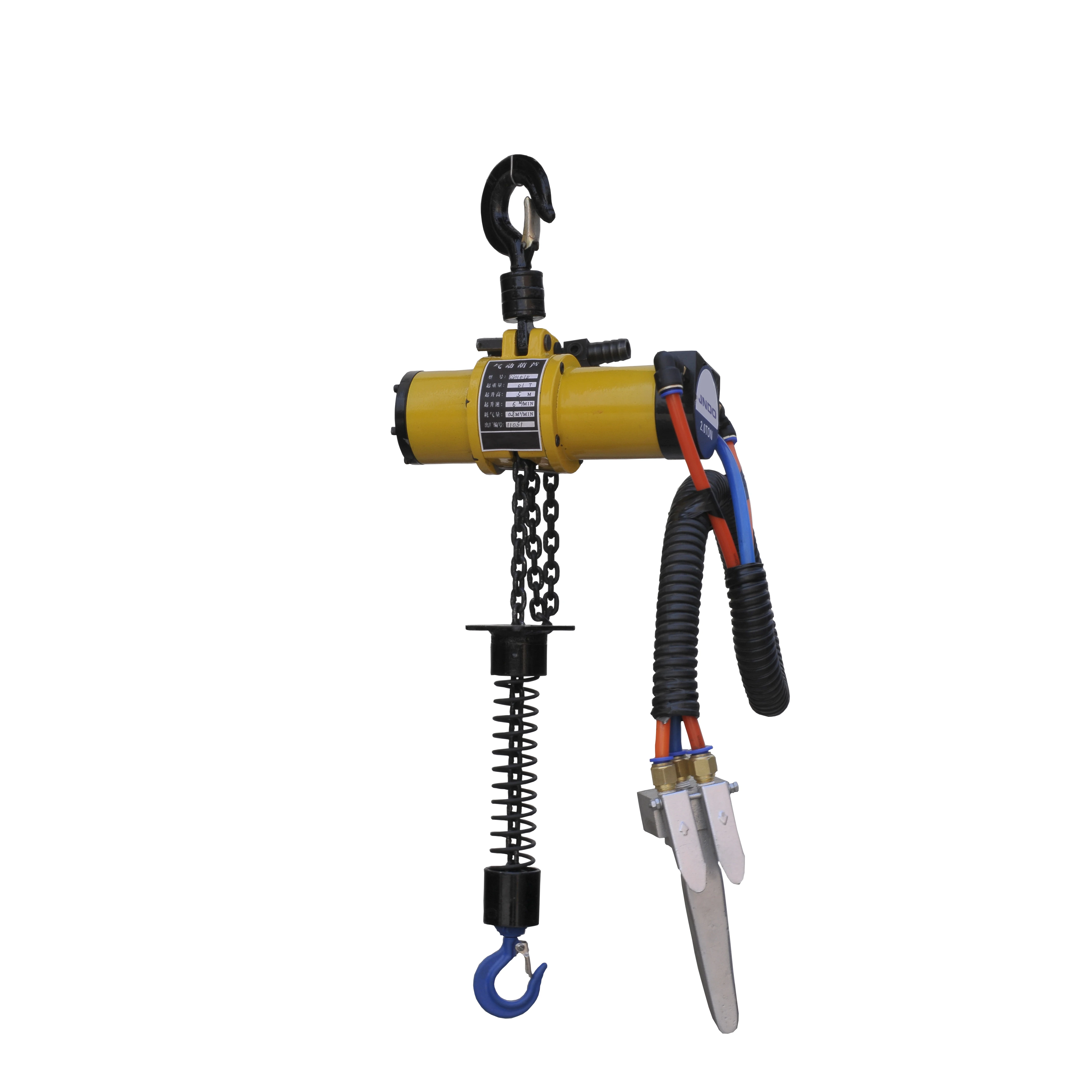

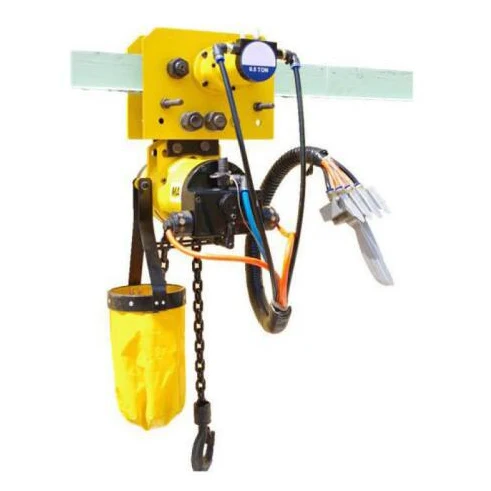

Product show


Company Profile
