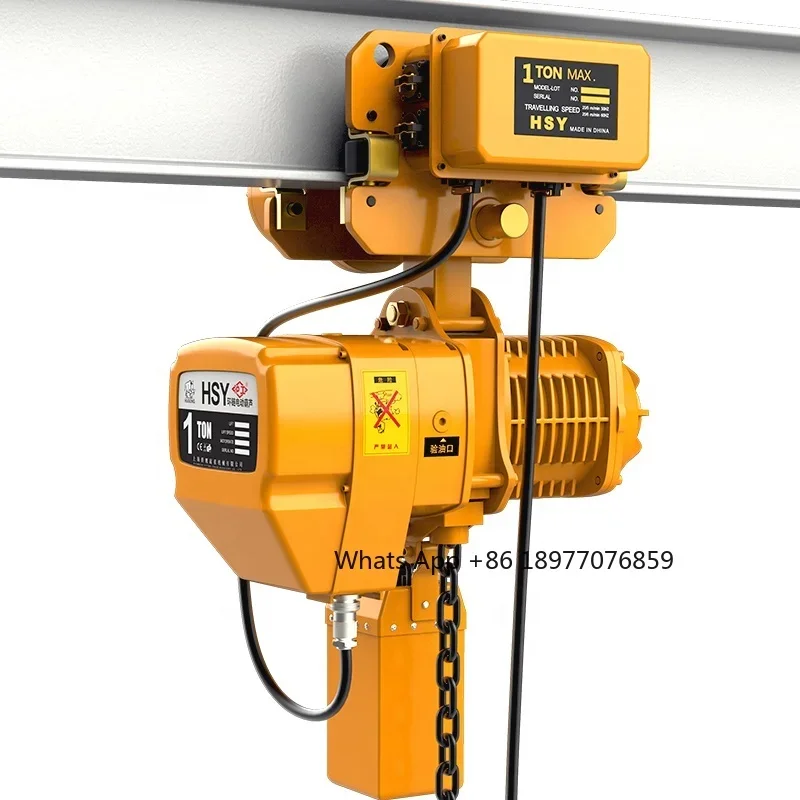

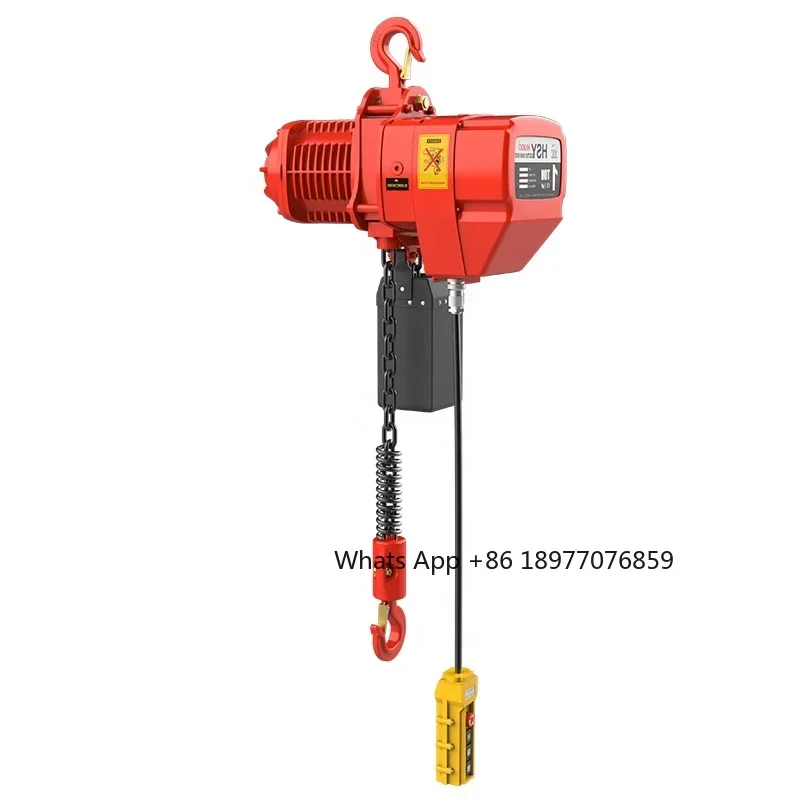

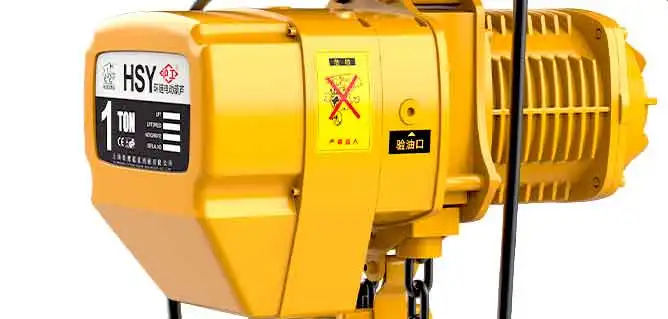

outdoor electric hoist 5 ton polipasto electrico 1 ton lifting hook lift chain block
Product Details
lift chain block

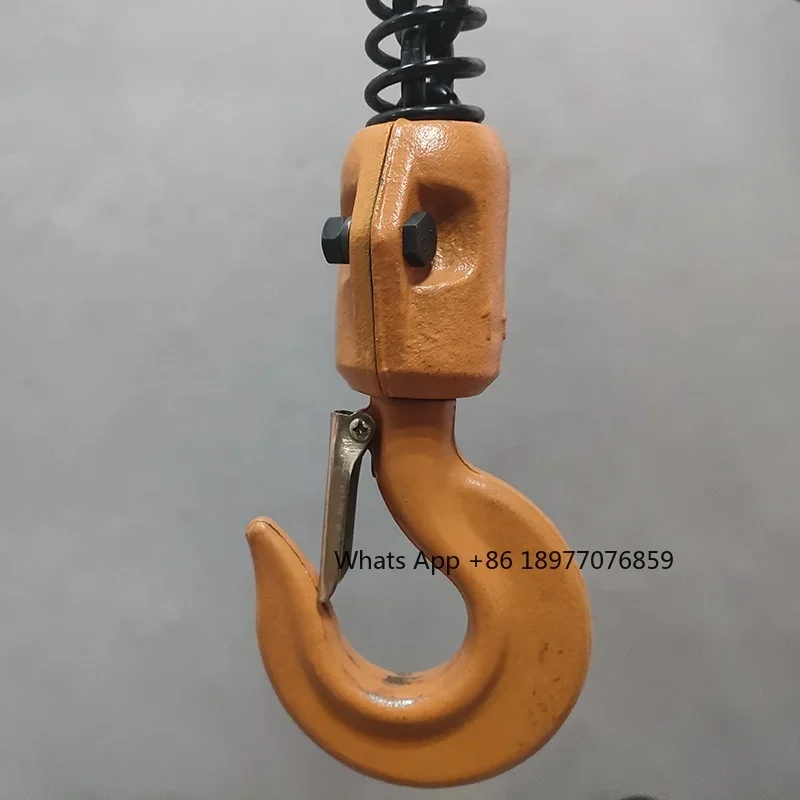

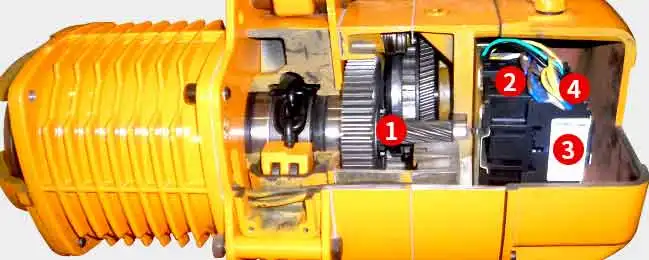

Shell:it is made of light aluminum alloy shell,light but hard,The cooling fin is specially designed to ensure quick heat dissipation wirth the rate up to 40% and continuous service. The integral enclosed structure is applicable to places like chemical plant and electroplate factory. Side magnetic braking device:The magnetic force generator is the latest design which is featured for generatng magnetic force.lt allows instant brake as soon as the electric power is cut off,Thus the braking safety while loading is guaranteed. Limit switch:The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains form exceeding for safety Chain:The chain shall asopt the imported FEC80ultra heat-treatable aluminum alloy chain.it can be safely used in poor enviornments such as rain,sea water and chemicals. Hook:it is hot forging with perfect strength that is hard to break.The operation safety of the lower hook is ensured by its 360 degreesrotin and safety tongue piece. Support frame:The loading Support frame consists of two steel plates, which is extremely sturdy. Transformer:24V/36V transformer device This device is used to prohibit unexpected accidents caused by electric leakage and guarantees the safe use while raining. Electromagnetic contactor: Electromagnetic contactor can be used safely with high frequency.

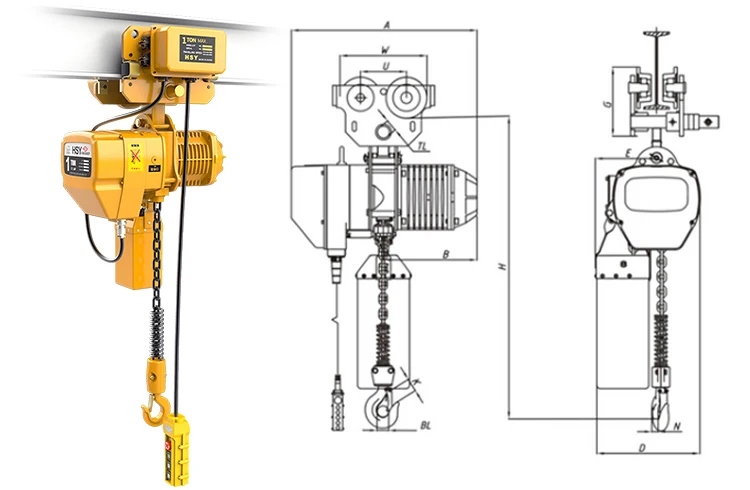

Specification
|
Model HSY
|
Capacity
(ton)
|
Lifting Height
(m)
|
Lifting Speed
(m/min)
|
Lifting motor
|
|
|
|
|
|
|||||||||
|
|
|
|
|
Power
KW
|
Rotational Speed
(r/min)
|
Phase
|
Voltage
(V)
|
Frequency
(Hz/s)
|
I-beam
(mm)
|
|||||||||
|
1-1s
|
1
|
3
|
6.8
|
1.5
|
1440
|
3
|
380
|
50/60
|
75-125
|
|||||||||
|
2-2s
|
2
|
3
|
3.4
|
1.5
|
1440
|
3
|
380
|
50/60
|
75-125
|
|||||||||
|
2.5-1s
|
2.5
|
3
|
5.6
|
3.0
|
1440
|
3
|
380
|
50/60
|
82-153
|
|||||||||
|
3-2s
|
3
|
3
|
3.3
|
3.0
|
1440
|
3
|
380
|
50/60
|
82-153
|
|||||||||
|
5-2s
|
5
|
3
|
2.8
|
3.0
|
1440
|
3
|
380
|
50/60
|
100-178
|
|||||||||
|
Support OEM ODM
|
|
|
|
|
|
|
|
|
|
|||||||||
Product advantages
It is made of light aluminum alloy shell,light but hard,The cooling fin is specially designed to ensure quick heat dissipation wirth the rate up to 40% and continuous service.

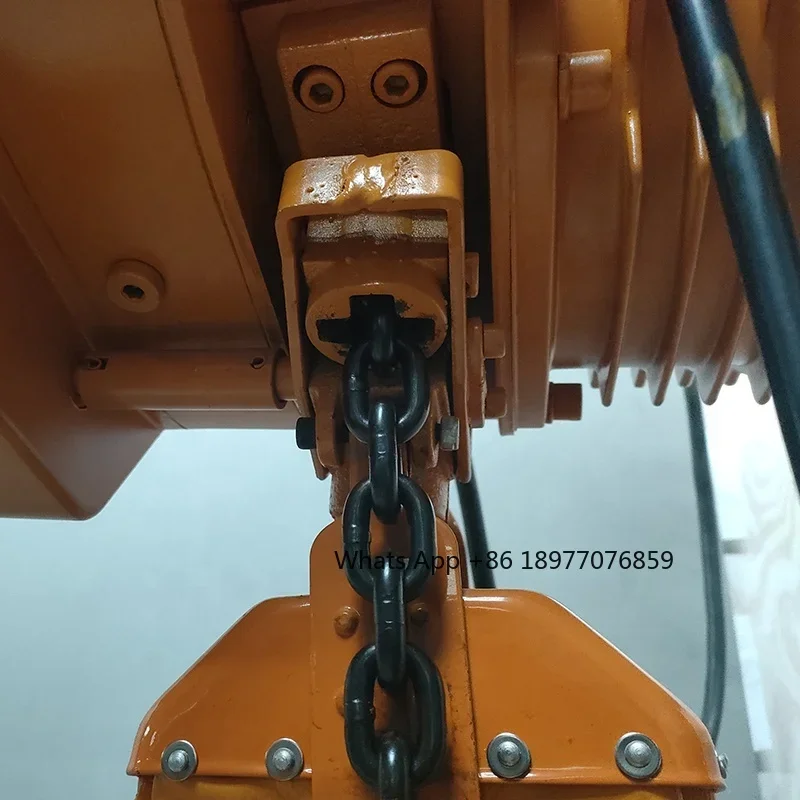

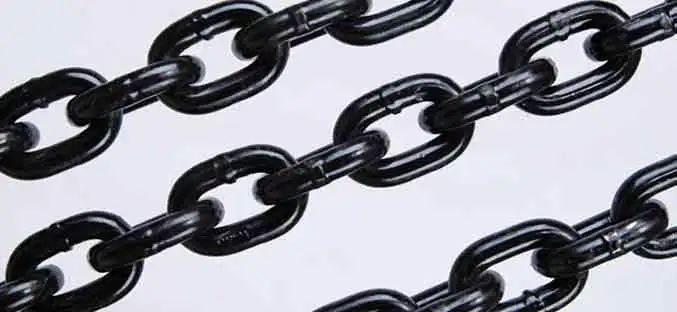

The chain shall asopt the imported FEC80ultra heat-treatable aluminum alloy chain.it can be safely used in poor enviornments such as rain,sea water and chemicals.

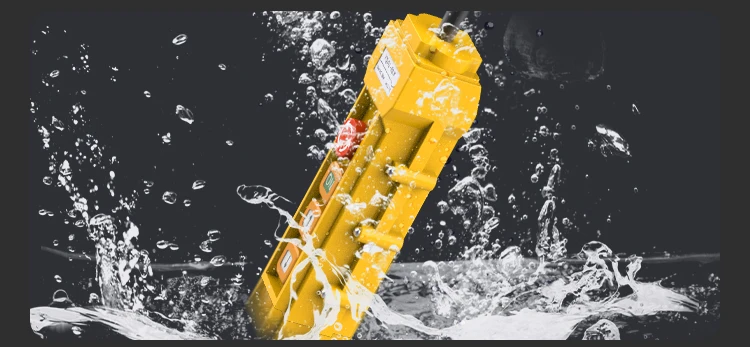

Control handle, waterproof and oil-proof, using button switch, light and durable

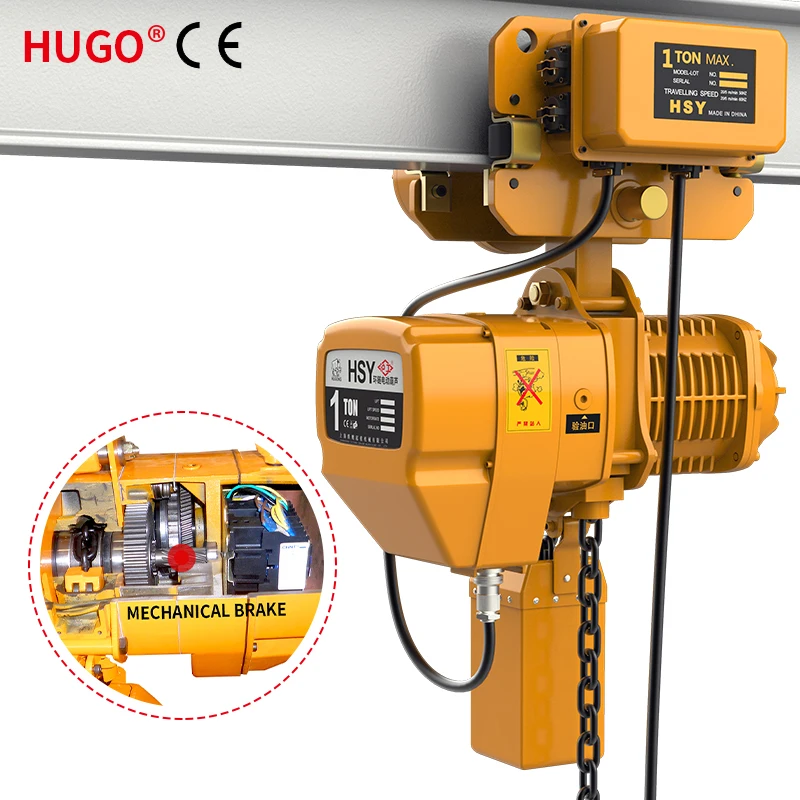

The magnetic force generator is the latest design which is featured for generatng magnetic force.lt allows instant brake as soon as the electric power is cut off,Thus the braking safety while loading is guaranteed
About Us
HUGO brand is top famous in China. very strict product quality testing. 100% detected,Competitive Price,30 years factory not trading company, It is important to increase market occupancy.Warranty two years,Certification CE ISO GS. Fast delivery. We have Advanced equipment, skilled workers, high degree of mechanized production.export amount and number of sales orders both top in the industry. We support OEM ODM, welcome to consult~
Offline exhibition
We have participated in offline exhibitions many times to expand our customer base, and we also met with our cooperative customers and had dinner together to discuss cooperation.
Our company's business is all over the world, the mainland and North America, South America, Asia, etc.
If you have any intentions or need any products, you can contact us and do my best to help you. Our culture is product quality and customer service.

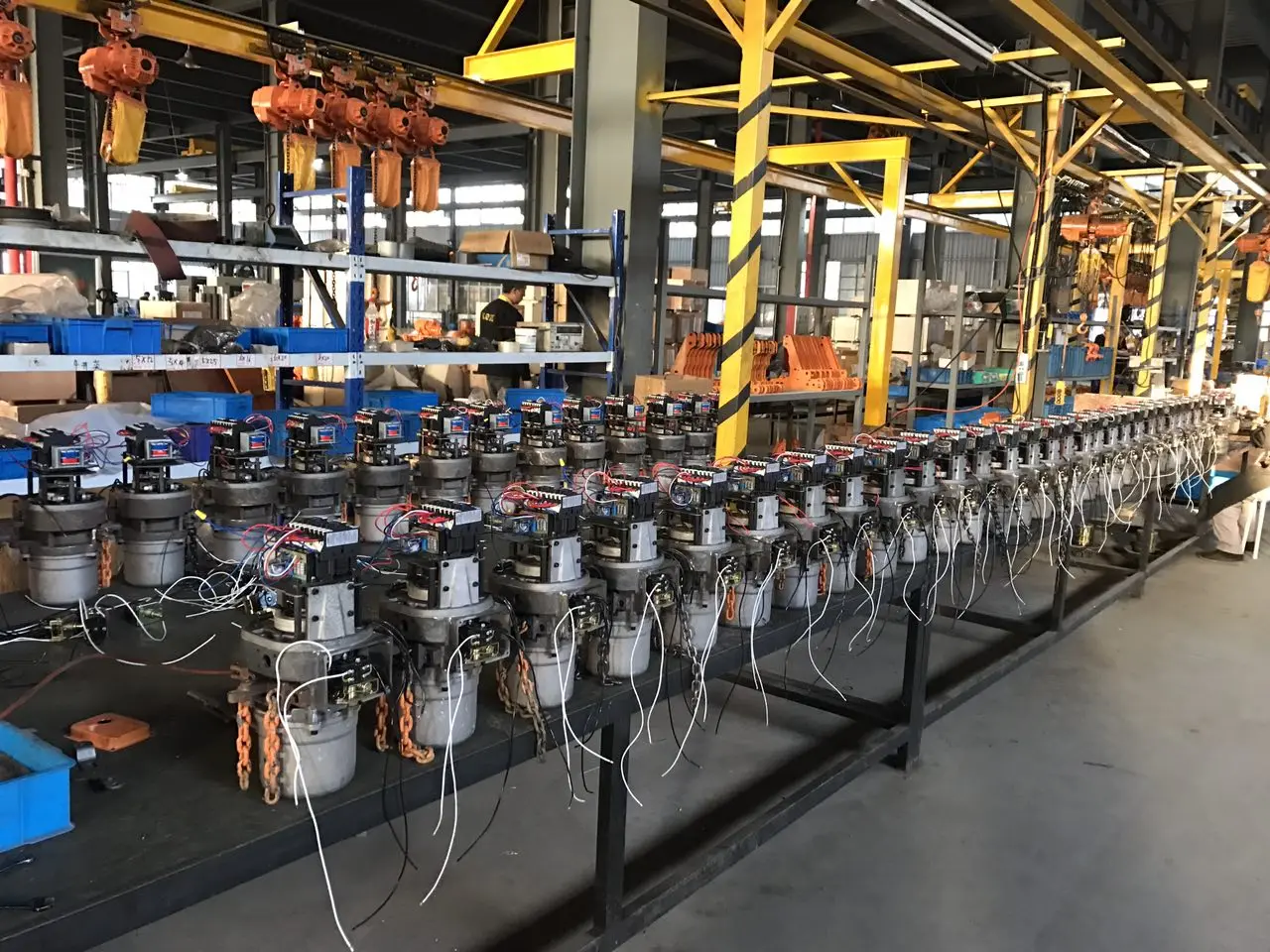

Our company integrates industry and trade. The business has been in operation for 30 years. Many customers will come to China to visit factories. They are all long-term customers of our cooperation. Customers are welcome to visit at any time.

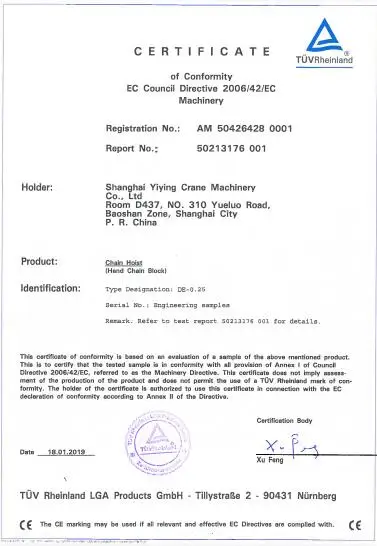

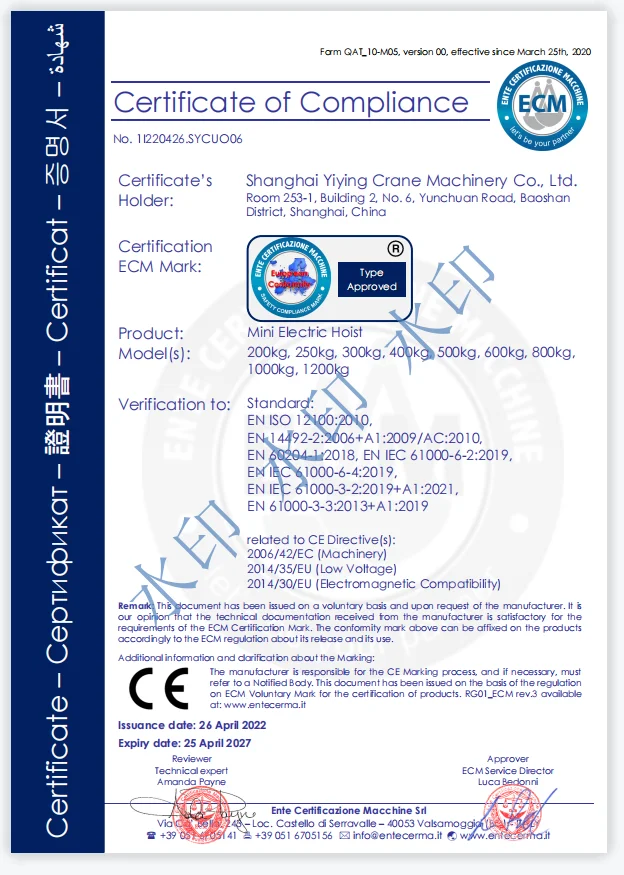

Certification

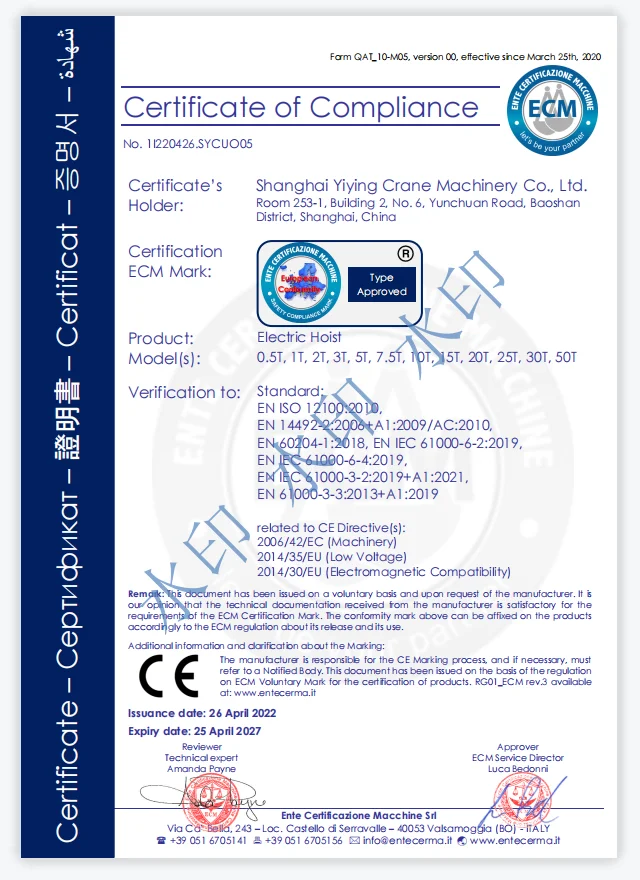

1. Electric hoist CE certification, 0.5t, 1t, 2t, 3t, 5t......The certificate just registered this year, we will solve your needs, cooperation is the ultimate goal
2. Electric chain hoist CE certification, 0.5t, 1t, 2t, 3t, 5t
3. mini electric hoist,,Home, personal use, easy to use in small places
Our Service
1. Working hours are 7am-10pm, please understand other times
2. Send us the products you need, we will give you the most detailedquotation
3. We give you the best shipping solution
4. The HUGO brand is TOP 1 in China, and our business is all over the world
3. We give you the best shipping solution
4. The HUGO brand is TOP 1 in China, and our business is all over the world
5. Our aim is to become the best partner with you6. Please trust us!
Customer praise
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing or Delivery
The electric hoists are first packed in cartons and then loaded into wooden boxes to ensure the quality of the hoists. Then trucks will pull the wrapped wooden boxes to the port for transportation, or to the airport for air transportation.
FAQ
1.Is your product hoists customized?
3.What's the information should I provide when I need a product?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, or other specials you give us will be more appreciated.
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2.How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, justtell us!
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, justtell us!
3.What's the information should I provide when I need a product?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, or other specials you give us will be more appreciated.
4.The space of my workshop is limited, can the crane is suitable ?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
