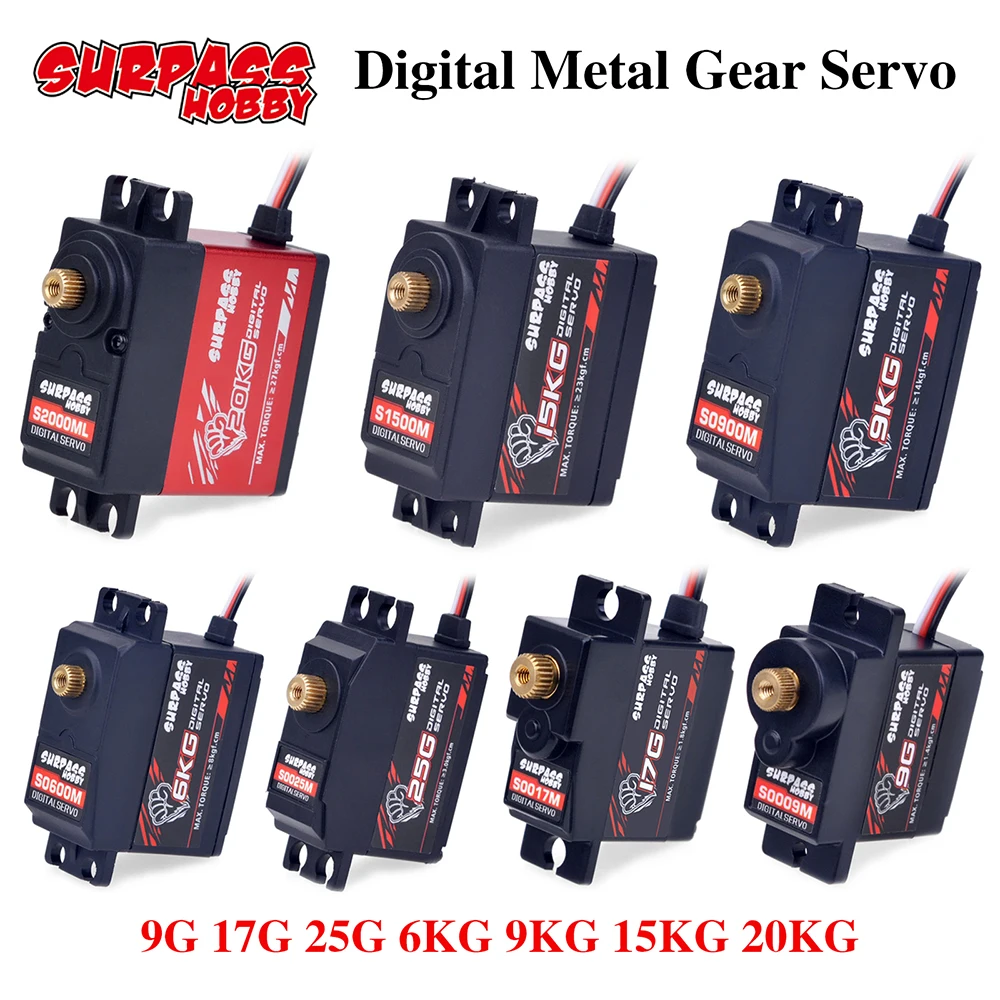

SURPASSHobby Digital Servo 9G 17G 25G 6KG 9KG 15KG 20KG Metal Gear Servo for 1/8 1/10 RC Car Boat Plane Airplane Robot Glider
Specifications:
Brand: SURPASS Hobby
S0009M
Torque: 1.1 kgf.cm at 4.8V; 1.4 kgf.cm at 6V;
No load speed: 0.11s/60°at 4.8V; 0.09s/60°at 6V;
Product weight: 13.5g (0.47oz);
Boundary dimension: 23 * 12 * 27.3mm (0.92 * 0.48 * 1.07inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520μs / 333hz;
Motor type: core motor;
Gear type: metal gear;

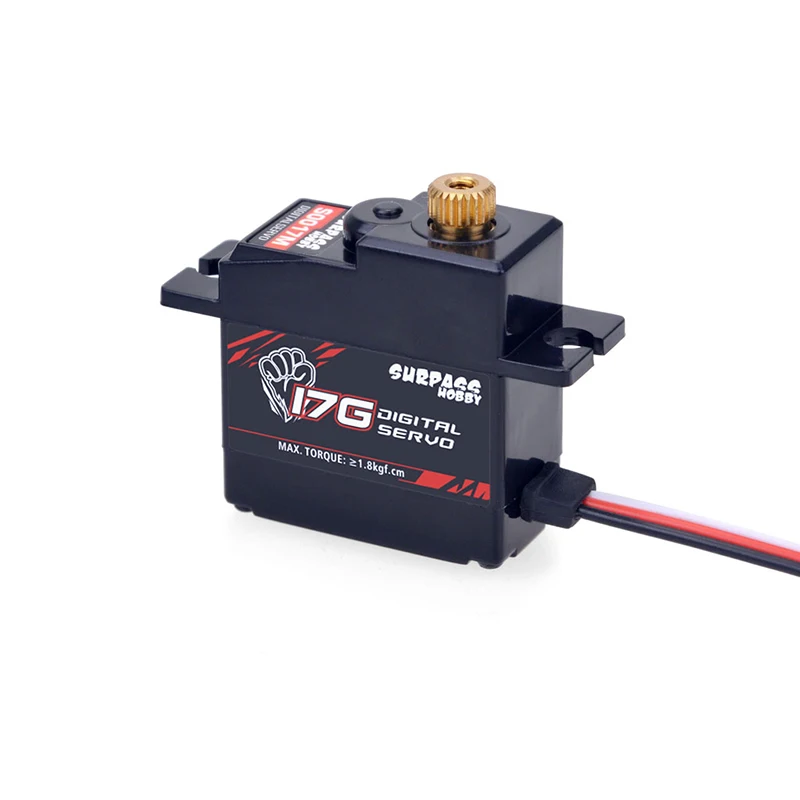

S0017M
Torque: 1.5kgf.cm at 4.8V; 1.8kgf.cm at 6V;
No load speed: 0.23s/60°at 4.8V; 0.20s/60°at 6V;
Product weight: 21g (0.74oz);
Boundary dimension: 28*13.2*29.6mm (1.1*0.52*1.2 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520μs / 333hz;
Motor type: DC motor;
Gear type: Metal gear;
S0025M
Torque: 2.2kgf.cm at 4.8V; 3.0kgf.cm at 6V;
No load speed: 0.08s/60°at 4.8V; 0.06s/60°at 6V;
Product weight: 21g(1.05oz);
Boundary dimension: 36*15.4*31.1mm (1.41*0.60*1.22 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520μs / 333hz;
Motor type: core motor;
Gear type: metal gear;
Bearing type: 2BB;

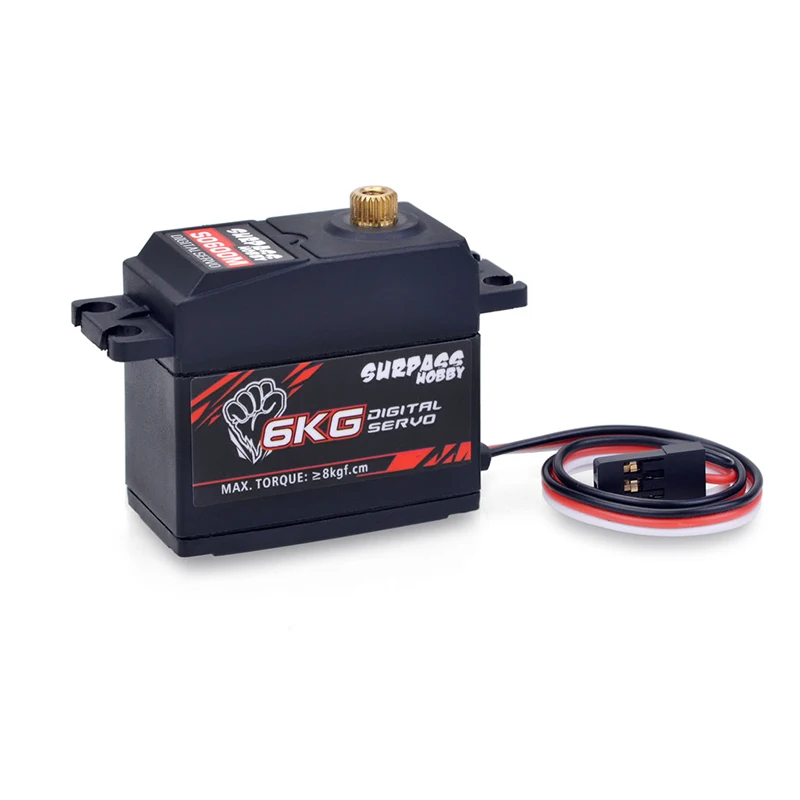

S0600M
Torque: 7kgf.cm at 4.8V; 8kgf.cm at 6.0V;
No load speed: 0.20s/60°at 4.8V; 0.18s/60°at 6V;
Product weight: 37g (1.3oz);
Boundary dimension: 40.6*20.2*36.6mm (1.60*0.78*1.44 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520μs / 333hz;
Motor type: DC motor;
Gear type: Metal gear;
Bearing type: 2BB;
S0900M
Torque: 10kgf.cm at 4.8V; 14kgf.cm at 6.0V;
No load speed: 0.21s/60°at 4.8V; 0.19s/60°at 6V;
Product weight: 55g (1.94oz);
Boundary dimension: 36.6*20.2*40.7mm (1.44*0.79*1.60 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520μs / 333hz;
Motor type: DC motor;
Gear type: Metal gear;
Bearing type: 2BB;
S1500M
Torque: 15kgf.cm at 6.0V; 23kgf.cm at 7.4V;
No load speed: 0.20s/60°at 6.0V；0.18s/60°at 7.4V
Product weight: 58g(2.11oz)
Boundary dimension:40.4*20.0*38.6mm（1.59*0.79*1.51 inch）
Operating voltage: 6.0~7.4VDC
Working frequency: 1520μs / 333hz;
Motor type: DC motor;
Gear type: Metal gear;
Bearing type: 2BB;

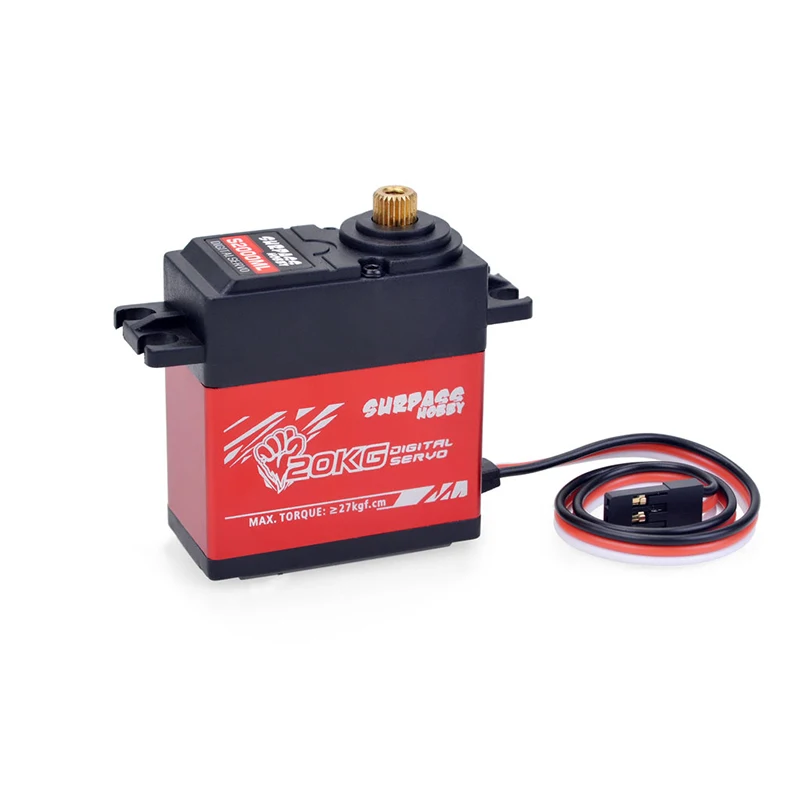

S2000ML
Stall Torque: 20Kgf.cm at 7.4V;
No Load Speed：0.2s/60°at 7.4V；
Weight : 58g(2.11oz);
Outside Dimension: 40.4*43.5*20mm;
Working Voltage: 7.4VDC;
Working Frequency:1500μs/333Hz；
Gears Type : Metal Gear
Bearing Type:2BB
Package included:
1 x Metal Gear Servo
Note:
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
