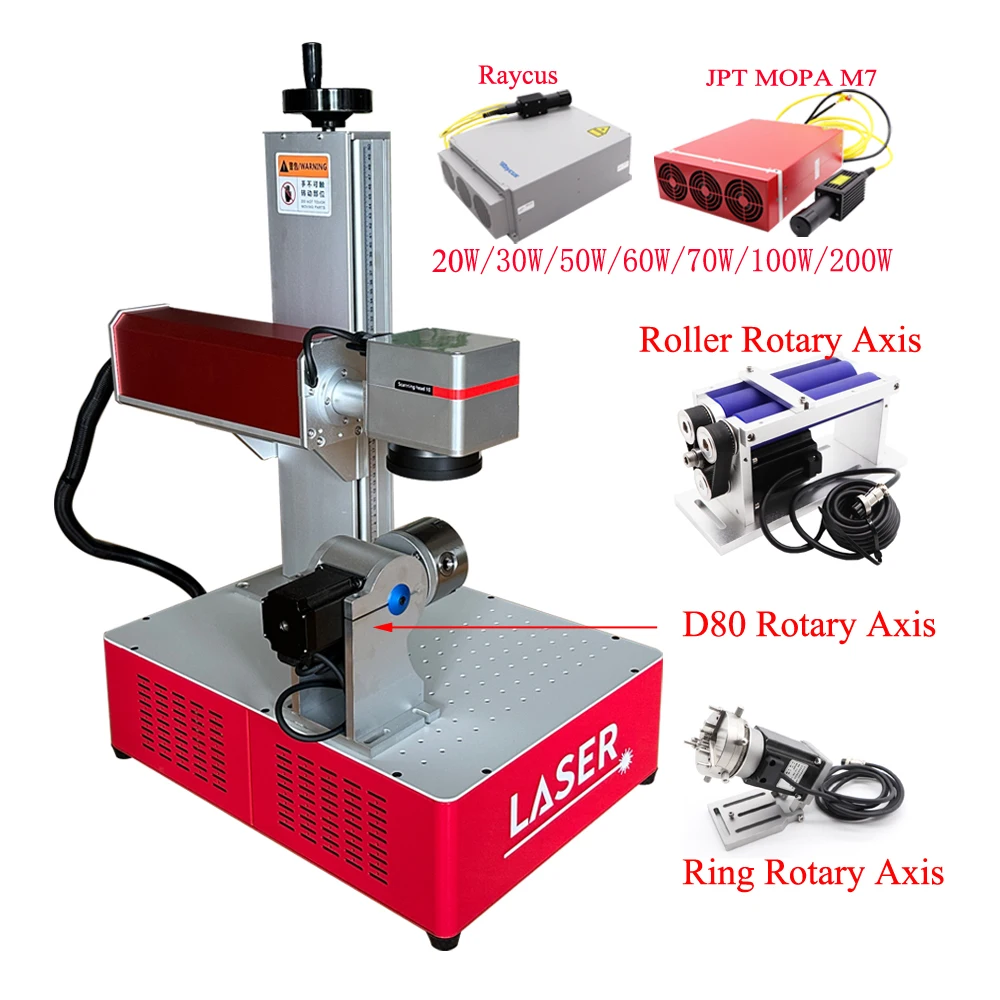

Laser Source : JPT / Raycus brand
Laser power: 20W/30W/50W/60W/70W/100W
Working Area : 110*110mm(Initial) Or 20W can choose 70mm, 150mm. 30W can choose 70mm, 150mm. 200mm, 50W/60W/70W/100W can choose 70mm, 150mm, 200mm, 300mm.
Cooling Mode : Air Cooling
Laser Wavelength: 10.64 um
Frequency of pulse : 20-100 KHz
Marking Depth: ≤0.3 mm
Marking Speed: ≤18000 mm/s
Marking Lines: 1-10 lines
Minimum Line Width: 0.01 mm
Minimum Character: 0.15 mm
Repeatability Accuracy: ±0.002 mm
Resolution Ratio: 0.1 mm
Marking Content: Text, pattern, date, bar code, etc
Operation System: Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10
Control Software: EZCAD ENGLISH Control Software
Graphic Format Supported: BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power: 500W
Operation Temperature: 5°C-40°C
Relative Moisture: ≤ 90%, no fog
Dimensions(L*W*H): 330 x 500 x 570 mm
Power supply requirements: 220 V or 110V
Weight: 35KG
Warranty: 24 months
Packing List:
Machine x 1
USB disk x1 (englsih Software and english manual)
Wrench x 1 kit
Power cable x 1
USB data cable x 1
Test marking plate several
Plastic Align rod x 2
How to choose lens?
With Same Lens , The Higher Power , The Deeper Engrave .
With Same Power, The Smaller Lens, The Deeper Engrave ，
Bigger Lens Engrave Bigger Area ，
Smaller Lens Engrave Deeper Depth,
if 20w laser choose 200mm*200mm lens , that means your focus distance is very tall ,power come to mark object is cery very weak , so not biggest lens area is best ,but choose suitable lens.
20w choose 70mm*70mm , 110mm*110mm,
30w choose 70mm*70mm , 110mm*110mm , 150mm*150mm
50w/60W/80W/100W choose 70mm*70mm , 110mm*110mm ,200mm*200mm
