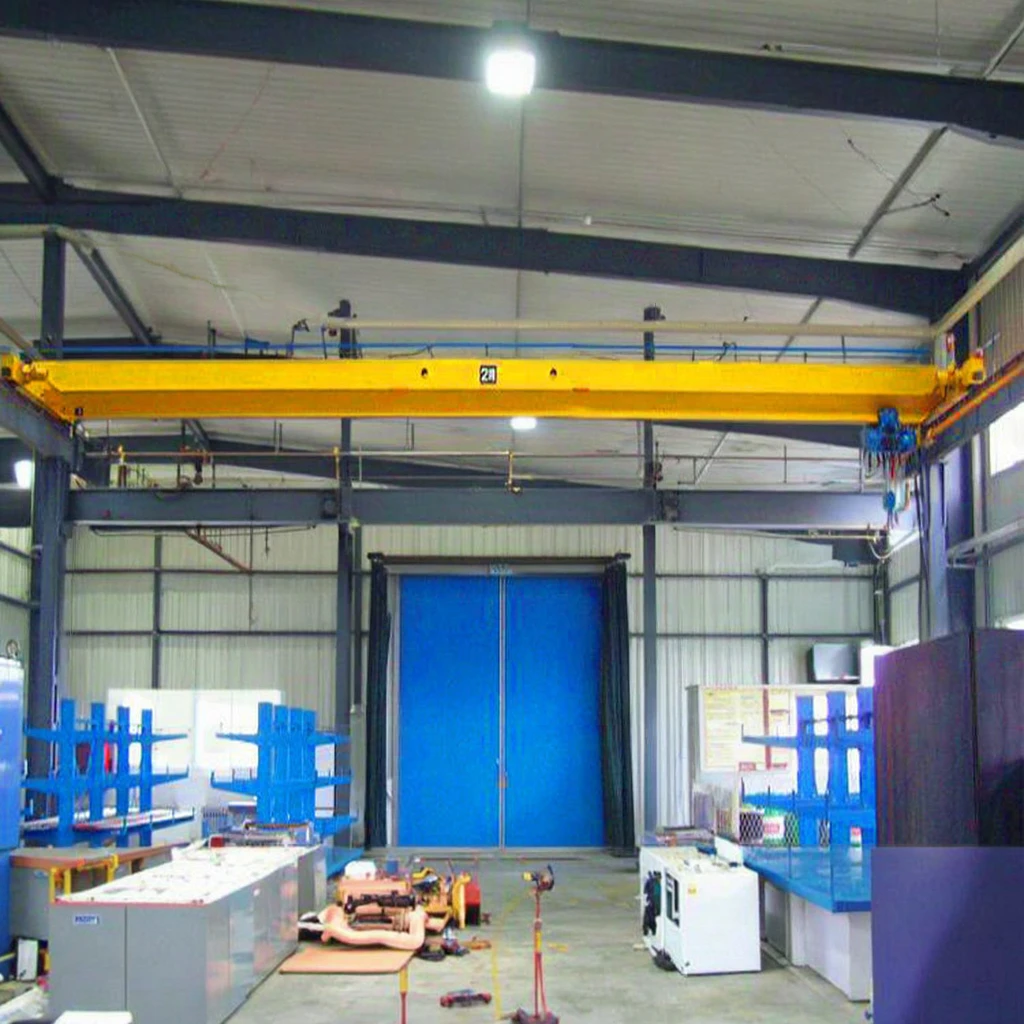

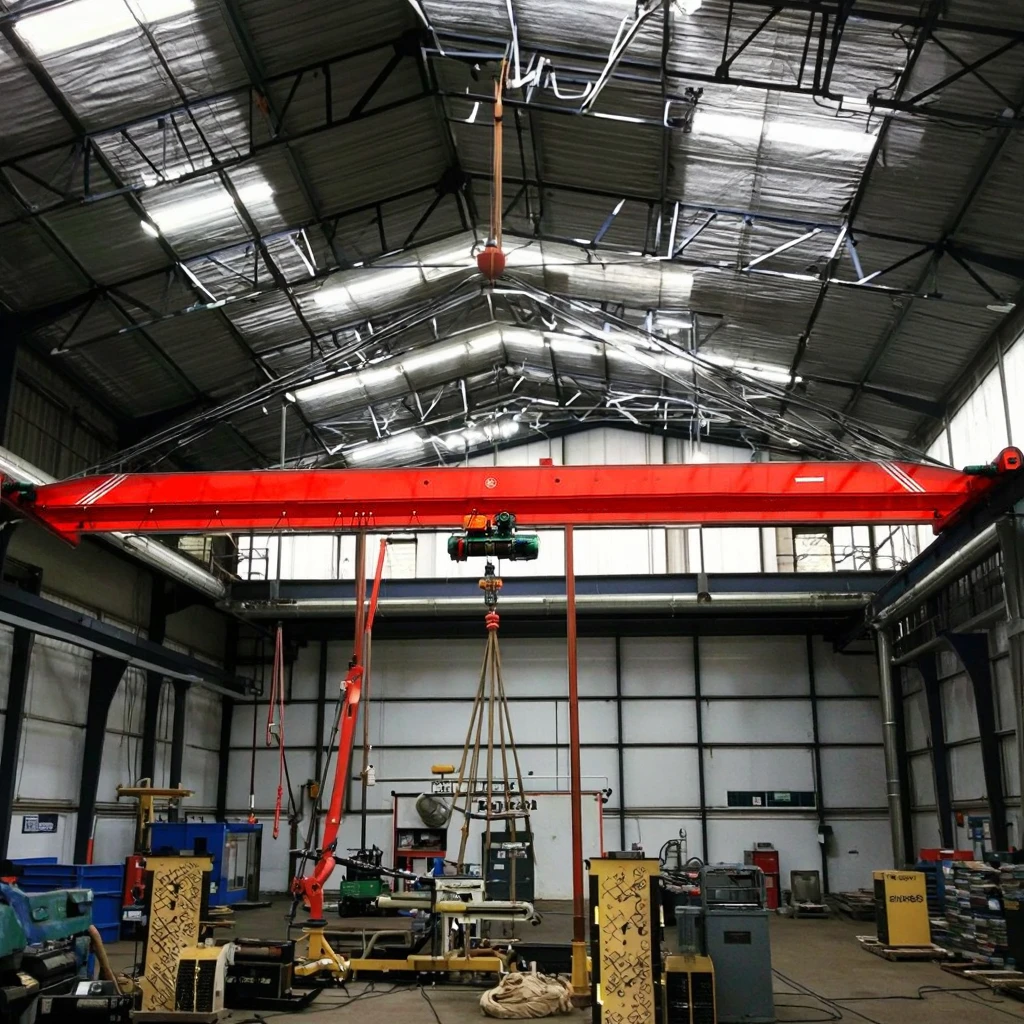

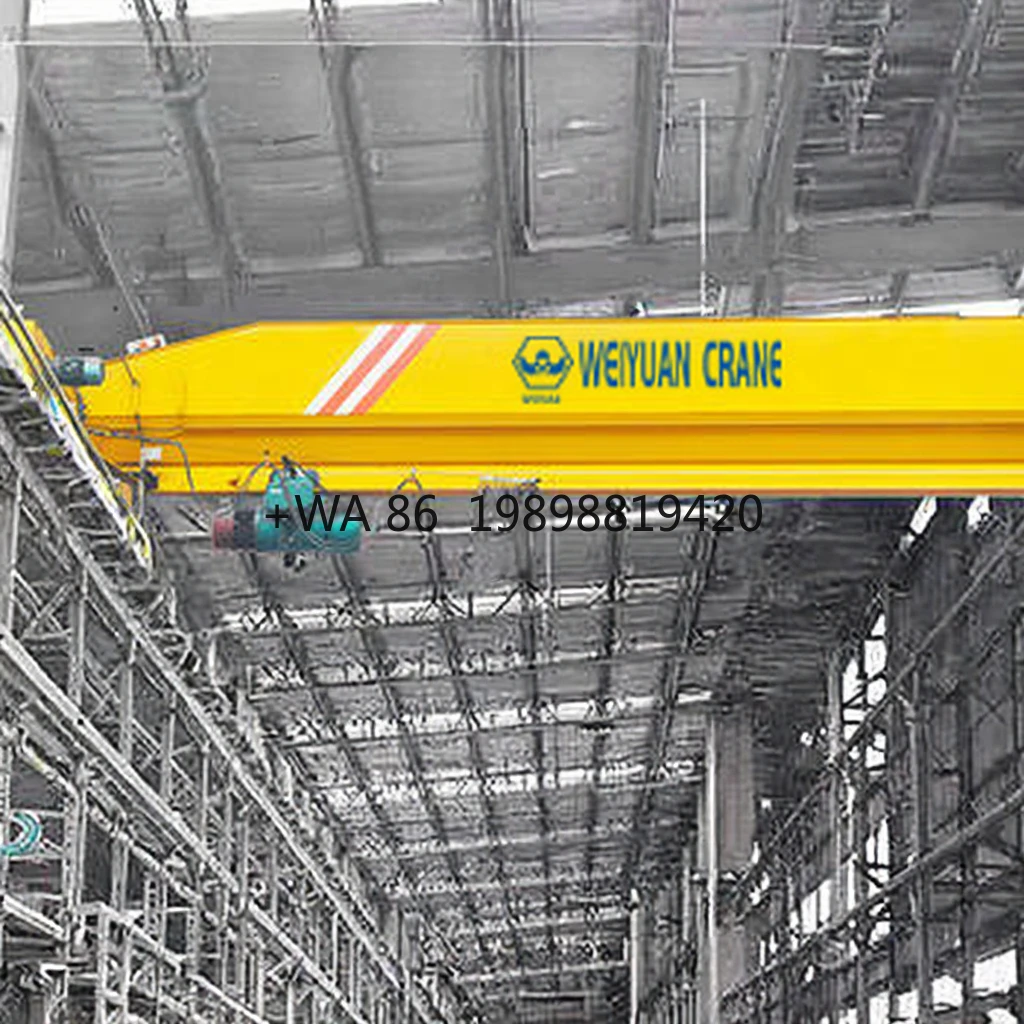

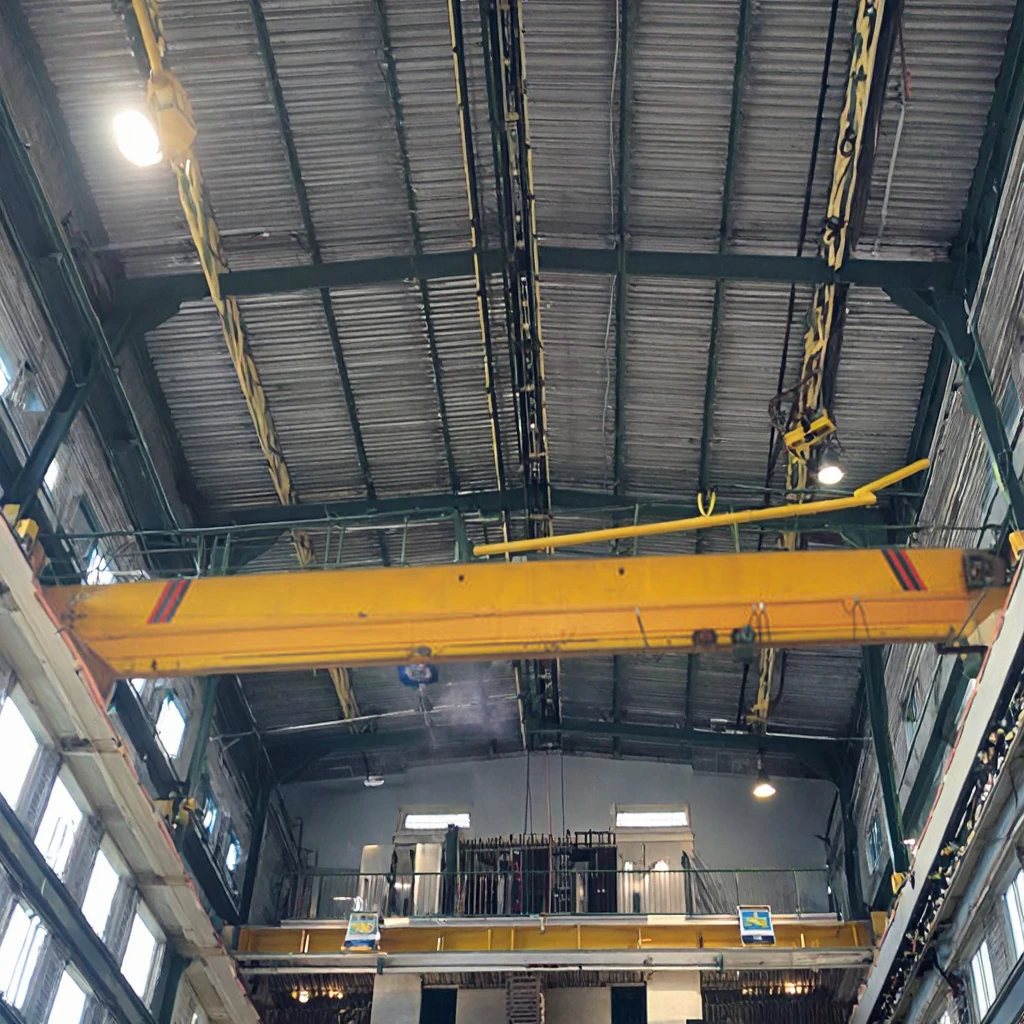

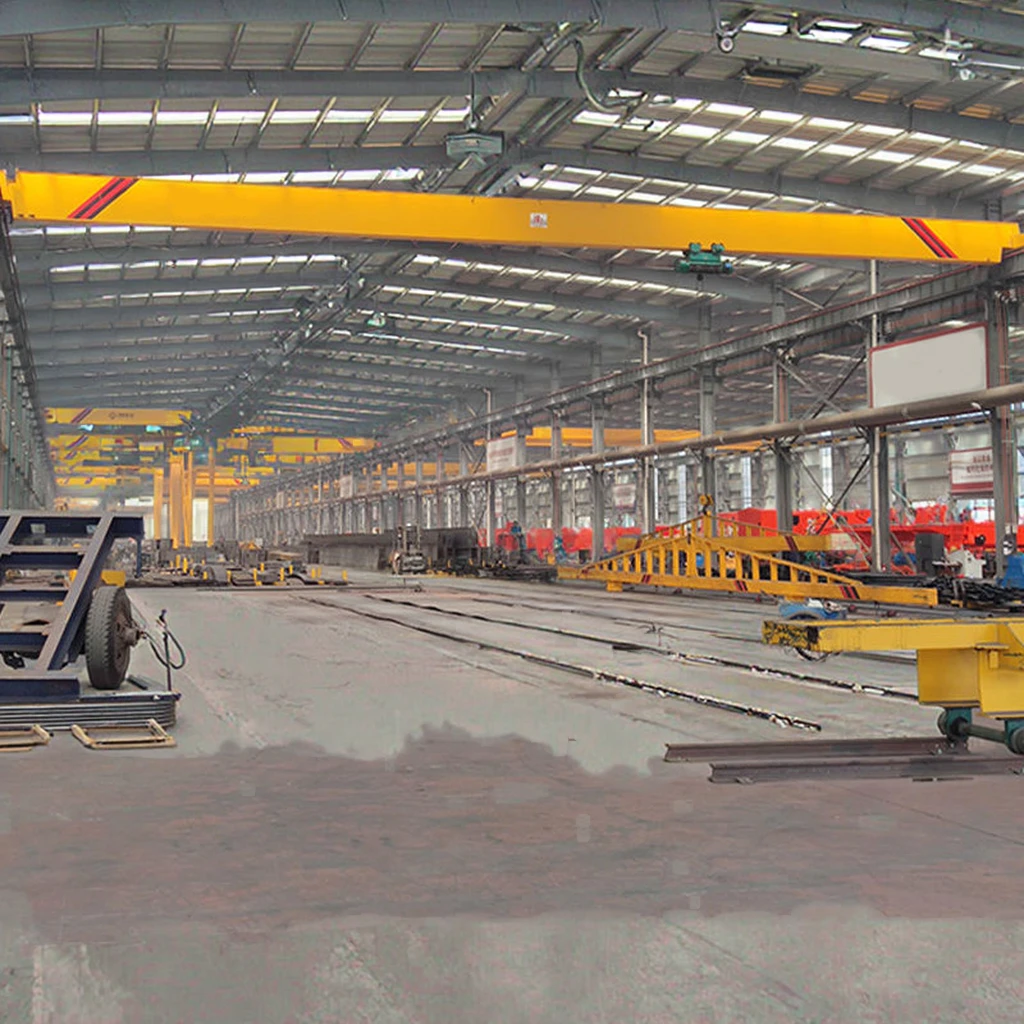

Remote Control Electric Steel Wire Rope Hoist Type Single Girder Bridge Crane
LDA electric single beam crane is composed of main beam, end beam, electric hoist and operating mechanism welded by steel plate and I-steel. The electric hoist runs along the lower flange of the main beam I-steel to complete the lifting of goods. It has the characteristics of light structure and convenient installation and maintenance. It is widely used in factories, warehouses, stockyards and other different occasions to lift goods. There are three operation modes: ground handle, wireless remote control and cab. There are two types of cabs,open and closed. The soft start motor and variable frequency speed regulation can be selected for the running motor according to the user's requirements. The crane starts smoothly and operates safely and reliably.
|
Specific parameters（take 20 tons as an example）
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Crane traveling mechanism
|
WorKing speed(m/min)
|
|
20 Ground
|
|
||||
|
|
Speed ratio
|
|
58.78
|
|
||||
|
|
Motor
|
Type
|
YSE90L-4
|
|
||||
|
|
|
Power(Kw)
|
4*1.5
|
|
||||
|
|
|
Rotation speed(n/min)
|
7.5≤S≤31.5
|
|
||||
|
Lifting Mechanism(electric hoist)&electric hoist traveling mechanism
|
Model ofelectric hoist
|
|
CD1Model
|
MD 1Model
|
||||
|
|
Lifting speed(m/min)
|
|
3.5
|
3.5/0.35
|
||||
|
|
Hoisting height(m)
|
|
9、12.、18、24、30
|
|
||||
|
|
Traveling speed(m/min)
|
|
20
|
|
||||
|
|
motor
|
|
Cone squirrel-cage model
|
|
||||
|
Working class
|
|
|
A3
|
|
||||
|
Electric current
|
|
|
380V 50Hz three-phase
|
|
||||
|
Wheel diameter
|
|
|
Φ270
|
Φ370
|
||||
|
Width of track
|
|
|
51~70mm
|
|
||||

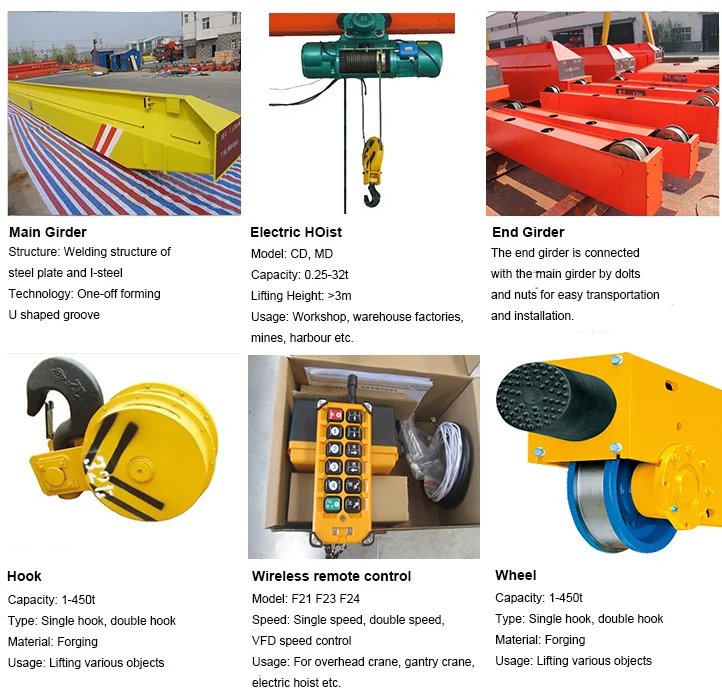

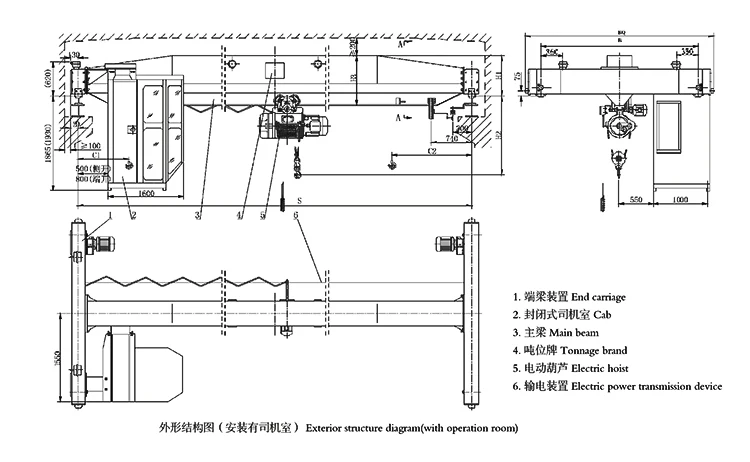

Composition Structure：
Similar Product
HD Single Girder Overhead Crane
Model: HD European Style
Capacity. 1-20ton
Span: Max.31.5m
Speed: Single speed, double speed
Max. Lifting Height: 30m
Working Class: A3
Power Supply: 380v-50hz,3Phase A.C.
or as your request
Capacity. 1-20ton
Span: Max.31.5m
Speed: Single speed, double speed
Max. Lifting Height: 30m
Working Class: A3
Power Supply: 380v-50hz,3Phase A.C.
or as your request

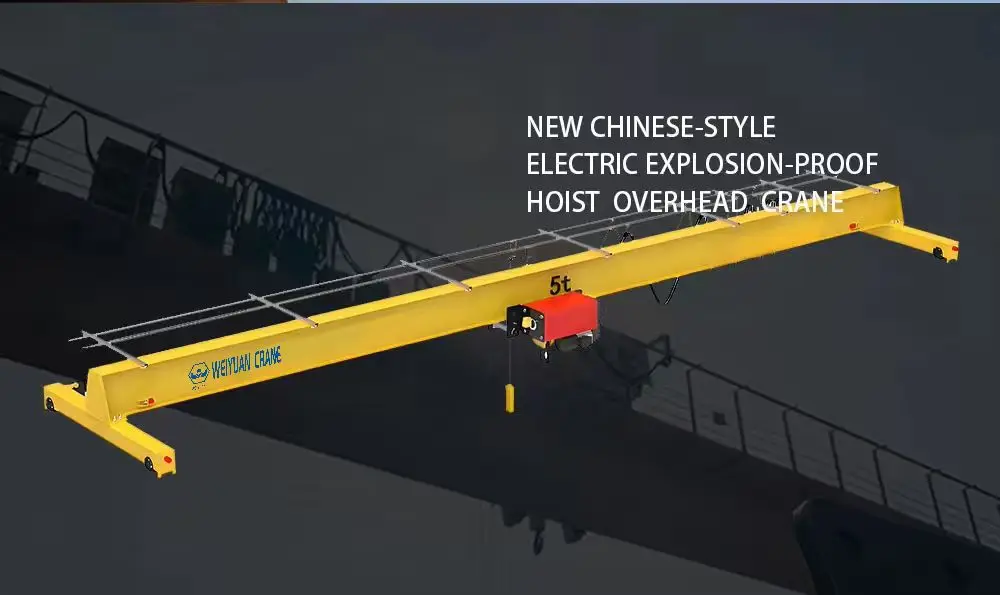

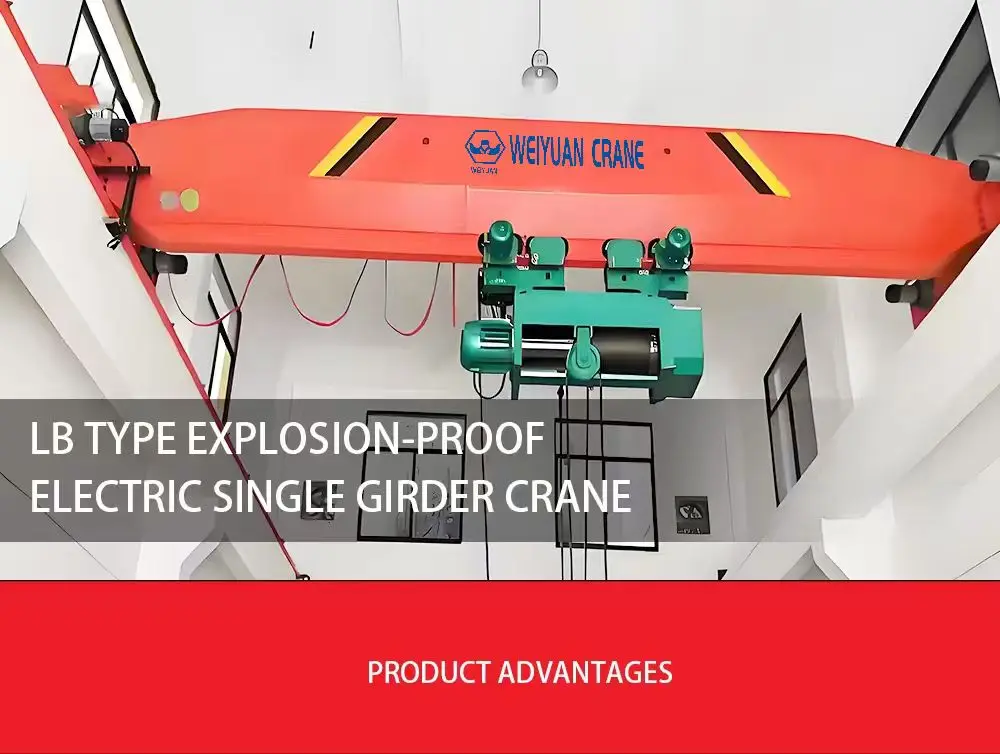

LB Single Girder Overhead Crane
Model: LB Explosion-proof Electric
Capacity: 1-20ton
Span: Max.31.5m
Speed: Single speed, double speed
Max. Lifting Height: 30m
Working Class: A3
Power Supply: 380v-50hz,3Phase A.C.
or as your request
Capacity: 1-20ton
Span: Max.31.5m
Speed: Single speed, double speed
Max. Lifting Height: 30m
Working Class: A3
Power Supply: 380v-50hz,3Phase A.C.
or as your request

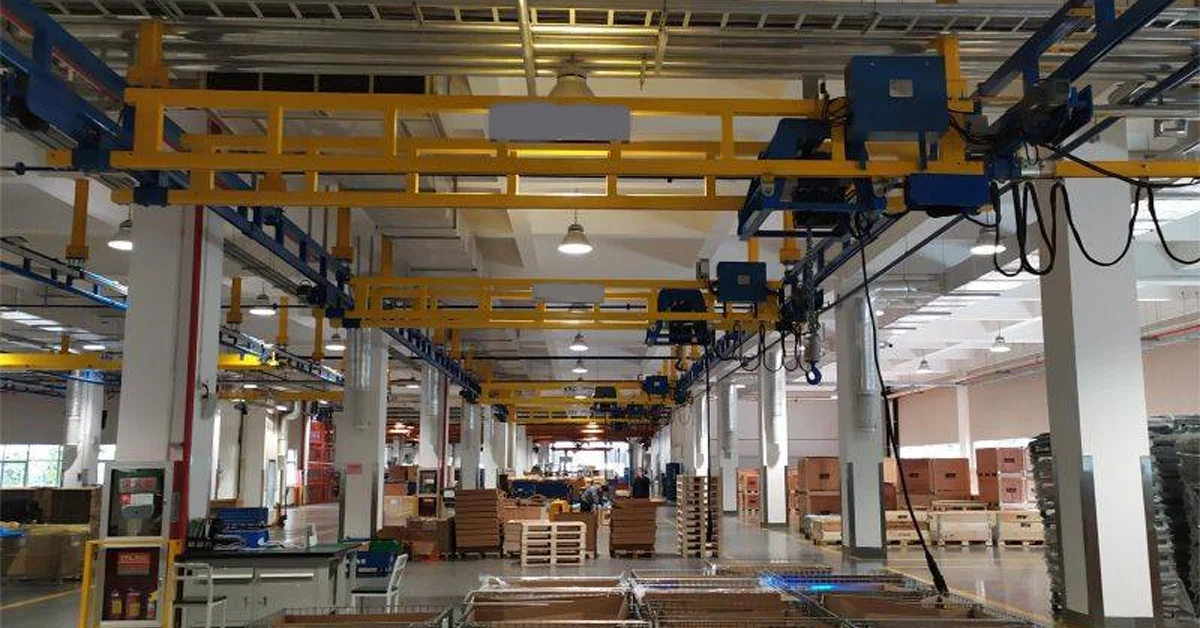

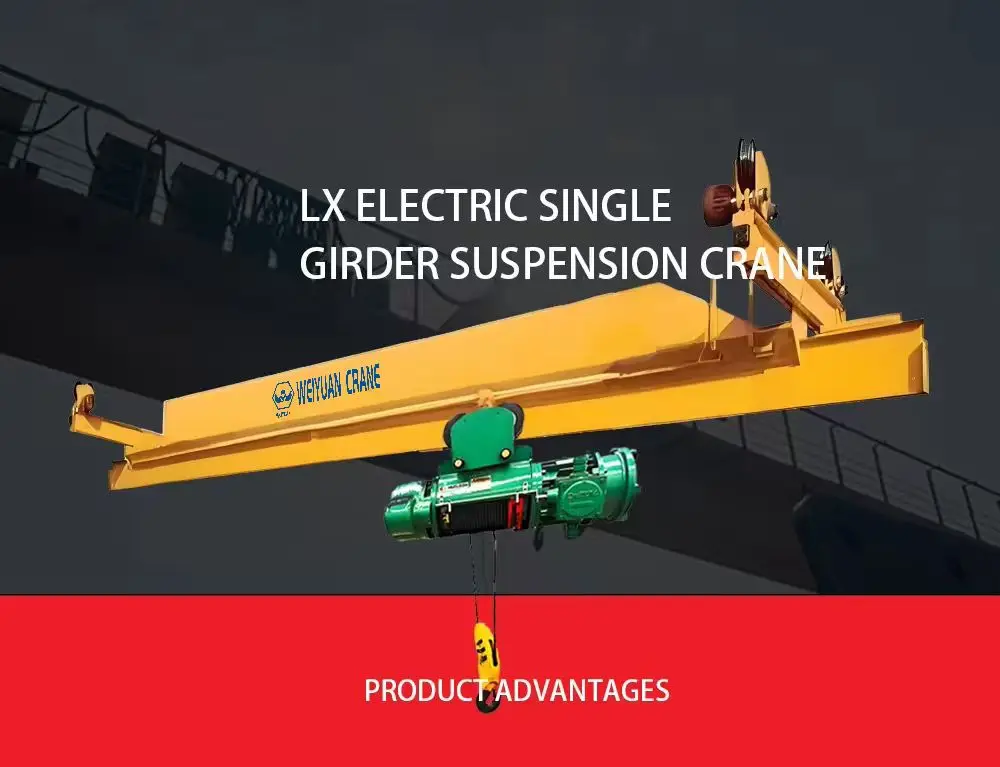

LX Single Girder Overhead Crane
Model: LX Electric Suspension
Capacity: 0.5-10ton
Span: 3m-22.5m
Speed: Single speed, double speed
Usage: Normal workshop, warehouseC
ontrol: Pendant control, remote control
Capacity: 0.5-10ton
Span: 3m-22.5m
Speed: Single speed, double speed
Usage: Normal workshop, warehouseC
ontrol: Pendant control, remote control

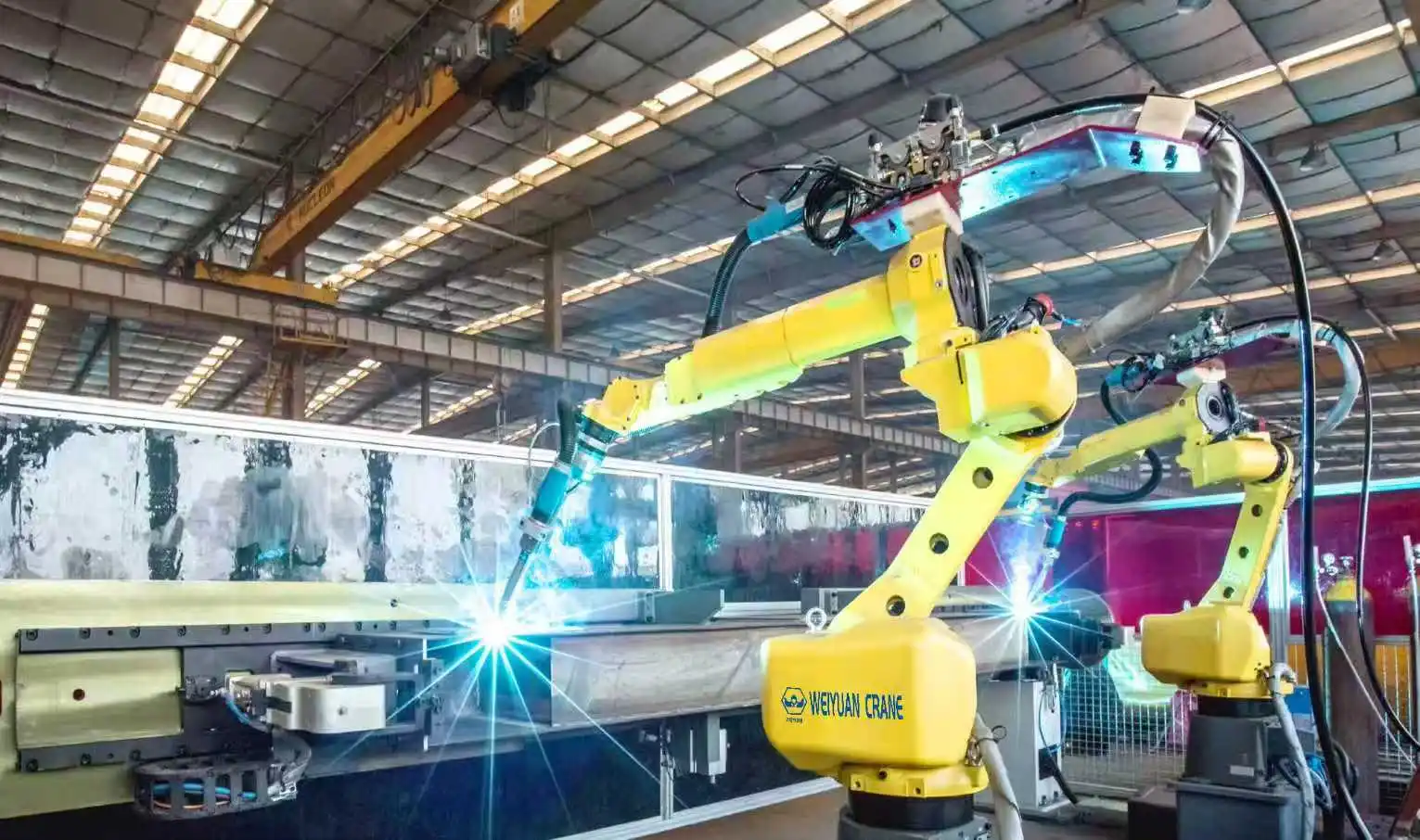

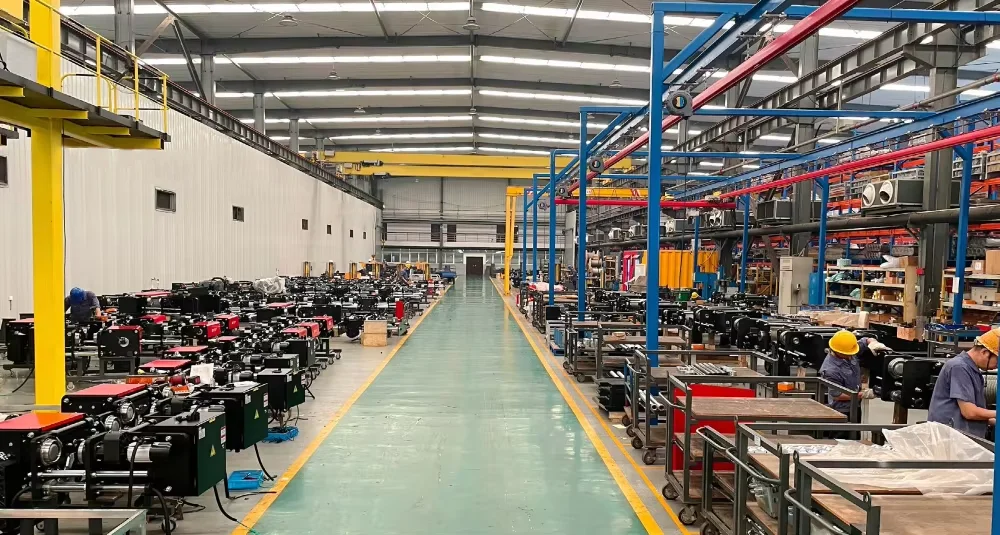

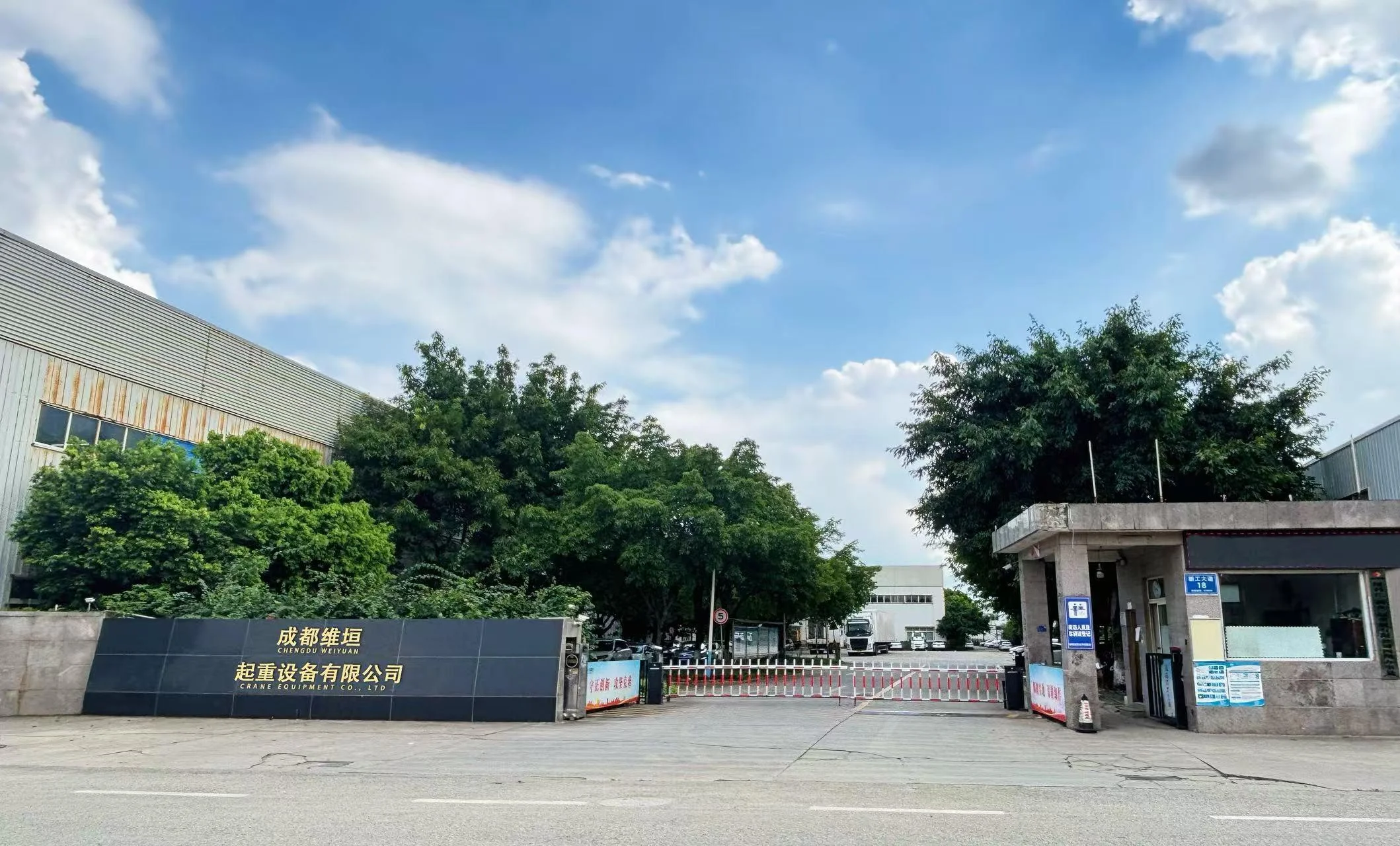

Company Profile
Weiyuan（Chengdu） Crane co., ltd., founded in 2005, the registered capital of 270 million Yuan, covers an area of 450000 square meters, staff 1700 people. Achieves ISO production system certification and europe standards like DIN & FEM.Weiyuan is a bridge, gantry crane, coal series hoisting equipment, small light lifting equipment and other products of research and development, manufacture, installation, sales and service as one of the Sino-foreign joint ventures. The ND, NH model wire rope electric hoist, NL type chain electric hoist, mine explosion-proof hoist, HD type electric single-girder, NLH type electric hoist bridge crane in the domestic leading level, the electric hoist production for many years ranking second in the country.
Certifications
Customer Photos
Product packaging
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for container ship, usually by container. 4. Big size, usually by bulk ship or by container after truncation. 5. Transport ways are based on reducing cost & keep safety.
FAQ
Q.Can i have a price?
After getting your parameters,we will offer you a accurate price.
Q.Can I customize products?
Yes,we can offer OEM and ODM services
Q.What’s your delivery period?
Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q.Do you have engineer oversea installation service?
Yes; We have;
Q.What kinds of products do you have?
All kinds of industrial electric/hydraulic/diesel winch (especially non-standard); Overhead Crane; Gantry Crane, Electric
Hoist;Screw Hoist; etc.
Q.If we need urgently, can you delivery soon?
After we confirming the parameters and sign the order, we will give priority to the emergency order to meet your needs;
Q.Do you offer after-sales service?
We have after-sales team to support you.
Q.How long will it take to ship to my country?
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide these
details so that I can quote the most cost-effective option.Q.What’s your package?
Safest package chosen to protect your goods during transportation.
Q.How can I pay to you?
Alibaba pay、Alibaba Trade Assurance、T/T、L/C
Dear friends, in order to offer you the suitable crane, please provide the following parameters:
Could you supply your workshop's layout?
What goods will you lift?
What is the crane net working time per day?
Whatis the lifting height?
What is the span?(center distance between two running rails)
What is the loading capacity?
After getting your parameters,we will offer you a accurate price.
