- High-concerned chemical: None
- Certification: CE
- Hardness: as show
- Origin: Mainland China
- Model Number: U driil insert
- Brand Name: jenzol
- Material: Hard Alloy
- Coating: TiAiSiN PVD / TiAlN PVD
- Use: as show
- SP Models: SP05/06/07/09/11/14
- WC Models: WC03/04/05/06/08

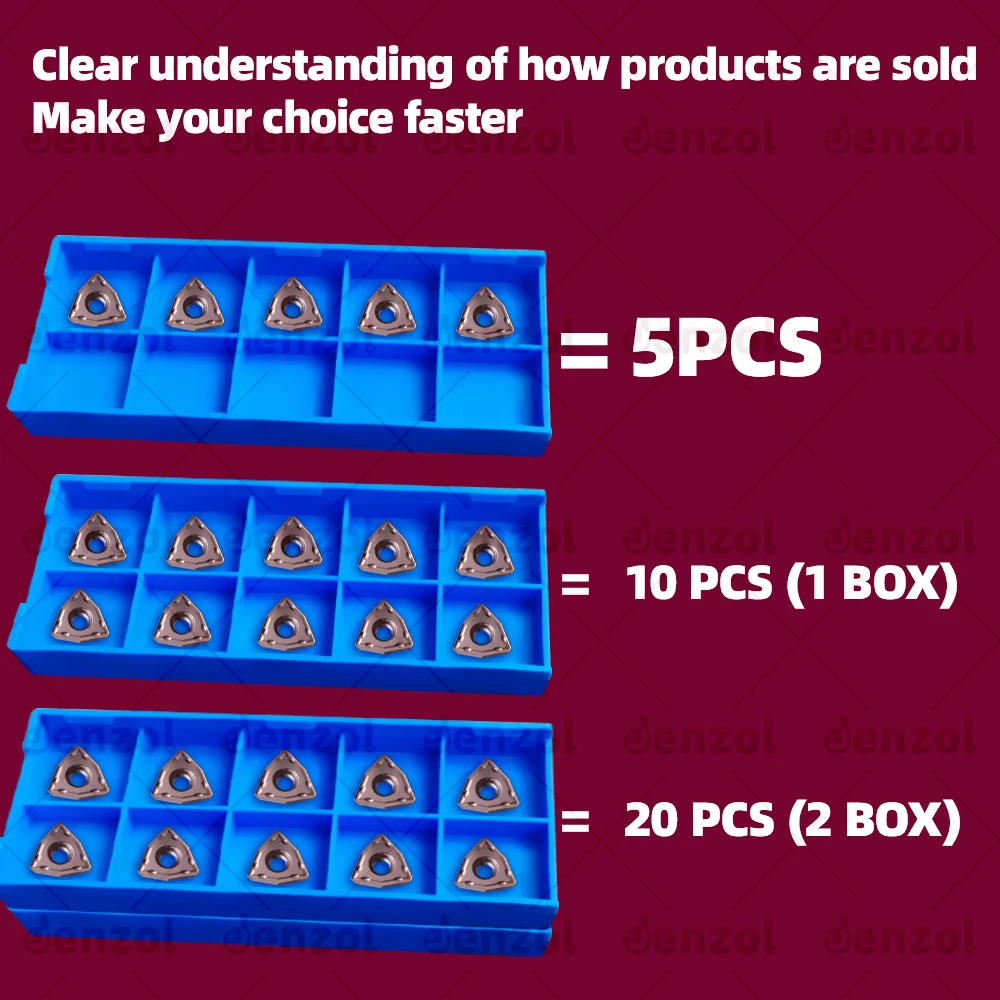

Sales Quantity Explanation
As shown in the figure below.
For example: The type you choose to purchase is 5PCS, which means 5 insert, not 5 boxes.（10pcs = 10 insert = 1 box）
Therefore, pay special attention to purchasing according to your needs.

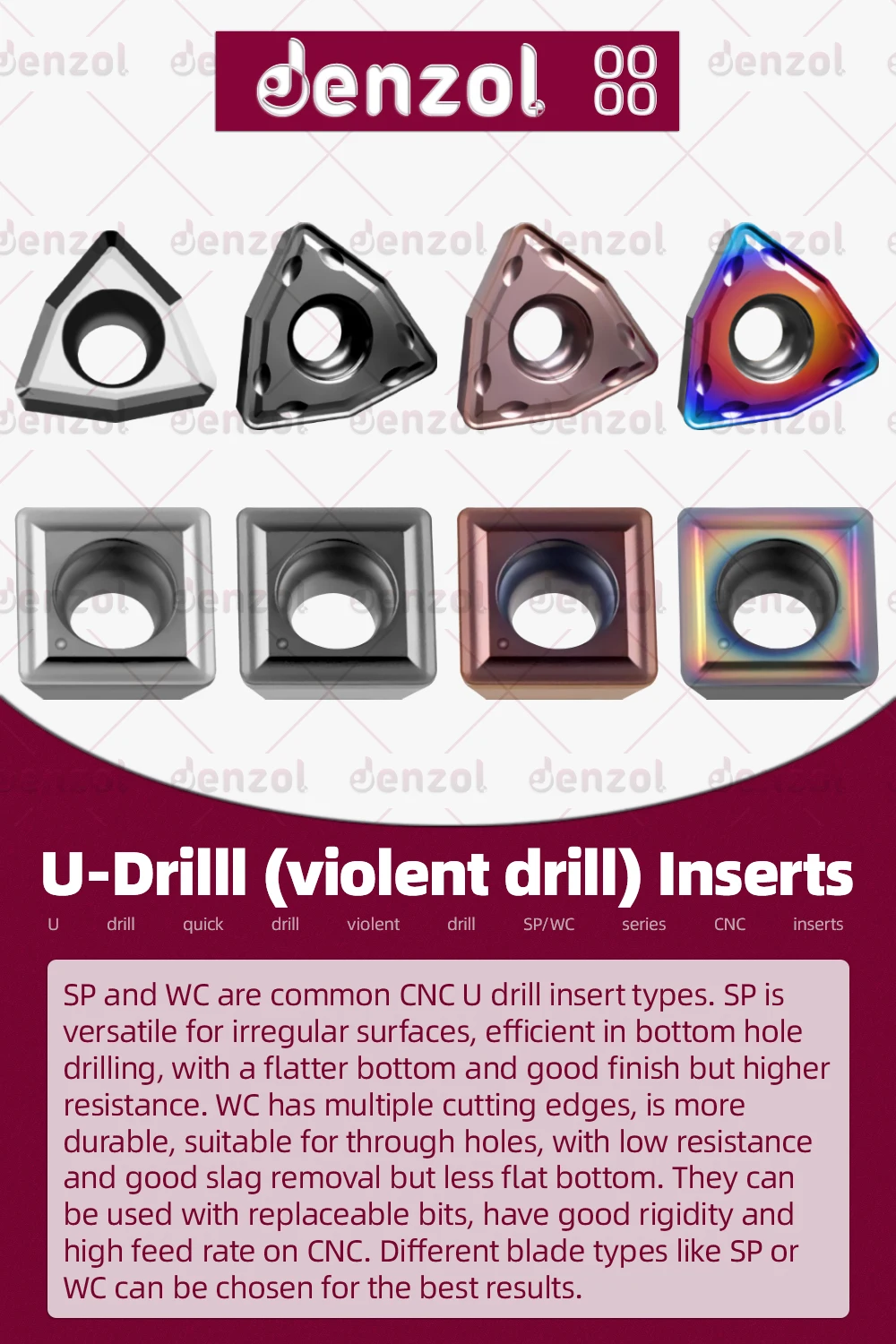

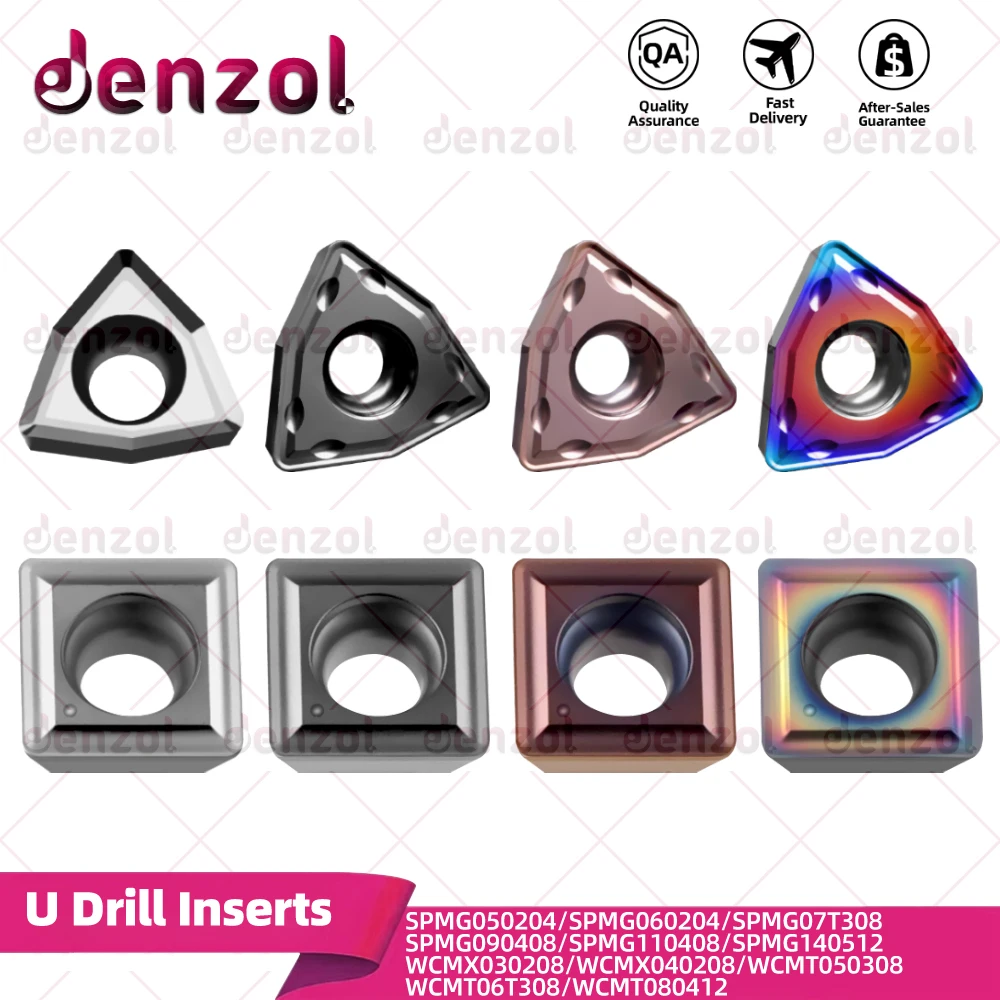

SP&WC U-Drilll (violent drill) Inserts

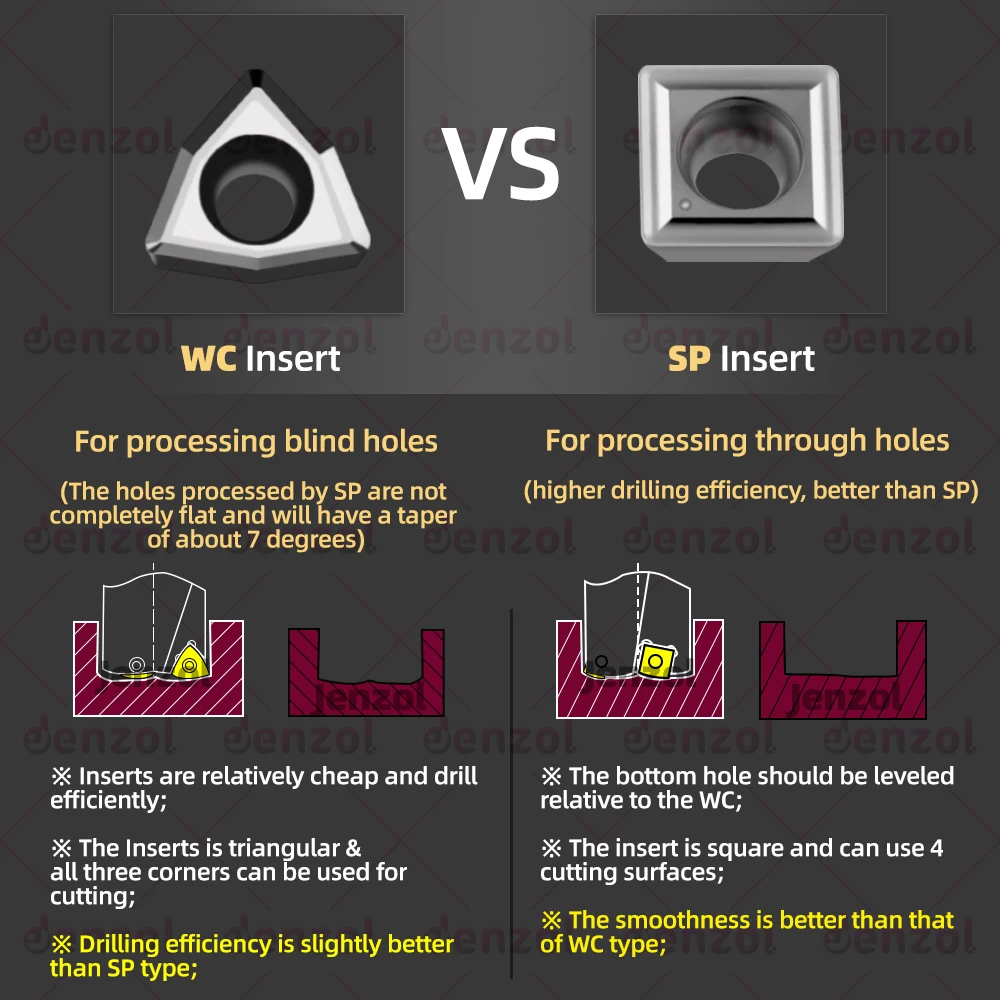

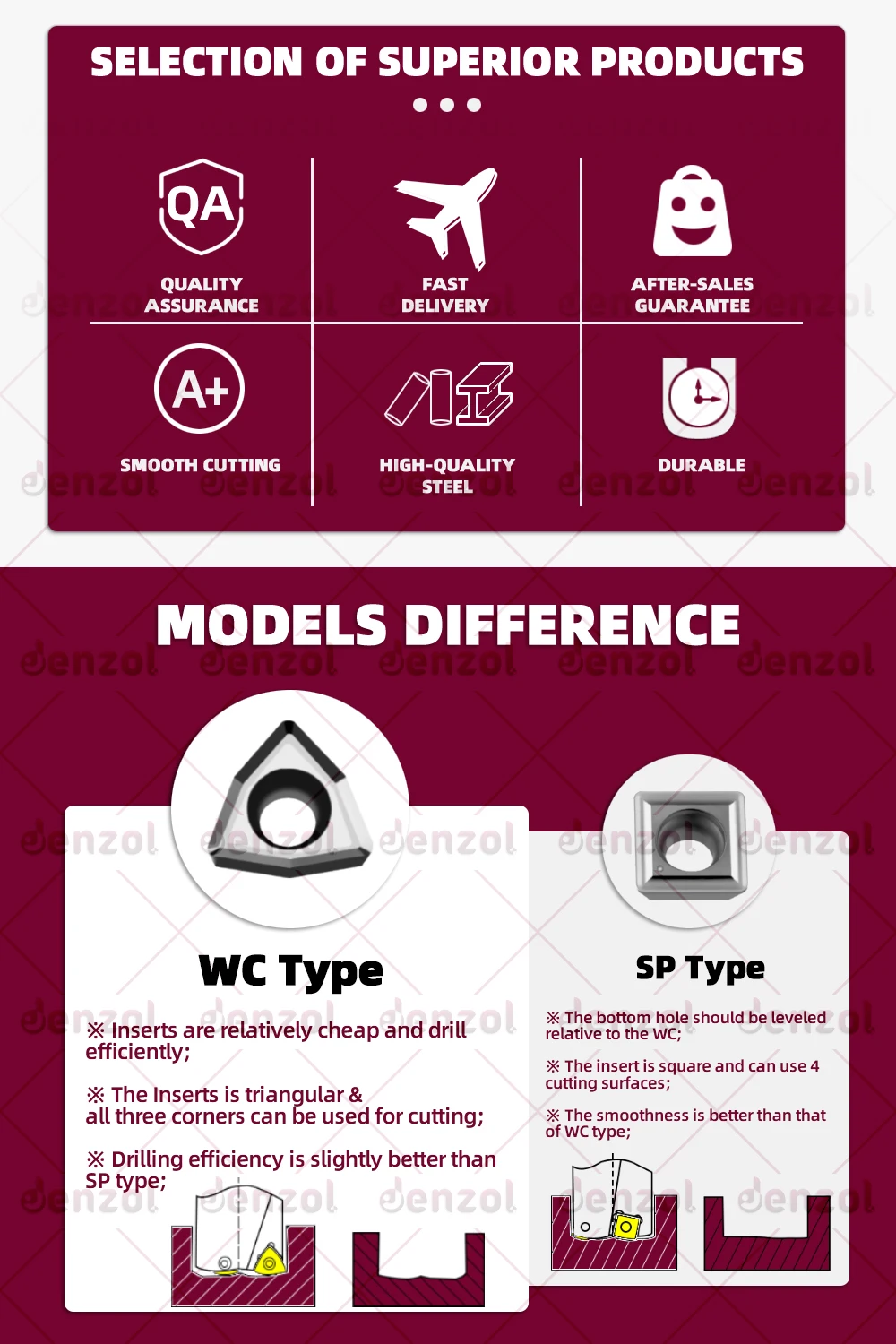

SP and WC are common CNC U drill insert types. SP is versatile for irregular surfaces, efficient in bottom hole drilling, with a flatter bottom and good finish but higher resistance. WC has multiple cutting edges, is more durable, suitable for through holes, with low resistance and good slag removal but less flat bottom. They can be used with replaceable bits, have good rigidity and high feed rate on CNC. Different blade types like SP or WC can be chosen for the best results.
Quality assurance
fast delivery
Quick match, easy to understand

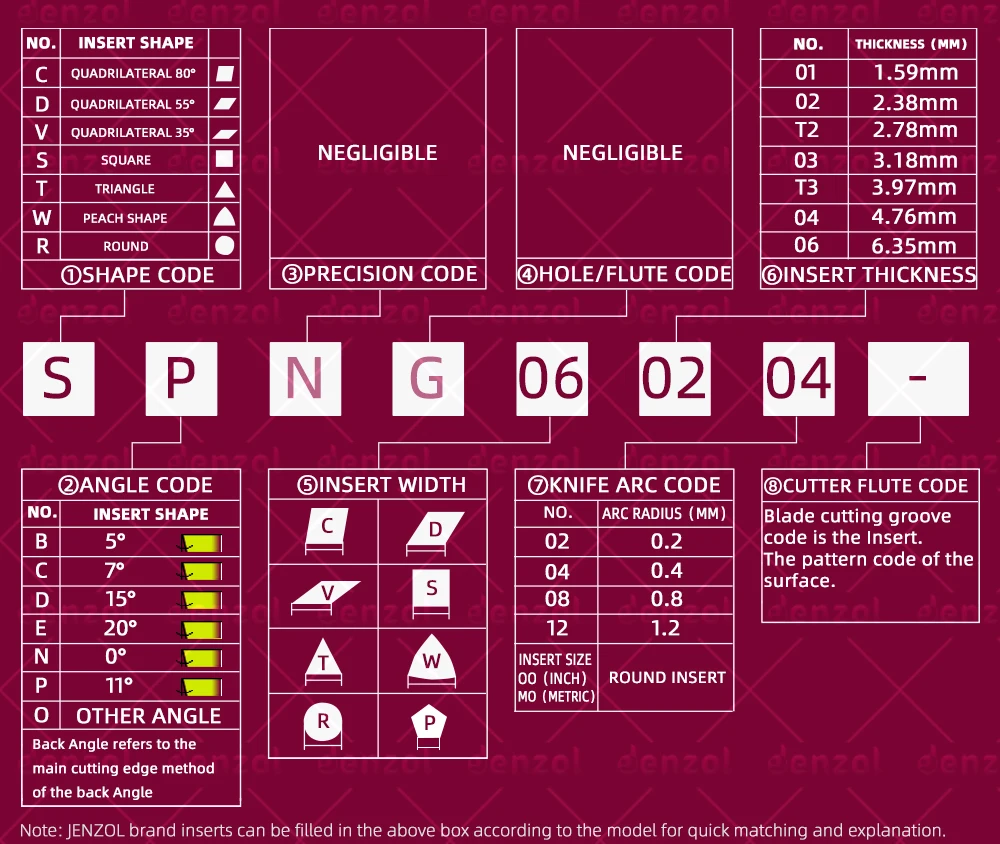

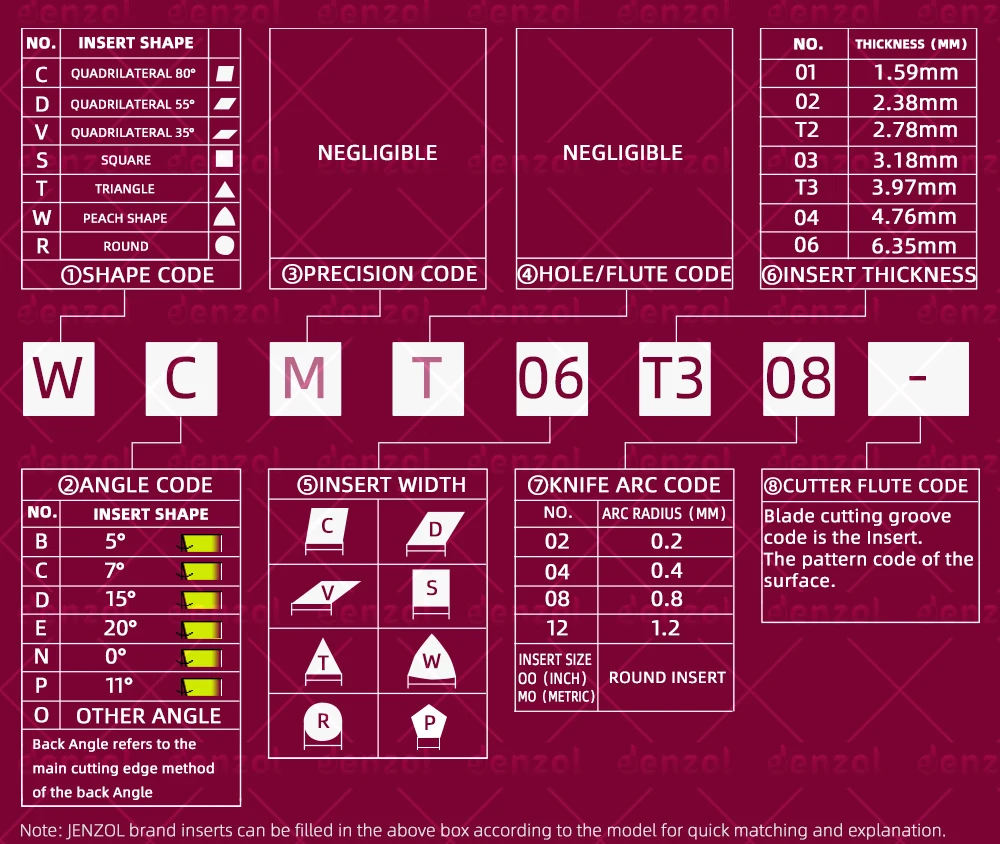

According to the model you purchased, fill in the box below in order, and find the explanation of each code according to the guide below.
SP
WC

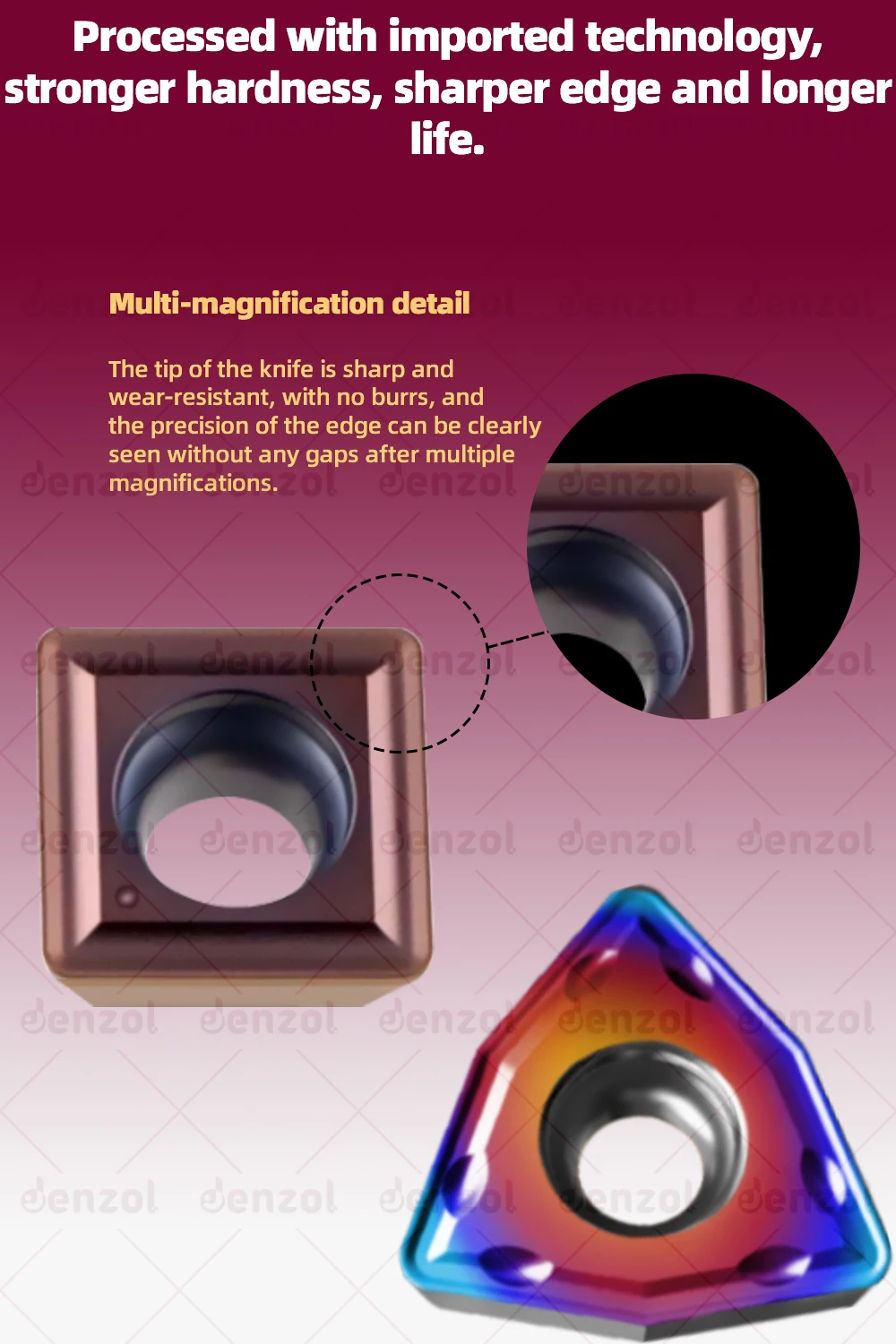

Processed with imported technology, stronger hardness, sharper edge and longer life.
The blades are made of ultra-fine cemented carbide raw material, finely ground and sintered at high temperature, which makes the blades as a whole impact-resistant and not easy to collapse the edge and the knife body.

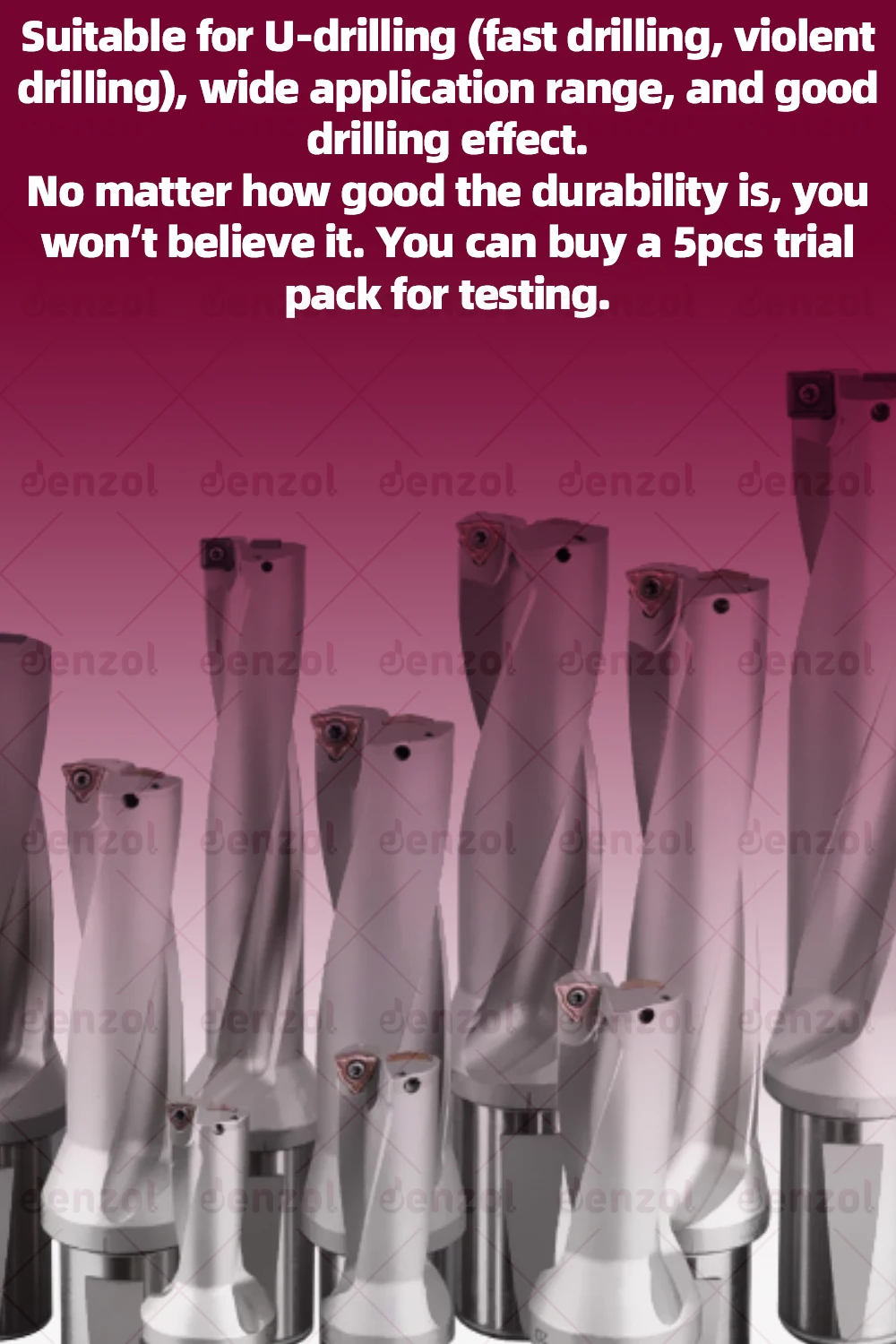

Suitable for U-drilling (fast drilling, violent drilling), wide application range, and good drilling effect.
No matter how good the durability is, you won’t believe it. You can buy a 5pcs trial pack for testing.

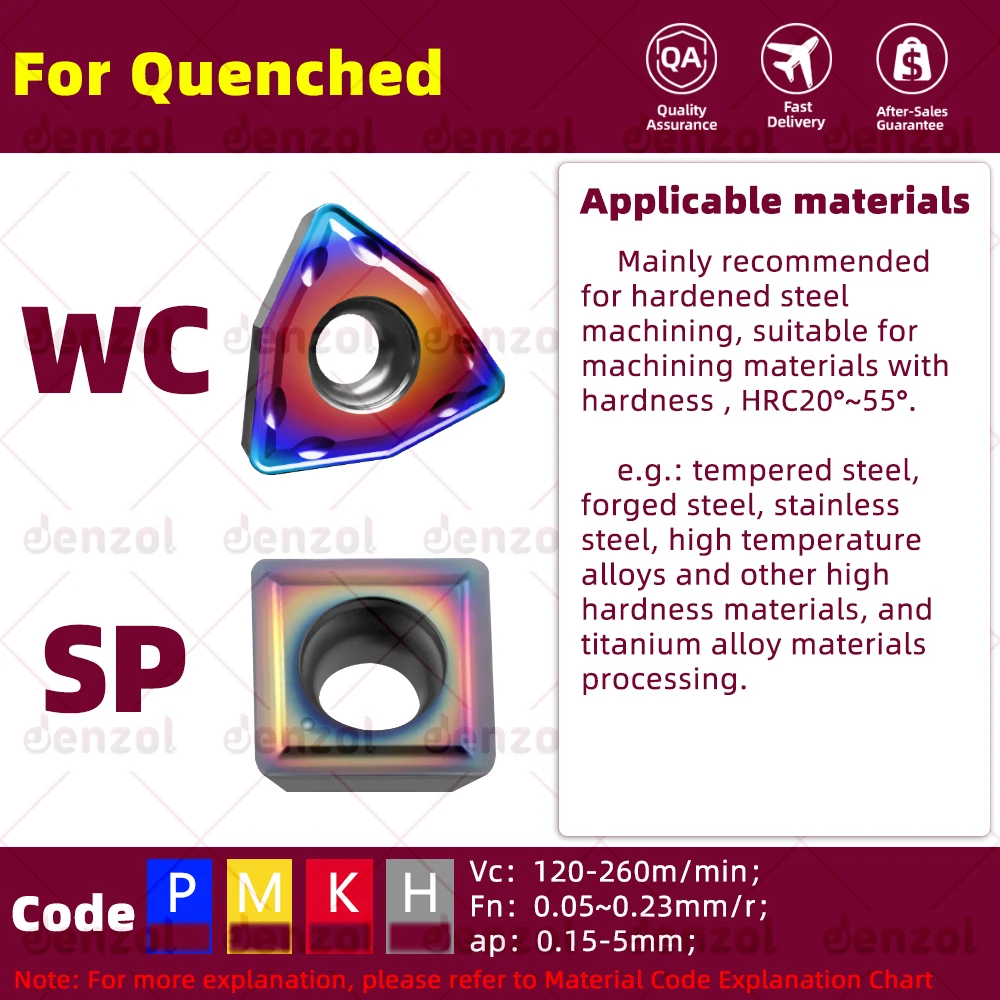

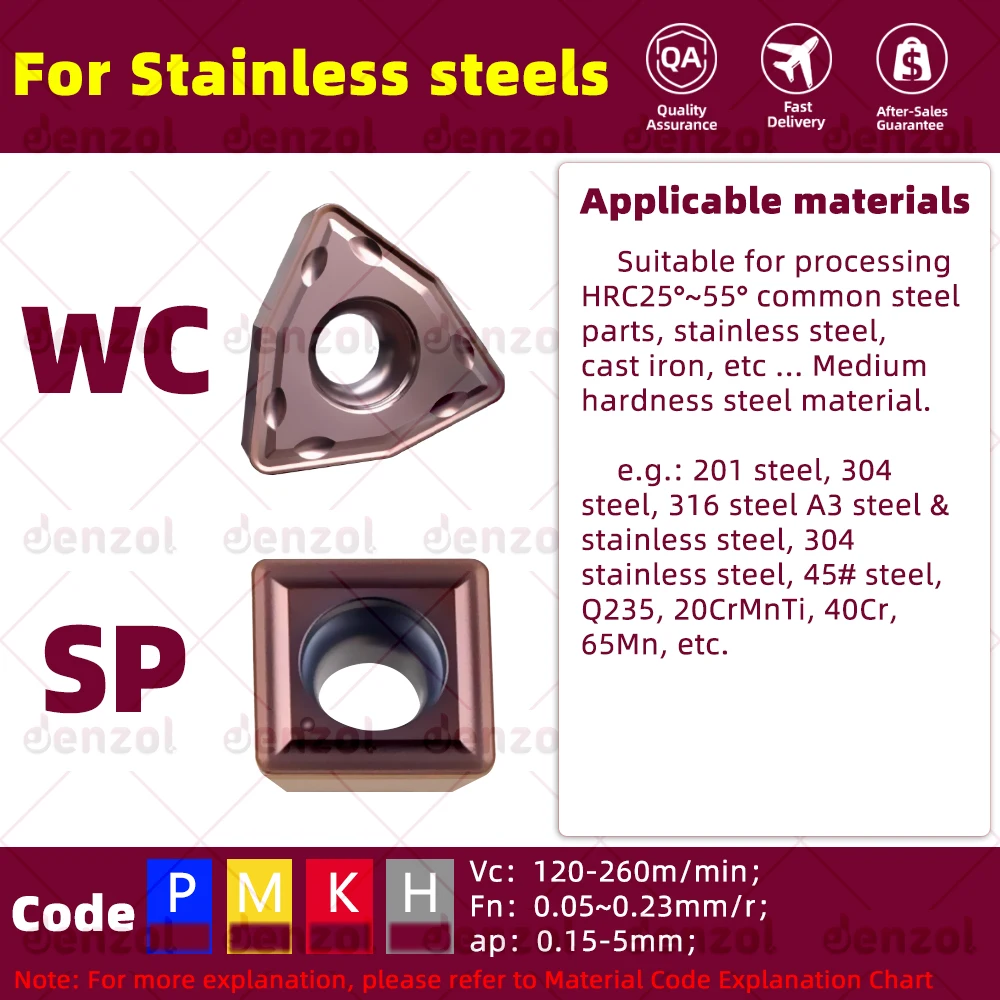

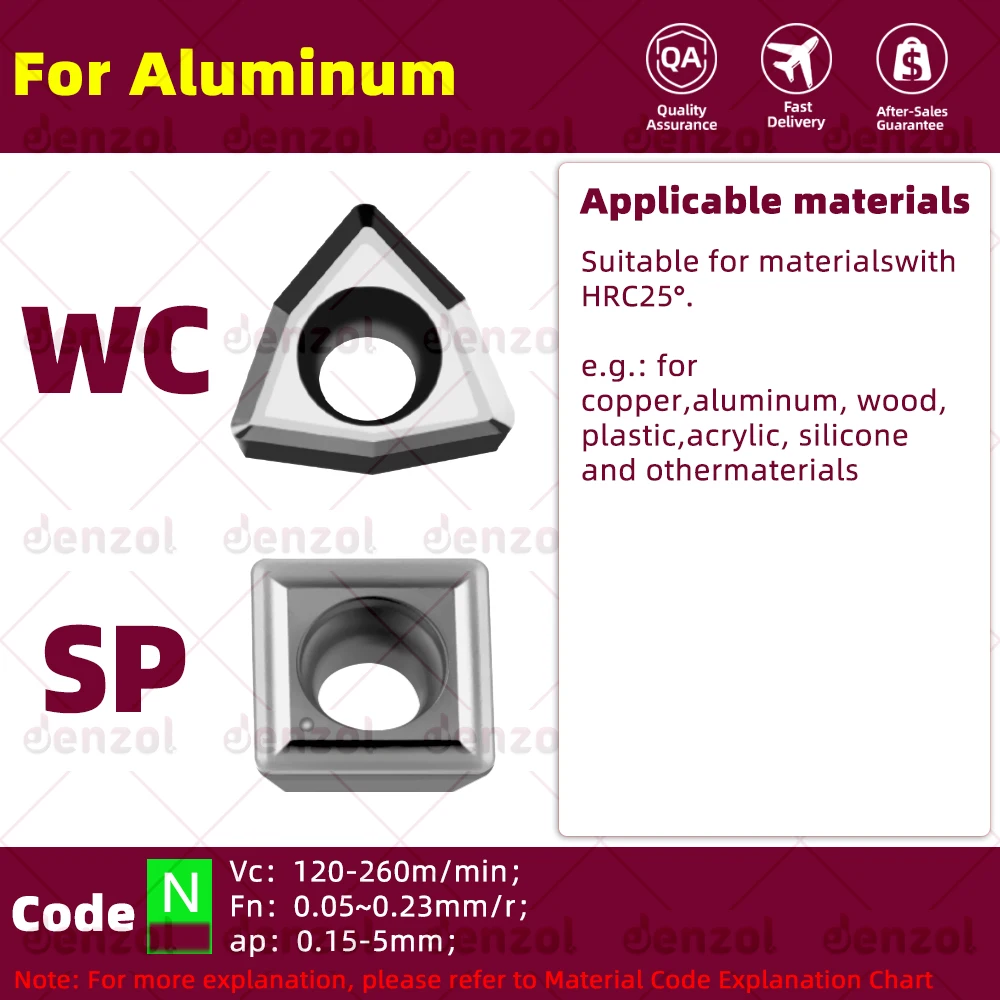

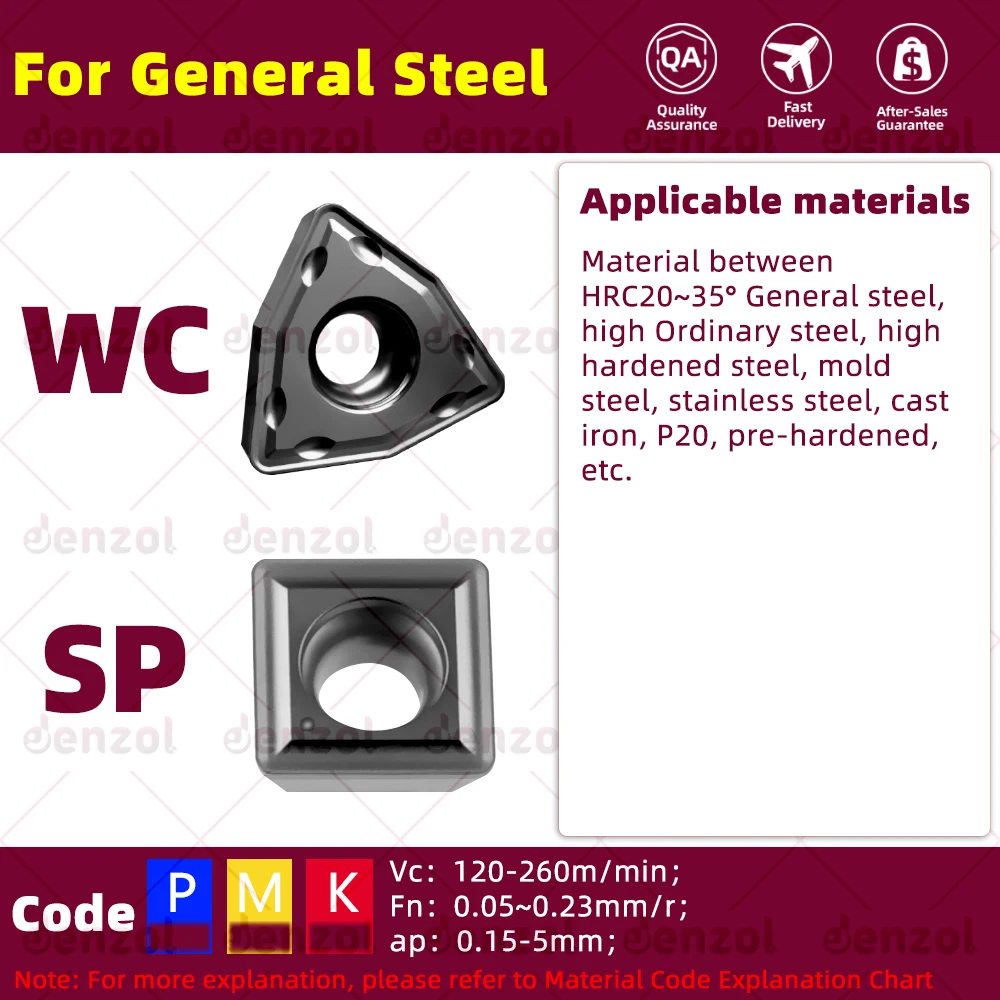

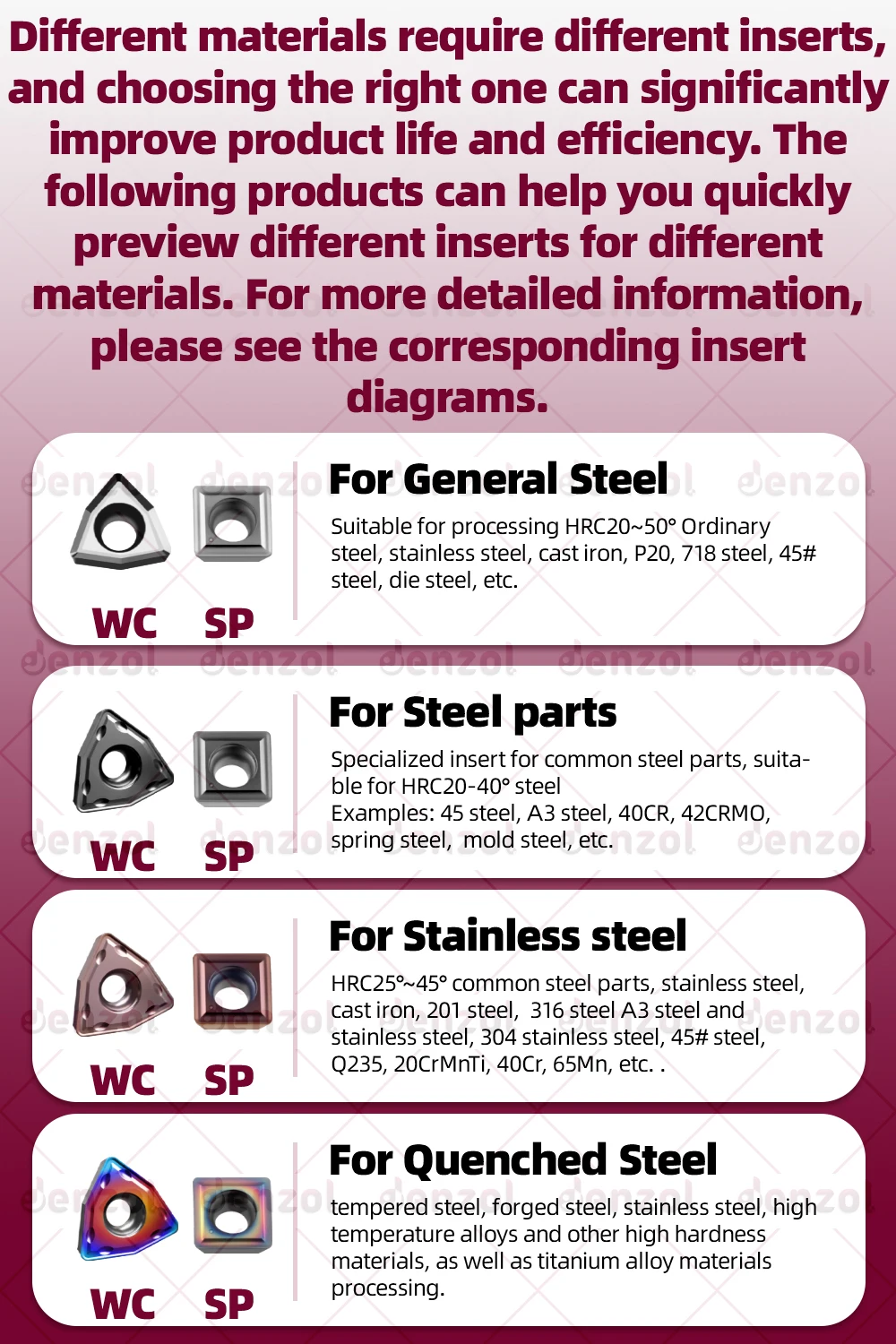

Different materials require different inserts, and choosing the right one can significantly improve product life and efficiency. The following products can help you quickly preview different inserts for different materials. For more detailed information, please see the corresponding insert diagrams.

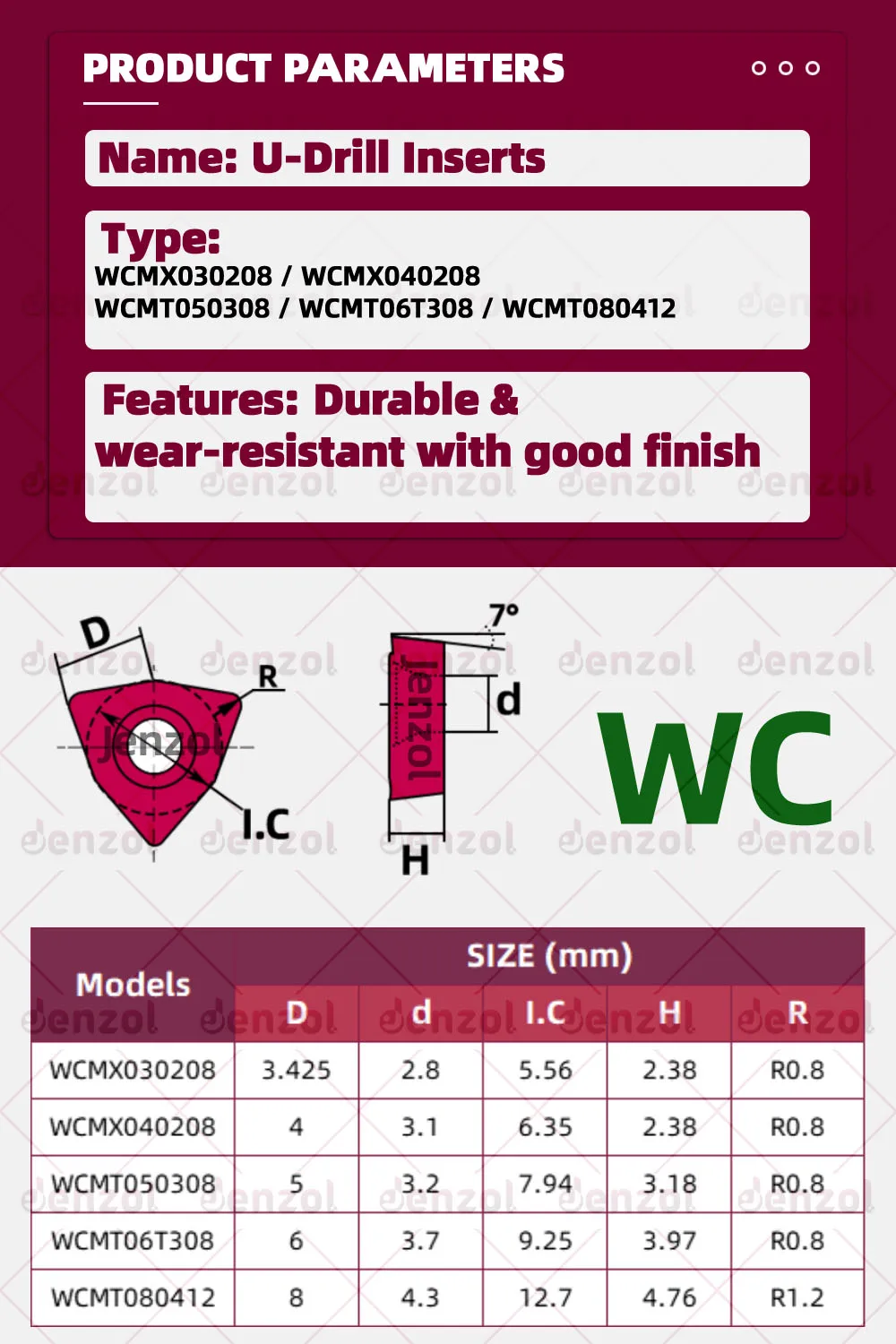

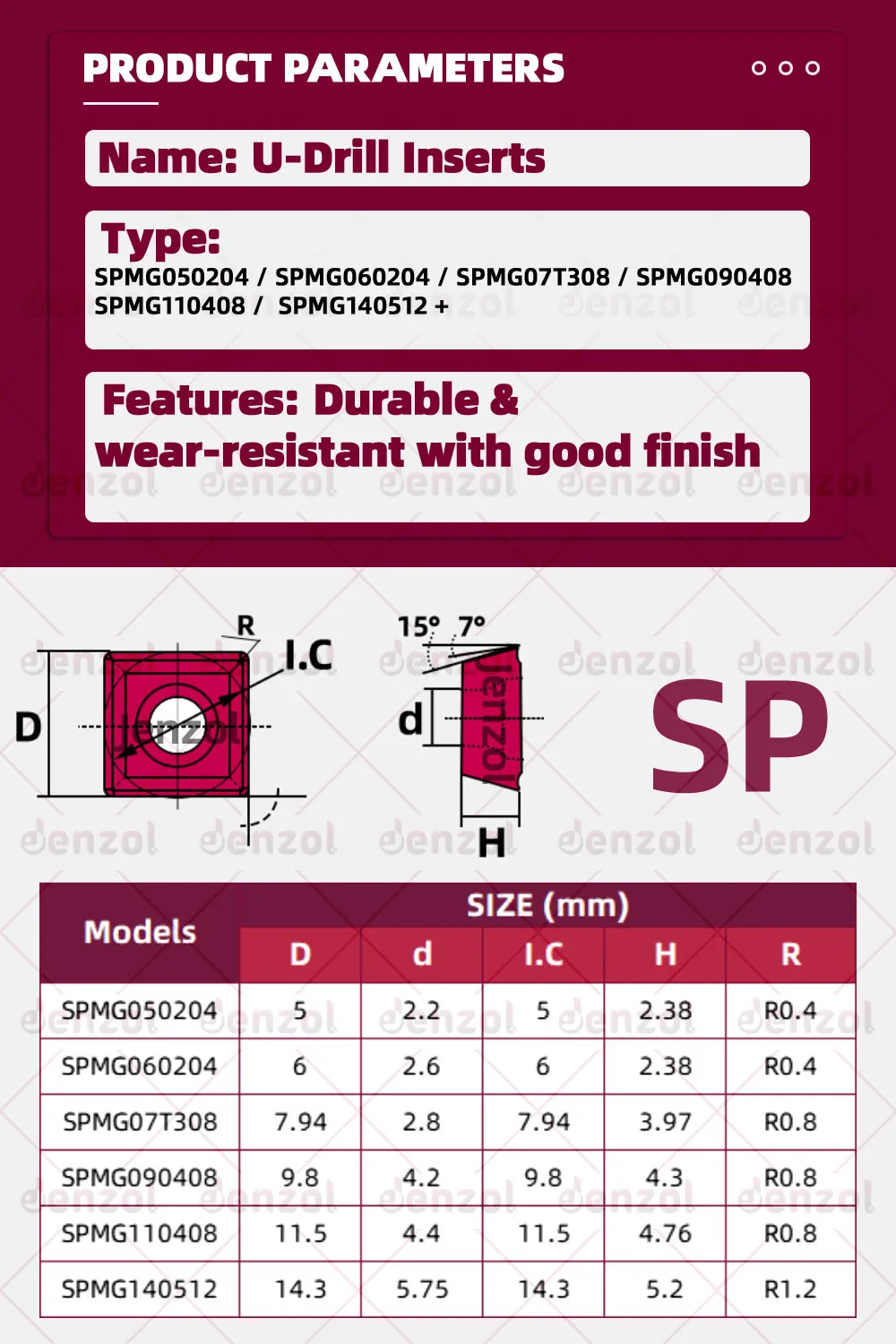

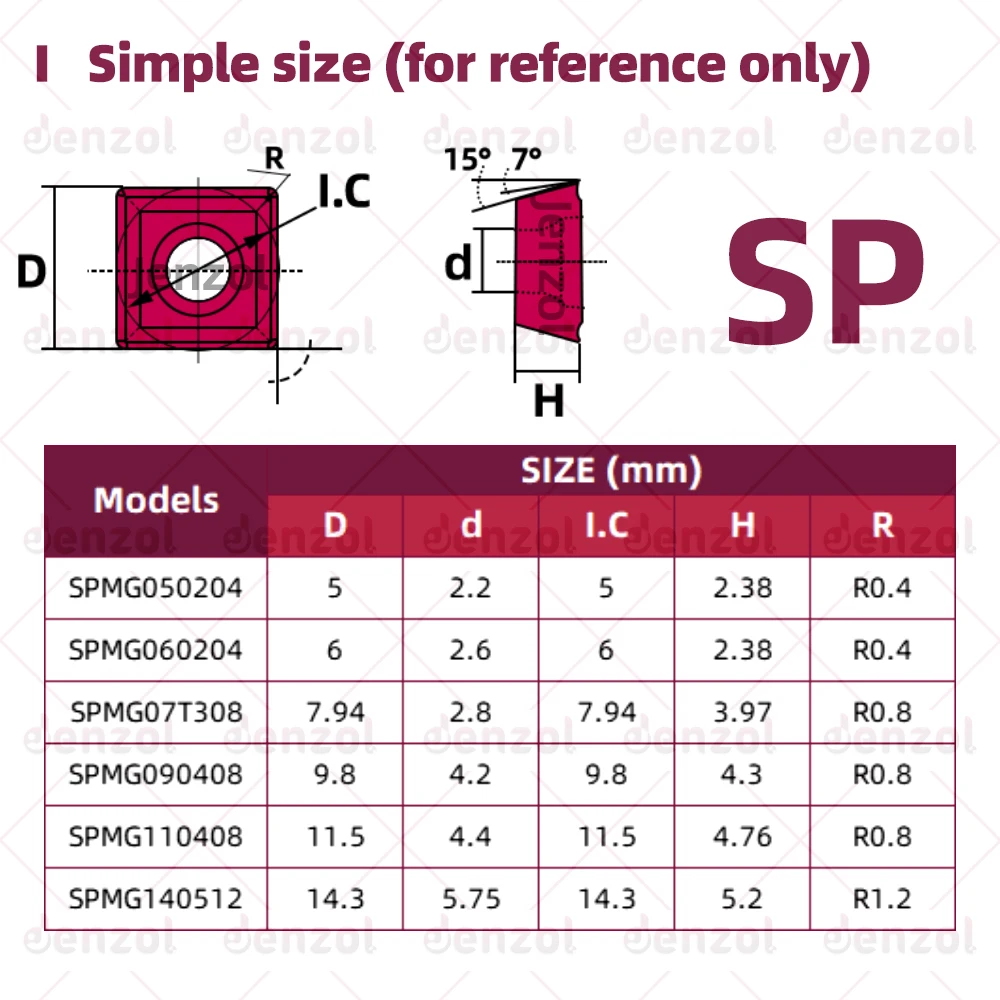

Product Parameters
Product parameters are for reference only. For more detailed data, you can try to contact customer service to obtain public data.
SP
WC
Processing parameters & codes

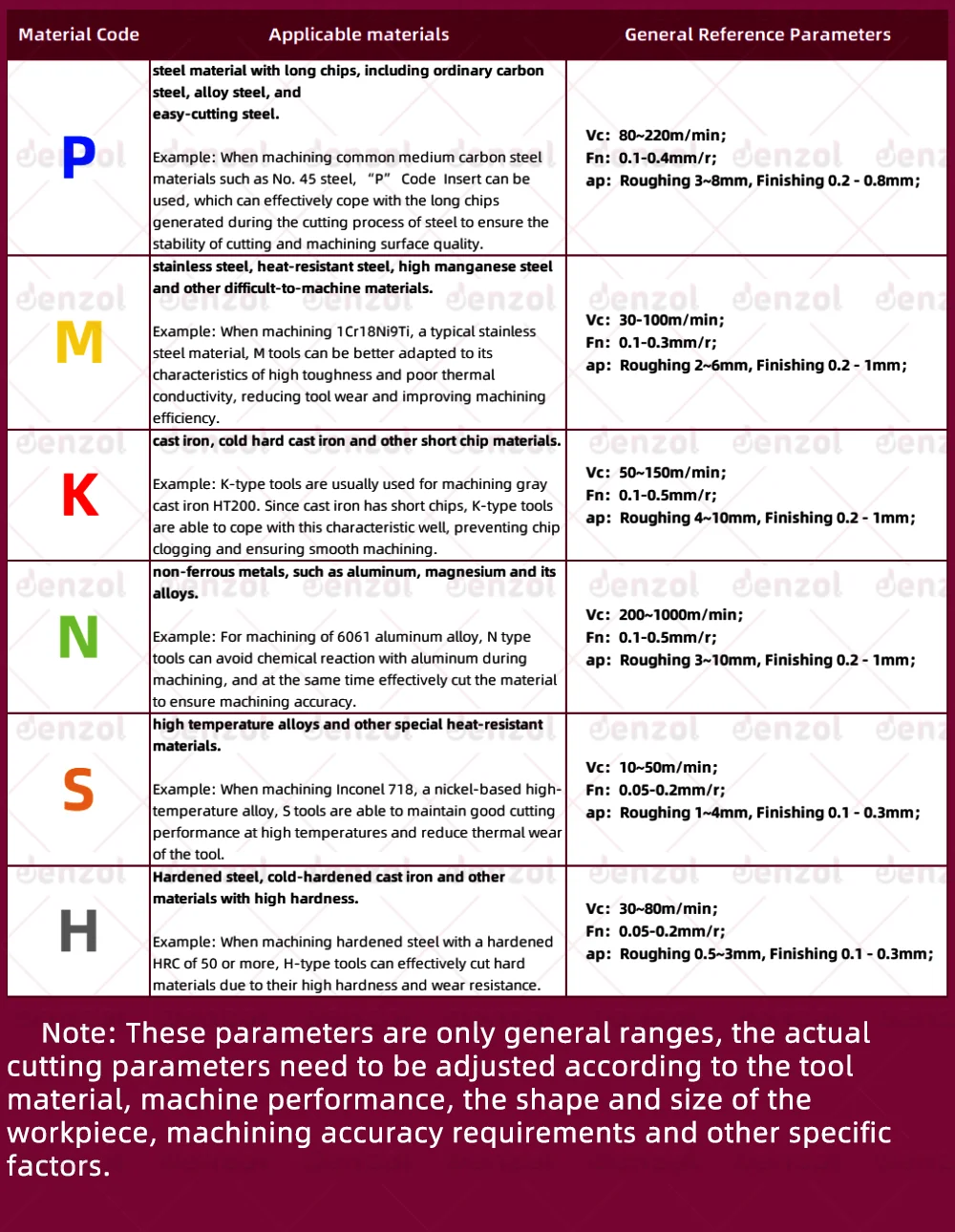

The blades in our store are classified according to ISO standards, covering categories such as P, M, K, N, S, H, etc., and are suitable for long chip steel materials, stainless steel heat-resistant steel, cast iron, non-ferrous metals, high-temperature alloys, hardened steel and other materials. For details, please refer to the "Applicable Material Schematic" in the picture for you to make accurate choices.

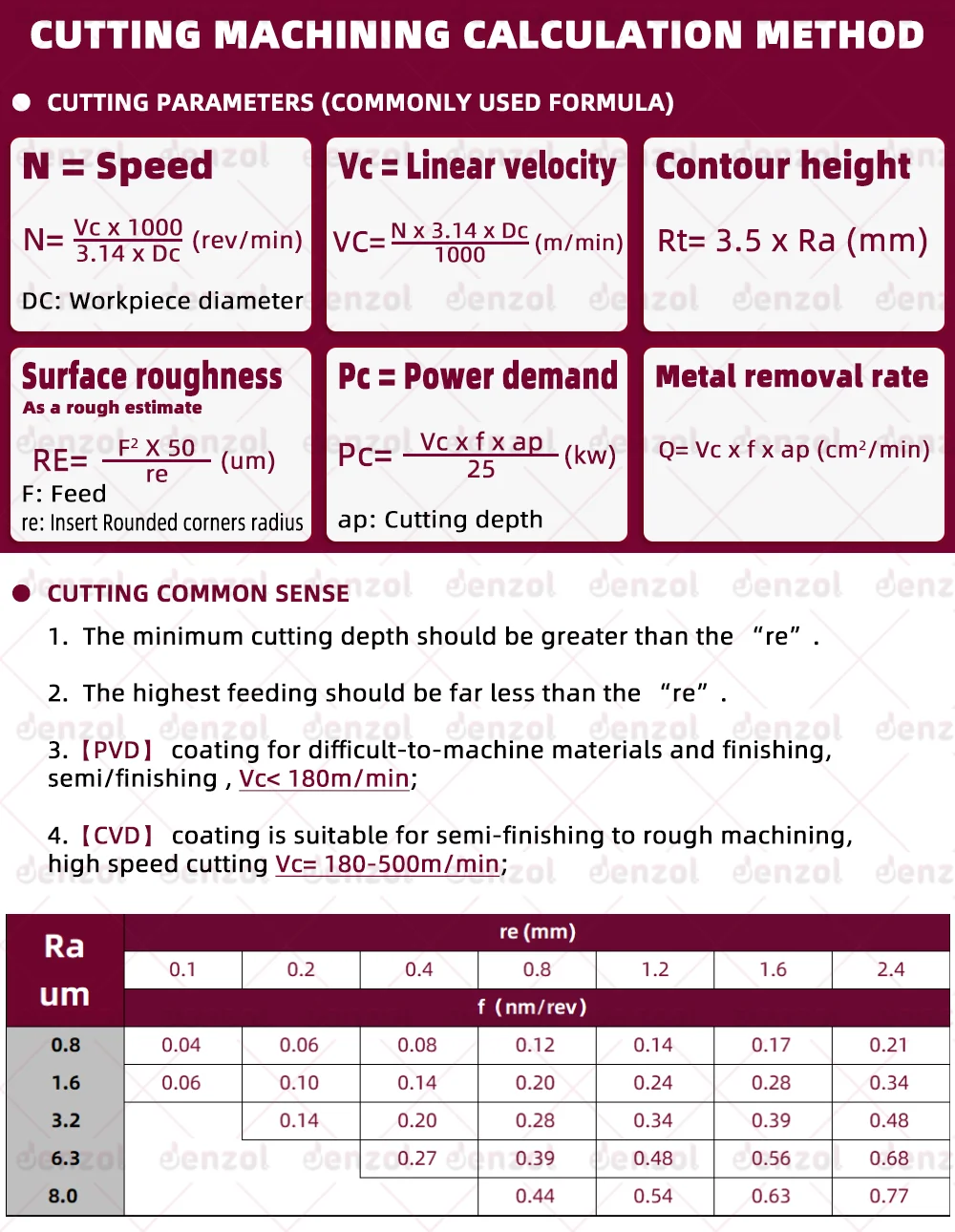

The actual cutting parameters of the workpiece need to be adjusted according to factors such as the performance of the machine tool, the shape and size of the workpiece, and the requirements for machining accuracy. (The formulas in the following figure are for reference only.)
More information
Suitable for processing various groove types, different steels, and a wide range of industries.
FAQ
Q: How to track express delivery?
A: Track it via the following link:
①www.17track.net
②global.cainiao.com
Q: How to get wholesale prices?
A: Please try to provide the model and quantity you need to customer service. The customer service will provide a discounted price based on the information you provide and check the shipping cost based on the estimated weight.
Q: Are the processing parameters accurate?
A: The processing parameters of the picture are for reference only. You also need to adjust them according to your processing steel, speed and other processing environments to the best state, so that you can make excellent products.
If you have any questions, please contact our customer service, our customer service will find and answer your questions in time.
