- High-concerned chemical: None
- RAID Supported: Yes
- Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 2000 Series-R5,AMD Ryzen 1000 Series-R7,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 1000 Series-R5,AMD Ryzen 3000 Series-R3,AMD Ryzen 1000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 2000 Series-R7,AMD Ryzen 5000 Series-R3,AMD Ryzen 2000 Series-R3
- Ports: PCI-Express X1
- Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Scientific Computing,Video Rendering

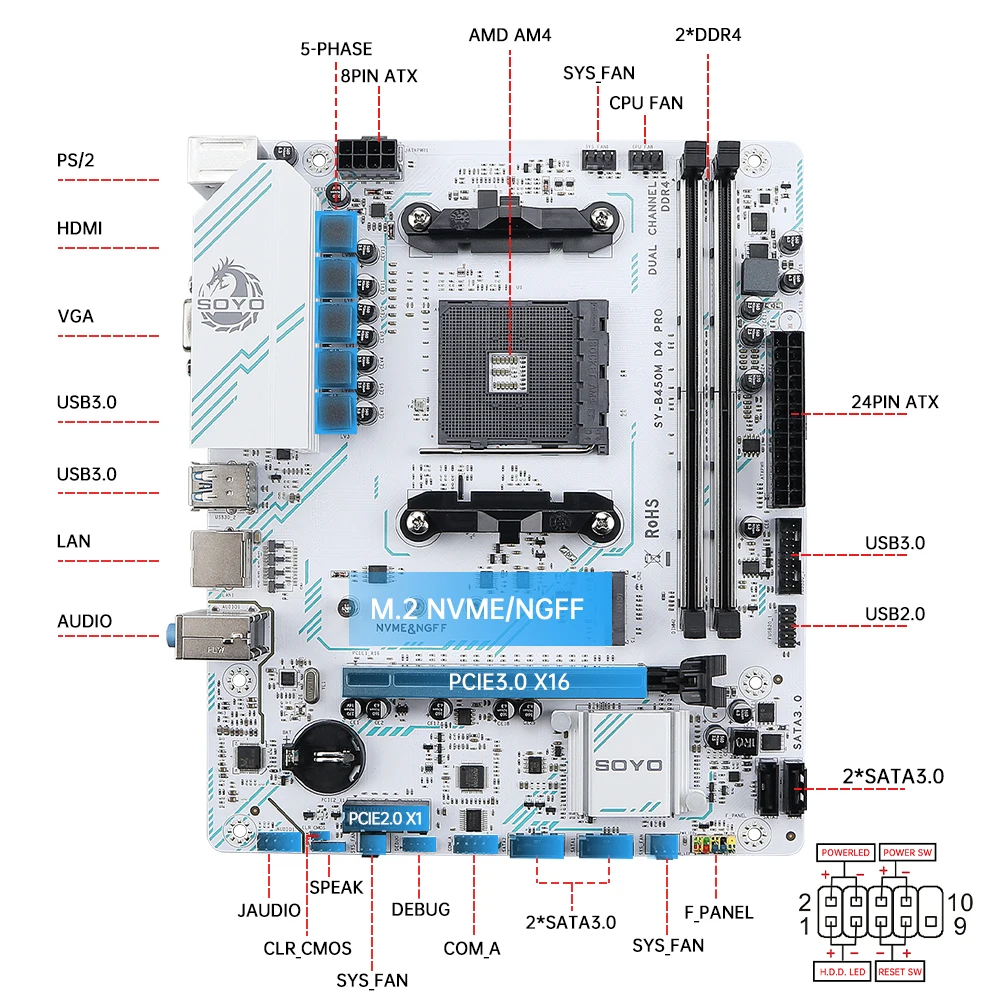

- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),4-pin +12V Power Connector

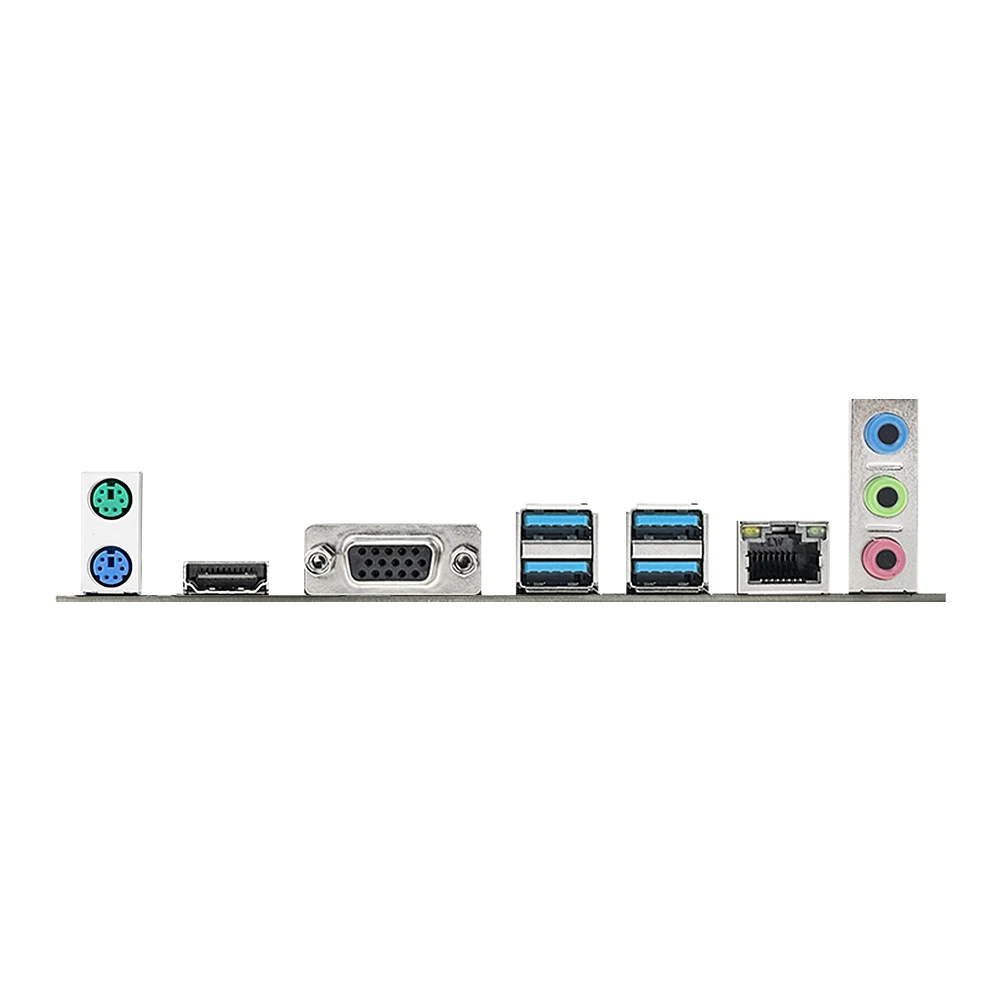

- Back I/O Ports: 1x RJ45,COM,4 x USB 2.0
- Support USB Type: USB 2.0,USB 3.0
- Max LAN Speed: 1000Mbps
- Onboard LAN: 1x RJ45
- Audio Channels: 5.1
- SATA RAID: 0
- Supports M.2 SSD: 2280
- Number of M.2: 1
- Number of SATA Ports: 4
- Storage Interface Type: SATA 3,M.2 (NVMe)
- Number of PCI: 1
- Number of PCIe x 16: 1
- PCI - E standards: PCI-E 3.0
- Number Of Memory Slots: 2
- Support Memory Type: DDR4
- Quality Certification: ce
- Memory channel: Double
- Package: Yes
- Maximum Ram Capacity: 64 GB
- Form Factor: Micro-ATX
- Chipset Manufacturer: AMD
- Battery Included: No
- With CPU: No
- Chipset: AMD B450
- Application: Desktop
- Socket Type: AM4
- Brand Name: SOYO
- Special Features: None
- Origin: Mainland China
- Certification: CE
> >Product Driver Download Website: https://www.soyocn.net/down/zbdrv/AMD/
> > CPU: admite procesadores AMD Ryzen 1,2, generación, serie 3000, 3000G /4000, serie 4000G /5000,5000G. Ejemplo: R5-1400, R5-2600, R7-3700X, R3-4100, R5-5600G, etc.
> > memoria: 2 * 288-pinddr4 doble canal; Soporte máximo 64G(32G*2) Compatible con 2133/2400/2666/3000/3200/3400/3600 MHz (OC), compatible con XMP.(El soporte de frecuencia de memoria real depende del tipo de procesador y de la memoria)
> > almacenamiento: 1 * ranura m.2 (protocolo NVME y NGFF); Admite dispositivos de almacenamiento 2280/2260/2242 (M.2: PCIe 3.0x4 y SATA 3.0) Interfaz 4 * SATA 3.0.
> > interfaz de pantalla: 1 * interfaz HDMI 2.0, 1 * interfaz VGA. > Red: 1 * interfaz LAN1 (chip de tarjeta de red Realtek Gigabit)
> > PS/2: 1 * teclado PS/2; 1 * ratón PS/2
> > Ranura PCIE: 1 * ranura pcie 1 _ x16 (pcie 3.0x16); 1 * ranura PCIE2_X1 (PCIe 2.0x1);
> > audio: 1 * salida de línea; 1 * entrada de micrófono; 1 * entrada de línea; 1 * clavija incorporada JAUDIO1 (chip de audio Realtek 7.1 HD)
> > Interfaz USB: panel trasero: 4 * USB 3.0; Panel frontal: 1 juego de pines FUSB20_ (2 puertos USB2.0 se pueden extender); 1 juego de conector FUSB30_1 (2 puertos USB3.0 se pueden extender);
> > pin de función: 1 * f _ pin del panel; 1*4 pines CPU_FAN; 2*3 pines SYS_FAN; 1*4 pines SYS_FAN;
> > entrada de alimentación: toma de corriente ATX de 24 pines + 8 pines. Tamaño del producto 180x216mm4m-Especificación de la placa base ATX,
