- Tipo de bateria: íon de lítio
- As baterias estão incluídas: Sim
- Produto Químico de Alta Preocupação: Nenhum
- Material: ABS
- Certificação: CE
- Origem: CN (Origem)
- Nome da marca: GZSNX OL care
- Tipo de Item: Equipamento médico

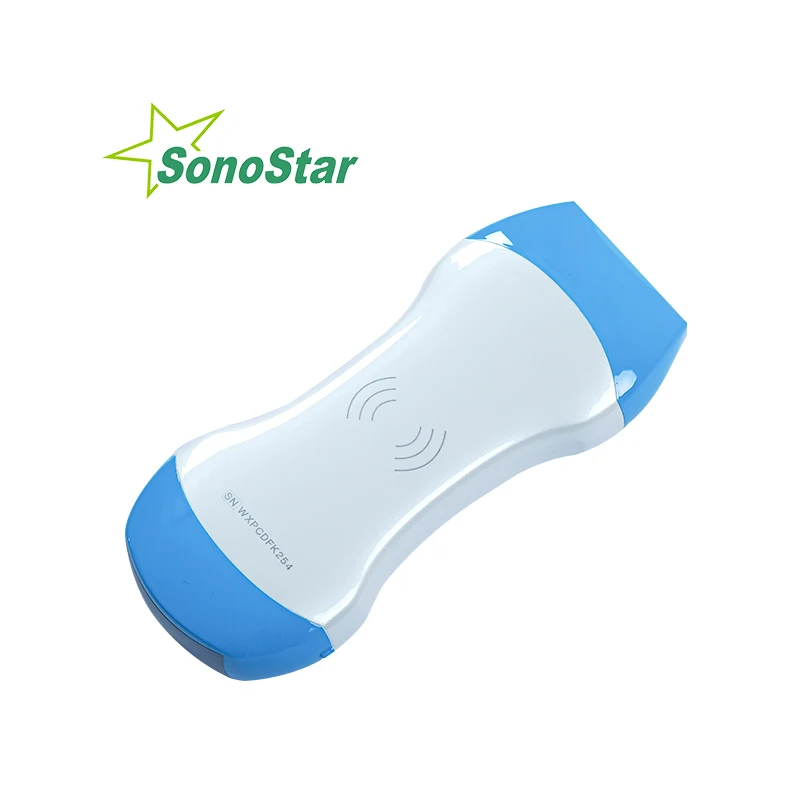

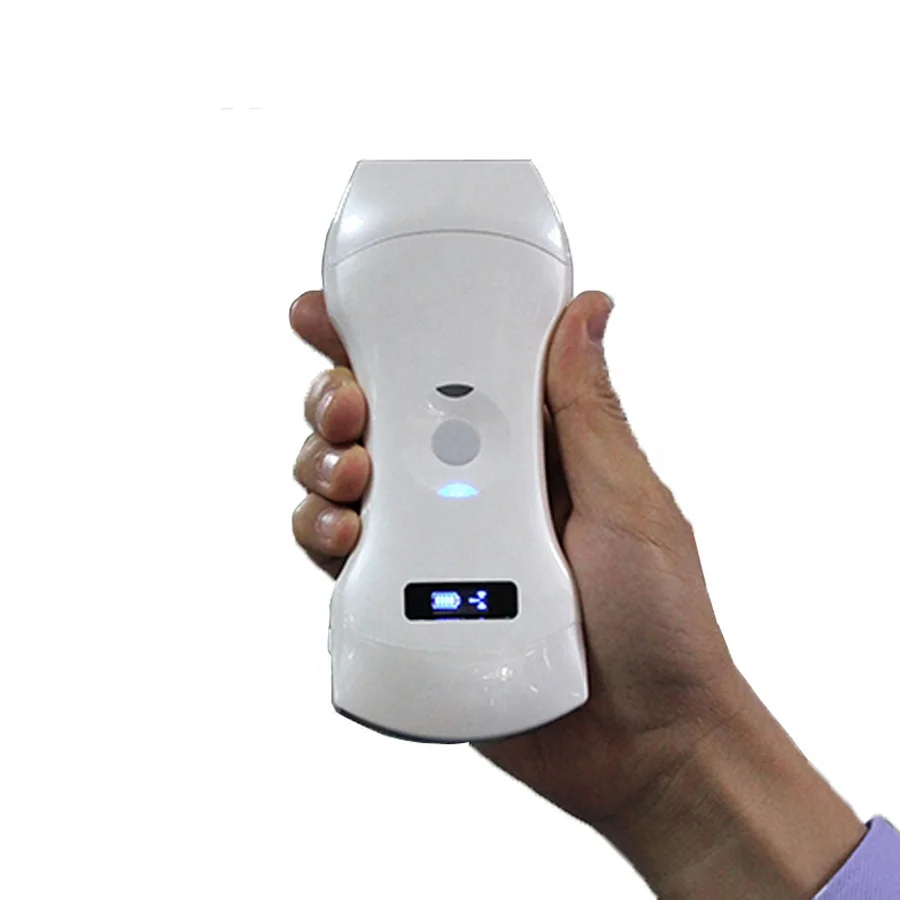

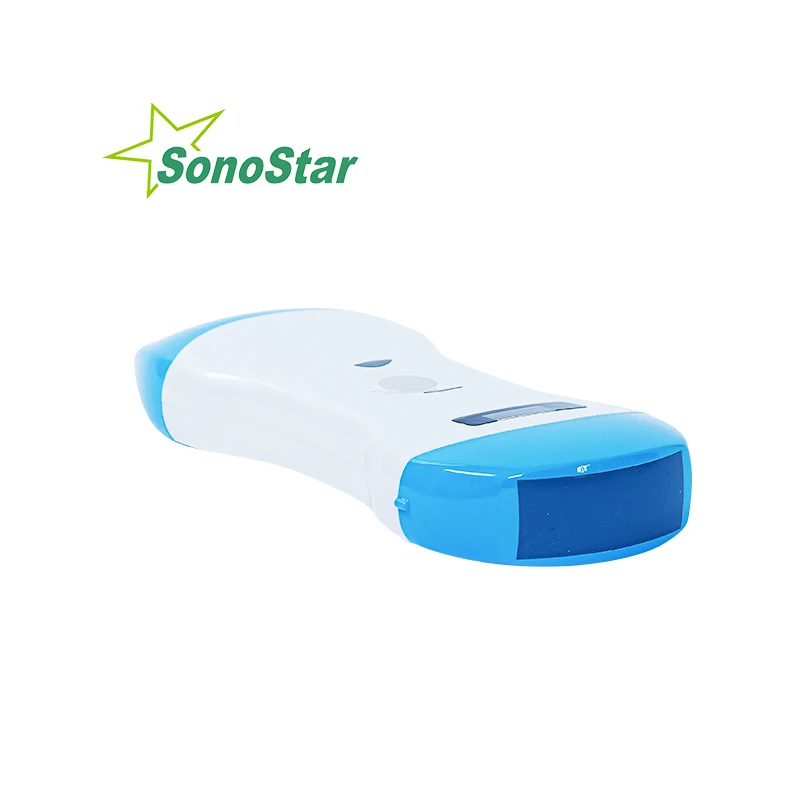

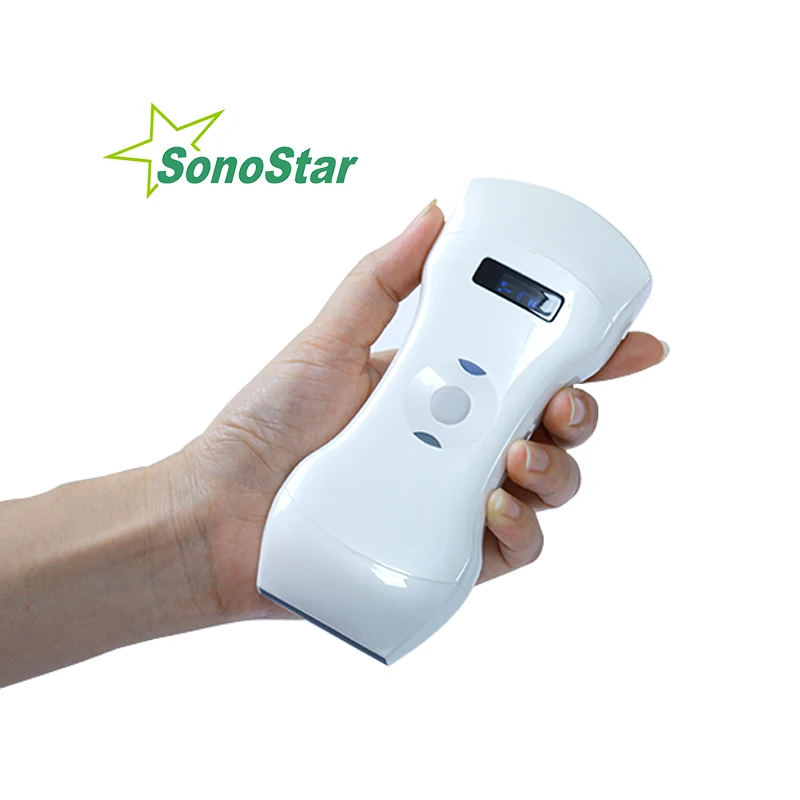

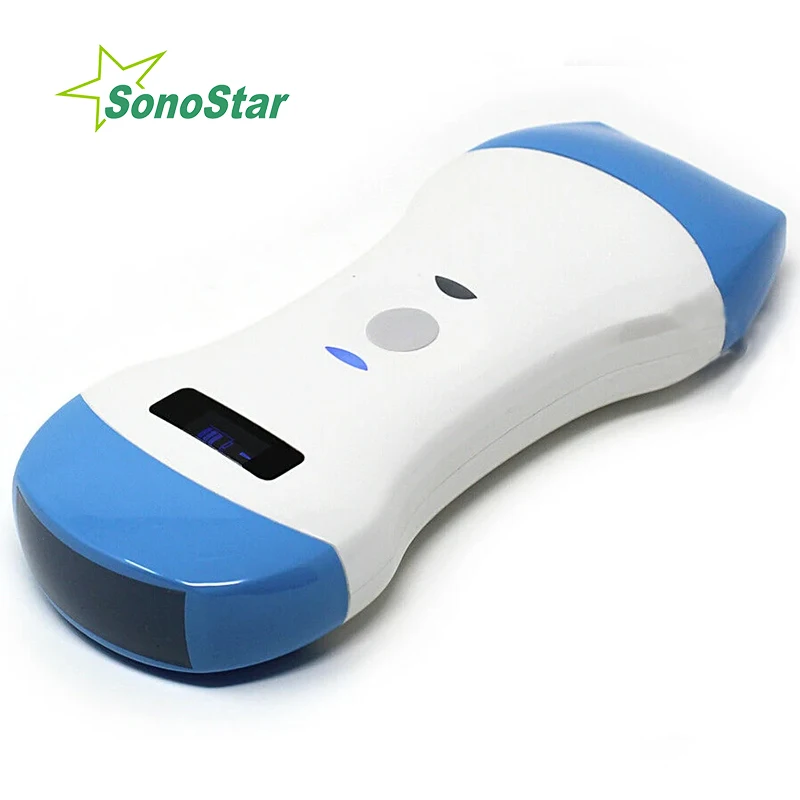

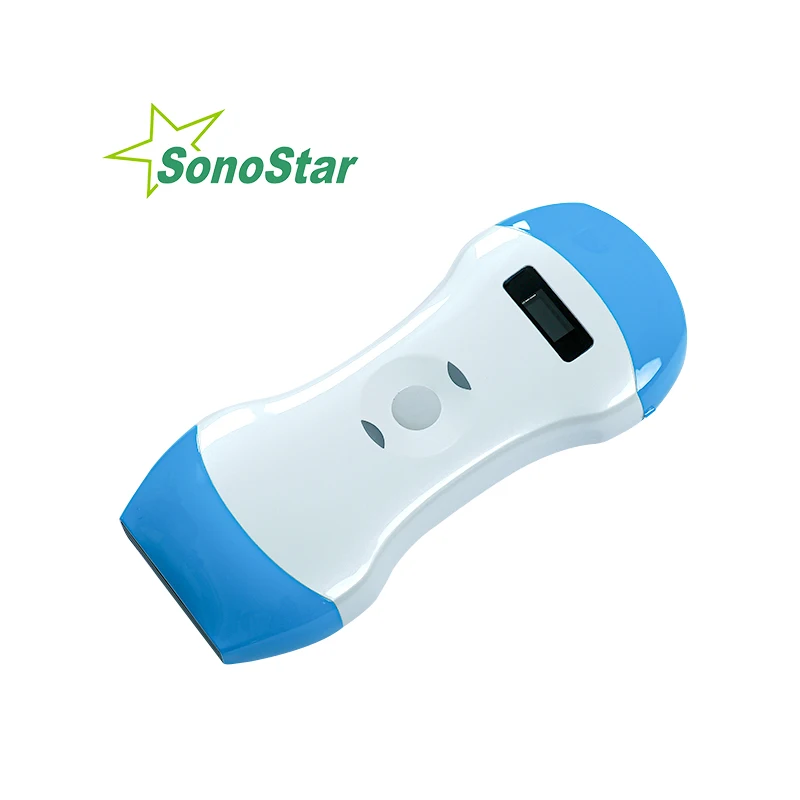

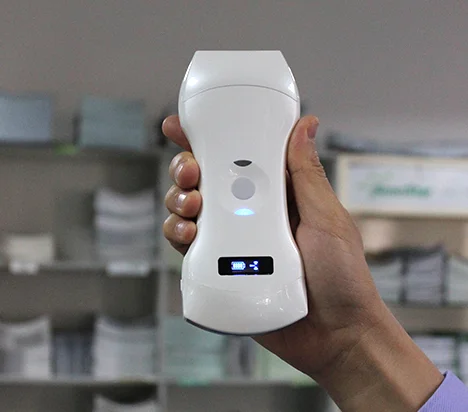

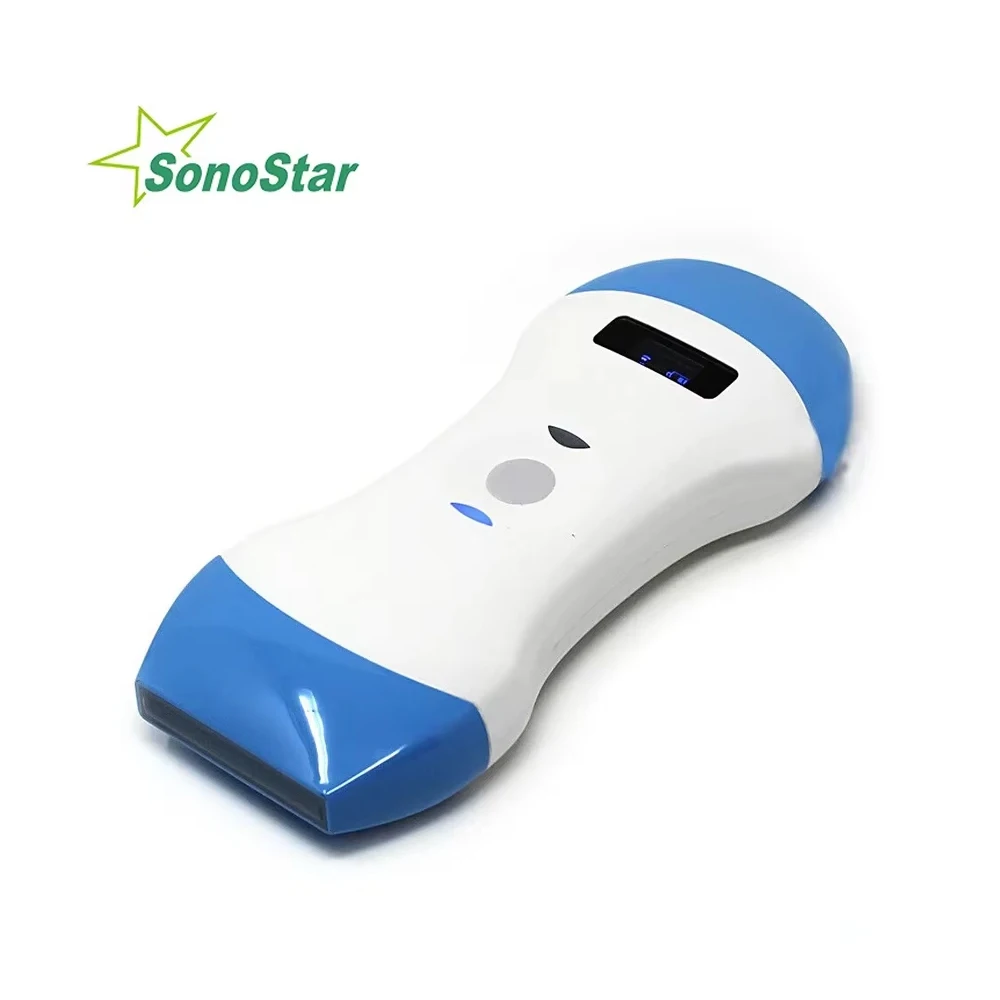

Sonostar Wireless Ultrasound Probe 3 in 1 Scanner 192 element Portable Machine WIFI Machine USG handheld color doppler 2 head
How it works?

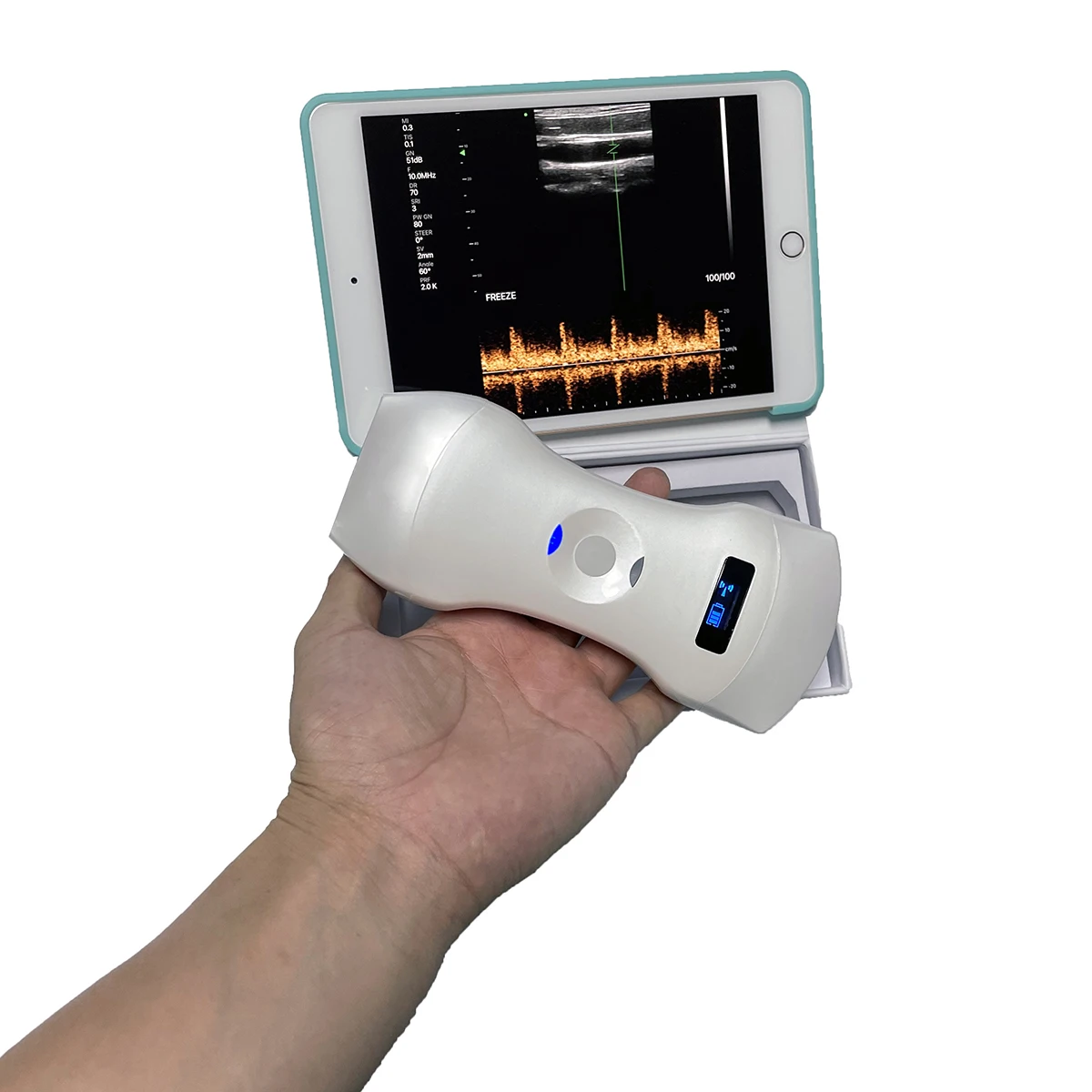

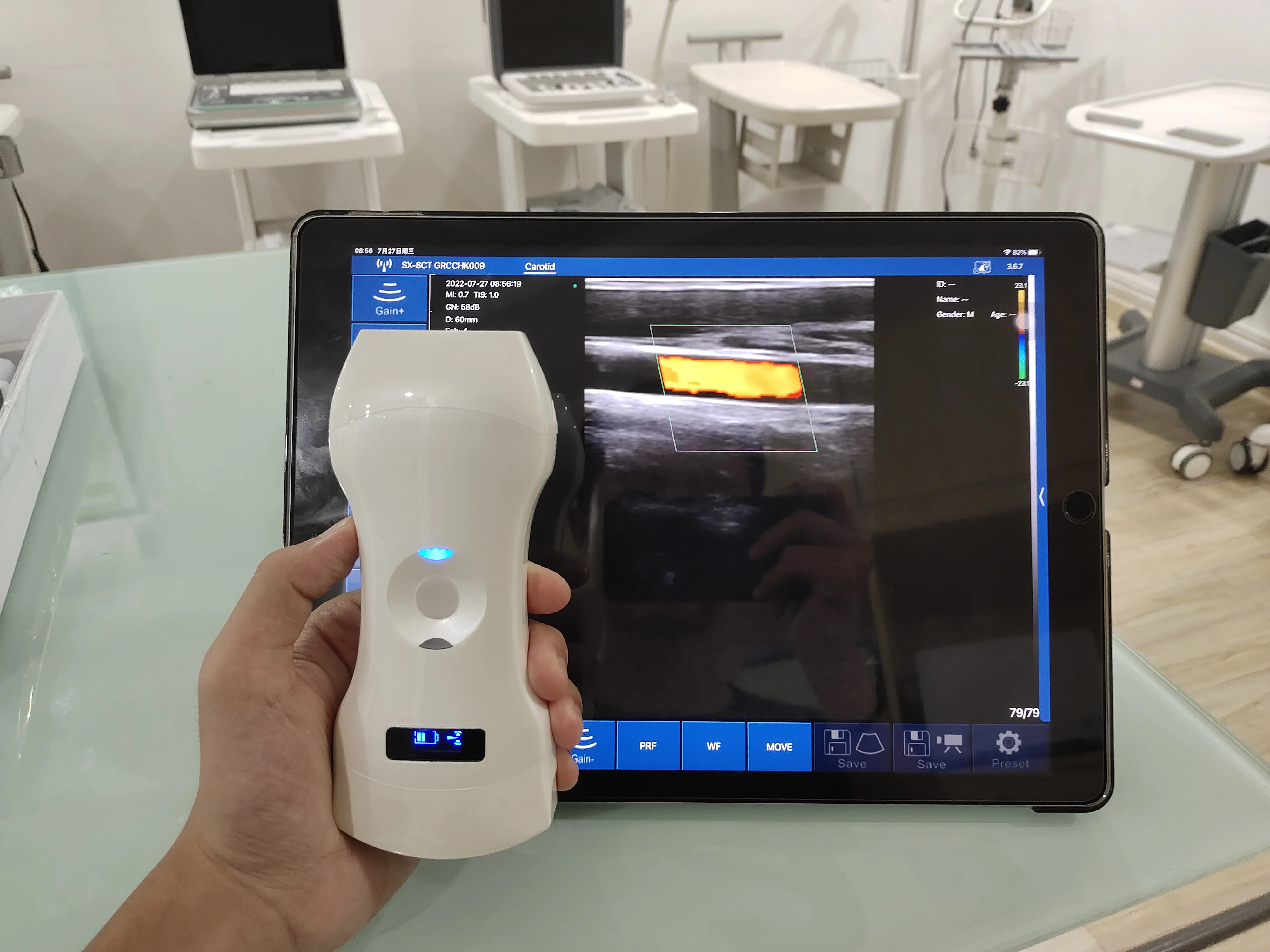

-“Wireless ultrasound probe” is a mini ultrasound scanner that without screen. We made the main unit condensed into a small circuit board builded-in the probe, and showing image in smart phone/tablet through Wifi transferring.
-Image transferring through internal wifi from probe, no need external Wifi signal.
|
-Probe Type
|
Consist by two of Convex, Microconvex, Linear, Small Linear, Transvaginal
|
|
-Scanning mode
|
Electronic array
|
|
-Display mode
|
B, B/M, color doppler version with B+Color, B+PDI, B+PW
|
|
-Probe element
|
192
|
|
-Channel of RF circuit board
|
64
|
|
-Probe frequency and scan depth, head radius/width, scan angle(convex)
|
Convex head 3.5MHz/5MHz, 90/160/220/305mm, 60mm, 60°
|
|
-Convex head with phased array(cardiac) scan mode
|
3.5MHz/5MHz, 90/160/220/305mm, 40mm, 90°
|
|
-Linear head scan mode
|
7.5MHz/10MHz, 20/40/60/100mm, 40mm
|
|
-Image Adjust
|
BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
|
|
-Cineplay
|
Auto and manual, frames can set as 100/200/500/1000
|
|
-Puncture assist function
|
The function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.
|
|
-Measure
|
Length, Area, Angle, heart rate, Obstetrics
|
|
-Image save
|
jpg, avi and DICOM format
|
|
-Image frame rate
|
18 frames/second
|
|
-Battery working time
|
2.5 hours(according to whether keep scan)
|
|
-Battery charge
|
By USB charge or wireless charge, take 2 hours
|
|
-Dimension
|
L156×W60×H20mm(if with transvaginal head length is 270mm)
|
|
-Weight
|
250g
|
|
-Wifi type
|
802.11g/20MHz/5G/450Mbps
|
|
-Working system
|
Apple iOS and Android, Windows
|
