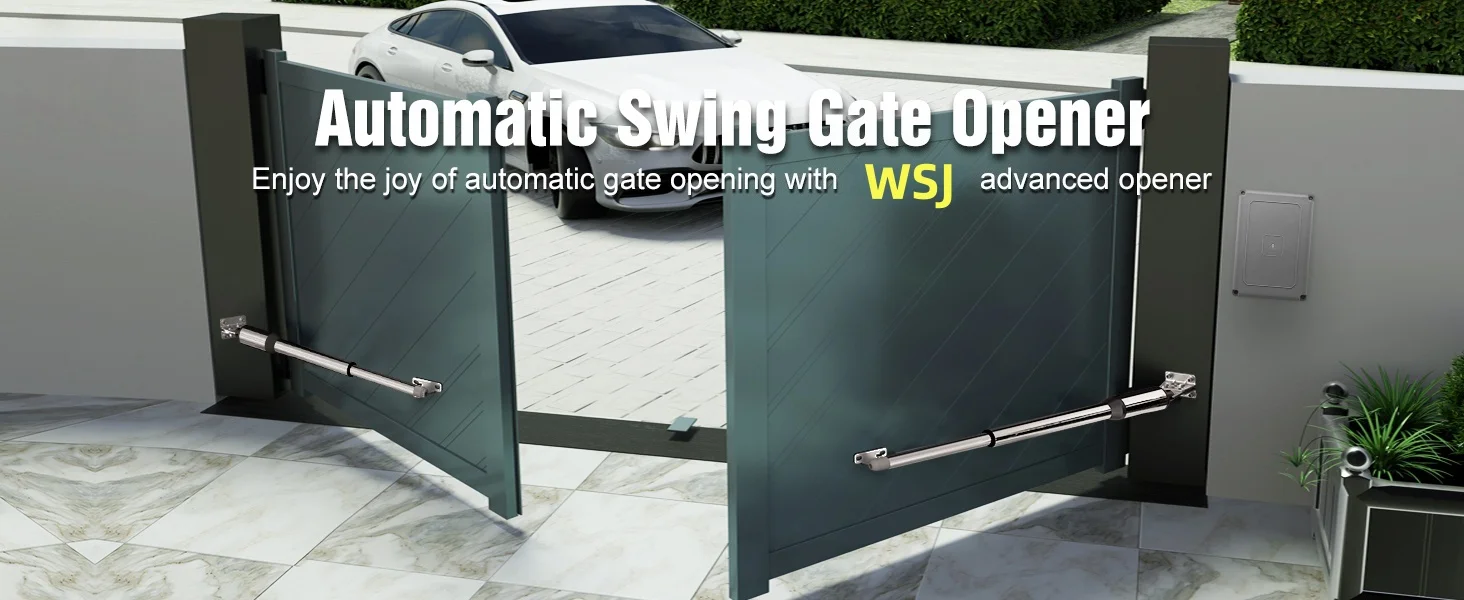

Light Duty Dual Swing Gate Opener
Parts List
* Controller * 1
* Motor arm * 2
* Remote control *2
* Installation accessories * 1
* Manual Release Key * 2
* Instruction manual * 1
* Motor arm * 2
* Remote control *2
* Installation accessories * 1
* Manual Release Key * 2
* Instruction manual * 1
Characteristic:
This electric gate opener supports three power supply modes.It can powed by 110V AC municipal electricity.You can also add a 24V battery (not incl) as a back-up power supply.Solar panels and solar charge controllers also can be used to charge the batteries (not incl). Three options for you to choose, perfect for DIY enthusiasts. Connecting the actuator to the motor2 terminal. The "1" key controls motor2 and the "2" key controls motor1 and motor2.
Detail Display

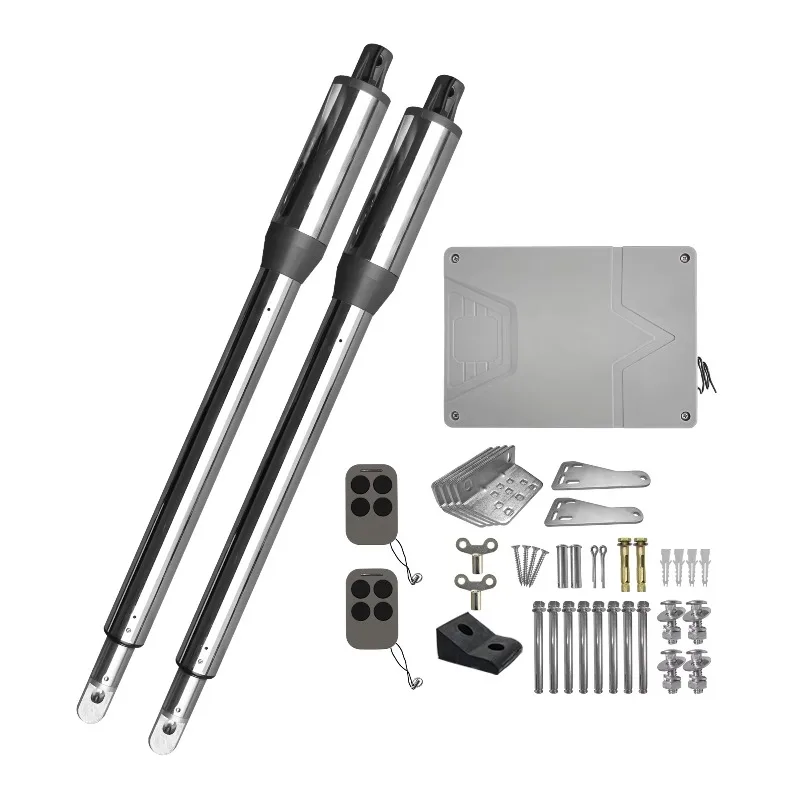

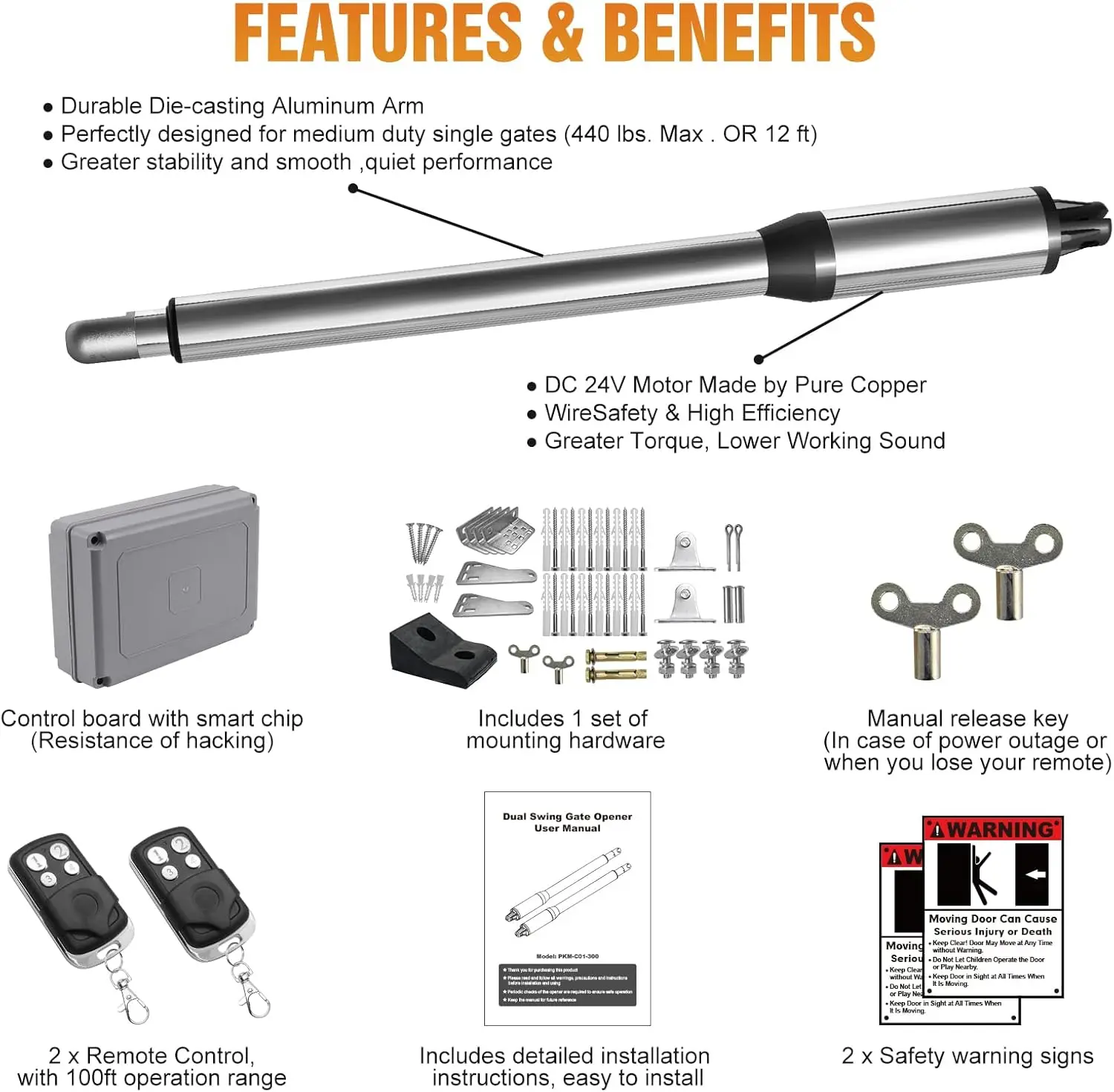

What’s in the Box

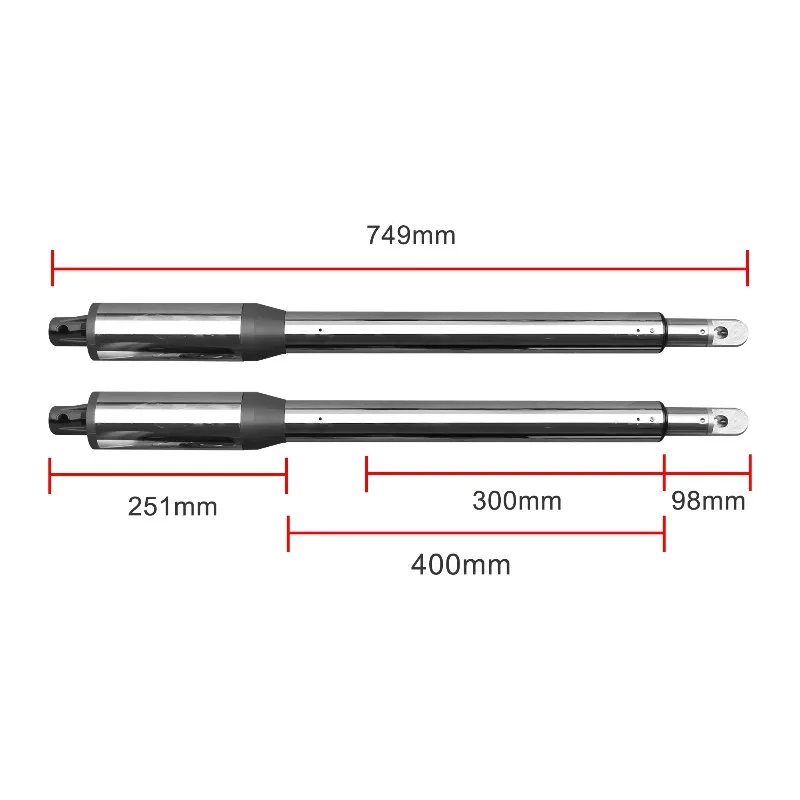

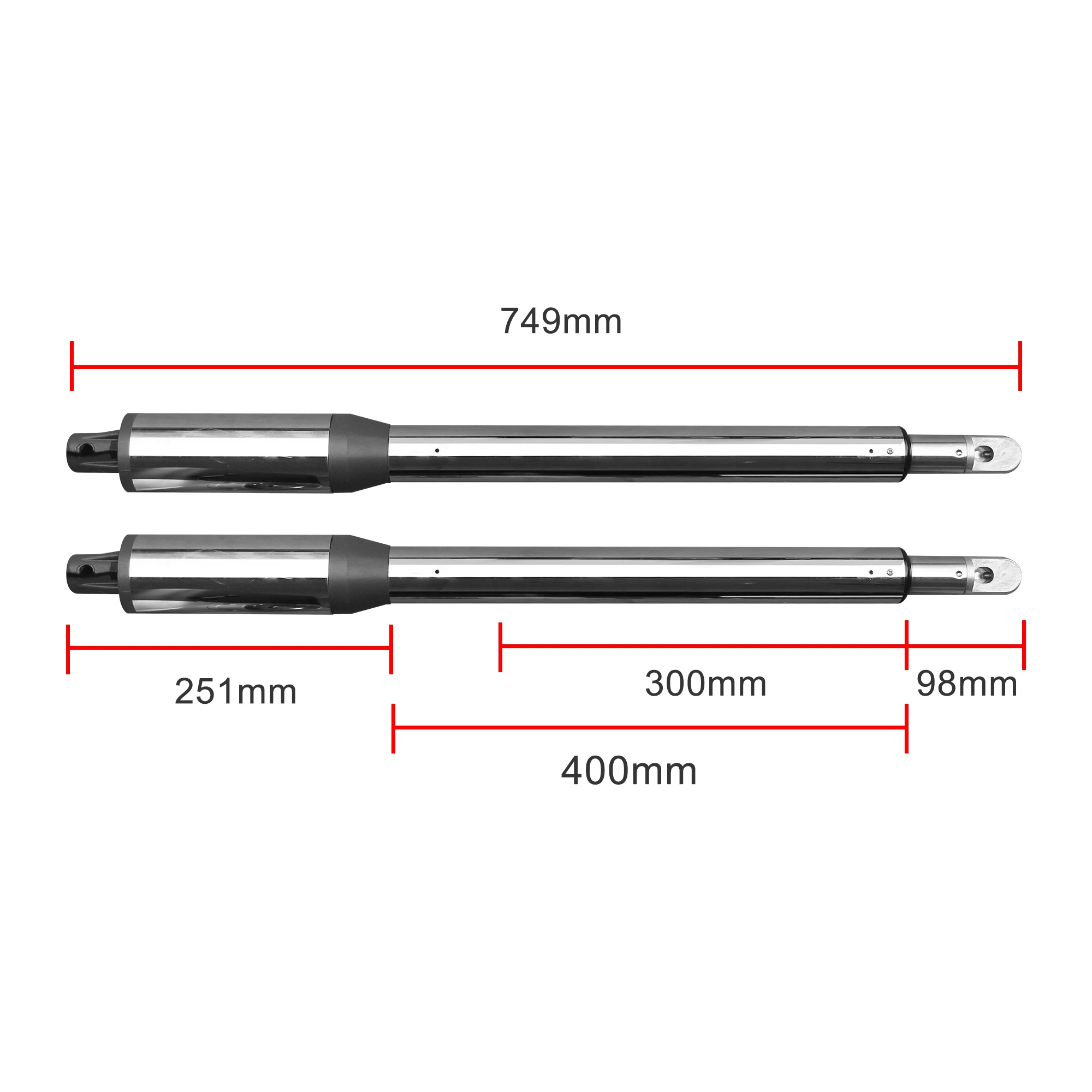

* Actuator:2pcs .
*Control Box:1pcs .
* Remote Control:2pcs .
* Remote Control:2pcs .
*Mounting Part: 1 set
* Rubber Stopper:1 pcs
* Manual Release Key:2 pcs
* Rubber Stopper:1 pcs
* Manual Release Key:2 pcs
Excellent Remote Control
* Adopting advanced code technology, prevent Unauthorized Access.
* Operation Range: 100ft.
* Supported up to 120 remotes
* Operation Range: 100ft.
* Supported up to 120 remotes

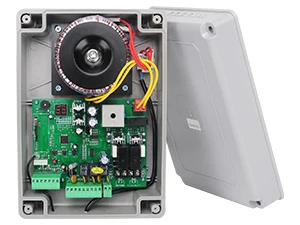

Smart & Sturdy Control Box

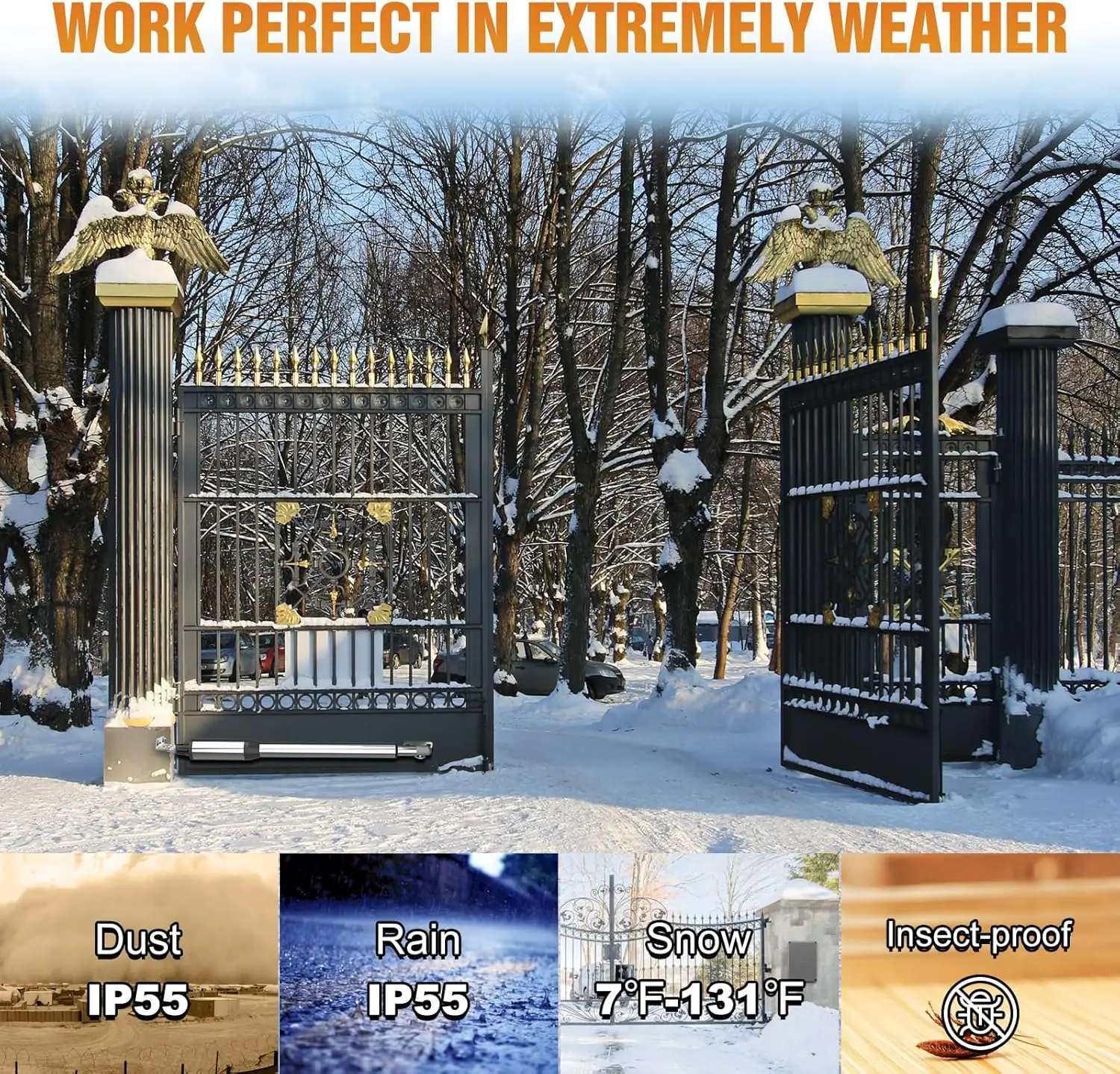

* From-7°F-131°F, gate opener will keep opening and closing just the way you need, its IP55 casing preventing damage from rain, dust and insect.
Efficient Limit Stop
* The integrated gate stop ensures accurate gate positioning and prevents unintended damage for smooth and safe operation.
The “auto-close” function ultimately secures the property after you leave.
Soft start and soft stop ensure a long-lasting performance.
Soft start and soft stop ensure a long-lasting performance.
Either style works just as easily to open your gate from the comfort of your car or home.
Method 1:
* Use the 110-120VAC electricity to power the system only.
* Recommended where AC electricity is accessible and stable.
* Recommended where AC electricity is accessible and stable.
Method 2:
* Batteries as back-up power source, use the AC electricity to charge the batteries.
* Requires additional 24V(2 pcs 12V) Marine type battery (NOT INCL).
* Requires additional 24V(2 pcs 12V) Marine type battery (NOT INCL).
Method 3:
* Batteries are used as the main power source , solar panels and solar charge controller are used to charge the 24V batteries(2 pcs 12V ,Not incl).
Method 4:
* By 110-120VAC electricity and back-up batteries, use the AC electricity, solar panel & solar charge controller(NOT INCL.) to charge the batteries.
Product Paramenters
|
Dual/Single gate opener
|
|
Dual
|
|
|
|||
|
Max gate length
|
|
16 FT per arm
|
|
|
|||
|
Max gate weight
|
|
770 lbs per arm
|
|
|
|||
|
Batteries included
|
|
NO
|
|
|
|||
|
Solar Panel
|
|
NO
|
|
|
|||
|
Power supply
|
|
220V/110V ±10%
|
|
|
|||
|
Motor
|
|
24V DC
|
|
|
|||
|
Motor power
|
|
40W x 2
|
|
|
|||
|
Work temperature
|
|
-20~ + 55
|
|
|
|||
|
Protection class
|
|
IP 55
|
|
|
|||
Sichuan Wanshijia Technology Co., Ltd. is a professional manufacturer engaged in the research and development, design, and production of door openers.Our main products are automatic door openers (frames and chains). Our products are of superior quality and sell well both domestically and internationally. We can not only provide products with our own trademarks, but also offer OEM services to many large companies both domestically and internationally. The product quality meets the global housing demand, making our customers more competitive.
Is there any inventory available Having sufficient inventory; 1) 100 sets of inventory for each type of product; 2) The inventory products are in neutral packaging and do not have a brand; Delivery Time Ship on the same day or the next day after receiving payment; Customized Content 1) Product logo customization: For machines with more than 20 sets, logos can be customized for free; 2) Customization of outer packaging: Free customization of outer packaging for more than 100 sets; after-sale service 1) Most products have a one-year warranty period, starting from the receipt of the goods; 2) Free accessories provided during the warranty period, excluding shipping costs; 3) Provide free technical support;
