- High-concerned chemical: None
- Origin: Mainland China
- Battery Type: LiFePO4
- Model Number: 51.2V200AH
- Brand Name: Improve; customized logo
- Place of Origin: Guangdong, China
- System Voltage: 51.2 V
- Output Power Range: 10~20 kWh
- Dimension (L*W*H): 600*500*619
- Weight: 150
- System Type: Stackable
- Type: All-In-One
- Communication Port: CAN, Rs485
- Protection Class: IP55
- Grid connection: Off grid
- Product name: Stacked battery system 10kw 20kw 30kw
- Material: Metal
- BMS: Built-in
- Compatible Inverter: Growatt,Goodwe,Sol-Ark,SRNE,DEYE
- Cycle life: 6000 cycles
- Features: Easy installation,Movable module lithium battery,Minimalist design
- OEM/ODM: Warmly Welcomed
- Application: Home Solar Energy Storage System
- Warranty: 5 Years
- Package: Foam cotton+carton
Dear customer, Welcome to my store,We sell all kinds of products. If you have any other items you wish to purchase, please feel free to consult us.There is a discrepancy between the current price and the actual price (configuration and logistics). To obtain product details and more favorable prices, please add WhatsApp for confirmation Manager: Liu Mr WhatsApp:+86 19176692407 Email：1799483840@qq.com
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-3{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-4{border-bottom-style:solid;border-bottom-color:#8cb96f;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-5{width:750px;border-collapse:collapse}#detail_decorate_root .magic-6{min-height:28px;padding:5px 10px;width:103px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-7{font-size:12px}#detail_decorate_root .magic-8{min-height:28px;padding:5px 10px;width:186px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-9{text-align:center}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:182px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:193px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:602px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{display:none}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:194px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{font-family:Arial}#detail_decorate_root .magic-17{overflow:hidden;width:750px;height:1292px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:750px;height:1292px}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:1000px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:1000px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:1170px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:1170px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:500px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:500px}#detail_decorate_root .magic-25{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-26{margin-bottom:0}#detail_decorate_root .magic-27{position:relative;width:100%}#detail_decorate_root .magic-28{vertical-align:top}#detail_decorate_root .magic-29{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-30{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-31{width:245px;height:181.63793103448276px;overflow:hidden}#detail_decorate_root .magic-32{position:relative;left:0;top:0;width:245px;height:181.63793103448276px}#detail_decorate_root .magic-33{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-34{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-35{width:245px;height:181px;overflow:hidden}#detail_decorate_root .magic-36{overflow:hidden;width:426px;height:453.69px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:4px}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:426px;height:453.69px}#detail_decorate_root .magic-38{width:320px}#detail_decorate_root .magic-39{overflow:hidden;width:320px;height:148px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:320px;height:148px}#detail_decorate_root .magic-41{overflow:hidden;width:320px;height:148px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:-42px;margin-left:0;width:320px;height:213px}#detail_decorate_root .magic-43{margin-top:-52px;margin-left:-1px;width:320px;height:213px}#detail_decorate_root .magic-44{overflow:hidden;width:184.5px;height:150.4076086956522px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:184px;height:150px}#detail_decorate_root .magic-46{overflow:hidden;width:184.5px;height:150.4076086956522px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-47{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-49{overflow:hidden;width:247.33333333333334px;height:221.19241192411928px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-50{margin-top:0;margin-left:0;width:247px;height:221px}#detail_decorate_root .magic-51{overflow:hidden;width:247.33333333333334px;height:220.2968960863698px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-52{margin-top:0;margin-left:0;width:247px;height:220px}#detail_decorate_root .magic-53{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}
Specification
|
Battery Model
|
PB48200
|
PB48200*2
|
PB48200*3
|
||
|
Inverter
|
With 5kwh Inverter
|
|
|
||
|
Certification
|
CEFCCROHSMSDSUN38.3
|
|
|
||
|
Nominal Voltage
|
51.2V
|
|
|
||
|
Nominal Capacity
|
200AH
|
400AH
|
600AH
|
||
|
Nominal Energy
|
10kwh
|
20kwh
|
30kwh
|
||
|
Size
|
600*500*619mm
|
600*500*952mm
|
600*500*1285mm
|
||
|
Approx. Weight
|
≈140KG
|
≈240KG
|
≈340KG
|
||
|
Cycles Life
|
6000Cycles (80%DOD)
|
|
|
||
|
Charge Voltage
|
58.4V
|
|
|
||
|
Discharge Cut-off Voltage
|
40V
|
|
|
||
|
Max. Continuous
Charge Current
|
100A ( 200A Customized)
|
|
|
||
|
Max. Continuous
Discharge Current
|
100A ( 200A Customized)
|
|
|
||
|
Charge/Discharge Connector
|
4pin screw-bolt
|
|
|
||
|
Communication Mod
|
CAN/ RS232/ RS485 (Optional)
|
|
|
||
|
Case Material
|
Metal
|
|
|
||
|
Enclosure Protection
|
IP54
|
|
|
||
|
Security Function
|
With gyroscope anti-theft function, Buzzer (Optional)
|
|
|
||
Details Show
Parallel Diagram
Company Profile
Certifications
Application
Communication Base Station
UPS System
Utility Grid
Wind Energy
Household Solar System
Solar Plant

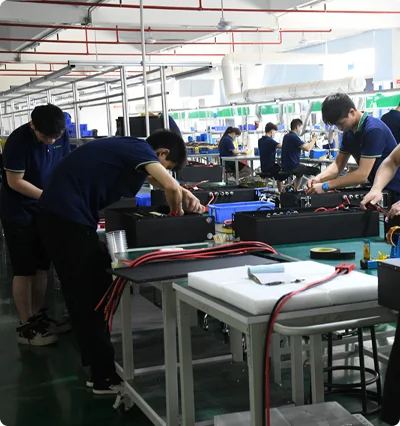

Workshop
Product Packaging & Shipping
FAQ
1. Who are we? We are based in Guangdong, China, start from 2014,sell to North America(20.00%),Eastern Europe(20.00%),South America(15.00%),Western Europe(15.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%),Mid East(4.00%),Southeast Asia(2.00%),Africa(2.00%),Oceania(2.00%). There are total about 11-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Energy Storage Battery, Household LiFePO4 Battery, Cabinet Type LiFePO4 Battery, Golft Cart LiFePO4 Battery, Fokrlift LiFePO4 Battery, etc.
4. Why should you buy from us not from other suppliers? We strive to consistently surpass customer expectations in quality, innovation, value, and service. We offer unparalleled attention to your specific battery specifications and needs. 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,EXW； Accepted Payment Currency:USD,HKD,CNY; Accepted Payment Type: T/T,PayPal,Western Union; Language Spoken:English,Chinese,Spanish
