Name: Sliding Table Stage Linear Module With 100mm to 850mm Effective Moving Length + HGR20 Guide Rails + 1605 1610 Ballscrew For CNC
SKU: 1005007567759047
Availability: InStock

High-concerned chemical: None
Brand Name: HLTNC
Model Number: HGR20 SFU1605
Guide Width or Diameter: 20mm
Origin: Mainland China
Certification: CE,None
Guide Length:: Requirement
Usage:: laboratory precision displacement, demonstration and study
Size:: Customer's Request
Name:: linear translation stage
linear blocks: 4pcs HGH20CA
Linear rail name: HGR20
Z axis length: 100mm~500mm
Use of bearings: Three Angular Contact Bearings
Ball Screw: SFU1610(can be changed to 1605)
X axis length: 100mm~2000mm
Y axis length: 100mm~2000mm

●1610 For 57 86 Motor:
1* Sliding Table for 57/86 Motor

●1605 For 57 86 Motor:
1* Sliding Table for 57/86 Motor

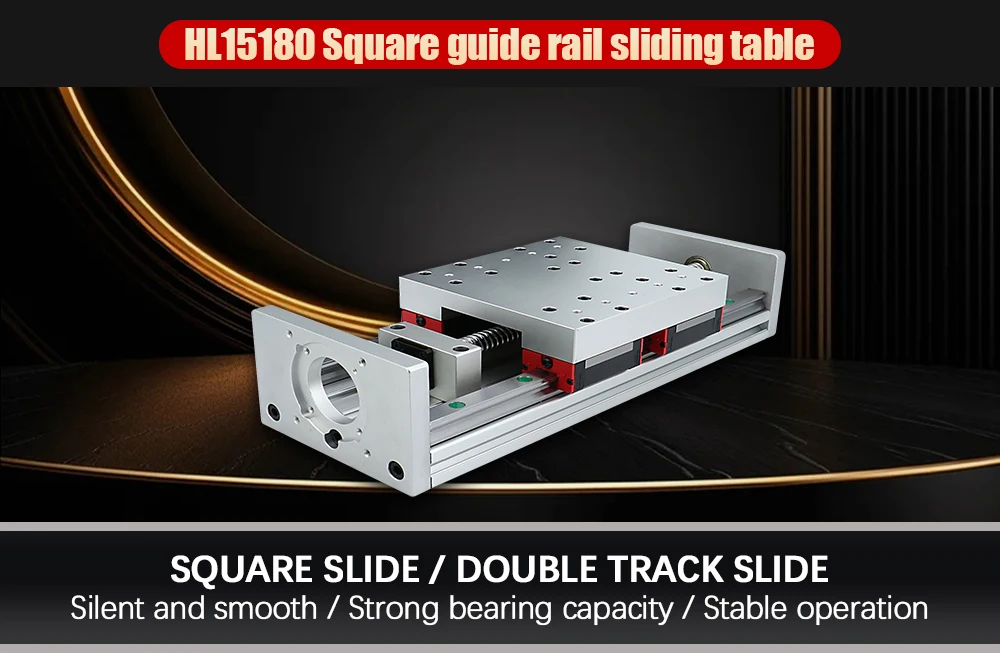

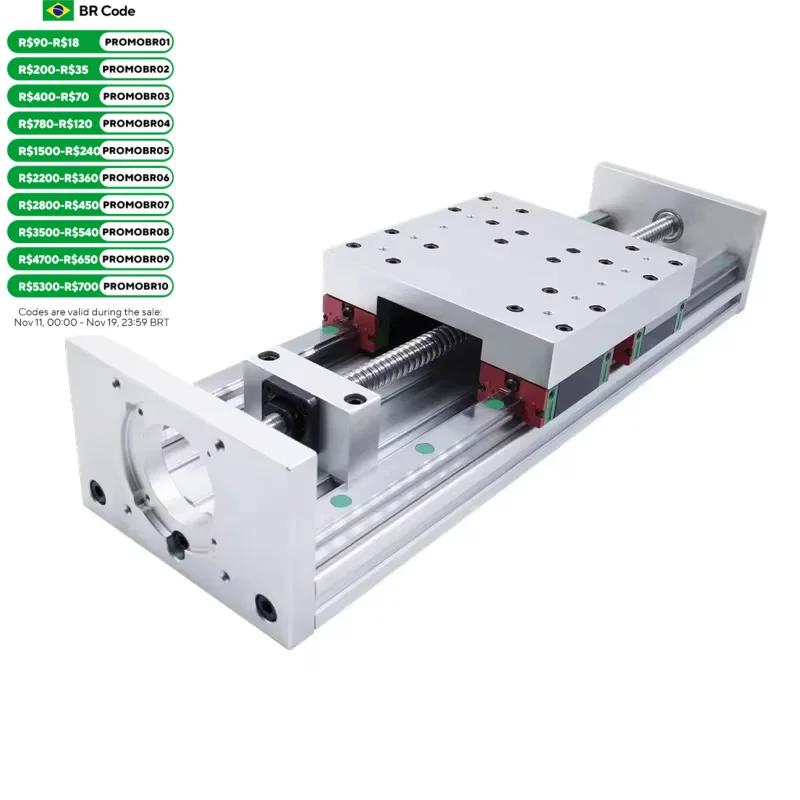

●Model:HL15180
●Material:Industrial Aluminum Profile
●Ballscrew type:SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFU1610
●Ballscrew accuracy:C7 level
●Slider type: HGR20 *2
●Guide Type:Guide rail *2
●Guide size: 20mm
●Horizontal load: 150KG (Max)
●Vertical load:50KG (Max)
●Motor bracket type:
For stepper motor: 57mm/86mm Optional
●Effective stroke:100mm-2000mm Optional
●Total slide table length:
Electric version:Effective stroke+84mm
●Maximum speed:1000mm/s
●Ballscrew Repeat positioning accuracy:0.02-0.03mm

Please note
1. Picture just as a reference. the actual delivered goods shall prevail !
2. Please check which Size and the Length you need.

Note:
1.3D Model (Click to open directly)
2.To build XZ, XY, XYZ axis, it is necessary to customize the connecting plate, please contact customer service for quotation.
3.The slide table is configured with Nema23/86 motor bracket by default, other brackets can be customized, please contact customer service for details.

	Black miniature guide rail sliding table GX1204, suitable for 3D printers.
	Black optical axis sliding table GX80, suitable for small CNC machines and 3D printers
	SBR16 sliding table, suitable for light load, small and medium CNC machines
	GX150 square guide rail sliding table, suitable for heavy loads, medium and large CNC machines
	Fully enclosed sliding table, suitable for high-precision, large dust, medium and large CNC machines


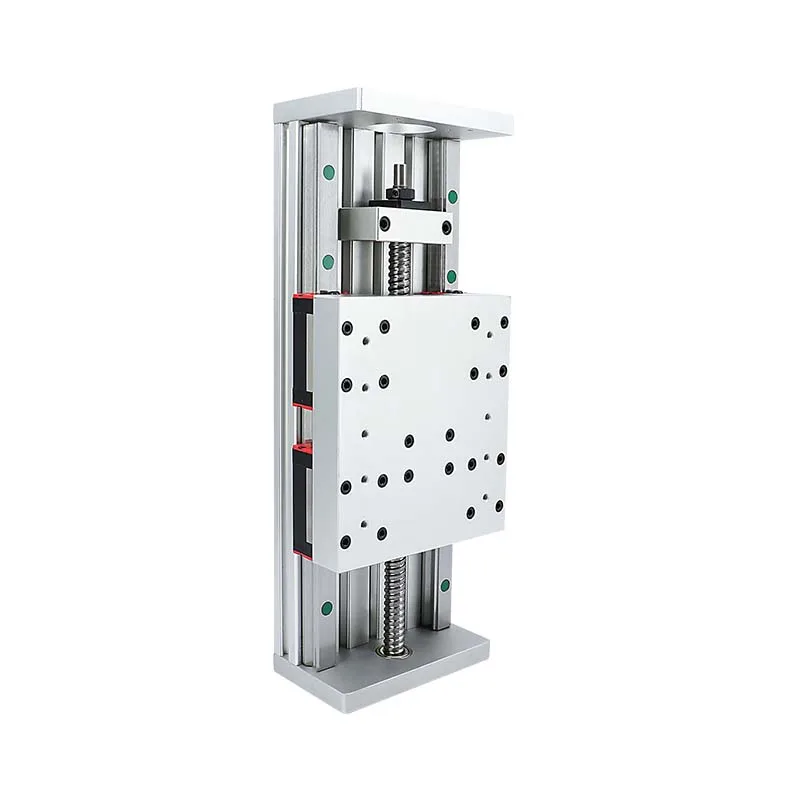

	1* Sliding Table ( the effective length as your choice)

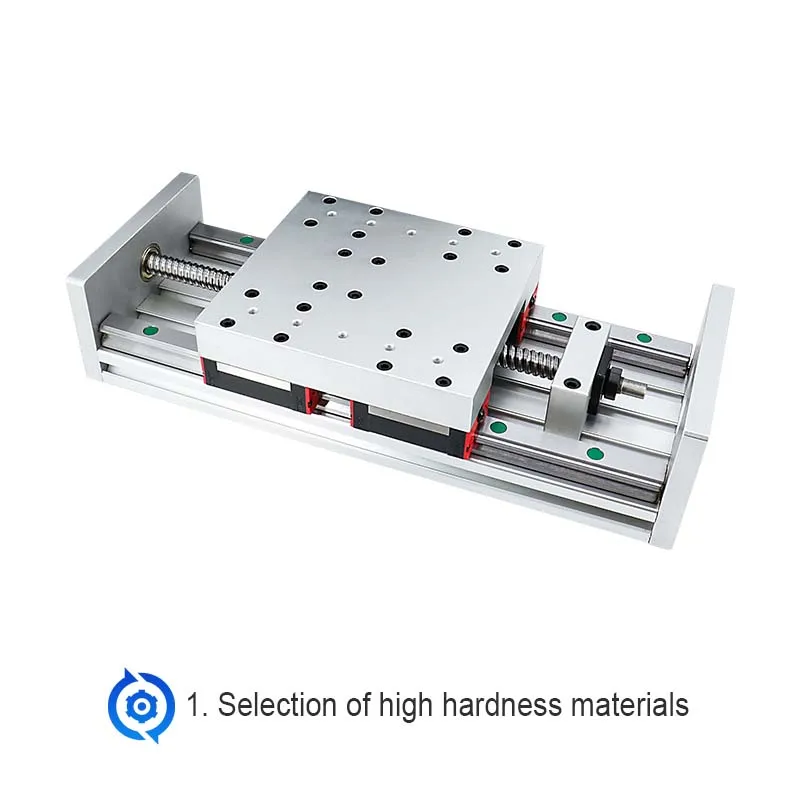

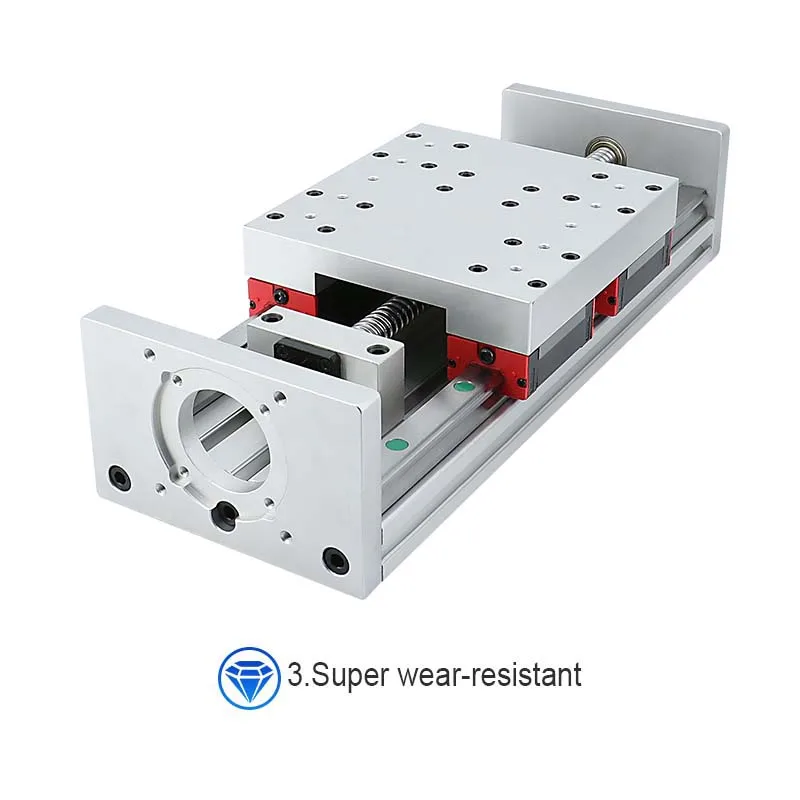

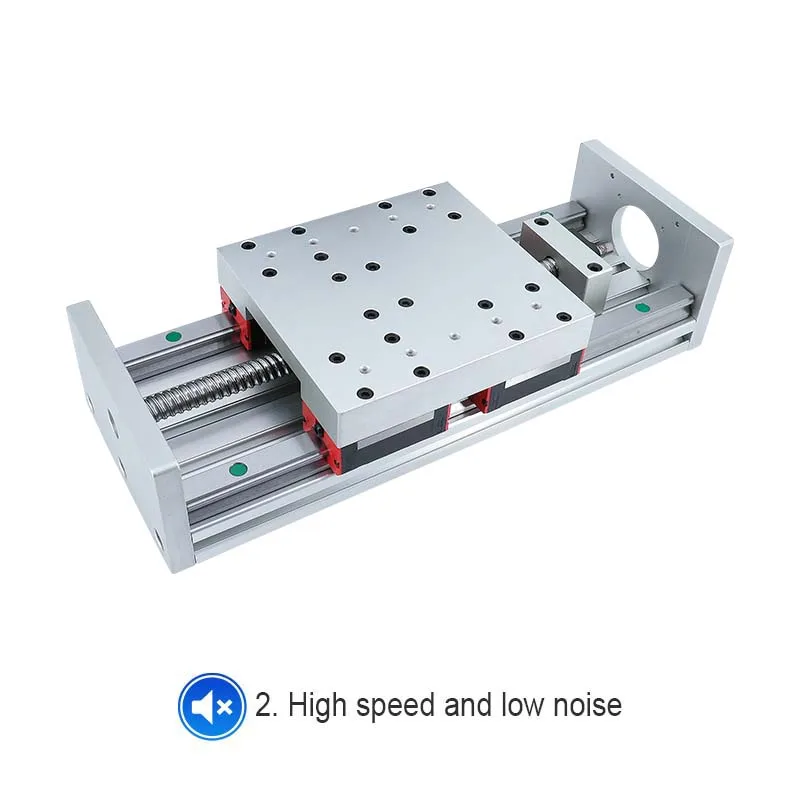

	1. G10 grade GCR15 steel ball
	2. 95% dustproof, lubrication, noise reduction
	3.GCR53 high carbon chromium bearing steel

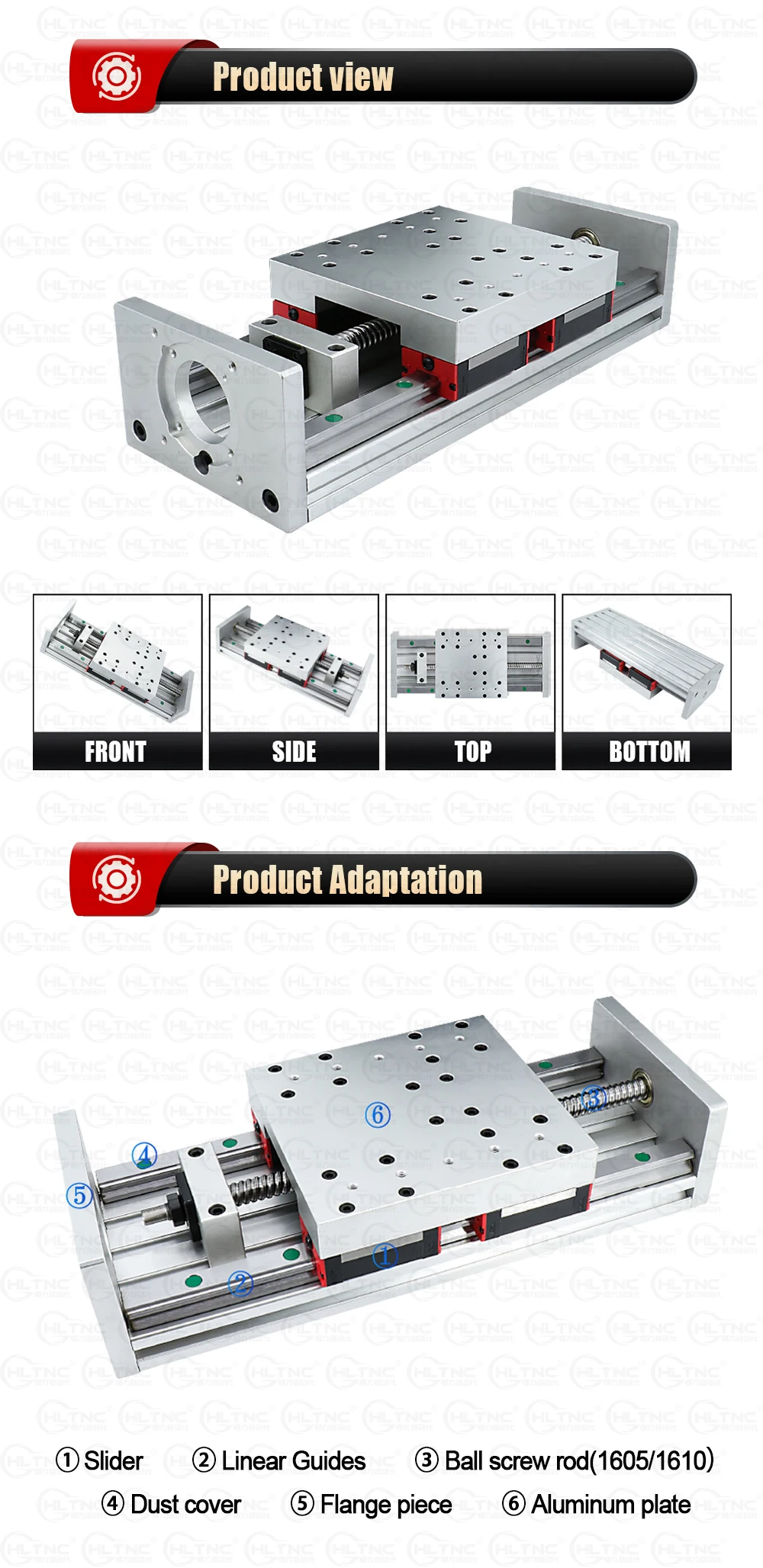

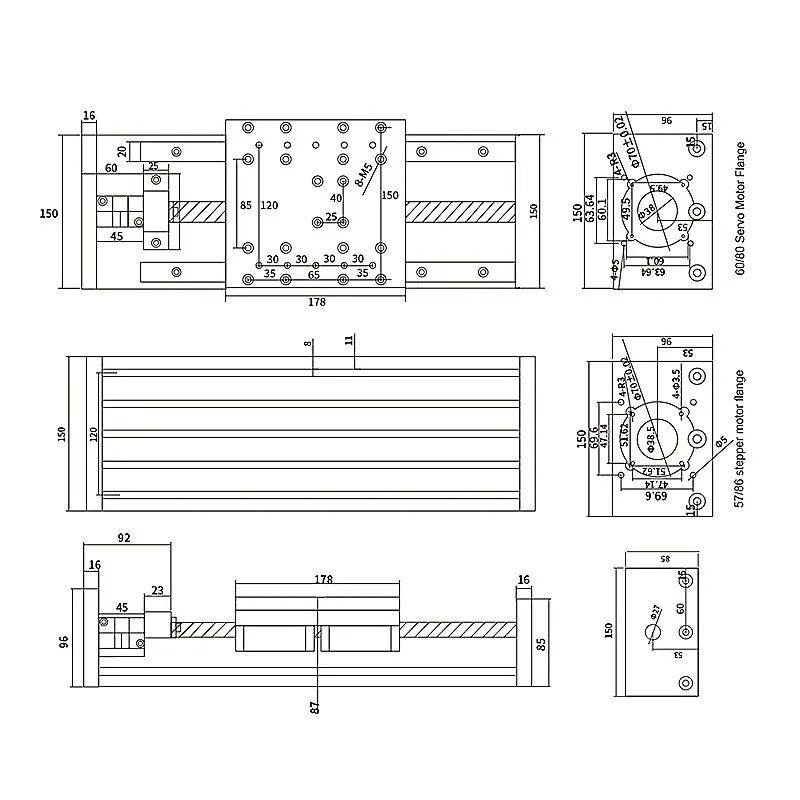

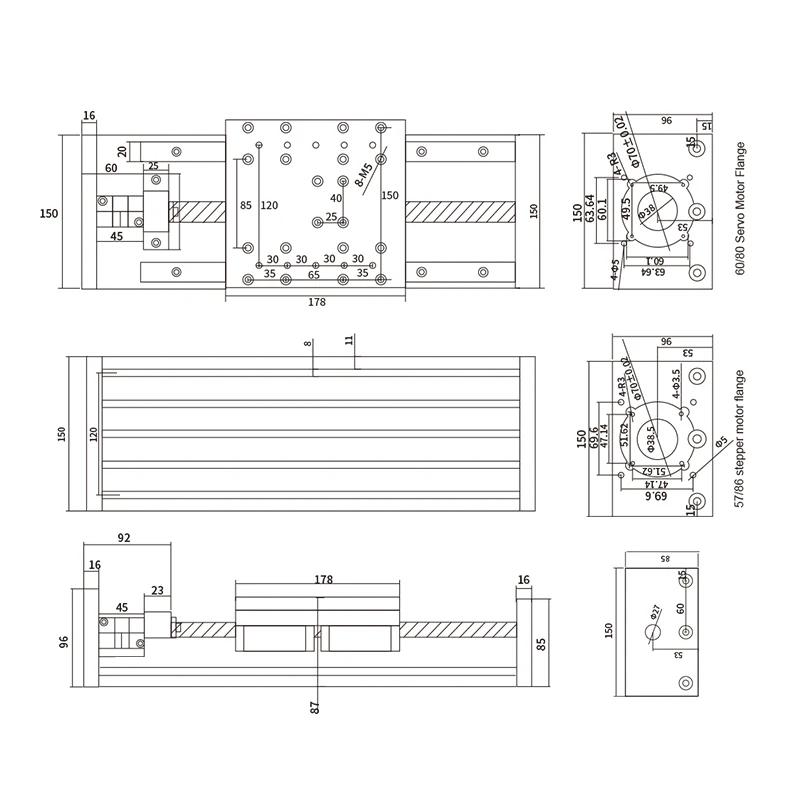

①Slider	② Linear Guides	③ Ball screw rod
④ Dust cover	⑤ Flange piece	⑥ Aluminum plate

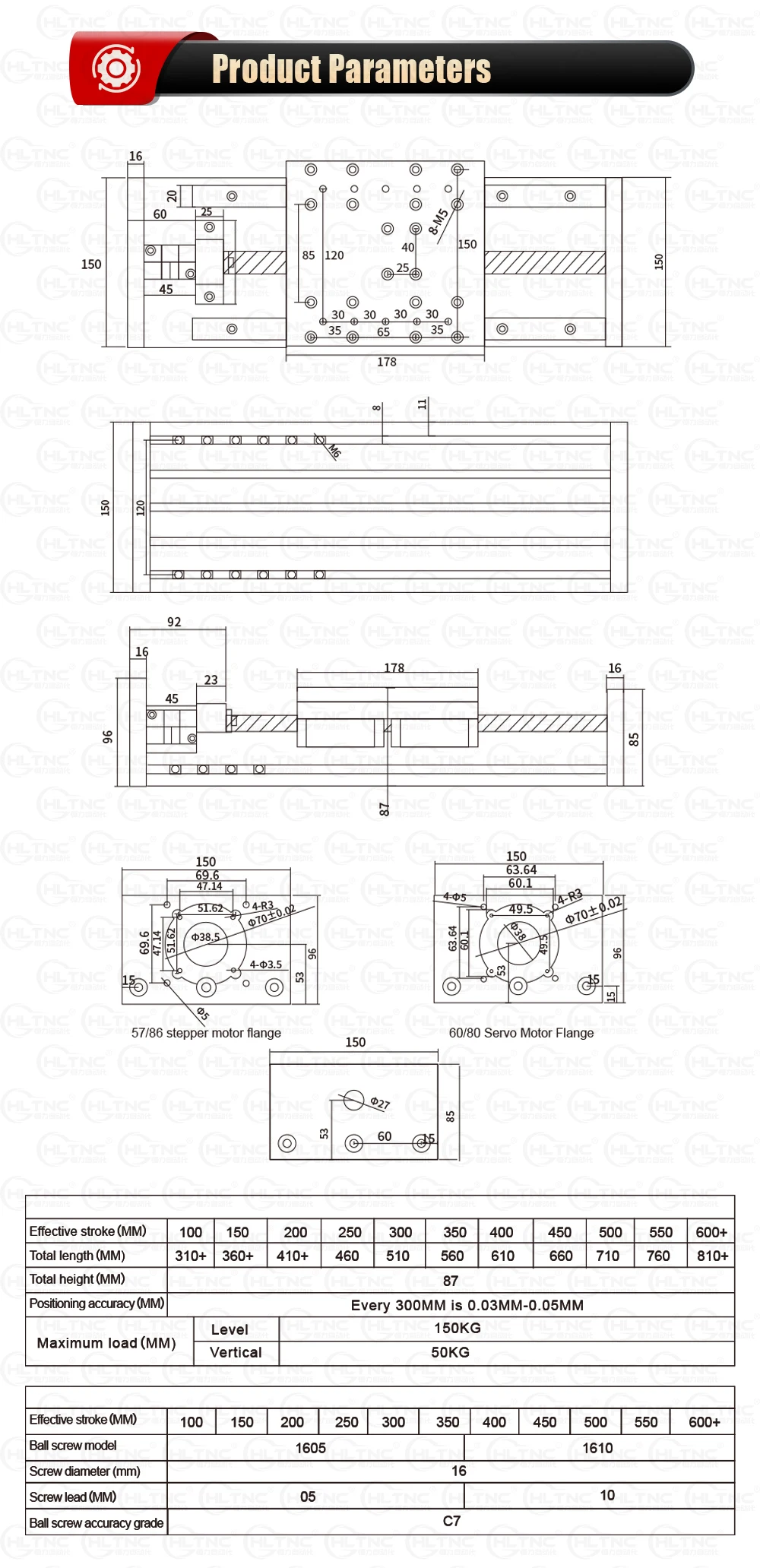

Effective Stroke(mm)	100	150	200	250	300	350	400	450	500	550	600+
Total Length(mm)	310+	360+	410+	460	510	560	610	660	710	760	810+
Total Height(mm)	87
Positioning Accuracy(mm)	Every 300mm is 0.03mm to 0.05m
Maximum Load(mm)	Level		150KG
Maximum Load(mm)	Vertiacl		50KG


Effective Stroke(mm)	100	150	200	250	300	350	400	450	500	550	600+
Ballscrew Model	1605					1610
Screw Diameter(mm)	16
Screw Lead(mm)	05					10
Ballscrew Accuracy Grade	C7
