86 Closed-loop stepper motor set 8.5N.M high speed constant torque closed loop motor 86HSE8.5N+ DL86 High Performance Step Servo Driver

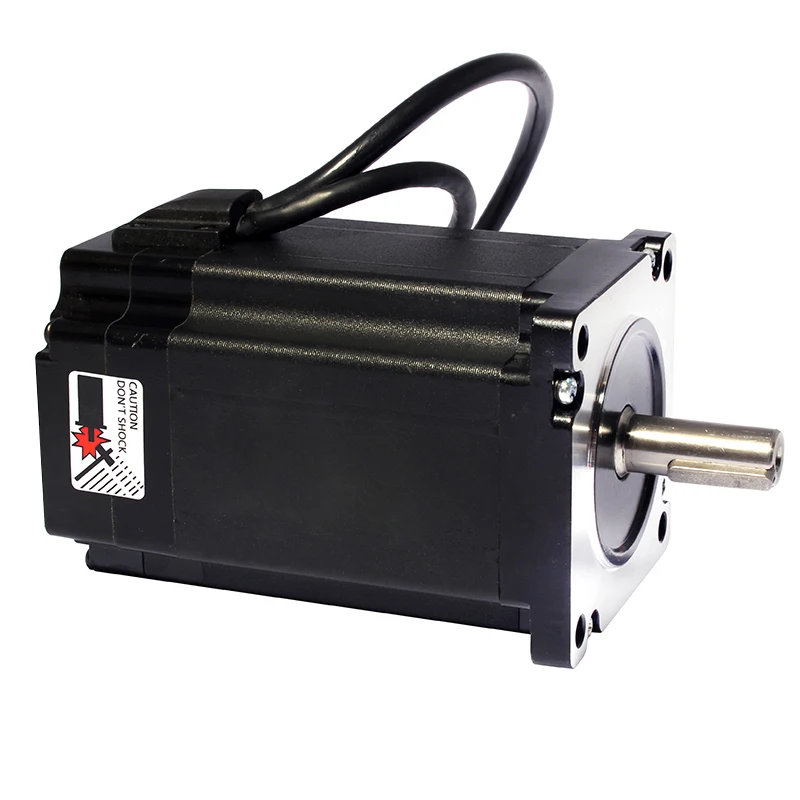

Details of Motor:
Motor Model: 86HSE8.5N
Motor Current: 5.8A
Output Torque: 8.5N.m.
Body Length: 137MM
Shaft Diameter: 14MM, keyway 5MM
Outlet Mode: single output shaft
Motor Temperature Resistance: below 85 degrees
Rotating Speed: Rated speed is 1000 rpm.Torque drops above 1000 rpm in one minute, up to 2000 rpm
Outlet Mode: Two-phase four-wire (red line A+, green line A+, yellow line B+, blue line B-)
Details of DL86 High Performance Step Servo Driver:
Drive Model: DL86 High Performance Step Servo Driver (Nema 34, 86 stepper motor)
Input: 18-80VAC, 24-110VDC
Advantage: More stable, higher performance, more precise
Features:
1. Low heat (static, the current is almost zero, no heat).
2.Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low frequency resonance has a very good resistance).
3. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
4. Large torque output in some cases can simplify the complexity of the machine.
Package Included:

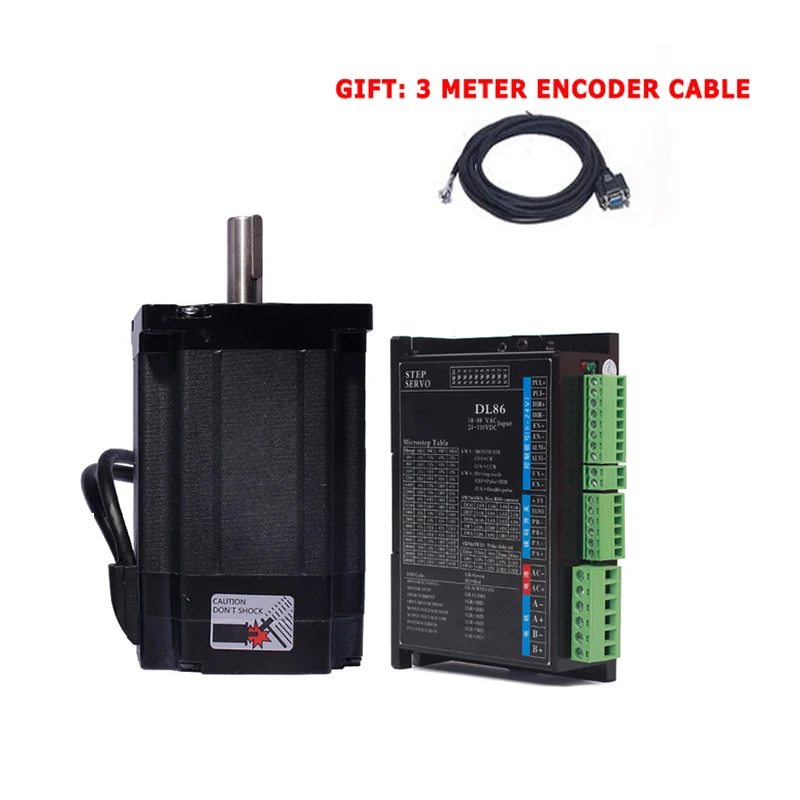

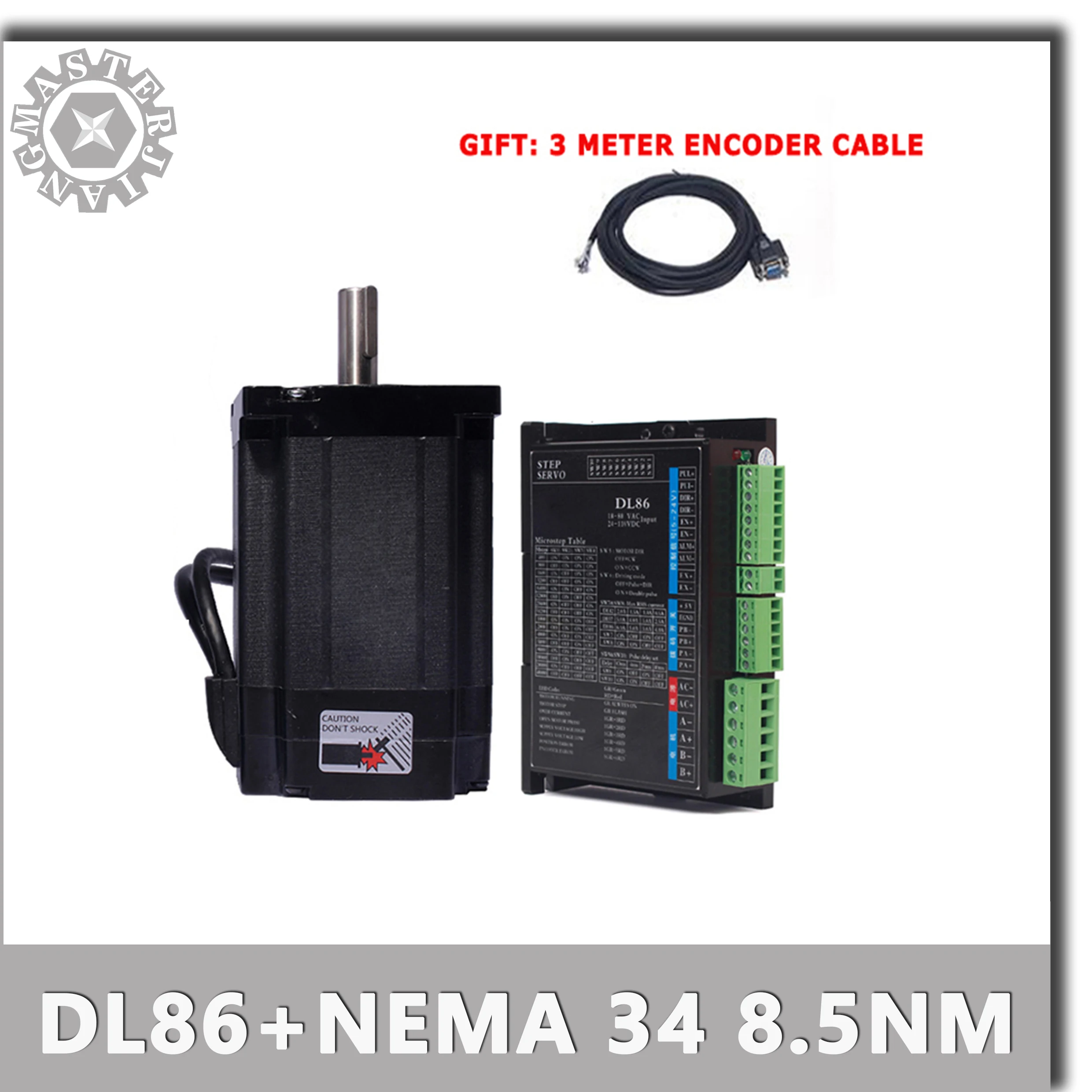

1 x DL86 High Performance Step Servo Drive
1 x 86HSE8.5N 8.5N.M. Motor (with about 30cm cables)
1 x 3 meters Encoder Cable
Note:
Please contact us, if you need:
1.English manuals
2.To add Longer Cable
3.To add Brake for Motor

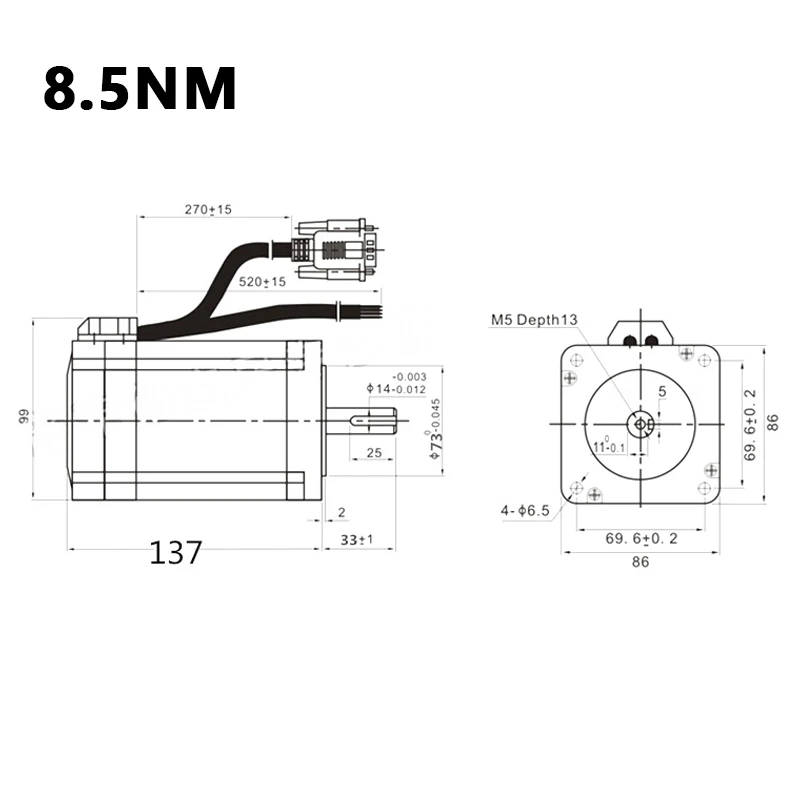

Size of 8.5NM Stepper motor
Gift: 3 Meter Encoder Cable
