Description:
The 22-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing.

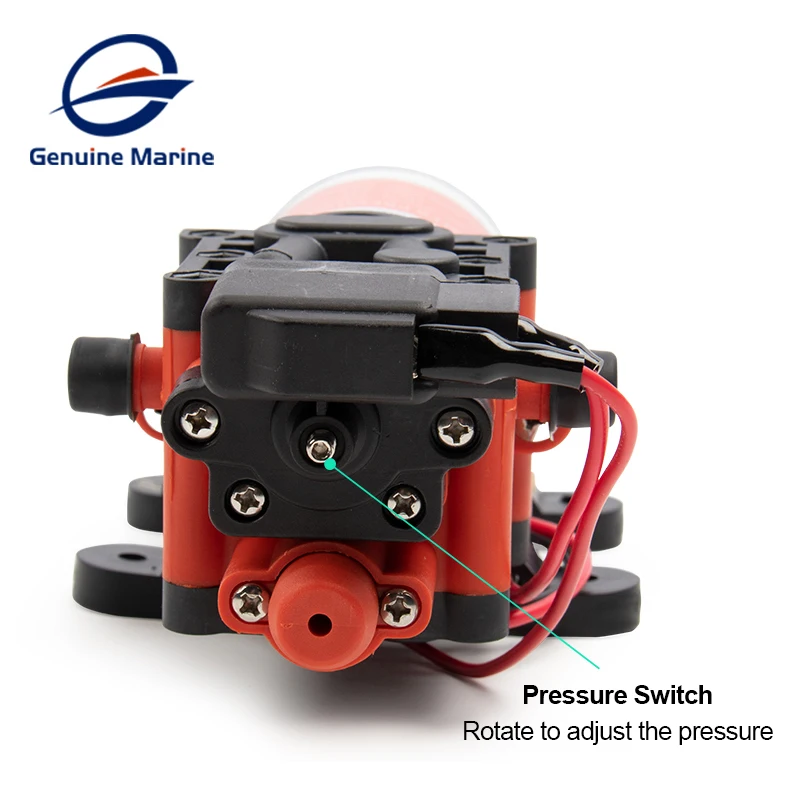

The 22-series of diaphragm pumps are self-priming, can be run dry without harm and have an internal bypass feature that reduces pump cycling. It provides up to 1.4 gallons per minute. Miniature multi-outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened and closed.

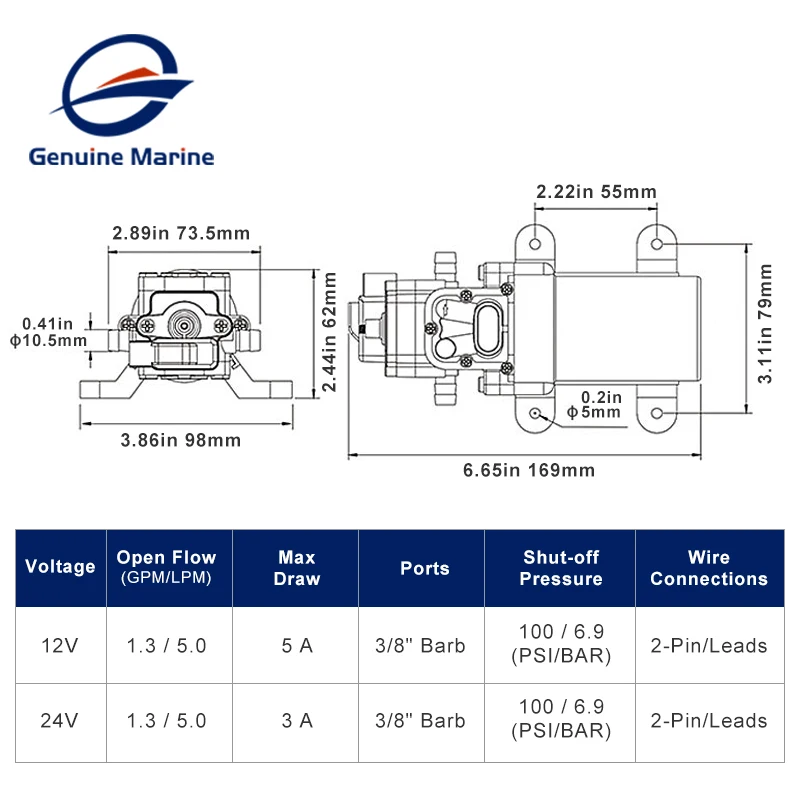

Specification:
Type: SFDP1-013-100-22
Control Type: Pressure switch & Bypass control
Max Recommended Temperature:60° C（140° F）
Priming Capabilities: 6 feet (1.8 m) suction lift
Re-start Pressure: Shut-off Pressure 100PSI
Inlet/Outlet Ports: 3/8" (10 mm) hose barb
Max.Amp Draw: 7.5 A
Voltage: 12V
Open Flow: 1.3 / 5.0（GPM/LPM）
Package Includes:
1 Piece pump
