Product Description

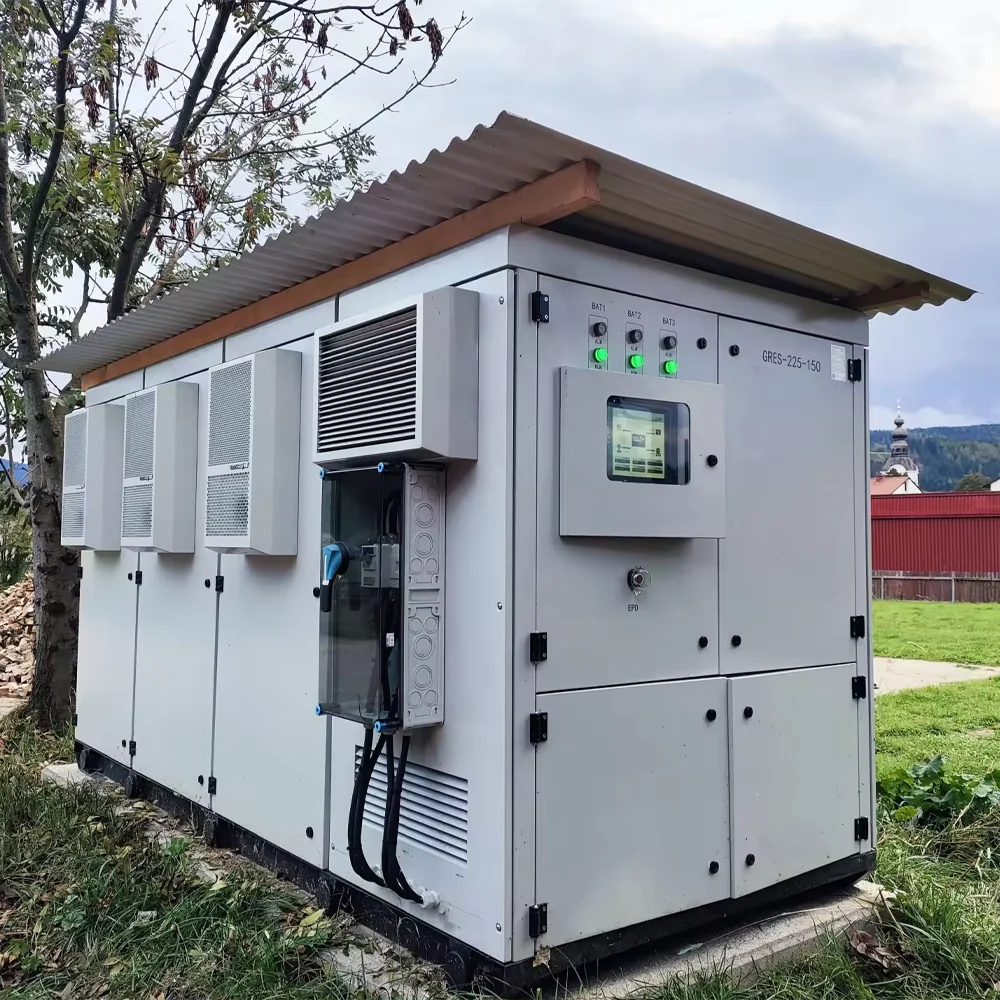

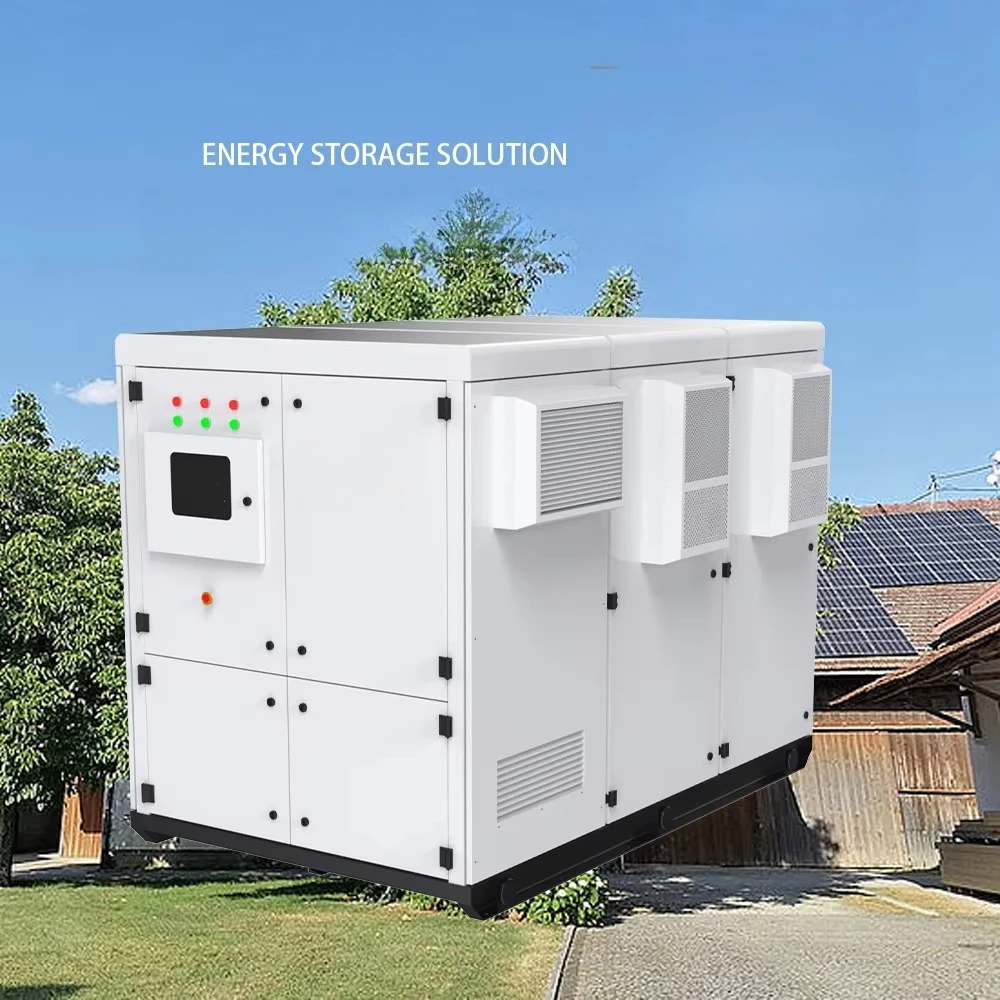

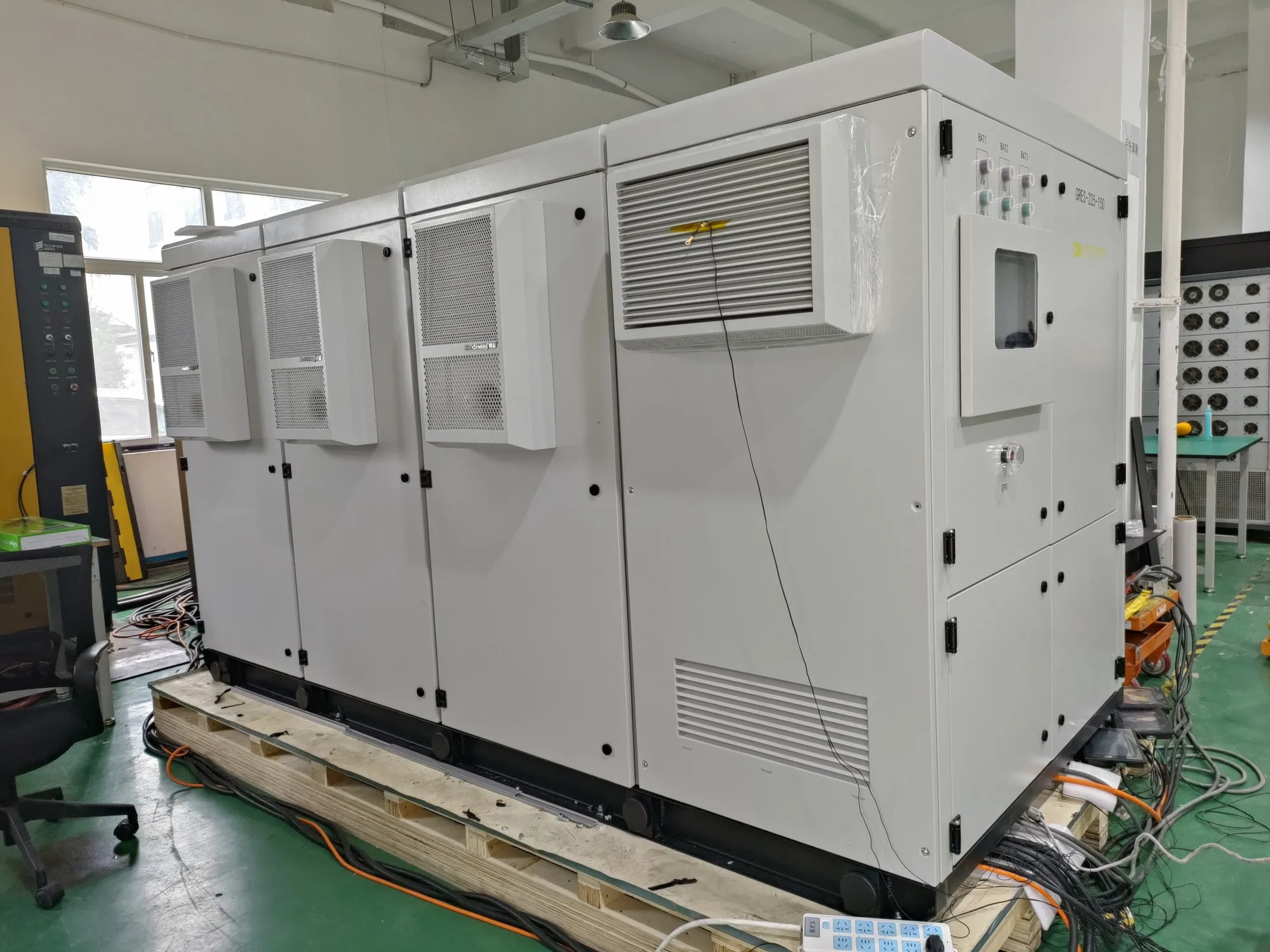

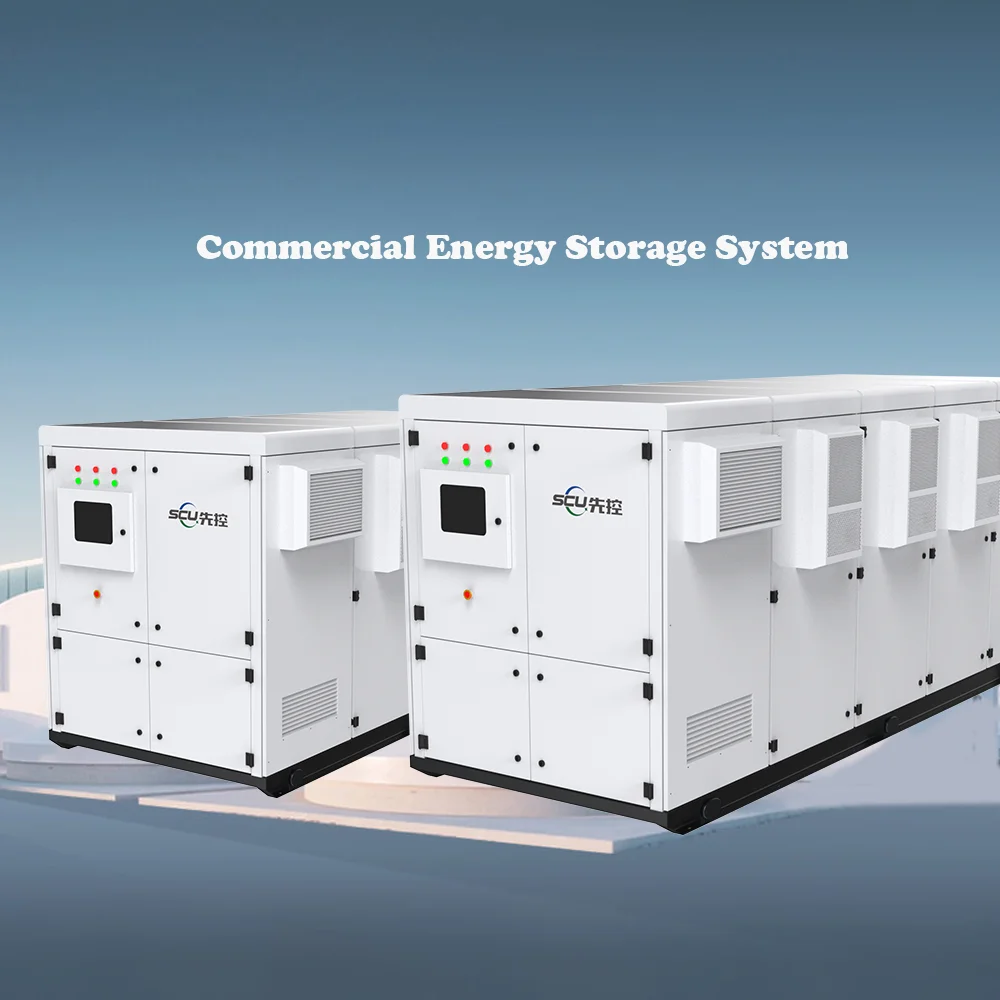

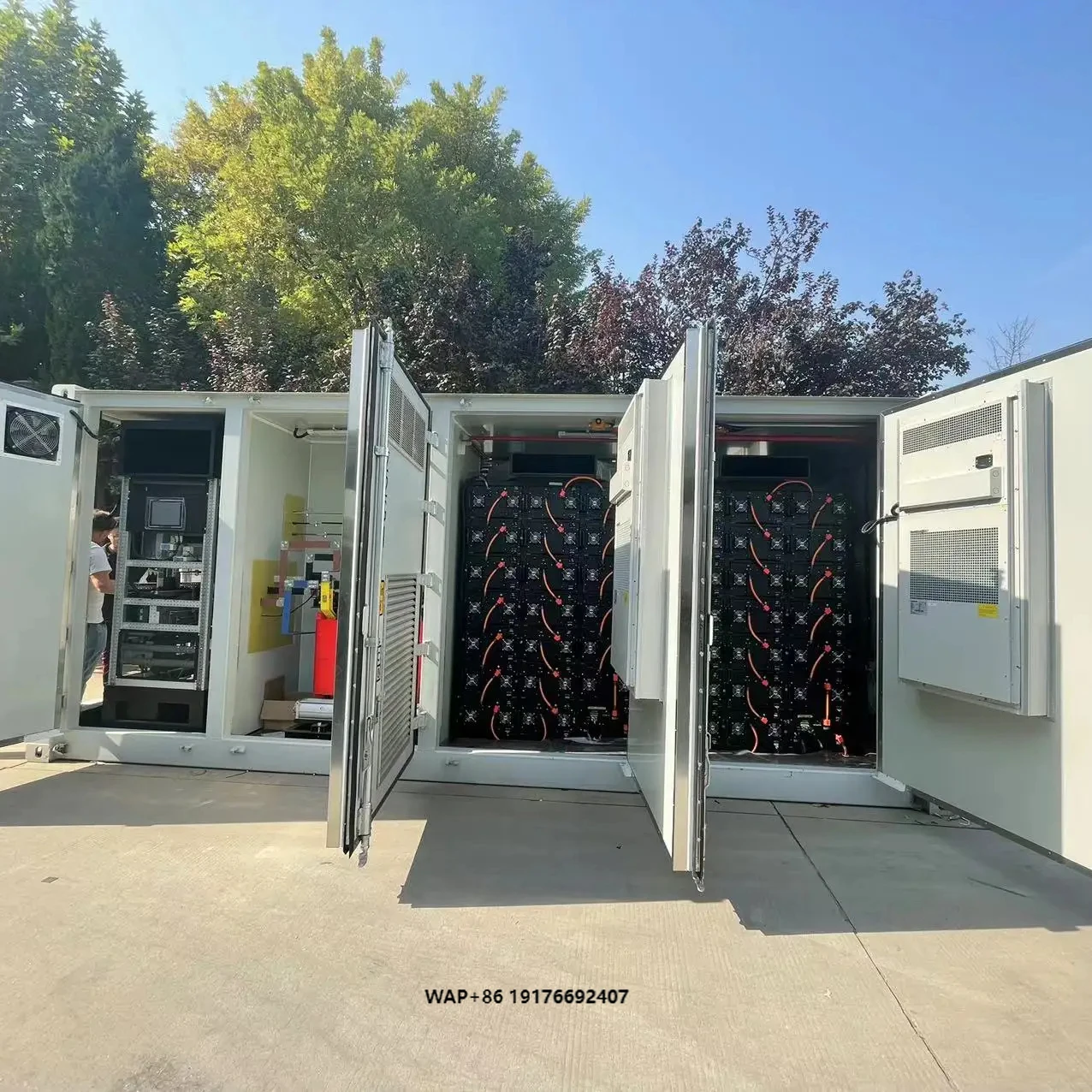

LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System
GRES is an intelligent and modular power supply equipment integrating lithium battery and MPCS. According to different application scenarios, lithium battery, bidirectional DC / AC converter, bidirectional DC / DC converter, Static switch and Power management system can be arbitrarily combined to realize grid connected power supply, off grid power supply and off grid uninterrupted power supply power supply, static reactive power compensation, harmonic suppression and other functions. The system can have access to new energy, power grid, diesel generator and to rreasonable configuration, scientific utilization, to provide users with green, environmental protection, noise free, high reliability and high security power services.
LiFePO4 Battery Energy Storage System
Using Lithium-ion phosphate battery cell, long life cycle and high safety;

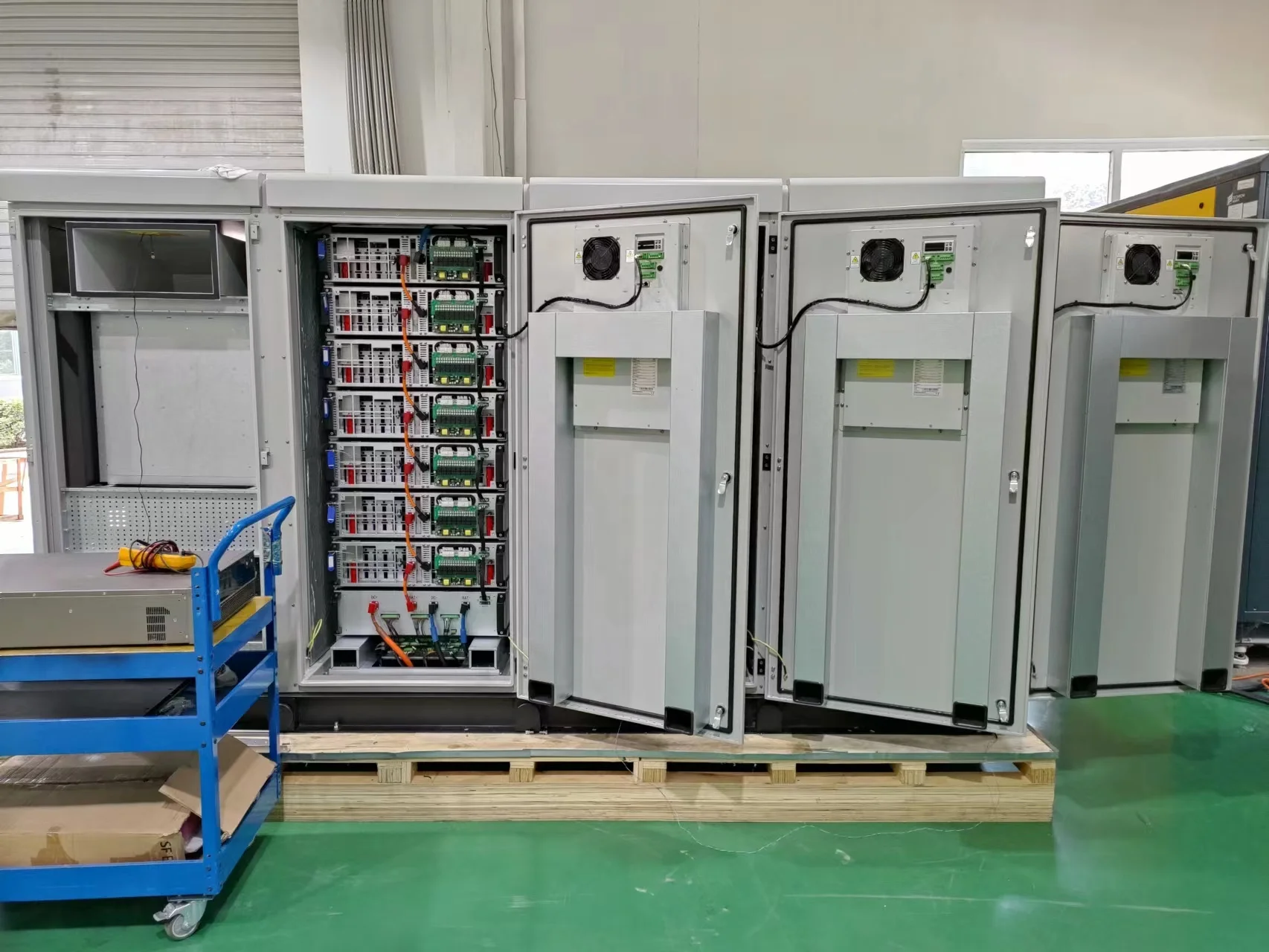

Each battery module is with 5.12kWh, the pack has a built-in BMU system, which can collect the voltage and temperature of each cell, and manage the cell balance, so as to ensure the normal operation of the whole pack safely and efficiently.
15 modules are connected in series to form one cluster, with control box and second level BMS(BCU);
Several clusters connected in parallel to be different capacity.

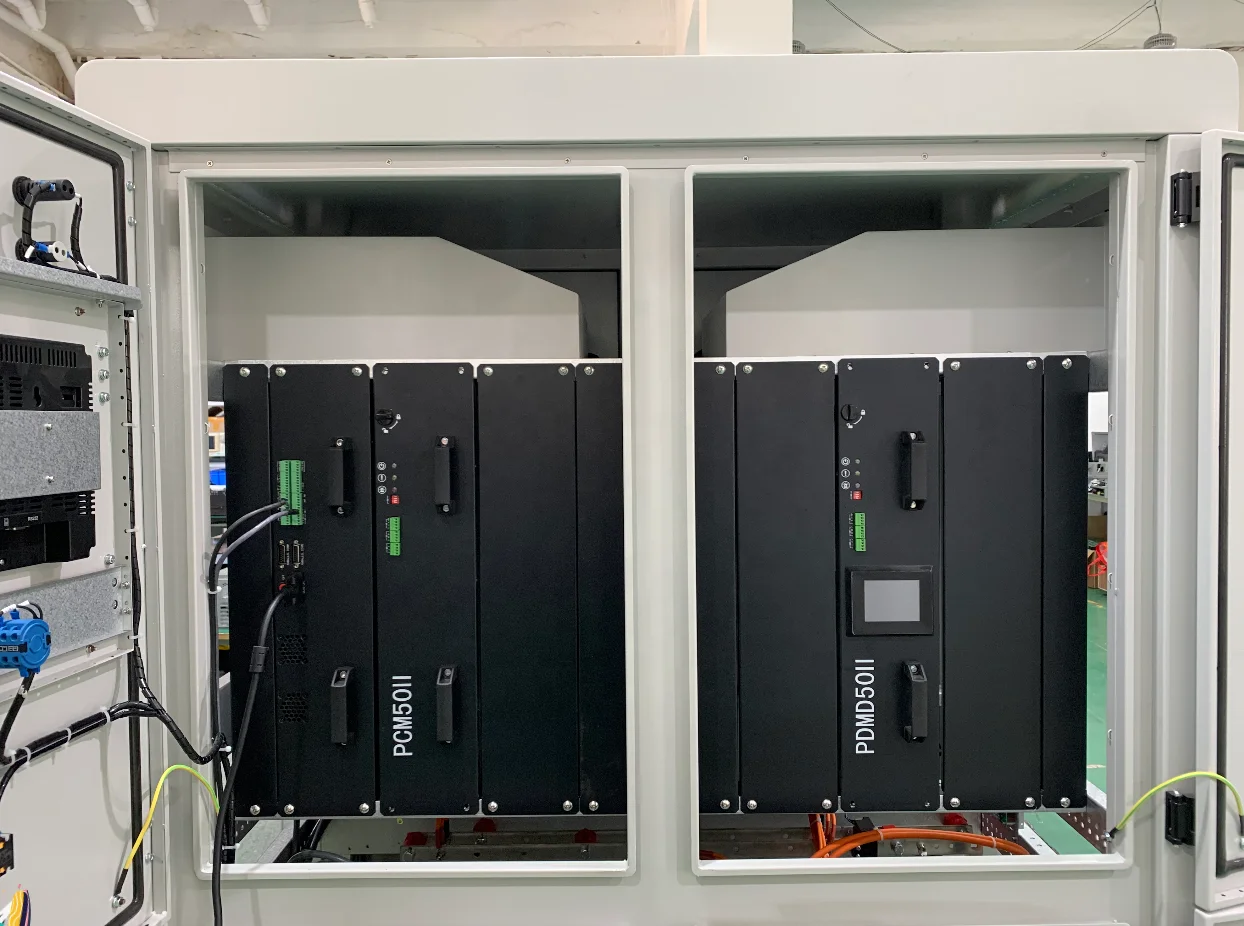

Multifunctional PCS
Bidirectional AC / DC converter can realize the bidirectional conversion from DC to AC and AC to DC. It can not only convert AC to DC to charge battery, but also convert DC to AC to supply power to load or feed back to power grid.
PV Control Module (MPPT) The function of DC / DC module is to filter the power from photovoltaic panel, increase its voltage for bidirectional DC / AC converter or store energy for lithium battery. Static Transfer Switch Seamless on/off grid automatically switch.

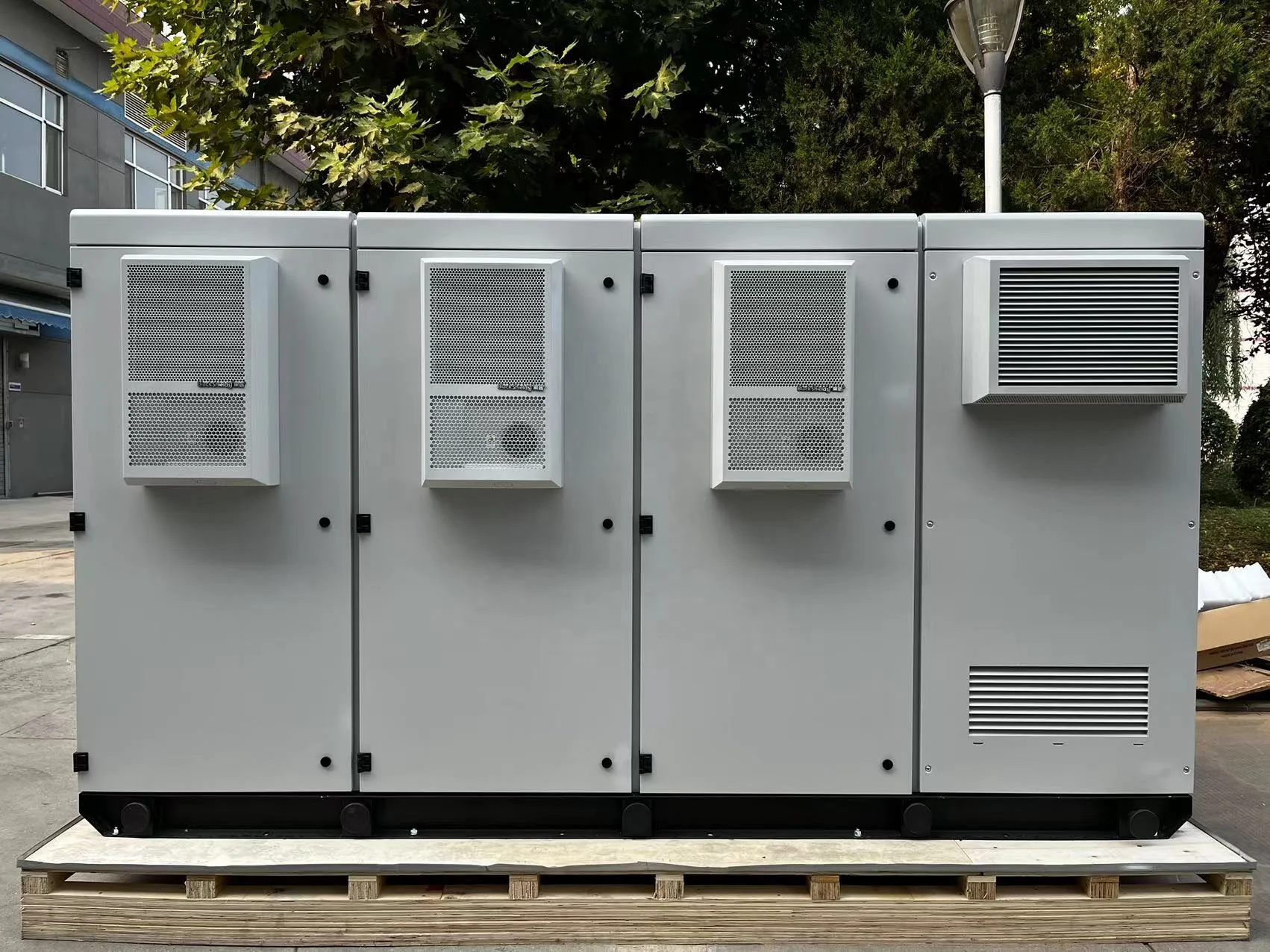

HVAC
The battery compartment integrates 1200W industrial air conditioner to meet the stable operation of the system in different environments and prolong the service life of the system.
PMS(Power Management System)
System operation data monitoring, operation strategy management, historical data record, system status record, etc.

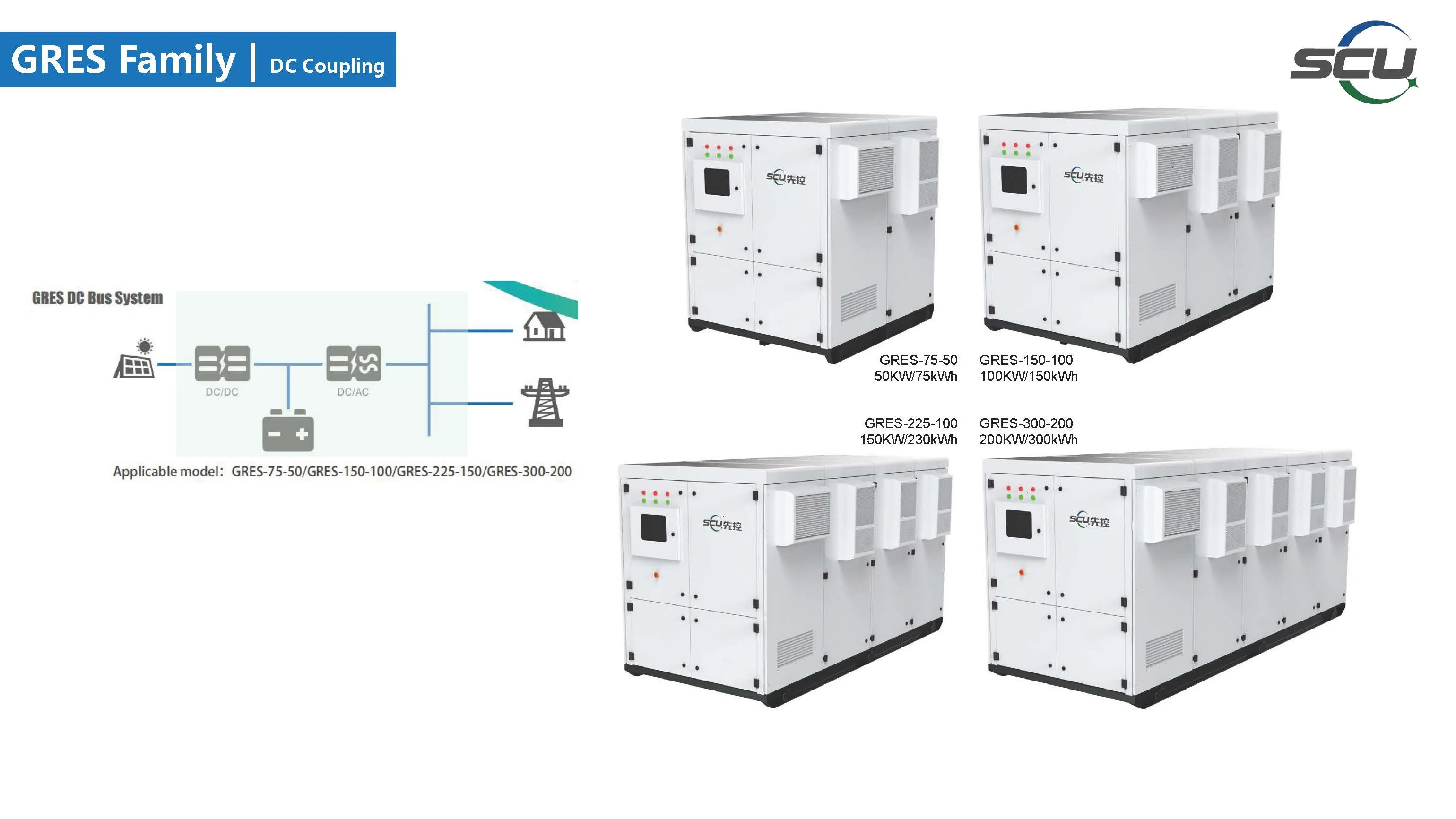

Specification
|
Parameter
|
GRES-75-50
|
GRES-150-100
|
GRES-225-150
|
GRES-300-200
|
||||
|
PV parameters (Optional)
|
|
|
|
|
||||
|
MPPT voltage range
|
DC200V～DC700V
|
|
|
|
||||
|
Full power MPPT voltage range
|
DC370V～DC700V
|
|
|
|
||||
|
MPPT channel Qty
|
1/2/3
|
|
|
|
||||
|
Single-circuit MPPT maximum current(A)
|
135A
|
|
|
|
||||
|
AC parameters (grid connected)
|
|
|
|
|
||||
|
Rated output power (kW)
|
50
|
100
|
150
|
200
|
||||
|
Max output power (kW)
|
55
|
110
|
165
|
220
|
||||
|
Rated grid voltage (V)
|
3W+N+PE, 380
|
|
|
|
||||
|
Grid voltage range
|
±15%
|
|
|
|
||||
|
Rated grid frequency (Hz)
|
50
|
|
|
|
||||
|
Grid frequency range (Hz)
|
±2
|
|
|
|
||||
|
Current waveform distortion rate
|
<3%(Rated voltage)
|
|
|
|
||||
|
DC component
|
<0.5%In
|
|
|
|
||||
|
Power factor
|
>0.99(Rated voltage)
|
|
|
|
||||
|
Power factor adjustable range
|
1(lead)～1(lag)
|
|
|
|
||||
|
Overload capacity
|
110% Long term
|
|
|
|
||||
|
AC parameters (off grid)
|
|
|
|
|
||||
|
Rated output power (kW)
|
50
|
100
|
150
|
200
|
||||
|
Max output power (kW)
|
55
|
110
|
165
|
220
|
||||
|
Rated grid voltage (V)
|
3W+N+PE, 380
|
|
|
|
||||
|
Current waveform distortion rate
|
<3%(Linear Load)
|
|
|
|
||||
|
Rated frequency（Hz)
|
50
|
|
|
|
||||
|
Overload capacity
|
110% Long term
|
|
|
|
||||
|
Battery
|
|
|
|
|
||||
|
Battery type
|
Lithium iron phosphate
|
|
|
|
||||
|
Energy of each module(kWh)
|
5.12
|
|
|
|
||||
|
Module qty
|
15
|
30
|
45
|
60
|
||||
|
Total power (kWh)
|
76.8
|
153.6
|
230.4
|
307.2
|
||||
|
Running Time (h)
|
1.5(Optional by Changing module qty)
|
|
|
|
||||
|
Cyclelife
|
25℃0.5C/0.5C100%DODEOL80%≥4000s
|
|
|
|
||||
|
System efficiency
|
|
|
|
|
||||
|
Max efficiency
|
95%
|
|
|
|
||||
|
|
Protection
|
|
|
|
||||
|
DC Switch
|
YES
|
|
|
|
||||
|
AC switch
|
YES
|
|
|
|
||||
|
Grid monitoring
|
YES
|
|
|
|
||||
|
Surge protection
|
DC /AC 2nd level
|
|
|
|
||||
|
Basic Parameters
|
|
|
|
|
||||
|
Dimension（W*D*H）(mm)
|
1680*1500*1700
|
1680*2270*1700
|
1680*3050*1700
|
1680*3830*1700
|
||||
|
Weight (kg)
|
1395
|
2470
|
3545
|
4620
|
||||
|
Isolated transformer
|
NO
|
|
|
|
||||
|
On/off grid switching
|
STS
|
|
|
|
||||
|
Protection
|
Outdoor IP54
|
|
|
|
||||
|
Working temperature
|
-20～55℃(>45℃derating)
|
|
|
|
||||
|
Relative humidity
|
0～95% ( (no condensing)
|
|
|
|
||||
|
Cooling
|
Intelligent air cooling (intelligent heating optional )
|
|
|
|
||||
|
Max working altitude(m)
|
4000(>2000 derating)
|
|
|
|
||||
|

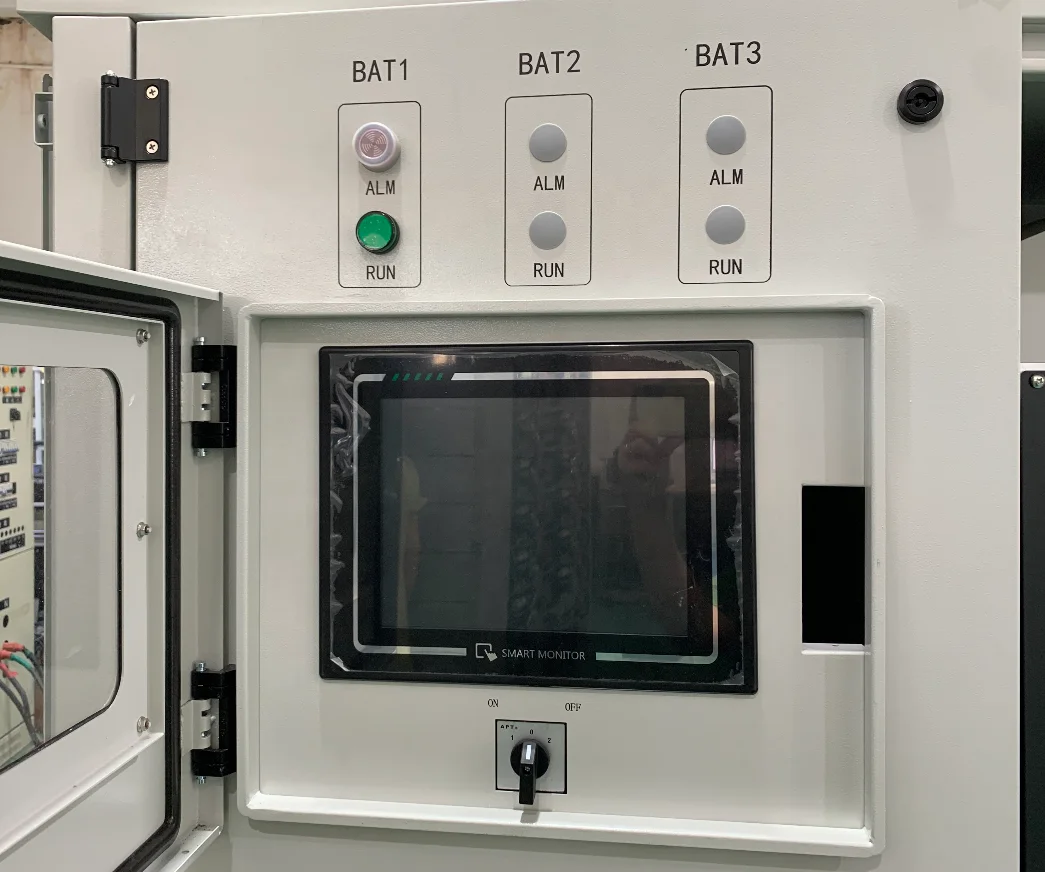

Display
|
Touch screen
|
|
|
|
||||
|
Communication
|
RS485、CAN、LAN
|
|
|
|
||||
|
Communication Protocol
|
Modbus-RTU、Modbus-TCP、CAN2.0B
|
|
|
|
||||

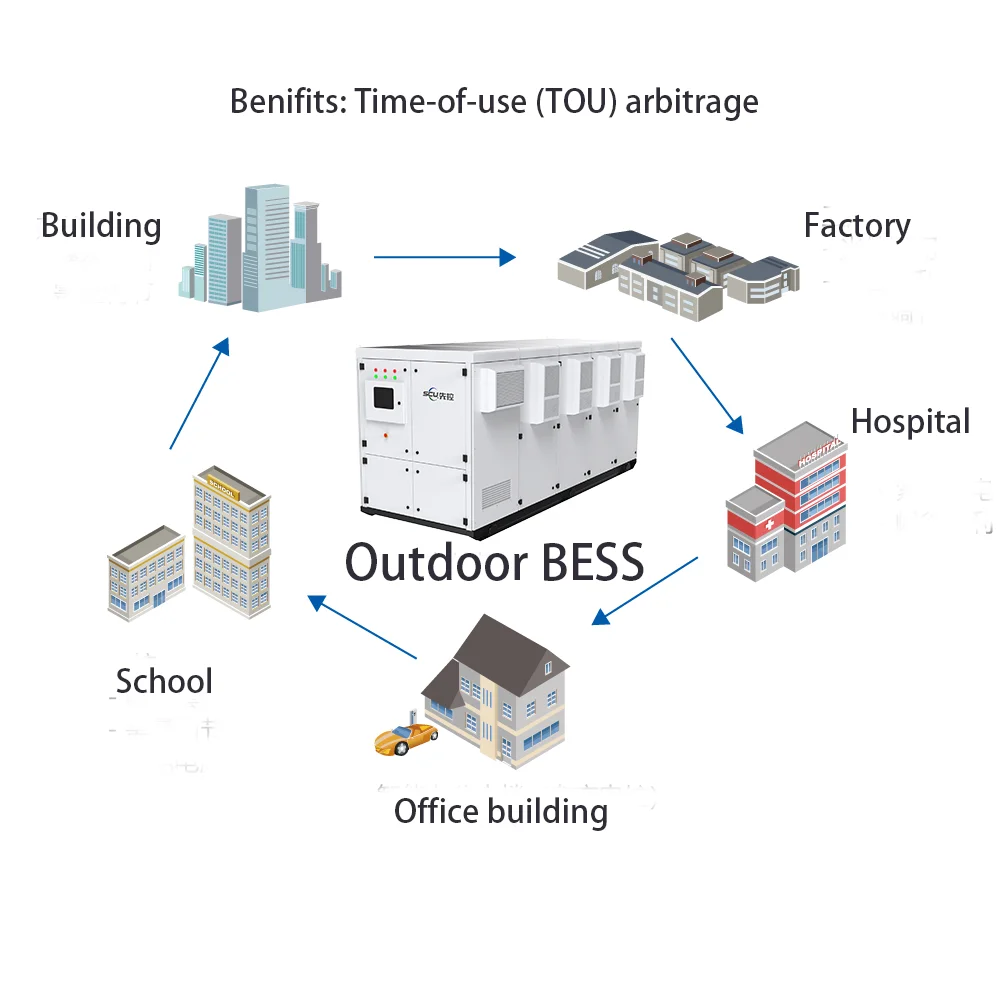

Application
LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System
Peak and frequency regulation, smoothing new energy generation;
Industrial and commercial demand management, peak shaving;
Power quality improving, and backpower supply at user side; Mobile energy storage, electric rescue;
Building microgrid system.

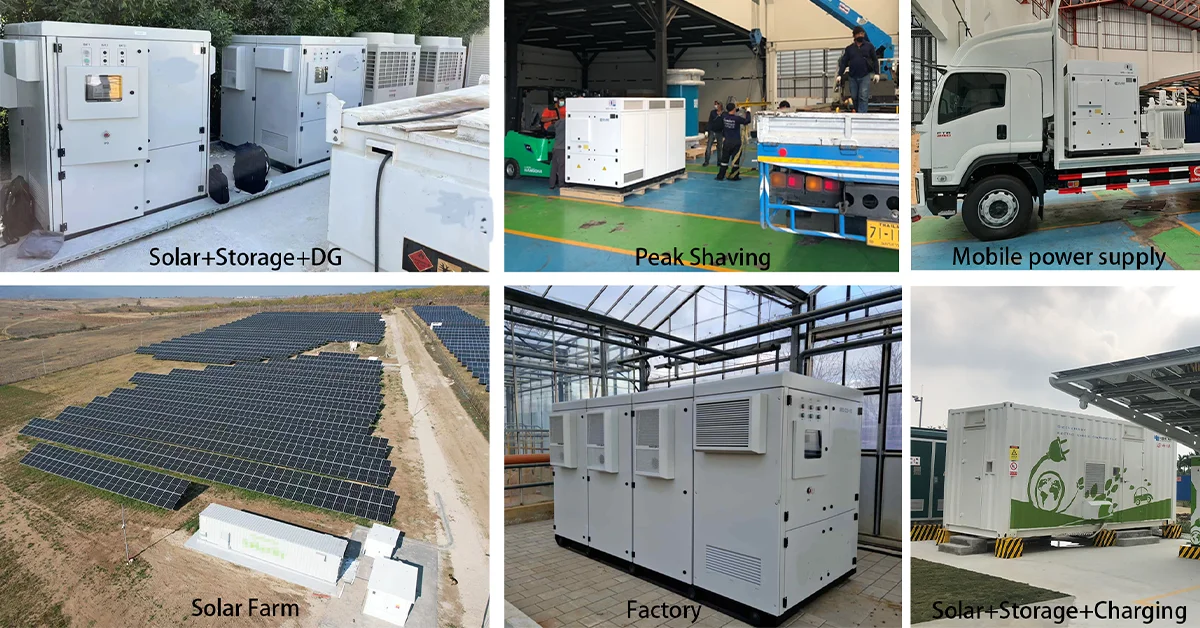

Successful Cases
LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System
Our GRES integrated BESS has been sold to Europe (Germany, Italy, Netherland, Poland, UK, Bulgaria, Czech, Spain etc), Asia (Thailand, Indonesia, Singapore etc), Africa (Ethiopia, South Africa, Zambia, Chad etc)

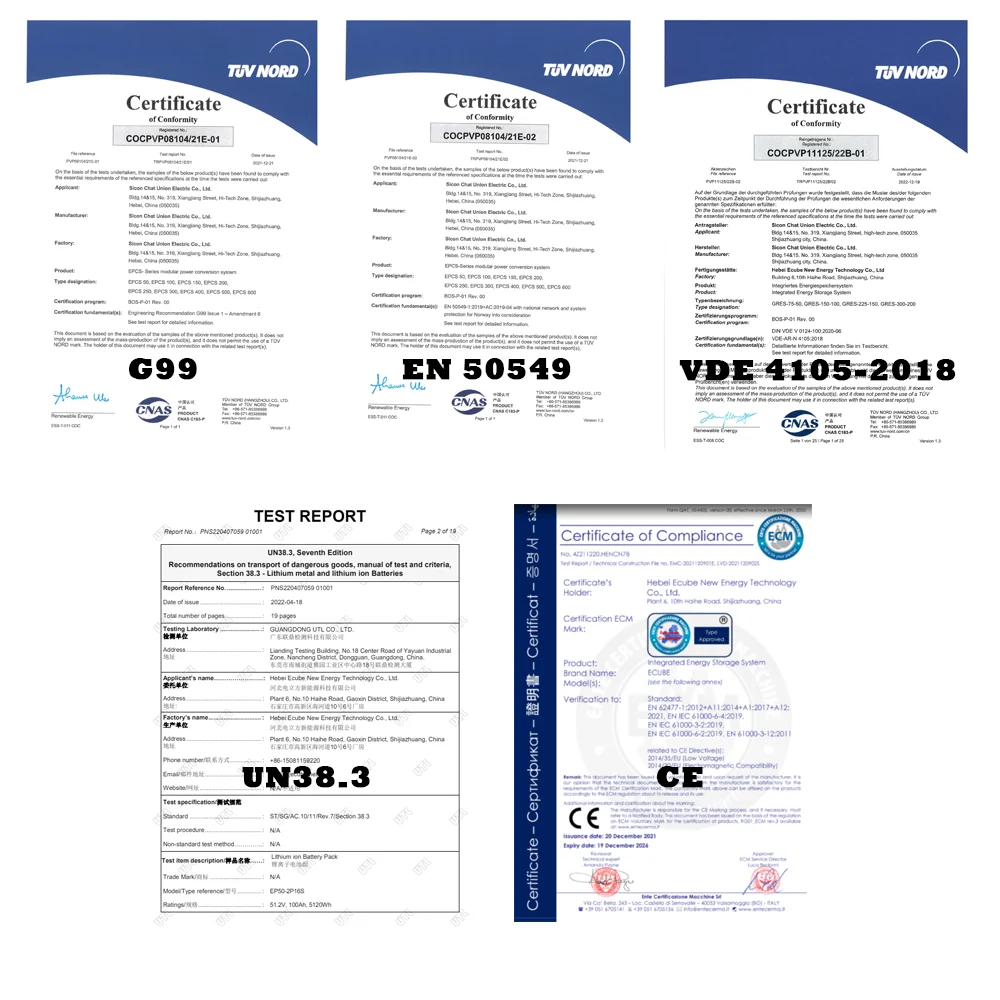

Certification

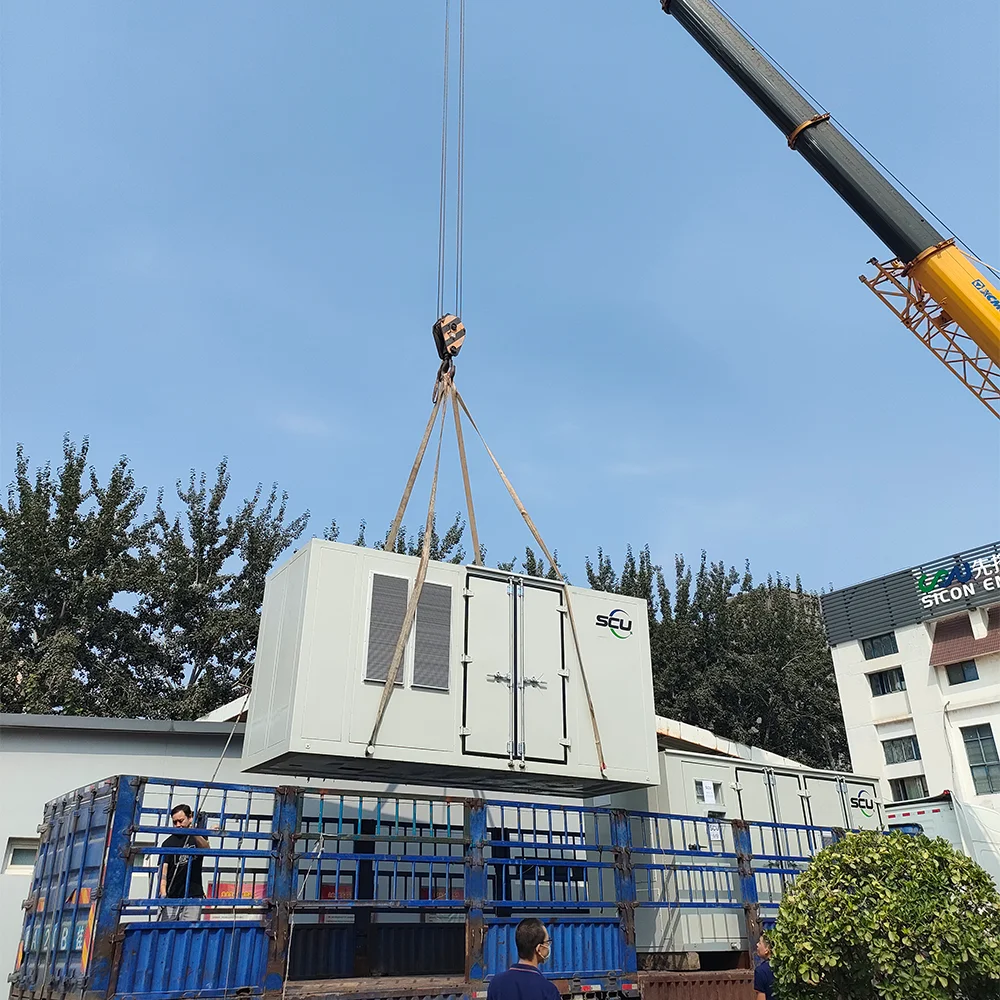

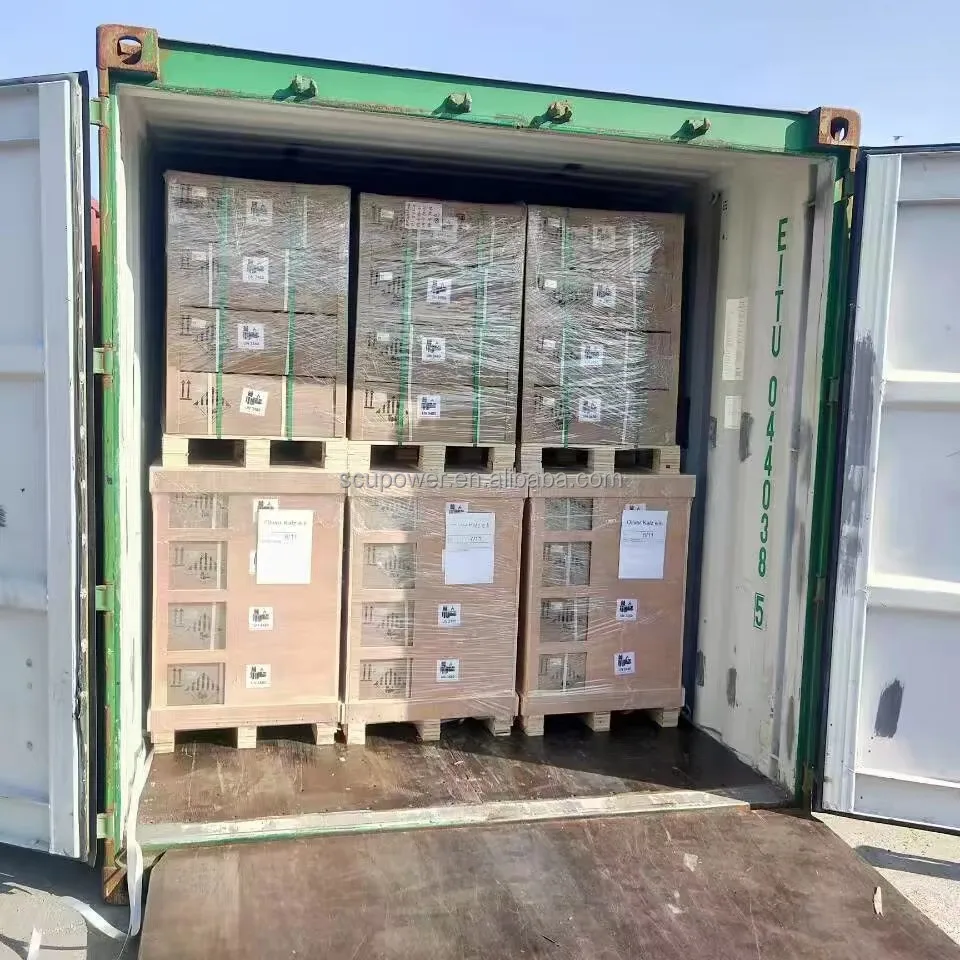

Packing & Delivery

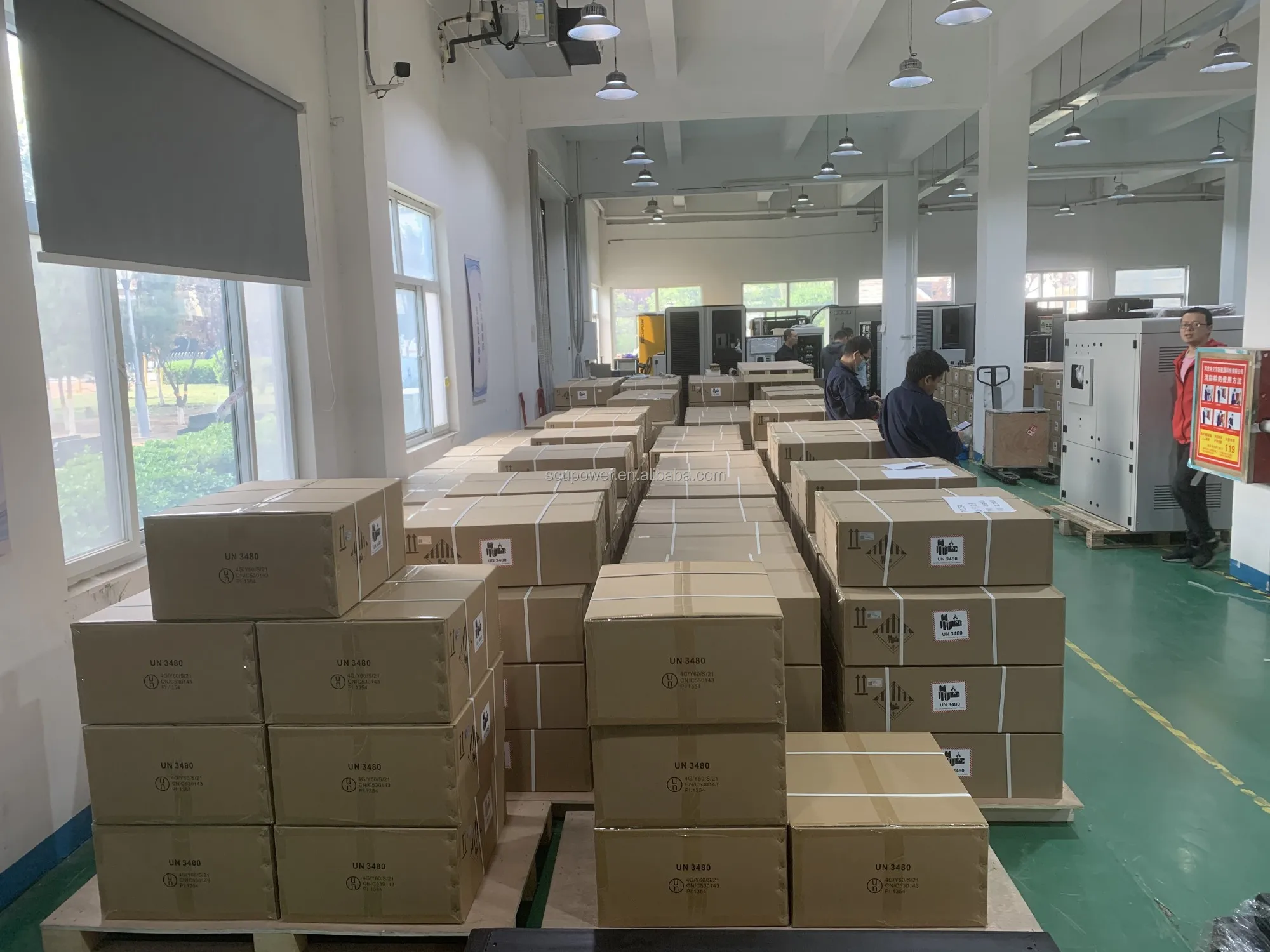

UN38.3 cartons
Company Profile
Sicon Chat Union (SCU) was founded in 2003 with a vision of building a sustainable future. We are focused on the development and application of power electronic technology, the core vision is to implementing the concept of sustainable product development on a global scale. We help our clients alter industries and markets, utilizing clean energy on the daily lives of billions of people. Uninterruptible power supply, Electric vehicle fast charger and Energy storage system are the three key products of us. SCU's success is driven by excellent groups of people, spreading business more than 50 countries and regions around the world. Tel: 86 311 85903762
FAQ
1. who are we?
We are based in Hebei, China, start from 2003,sell to Domestic Market(45.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),South Asia(10.00%),Eastern Europe(8.00%),Northern Europe(6.00%),Southern Europe(5.00%),Western Europe(3.00%),North America(1.00%),South America(1.00%),Mid East(1.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
energy storage system,PCS,Lithium battery,UPS
4. why should you buy from us not from other suppliers?
Top manufacturer of energy storage system in China; Rich products such as BESS, PCS, Lithium ion battery, EV charging station, UPS; OEM for IPO companies; One-stop solution of power energy supply. 20years experience.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
We are based in Hebei, China, start from 2003,sell to Domestic Market(45.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),South Asia(10.00%),Eastern Europe(8.00%),Northern Europe(6.00%),Southern Europe(5.00%),Western Europe(3.00%),North America(1.00%),South America(1.00%),Mid East(1.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
energy storage system,PCS,Lithium battery,UPS
4. why should you buy from us not from other suppliers?
Top manufacturer of energy storage system in China; Rich products such as BESS, PCS, Lithium ion battery, EV charging station, UPS; OEM for IPO companies; One-stop solution of power energy supply. 20years experience.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
