RS-232 RS232 para RS485 RS422 Conversor Interface Serial RS485 Comunicação Serial DB9 Interface Macho Conversor Serial

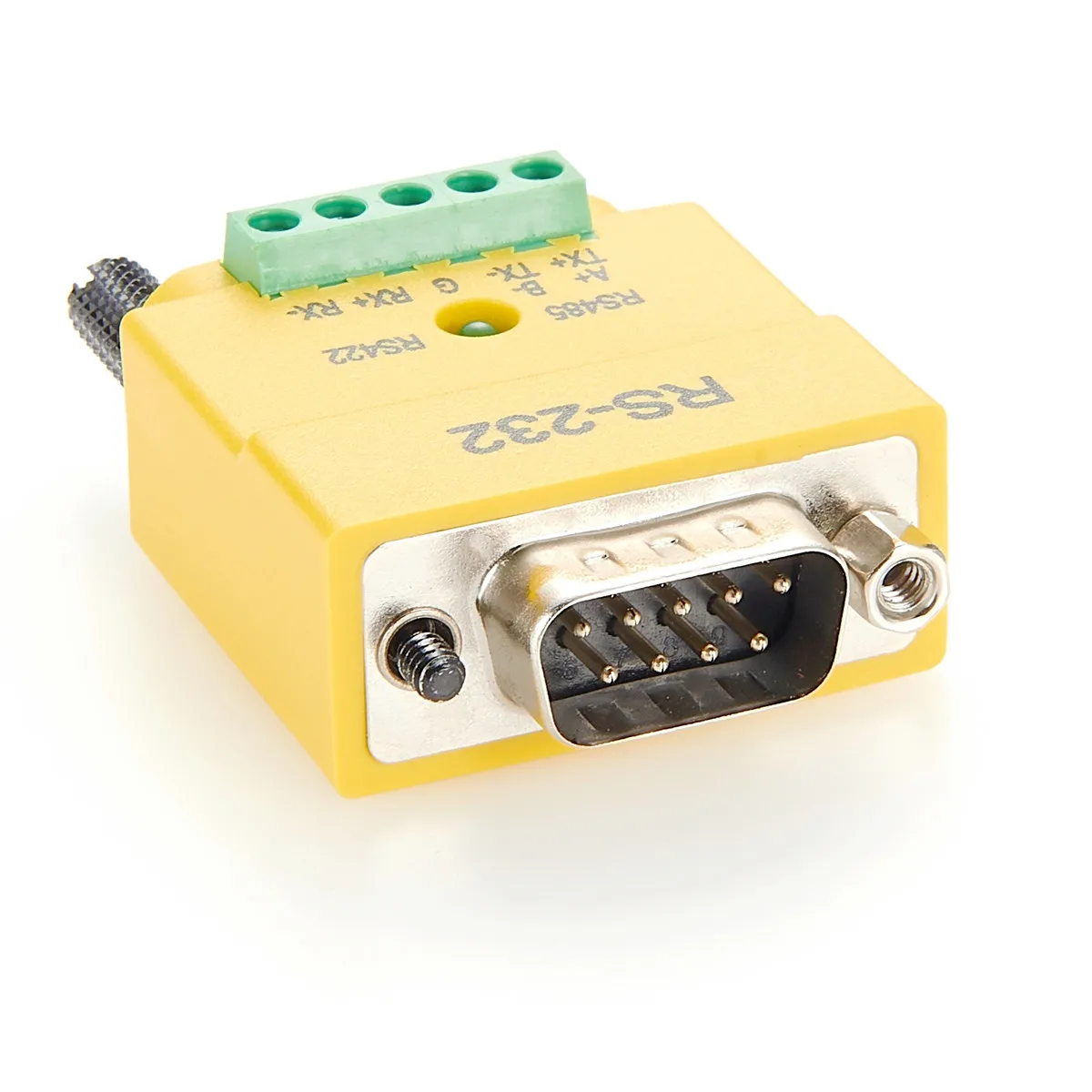

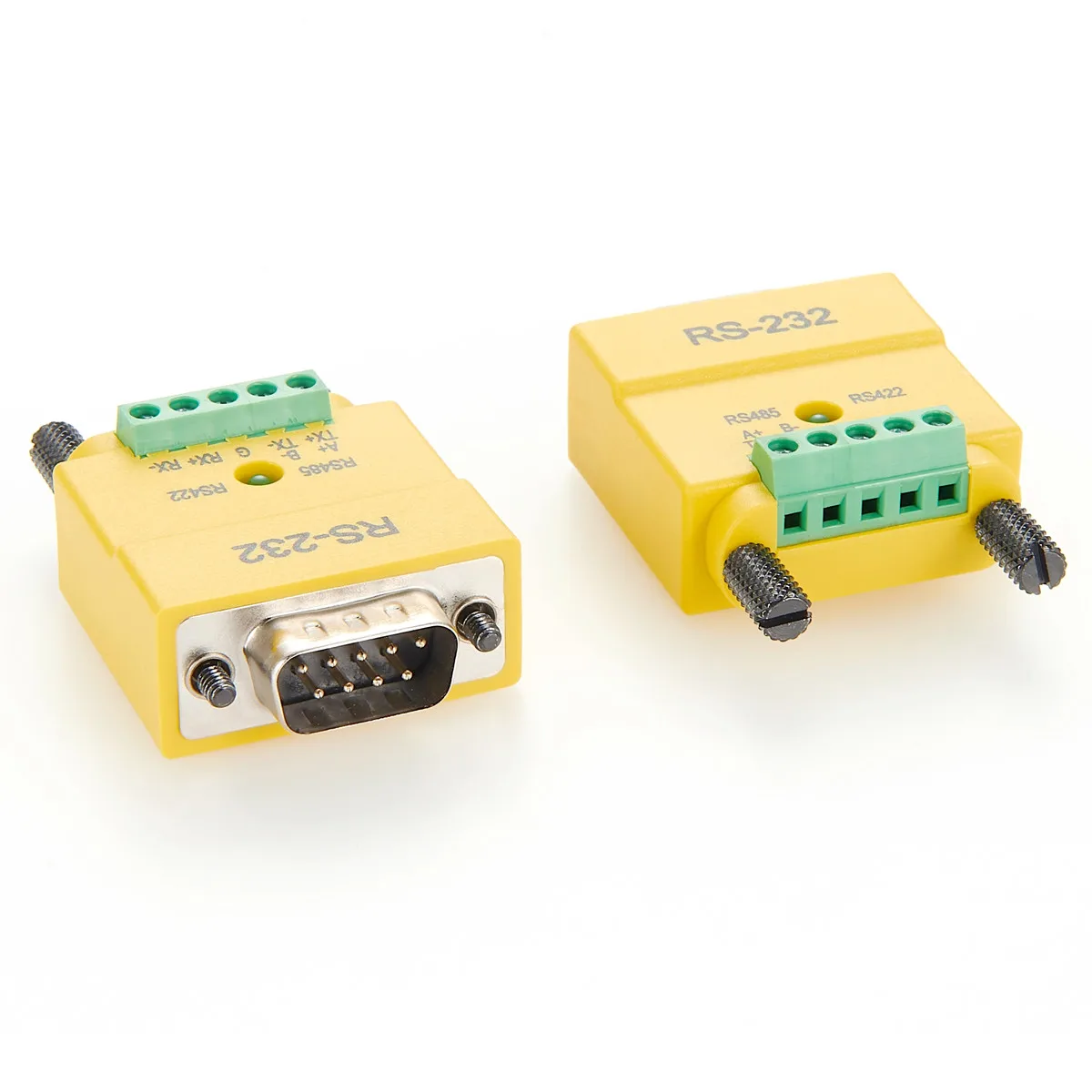

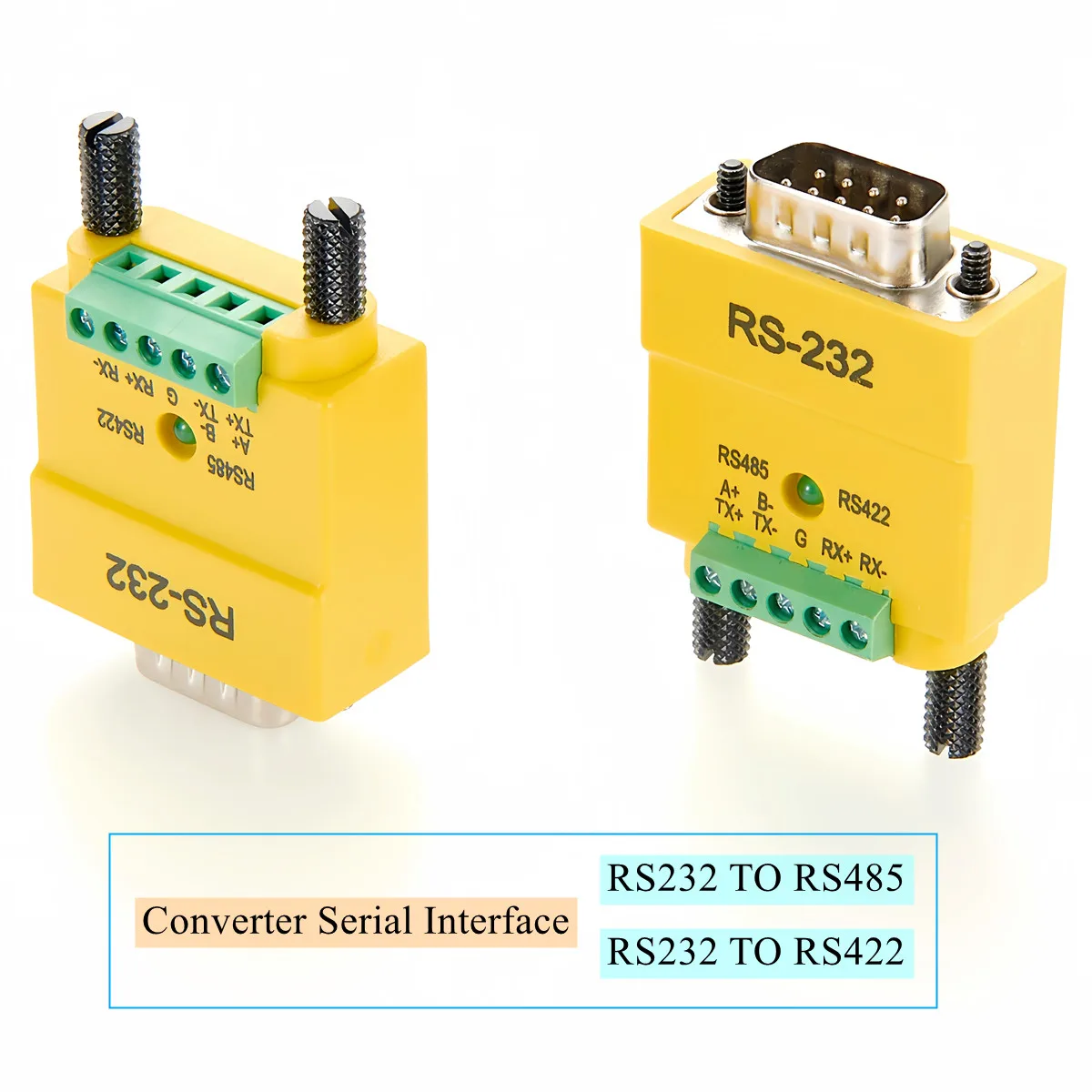

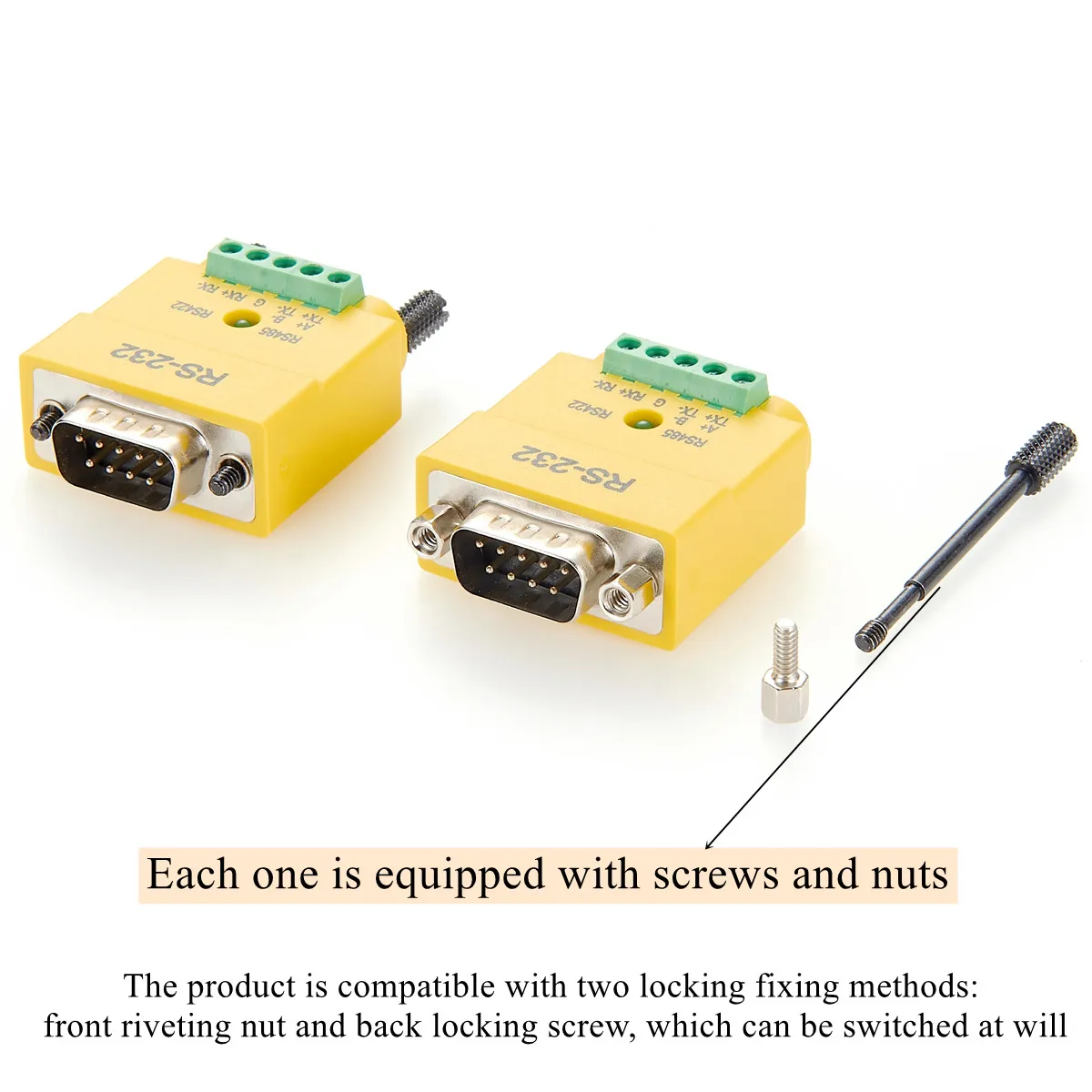

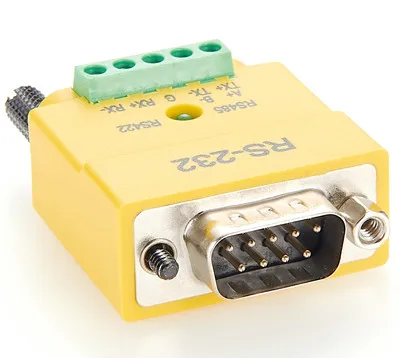

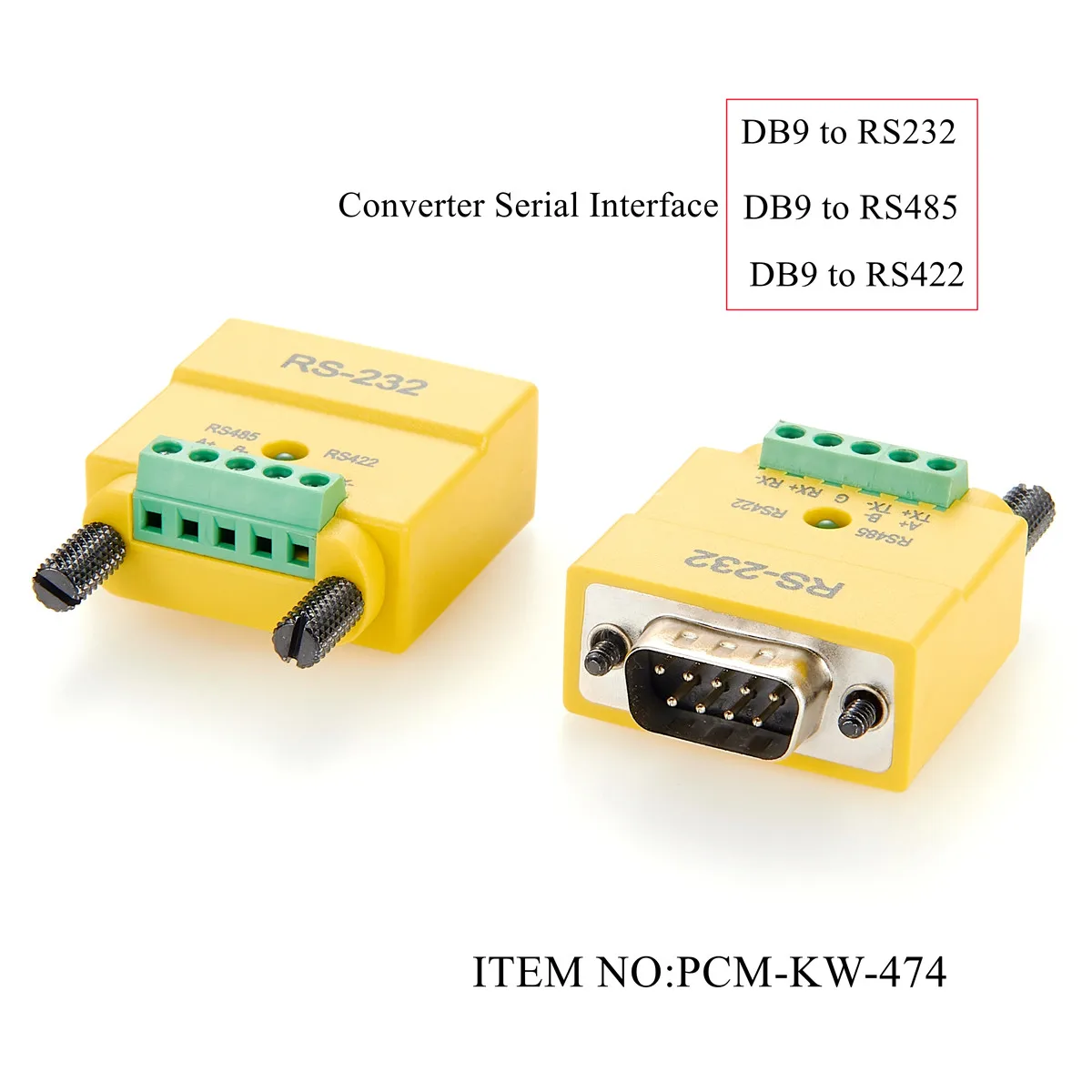

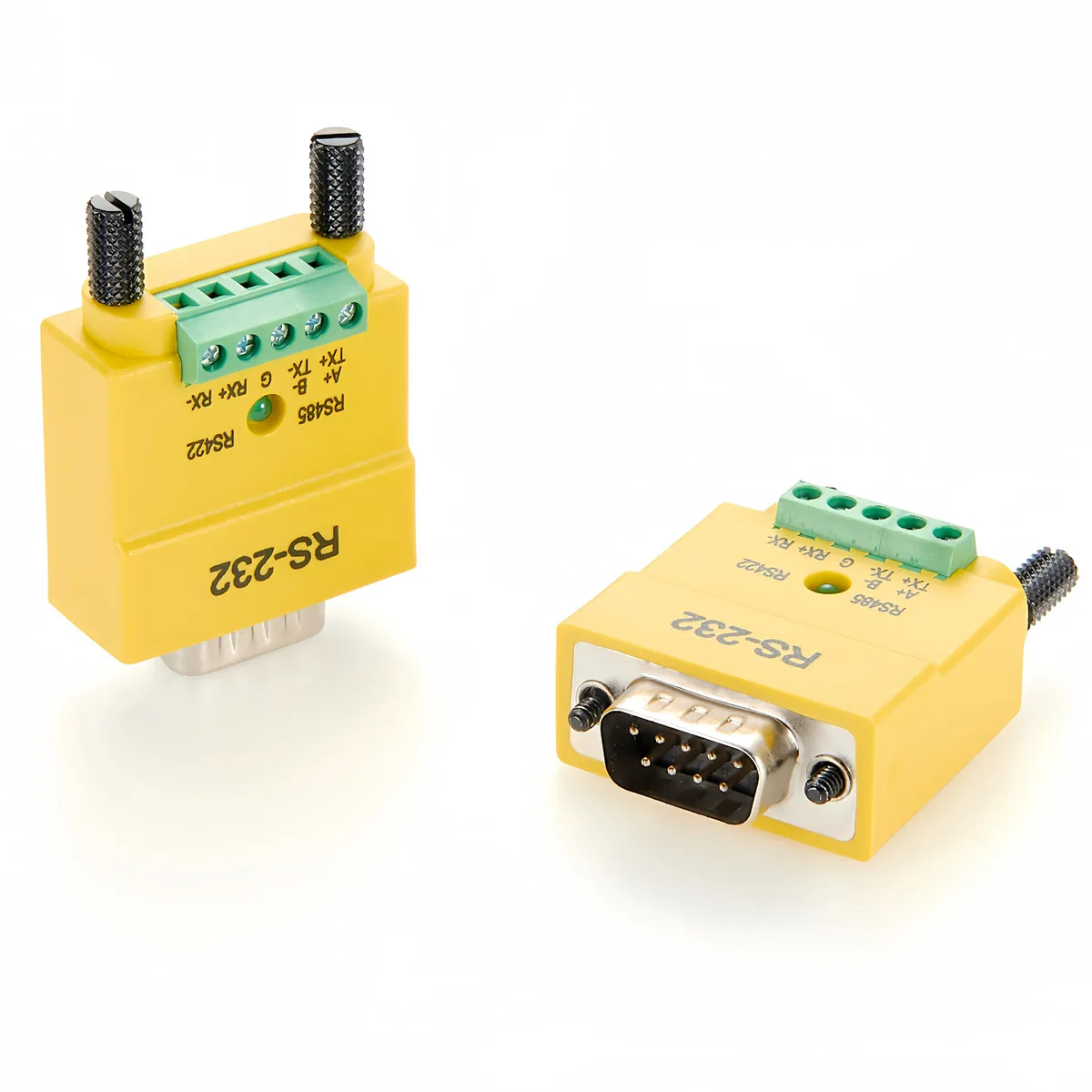

The PCM-KW-474 Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 115.2 Kbps. The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, and supports connection distances of up to 4000ft (1200m).

It is suitable for most applications, including industrial, commercial and any general office computer device.

Product Features：

Compatible with RS232C,RS485,RS422 TIA/EIA standard

Baud rate:  300bps to 115.2Kbps

Automatic send / receive data, without external flow control signals

Zero delay automatic transmission,Supports multiple terminals up to 32 RS-485 or RS-422 devices

Transmission distance:  up to 4000 Feet (1200 meters) for RS-485/422 end

Power supply:  Unique serial charge pump drive technology, no external power supply.

Working modes: Asynchronous half-duplex(RS485) or asynchronous full duplex(RS422),no need jumper wire settings.

Transmission media of RS232 Data Converter: twisted pair or shielded twisted pair ( STP ).

Input Connector:  DB9 male

Output Connector:  Screw Terminals 5pin

Input Signal:  RS232

Output Signal : RS485, RS422

Version selection

+

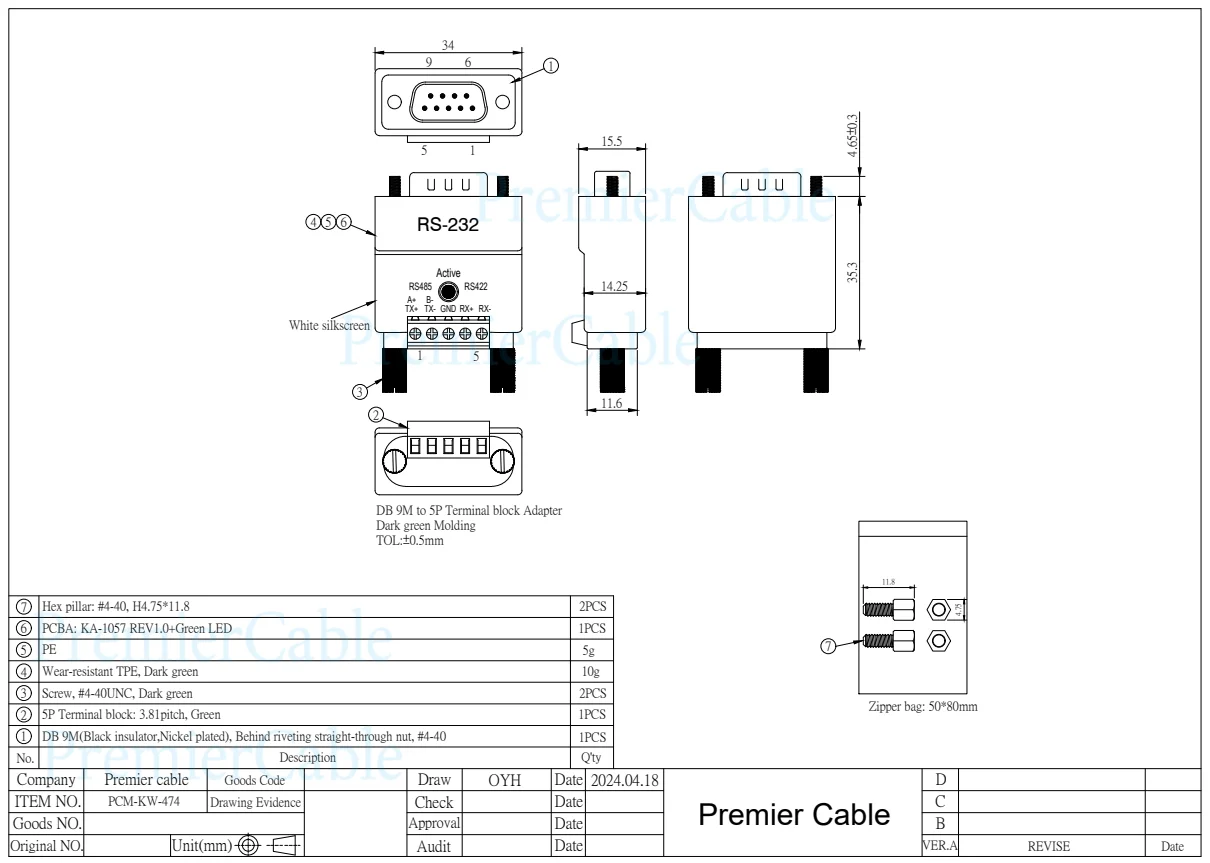

Product DisplayThe drawing is as follows:
