- High-concerned chemical: None
- Model Number: PL20
- Origin: Mainland China
- Certification: None
- Item Name: Router Spindle Mount
- Size: 80mm, 71mm, 65mm, 52mm, 43mm for choice
- Material: Aluminum
- Finishing: Black Anodized
Router Spindle Mount |
This super strong, high quality Router/Spindle Mount is the perfect addition to your Build."
This mount works best with the Bosh Colt Router and with some additional shimming this mount is also compatible with the Dewalt 611 Router."

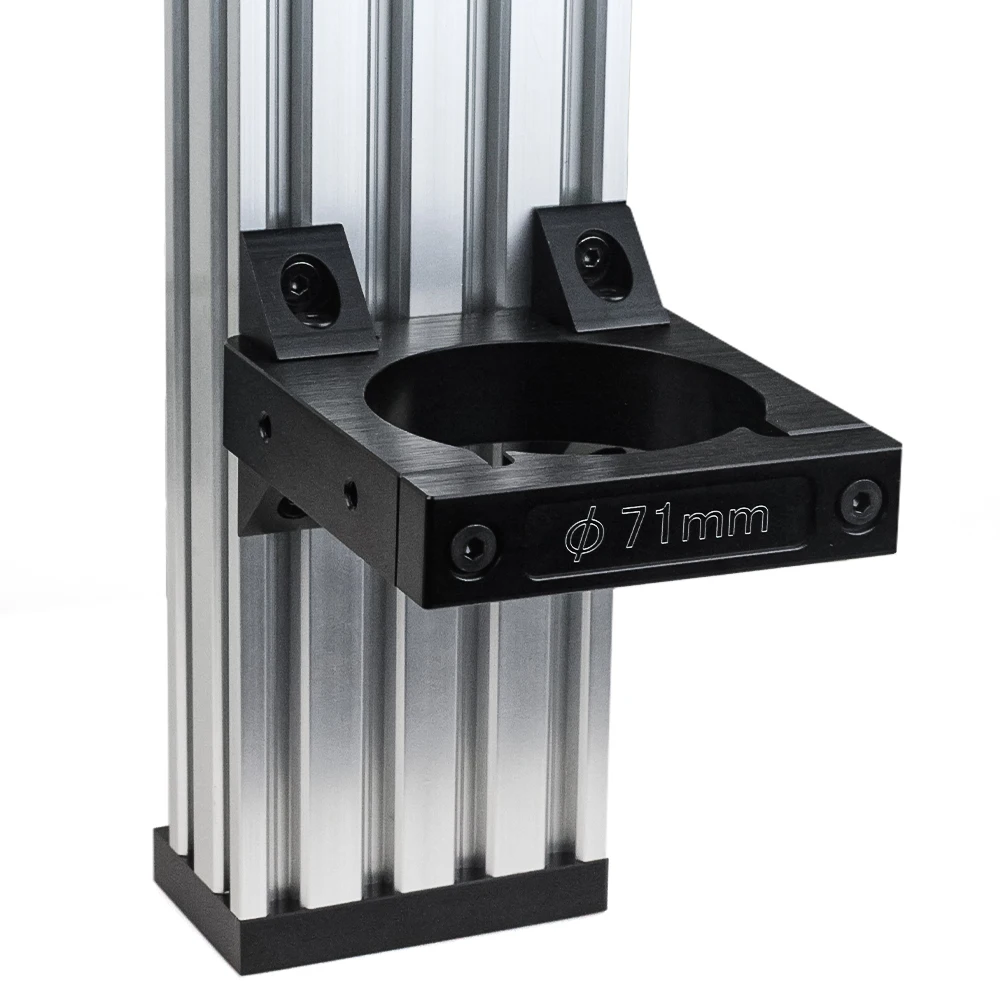

- C-Beam and V-Slot 20x80mm compatible
- Removeable faceplate for quick tool changes
- Adjustable faceplate
- Countersunk holes
- Tapped holes
- Flexible mounting options
Qty. 1
Material: High-Quality Cast Aluminium
Color: Black

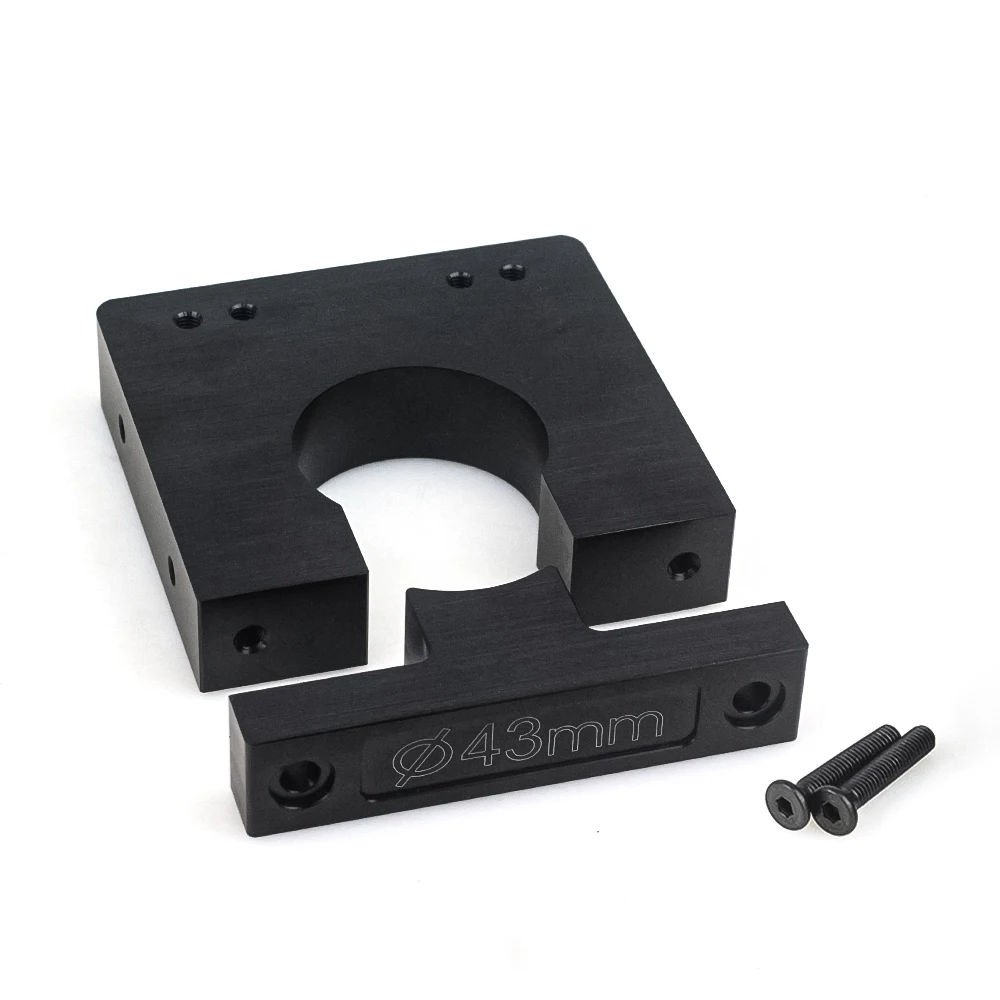

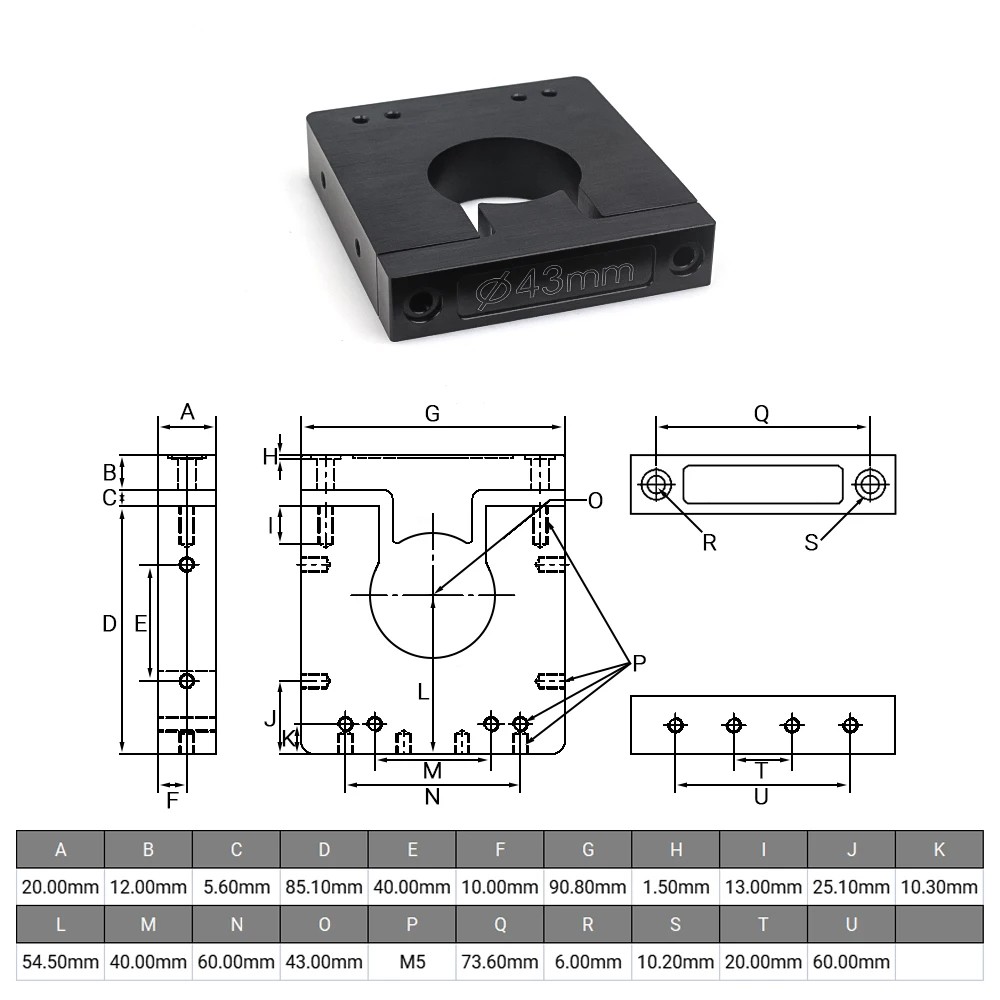

ID: 80mm, 71mm, 65mm, 52mm, 43mm for choice

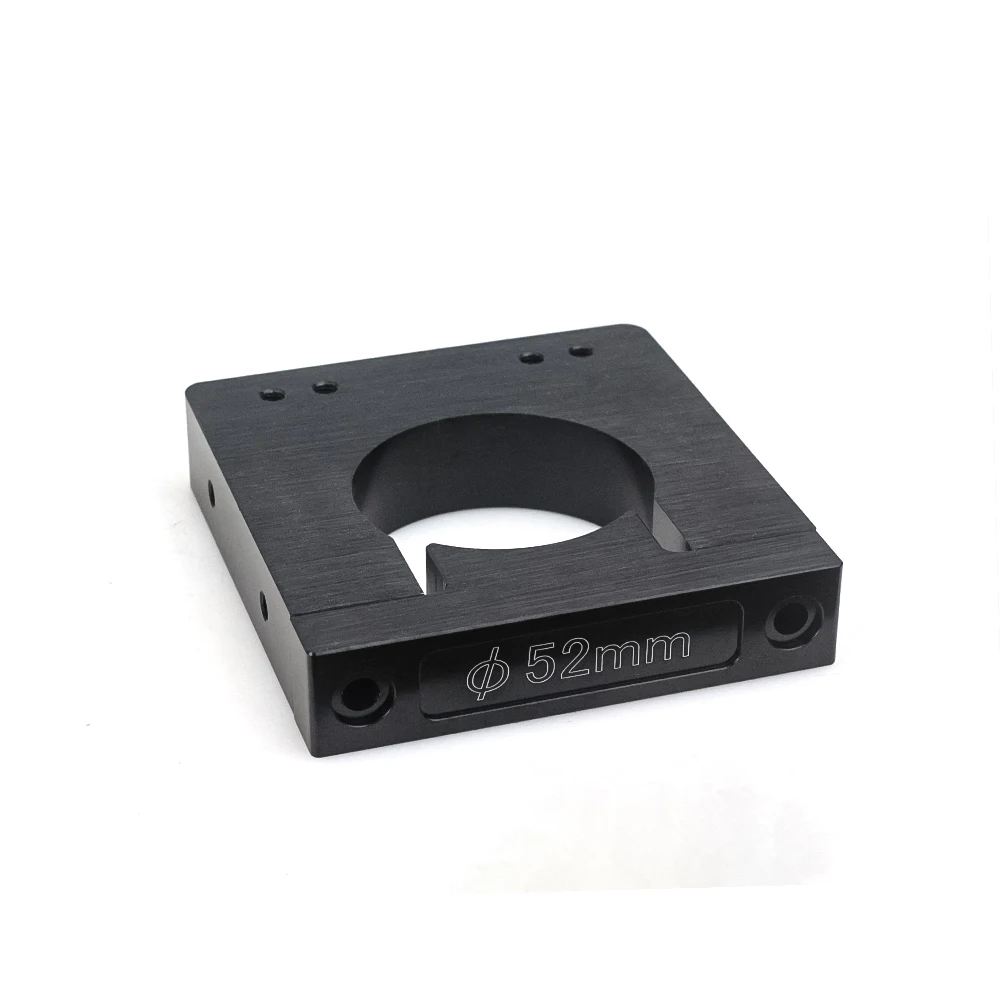

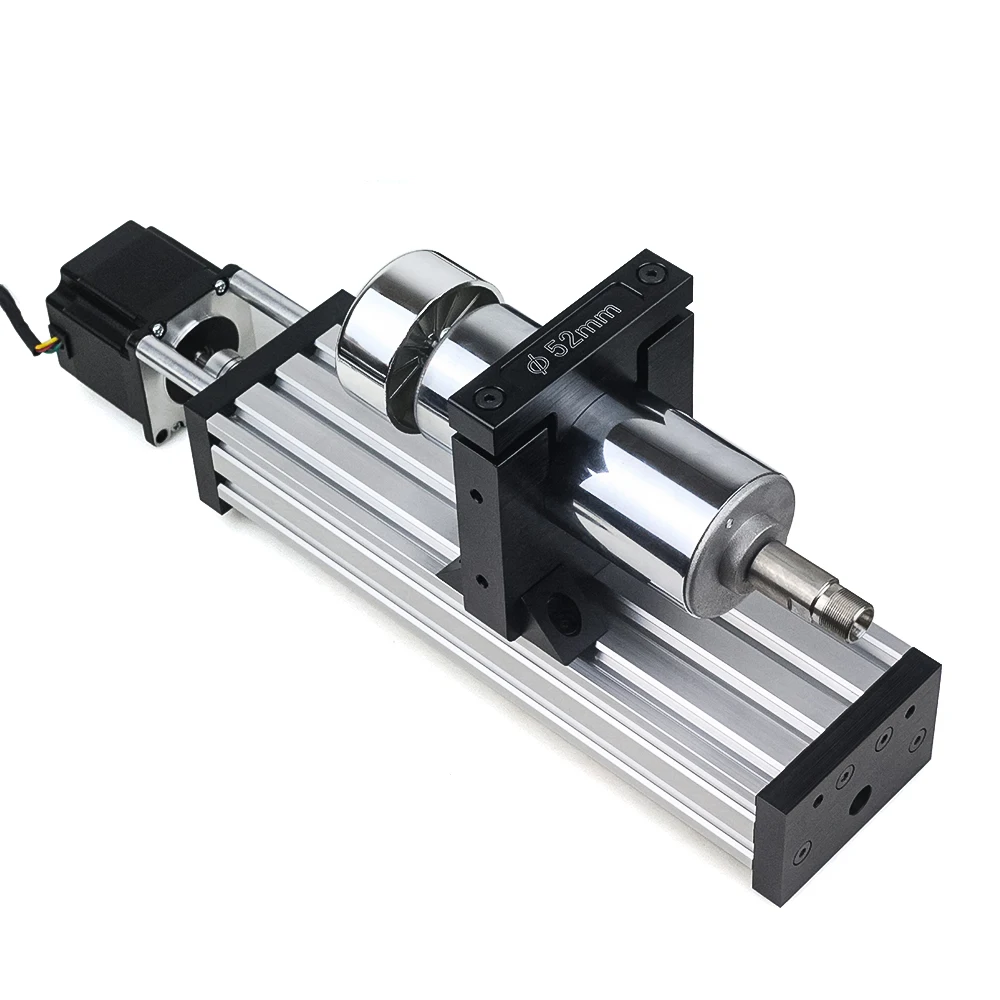

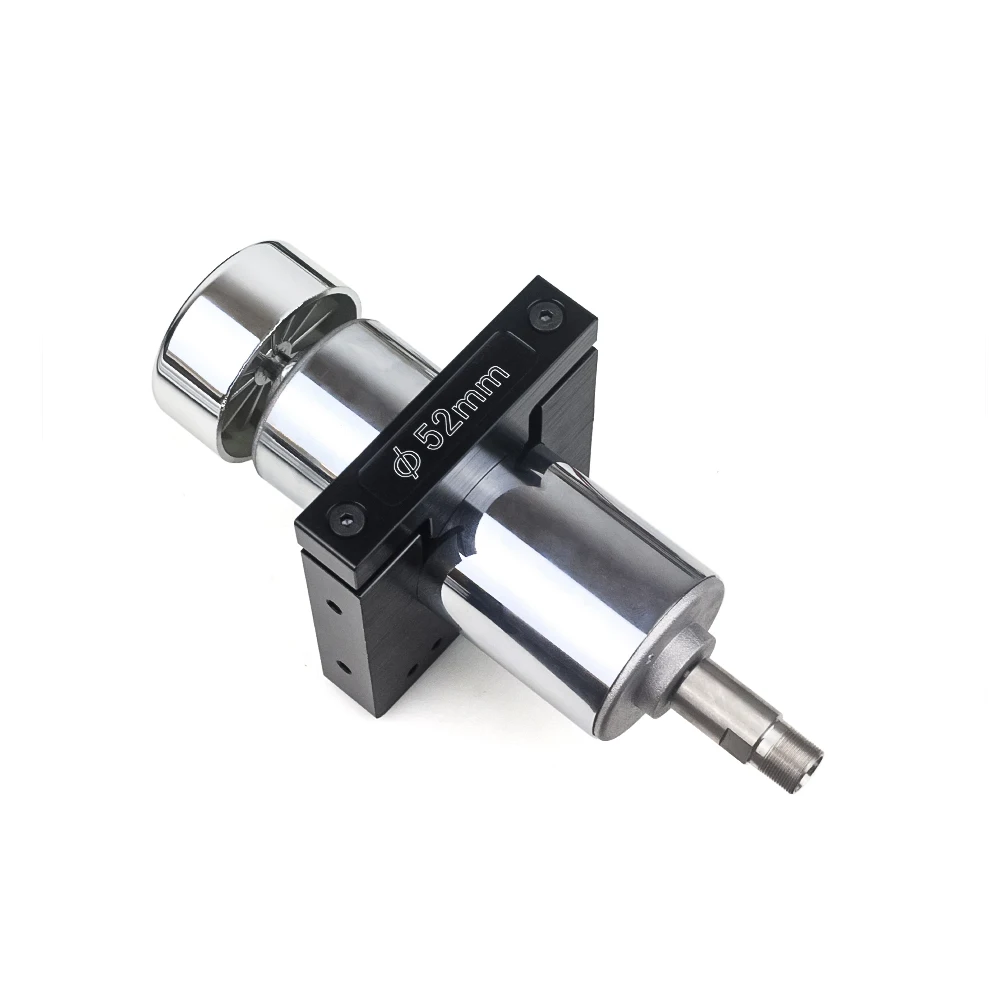

52mm diameter is perfect for mounting a 400W Air Cooled Spindle.

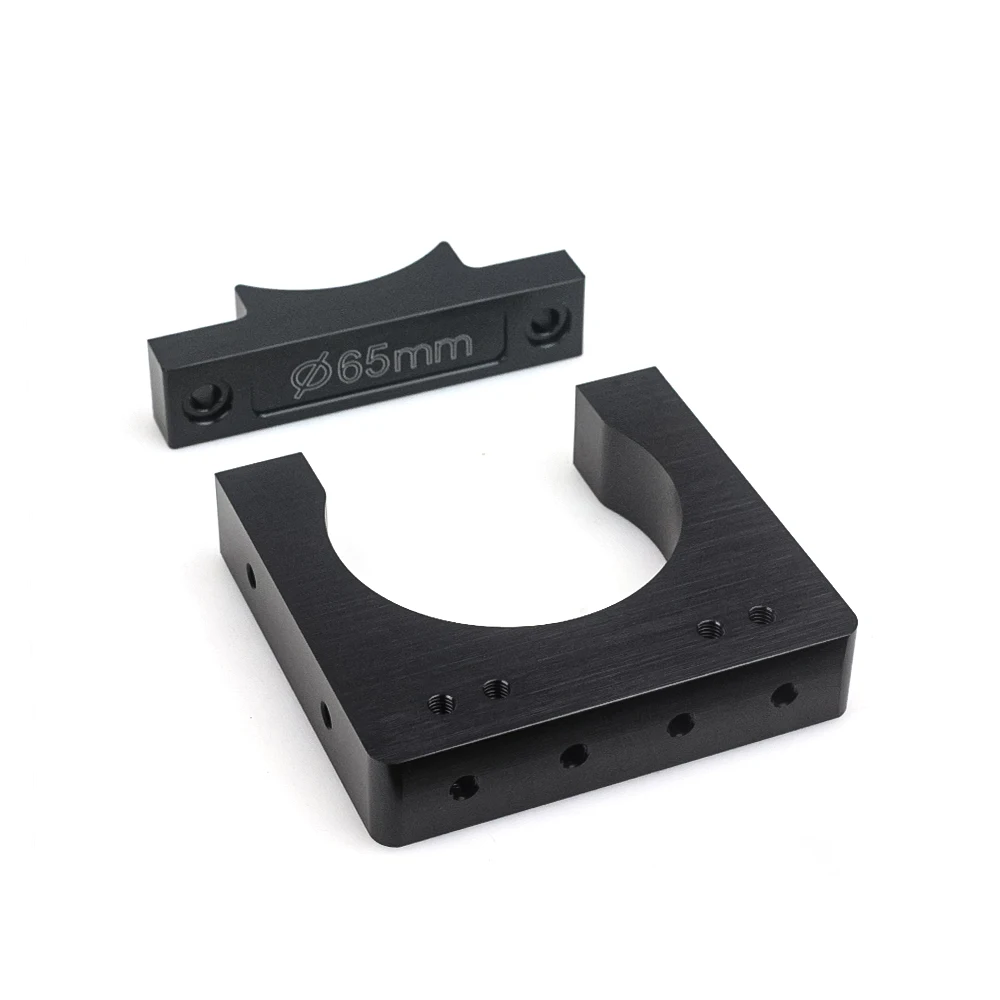

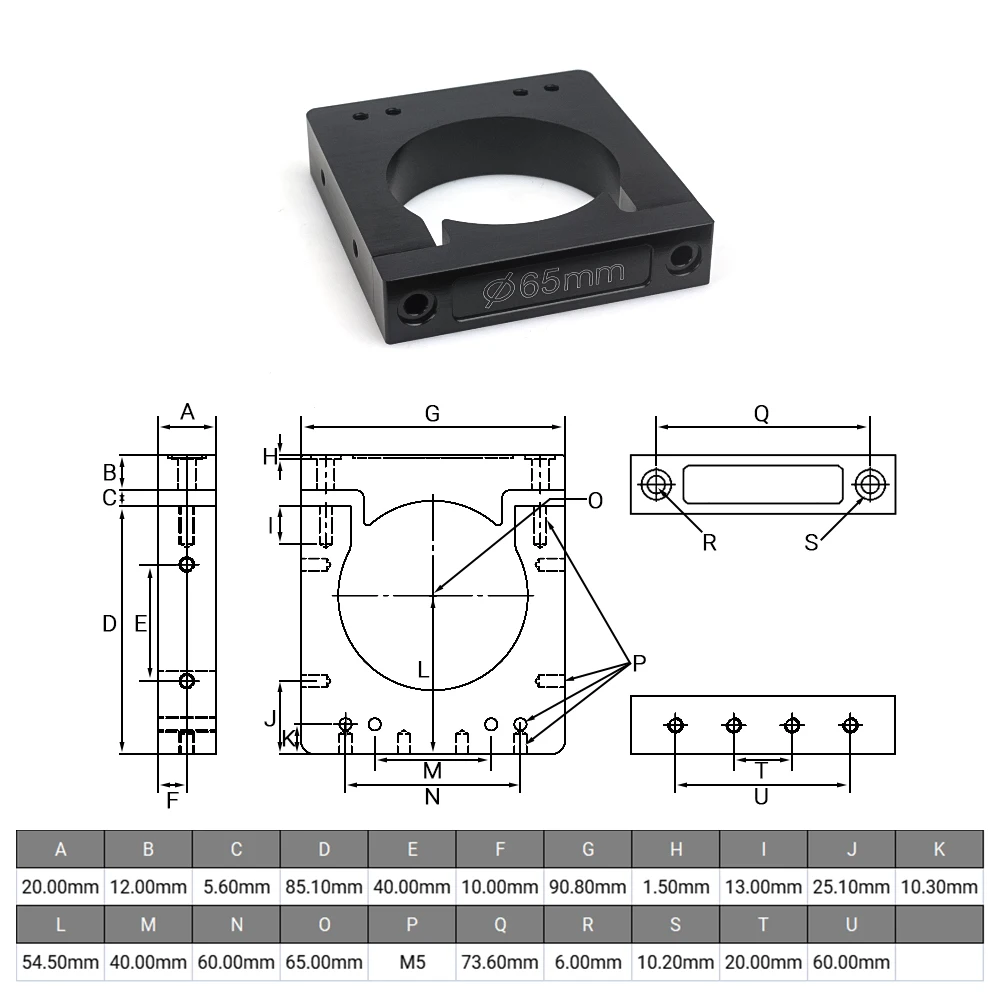

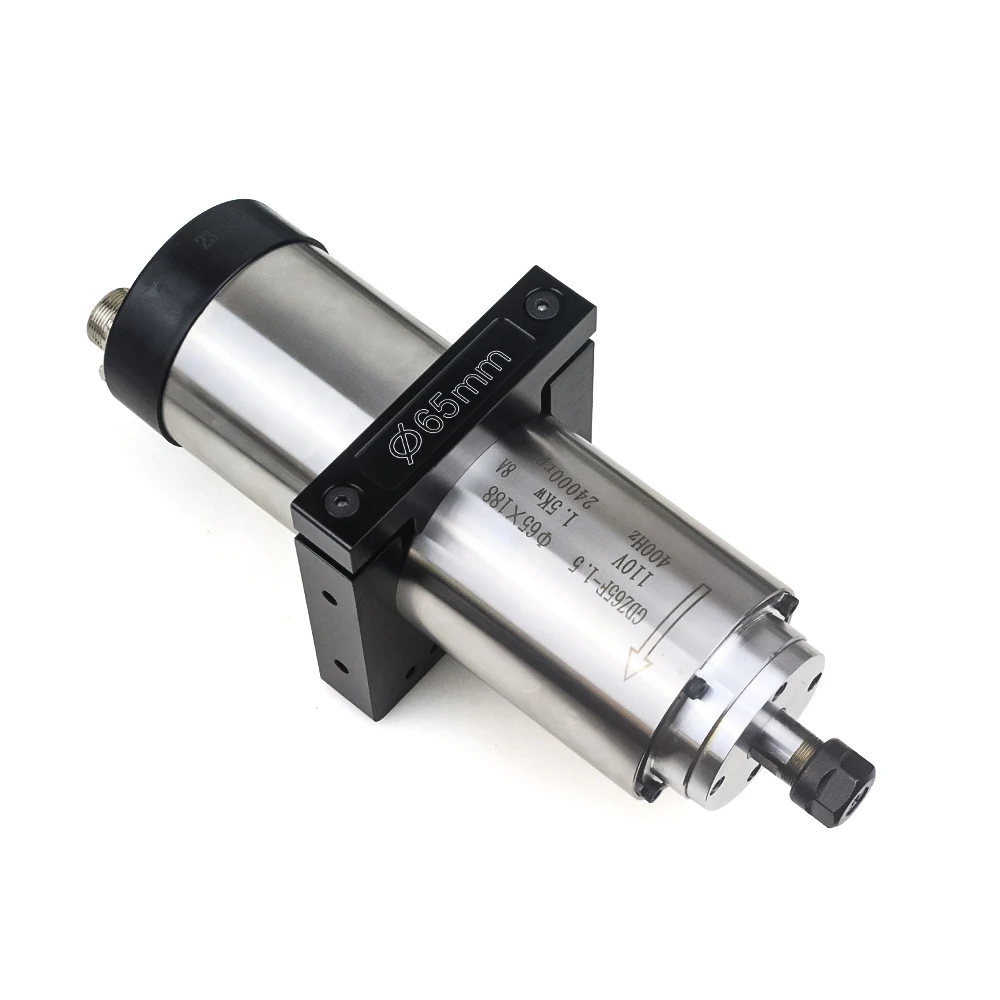

65mm diameter is perfect for mounting a 1.5kW Air Cooled Spindle.

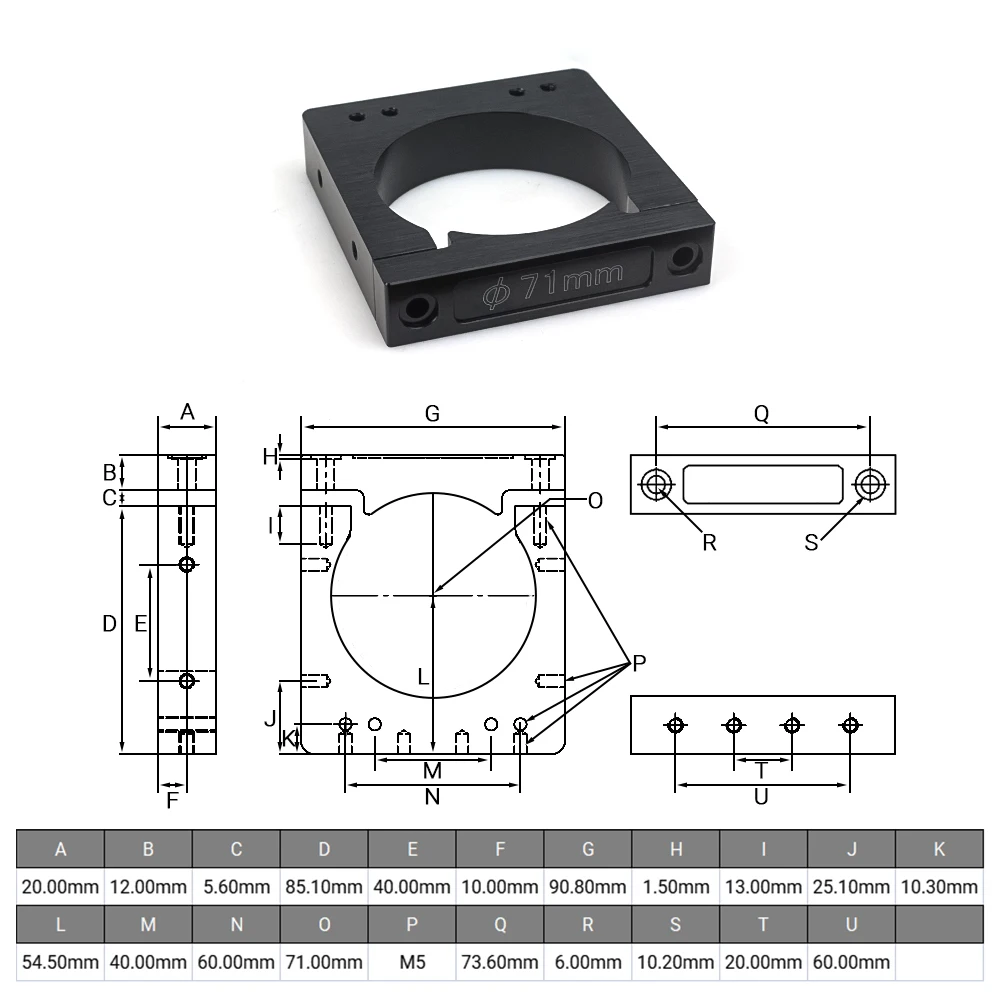

71mm diameter is perfect for mounting a Bosch Colt Router or a Dewalt 611 Router.

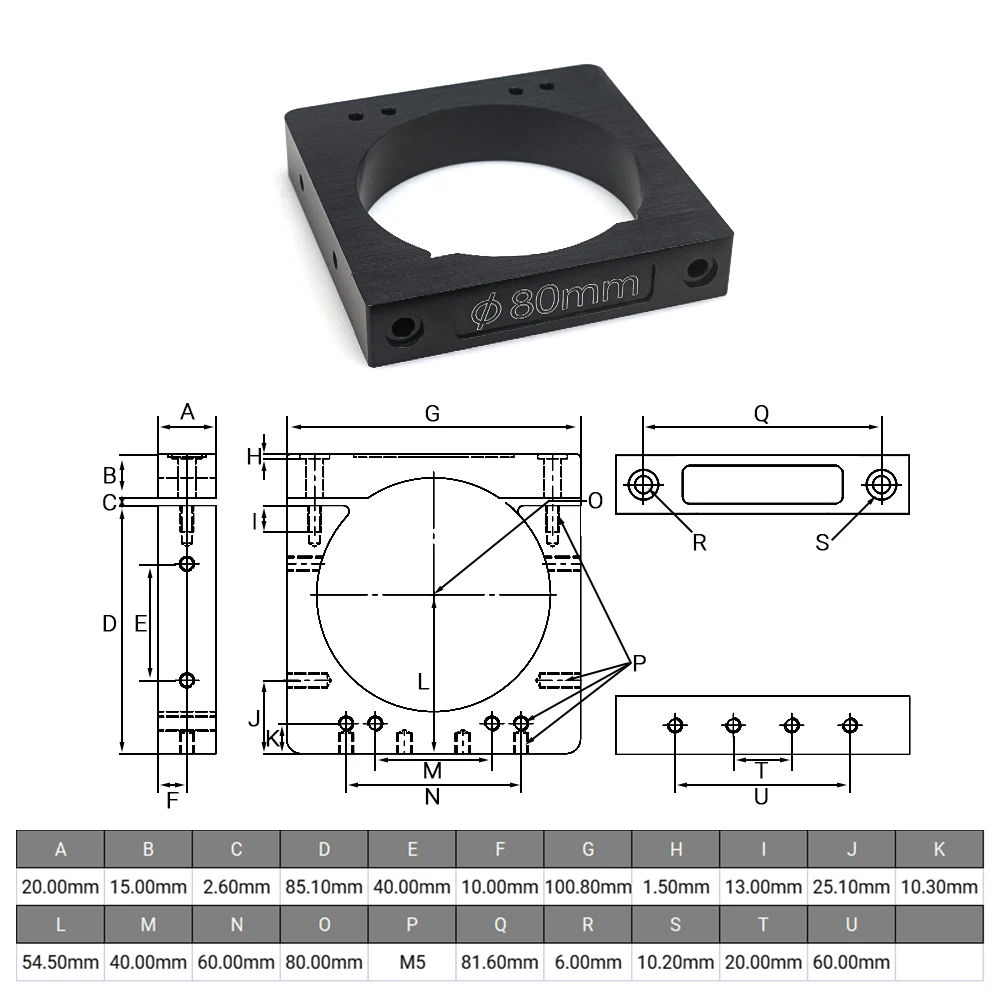

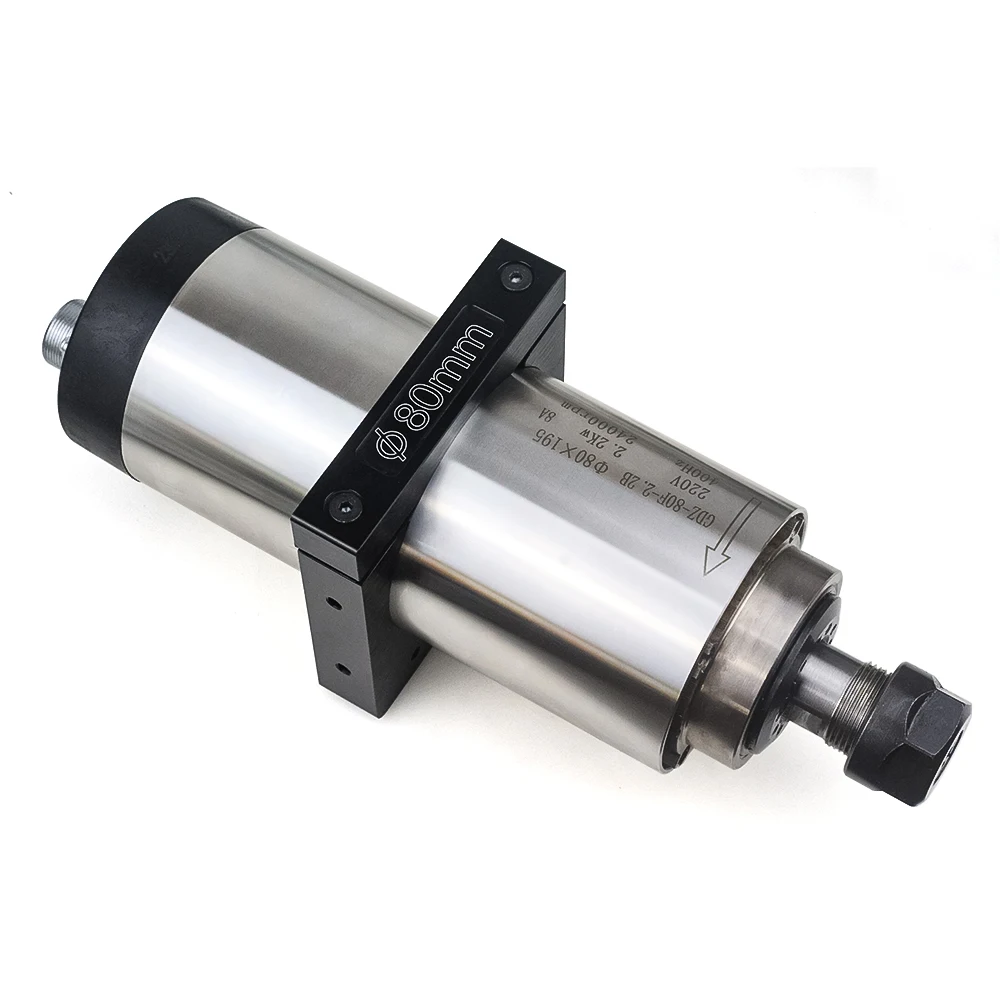

80mm diameter is perfect for mounting the 1.5kW/2.2KW Water Cooled Spindle and 2.2KW Air Cooled Spindle.
Sand blast ensures a smooth finish
2x Screws
1x Spindle Mount Clamp (Optional for 43mm/52mm/65mm/71mm/80mm)
Please note:
This Router Spindle Mount does NOT included with the Angle Corner Bracket !
Application:
