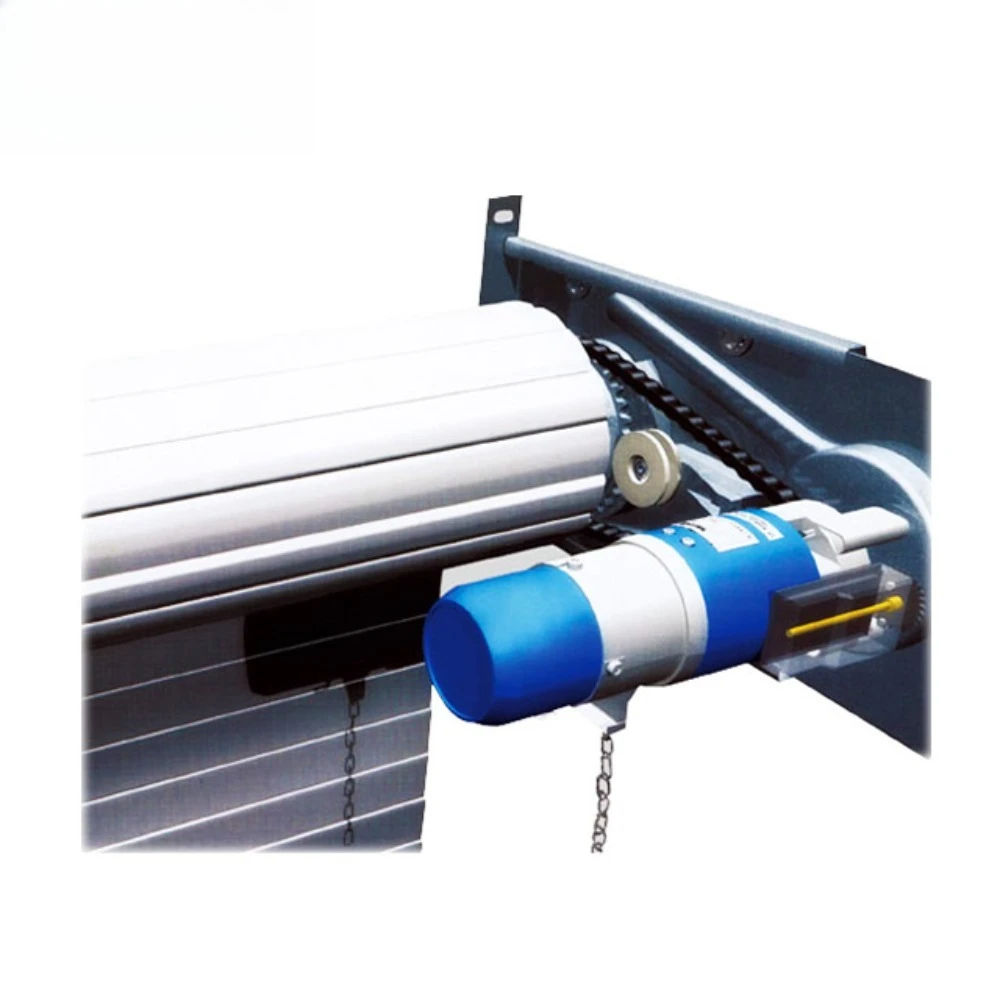

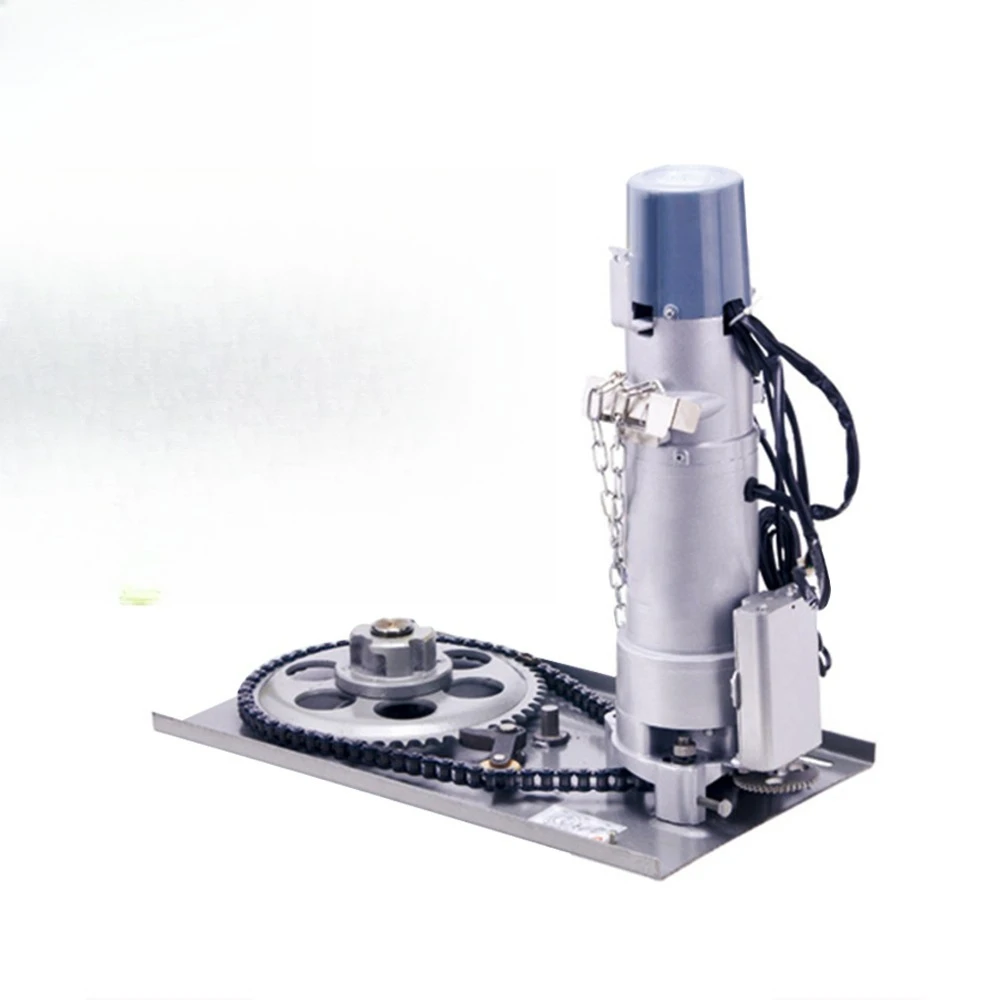

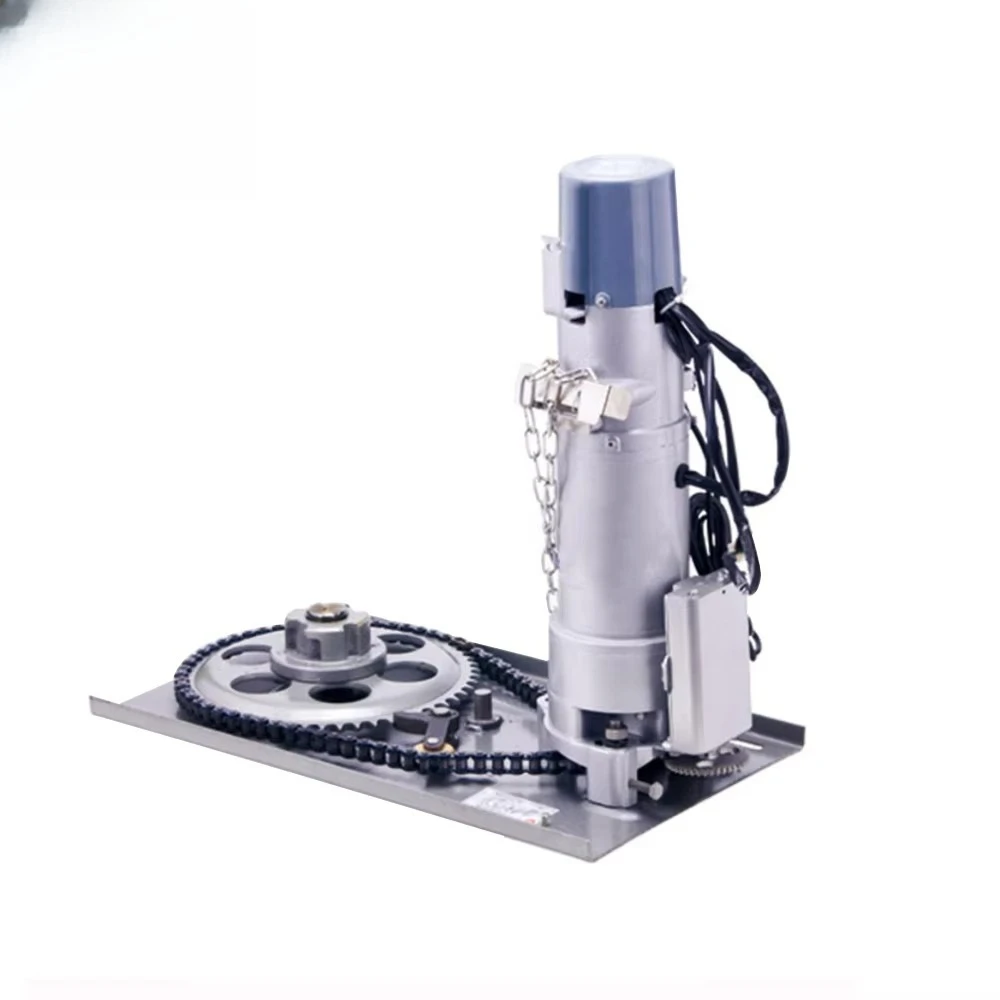

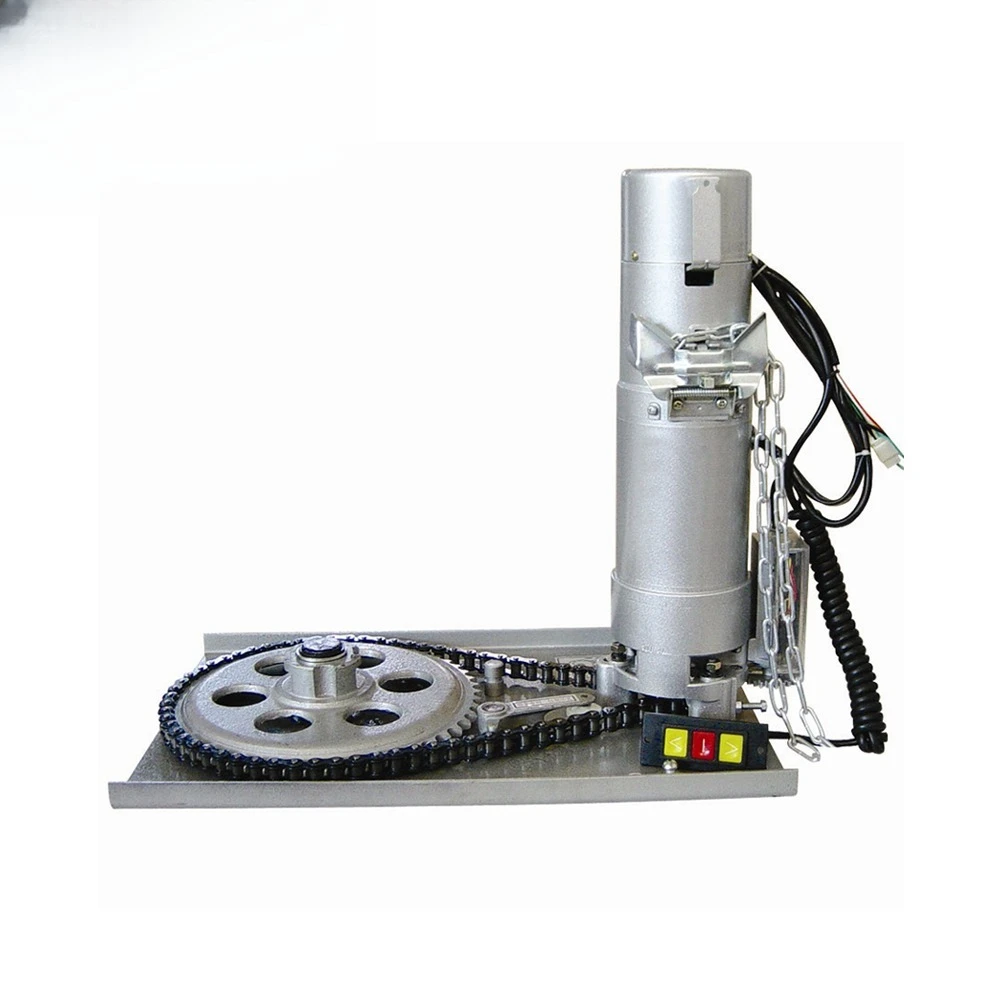

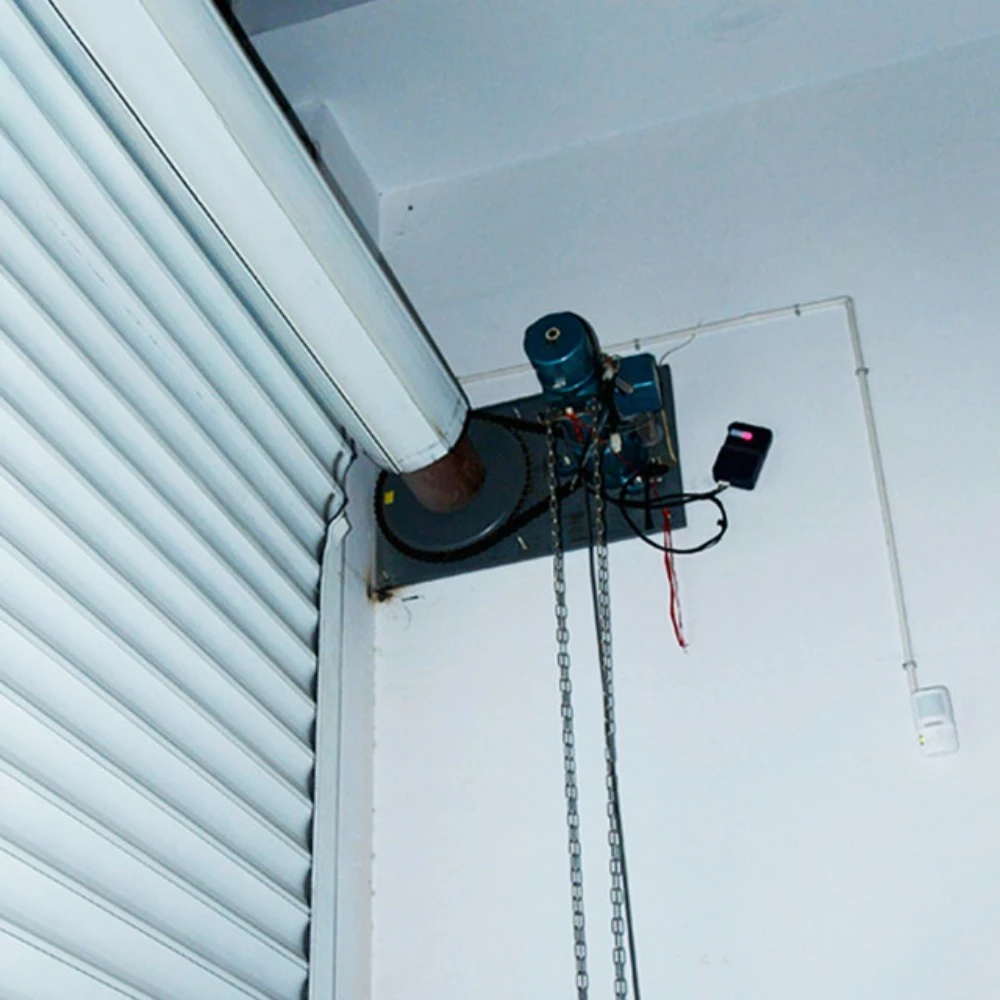

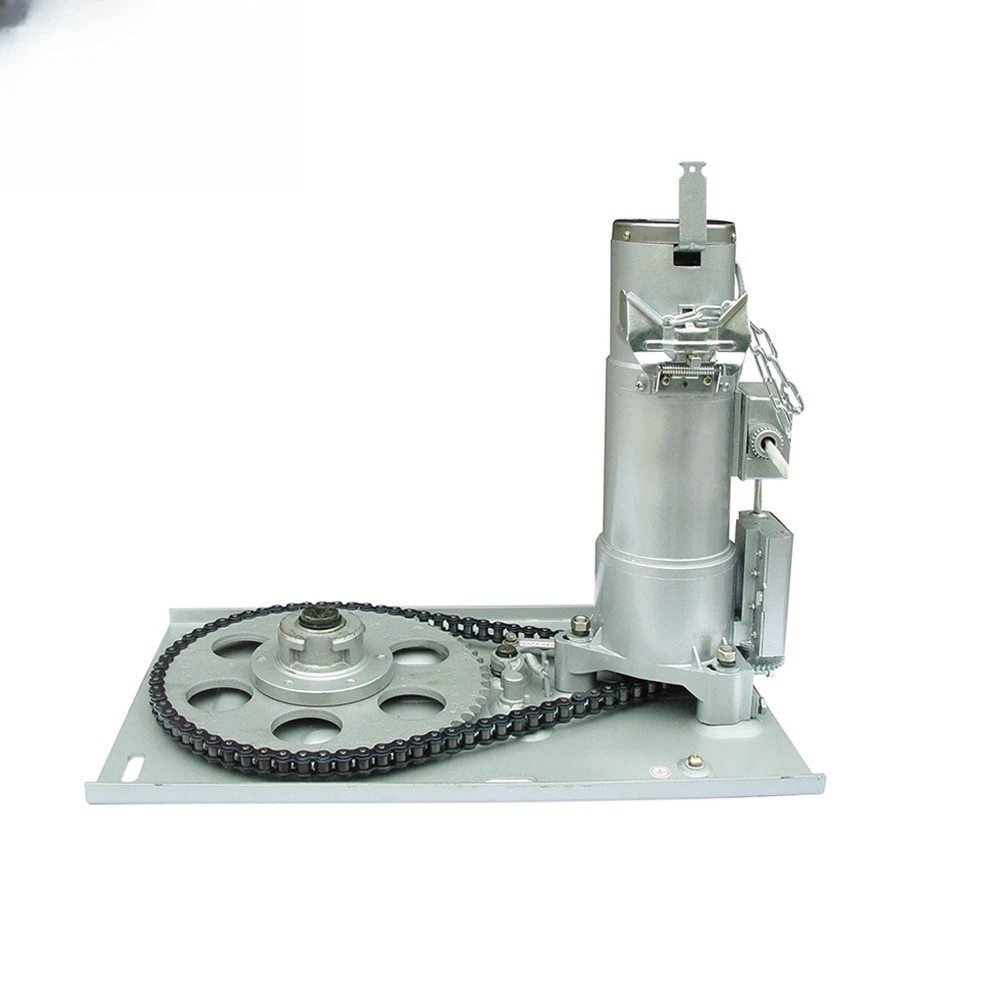

Rolling door operator

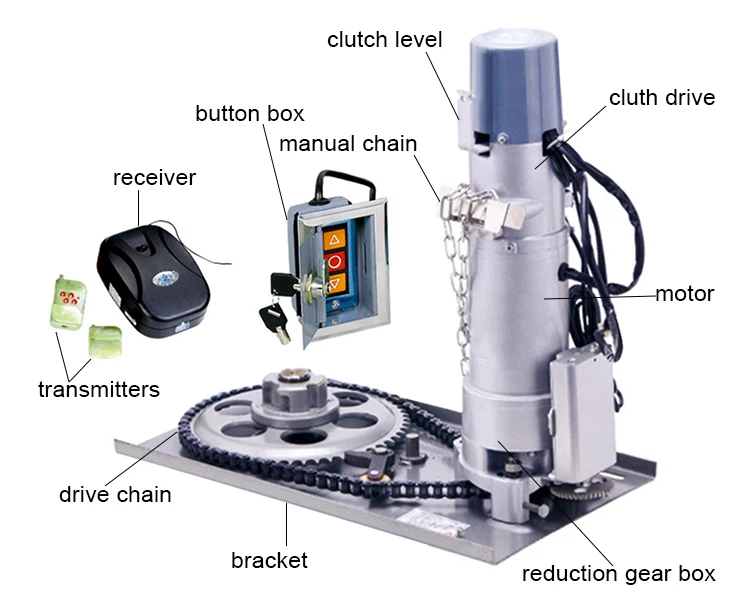

Main features
Die-cast aluminum housing guarantees a long useful life.
Gear wheel is made of high quality steel, sturdy and durable.
Limit switch enables precise adjustment of door in up and down positions.
A unique brake is provided for accurately stop the door.
Safety device against roller chain break off.
| Model |
Max. lifting capacity |
Output torque |
Motor Power |
Output rotate speed |
Max. lifting height |
weight |
|
| 220×(1±10%)V 50Hz |
|||||||
| XF300 |
300kg |
168N.m |
250W |
6.2rpm |
5m |
11.6kg |
|
| XF600 |
600kg |
412N.m |
300W |
6.5rpm |
6m |
12.6kg |
|
| XF800 |
800kg |
647N.m |
550W |
5.1rpm |
7.5m |
15.5kg |
|
| XF1000 |
1000kg |
710N.m |
550W |
5.5rpm |
7.5m |
19.5kg |
|
| 380×(1±10%)V 50Hz |
|||||||
| XF800S |
800kg |
850N.m |
550W |
5.1rpm |
7.5m |
15.5kg |
|
| XF1000S |
1000kg |
875N.m |
550W |
5.5rpm |
8.5m |
19.5kg |
|
| XF1300S |
1300kg |
1400N.m |
600W |
6.4rpm |
8.5m |
21kg |
|
| XF1500S |
1500kg |
1600N.m |
800W |
4.9rpm |
8.59m |
21kg |
|
