- High-concerned chemical: None
- Model Number: H2002D / H2002C
- Brand Name: Asia-Teco
- Origin: Mainland China
- Certification: NONE
- Working voltage: DC12V
- working current: < 100 mA
- user capacity: 2500
- Heavy volume: 80g
- Read the card types: 13.56Mhz IC card or 125Khz EM/ID card
- Ambient temperature: - 20 to 60 Degree
- Card read distance: 1-10cm

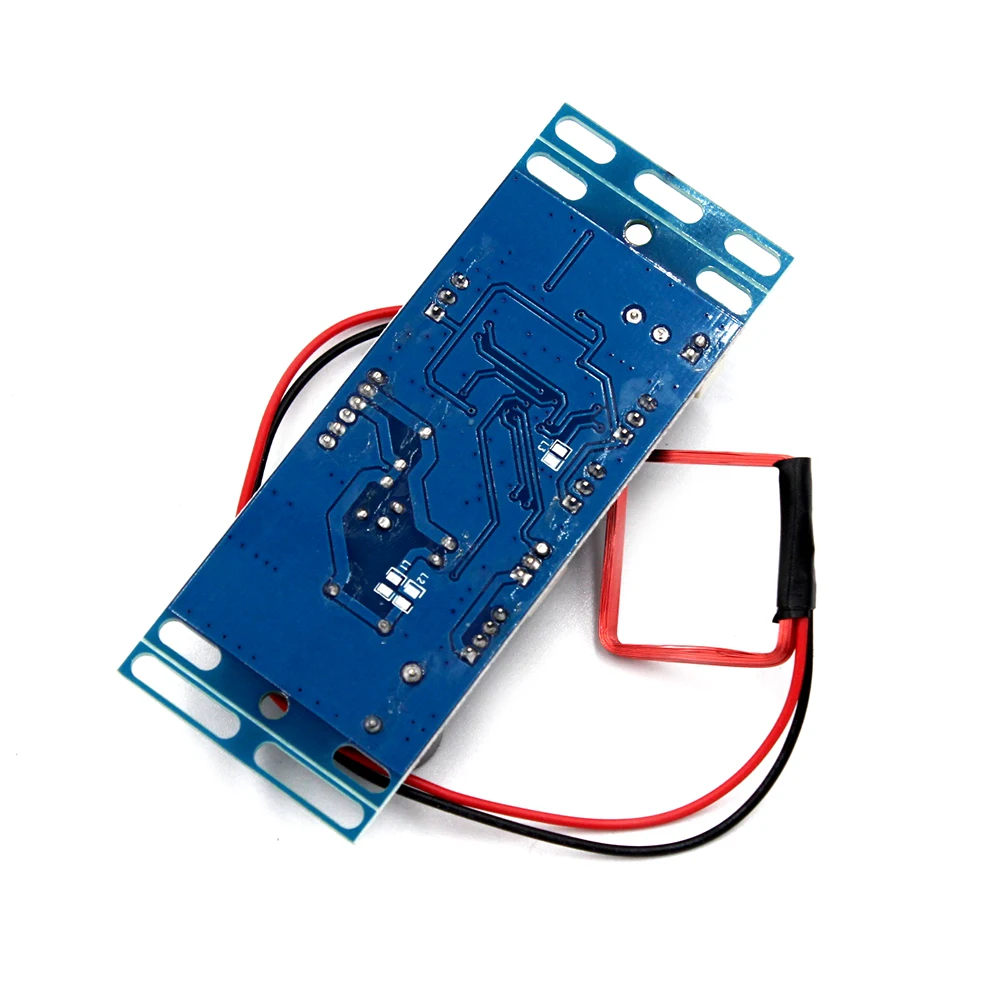

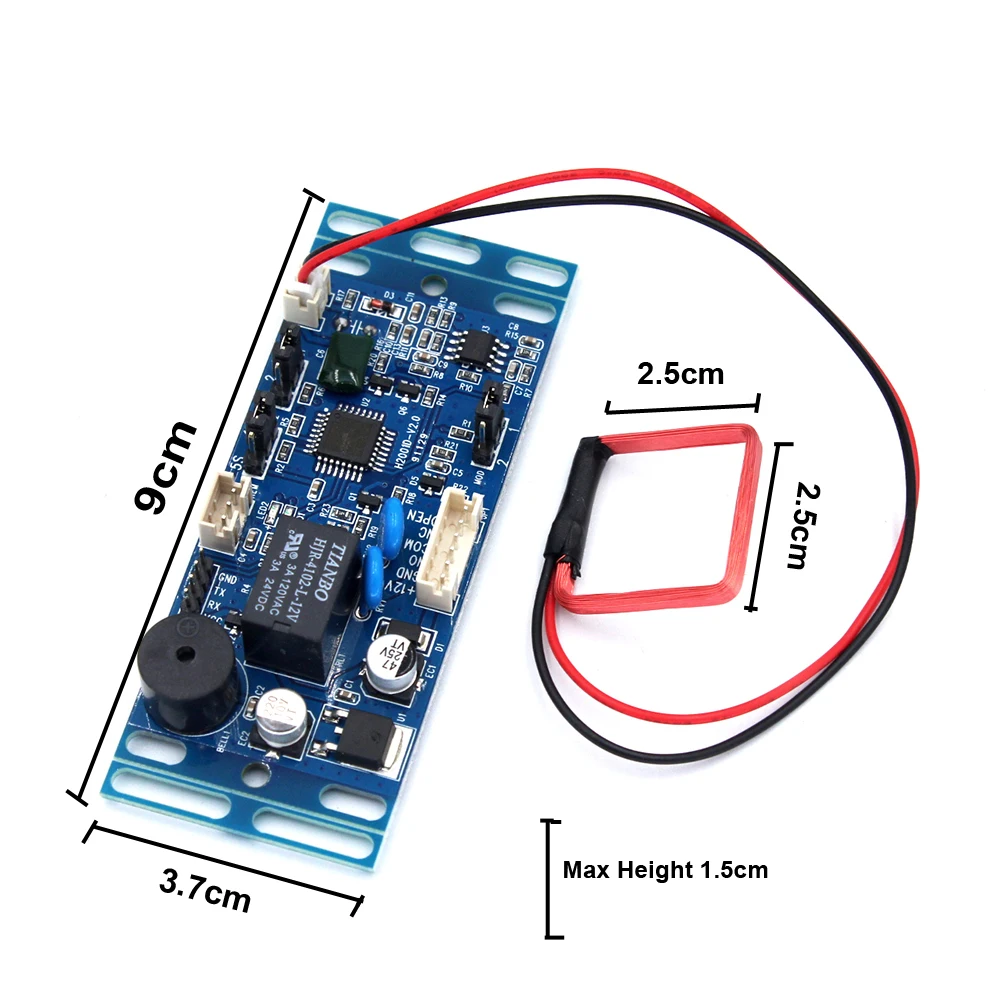

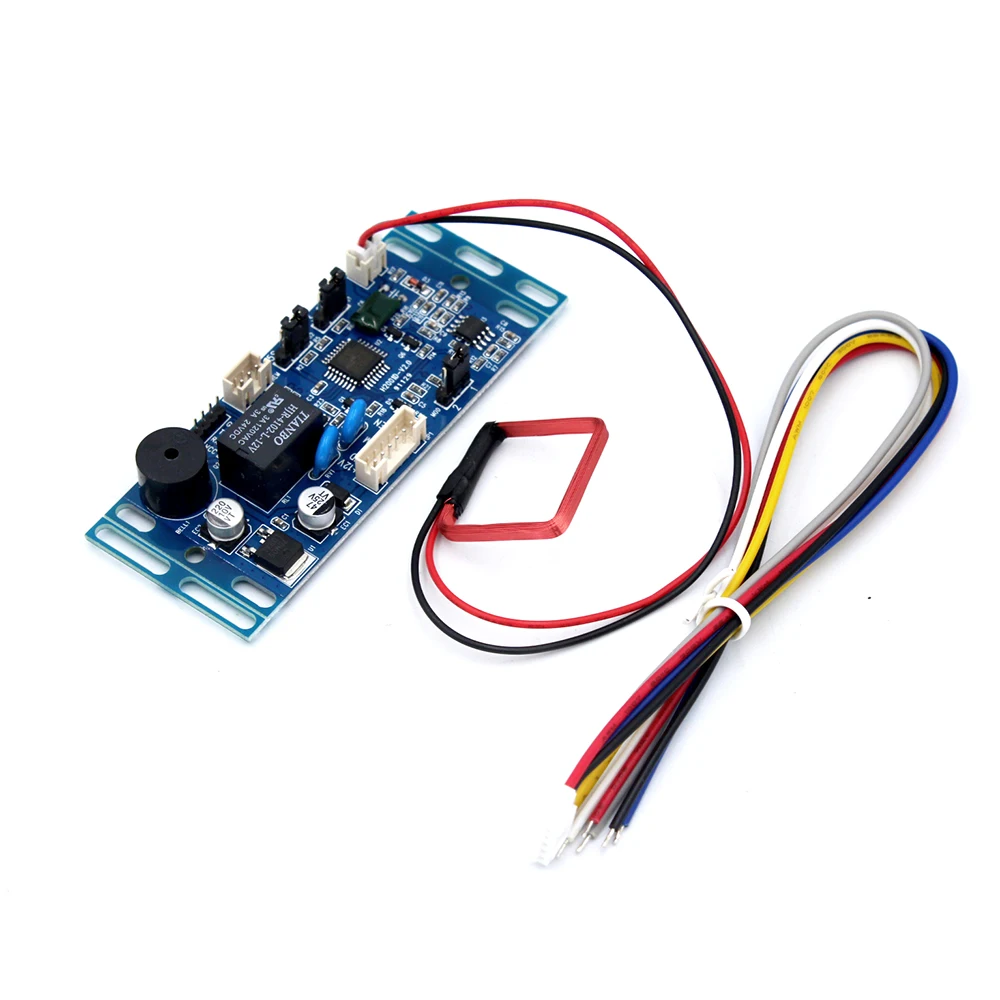

RFID Proximity Access Control System Board 125Khz 13.56Mhz 2500 Users Building Intercom Module Embedded Security Access Control
Technical parameters:
1.Working voltage：DC12V
2. working current：< 100 mA
3. user capacity: 2500
4.Heavy volume 80g
5.Read the card types: 13.56Mhz IC card or 125Khz EM/ID card
6.Ambient temperature - 20 to 60 Degree
7.Card read distance: 1-10cm
Set the card:
Step 1: power off, connect S1 jumper cap 2, 3, side, back to electricity, three nights after the green light flash.
Step 2: brush two consecutive blank card (the first one to increase the card, the second delete card), the red light flashing, continuous short at this time.
Step 3: power off, reconnect the jumper cap 1, 2, and finally to electricity, card increase.
Add or Del users:
Add user: in standby mode, brush "add card", then brush to add user card in a row, then brush "add card" to exit
Delete users: in standby mode, brush "Del card", then brush to remove user card in a row, then brush "Del card" to exit
Delete all user: in standby mode, brush "Del card", then brush "add card", then brush "Del card" to
