- Hign-concerned Chemical: None
- Special Features: 2 Position, 3 Position
- Item Weight: 55g
- Item Width: 0.83inch
- Item Length: 1.46inch
- External Testing Certification: ce
- Model Name: Laser Rocker Red Led
- Year: 2022
- Brand Name: BANDC
- Item Type: SWITCHES
- Material: abs Black hard surface rocker
- Origin: Mainland China
- Item Type: Switches

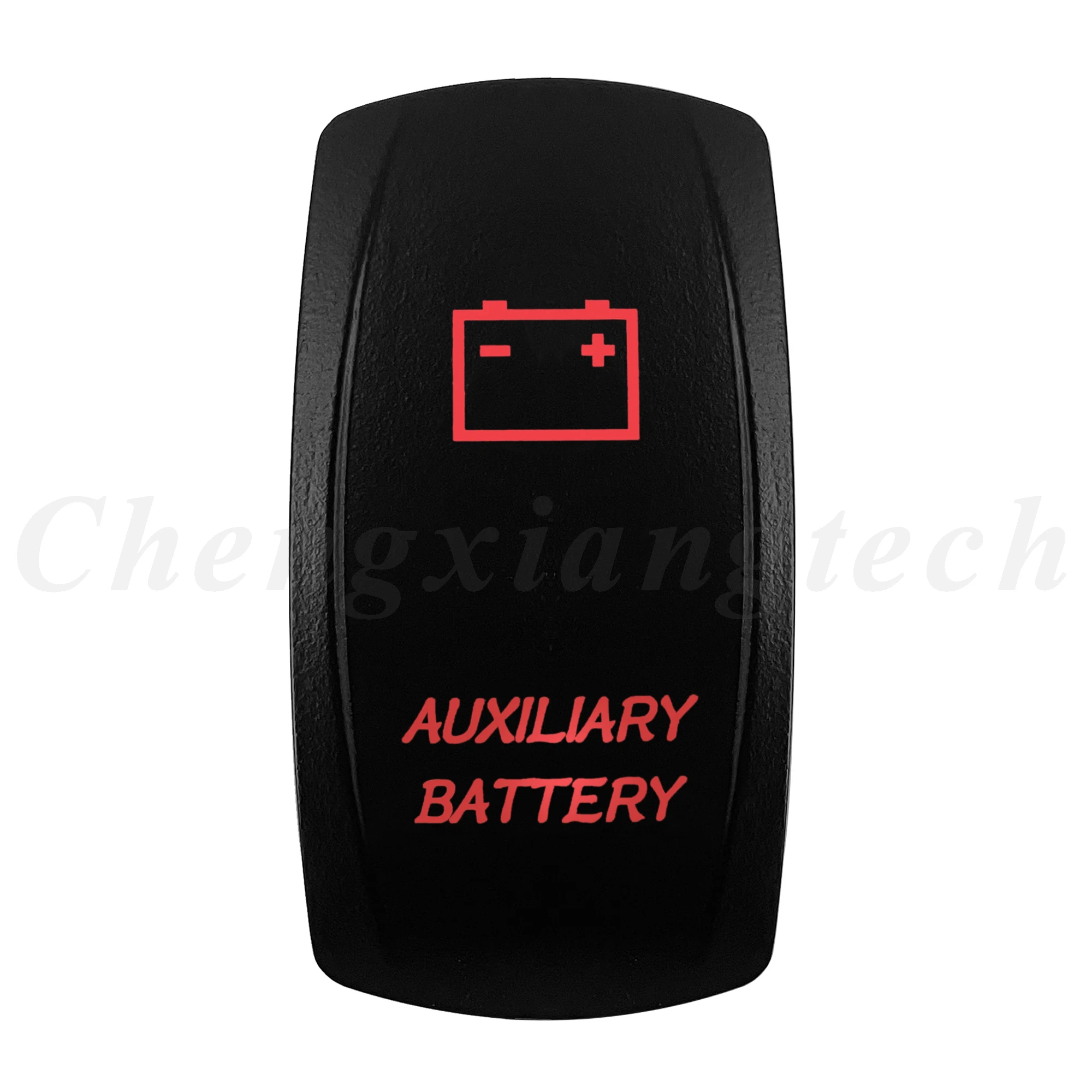

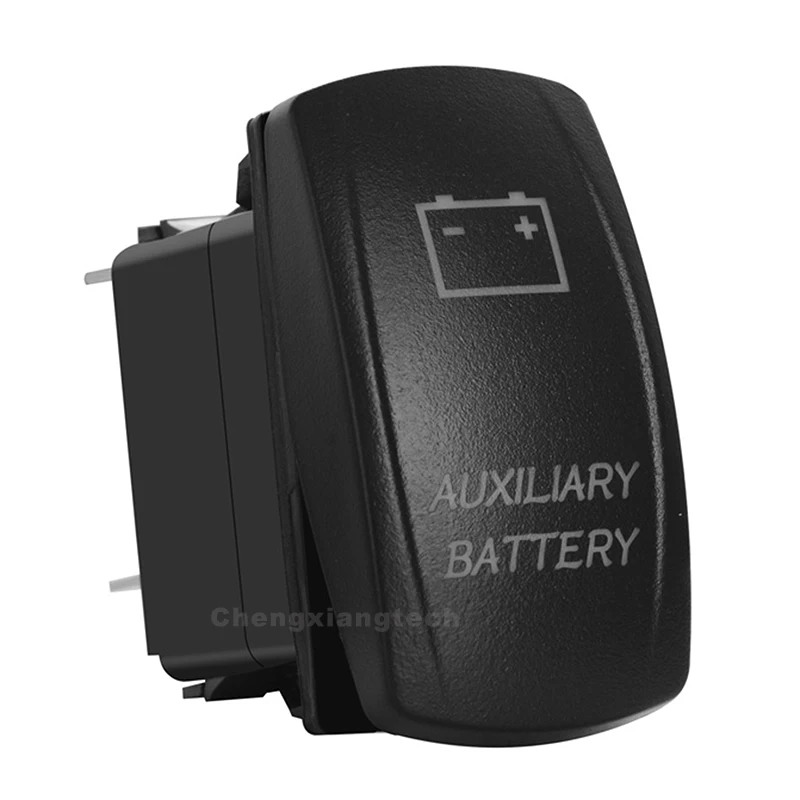

12V Red Led Boat Car Rocker Switch
Brand New, made of high quality ABS Plastic
Black hard surface rocker with two red Led lights
Waterproof : IP66 Marine Grade
Switches are the standard Carling/ARB size

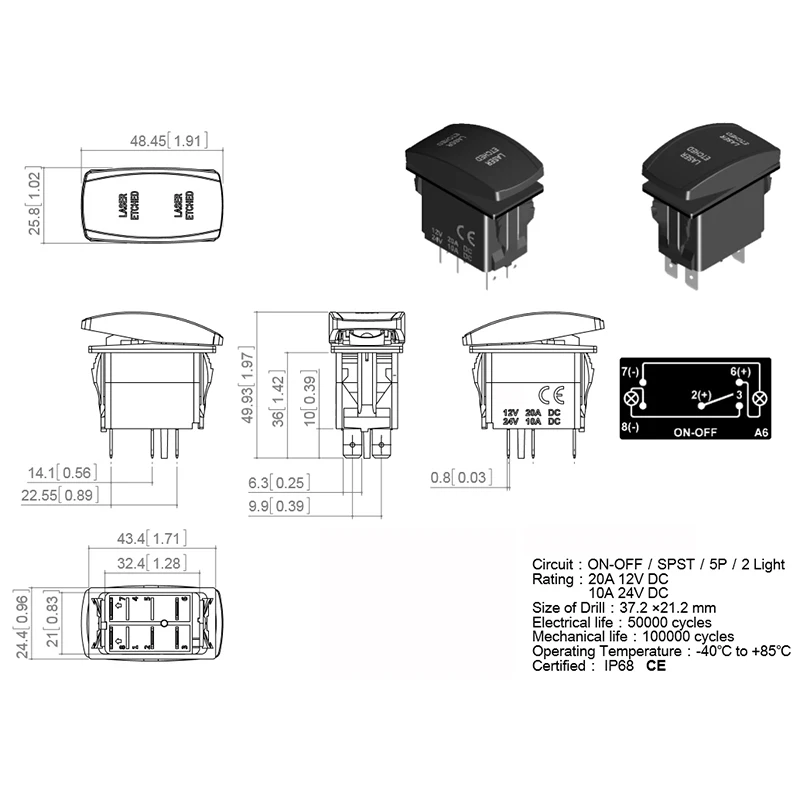

Size of Drill: 37.2 x21.2 mm
Rating: 20A 12V DC;10A 24V DC
Switch Operations: on off, (on) off, on off on, (on) off on, (on) off (on) . on is maintained and locked. (on) means momentary and unlocked and will return back if you remove your finger
Numbers of Terminals: 5Pins, 7Pins

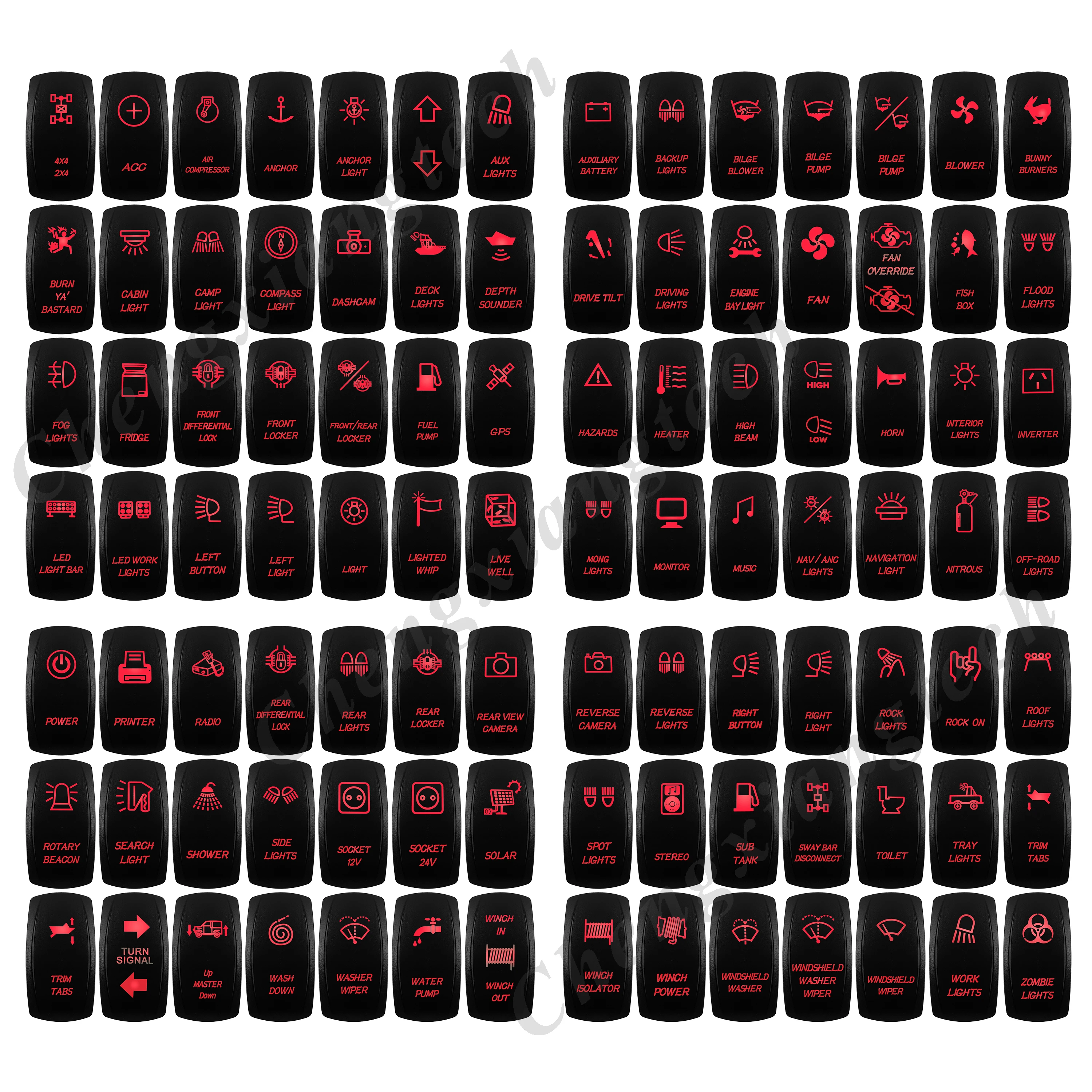

LOGOS WE HAVE
Maintained and Momentary Explained
A Maintained switch is noted several ways in different industries On Off On or Latched or Latching or Locking
It is going to Latch Lock in position you or someone else places it. Used for non jogging operations like pumps fans or lights
A momentary switch denoted in several ways also is (On) Off (On) or Resetting or automatic reset or springing
Thisterm means it will return spring reset to a position ( usually off ) when you release it. For jogging operations like lift hoist winch or door
Led Colors We Have
Orange, Blue, Red, Green, White
Switch Operations We Have
ON OFF, (ON) OFF, ON OFF ON, (ON) OFF ON, (ON) OFF (ON)
HOW TO BUY IF YOU WANT OTHER LOGO?
Please Contact us at the Chat Center
