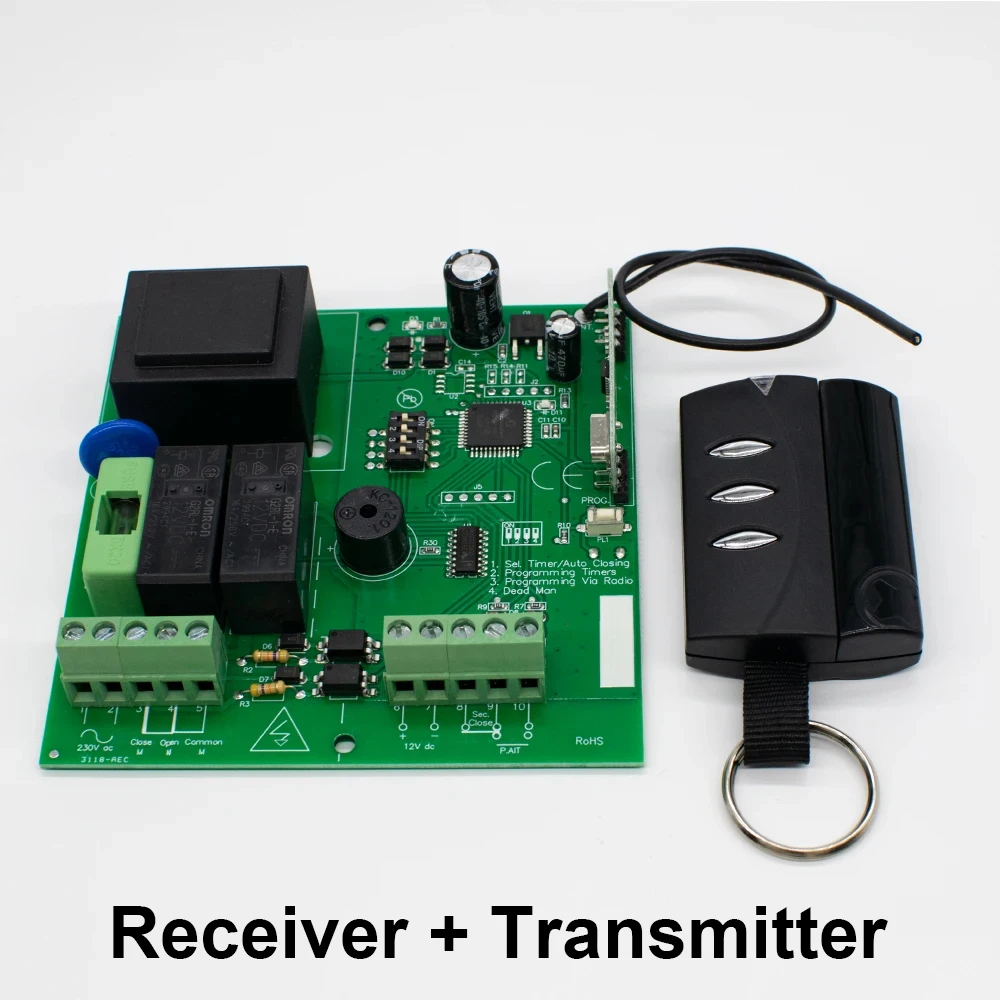

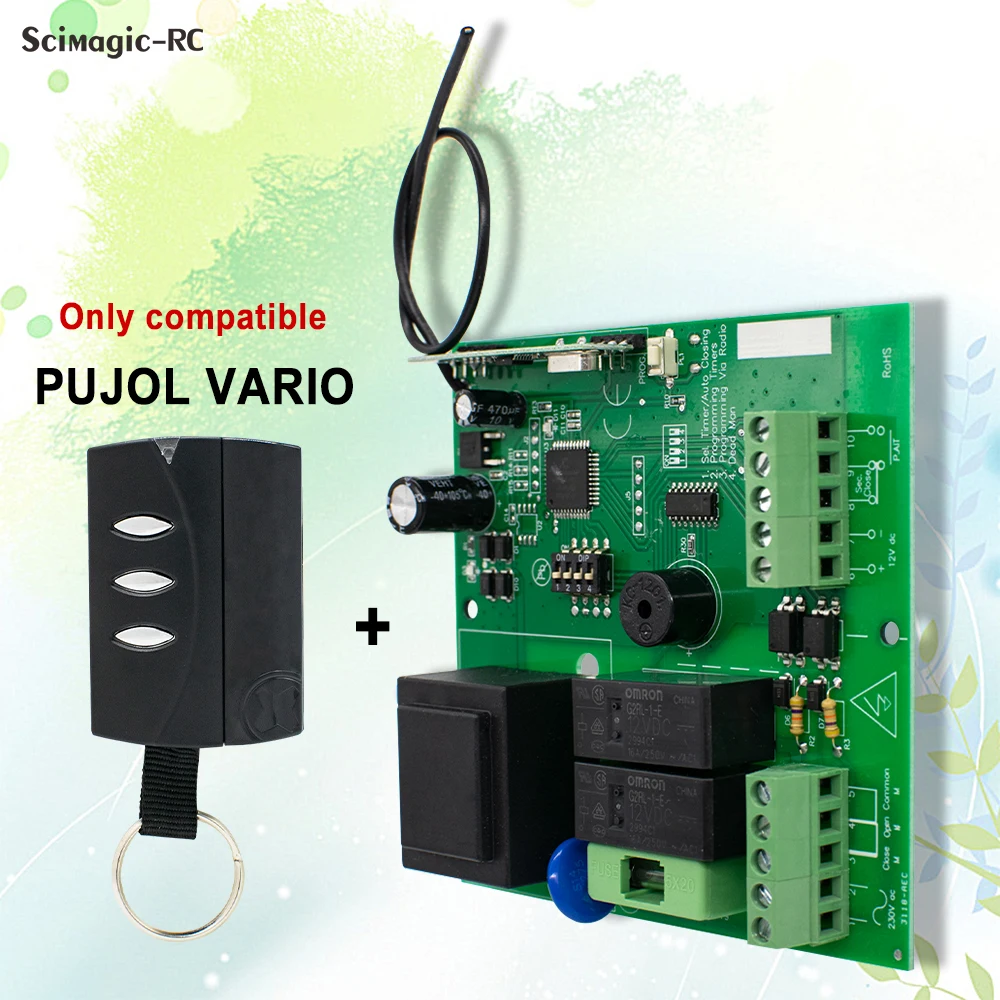

Receptor de controle remoto de código PUJOL VARIO 230V AC 24V DC Módulos de interruptor e transmissor remoto portátil PUJOL VARIO

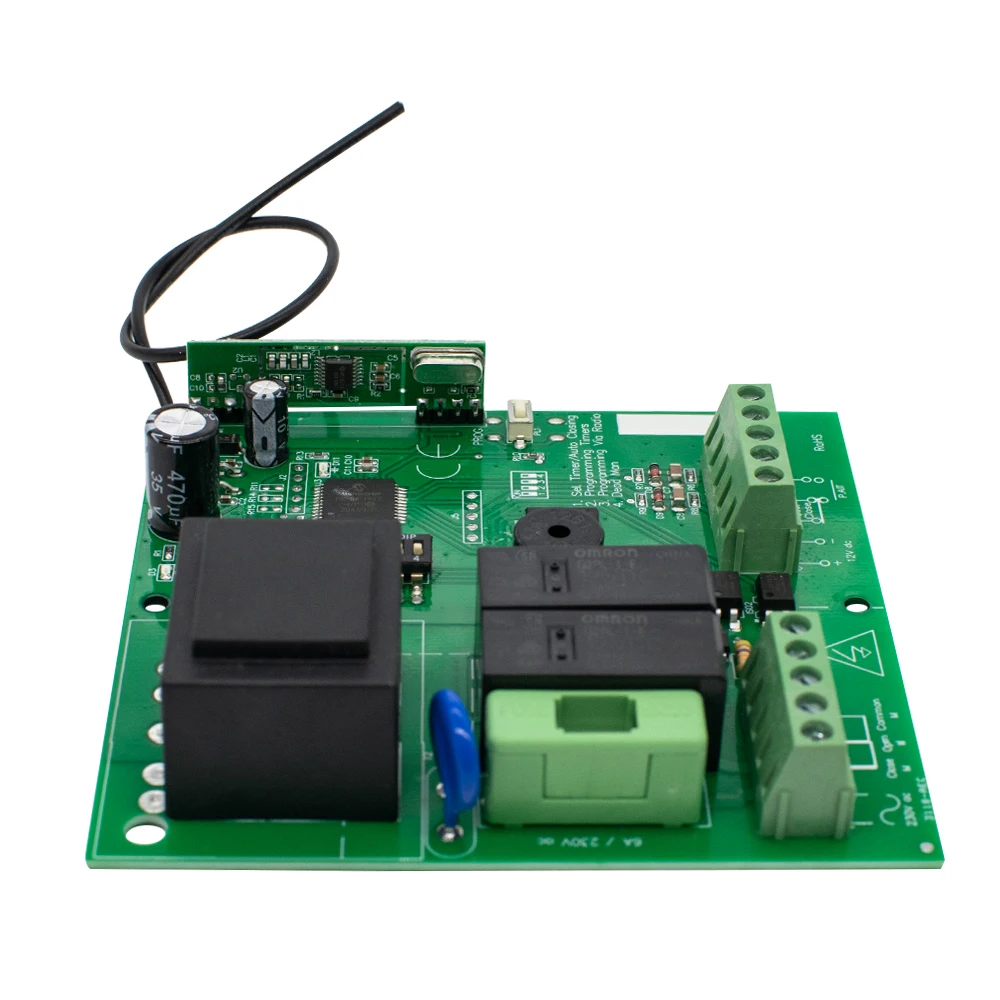

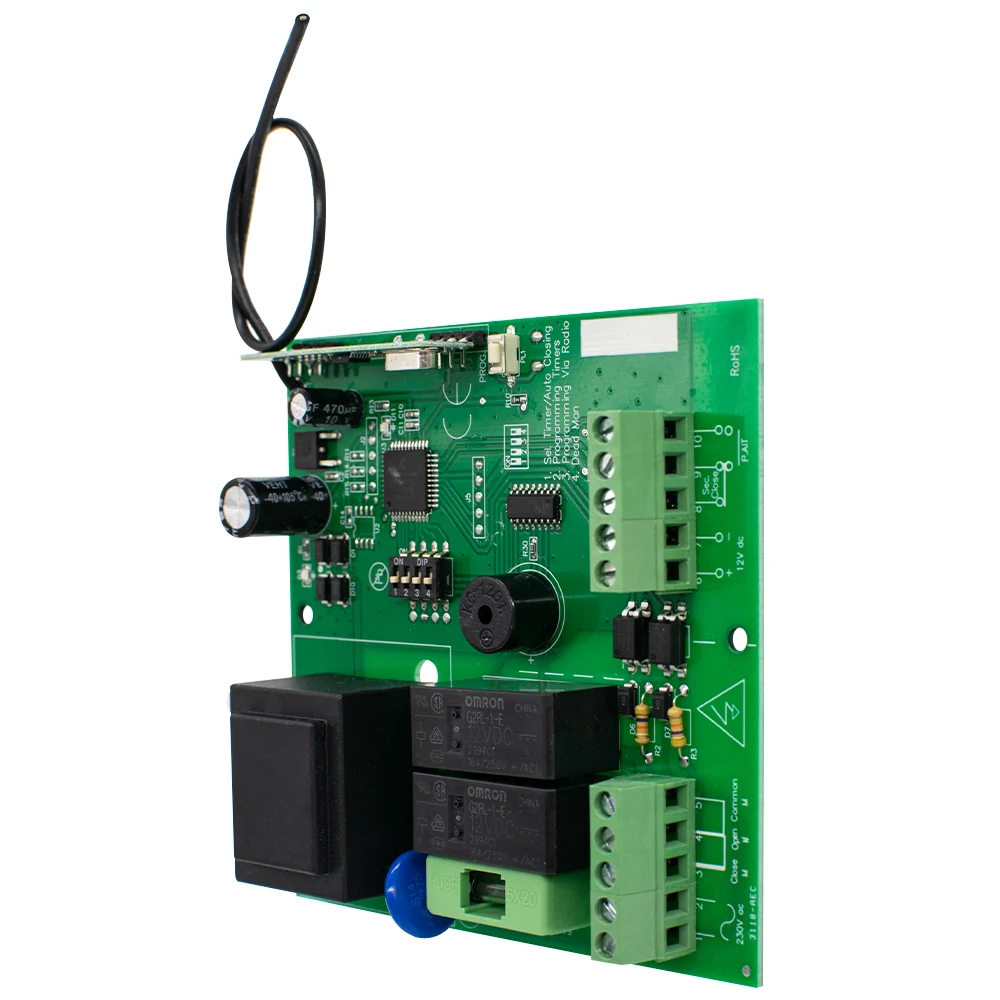

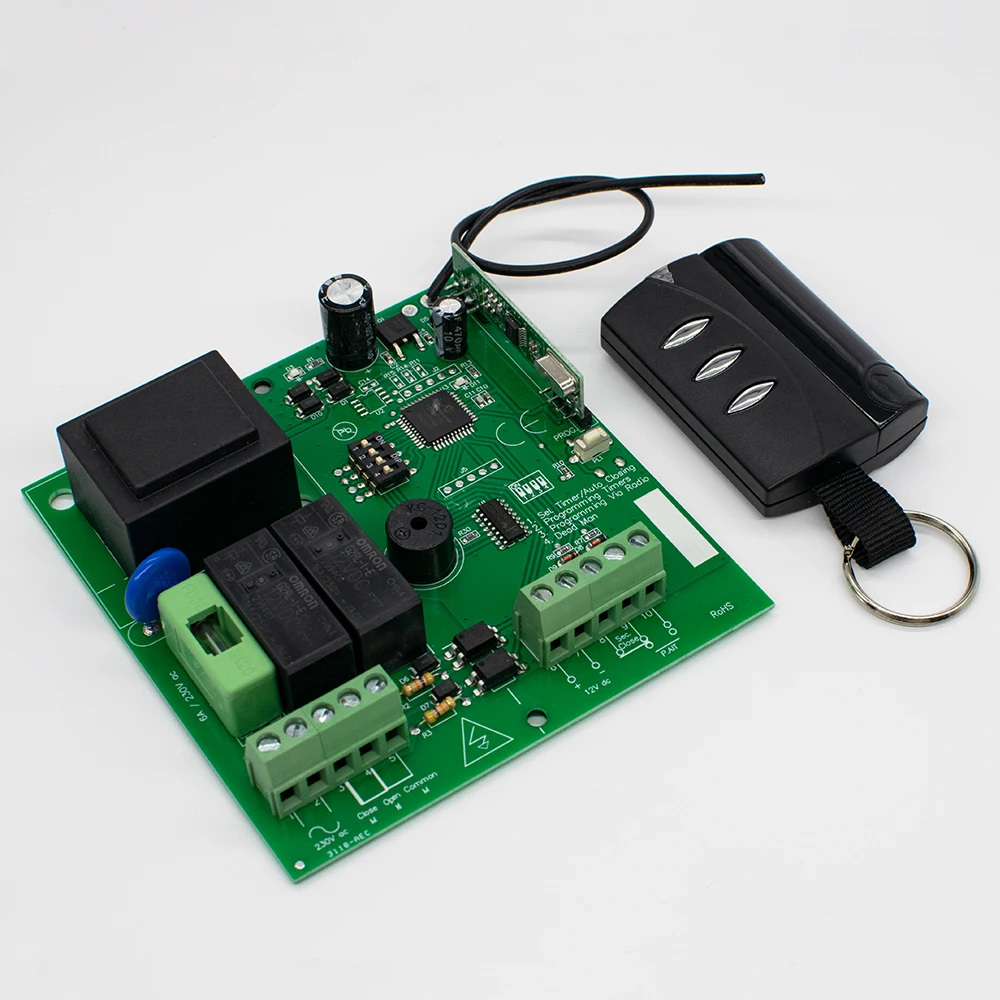

PUJOL JUNIOR single-phase 230Vac control panel for roller shutters or doors that incorporates an open-source radio frequency receiver compatible with PUJOL VARIO CODE transmitters with a frequency of 433 MHz.

It is 100% compatible with the following models.

PUJOL VARIO BLACK,
PUJOL VARIO MARS
PUJOL VARIO OCEAN

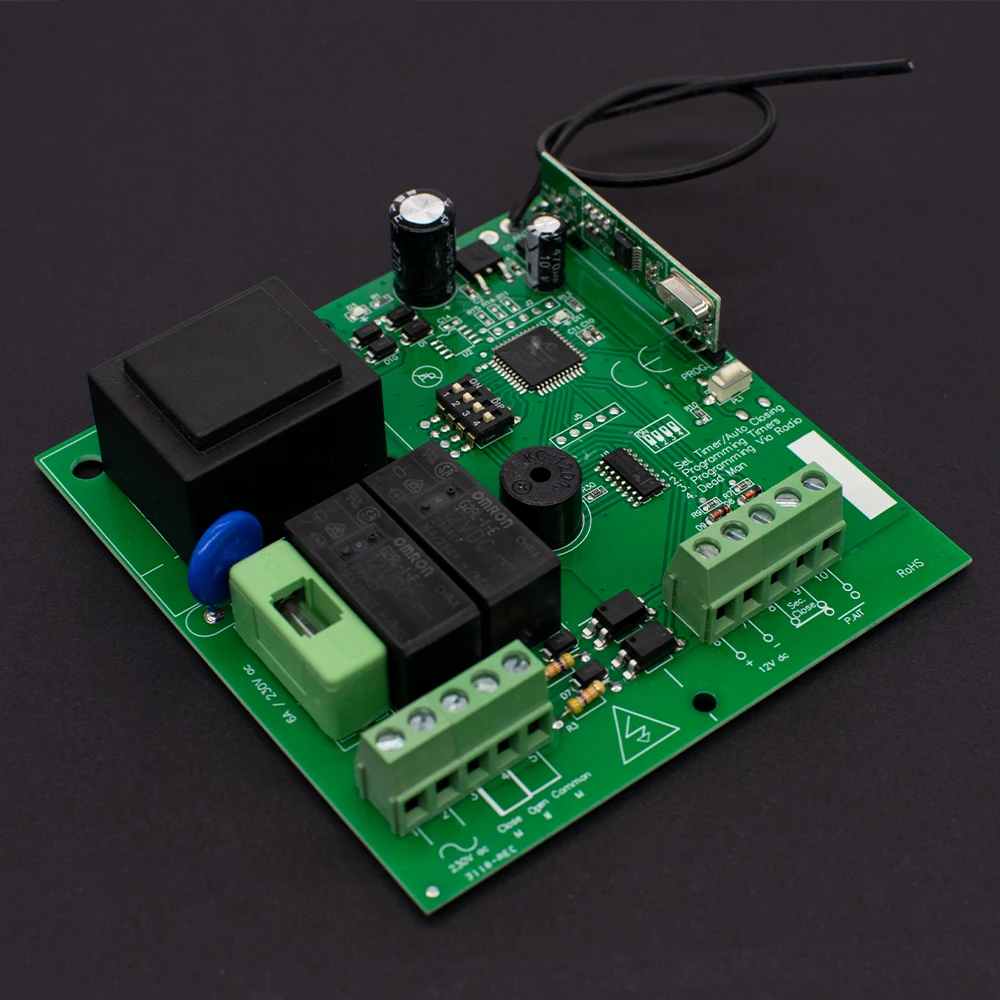

MAIN FEATURES PUJOL JUNIOR

◆Manoeuvring input protected by Zener diodes. Power and motor inlet protection by means of 6A fuse.
◆Mains indicator LED.
◆Reciprocating push-button input.
◆Safety photocell input and anti-crush strip.

OPERATION OF THE PUJOL JUNIOR MANOEUVRING PANEL

The automation manoeuvres are carried out by means of the reciprocating pushbutton or by means of a RollingCode 433.92 MHz transmitter. The manoeuvre is terminated when any of the following conditions are met: by the activation of the corresponding HR or by the end of the operating time. The limit switches do NOT have a connection to the frame. The operating time is programmable up to a maximum of 2 minutes and 30 seconds and is a safety time. The automatic closing time is also programmable up to a maximum of 3 minutes and regulates the waiting time before automatically executing the closing manoeuvre.

A RollingCode transmitter and the reciprocating pushbutton perform the same function. If the door is opening, when we press the alternative emitter or button it stops, if we press again it closes, if we press stop again, if we press it opens again, and so on.

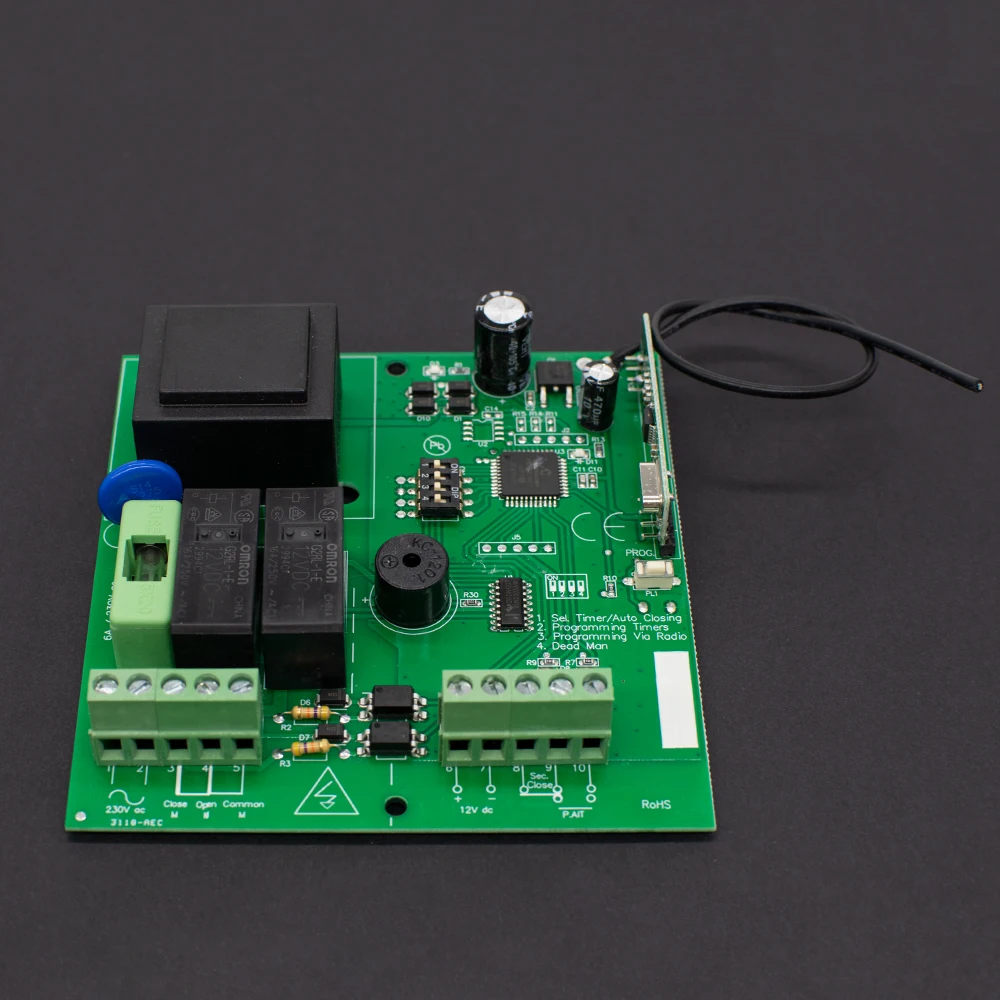

SELECTION OF OPTIONS PUJOL JUNIOR

1. SE. TIMER/AUTO CLOSING

ON: Timed automatic closing.

OFF No automatic shut-off

2. PROGRAMMING TIMER

ON Operating Time Scheduling

OFF Time Scheduling Disabled

3. RADIO PROGRAMMING

ON radio programming of new broadcasters allowed

OFF radio programming disabled

4. PRESENT MAN

ON to close, press and hold the push button or the alternate button. If you don't hold down, the maneuver stops.

OFF normal operation.

Note: In normal operation, install a safety device to protect the closing edge.

5. SIDE ENTRY CONFIGURATION

ON Type 8k2 Verified Safety Side.

OFF Side not verified, NC contact.

PUJOL Control Highlight

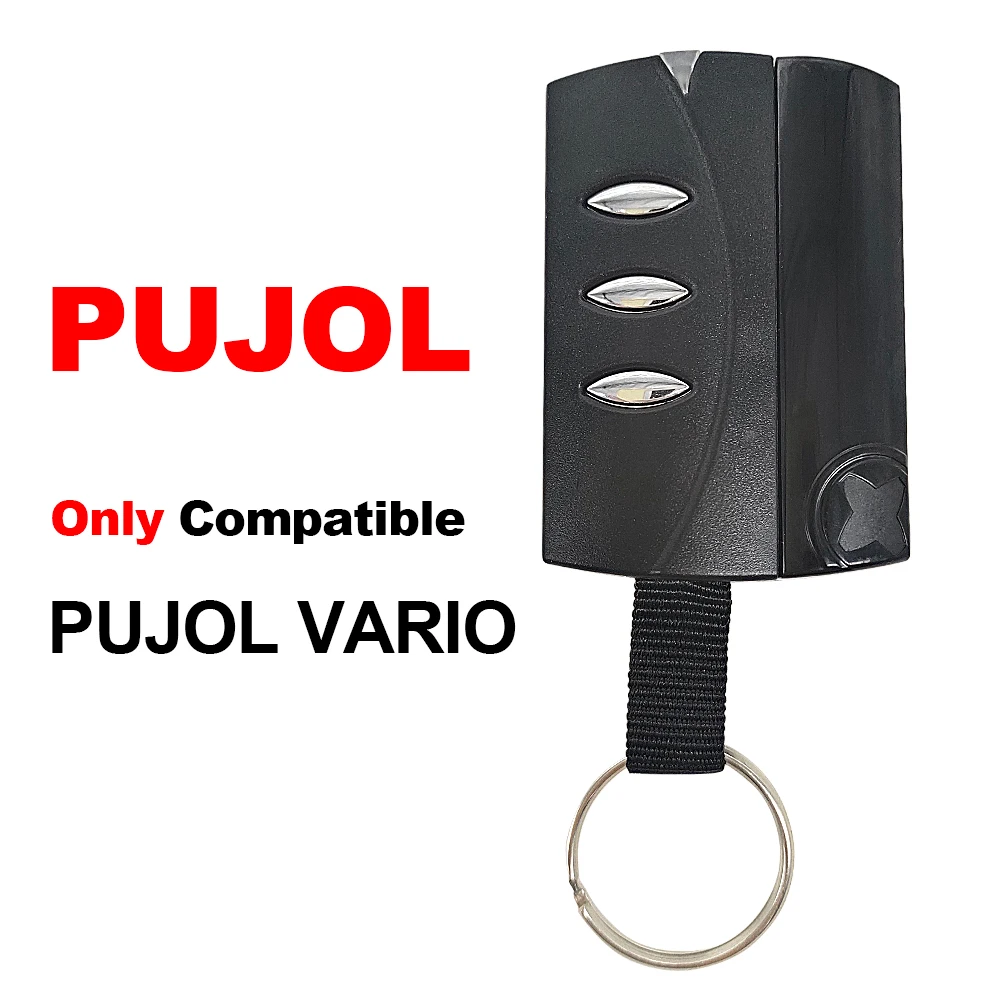

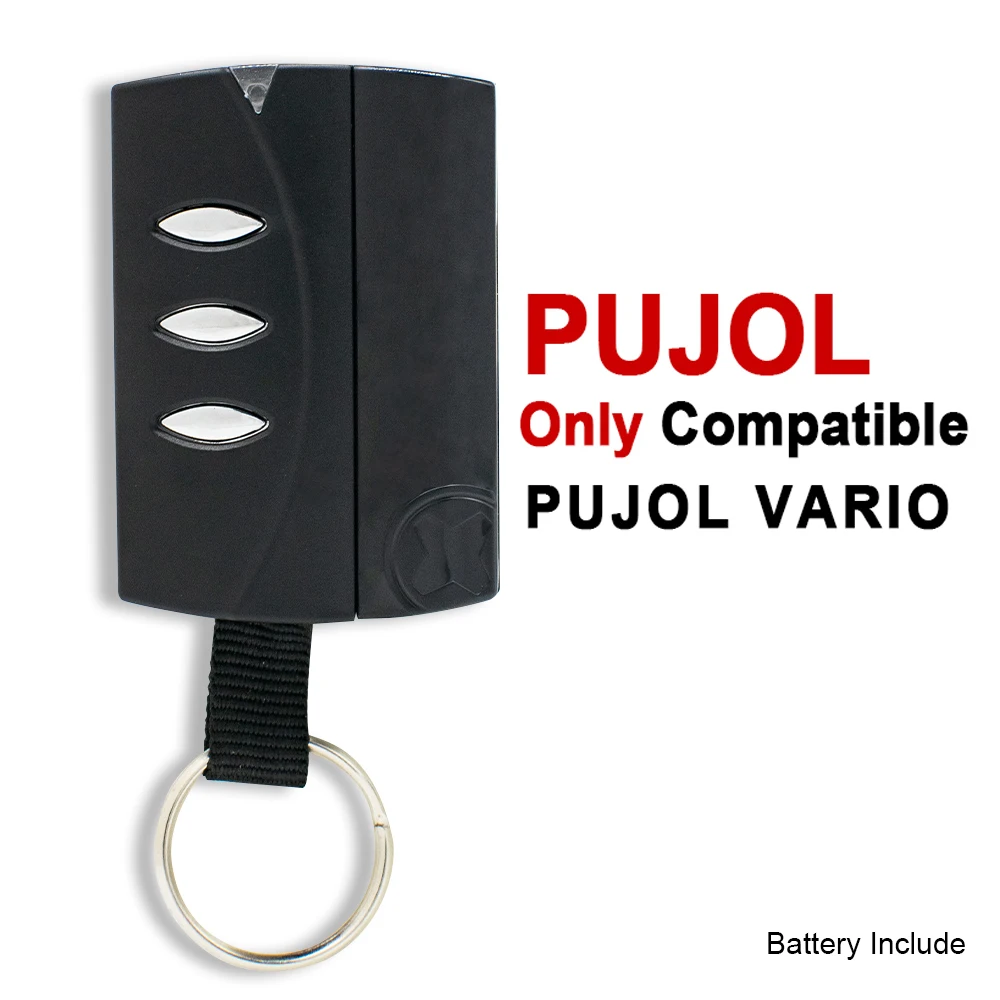

◆Compatible with
PUJOL VARIO,
PUJOL VARIO MARS
PUJOL VARIO OCEAN,
◆5 seconds to Programming
◆Good control distance 10-100m open area
◆Quality assurance, if there is damage, contact customer service for compensation
◆24 hours delivery, can contact customer service for expedited delivery (except holidays)

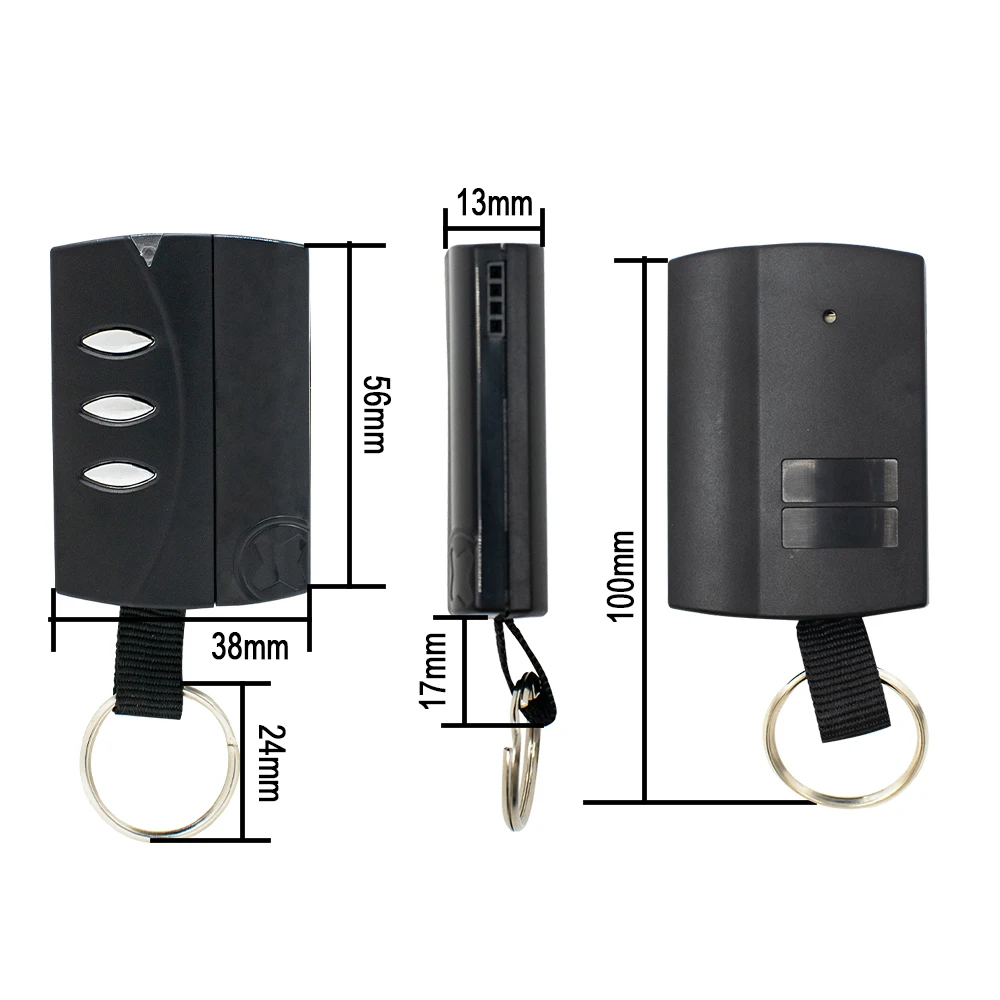

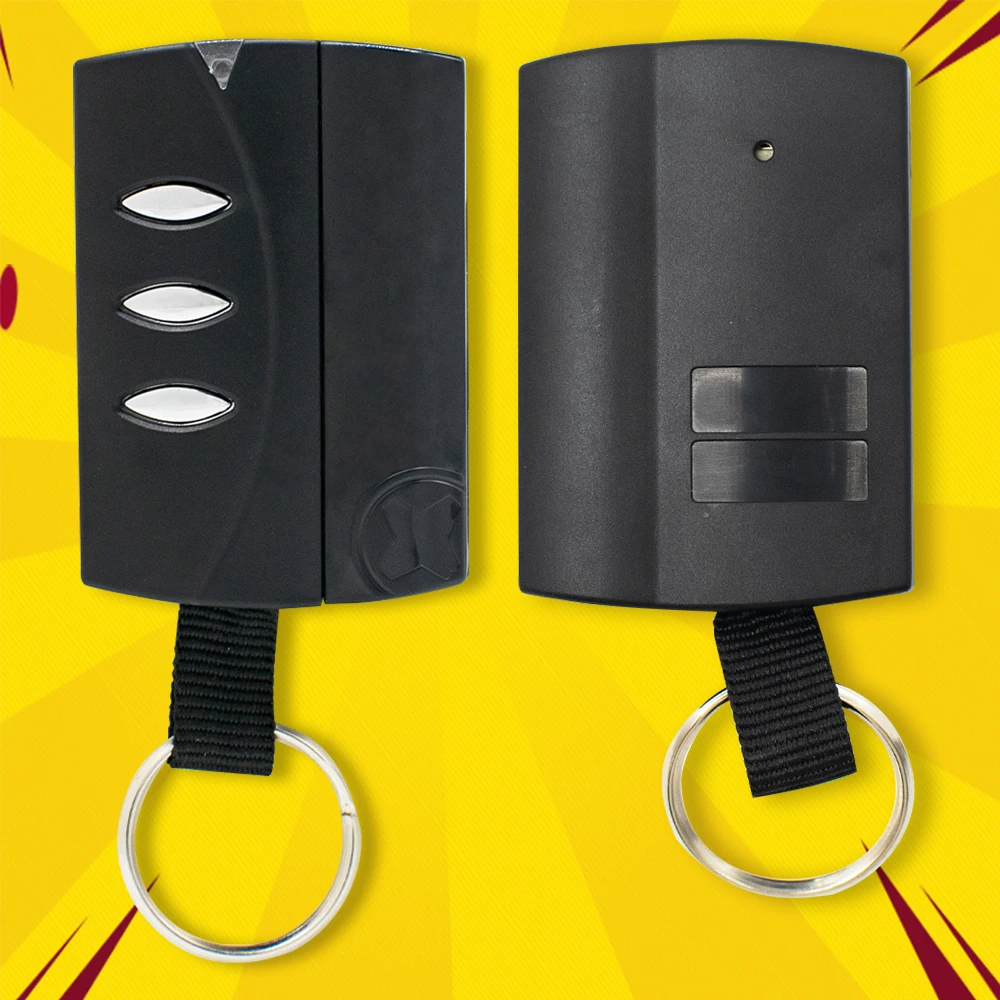

Description:

1. Type of programming: Programming with the receiver
2. Number of channels: 3
3. Code: rolling code
4. Frequency: 433.92 MHz
5. Battery: Include

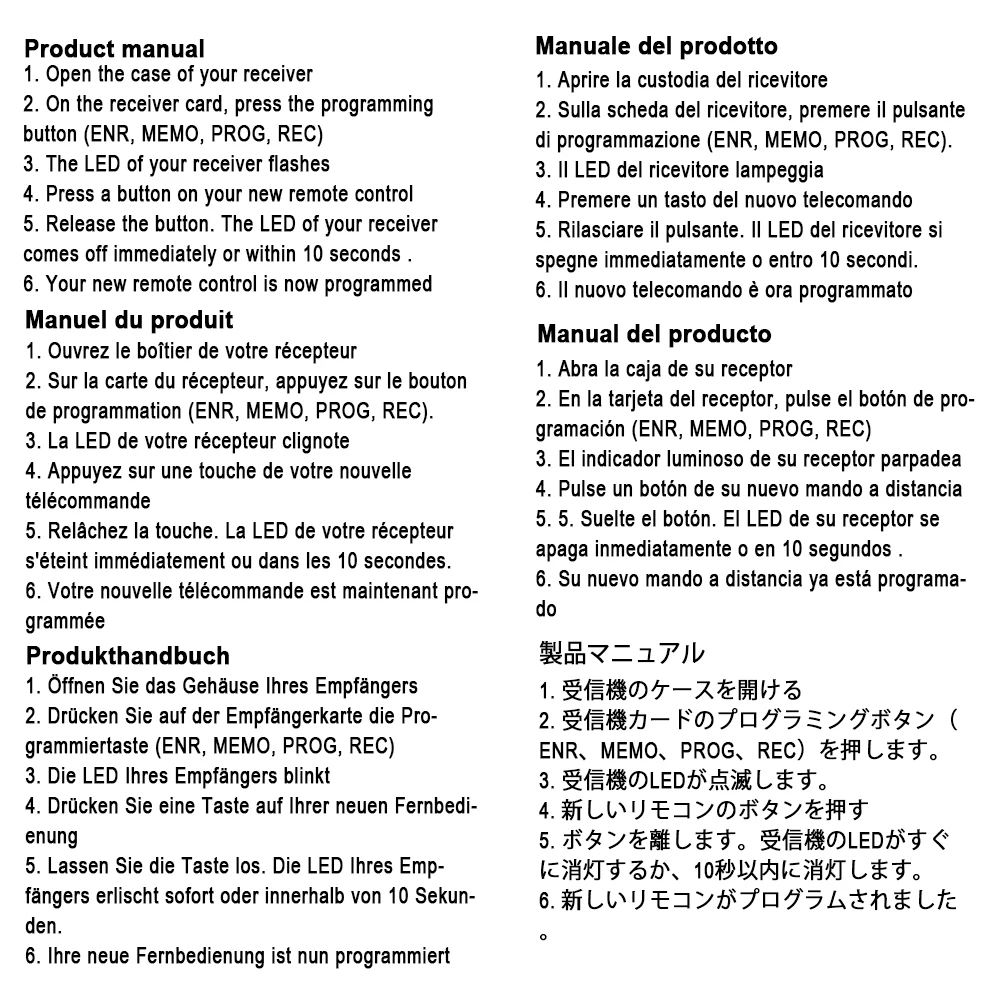

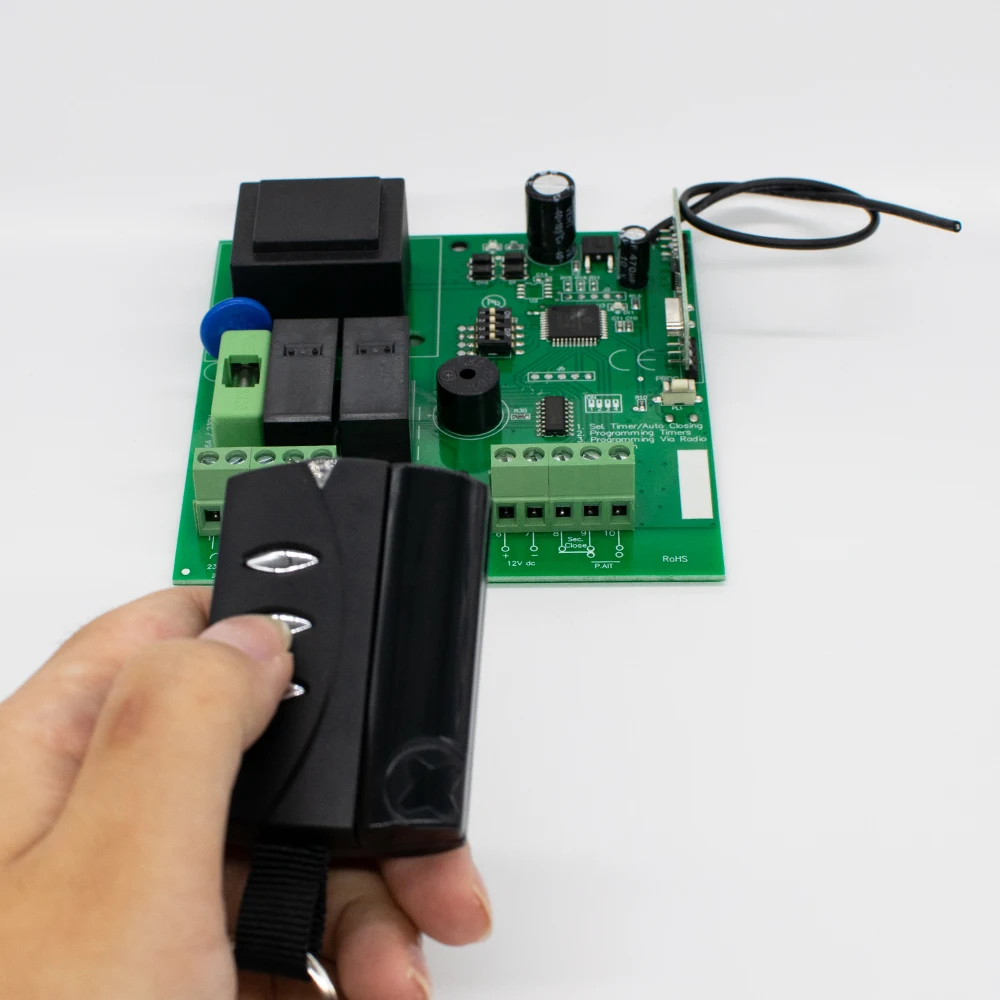

PUJOL Compatible Remote Manual

1. Open the case of your receiver
2. On the receiver card, press the programming button (ENR, MEMO, PROG, REC)
3. The LED of your receiver flashes
4. Press a button on your new remote control
5. Release the button. The LED of your receiver comes off immediately or within 10
seconds
6. Your new remote control is now programmed
