- Battery Included: no
- High-concerned chemical: None
- Color: RED
- Package: Yes
- Model Number: RDM6300 125KHz RFID Module
- Type: Industrial Computer Accessories
- Brand Name: OPEN-SMART
- Origin: Mainland China
- Certification: NONE
- Products Status: Stock
Description
If you want to place the bulk order that the stock is not enough, please contact with us.

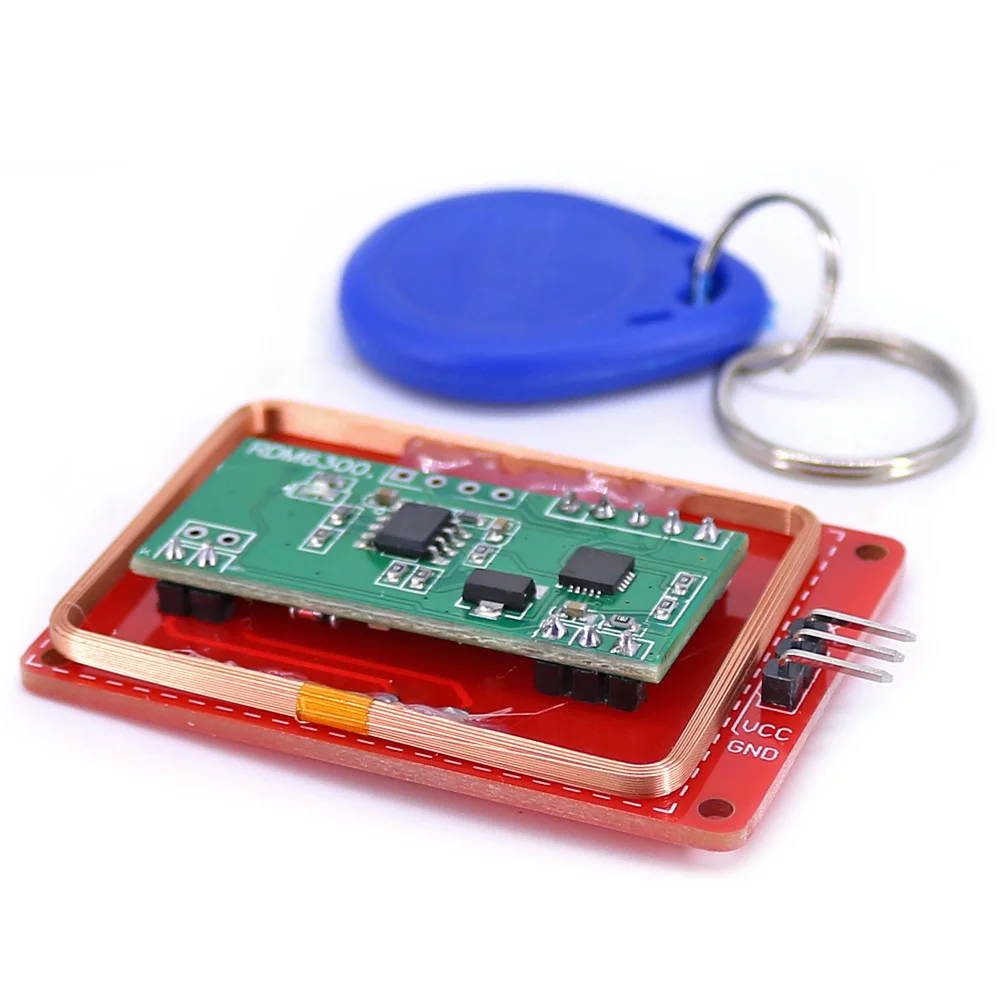

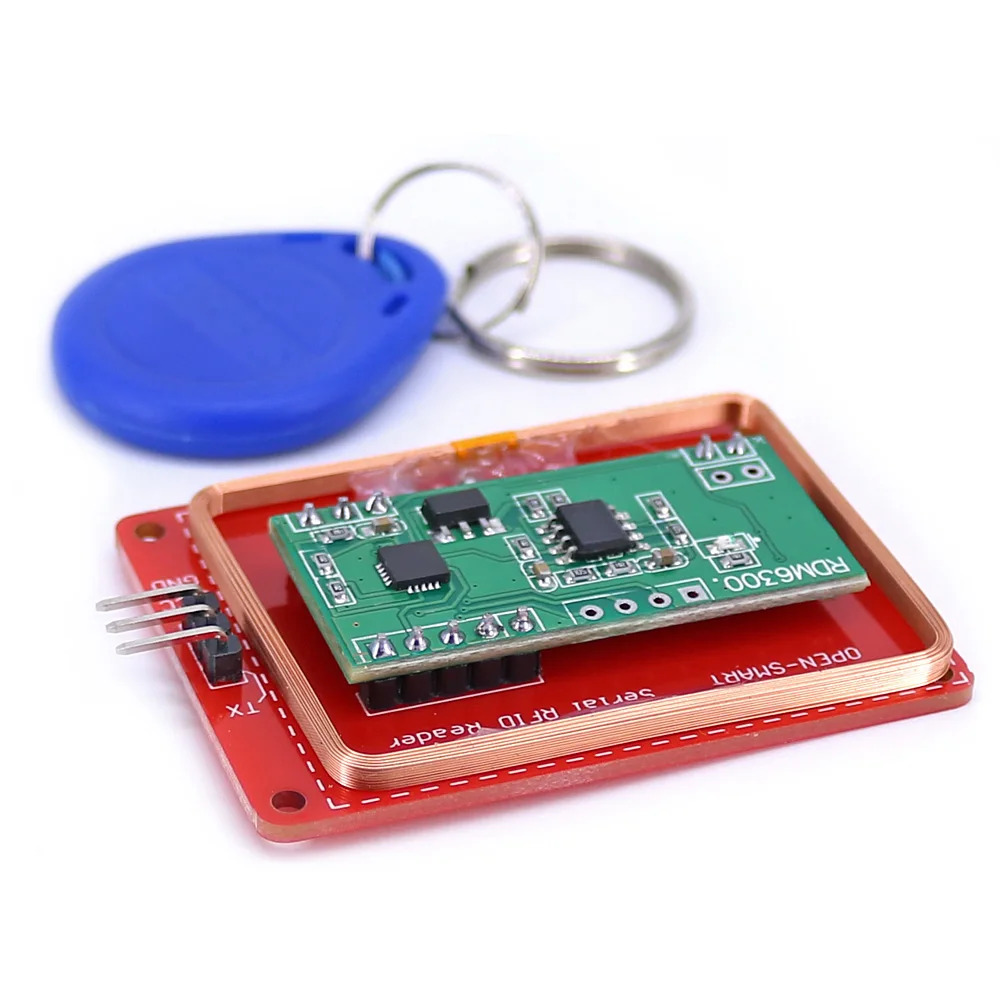

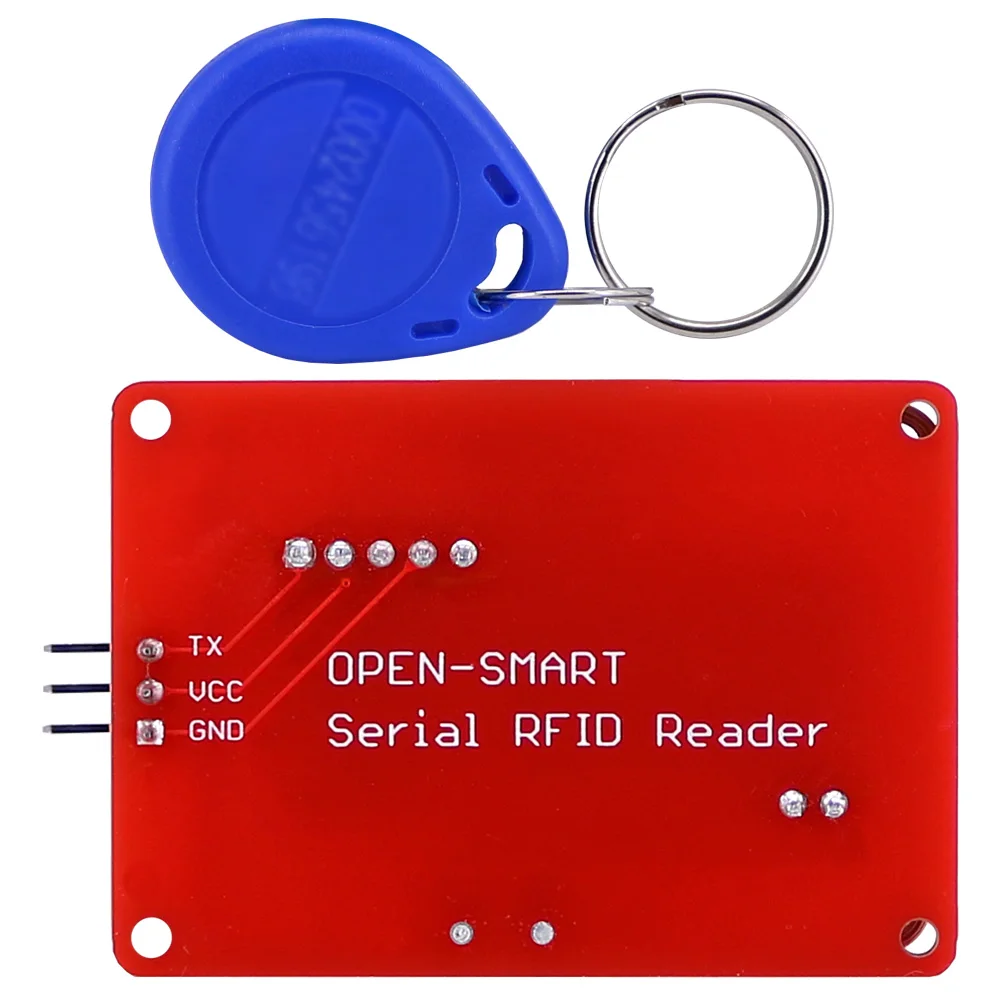

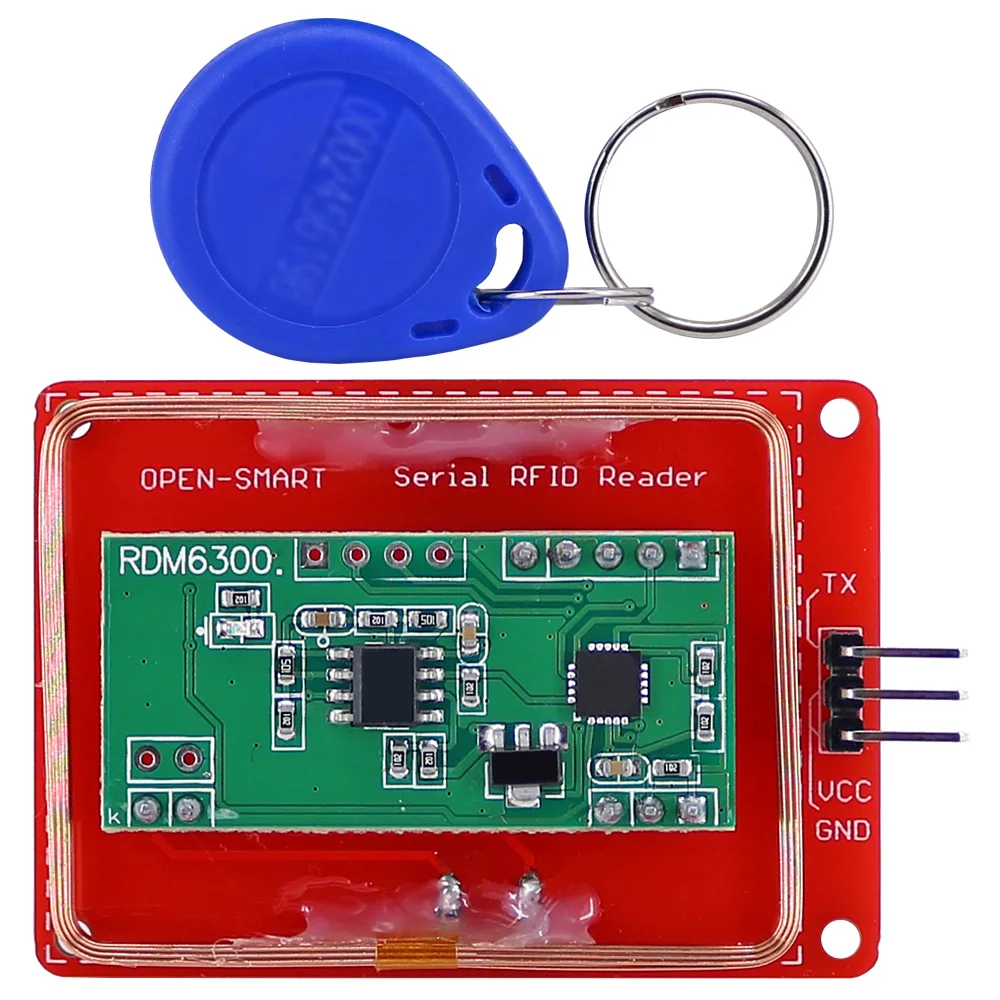

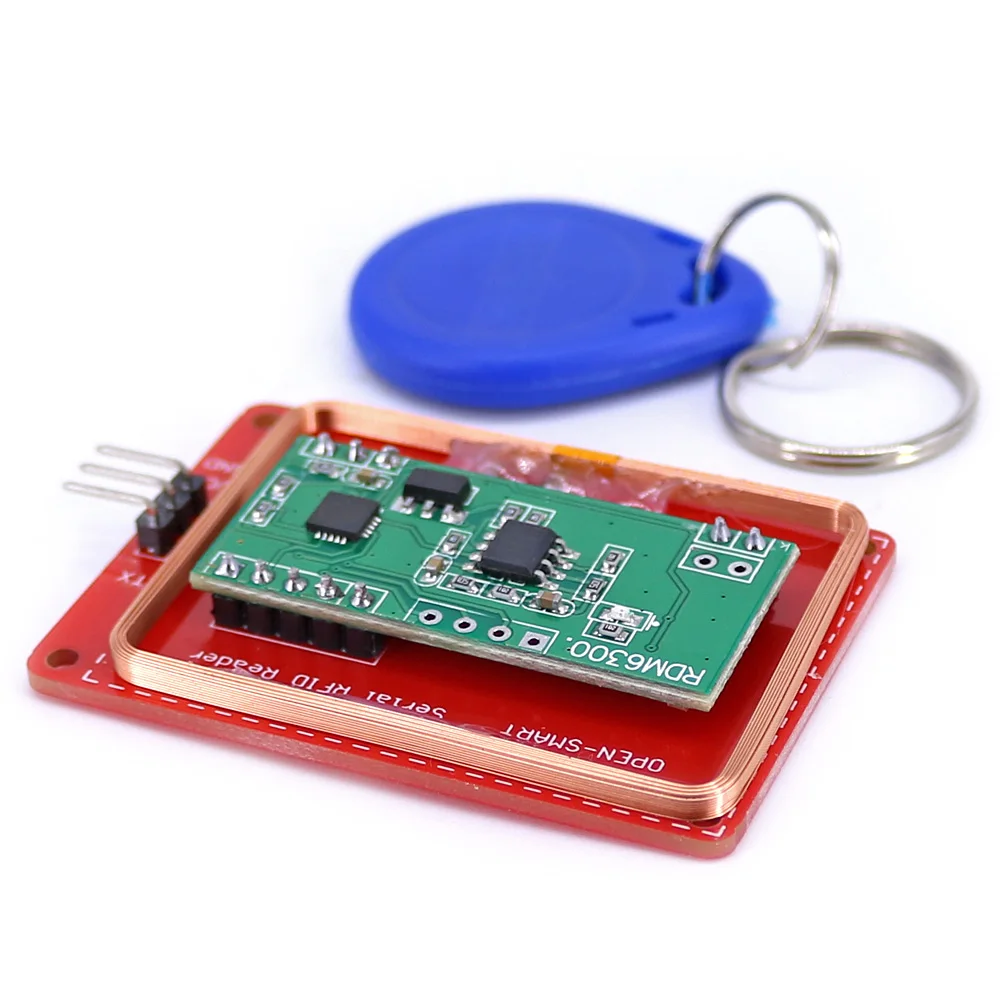

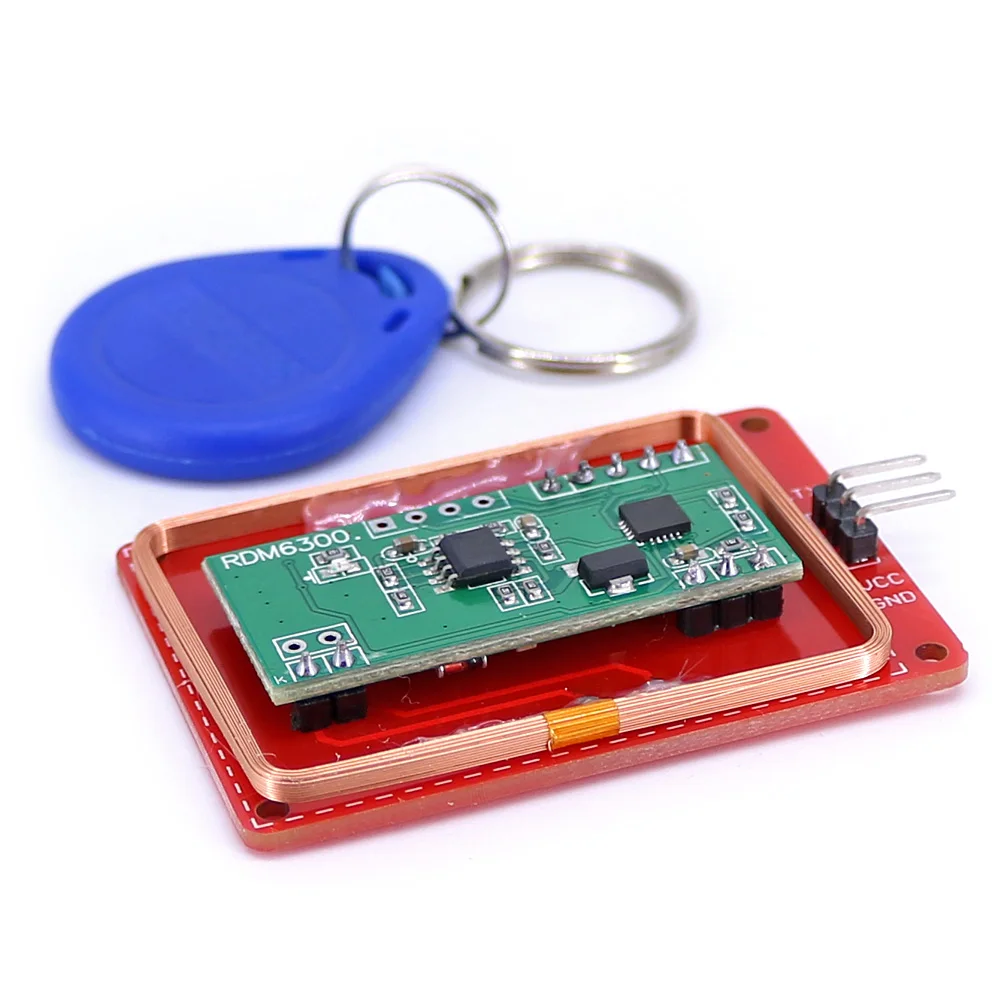

This is a radio frequency ID card reader module that can read the ID card's serial number. It can help to design the intelligent access control system.
When the module sensed ID card, it will convert the card number into a 8-digit hexadecimal number, each digit of which will be converted into ASCII code.
Then it adds the starting byte and 5 other bytes, so a total of 14bytes output to the serial port. You can convert it into a decimal number that is the serial number engraved on the ID card.
Features:
- Support Card Type: Read-only ID cards (such as EM4100, EM4001, etc.);
- Working voltage: 4.5-5.5VDC;
- Working current: 40mA (max);
- Working frequency: 125KHz;
- Reading distance: 1-3cm;
- Logic Interface: UART TTL serial port;
- Communication format: 8N1;
- Baud rate: 9600 ;
- Induction coil: soldered on the board;
- Coil size: 35X40mm;
- PCB size: 53x37mm;
- Easy to use and great for DIY;
- Applications: Access control systems, Attendance system;
Photos
Part List
1 x module
