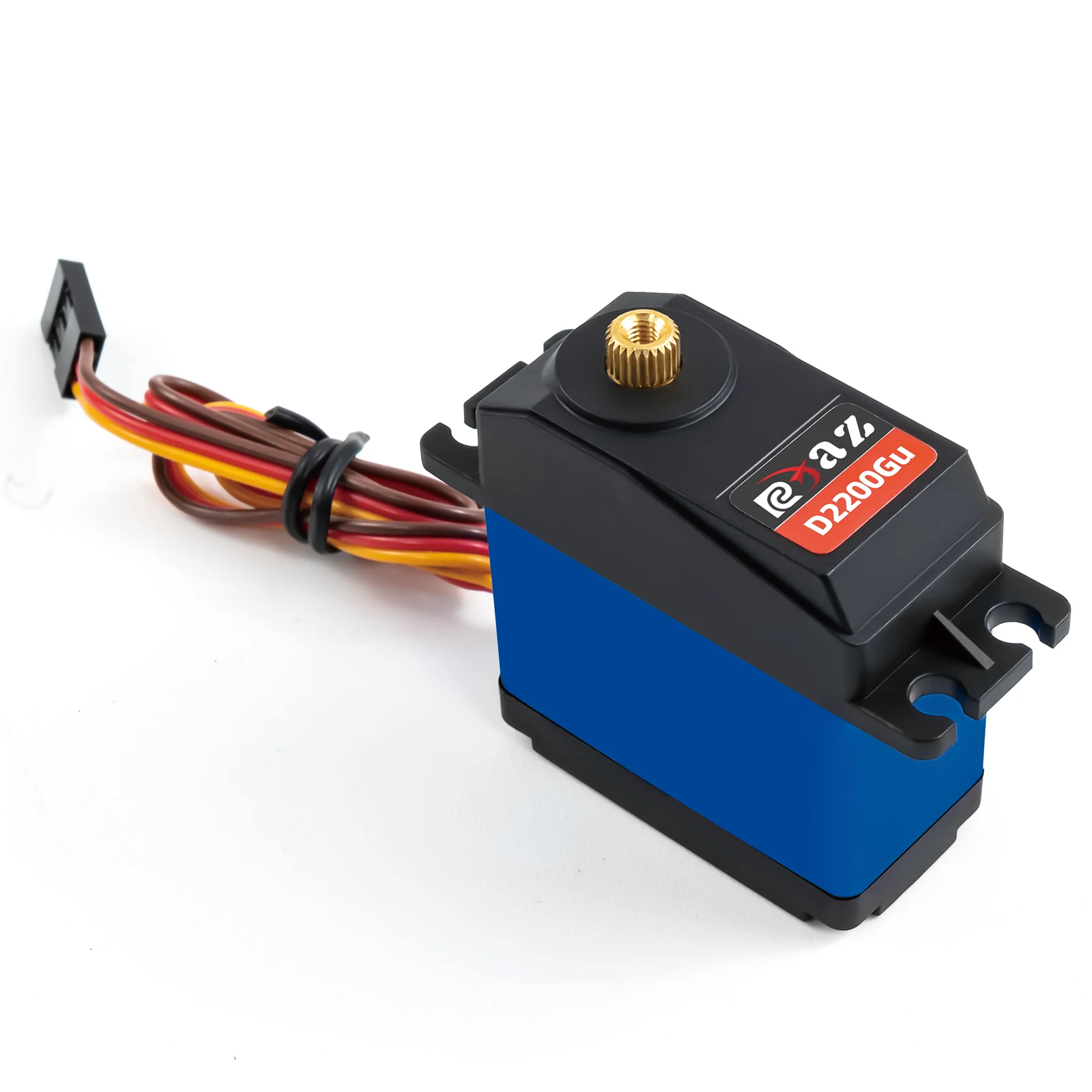

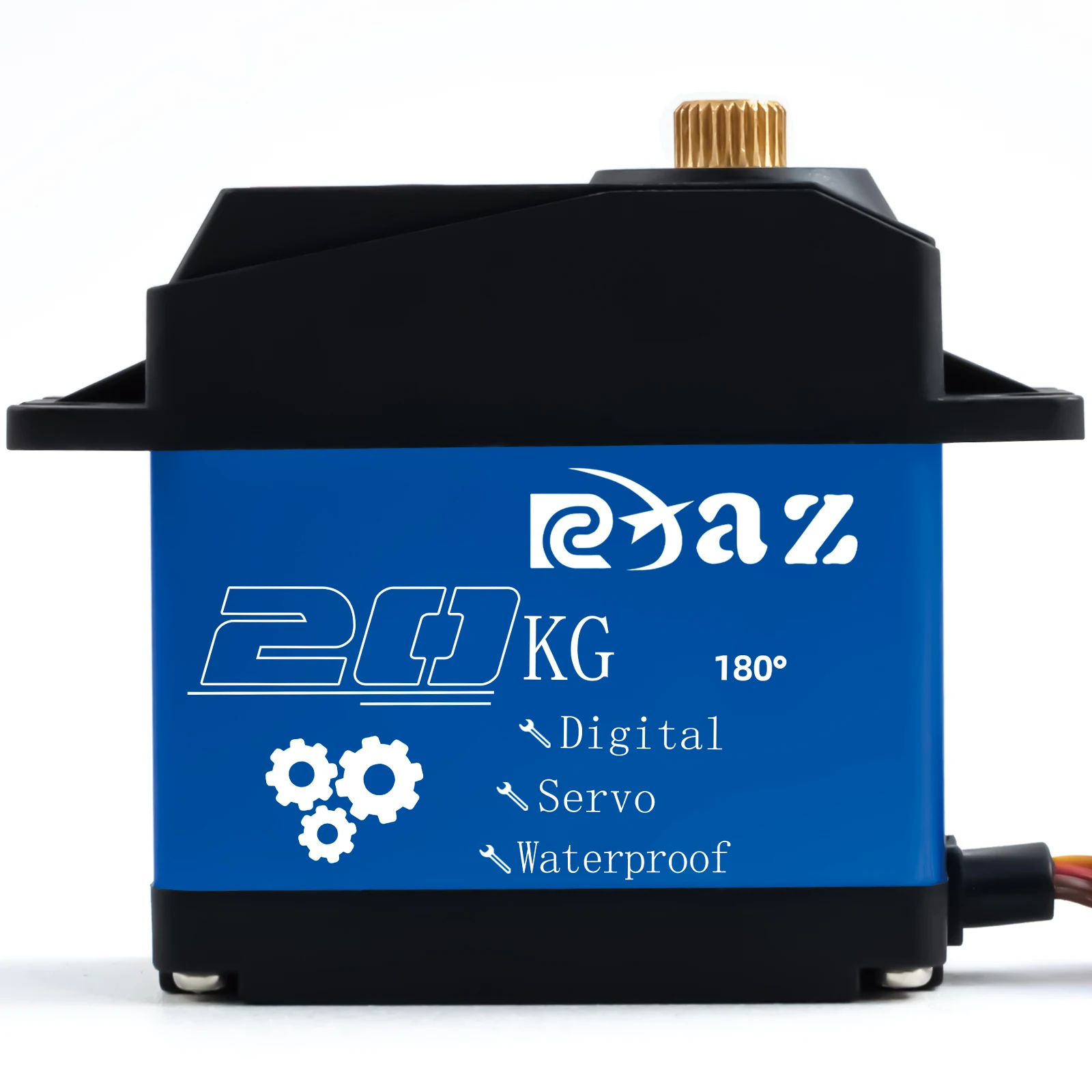

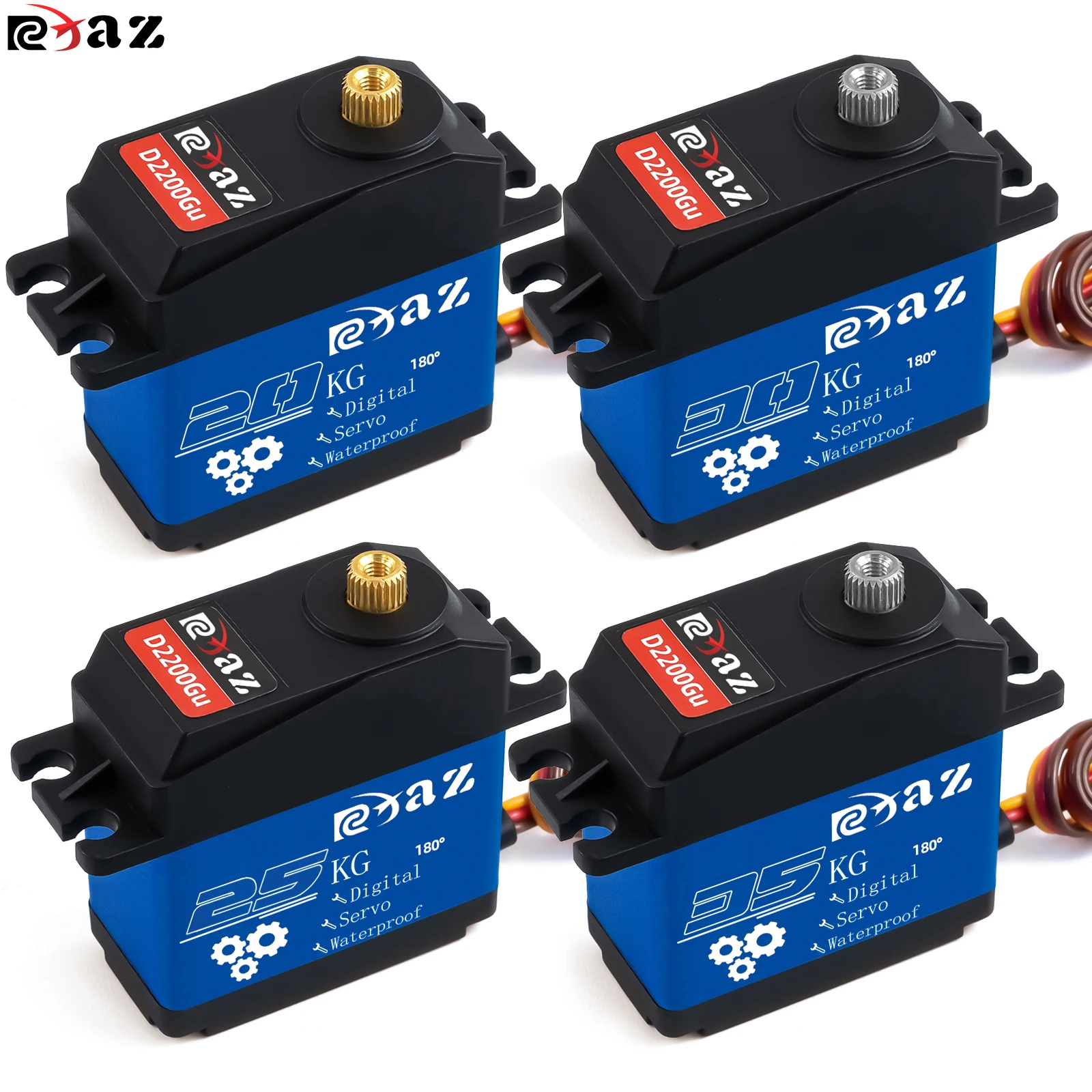

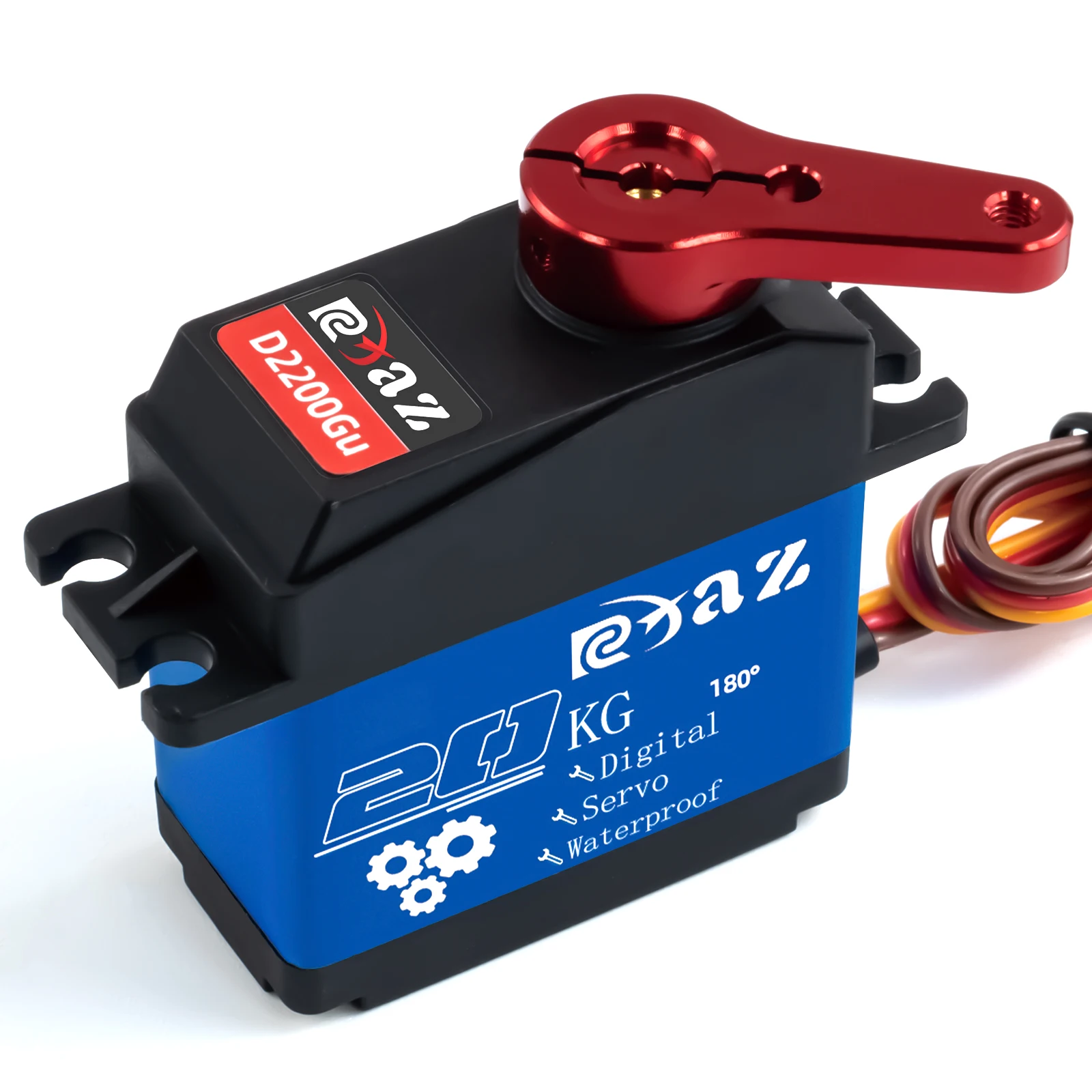

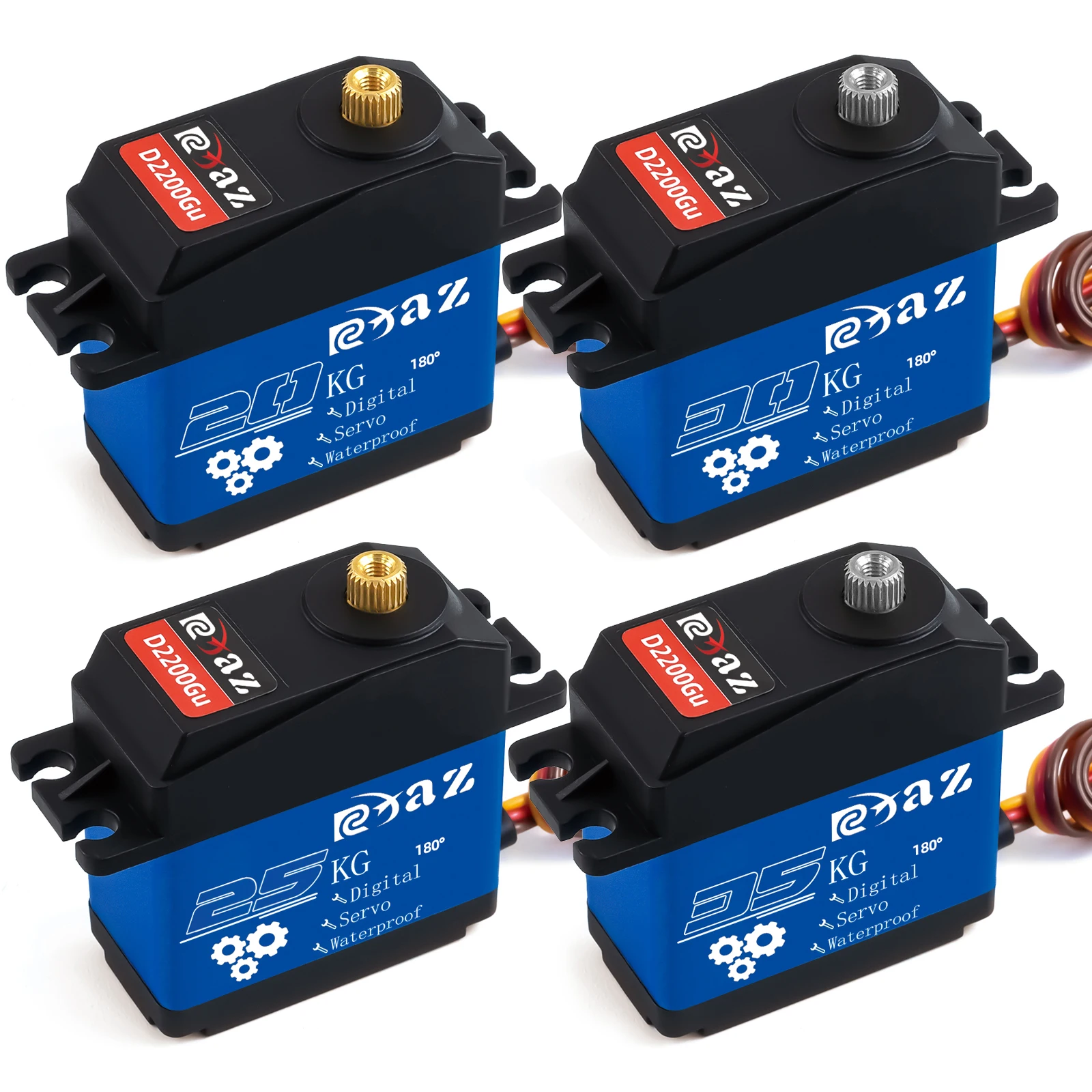

RCXAZ Metal Housing High Speed Metal Gear Digital Servo 20KG-35KG 180 Large Torque Waterproof for RC Car Crawler SCX10 TRX4

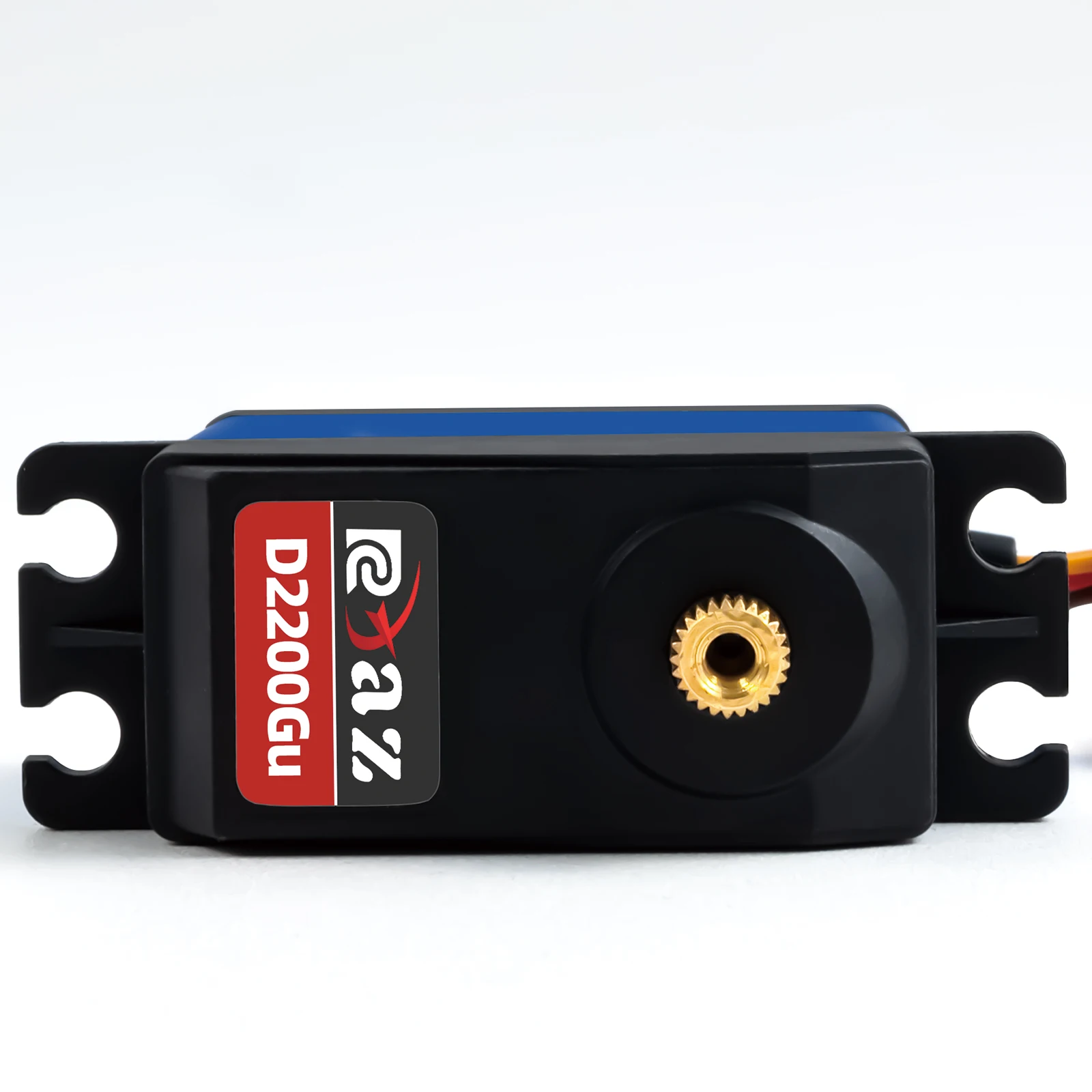

RCXAZ Metal Housing High Speed Metal Gear Digital Servo 20KG-35KG 180 Large Torque Waterproof for RC Car Crawler SCX10 TRX4 - Image 2

RCXAZ Metal Housing High Speed Metal Gear Digital Servo 20KG-35KG 180 Large Torque Waterproof for RC Car Crawler SCX10 TRX4

Price range: R$ 7,70 through R$ 36,02

Color

Limpar

REF: 1005007684299689

Descrição
Avaliações (0)

High-concerned chemical: None
Is Electric: No Battery
Quantity: 1 pcs
Wheelbase: Screws
Is it battery/power supply: N
Is it charger/adapter: N
Is Batteries Included: No
Size: 1/10
Technical parameters: Value 4
Model Number: 1/10
For Vehicle Type: Cars
Tool Supplies: Assembled class
Four-wheel Drive Attributes: Servo
Remote Control Peripherals/Devices: Servos
Upgrade Parts/Accessories: Servo
RC Parts & Accs: Servos
Material: Metal
Brand Name: RCXAZ
Origin: Mainland China
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys
Certification: CE

Brand:RCXAZ

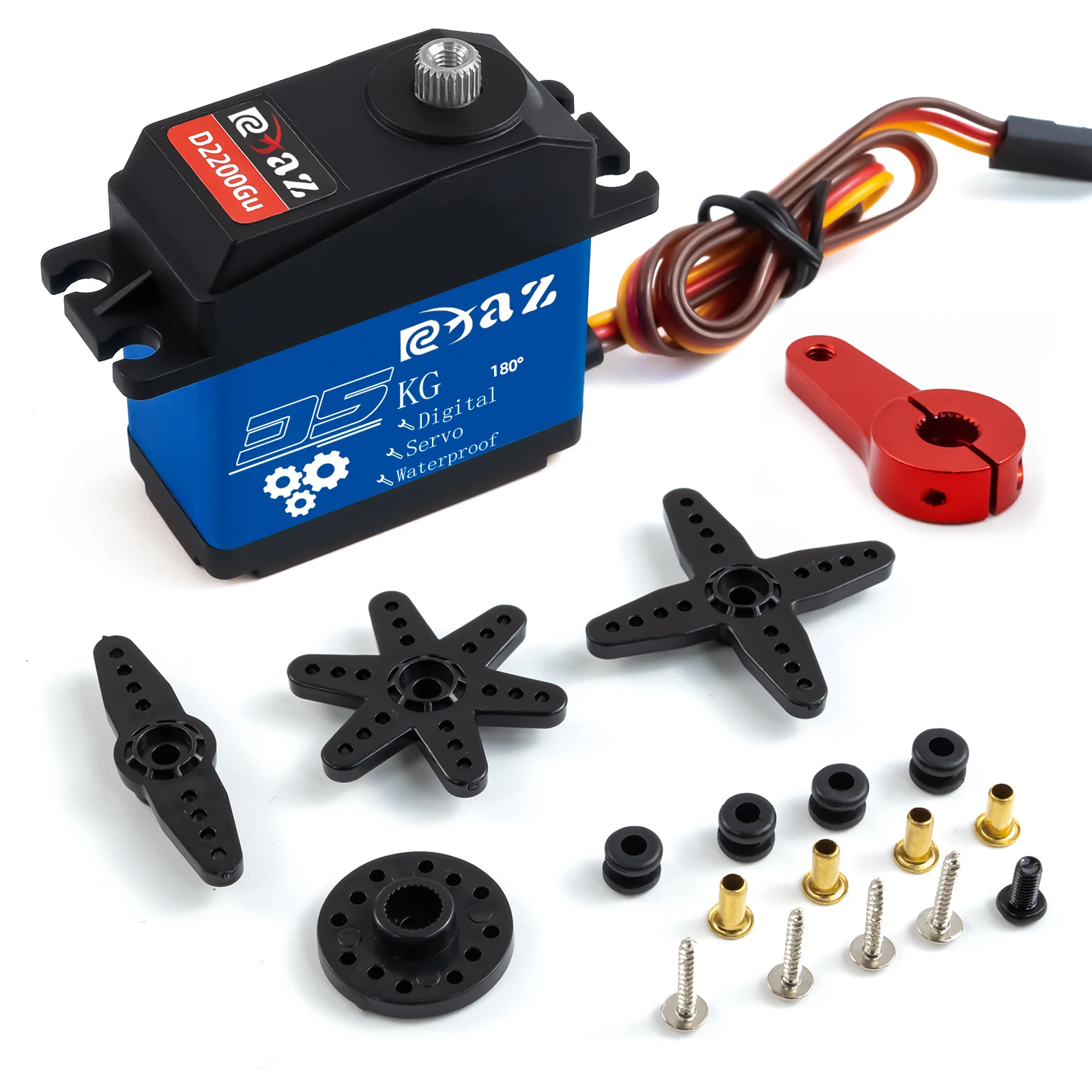

Packing List:
1x digital servo
1x 25T adjustable metal servo arm
1x accessory bag

Apply Environmental Conditon:
1.Storage Temperature Range:-30°C~80°C
2.Operating Temperature Range:-25°C~70°C
3.Waterproof grade:IP66(Do not soak in water)

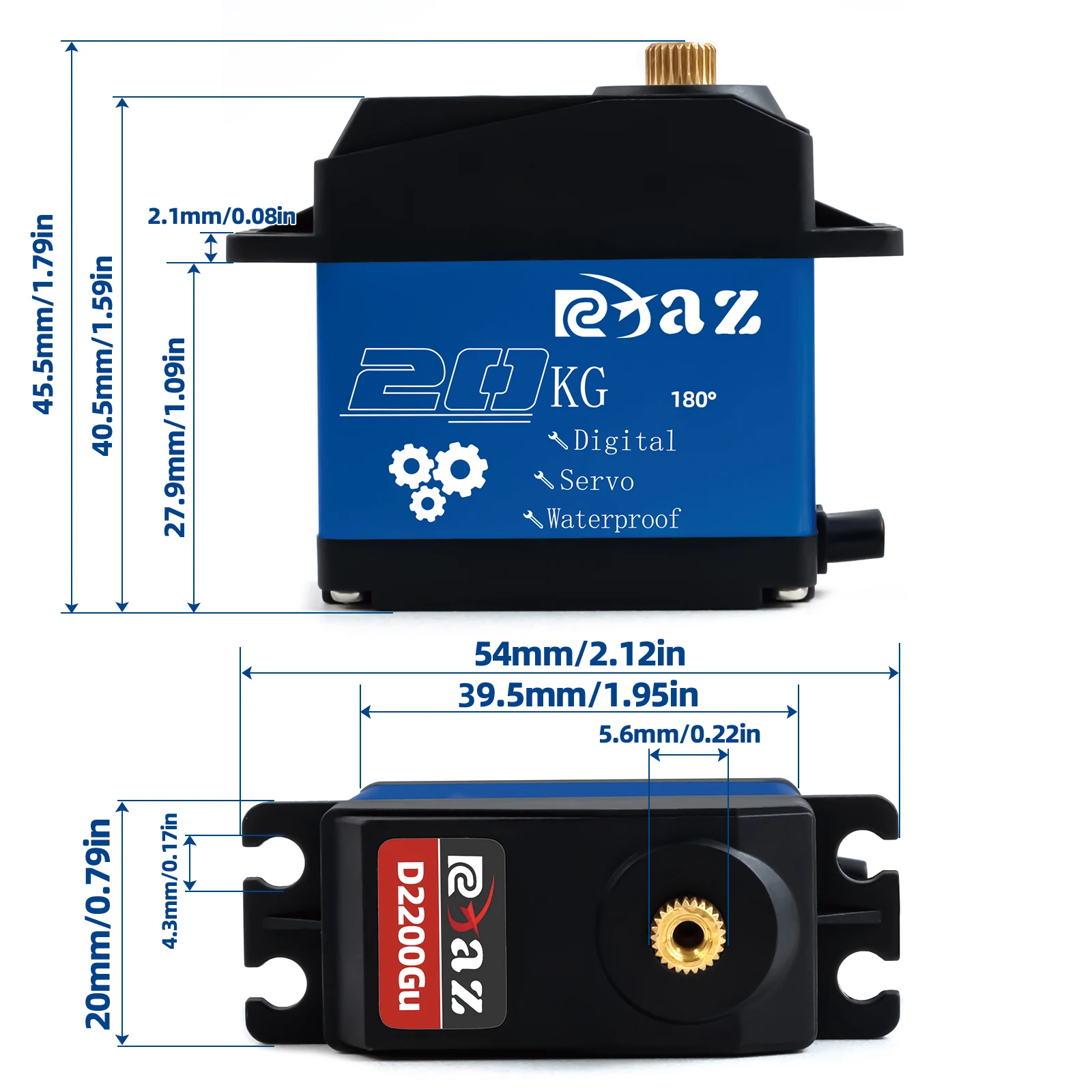

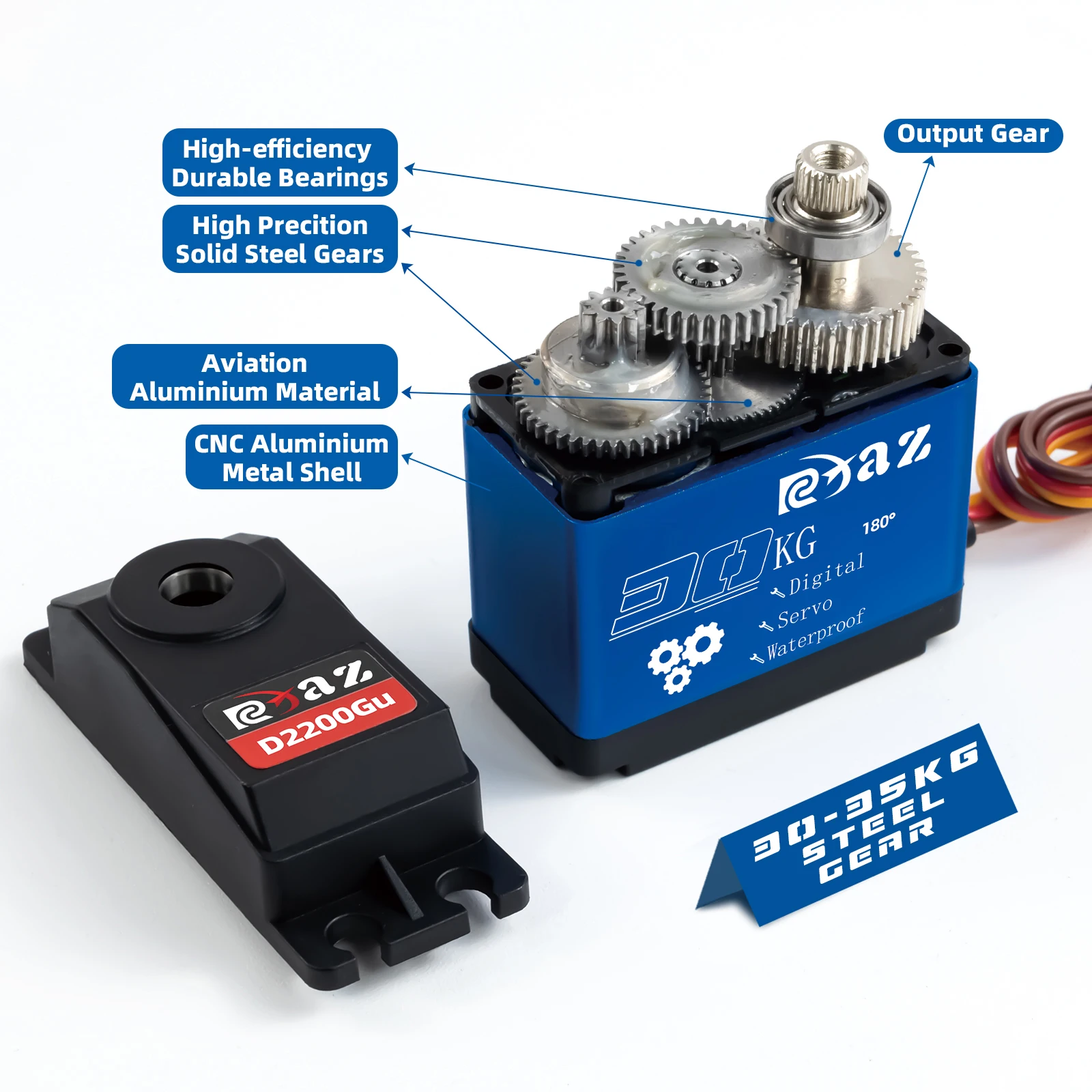

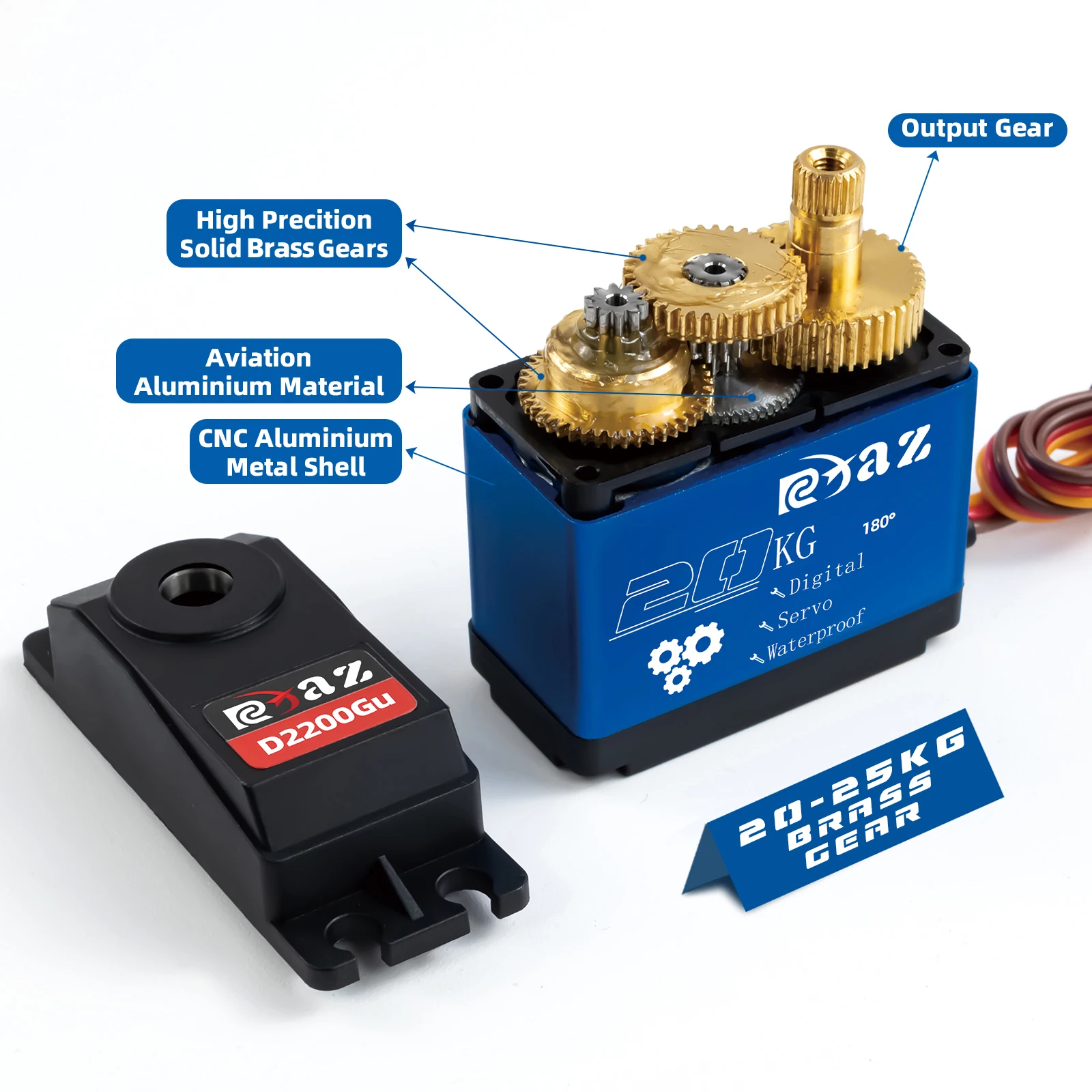

Mechanical Specification:
1. Size: 54.2×20×46 mm
2. Weight: 60g±2g
3. Limit angle: 180°
4.Bearing: 2BB
5.Horn gear spline: 25T Diameter:5.9mm
6.Case : Engineering plastics+Aluminum alloy
7.Connector wire: 300mm±5mm
8.Motor: Carbon brush motor

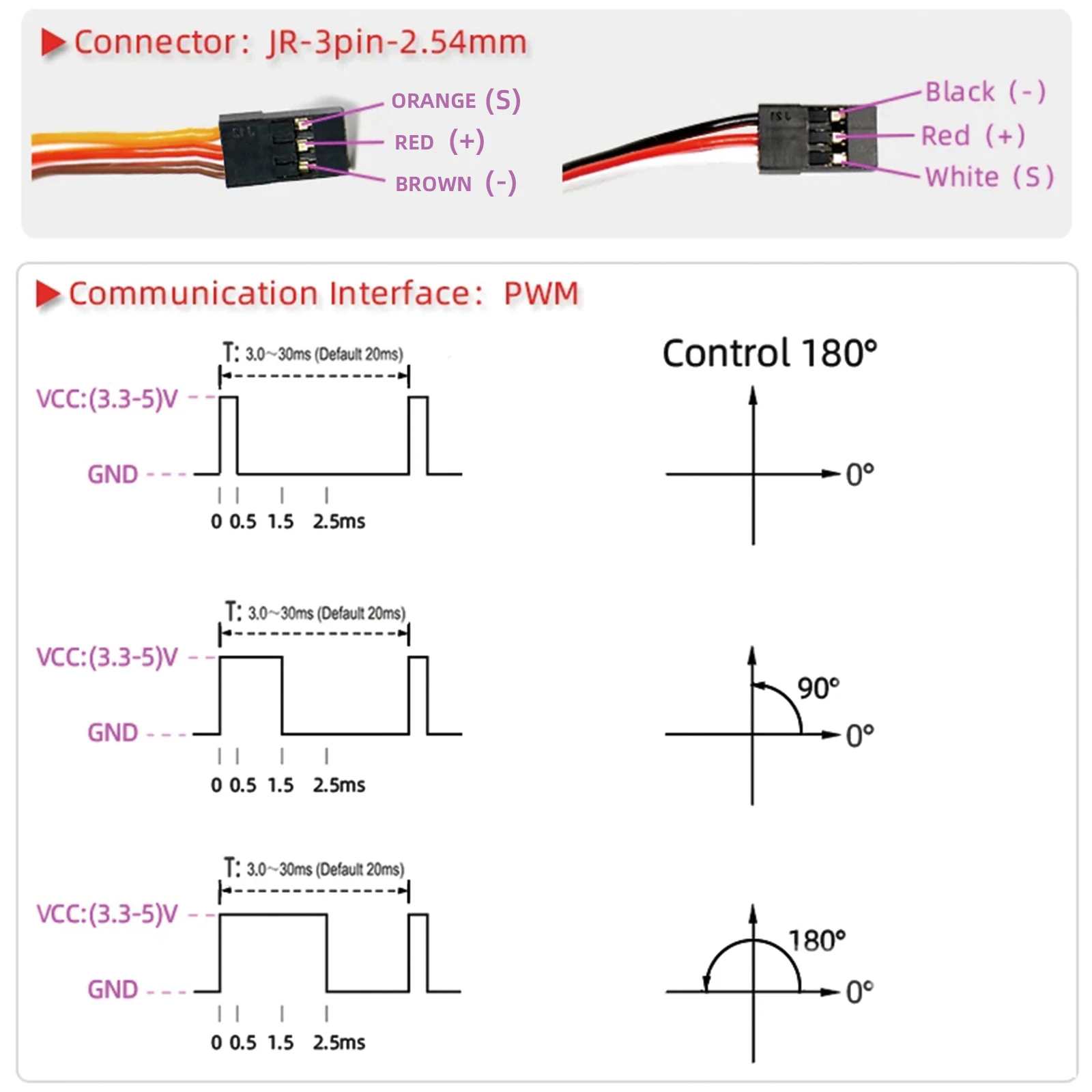

Electrical Specification:
1.Working voltage range: 4.8-7.4V DC
2.Command signal: Pulse width modification
3.Amplifier type: Digital controller
4.Pulse width range: 500～2500usec
5.Neutral position: 1500usec
6.Running degree: 180±3°(PWM 500～2500usec)
7.Dead band width: 3 usec
