- High-concerned chemical: None
- RAID Supported: Yes
- Processor compatibility: Intel Xeon,Intel Others,Intel Xeon E Series
- Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production,Industrial Computer,Workstation,Server,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others,HPC

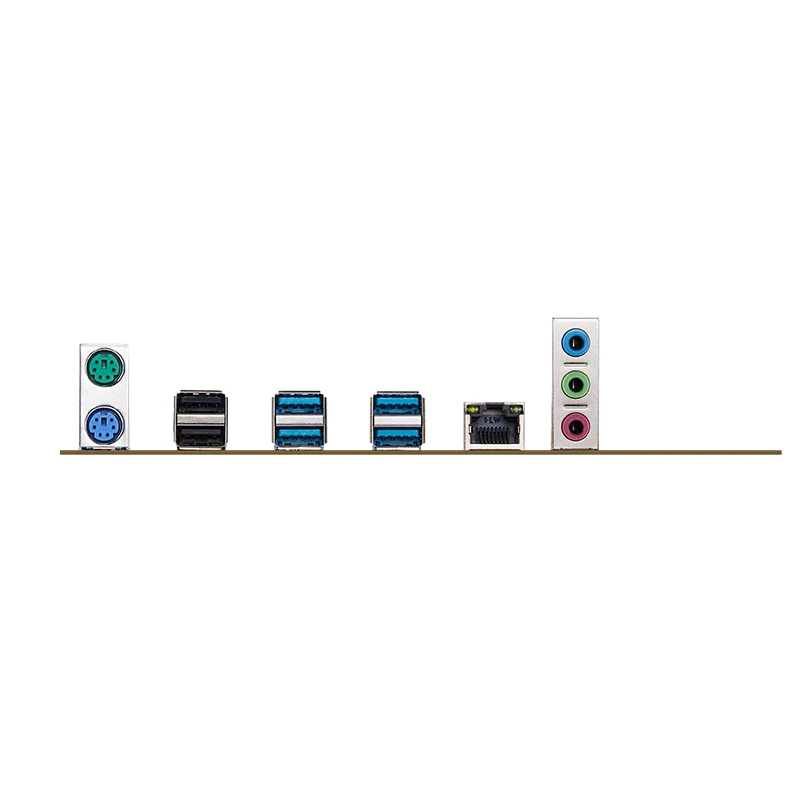

- Back I/O Ports: 1x RJ45
- Support USB Type: USB 2.0,USB 3.0
- Onboard LAN: 1x RJ45

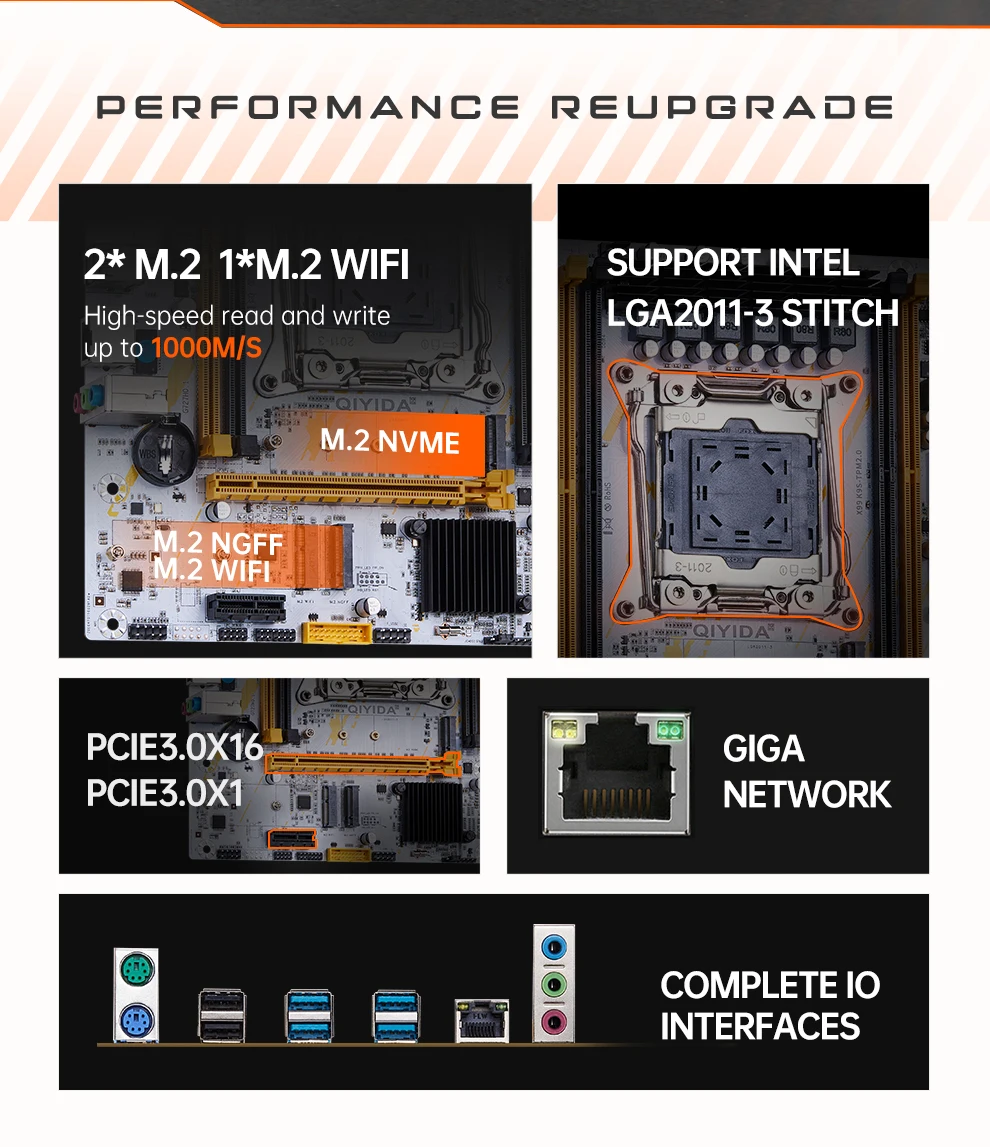

- Number of M.2: 2
- Storage Interface Type: SATA 3,M.2 (NVMe),M.2 (SATA)

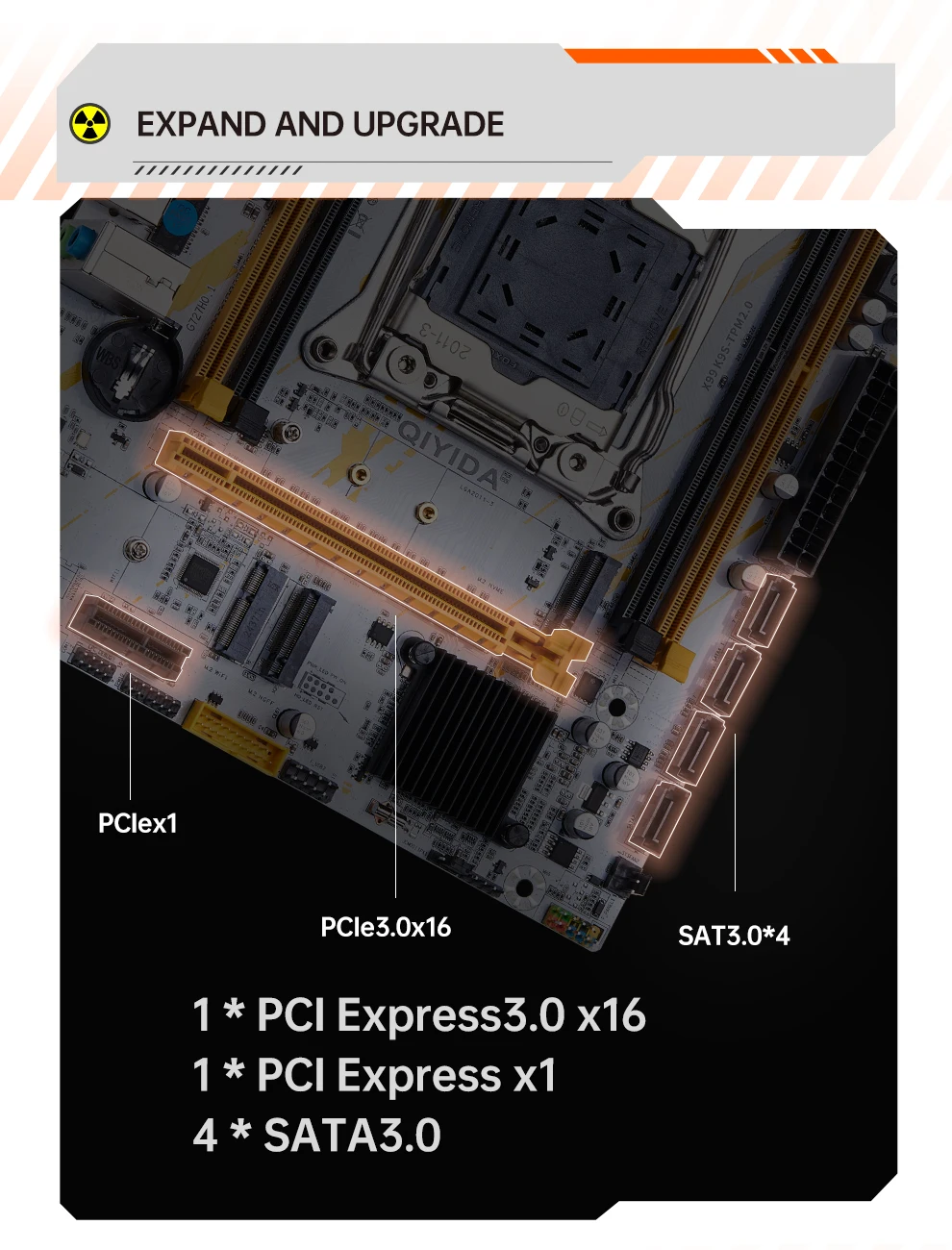

- Number of PCI: 2
- Number of PCIe x 1: 1
- Number of PCIe x 16: 1
- PCI - E standards: PCI-E 3.0
- Number Of Memory Slots: 4
- Support Memory Type: DDR4
- Package: Yes
- Maximum Ram Capacity: 128 GB
- Form Factor: Micro-ATX
- Chipset Manufacturer: Intel
- Battery Included: No
- With CPU: No
- Chipset: Intel X99
- Application: Desktop
- Socket Type: LGA 2011-3
- Brand Name: QIYIDA
- Special Features: Cooling Armor
- Origin: Mainland China
Notice：

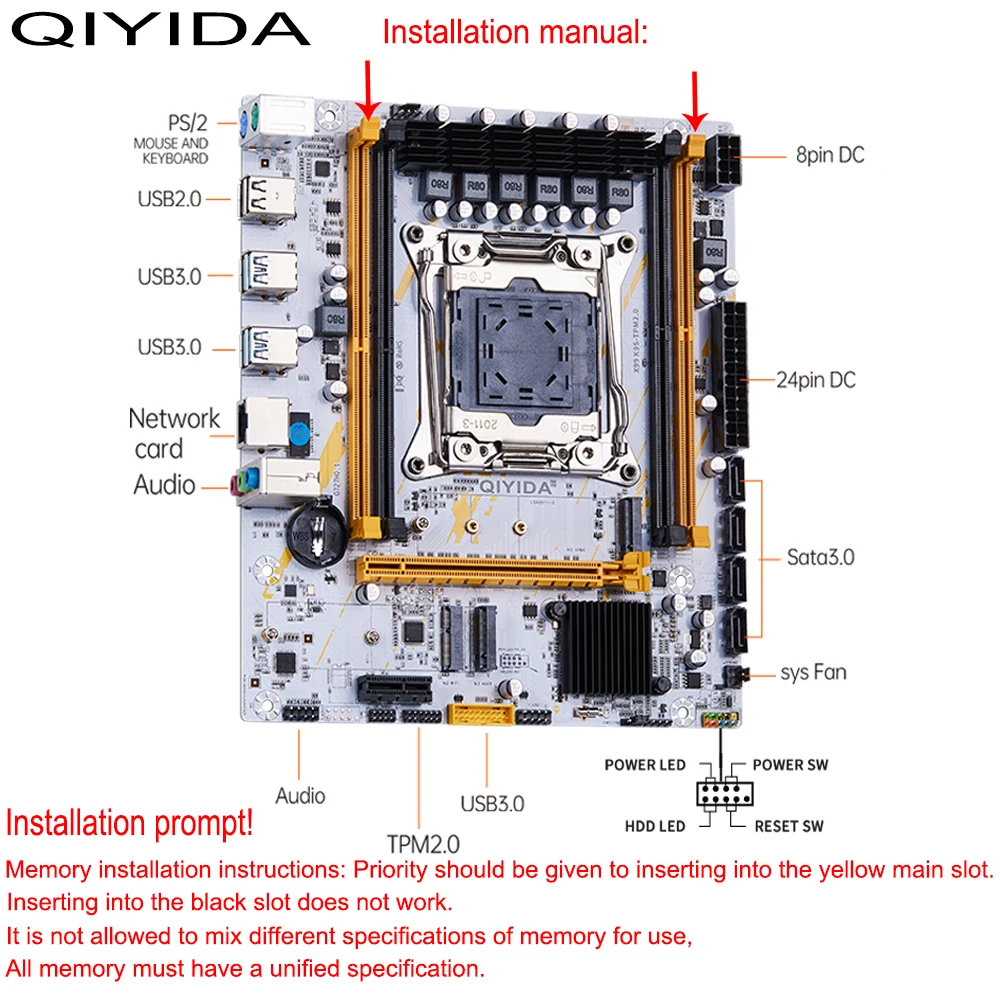

ALL RAM needs to install in slot (yellow slot)priority

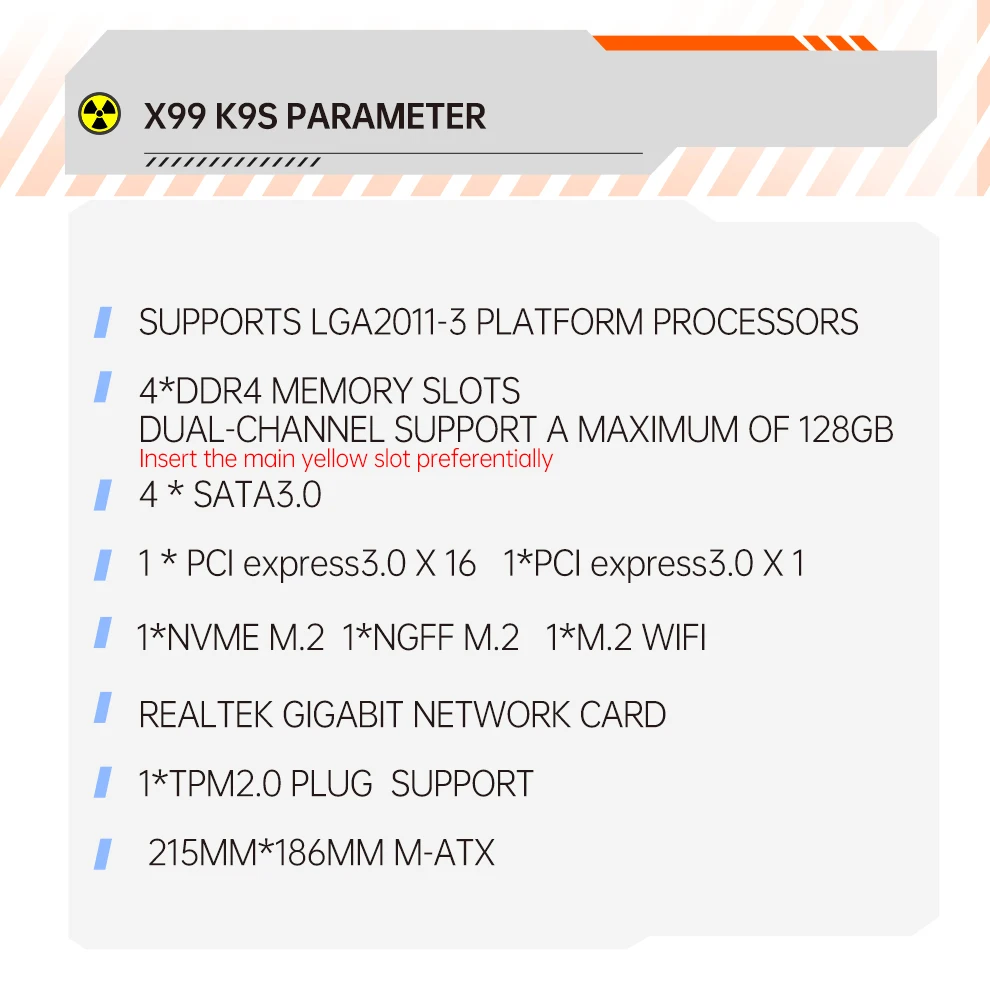

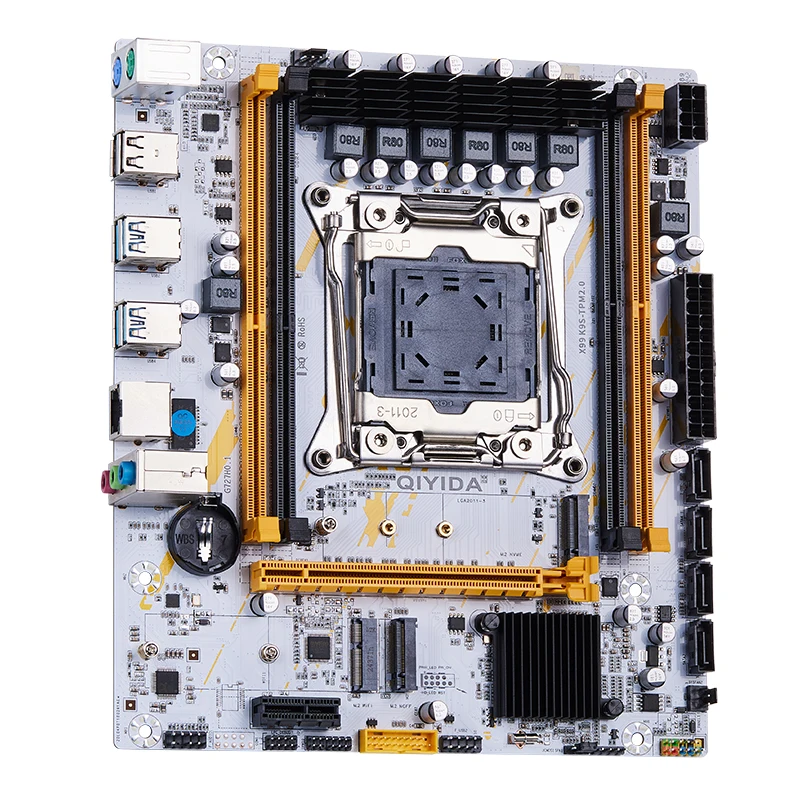

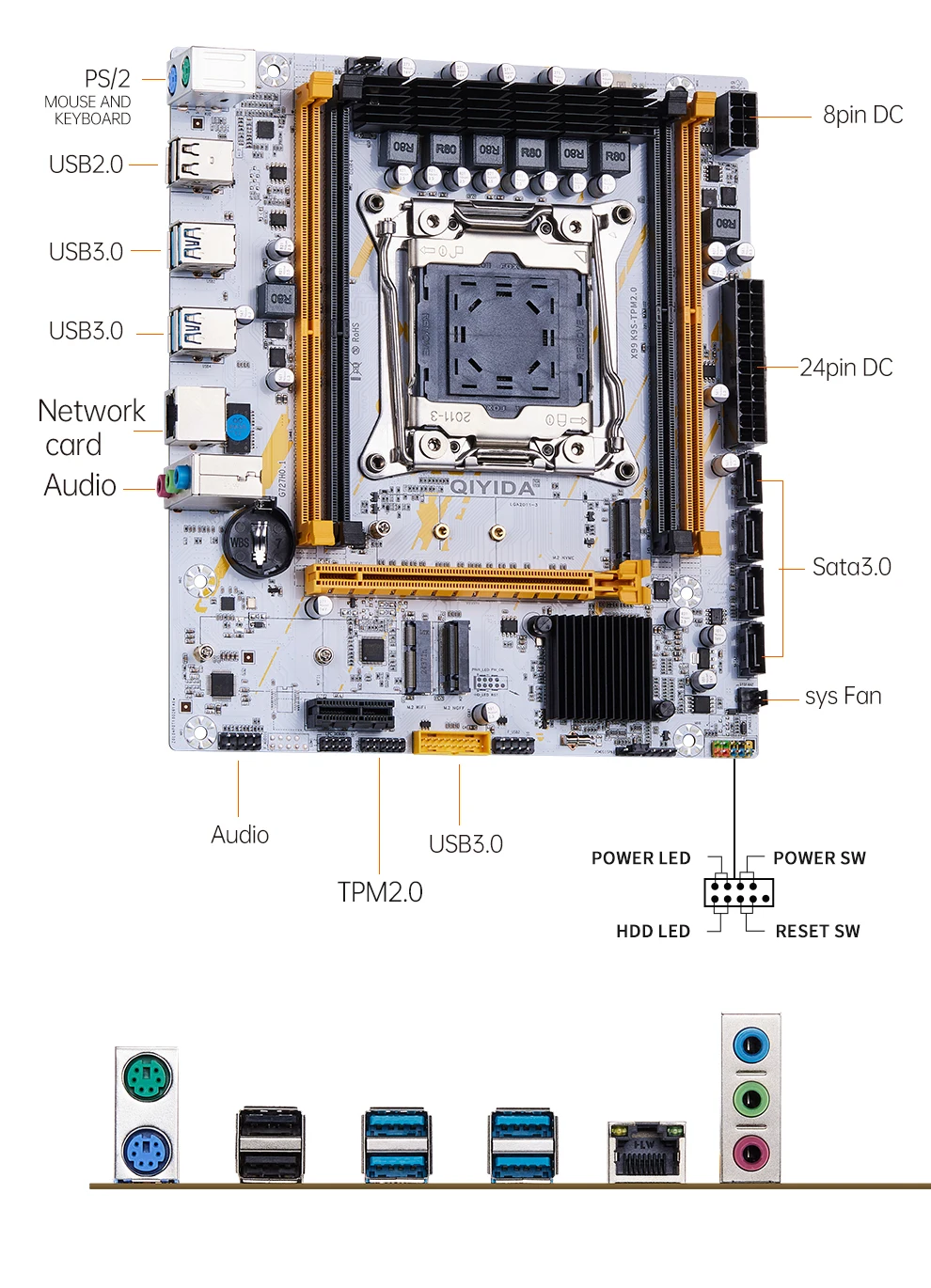

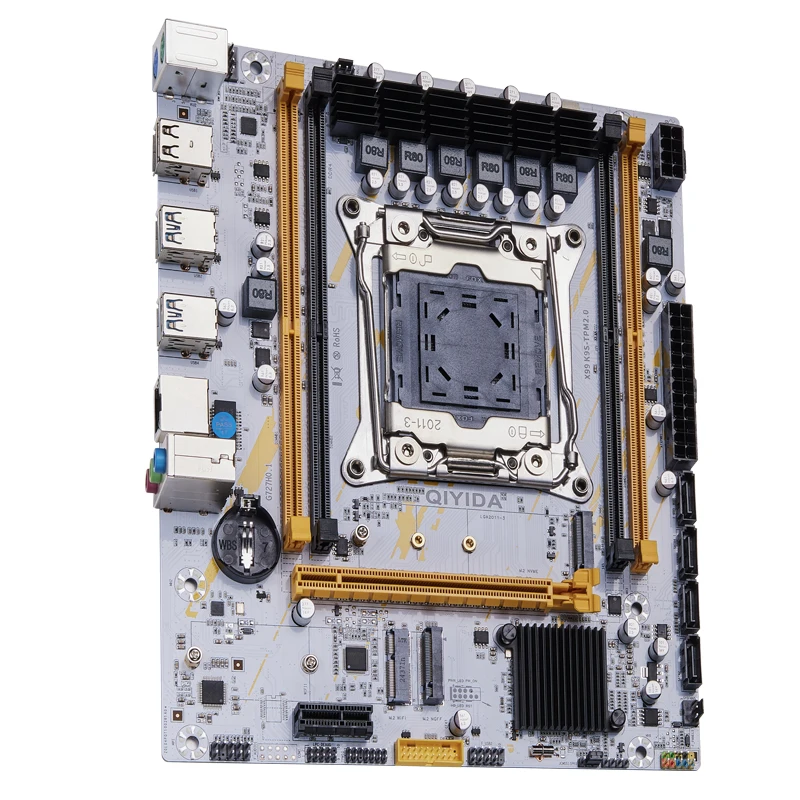

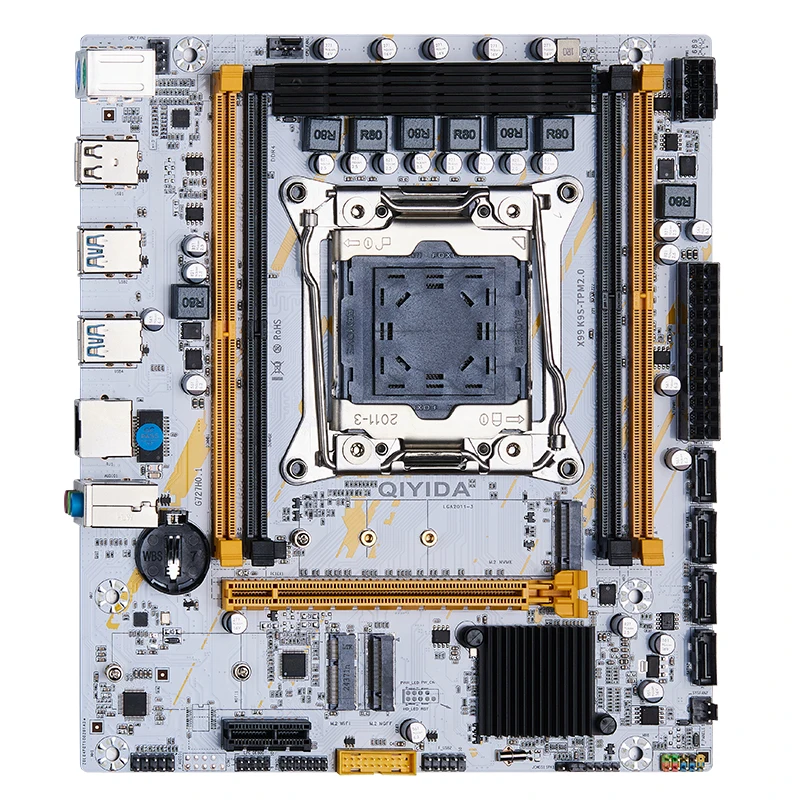

Motherboard:
Model: Qiyida
Chipset: X99 C612
Condition: Full new
CPU socket: LGA 2011-3
Structure: M-ATX
VGA socket: PCI-E X 16
Power port: 24Pin+8pin
CPU supported:Support 2011-3 All-series CPU( Include V3, V4 series)
Memory socket: 4* DDR4
Max memory capacity: 4* 32G DDR4 2133/2400MHz/2666MHz/3200MHz
Memory type supported: non-ecc/reg ecc/ecc
Integrated video card: No

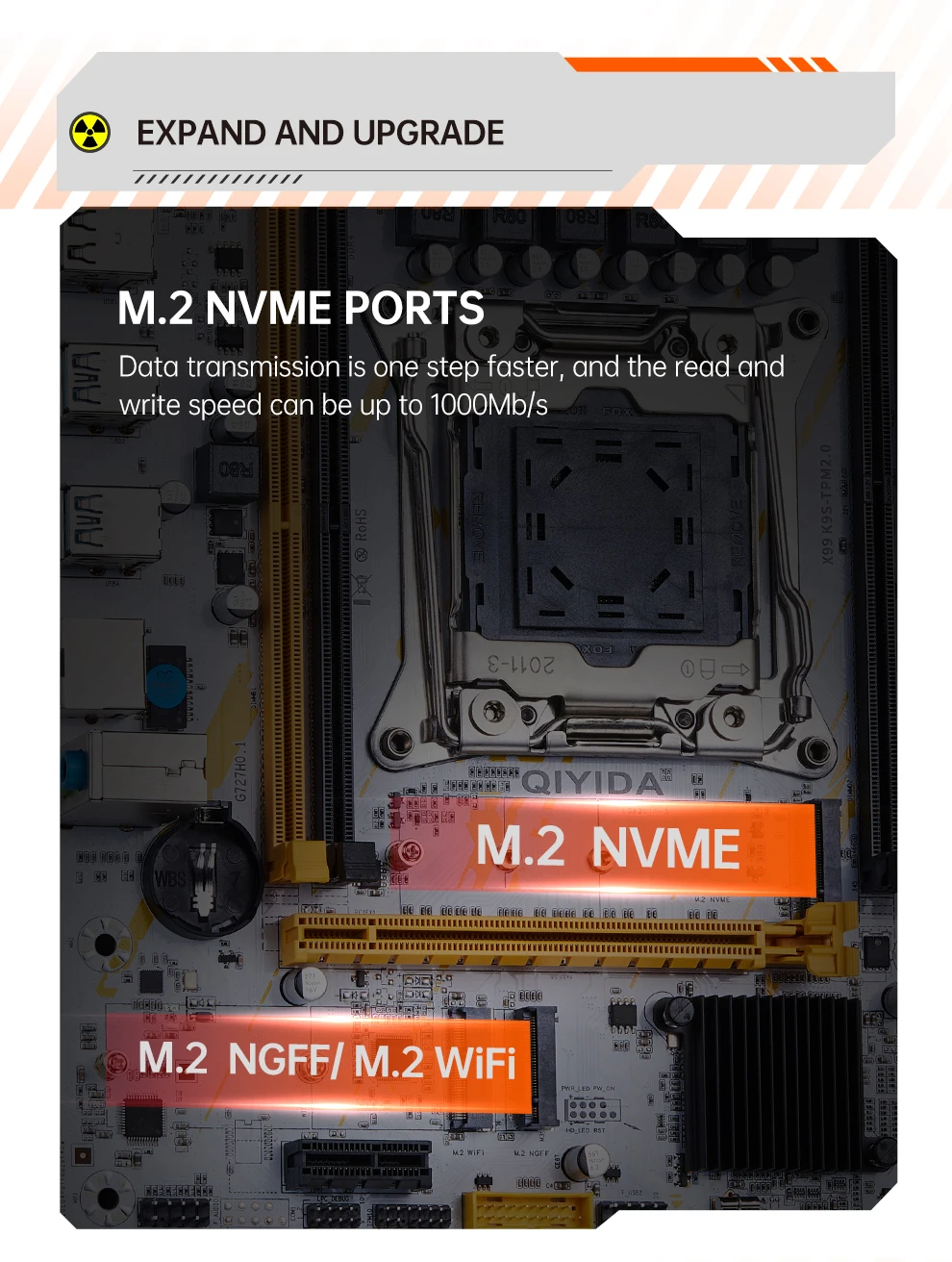

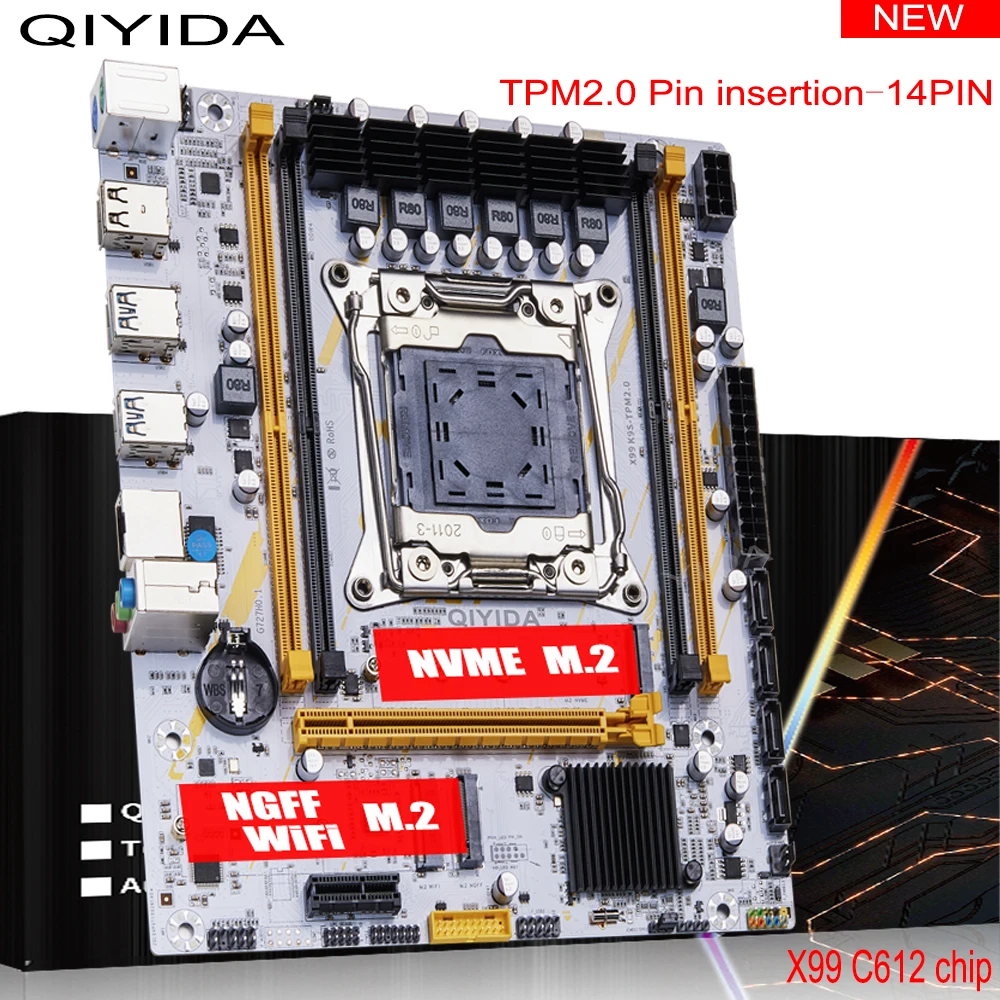

Support NVME/NGFF M.2. Note that they need to switch the jumpers on the motherboard
Motherboard dimension: 21.5cm*18.6cm
Note:
1:The motherboard chips have difference band chips,because of the different product batches,we will send the goods by random,please refer to the actual product.
2:this planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500wbrand power supply)
Due to different production batch, X99 motherboard might probably have slightly different design, such as different memory slots color or SATA ports position or motherboard version etc. Our aim is to gradually make it more powerful.
For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°). The actual temperature can be tested with a body thermometer, and the normal use does not exceed 50°.
The black ram slot of motherboard can't works alone.The memory needs to be inserted into the yellow main slot first.
