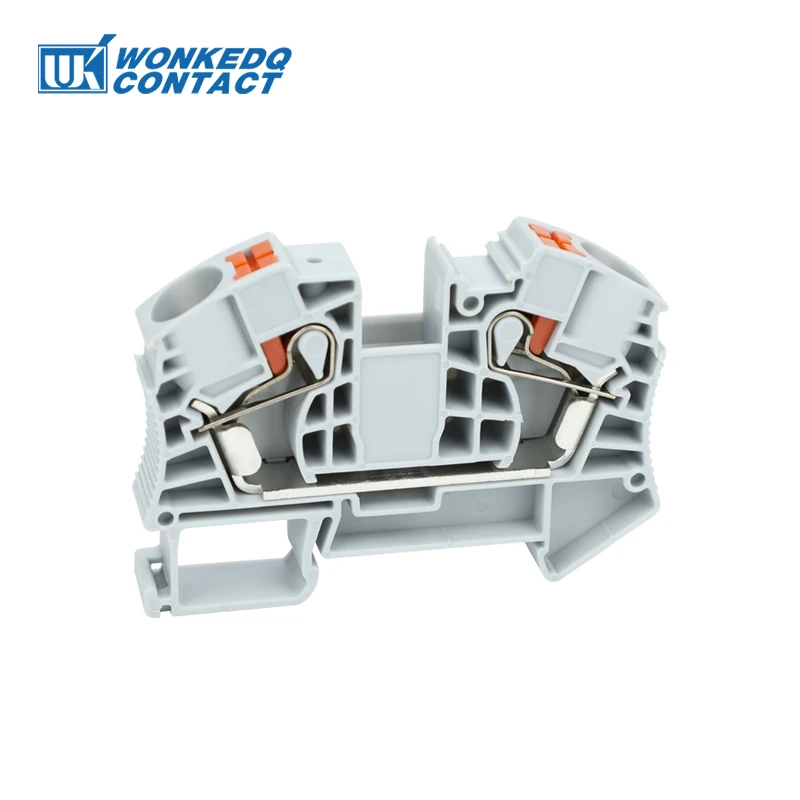

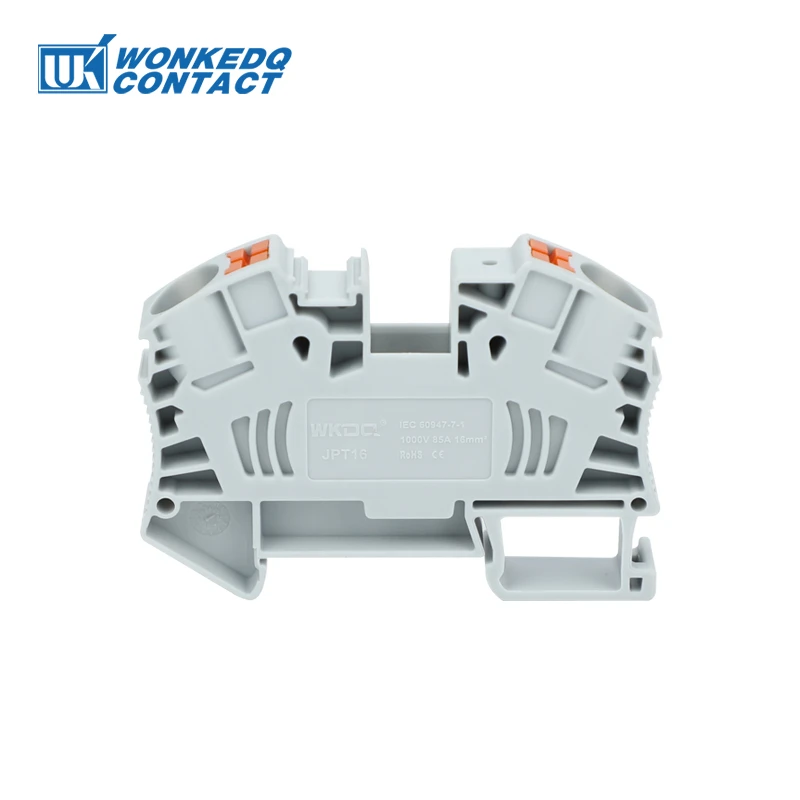

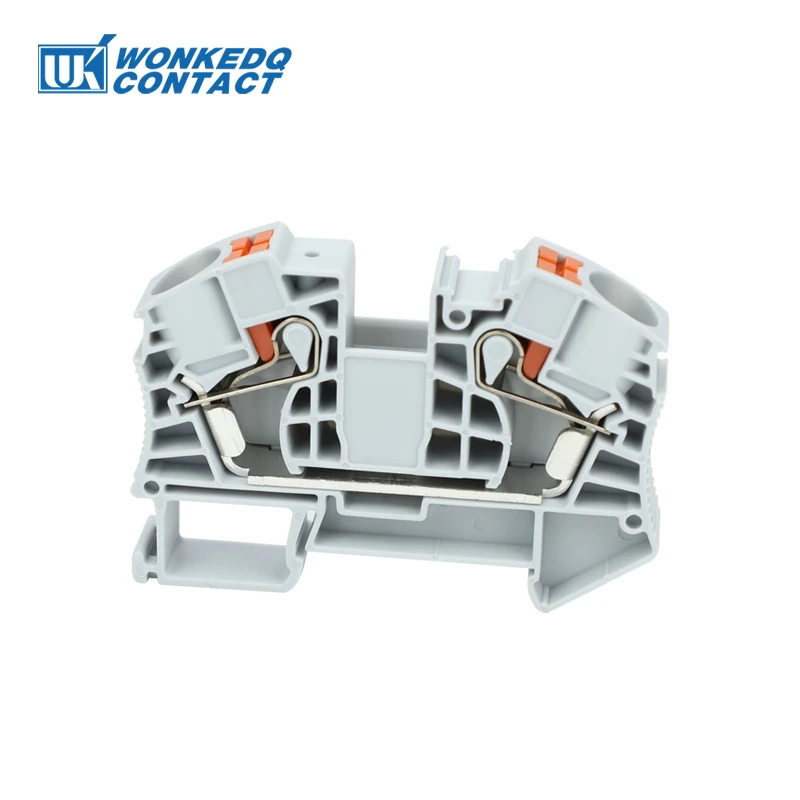

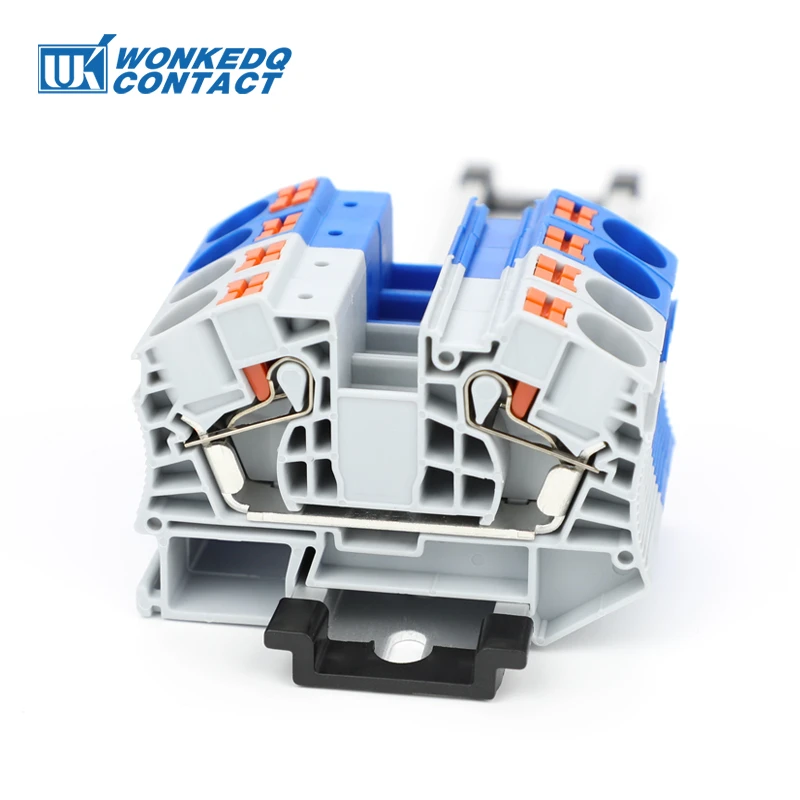

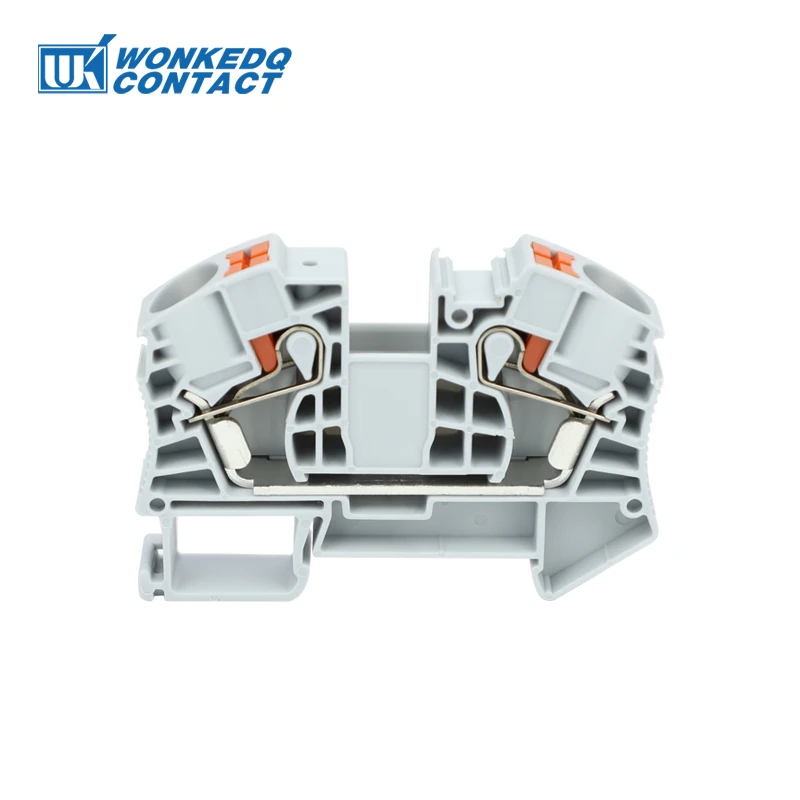

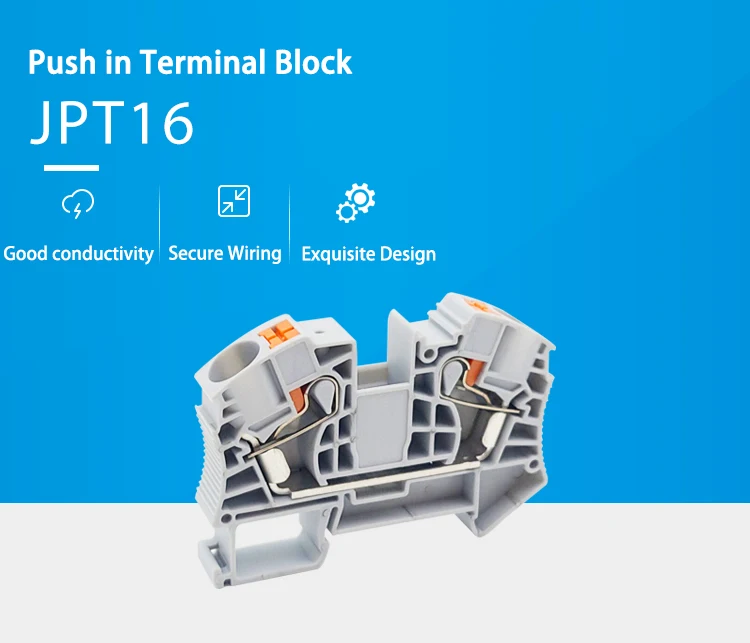

Name: PT16 Din Rail Push-In Terminal Block, 16mm² Electrical Feed-Through Cable Plug Screwless Terminal Strip Wire Connector PT-16
SKU: 1005004507608254
Availability: InStock

PT16 Din Rail Push-In Terminal Block, 16mm² Electrical Feed-Through Cable Plug Screwless Terminal Strip Wire Connector PT-16

REF: 1005004507608254

Hign-concerned Chemical: None
Model Number: PT-16
Brand Name: WONKEDQ
Type: Push-in Terminal
Origin: Mainland China
Certification: CE,RoHS
Usage: Electrical Wiring
Application: Distribution Cabinet/panel
Connection Method: Push in
Mounting Type: Din Rail
Size: L75.4/H52.6/W12.2 mm
Cross section solid cable: 0.5-25mm²
Cross section soft cable: 0.5-16mm²
Current: 90A
Voltage: 1000V

DESCRIPTION

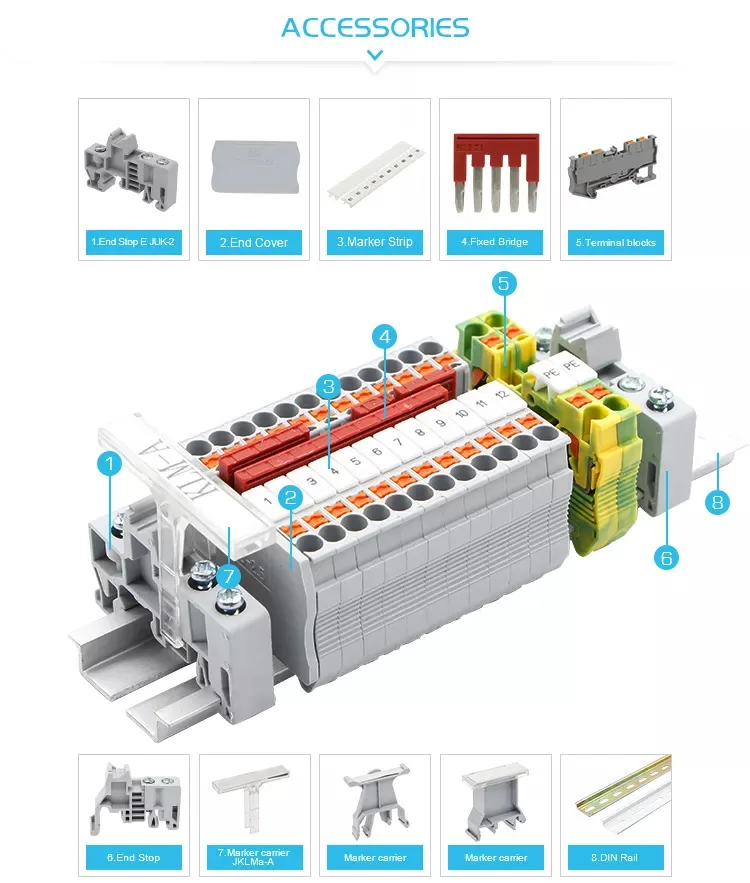

ACCESSORIES ( Click the pictures to the links)

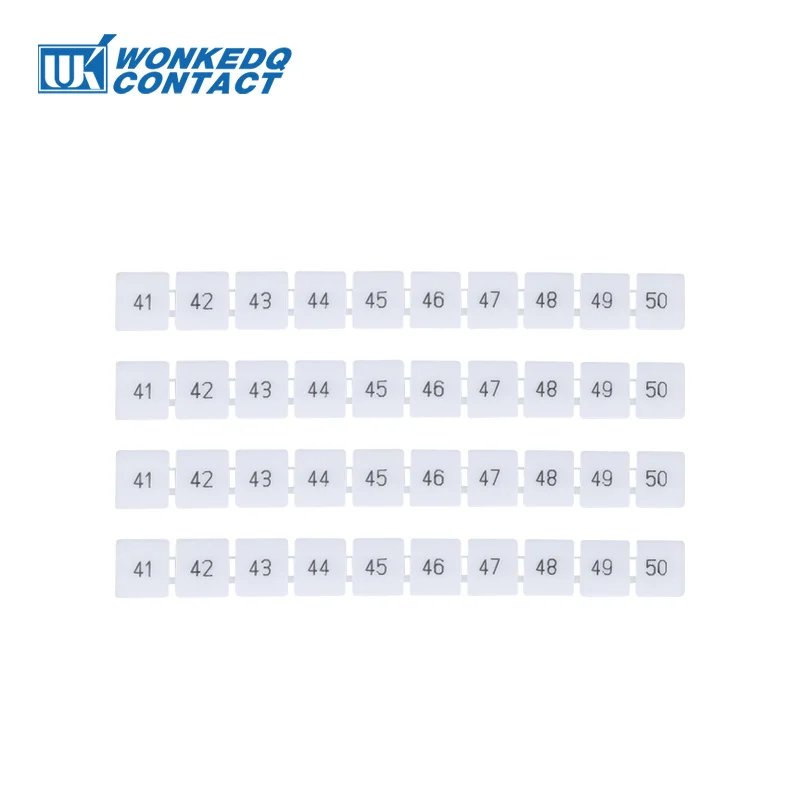

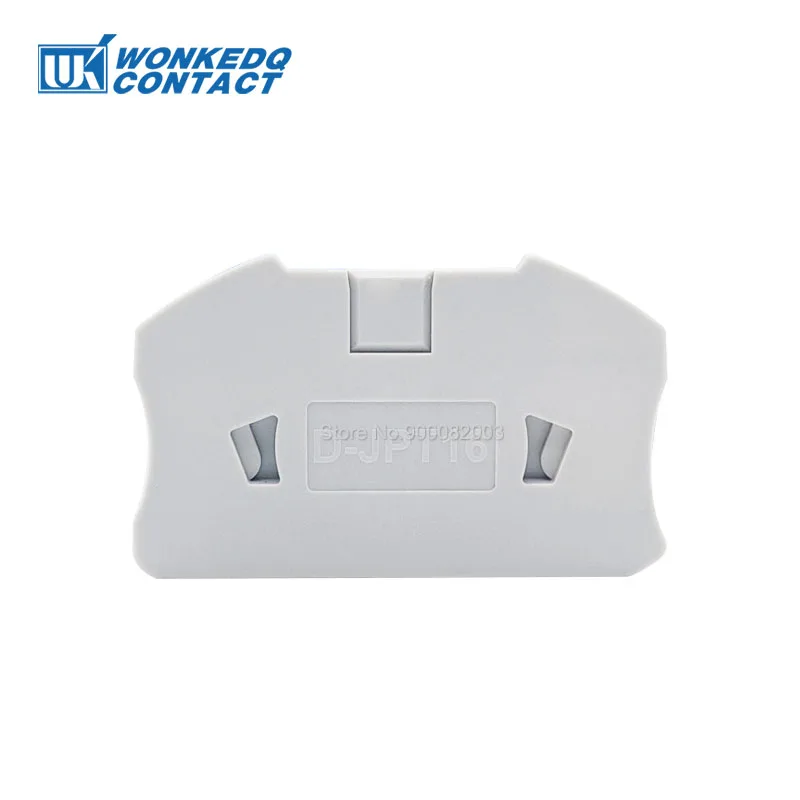

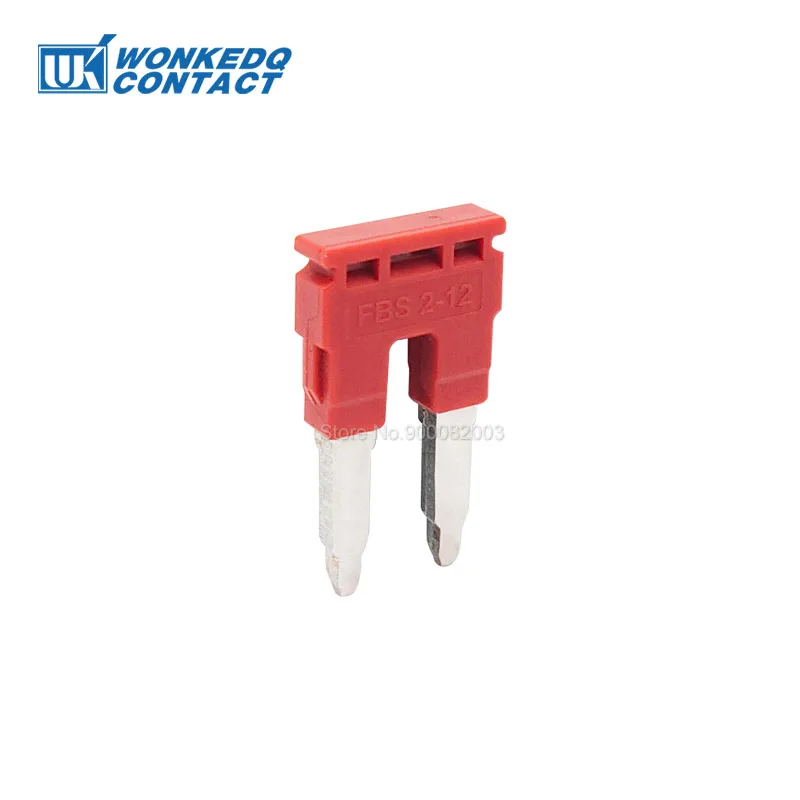

END COVER D-PT 16	JUMPERS BRIDGE FBS 2-12	MARKER STRIPS ZB 10	END STOP E-UK

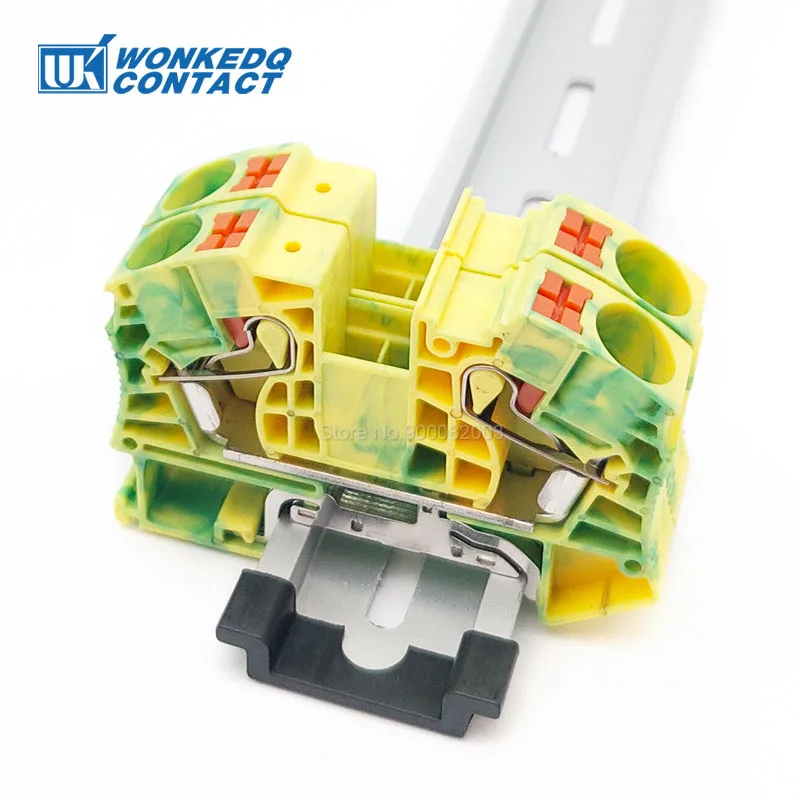

MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	GROUND TERMINAL BLOCK PT-16-PE

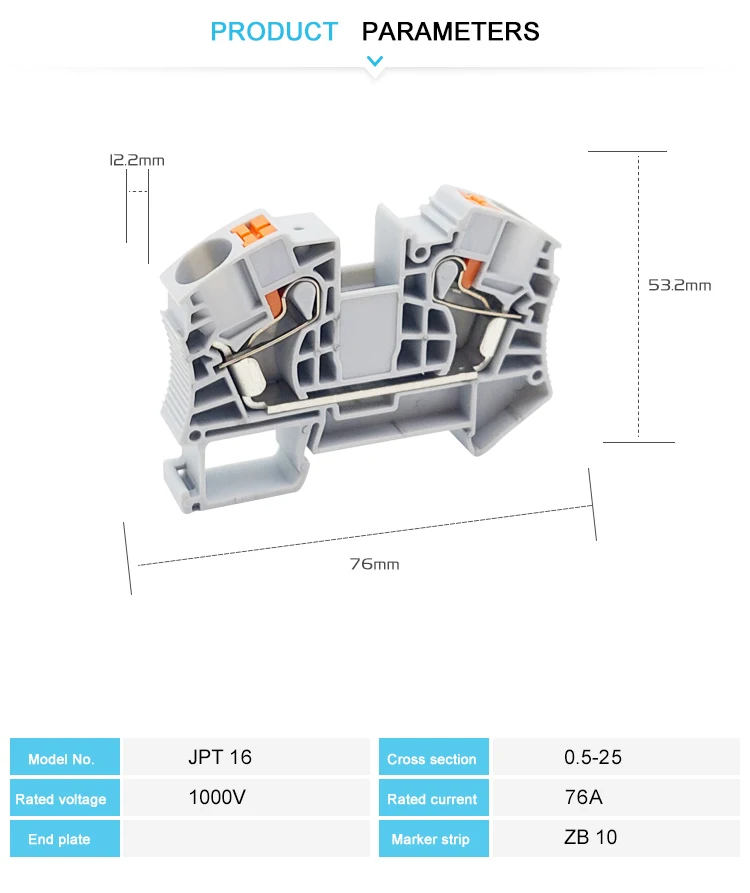

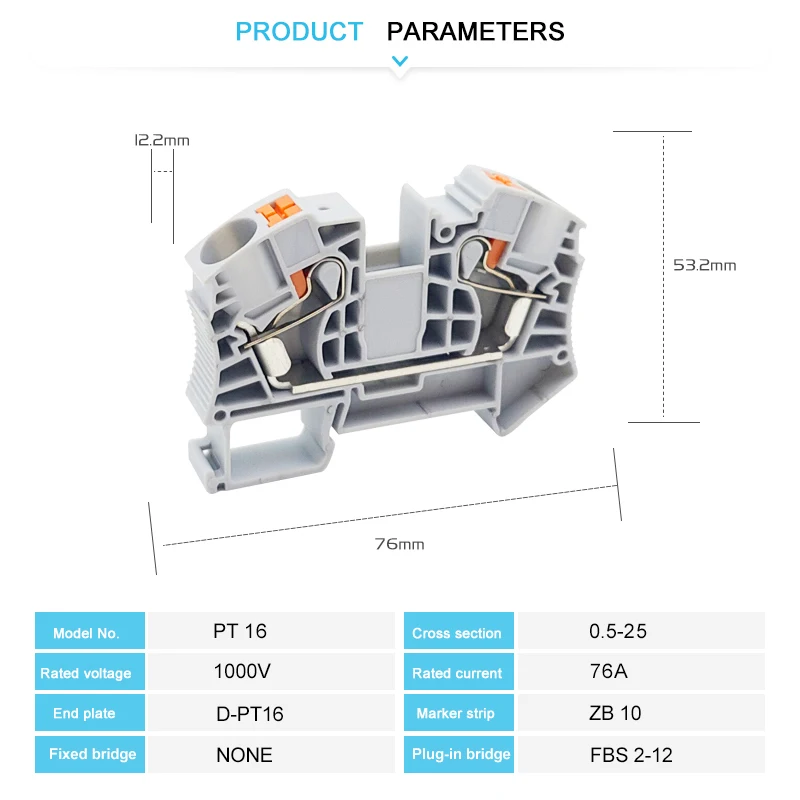

TECHNICAL PARAMETERS

Type No.	Details	Accessories
PT 16	1000V/90A 0.5-25mm²/0.5-16mm² L75.4/H52.6/W12.2 mm	End cover: D-PT 16
		Plug-in bridge: FBS 2-12
		Marker strip: ZB10

Model Number	PT 16
Color	Grey, Blue, other color can be customized
Length/Wide/Height (mm)	L75.4/H52.6/W12.2 mm
Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	1000V/90A
Cross section, solid/soft Cable	0.5-25mm²/0.5-16mm²
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Certification	CE/RoHS/CQC/ISO 9001
