- Químico Hign-em causa: Nenhum
- Número do modelo: PT1000
- Tipo de Item: Resistência À temperatura
- Nome da marca: 5Aplusreprap
- Origem: CN (Origem)
- Size: 3 (OD) x 15 (length) mm
- Material: 304 stainless steel and PTFE silver shielded wire

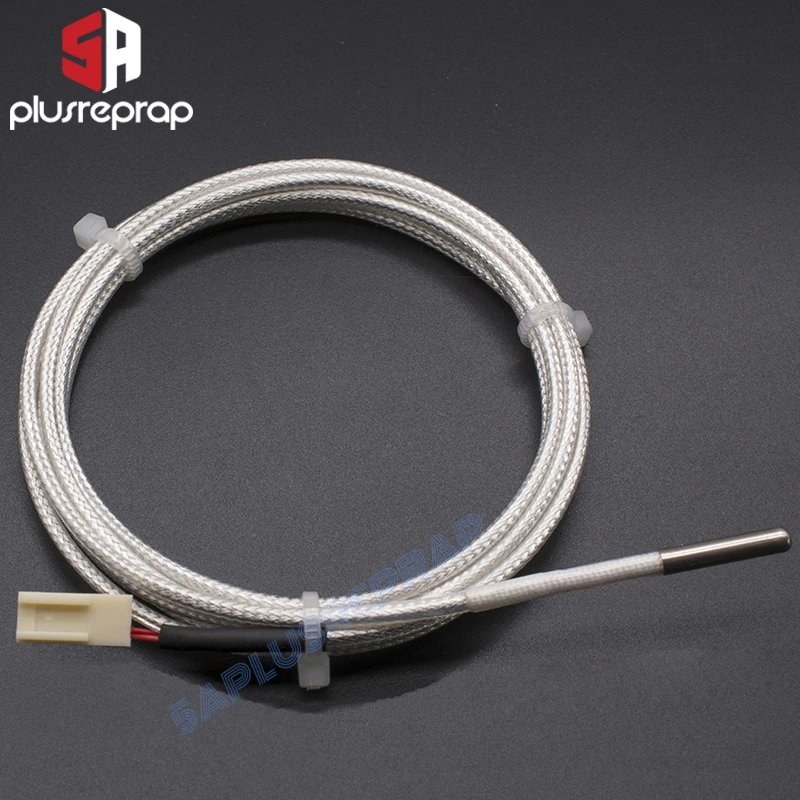

- Name: PT1000 Thermal Resistance V6
|
|
|
|
|
|
|
|
Type of thermocouple: PT1000
Chip: (Heraeus) german original Chip, Stable and High Precision

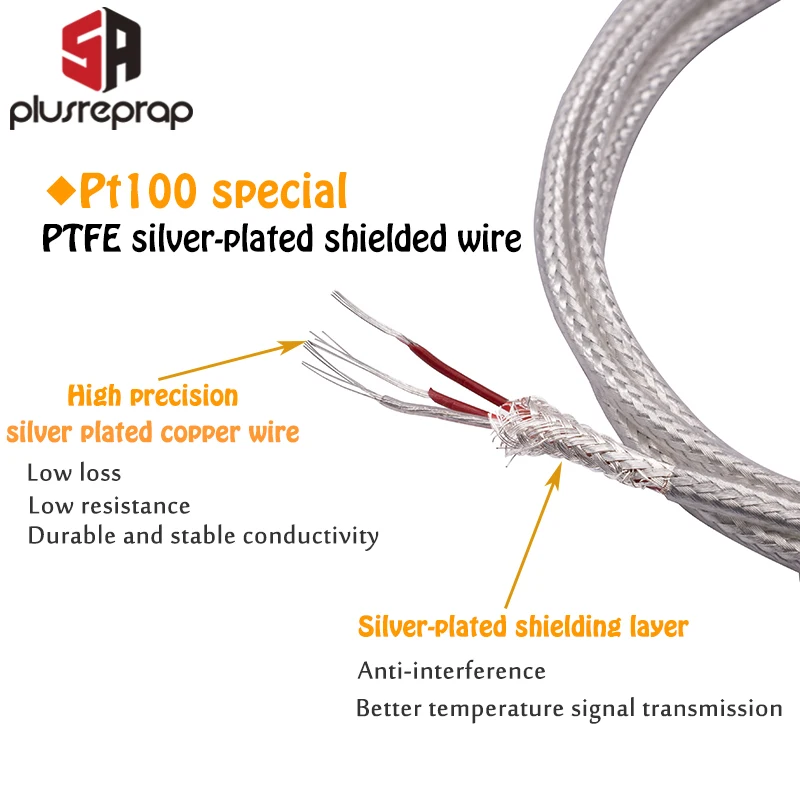

Wire: Pt1000 special PTFE silver-plated shielded wire
Size:
Sensor OD: 3mm (+0, -0.03) down the deviation
Effective length: 15mm
Cable length: 1500mm
The range of Temperature: 0~450 Degree

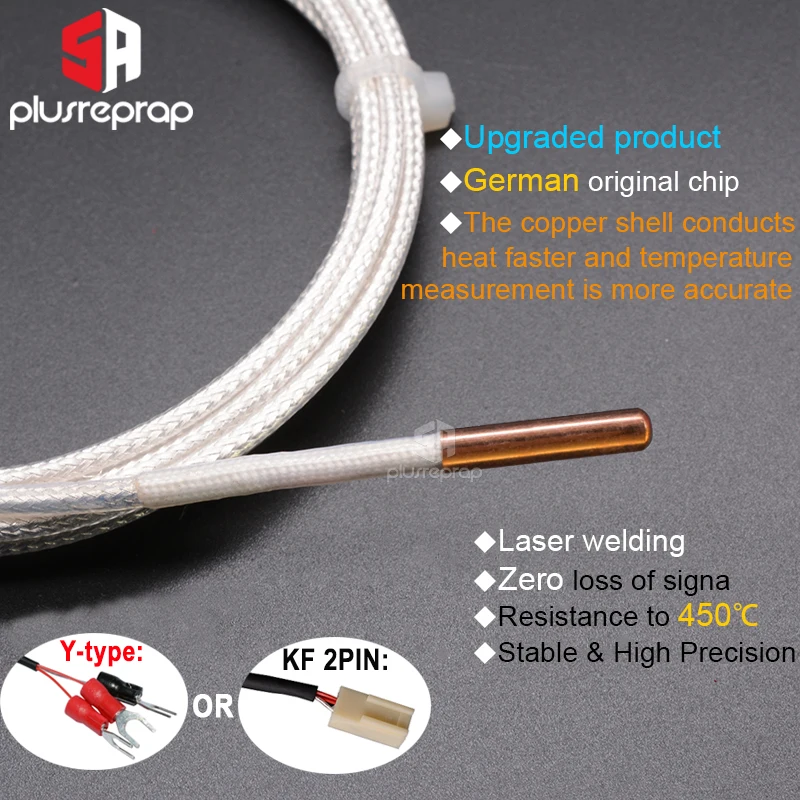

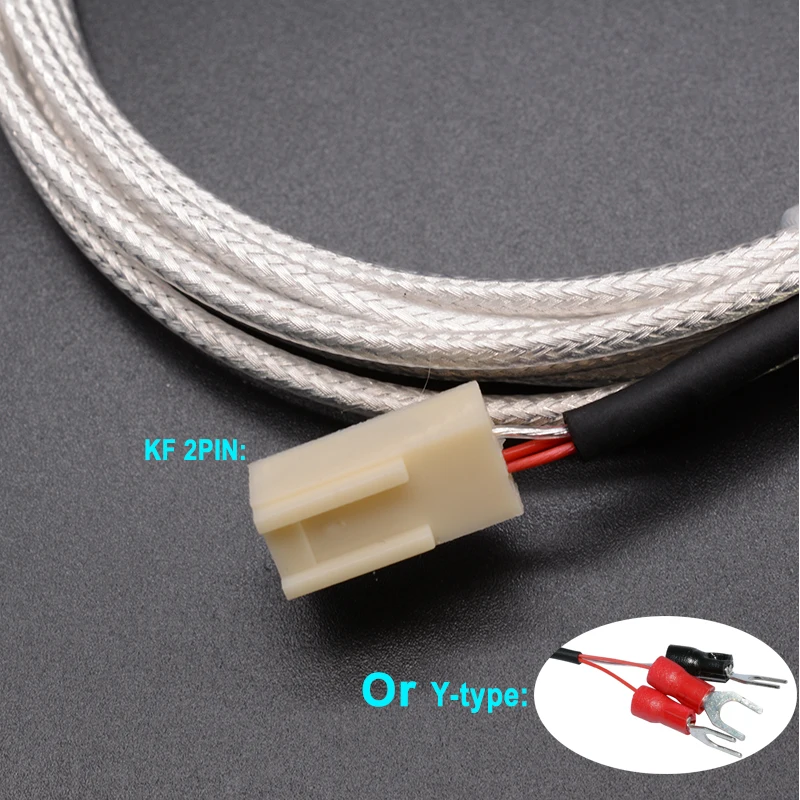

There are two type connectors for you to choose.
1. Type A: KF 2 PIN connector
2. Type B: Y-type 3 wire terminal
2. Type B: Y-type 3 wire terminal

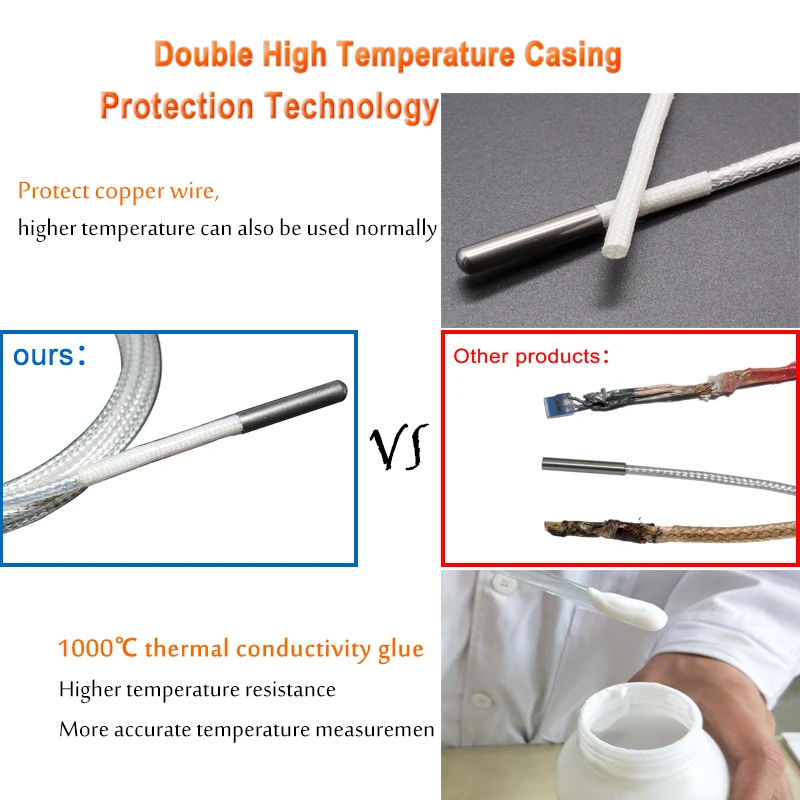

PT1000 shielded wire , the maximum temperature of teflon is approx. 260 degrees. To ensure the pt1000 to measure the higher temperature, we use double fibreglass sleeving and 1000-degree thermal adhesive to protect the wire. To make working temperature is able to up to 450 degrees, and avoid the short-circuit or damage during operation.
Pt1000 is a high-precision resistance measurement method. Our pt1000 adopts 3-wire system. The 3-wire system can reduce the influence of wire resistance error on measurement accuracy, thus making measurement more accurate. Some products are used 2-wire, 2-wire measuring accuracy is less than 3 wire.In addition, if use a connection extension cable, it increases the resistance of the wire and affects the measurement accuracy. If you have other questions, please contact our customer service, we will provide you with professional answers.
1 pcs - PT1000 degree Sensor Thermocouple sensor
or
2 pcs - PT1000 degree Sensor Thermocouple sensor
