- Hign-concerned Chemical: None
- Model Number: PT 1.5
- is_customized: Yes
- Brand Name: WONKEDQ
- Type: Push-in Terminal
- Origin: Mainland China
- Certification: CE,RoHS
- Conductor Size: 26-16 AWG, 26-16 AWG
- Color: Grey, Blue, other color can be customized
- Connection method: Push-in connection
- Rated Voltage/Current: 500V/17.5A
- Mounting Type: NS 35/7.5
- Length/Wide/Height (mm): L45/H31/W3.5 mm
- Material: Nylon PA66
- Cross section, solid/soft Cable: 0.14-1.5mm²/0.14-1.5mm²
- Standard: IEC 60947-7-1
DESCRIPTION
ACCESSORIES ( Click the pictures to the links)
|
|
|
|
END COVER | JUMPERS BRIDGE | MARKER STRIPS | END STOP |
|
|
|
|
MARKER CARRIER | MARKER CLIPS | DIN RAIL | GROUND TERMINAL BLOCK |

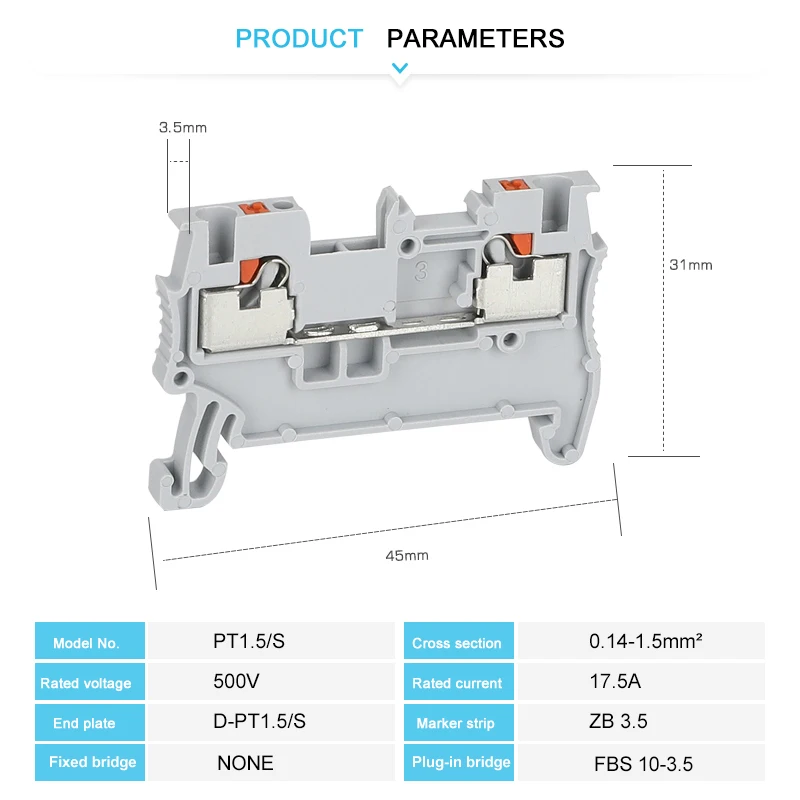

Technical Parameters
Type No. | Details | Accessories |
PT 1.5 | 500V/17.5A 0.14-1.5mm²/0.14-1.5mm² L45/H31/W3.5 mm | End cover: |
Plug-in bridge: | ||
Marker strip: |
Model Number | PT 1.5 |
Color | Grey, Blue, other color can be customized |
Length/Wide/Height (mm) | 45/32/3.5mm |
Connection method | Push-in connection |
Material | Nylon PA66 |
Rated Voltage/Current | 500V/17.5A |
Cross section, solid/soft Cable | 0.14-1.5mm2/ 0.14-1.5mm2 |
Conductor Size | 26-16 AWG |
Mounting Type | NS 35/7.5 |
Standard | IEC 60947-7-1 |
LOGO | WONKEDQ , Customized logo are supported |
Packing Detail | 3.2g/pc, 110PCS/BOX |
Certification | CE/RoHS/CQC/ISO 9001 |
