Engraving Area: Other
Hign-concerned Chemical: None
Is Smart Device: Yes
Origin: Mainland China
Certification: CE
Condition: New
Brand Name: honorfuture
CNC or Not: CNC

Follow store and contact us to get free gift!

<< Price can Discuss! >>>

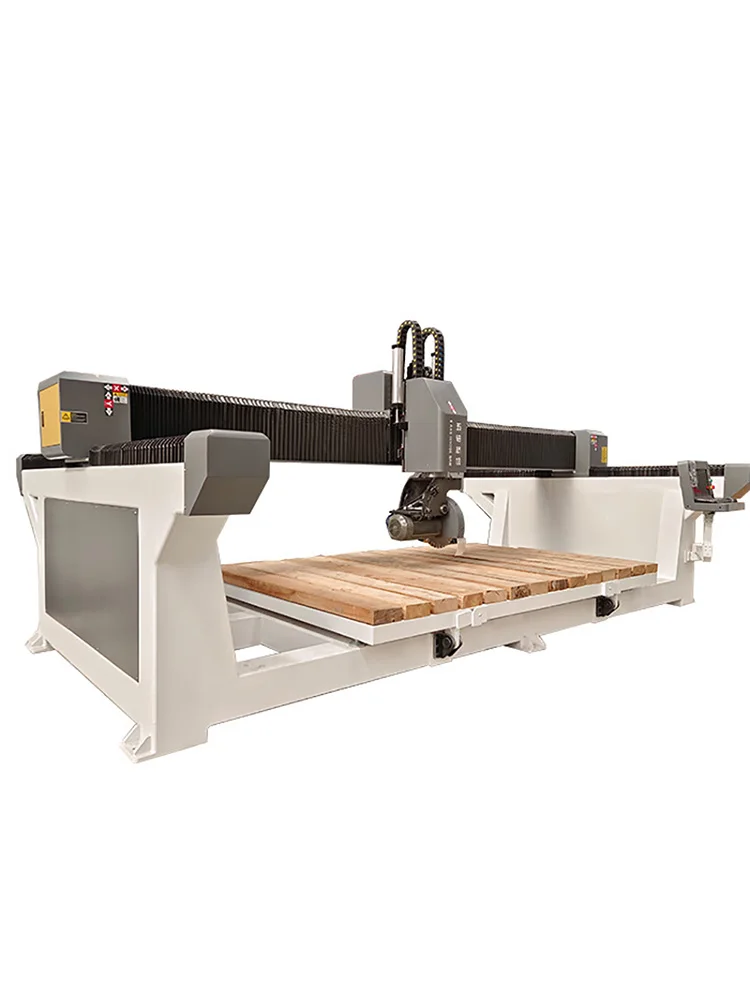

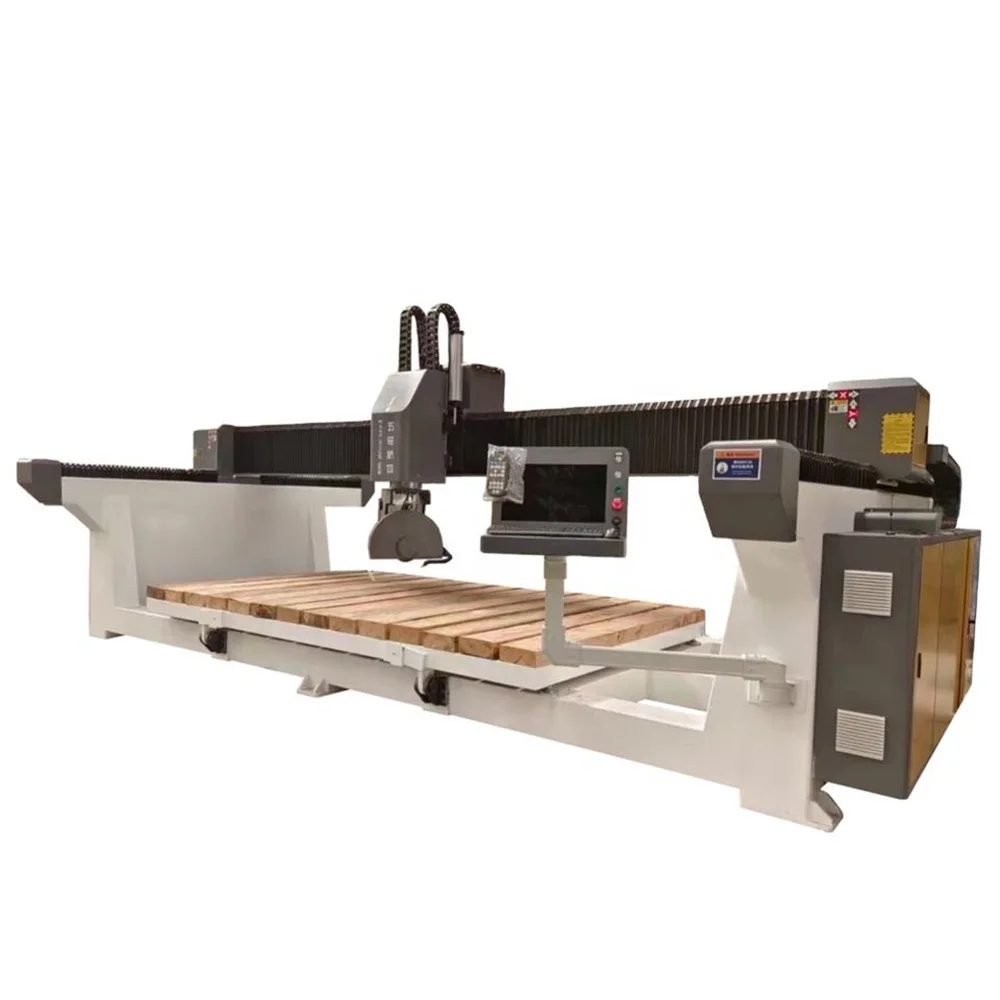

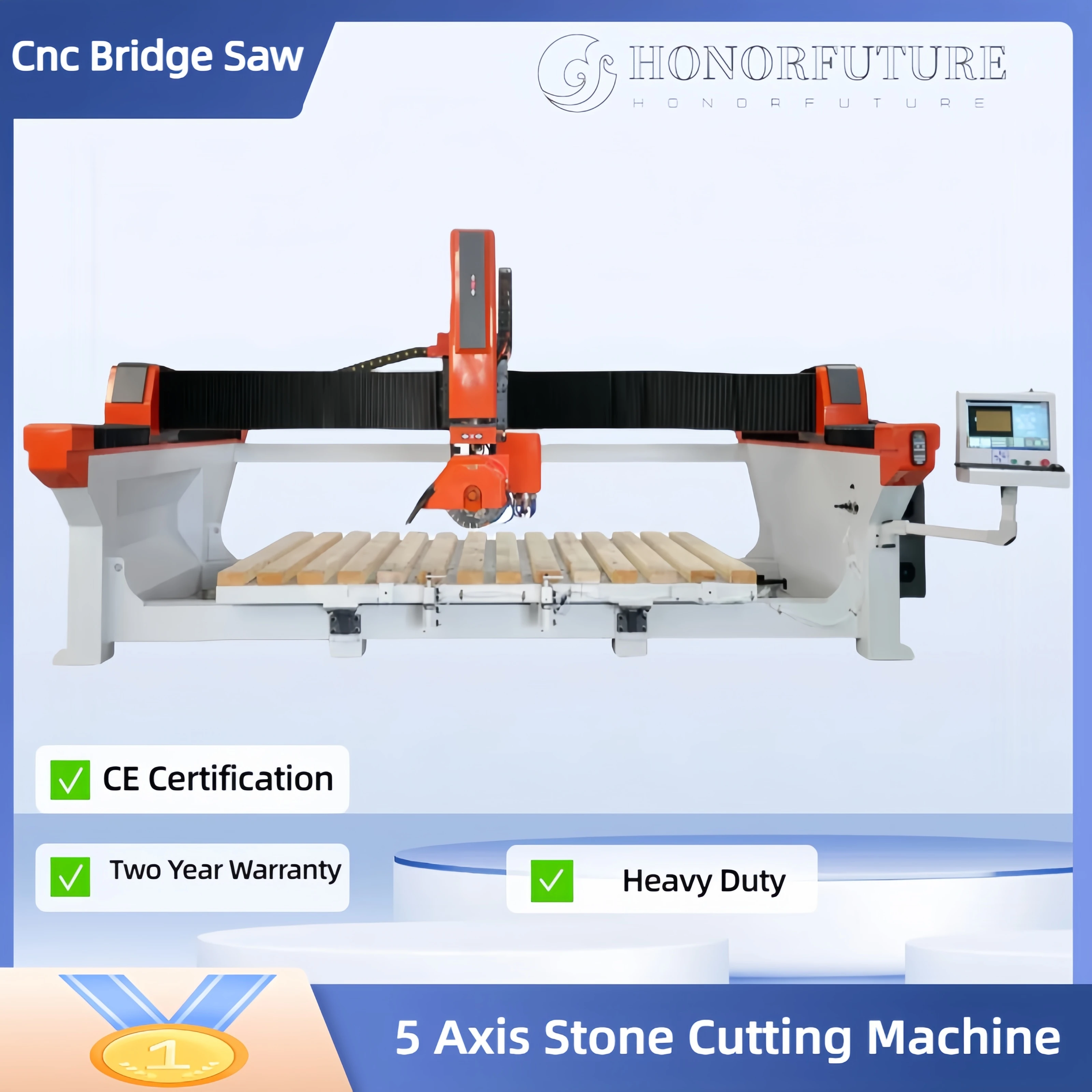

Professional Stone Machinery Multifunctional Granite Slab Cutting Machine 5 Axis CNC Bridge Saw Stone Cutting Machine

Name: Professional Stone Machinery Multifunctional Granite Slab Cutting Machine 5 Axis CNC Bridge Saw Stone Cutting Machine
SKU: 1005009530837631
Availability: InStock

Product Features Of The Bridge Saw Machine

*Five-axis linkage, high efficient;

* Intelligent software, automatic typesetting function, optimized cutting path;

*Automatic calculation of plate moving position;

*3D cutting, copy milling and other functions;

*Using the disc cutting saw to realize vertical, inclined& horizontal Cutting ;

* Cutting curves with Contour Cutting.

* With the Core Tool such as drill, end mill & excavation wheel;

*Incremental routing for sink cutting, profiling & engraving;

* The worktable can be turned over for easy loading;

* Saw blade cutting, can cut specilal shape, chamfer.

* With powerful functions, one device can complete almost all the tasks required by small processing plants;

* Selected hiah-quality electrical appliances, long service life, low maintenance cost;

*Optional milling cutter for five-axis plane and three-dimensional engraving.

* No programming is required, and the two-dimensional CAD drawings can be cut directly;

* The processing speed is fast.

* High-power synchronous motor with high power and strong cutting power.

*Multi-axis dustproof to ensure that the movement unit is not corrode.

Products Parameter

Technical Parameters
Name	5 axis bridge saw stone cutting machine
Working area	3200*2000mm
Control system	5 axis Hand touch screen system
Diameter of blade	350mm-450mm
Blade motor power	11KW
Working voltage	380V/50HZ
Machine head	automatically flips 0-45-90 degrees
Drive motor	Dongling 1.5KW servo motor
transmission	30 high-precision guide rail super heavy flange slider
Reducer	Nippon Shinbao high-precision reducer
A axis rotation angle	0°-90°
C axis rotation angle	0°-360°
Table Tilting Degree	0°-80°
Cutting thickness	80mm
Infrared	Equipped with a laser infrared probe to display the cutting path
lubrication system	Automatic lubrication system
Overall size	5820x345x2300mm
Gross weight	4500KGS

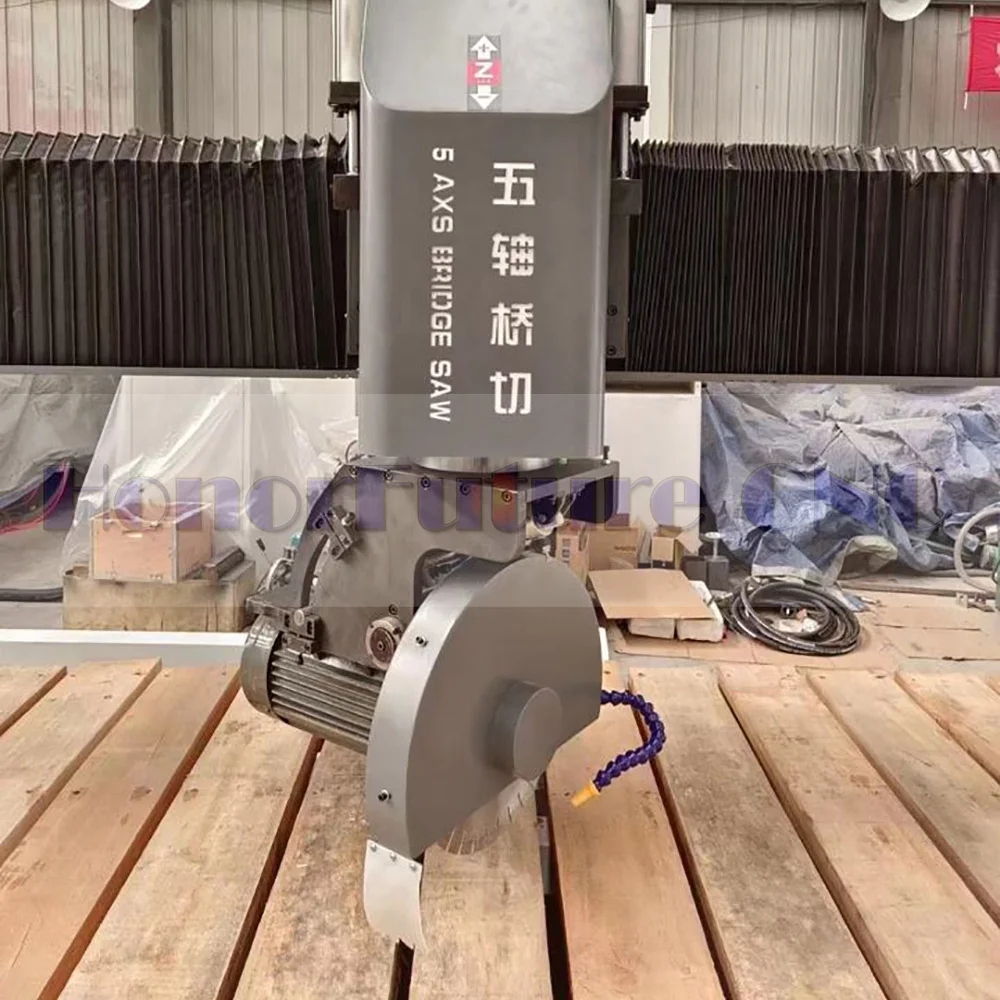

Products details

Application Material& Sample

Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.

Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.

Professional Stone Machinery Multifunctional Granite Slab Cutting Machine 5 Axis CNC Bridge Saw Stone Cutting Machine

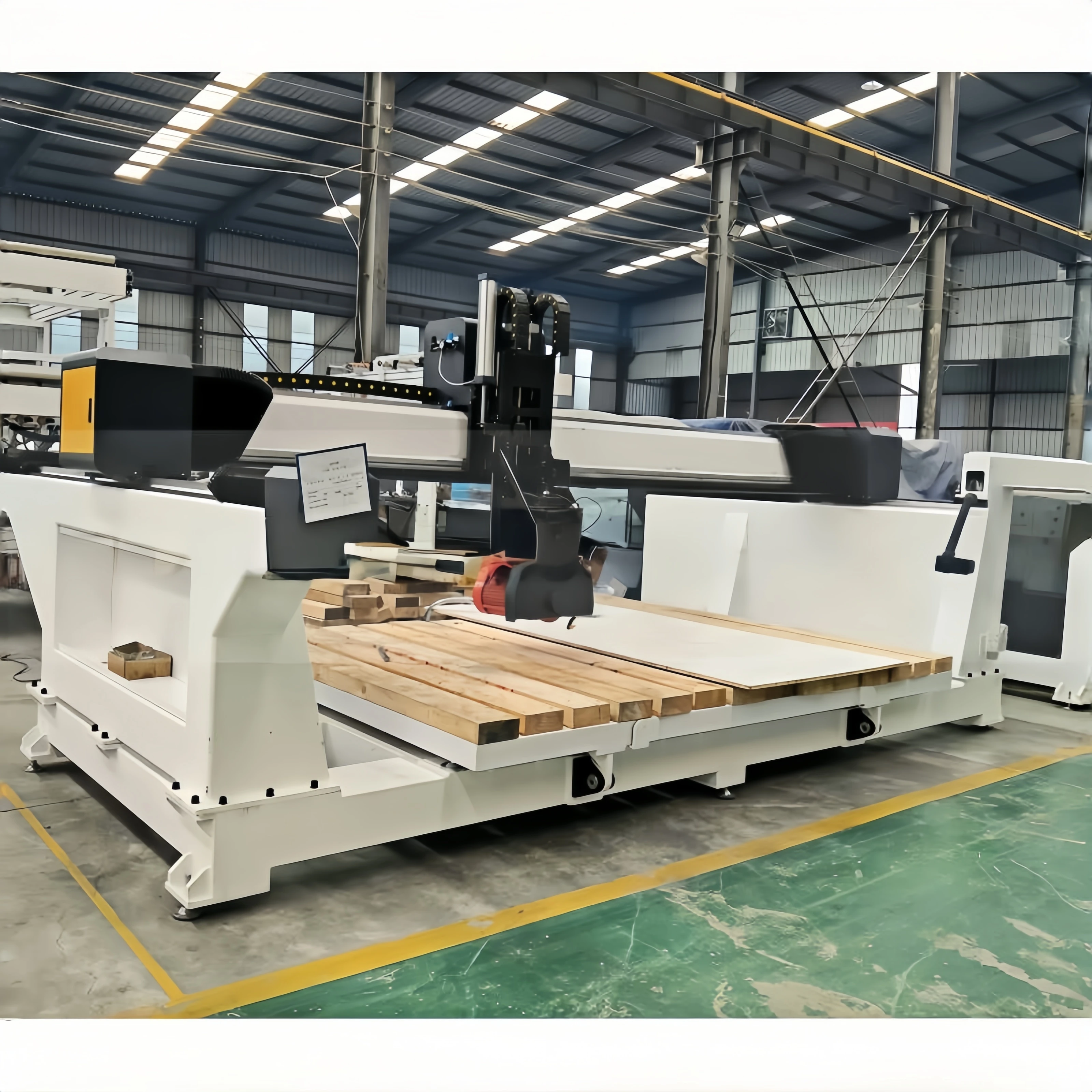

Factory Images

Packing & Deliver

FAQ

✦How to operate the machine ?

We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

✦Does the machine can be customized according to my requirements ?

Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.

✦Can you arrange the shipment for me ?

We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.

✦ How is your delivery time?

Usually it takes7 days after your deposit,for standard model we have in stock, if you need urgent,can arrange delivery quickly.

✦l want to see your machine,where is your factory?

Our factory is located in Jinan City, Shandong Province. you can take flight to Jinan Airport we can pick you.
