Professional Drone 100km Adaptive Video Transmission Module Frequency Hopping Flight Controller Wireless Data Link Receiver

R$ 41.300,76

Availability: 1000 em stock

REF: 1005011582556234

Professional Drone Adaptive Video Transmission Module Frequency Hopping Flight Controller Wireless Dat Link Baseband Receiver

*Product Name*	Video Transmission XK-F303E-100
*Function*	HD wireless digital video and data transmission device
*Package*	Packed in a professional shipping box

1. Product performance description

XK-F303E-100 is a style of HD wireless digital video and data transmission device, with low power consumption, long communication distance, and other characteristics, Support the transmission of network data, flight control data, PTZ control data, and remote control data at the same time.

* The working frequency band is 800MHz / 1.4GHz , and the frequency point can be customized
* The bandwidth is adjustable, including 3MHz, 5MHz, 10MHz, and 20MHz.
* The mapping mode is adjustable, including QPSK, 16QAM, and 64aqm.

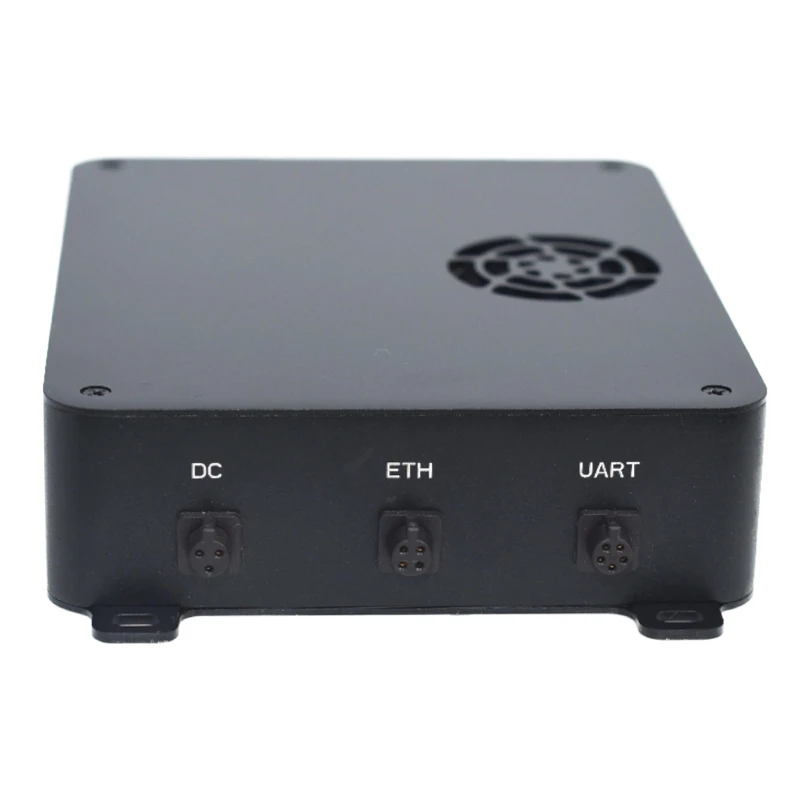

* Support Ethernet, serial port, and SBUs.
* Support AES128 and AES256 encryption.

2. Features:

* Wide frequency range and wide bandwidth are supported.
* Rich control interfaces, and a High carrier noise ratio.

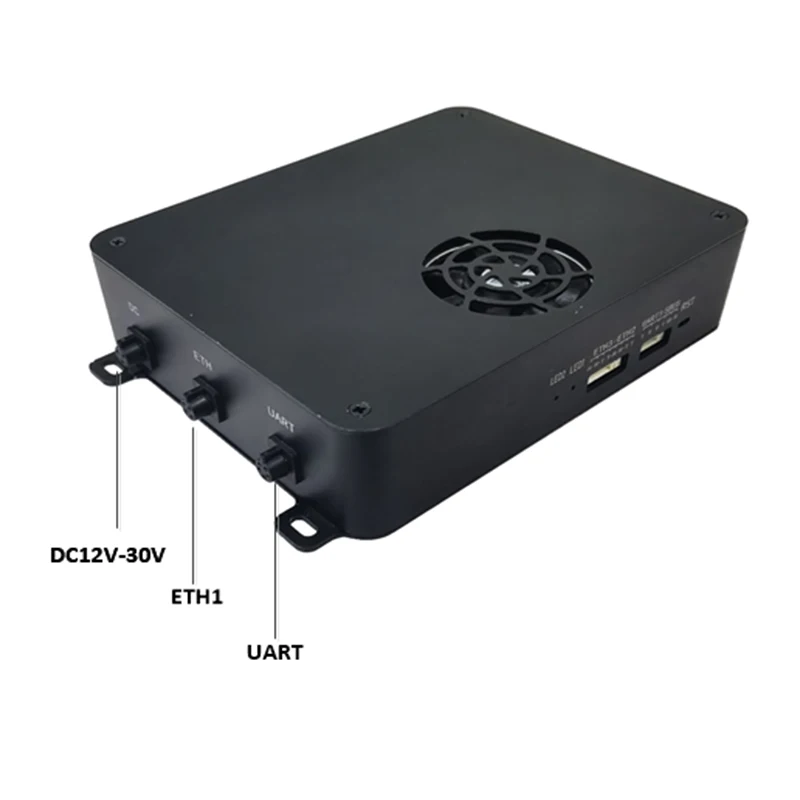

* Wide input voltage range(DC12 ~ 25V).
* Low power consumption.
* Max downlink configuration rate: 30m, bandwidth: 20m

Max uplink configuration rate: 26m, bandwidth: 20m.
* Support OTA upgrade, local and remote upgrade.
* Adaptive frequency hopping, strong anti-interference ability.

3. Technical Parameter

Item	Spec/Parameters
		Air Unit	Ground Unit
Operation Voltage	DC12V~DC25V,Standard input DC22V
Power Consumption	≤11W @ 33dBm
Modulation	OFDM

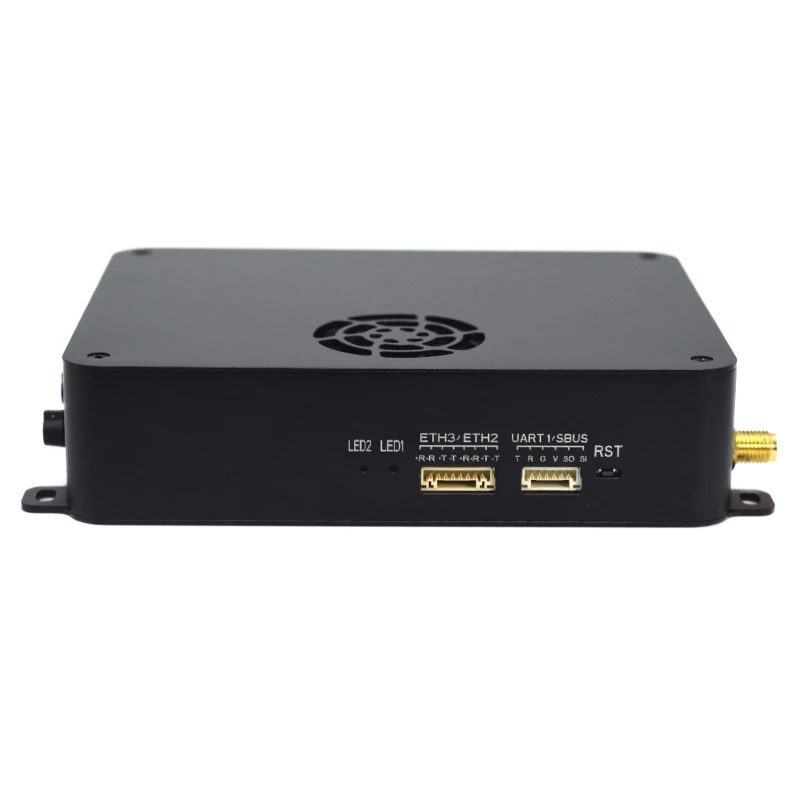

Data interface	UART(TTL/RS232)/SBUS
Frequency	800MHz/1.4GHz , Customizable
Channel rate	Uplink(Max): 30Mbps,Downlink(Max):26Mbps
Bandwidth	3/5/10/20MHz
Latency	≤15ms
Tx Power	≤33dBm(Adjustable)
Working temperature	-30ºC~60ºC
Storage temperature	-40ºC~75ºC

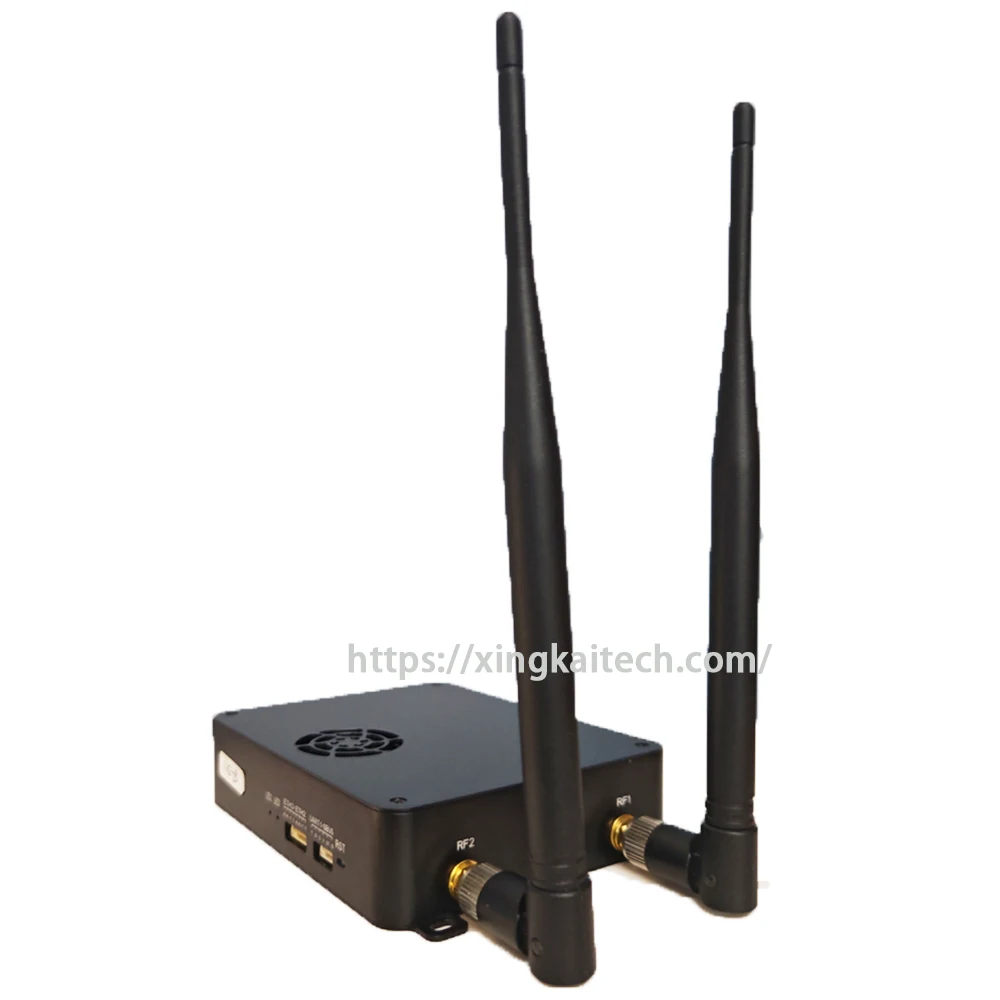

Antenna	2.5dBi	16dBi
Communication Protocol	IEEE802.3,Transparent serial data
Communication	Point, Point to Multi-Points relay mode
Dimensions	1159228mm
Weight	≤300g
