- High-concerned chemical: none
- Material: Rubber
- Type: Other
- Origin: Mainland China
- type: Horizontal
- max. length of workpiece (mm): 500
- structure: Slant Bed Lathe
- machining capacity: Heavy Duty
- max. weight of workpiece(kg): 800
- width of bed (mm): 600 mm
- no. of spindles: Single
- number of axes: 2
- travel (x axis)(mm): 210
- travel (z axis)(mm): 600
- positioning accuracy (mm): ±0.001
- repeatability (x/y/z) (mm): ±0.001
- place of origin: Shandong
- dimension(l*w*h): 2800*2000*2000
- model number: TCK560
- voltage: 380
- cnc control system: GSK
- tool post stations: 12, 8
- weight: 3500
- warranty: 1 Year
- key selling points: High-Accuracy
- machinery test report: Provided
- video outgoing-inspection: Provided
- CNC or Not: CNC
- Machine Type: Flat Bed CNC Lathe
Dear customer, Welcome to my store,We sell all kinds of products. If you have any other items you wish to purchase, please feel free to consult us.There is a discrepancy between the current price and the actual price (configuration and logistics). To obtain product details and more favorable prices, please add WhatsApp for confirmation Manager: Liu Mr WhatsApp:+86 19176692407 Email：1799483840@qq.com

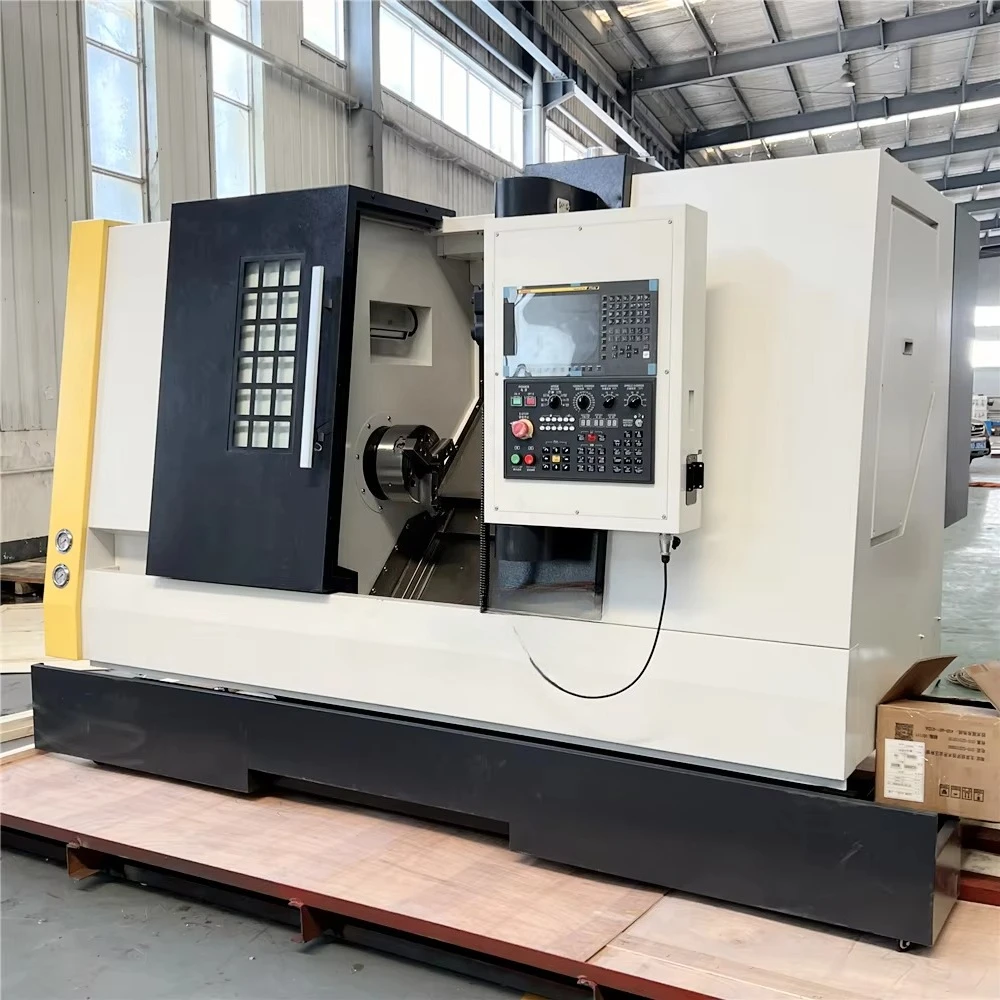

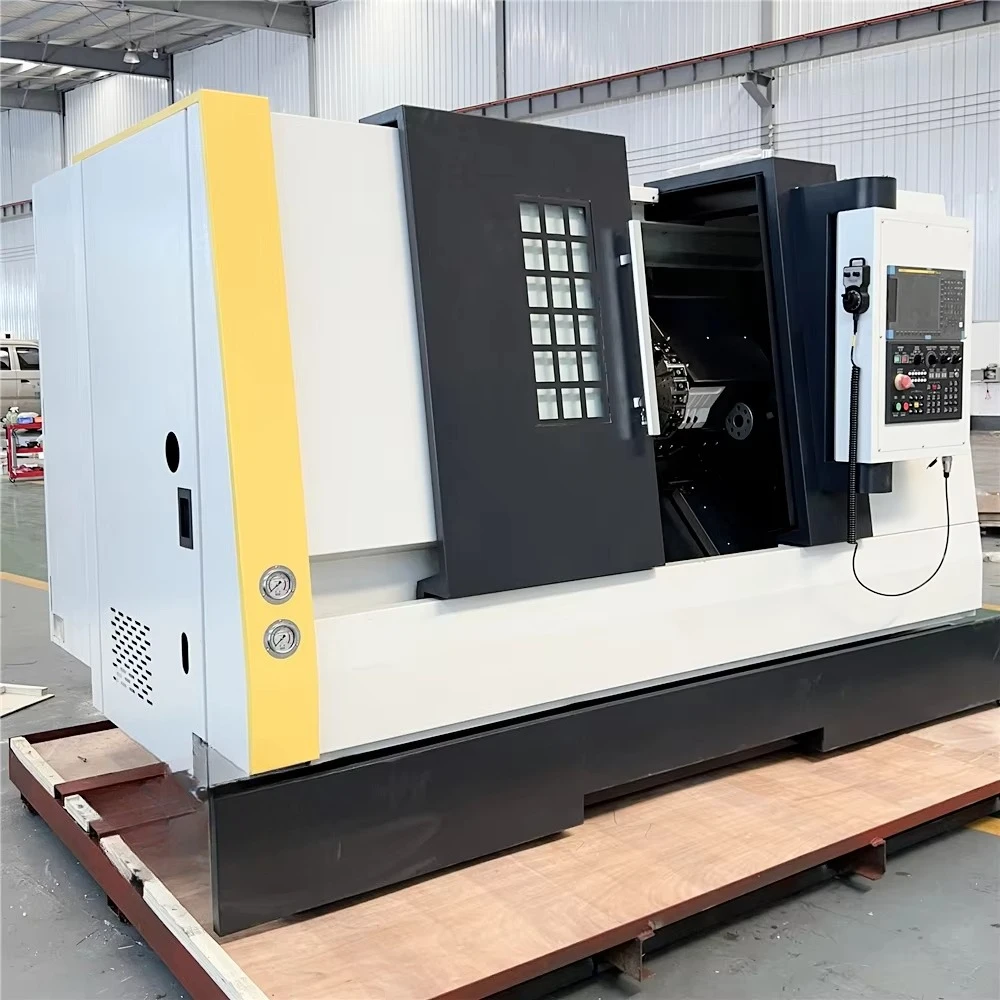

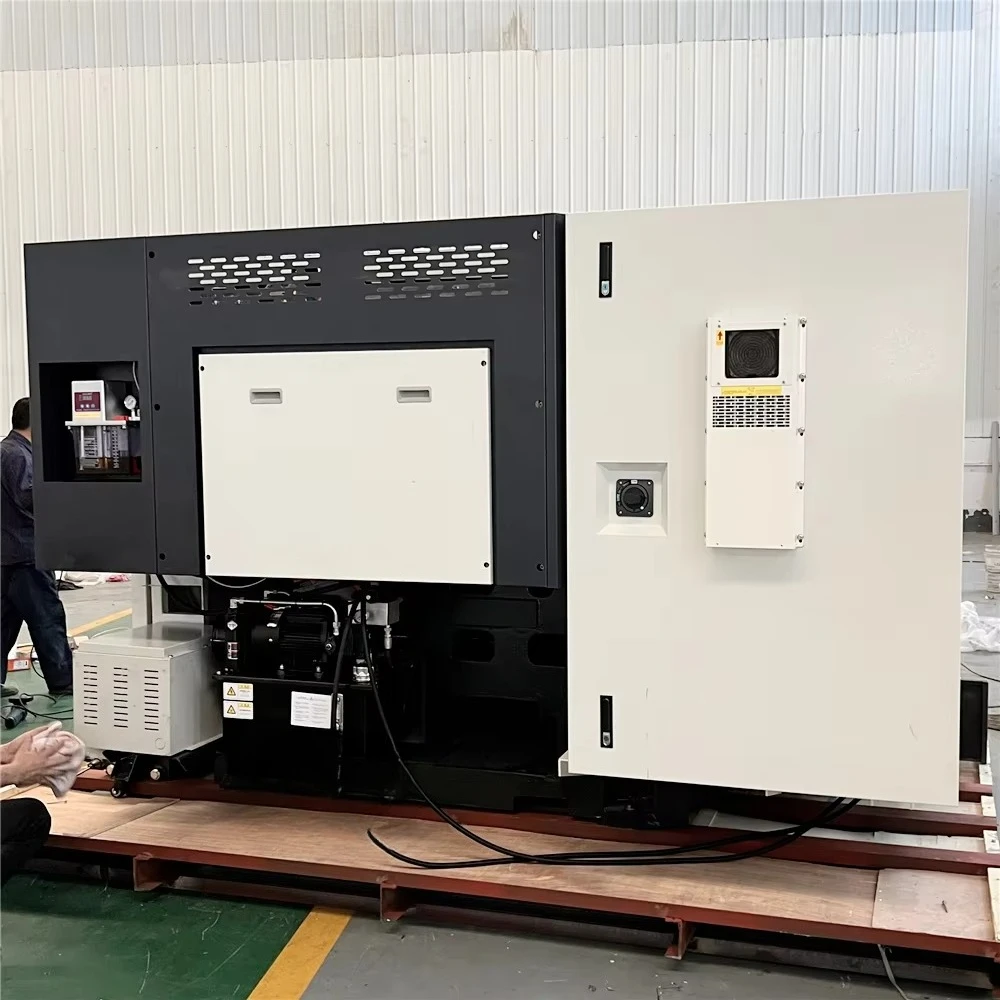

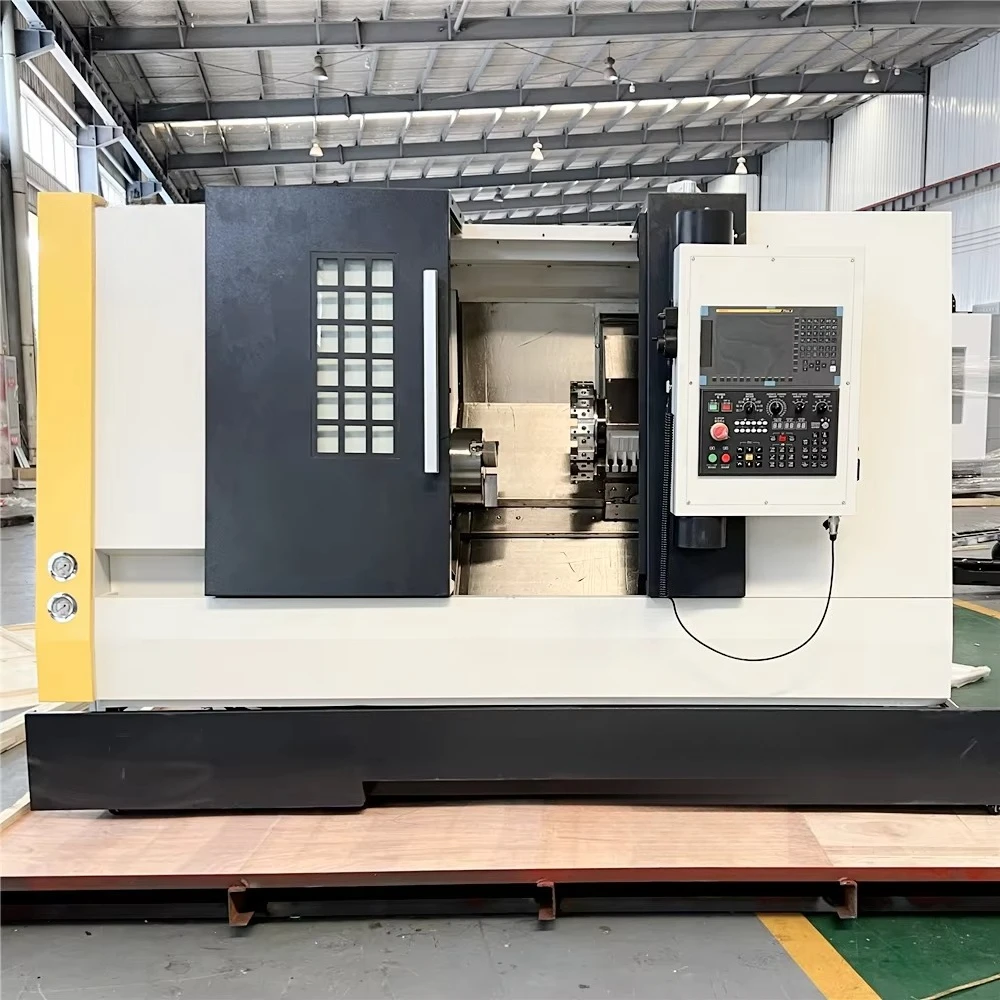

TCK560 Main technical parameters
|
Project
|
|
Unit
|
Specifications
|
Specifications
|
|
|
Max.Swing over bed
|
|
mm
|
560
|
560
|
|
|
Max. cutting length
|
|
mm
|
500
|
1000
|
|
|
Max. turning diameter on skateboard
|
|
mm
|
350
|
350
|
|
|
Spindle box
|
Type and code of spindle end
|
|
A2-6
|
A2-8
|
|
|
|
Spindle bore
|
mm
|
65
|
80
|
|
|
|
Passing bar diameter
|
mm
|
50
|
66
|
|
|
|
Range of spindle speed
|
r/min
|
50～4500
|
50～2800
|
|
|
|
Max. output torque of the spindle
|
Nm
|
177
|
290
|
|
|
|
Spindle speed level
|
|
stepless speed change
|
stepless speed change
|
|
|
|
Main motor output power
|
kW
|
11
|
15
|
|
|
|
Chuck size
|
|
8²
|
10²
|
|
|
X-axis fast movement speed
|
|
m/min
|
30
|
30
|
|
|
Z-axis fast movement speed
|
|
m/min
|
30
|
30
|
|
|
X-axis stroke
|
|
mm
|
210
|
210
|
|
|
Z-axis stroke
|
|
mm
|
600
|
1000
|
|
|
Overall tailstock travel
|
|
mm
|
300
|
800
|
|
|
Tailstock sleeve taper
|
|
Mohs
|
5#
|
5#
|
|
|
Standard tool holder form
|
|
|
Horizontal 8-station, 12 station
|
Horizontal 8-station, 12 station
|
|
|
Tool size
|
Outer circular knife
|
mm
|
25×25
|
25×25
|
|
|
|
Boring bar diameter
|
mm
|
Ф40/Ф32/Ф25/Ф20
|
Ф40/Ф32/Ф25/Ф20
|
|
|
Max .load
|
Disk components
|
kg
|
200
|
200
|
|
|
|
Axis components
|
kg
|
500
|
500
|
|
|
Center height
|
Distance from the ground
|
mm
|
1050
|
1050
|
|
|
Machine weight
|
|
kg
|
3500
|
4500
|
|
|
Overall dimension（L×W×H）
|
|
mm
|
2800×2000×2000
|
3600×2000×2000
|
|
|
S/N
|
Name
|
Manufacturer
|
Model and specifications
|
500/1000 specifications
|
|
1
|
CNC system
|
GSK
|
FANUC 0i -TF
|
1
|
|
2
|
Main motor
|
CTB
|
CTB-4011ZGC10
|
1
|
|
3
|
X-axis servo motor
|
FANUC
|
βiSc12B/3000
|
1
|
|
4
|
Z-axis servo motor
|
FANUC
|
βiSc12/3000
|
1
|
|
5
|
X-axis ball screw
|
Taiwan or imported
|
φ32×12-C3
|
1
|
|
6
|
Z-axis ball screw
|
Taiwan or imported
|
φ32×12-C3
|
1
|
|
7
|
X-axis guide rail
|
Taiwan or imported
|
35 Specification Ball
|
2
|
|
8
|
Z-axis guide rail
|
Taiwan or imported
|
35 Specification Ball
|
2
|
|
9
|
spindle bearing
|
import
|
Front 100，back 90（A2-6）
|
1
|
|
|
|
|
Front 120，back110（A2-8）
|
1
|
|
10
|
Screw bearing
|
import
|
25×62×15
|
4
|
|
11
|

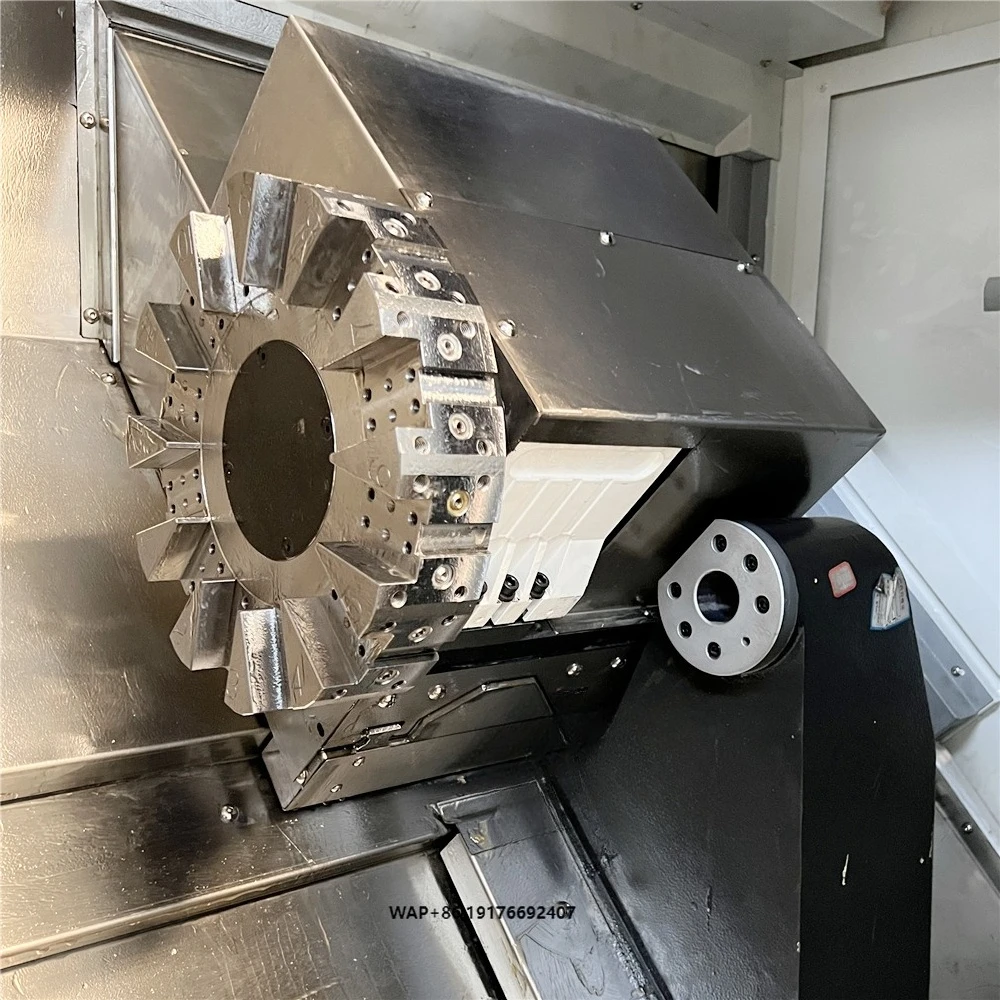

Horizontal knife holder
|
Taiwan Hydraulic
|
80 center height 8 stations
|
1
|
|
12
|

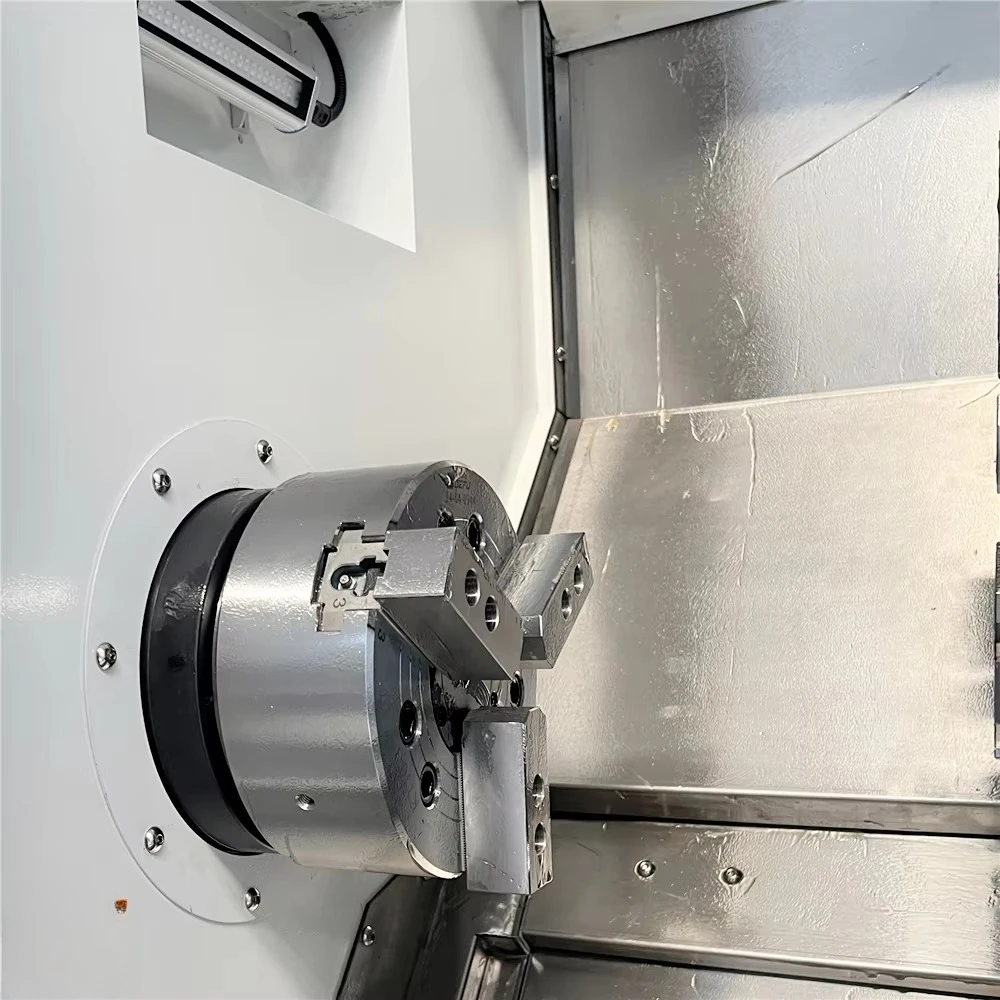

Chuck, oil cylinder
|
Taiwan
|
8″Hollow（A2-6）
|
1
|
|
|
|
|
10″Hollow（A2-8）
|
1
|
|
13
|
tailstock
|
Our factory
|
Hydraulic tailstock
|
1
|
|
14
|
Cooling and chip removal device
|
Our factory
|
Automatic chip removal chain plate type
|
1
|
|
|
|
|
Chip cooling box
|
1
|
