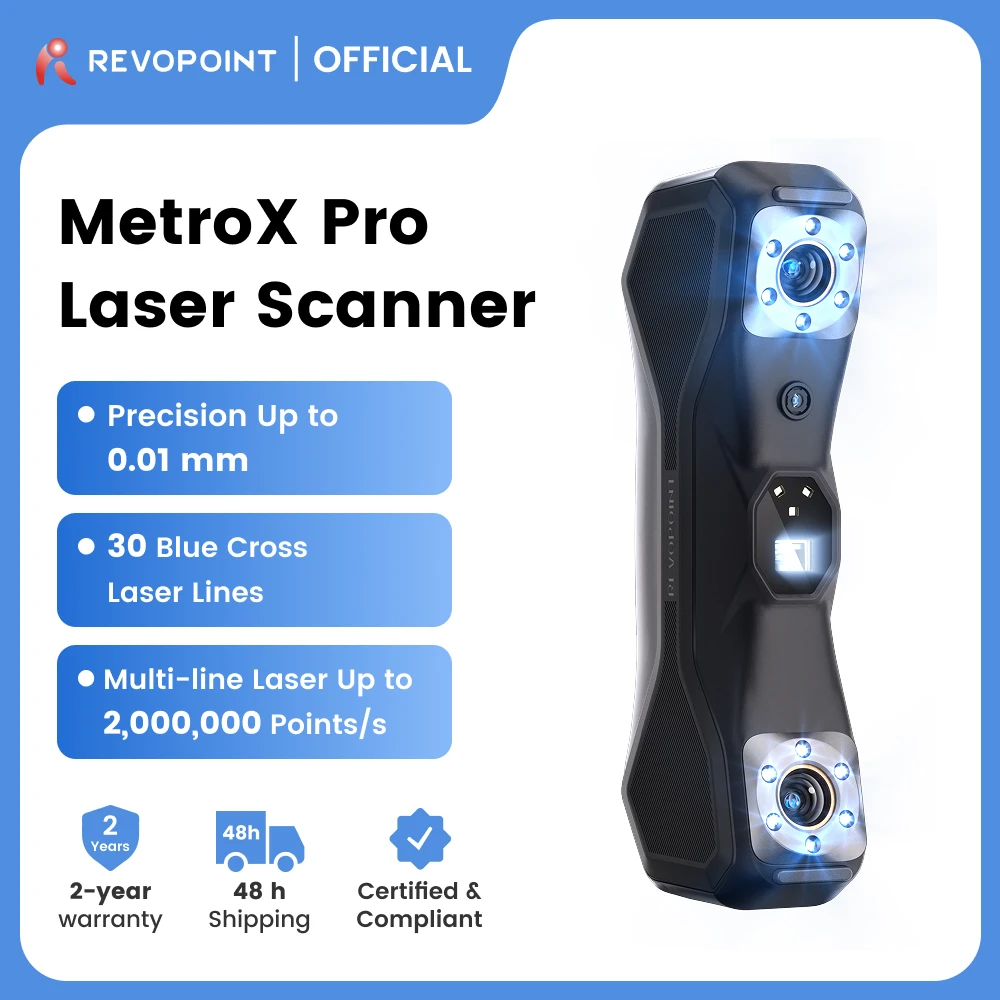

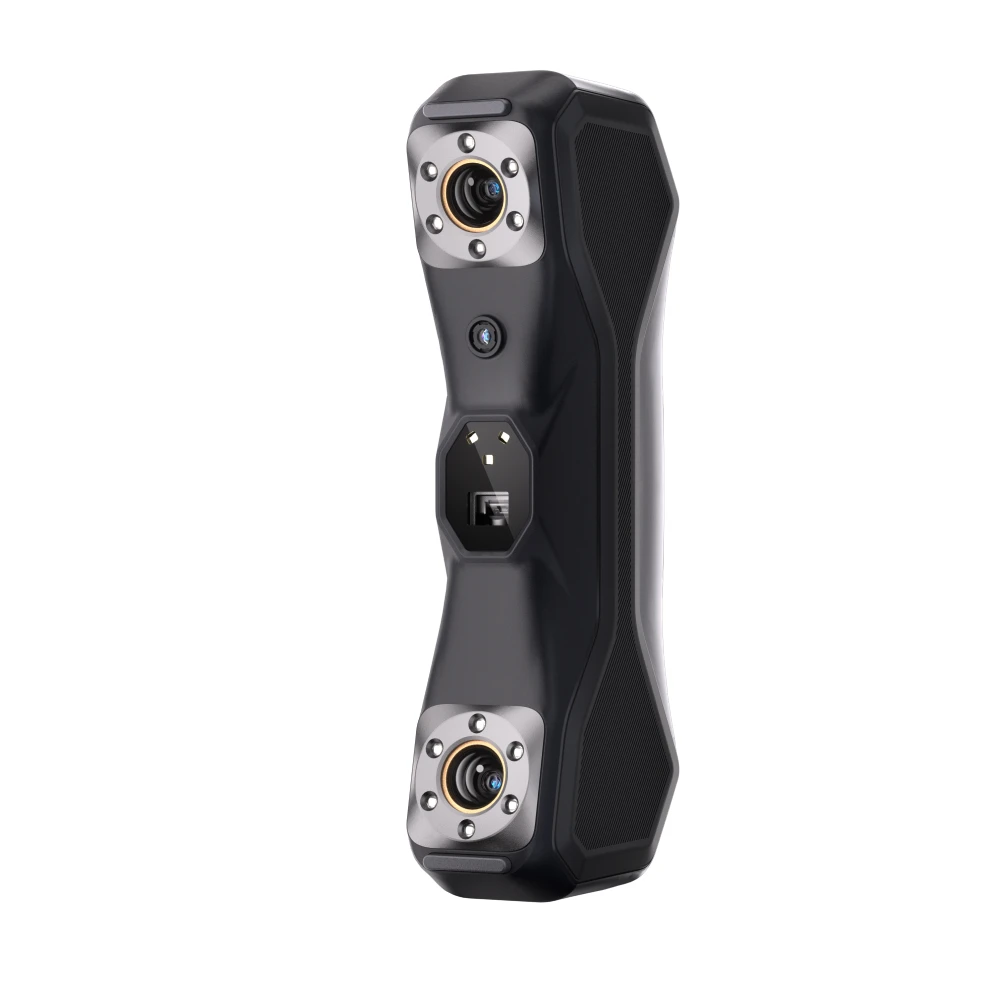

Name: Precisão 0.01 mm: Scanner 3 D Revopoint Metro X Pro Laser - HFG 3D
SKU: 1005011842803141
Price: 4541.95 BRL
Availability: InStock

Bateria incluída: Não
Produto Químico de Alta Preocupação: Nenhum
Passivo sem contato: outro
Ativo sem contato: Laser portátil
Número do modelo: MetroX Pro
Nome da marca: Revopoint
Origem: CN (Origem)
Scanning Type: Handheld and Desktop

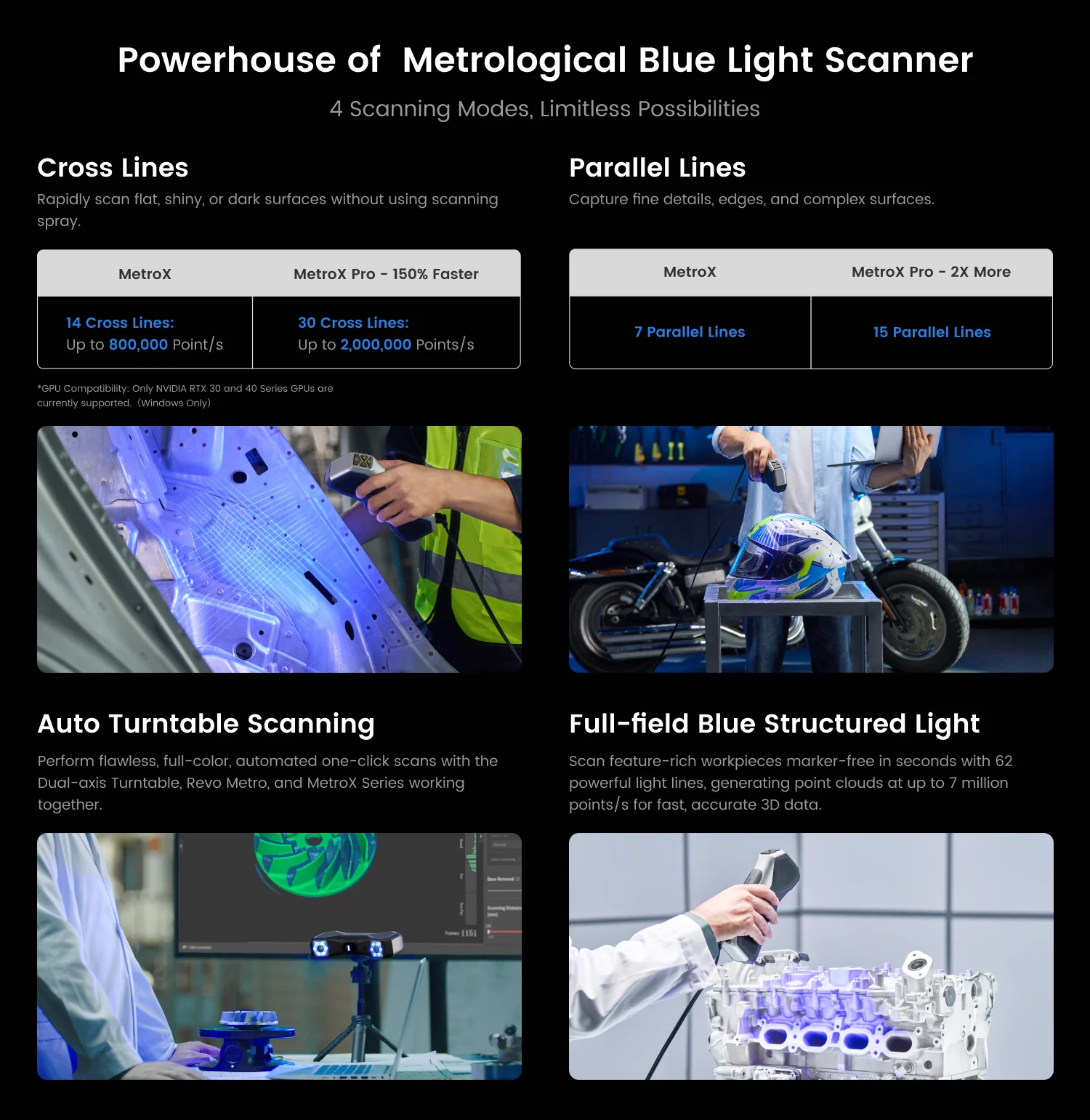

Technology: Multi-line Laser Scan and Full-field Structured Light Scan
Scannable Object Size: Small to Medium
Single-frame Precision: up to 0.01 mm

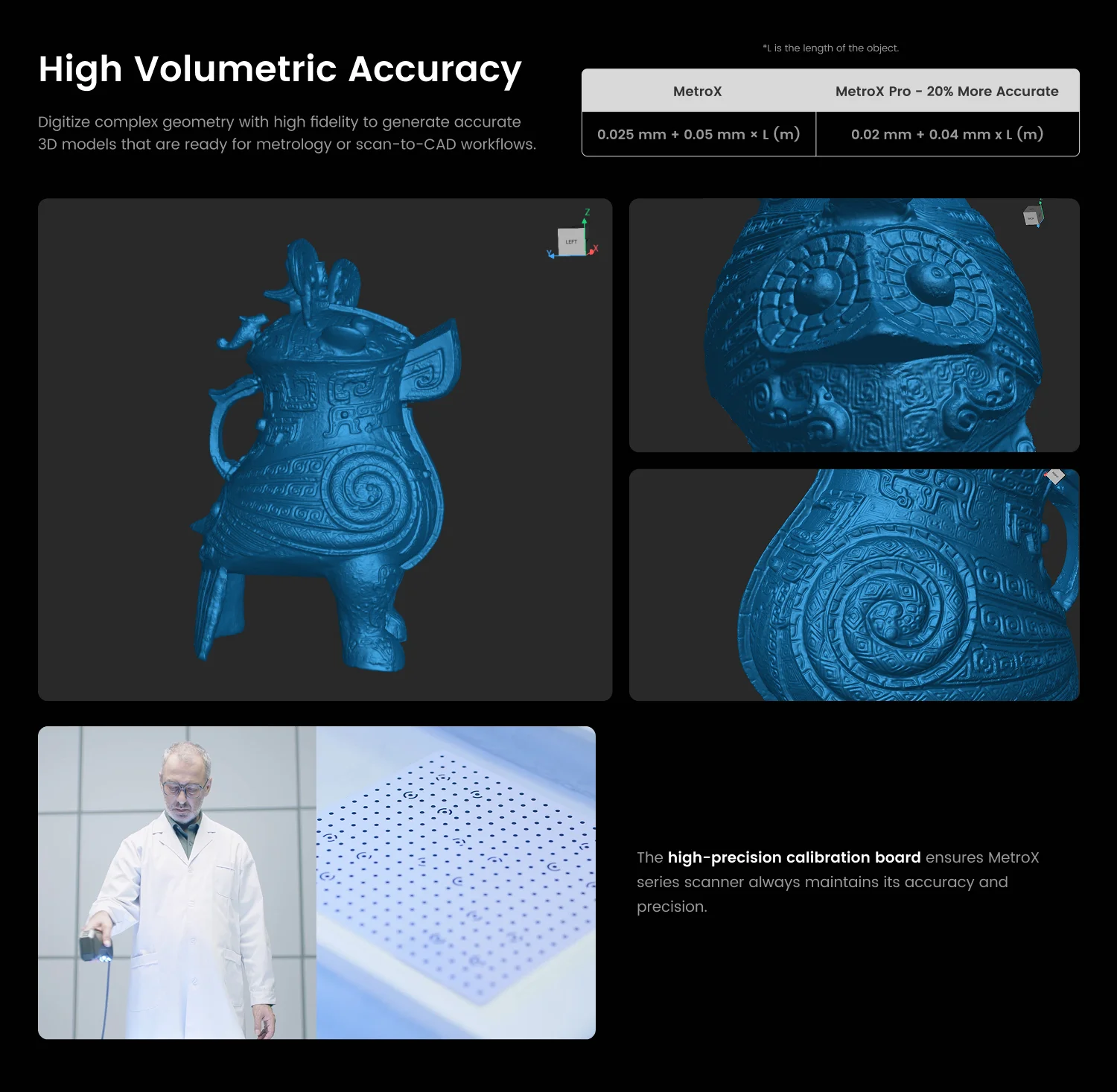

Single-frame Accuracy: up to 0.02 mm
Fused Point Distance: up to 0.05 mm
Working Distance: 200~400 mm
Minimum Scan Volume: 10*10*10 mm
Maximum Scan Volume: 1*1*1 m
Multi-line Laser Scan: 2,000,000 Points/s
Full-field Structured Light Scan: 7,000,000 Points/s
Color Scanning: Only in Auto Turntable Mode
3D Light Source1: 30 Blue Cross Laser Lines
3D Light Source2: 15 Blue Parallel Laser Lines
3D Light Source3: 62 Line Blue Full-field Structured Light
Single Capture Area at Nearest Distance: 160*70 mm at 200 mm
Single Capture Area at Furthest Distance: 320*215 mm at 400 mm
Compatible Operating Systems: Windows 10/11 (64-bit), macOS 11.0 or better
Output File Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
