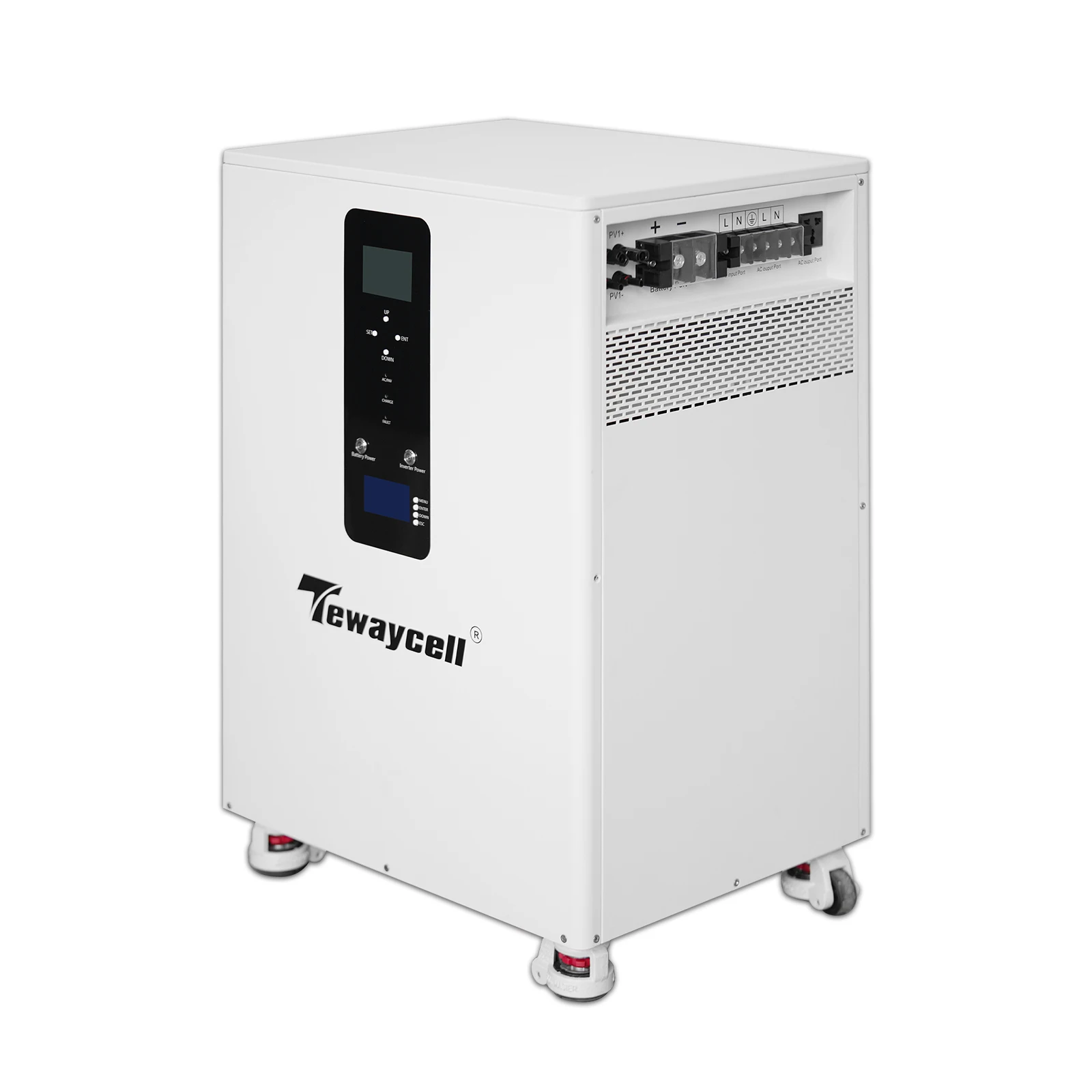

Name: Powerwall 16 to 32KWh 51.2V 314ah to 628Ah LiFePO4 Battery Pack Buitl-in BMS 230V 10KW Output Inverter Monitor Solar ESS WiFi - HFG 3D
SKU: 3256808891093568
Availability: InStock

High-concerned chemical: Lithium Carbonate
Nominal Capacity: 400AH
Weight: 190KG
Voltage: 51.2V

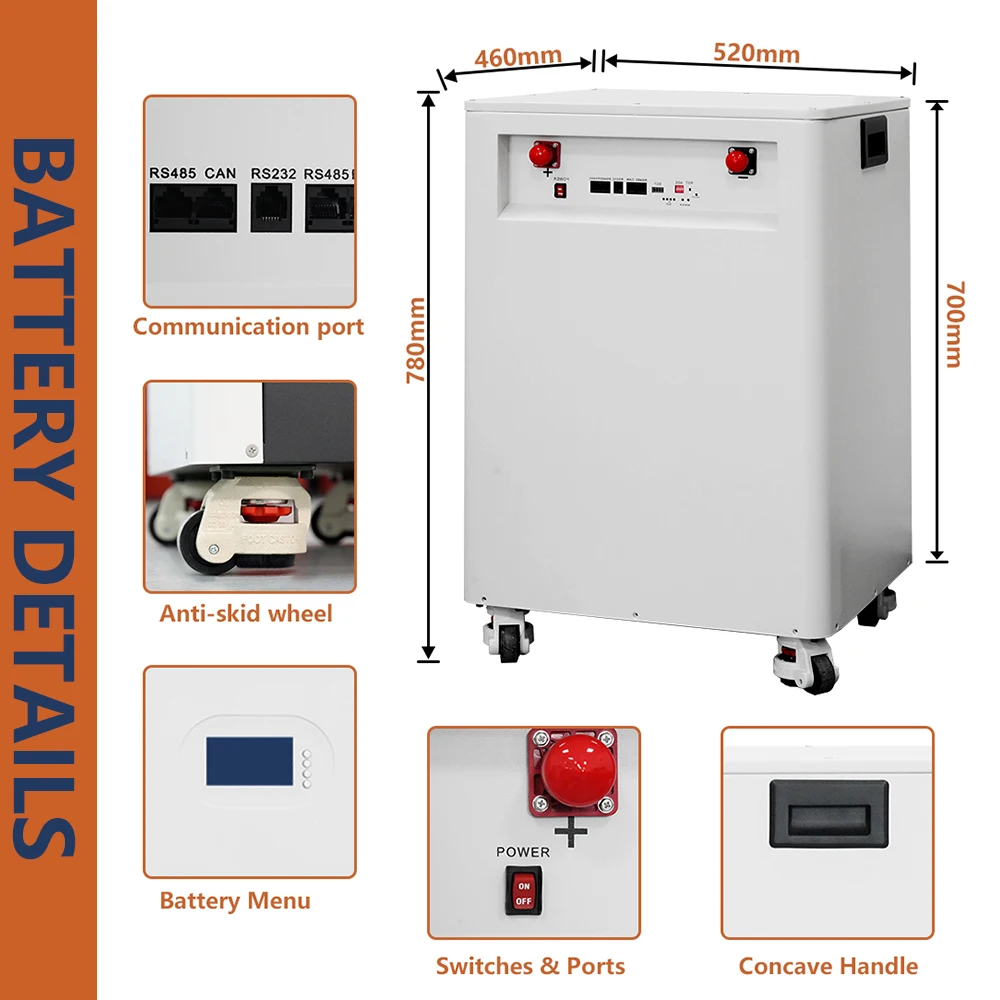

Size: 520x460x780mm

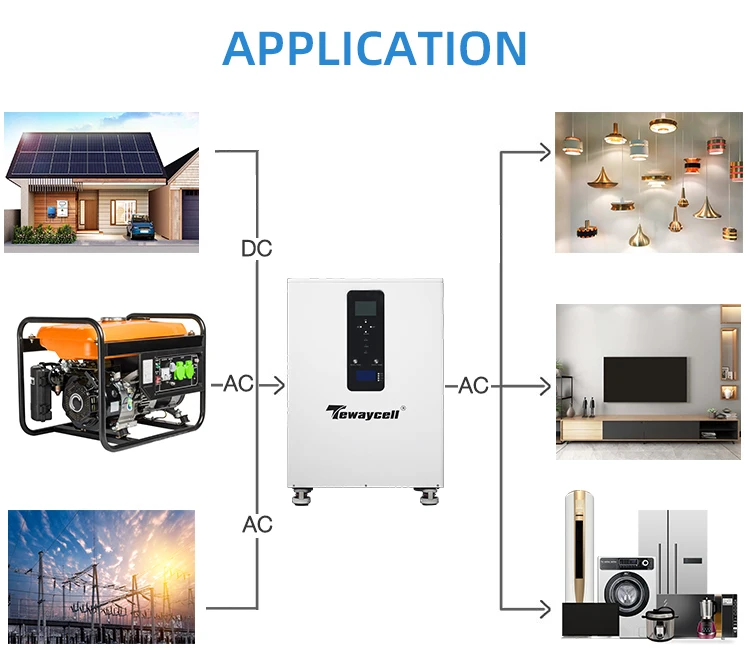

Application: Household energy storage
Model Number: TW-AO-MB51400-10KW-EU
Type: LiFePO4
Brand Name: Tewaycell
Origin: Mainland China
Certification: CE
Rated Voltage: Others
BMS: 16S 200A
Energy: 20480Wh
Output: 10KW

EU NO VAT

1. This battery is transported to the EU and the US without the customer paying tariffs.
2. Customers in the EU do not need to pay VAT.
3. Because it is a super large product and super power battery, our transportation will arrive at the destination port by sea and then be transported to the customer's location by truck.
It takes about 45 days to deliver.
4. European islands don't support delivery.

Product Specification

DATA SHEET
Model	TW-AO-MB51400-10KW	TW-AO-MB51314-10KW		TW-AO-MB51628-10KW

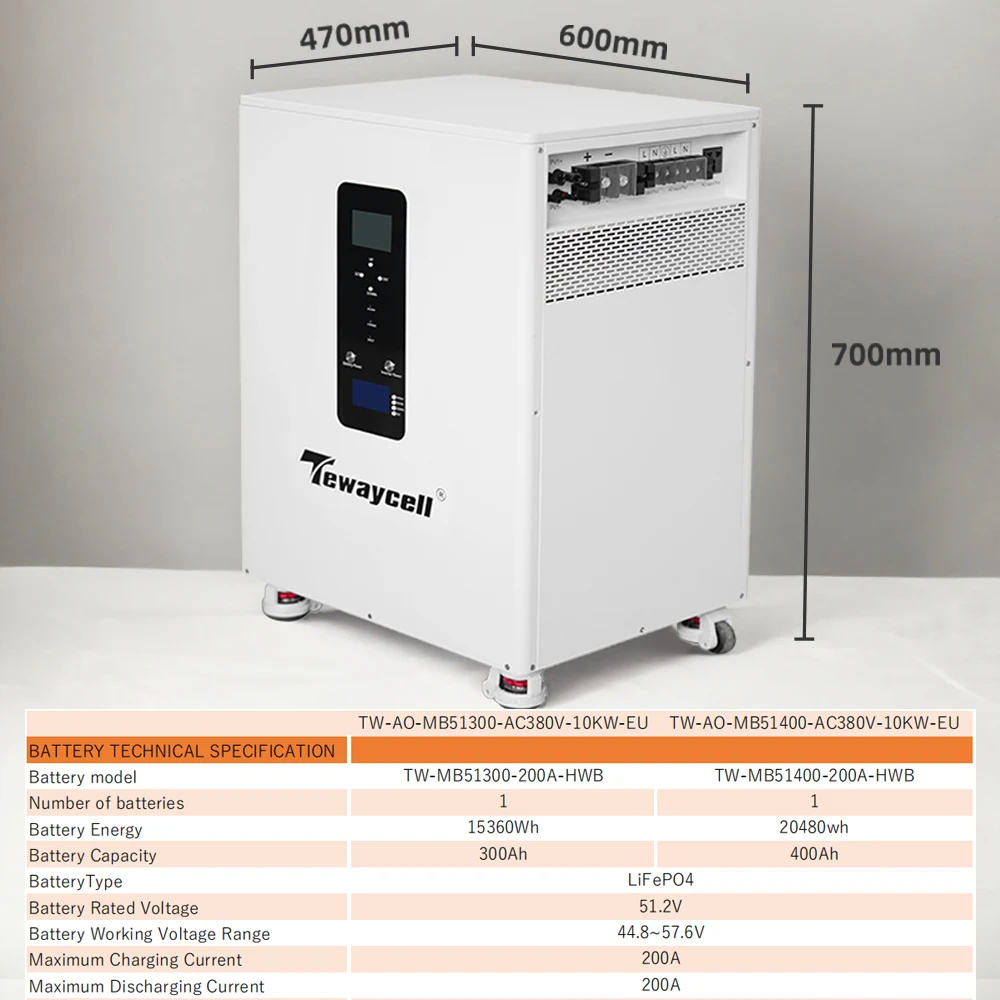

BATTERY TECHNICAL SPECIFICATION
Battery type	LiFePO4
Cell Grade	DEJIN Brand New, Grade A+
Nominal Voltage	51.2V
Cells Capacity& Combination	200AH, 16S2P	314AH, 16S1P		314AH, 16S2P
Nominal Capacity	400AH	314AH		628AH
Nominal Energy	20480Wh	16,076.8Wh		32,153.6Wh
Cycle life	6000+ @0.2C, 25℃, 80% DOD
Max. Continous Output Power	10000W
Max. Charge Voltage	57.6V
Discharge Cut-off Voltage	43.2V
Max. Continue Charge Current	200A
Max. Continous Discharge Current	200A
Max.Pulse Current	400A(<1S）
Charge Temperature	0℃~55℃
Discharge Temperature	-20℃~60℃
Fire Extinguisher	Yes(Temperature controlled )
Active Balancer	Yes
Communication Ports	RS485*3/CAN/RS232

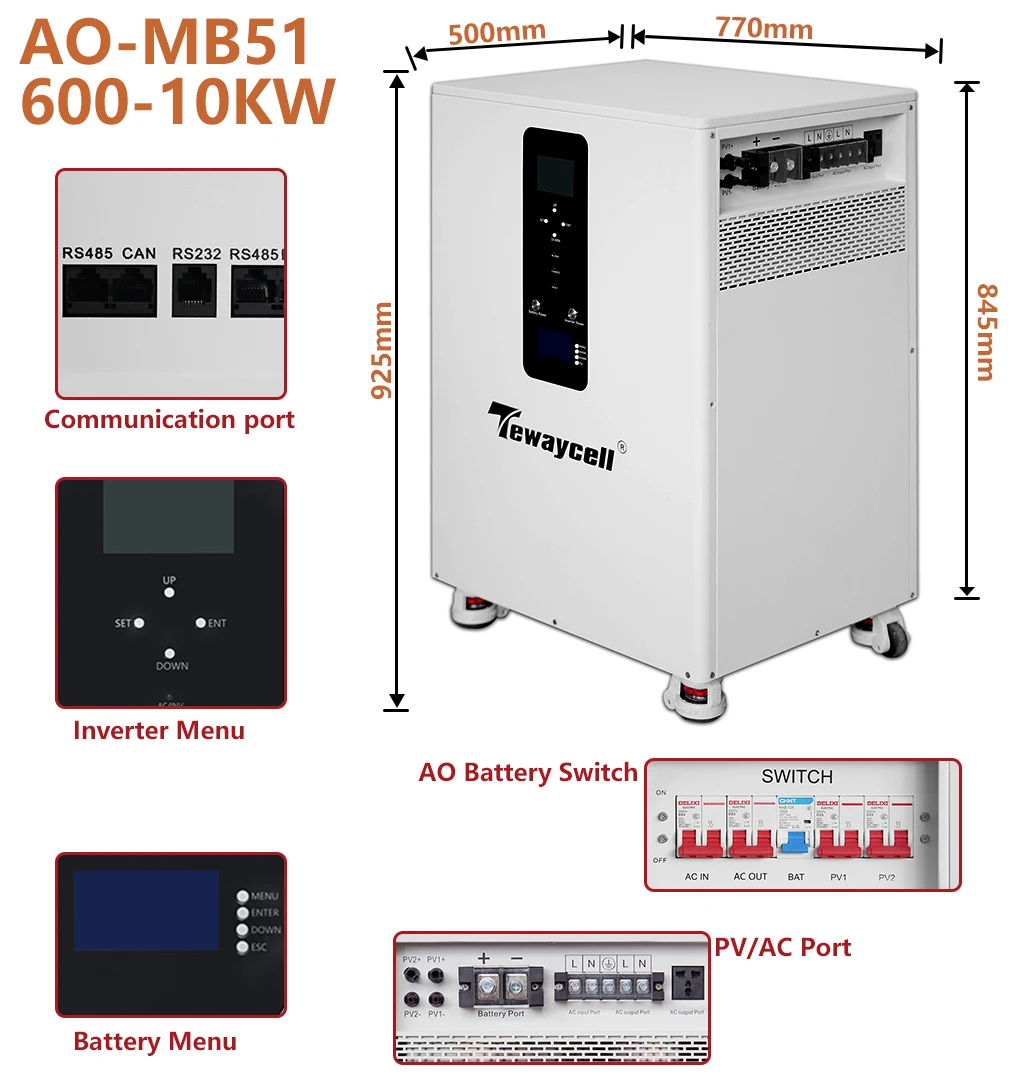

Net weight	220 Kg	175 Kg		272 Kg
Gross weight	238 Kg	195Kg		305 Kg
Dimensions(HLW)	800×600×470 mm	600660470 mm		770500845 mm

INVERTER TECHNICAL SPECIFICATION
INVERTER OUTPUT	EU Version		US/CA Version
Rated Output Power	10000W
Max. Peak Output Power	20000W
Rated Output Voltage	230Vac (L1/N/PE single-phase)		120/240Vac (L1/L2/N/PE split phase)
Load Capacity of Motors	6HP
Rated AC Frequency	50/60Hz
Waveform	Pure Sine Wave
Switch Time	10ms (typical)
Parallel Capability	6 units maximum(3 phases available)		Not available
PV INPUT
Num. of MPP Trackers	2
Max. PV array power	11000W
Max.input current	22A
Max.Voltage of Open Circuit	500Vdc
MPPT Voltage Range	125-425Vdc
AC INPUT	EU Version		US/CA Version
Input Voltage Range	90-270Vac		90-140Vac
Frequency Range	50/60Hz
Bypass Overload Current	32A		63A
GENERAL PARAMETER
MPPT Tracking Efficiency	99.90%
Battery Inverter Efficiency	>92.00%
Protection Degree	IP20，Indoor Only
Operating Temperature Range	-15~55℃,>45℃ derated		5~131℉，>113℉ derated
Noise	<60dB
Cooling Method	Internal Fan
Warranty	5 Years
Inverter Communication Interfaces	RS485 / CAN / USB / Dry contact
Battery Communication Interfaces	RS48/CAN/RS232
External Modules (Optional)	Wi-Fi / GPRS

Product（20KWH No inverter)

NOTICE

1,Do not immerse the battery in water or allow it to get wet.
2.Do not use or store the battery where is exposed to extremely hot.
3.Do not use battery in the strong electrostatic and magnetic field, otherwise probably the battery safety.
4.Do not reverse the positive (+) and negative (-) terminals，prevent reverse connection.
5.Charge with specified charge according to charging requirement.
6. Please use the connection between inverter and MPPT correctly. If there is any technical problem, please contact Tewaycell in time, 24 hours online.
